Product Type	Vacuum Cleaner Accessory - Water Tank
Brand	Roidmi
Model	Water Tank
Color Options	White / Black
Water Tank Capacity	160 ml
Net Weight	Approx. 110 g
Material	Plastic
Compatibility	Roidmi vacuum cleaners with brush cover plate and magnetic suction
Installation Method	Magnetic adsorption onto brush cover plate; percolation filter snaps in
Usage	Suitable for dust removal and wiping on floor tiles
Maintenance Interval	Clean water tank every 3 months
Percolation Filter Replacement	Every 1-3 months, depending on use
Mop Replacement	As needed, when dirty or worn
Safety Precautions	Do not trample (max force 60 kg); do not lift brush over 30 cm; not for use on carpets
Warranty Period	Water tank: 24 months; percolation filter and mop: no warranty (consumables)
Consumables	Percolation filter and mop included; replace regularly
Included Accessories	Water tank, percolation filter, mop

Frequently Asked Questions - Water Tank Roidmi

How do I install the water tank on my Roidmi vacuum?

First, install the percolation filter by pressing it into the water tank until it clicks. Then, stick the mop onto the water tank. Fill the tank with clean water and close the lid tightly. Finally, connect the water tank to the brush cover plate using the magnetic suction; ensure the rotating rod has a slight inclination angle.

How do I refill the water tank?

Open the water tank cover, adjust the water flow velocity if needed, and slowly inject clean water until full. Close the cover tightly to prevent air flow and excessive water percolation.

Can I use the water tank on carpets?

No, the water tank is designed only for hard floor surfaces like floor tiles. It should not be used on carpets, fabrics, or similar materials.

How often should I clean the water tank?

It is recommended to clean the water tank every 3 months. Fill it with clean water, shake it, and pour out the dirty water. Repeat several times until residual scales are removed.

Why is no water coming out of the water tank?

Possible causes: the percolation filter is blocked (replace it) or the mop is dirty (clean or replace the mop). If the problem persists, contact customer service.

How do I replace the percolation filter?

Use the tip of a cleaner tool to clamp into the disassembly joint of the percolation filter and lift slightly to remove it. Then, press a new filter into the water tank until it clicks.

Is the mop reusable or washable?

Yes, the mop is washable. It is recommended to clean it after each use to ensure proper water flow. Replace it when it becomes too dirty or worn.

What is the warranty period for the water tank?

The water tank itself has a warranty of 24 months from the date of purchase or delivery. The percolation filter and mop are consumables and have no warranty period.

Can I use cleaning solutions or chemicals in the water tank?

The manual only specifies using clean water. Using cleaning solutions may damage the tank or affect performance. It is recommended to use only clean water.

How do I remove the water tank from the vacuum?

The water tank is attached via magnetic suction. To remove it, simply lift it off the brush cover plate. If the percolation filter needs replacement, use a tool to lift it out as described in the manual.

USER MANUAL Water Tank Roidmi

Water Tank Use Manual

Read before use and keep it well for future reference.

FOIDMI

Safety Precautions

Please read carefully before use.

Warning: To avoid any damage or unnecessary loss, please read the precaution carefully before use. It has two important parts about safety of use, "Warning" and "Attention", please follow it closely.

Warning

Notices that can lead to death or serious injury

Attention

Notices that can lead to slight injury or product damage risk

Warning

1. When charging or not using the vacuum cleaner, remove the water tank, pour out remaining water in the water tank and clean the mop to avoid mildew or odor.
2. It is suggested to clean the mop after each use to ensure the water can flow out and best cleaning. If necessary, replace with the new mop.
3. The water tank is made of plastic. It will break when the force is over 60kg. Please don't trample on it.
4. Do not put soft and viscous bulk objects such as wool, hair, bulk cotton floss, dough and chewing gum into the water tank.

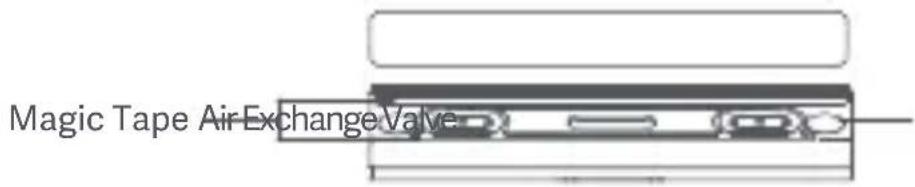

Product Introduction

Water Tank Cover

Water Tank

Simple line drawing of a cabinet with an open lid and a curved top panel (no text or symbols)

Fixed Magnetic Absorber

Water Tank

Percolation Filter

Wiping Strap

Mop

Empty rectangular frame with no text, symbols, or markings

Product Installation and Removal

Installation of Water Tank

Step 1: Install the percolation filter of the water tank.

When replace percolation filter, please press it into the water tank until you hear it clicks. the percolation filter of the water tank you received has been installed before delivery.

Diagram showing two identical devices with downward arrows pointing to their respective parts (no text or symbols present)

Step 2: Stick the mop

Attention

1. The mop is consumables, please replace it regularly.

Step 3: Water injection

Open the cover of the water tank and adjust the water flow and velocity properly before water injection, slowly inject clean water until the tank is full and cover the water tank. Make sure to cover the water tank tightly, in case air flow and too fast water percolation.

Line drawing of a kitchen sink with water drop and drain pipe (no text or symbols)

Warning

1. Be sure to cover the water tank tightly to avoid air flow and too fast water percolation.

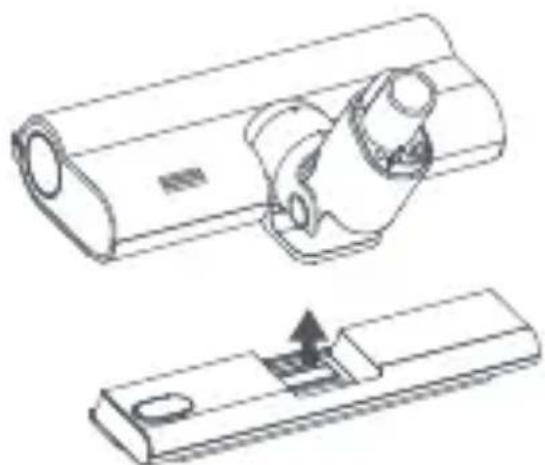

Step 4: Connect the brush

The install bayonat of the water tank shall shall be connected the brush under cover's, and the water tank is adsorbed on the brush cover plate through magnet suction. After finishing the installation, the rotating rod of the brush has a certain inclination angle as below image shown.

Technical line drawing of a mechanical component with two views: top shows a cylindrical part with internal features, bottom shows a rectangular housing with an arrow indicating a cut or assembly (no text or symbols present)

Removal of Water Tank Percolation Filter

As shown below, the tip of the cleaner for product is clamped into the disassembly joint of the percolation filter of the water tank and is lifted slightly to remove it.

Hand using a tool to adjust or install a component on a surface (no text or symbols visible)

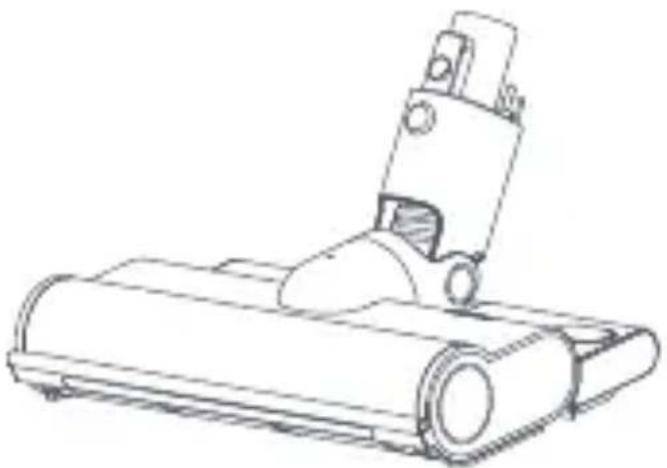

Product Usage

Usage of water tank: Suitable for dust removal and wiping on the floor tile.

Line drawing of a vacuum cleaner with attached mechanical component (no text or symbols)

Attention

1. Do not keep the water tank in one position for a long time during use, in case water accumulated on the floor.
2. Do not lift the brush over 30 cm in height when moving; in order to prevent the water tank from falling and hurting the objects on the ground.
3. The water tank can not be used for the carpets, fabrics etc.

Product Cleaning

Water Tank Maintenance: It is recommended to clean the water tank every 3 months. Water tank with clean water and cover the water tank, shake the water tank, pour out the dirty water. Please repeat this step several times until the residual scales in the water tank are cleaned up.

Water Tank Percolation Filter Maintenance: It is recommended to replace the water tank percolation filter every 1-3 months, remove the water tank percolation filter for cleaning or replacement, and the specific replacement frequency depends on the actual use.

Faults Exclusion

When the water tank can't operate normally, please remove malfunction by consumers themselves or contact the customer service in time.

Fault Description Fault Causes Solutions
No Water Percolation of Water Tank	The percolation filter in watertank is blocked	Replace the water tank percolation filter specified by the manufacturer
	The mop is dirty	Clean the mop. Replace the mop specified by the manufacturer if necessary

Basic Specifications

Product Name Water Tank		Product Color	White/Black
Water Tank Capacity	160ml	Product Net Weight	About 110g

Product Hazardous Substances Declaration

This form is prepared in compliance with SJ/T 11364.

○: Indicates the hazardous substance in all homogeneous materials of the component is below the limit specified in GB/T 26572.

x: Indicates the hazardous substance in at least one homogeneous material of the component exceeds the limit specified in GB/T 26572.

This product meets RoHS environmental protection requirements. At present, there is no proven technology in the world to replace or reduce the lead proven in electronic ceramics and copper alloys. The term of environmental protection marked on this product refers to that under normal use, the harmful substances or elements product contains will not leak out.

Warranty Discription

The warranty period shall take effect from the date of purchase or the date of delivery (if the delivery date is a little later than the purchase date).

Keep your purchase invoice or relevant certificates as an important basis for the warranty service.

Warranty Content

Type	Warranty Contents	Warranty Time
Water Tank	Water Tank	24 months
	Water Tank Percolation Filter Element	Consumable materials delivered with the product, no warranty period
	Mop	Consumable materials delivered with the product, no warranty period

This policy may be updated from time to time to the extent permitted by law. For details, contact the local dealer.

Water Tank Product Performance Fault List

Name	Performance Fault
Water Tank	No water percolation under normal use
	The wiping strap does not work under normal use

Water Tank Product Warranty Card

User Name		Product Name and Model
Communication Address		Product Main Machine Serial No.
Contact Information		Purchase Date

This warranty card contains personal information of consumers, please keep it properly.

Water Tank Product Maintenance Record

Maintenance Center
Fault Description
Accessory Replacement
Maintenance Engineer
Maintenance Date

Manufacturer: ROIDMI Information Technology Co., Ltd.

Address: 4F,C8 Building,No.1699 Huishan Road,Life Science and Technology

Park,Huishan District,Wuxi,Jiangsu,PRC

Executive Standard:Draft EN 301 489-1:V2.2.0:2017 Draft EN 301 489-17:V3.2.0:2017

EN 300 328 V2.1.1:2016 EN60335-1:2012/A13:2017 EN 60335-2-2:2010/A1:2013

EN 62233:2008 EN 62479:2010 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014

EN 61000-3-3:2013

Service Email : [e-mail]

Enterprise website: www.roidmi.com/en

Version: V2.0, 03.2020
