Product Type	Electric Griddle / Mini Pancake Baker
Model Number	680255
Capacity	100 mini pancakes per batch
Dimensions (H x W x D)	17 x 60 x 55 cm
Power	3000 W
Voltage	230 V
Frequency	50 Hz
Temperature Range	Adjustable up to 250°C (±5% deviation)
Heating Time	Approximately 12 minutes to reach 250°C
Timer	Yes, with audible alarm (2-5 minutes typical)
Indicator Light	Orange light illuminates when heating
Control Type	Thermostat knob and main power switch
Power Cord	Requires grounded socket; do not use extension cord
Safety Features	Thermal cut-off via thermostat; auto shut-off when not in use? (manual switch off required)
Cleaning Method	Wipe with warm water and mild detergent; do not immerse or use abrasive cleaners
Maintenance	Vacuum ventilation grille; store in dry place; professional repair only
Accessories	Baking figures for mini pancakes
Warranty	Damages from improper use void warranty
Compliance	CE certified (refer to type plate)
Type Plate Location	Back of the device

Frequently Asked Questions - 680255 CaterChef

How do I use the CaterChef 680255 griddle for the first time?

Before first use, remove all packaging and clean the device with warm water, a damp cloth, and mild detergent. Dry thoroughly. Then, paint a layer of vegetable baking oil over the baking tray. Turn on the main switch, rotate the thermostat clockwise to set the desired temperature, and wait about 12 minutes for it to heat up. The orange indicator light will turn off when the set temperature is reached.

What is the maximum temperature and how is it controlled?

The temperature can be adjusted up to 250°C via the thermostat knob. The thermostat maintains temperature within ±5% deviation. The orange indicator light shows when the heating elements are active.

Can I use the timer to control the heating?

No, the timer does not control the heating elements. It serves as a reminder only. Set the timer for 2-5 minutes for mini pancakes; an audible 'ting' sounds when time is up.

How do I clean the griddle after use?

After use, turn off the device and unplug it. Allow it to cool for at least 30 minutes. Clean with warm water and a mild detergent using a soft cloth. Do not immerse in water or use abrasive cleaners like steel wool or scouring powder.

What safety precautions should I follow?

Always place the griddle on a heat-resistant, stable surface away from walls (min 20cm back, 10cm sides). Do not use with an extension cord or share a socket with other devices. Keep away from children during operation and cooling. Always unplug after use.

Why is my griddle not heating up?

Check that the plug is securely inserted into a grounded socket and the main switch is on. If the cord is damaged, contact a professional. Also ensure the thermostat is turned clockwise past the minimum setting.

Can I repair the griddle myself?

No, do not attempt to repair the appliance yourself. Any repairs or replacements (including the power cord) must be carried out by a professional electrician to avoid electrical hazards.

How do I store the griddle?

Store the griddle indoors in a dry, well-ventilated area. Avoid exposure to rain or moisture. Keep it packed or covered to prevent dust accumulation.

What is the warranty coverage?

The warranty is void if damage results from not following the manual's instructions. For warranty claims, refer to the type plate for purchase date (PO) and serial number (SN). Contact your dealer.

How should I dispose of the griddle when it's no longer usable?

Do not dispose of it with household waste. Follow the WEEE directive: take it to a designated collection point for waste electrical and electronic equipment.

USER MANUAL 680255 CaterChef

MINI PANCAKE BAKING APPLIANCE

Modelnr.: *680.025 - *680.125 - *680.250 - *680.255

Collection of various Colorado Plateau electric heating units with control knobs and gauges (no visible text or labels)

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	TYPE	PRODUCT SIZE (CM)	PRESSURE (V)	HZ	POWER (W)
680.025	25 PCS.	17(H)x37,5x31	230	50	850
680.125	2 x 25 PCS.	17(H)x37,5x62	230	50	1700
680250	50 PCS.	17(H)x37,5x55	230	50	1800
680255	100 PCS.	17(H)x60x55	230	50	3000

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views, the spare part lists and CE-certificates.

TYPE PLATE

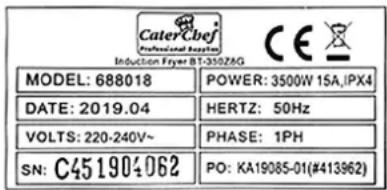

The type plate (the picture is an example) is located on the back of the device. You are requested not to remove it.

The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty. It also contains important information such as the voltage and power

supply which determines the ability to connect the device safe.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 10cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
4. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.

5. Do never cover the appliance with foil; this could cause overheating and therefore danger.

6. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected.

7. Never put the plug in the socket with wet hands.

8. When disconnecting the device from the power, never pull from the cord, only the plug.

9. The power pressure of this equipment should conform to the supply voltage of this product.

10. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.
11. Before usage, this equipment must be connected (safe) to a grounded socket.
12. Before starting up, you should check whether the socket you want to use is grounded.
13. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.
14. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.
15. Never use other parts than the ones which are from CaterChef. CaterChef is not taking any responsibility for damage caused by the use of other (non-related) parts.
16. If you need to (re)connect, repair or maintain the appliance, do not do this by yourself. This is forbidden. This must always be done by a professional electrician.
17. If there are any abnormal phenomenons during usage, you must stop the appliance directly. After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.
18. During operation or cooling down: always keep the appliance out of reach of children. This, mainly to prevent burning injuries.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

SAFETY INSTRUCTIONS:

1. The thermostat is placed in the front of the product, and it's used to control the temperature of the heating elements.
2. Turn on the power with the mainswitch and rotate the thermostat clockwise. Then aim the required temperature value to the required temperature place. At this time, the orange indicator light is on and the heating tube starts to work. As soon as the temperature rises to the required temperature, the thermostat will cut off the power source automatically. At the same time the indicator light is off and the heating tube stops operating.
3. The appliance needs at least 12 minutes from pressing the power switch on, to heat the thermostat up to 250^ C.
4. The temperature can be adjusted in-between a range of 25^ C ±5%.
5. Before you use the appliance, please make sure it reached it's correct temperature.
6. The timer does not control the heating elements.
7. Paint a layer of vegetable baking oil over the top of the baking tray. You can use the timer to improve the quality of your food. When you set the timer on about 2\~5 minutes, the mini pancakes will be ready to serve. When the timer has finished it's time, it will make a sound like 'Ting'. When the food is ready, the user needs to cut the appliance from the power.

8. If the temperature of the stove plate falls down slightly, the thermostat will be powered on automatically and the orange indicator light is shining again. The heating tube continues heating and the temperature of the stove plate will rise. After having completed this process a number of times it can guarantee the constant temperature of the stove plates within the specified range.

9. Never leave the surroundings of the appliance during operation.

10. Never move the appliance during its operation.

11. Never touch the appliance (besides the control panel) during its operation.

12. The appliance should be used following its design. Only use the baking figures to prepare your mini pancakes or quail eggs.

13. Cooling down: After usage (and after turning thermostat back to 0 and turning the switch OFF), the appliance needs to cool down for a minimum time of 30 minutes. To prevent any burning injuries or other danger, do not touch, move or use the appliance during this period of time.

14. After usage, turn off the switch.

15. After usage the electricity needs to be cut from the socket to prevent fire hazard.

This to prevent short circuit or danger.

1. When you move the product from its place, always pick it up from the lower side of the appliance.

Never pick it up from the upper side (baking tray) to prevent any damage to the appliance.

CLEANING AND MAINTENANCE:

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.

Step 2: Clean the parts and the device with warm water, a wet cloth and a small amount of cleaning-detergent and then dry it thoroughly. Do not use benzine, thinner, scouring brush or polishing powder to clean the device.

- Pay attention! Do not rinse the device with water (don't wash it by using the tap).

This could cause damage to the device and could therefore lead to dangerous situations;

- Never clean the device with a stainless steel brush. This causes scratches and damages to the device;

- Use a vacuum cleaner to (gently) remove dirt and debris from the air-ventilation-grille;

• Always store the appliance inside and keep it dry;

- Before maintaining the appliance, always make sure you have removed the plug from the socket.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;

2. Whether the plug and / or the cord is damaged.

If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
