Product Type	Salamander (Grill/Oven)
Model Number	688.003
Voltage	220-240 V~
Frequency	50/60 Hz
Power	2000 W (2 kW)
Temperature Range	50°C to 300°C
Timer Range	0 to 15 minutes
Control Type	Thermostat and timer knobs
Indicator Light	Temperature indicator light
Safety Features	Requires grounded socket; overload protection; keep out of reach of children
Installation Clearances	At least 10 cm on sides, 20 cm at back
Cleaning Method	Use damp cloth and mild detergent after cooling; do not use water hose or high-pressure cleaner
Maintenance	Do not use abrasive brushes; vacuum air vent grille
Storage Conditions	Store indoors in a dry place
Transport Precautions	Do not place upside down; protect from rain and vibration
Warranty Information	Damage from improper use invalidates warranty
Disposal	Comply with WEEE directive; do not dispose with household waste
Spare Parts Availability	Exploded views and spare parts lists available at www.emga.com
Type Plate Location	Located on device; do not remove

Frequently Asked Questions - 688003 CaterChef

How do I set the timer on the CaterChef 688003?

Turn the timer knob clockwise to set a time between 0 and 15 minutes. To turn off manually, turn it counter-clockwise to the '0' position. Always unplug after use.

What temperature range does the salamander operate at?

The temperature range is 50°C to 300°C, controlled by the thermostat knob.

How should I clean the salamander?

After use, switch off and unplug. Wait for it to cool down. Then use a damp cloth with mild detergent. Do not use a water hose, high-pressure cleaner, or stainless steel brush. Vacuum the air vent grille gently.

What should I do if the appliance does not work?

Check if the main switch is on and if the thermal safety has tripped. Allow it to cool and restart. Verify the plug and cord are not damaged. If problems persist, contact your local dealer or authorized technician.

Can I use an extension cord with this salamander?

No. Never plug the power cord into an extension cord or a wall outlet connected to multiple devices. This could cause overheating or short circuit.

How should I store the salamander when not in use?

Store the appliance indoors in a dry place. Ensure it is completely cool and dry before storing.

What clearance is required around the appliance during operation?

Maintain at least 10 cm clearance on the left and right sides, and 20 cm clearance at the back. Do not place anything in front that could obstruct operation.

What does the temperature indicator light mean?

The temperature indicator light is on when the heating elements are active. It turns off when the desired temperature is reached.

Does the salamander need a grounded outlet?

Yes. Before use, ensure the socket is grounded and the appliance is connected safely to a grounded outlet for protection.

How do I properly dispose of this appliance?

Follow the WEEE directive (Waste of Electrical and Electronic Equipment). Do not dispose with household waste. Take it to a designated WEEE collection point.

USER MANUAL 688003 CaterChef

SALAMANDER

Model: *688.003

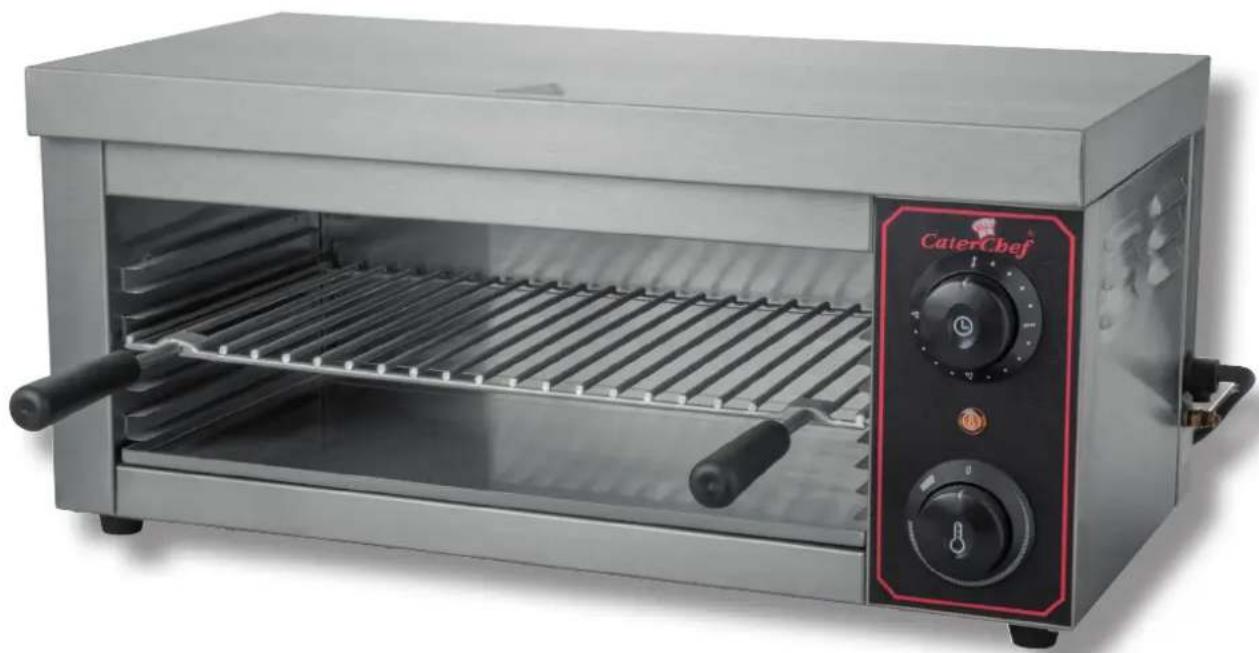

Exterior view of a Cater Chef electric grill with grating and control knobs (no text or symbols on main body)

3. PROBLEEM OPLOSSING

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	TYPE	TIMER	VOLTAGE	HZ	POWER (W)
688.003	50~300°C	15 MIN	220~240 V 50~60 Hz 2 kW

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views and the spare part lists.

TYPE PLATE

MODEL: 688018	POWER: 3500W 15A,IPX4
DATE: 2019.04	HERTZ: 50Hz
VOLTS: 220-240V~	PHASE: 1PH
SN: C451904062	PO: KA19085-01(#413962)

supply which determines the ability to connect the device safe.

The type plate (the picture is an example) is located on the device. You are requested not to remove it.

The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty. It also contains important information such as the voltage and power

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 10cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
4. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.
5. Do never cover the appliance with foil; this could cause overheating and therefore danger.
6. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected. Never put the plug in the socket with wet hands.

7. When disconnecting the device from the power, never pull from the cord, only the plug.

8. The power pressure of this equipment should conform to the supply voltage of this product.

9. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.

10. Before usage, this equipment must be connected (safe) to a grounded socket.

11. Before starting up, you should check whether the socket you want to use is grounded.

12. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.

13. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.

14. Never use other parts than the ones which are from CaterChef. CaterChef is not taking any responsibility for damage caused by the use of other (non-related) parts.

15. If you need to (re)connect, repair or maintain the appliance, do not do this by yourself.

This is forbidden. This must always be done by a professional electrician.

1. If there are any abnormal phenomenons during usage, you must stop the appliance directly.

After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.

1. During operation or cooling down: always keep the appliance out of reach of children.

This, mainly to prevent burning injuries.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

REGULAR USE:

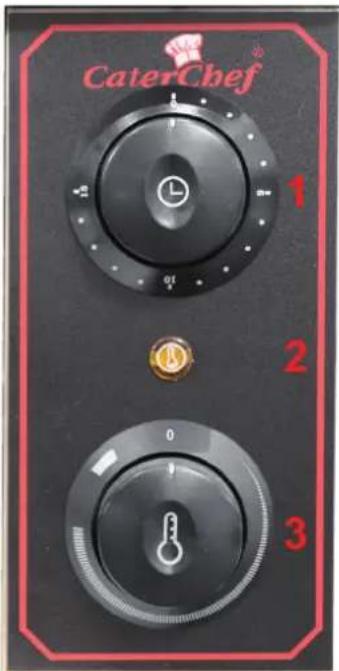

The control panel

1. Timer (0\~15 min.)
2. Temperature indicator light
3. Temperature controller (50°C\~300°C)

Figuur 1: The control panel

4. Turn on the convection oven

• Set the timer knob to the cooking time according to the time you are going to cook.
• The thermostat can be used to automatically set a constant temperature between 50°C and 300°C.
• Set the timer by turning it clockwise. Set the temperature control to the desired temperature. The temperature light, (timer indicator light), and the inside lamp are on. The temperature light will be off when the temperature rises to the desired temperature.

5. How to use the timer.

• The timer can be set between 0\~15 minutes
- Set the timer by turning it clockwise.

The timer light and the inside lamp are on.

• The desired time depends on the food to be prepared.
- The oven can be turned off manually by turning the timer counter-clockwise to the "0" position.

Only then unplug the power cord.

Do this at all times in the order described. This prevents a short circuit or other possible danger.

• When disconnecting the device, never pull on the cord, only on the plug.
  • To avoid any risk of fire, never leave the plug in the socket after use.
• When moving the appliance, do this by lifting the appliance from the bottom.

CLEANING AND MAINTENANCE:

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.
Step 2: Do not clean the salamander until it has cooled down. Do not use aggressive cleaning agents when cleaning. The salamander must not be cleaned with a high-pressure cleaner or with a water hose. First use a dry cloth to remove most of the dirt from the oven cavity and then a damp soft cloth to clean the rest. Do not use a water hose to clean the oven interior. Remove the shelves and/or baking trays and clean them well with a non-aggressive cleaning agent. When the racks and/or baking trays are clean and dry again, they can be placed back in the salamander.

- Pay attention! Do not rinse the device with water (don't wash it by using the tap).

This could cause damage to the device and could therefore lead to dangerous situations;

• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
• Use a vacuum cleaner to (gently) remove dirt and debris from the air-ventilation-grille;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

6. TROUBLESHOOTING

Problem Solution
Main switch is on, but the salamander does not work.	Check whether the maximum security has tripped Allow the oven to cool down and turn it back on.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;
2. Whether the plug and/or the cord is damaged.

If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
