USER MANUAL 688450 CaterChef

KERAMISCHE CONTACTGRILL

CERAMIC CONTACT GRILL

Model: *688.450 - *688.455 - *688.460

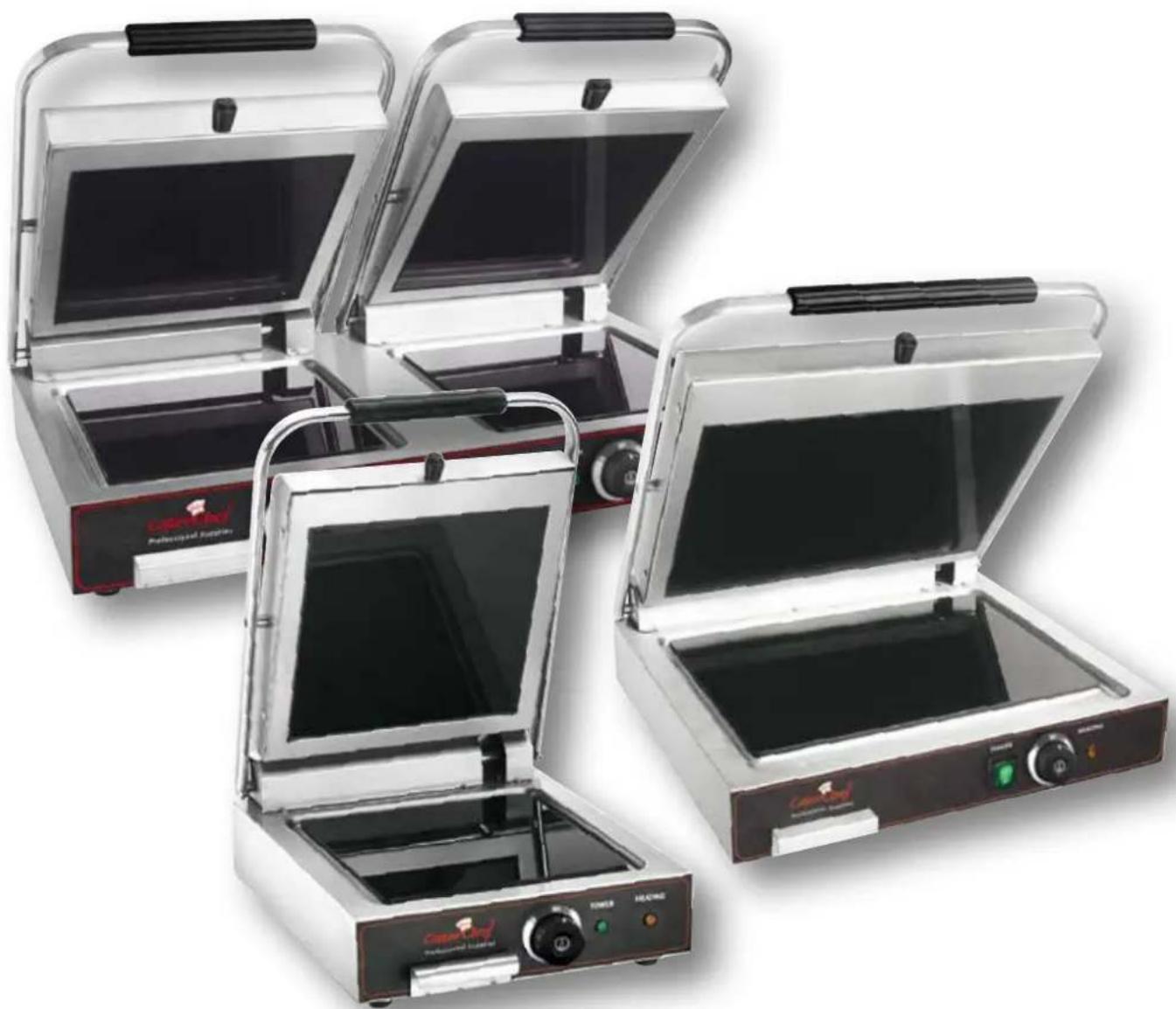

Four open industrial oven units with black and red labels, no visible text or symbols on the devices themselves.

GEBRUIKSAANWIJZING

USER'S MANUAL

Before starting up, please read this manual carefully in order to ensure the correct and safe installation and usage. Damage caused by not following the instructions of this manual will always invalidates the warranty. CaterChef would like to emphasize that this instruction manual needs to be readed carefully before usage and should be stored for later use.

TECNICAL SPECIFICATIONS:

MODEL	TYPE	VOLTAGE	HZ	POWER (W)
688.450	50~400°C 230 V	50~60 Hz 1,60 kW
688.455	50~400°C 230 V	50~60 Hz 3,20 kW
688.460	50~400°C 230 V	50~60 Hz 2,92 kW

For more information we would like to ask you to go to our website www.emga.com.

You could for example search on item nr. and go to downloads.

Here, you will be able to find more information like the exploded views and the spare part lists.

TYPE PLATE

The type plate (the picture is an example) is located on the device.

You are requested not to remove it.

The type plate can for example be used to determine, when the item was purchased (view PO) and from which production line (view SN) it originates. This information may be essential with regard to warranty.

It also contains important information such as the voltage and power

supply which determines the ability to connect the device safe.

TRANSPORT AND STORAGE:

As long as the products are packed, please make sure you never place them upside down. This could damage the appliance. During transport, the product should be placed carefully. Make sure you prevent any drastic vibration during transport. You should never place or store this product outside or in open air for a longer period of time than a few hours (not even packed). It should be stored in a well-ventilated warehouse without corrosive

gasses. When, in case of an emergency, you need to store them temporarily outside, you should take measures to protect them from rain or moisture.

SAFETY PRECAUTIONS AND USAGE ENVIRONMENT:

1. Remove all packaging material and any protective film from the device.
2. This product should be placed in a balanced and well ventilated spot and its left and right sides should be free from obstacles for more than 10cm. It's back-side should be free from the obstacles (like a wall etc.) for more than 20cm.
3. During operation, do not place any stuff in front of the appliance to make sure it could be operated at any time needed.
4. Do not place the appliance on a carpet, a tea towel, tablecloth (vinyl) or another surface that cannot withstand high temperatures. This could cause fire hazard.

5. Do never cover the appliance with foil; this could cause overheating and therefore danger.

6. Never plug the power cord into an extension cord or wall outlet to which multiple devices are connected. Never put the plug in the socket with wet hands.

7. When disconnecting the device from the power, never pull from the cord, only the plug.

8. The power pressure of this equipment should conform to the supply voltage of this product.

9. The user should install the suitable power switch, fuse and leakage-protector near to the equipment.

10. Before usage, this equipment must be connected (safe) to a grounded socket.

11. Before starting up, you should check whether the socket you want to use is grounded.

12. Ensure whether all the connections of all the electric elements of the product are firm or not, and whether the safety grounding is reliable or not.

13. When you change the power cable, you should select the same model cable and: it is only allowed to let a professional electrician do this.

14. Never use other parts than the ones which are from CaterChef. CaterChef is not taking any responsibility for damage caused by the use of other (non-related) parts.
15. If you need to (re)connect, repair or maintain the appliance, do not do this by yourself. This is forbidden. This must always be done by a professional electrician.
16. If there are any abnormal phenomenons during usage, you must stop the appliance directly. After checking you can continue to use it as long as it is safe. Do not repair the appliance by yourself. This should always been done by a technical professional.
17. During operation or cooling down: always keep the appliance out of reach of children. This, mainly to prevent burning injuries.

DEGREASE:

Before operating for the first time, clean the device with warm water, a wet cloth and a small amount of detergent. Do not rinse the appliance under the tap, this could cause serious damage to the appliance. In addition, make sure that you have dried it properly before you start operating the device.

REGULAR USE:

1. Never use pots and pans on the glass ceramic surface. The grill surface was designed to cook food, not to heat pots.

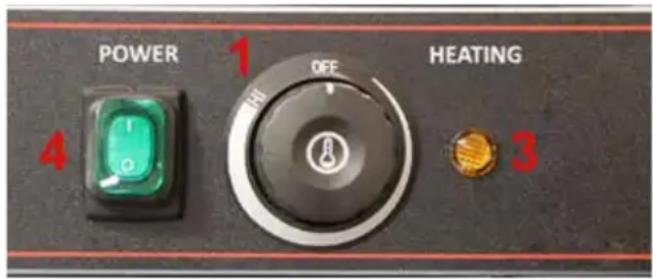

Figure 1: Control panel 688450/688455

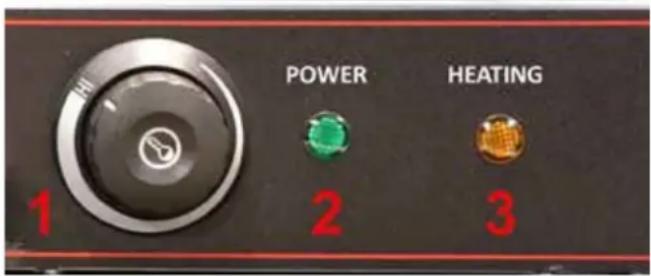

Figure 2: Control panel 688460

2. The control panel

1. Temperature controller (50°C\~400°C)

2. ON/OFF indication bulb

3. Indication bulb of the temperature

4. ON/OFF switch

3. Turn the convection oven on

• The thermostat can be used to automatically set a constant temperature between 50°C and 400°C .
• Set the temperature control to the desired temperature.

The temperature light, is on.

The temperature light will be off when the temperature rises to the desired temperature.

1. Temperature light - When the light is on, the grill is generating heat.

2. When the light is off, the set temperature has been reached.

3. You will notice the light cycling on and off during the cooking process.
4. When the light is on, the grill is supplying more heat to the grilling surface.

5. When it is off the grill has reached the set temperature.

6. Power light - When the light is on, the grill supplies power.

7. Power switch (only model 688.460) - Turn the switch, the power of the grill is on.

8. Thermostat - Turn the dial clockwise to set the desired grilling power.
9. The Contact Grill preheats within a few minutes. To preheat the grill, simply set the desired cooking temperature and close the top. You will notice the temperature light illuminates, this indicates that the power is going to the grill. Your grill will be preheated and ready to start cooking in about 2 or 3 minutes. When the power light is no longer illuminated, the grill is ready for usage.
10. Sandwiches will usually take between 2 - 5 minutes to heat throughout. The cooking time depends upon the bread you use and the ingredients you have chosen for your sandwich.

Your Deli supervisor can determine the proper times and temperatures.

1. Light pressure is all you need when lowering the top grill to assure a perfectly cooked sandwich. Excessive pressure will not speed up the cooking process and product quality may be compromised.

2. To keep your grill clean between sandwiches, simply wipe the grill surfaces with a clean oiled paper towel.

3. Rapid Preheat - The Glass-Ceramic Contact Grills preheats very quickly. It is not necessary to leave your Contact Grill on throughout the service period.

4. The residue should be emptied into the drip tray under the grill through the opening at the front of the Contact Grill. Make sure to clean the drip tray regularly to avoid spills.
5. There are many nonabrasive cleaners which are specifically made for ceramic cooking tops on the market today. We suggest to use your choice of nonabrasive cleaner at the end of each day or service period to keep your Contact Grill in top condition.
6. Never use a spray of water or immerse the grill in water. This will damage the electrical components and might create a hazardous condition.

FUNCTIONS

1. With the handle, the distance between the food and the heat source can be adjusted as desired during grilling.
2. The grease tray can be pulled forward for easy cleaning.

CLEANING AND MAINTENANCE:

Step 1: After usage, the device must first be switched OFF, after which you must remove the plug from the socket. Always do this in the order described to prevent short circuit or other possible dangers.
Step 2: Do not clean the appliance until it has cooled down. Do not use aggressive cleaning agents when cleaning. The appliance must not be cleaned with a high-pressure cleaner or with a water hose.

• Pay attention! Do not rinse the device with water (don't wash it by using the tap).
  This could cause damage to the device and could therefore lead to dangerous situations;
• Never clean the device with a stainless steel brush. This causes scratches and damages to the device;
  • Always store the appliance inside and keep it dry;
• Before maintaining the appliance, always make sure you have removed the plug from the socket.

If the appliance does not work or is damaged, check the following:

1. Whether the plug is in the socket;
2. Whether the plug and / or the cord is damaged.
   If it is nr. 2 or if another problem occurs, contact your local dealer or authorized service technician.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
