Product Type	Super Bright LED Spotlight
Brand	Amprobe
Model	FLASH-200SP
LED Type	Osram Cree XRE Q4 LED
Max Light Output (High Beam)	200 lumens
Low Beam Output	20 lumens
Strobe Output	200 lumens
Beam Distance (High Beam)	Up to 350 meters (dark conditions)
Beam Distance (Low Beam)	Up to 50 meters (dark conditions)
Continuous Run Time (High Beam)	Minimum 4 hours
Waterproof Rating	IPX4
Power Source	4 AA rechargeable batteries (included)
AC Power Adapter	Included (for charging)
Vehicle Charger	Included
Dimensions (H x W x D)	170.5 x 184.5 x 88 mm (6.7 x 7.3 x 3.4 in)
Weight	Not specified, approx. 600 g (estimated)
Housing Material	Metal
Switch Type	3-Position Gear Selector + ON/OFF Switch
Warranty	1 year limited warranty
Included Accessories	4 AA rechargeable batteries, AC adapter, vehicle charger, manual

Frequently Asked Questions - FLASH-200SP Amprobe

What is the maximum brightness of the FLASH-200SP?

The FLASH-200SP offers up to 200 lumens on high beam, 20 lumens on low beam, and a strobe mode at 200 lumens.

How far does the flashlight beam reach?

Under dark conditions, the high beam can illuminate up to 350 meters, while the low beam reaches up to 50 meters.

What type of batteries does it use?

It uses 4 AA rechargeable batteries (included). An AC power adapter and vehicle charger are also provided for charging.

Is the flashlight waterproof?

Yes, it has an IPX4 waterproof rating, meaning it is protected against splashing water from any direction.

How long does the battery last on high beam?

The continuous run time on high beam is a minimum of 4 hours.

What is the warranty period?

Amprobe provides a 1-year limited warranty against defects in material and workmanship.

Can I use non-rechargeable AA batteries?

The flashlight is designed for rechargeable AA batteries. Using non-rechargeable batteries may not provide optimal performance and is not recommended.

How do I replace the batteries?

Unscrew the battery cover at the base, insert 4 AA rechargeable batteries into the battery room (observe polarity), and screw the cover back on.

What should I avoid when using the flashlight?

Do not look directly at the LED light, as it can damage your eyes. The flashlight surface may become hot after prolonged use; allow it to cool before handling. Keep away from children.

What accessories come in the box?

The package includes the FLASH-200SP flashlight, 4 AA rechargeable batteries, an AC power adapter, a vehicle charger, and a user manual.

USER MANUAL FLASH-200SP Amprobe

Super Bright LED Spotlight

Users Manual

Limited Warranty and Limitation of Liability

Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Amprobe's behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Repair

All test tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company's name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Amprobe® Test Tools.

In-Warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the warranty period any defective test tool can be returned to your Amprobe® Test Tools distributor for an exchange for the same or like product. Please check the "Where to Buy" section on www.amprobe.com for a list of distributors near you. Additionally, in the United States and Canada In-Warranty repair and replacement units can also be sent to a Amprobe® Test Tools Service Center (see address below).

Non-Warranty Repairs and Replacement – US and Canada

Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and replacement rates.

In USA In Canada

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel: 877-AMPROBE (267-7623) Tel: [phone]

Non-Warranty Repairs and Replacement – Europe

European non-warranty units can be replaced by your Amprobe®

Test Tools distributor for a nominalv charge. Please check the

"Where to Buy" section on www.amprobe.com for a list of distributors near you.

European Correspondence Address*

Amprobe® Test Tools Europe

In den Engematten 14

79286 Glottertal, Germany

Tel.: [phone] - 0

*(Correspondence only – no repair or replacement available from this address. European customers please contact your distributor.)

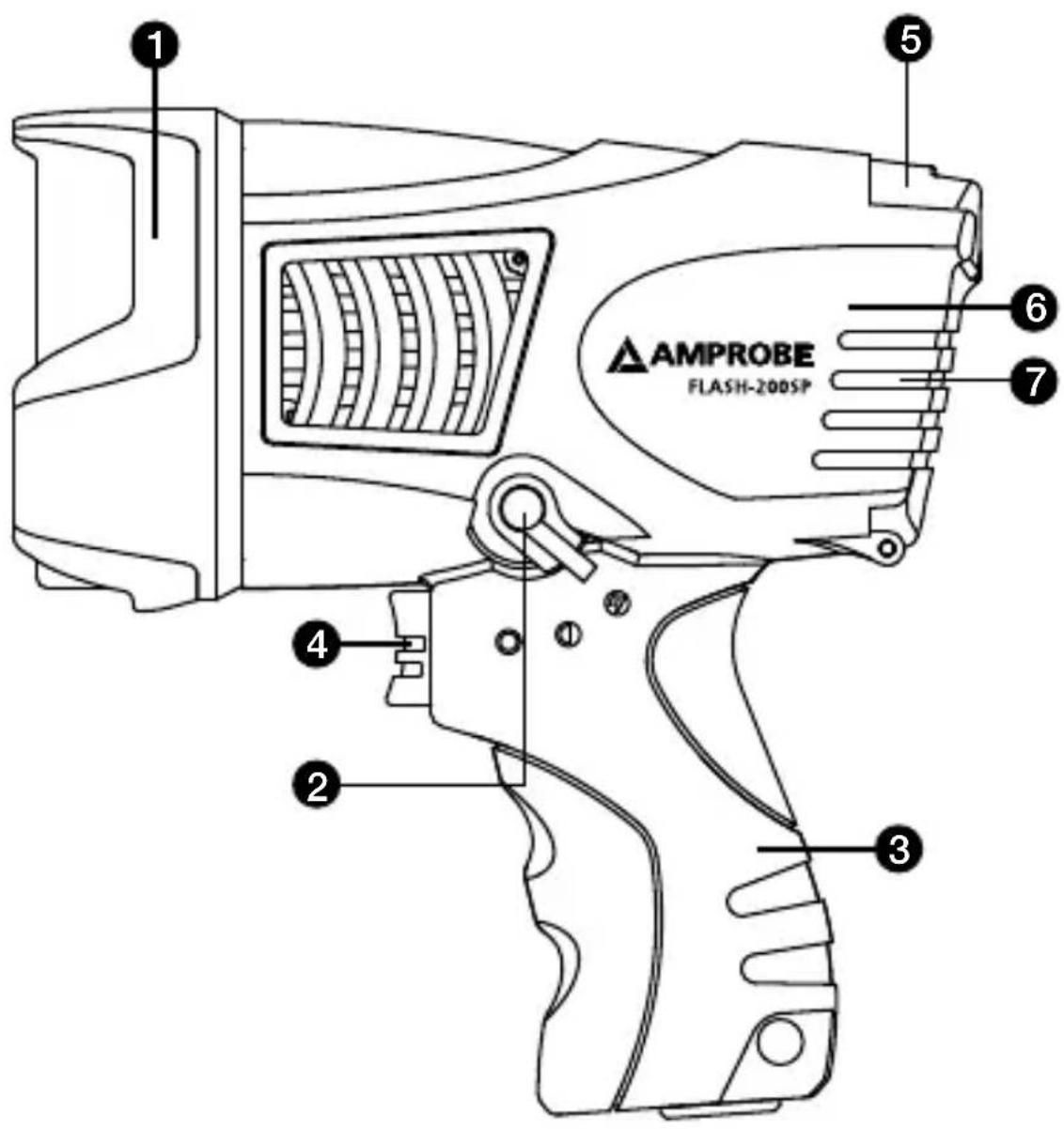

1) Head-Lamp
2) 3 Position Gear Selector Switch
3) Handle
4) ON/OFF Switch
5) Handheld
6) Battery Room
7) Battery Cover

CONTENTS

SYMBOLS 2

UNPACKING AND INSPECTION 2

INTRODUCTION ....3

Features 3

OPERATION 3

SPECIFICATION 5

BATTERY REPLACEMENT 5

SYMBOLS

	Caution! Refer to the explanation in this Manual
	Do not dispose of this clamp meter as unsorted municipal waste.

⚠ WARNING and PRECAUTIONS

• Do not look at the LED light directly
• Do not allow children to use the LED light alone
• Flashlight surface maybe hot after using

UNPACKING AND INSPECTION

Your shipping carton should include:

1 FLASH-200SP Flashlight
4 AA Rechargeable Batteries
1 AC Power Adaptor
1 Vehicle charger
1 Manual

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

INTRODUCTION

The flashlight FLASH-200SP is a portable electric spotlight, the whole body is made of metal; it can be used in most of worst condition.

Features

• Osram Cree XRE Q4 LED
  • Maximum light output:

High beam – up to 200 lumens

Low beam – up to 20 lumens

Strobe – up to 200 lumens

• Illuminating distance (under dark condition):
  High beam – up to 350m
  Low beam – up to 50m

- Continuous run time:

Min. 4 hours (high beam and 100% light on)

- IPX4 Waterproof

- Powered by 4 AA size rechargeable batteries

- Product size: 170.5 x 184.5 x 88 mm (6.7 x 7.3 x 3.4 inch)

OPERATING

1. Unscrew the battery cover and install 4 AA size rechargeable batteries into battery room.
2. Screw on the battery cover.
3. Push ON/OFF button; and turn on flashlight

SPECIFICATION

Maximum light output:

High beam – up to 200 lumens

Low beam – up to 20 lumens

Strobe – up to 200 lumens

Continuous run time: Min. 4 hours (high beam)

Battery: AA rechargeable battery x 4

Product size: 170.5 x 184.5 x 88 mm (6.7 x 7.3 x 3.4 inch)

Refer to the following figure to replace the batteries:
