Type de produit	Network adapter / Wireless adapter
Marque	StarTech.com
Modèle	USB867WAC22
Host Interface	USB 3.0
Chipset	Realtek RTL8812AU
Supported Standards	IEEE 802.11a/b/g/n/ac (Draft 2.0)
Wireless Frequencies	2.4 GHz (2.400 ~ 2.484 GHz) and 5 GHz (5.180 ~ 5.805 GHz)
Antenna Configuration	2x2:2 (TxR:S)
Supported Security	64/128 bit WEP, WPA, WPA2 (TKIP/AES)
LED Indicator	Link/Activity (On/Blinking)
WPS Button	Yes
Dimensions	80 x 29 x 10 mm
Weight	15 g
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature	0°C ~ 70°C (32°F ~ 158°F)
Humidity	10% ~ 90% RH
Compatible Operating Systems	Windows 8/8.1, 7, Vista, XP (32/64), Server 2012/2008 R2/2003, Mac OS 10.4+, Linux kernel 3.2+
Warranty	2 years
Package Contents	1 x USB Wireless Adapter, 1 x Instruction Manual
Modes	Client mode and Access Point mode
Cleaning	Clean with a soft, dry cloth

Frequently Asked Questions - USB867WAC22 StarTech.com

How do I install the USB867WAC22 adapter on Windows?

First, download the driver from www.startech.com/USB867WAC22 Support tab. Extract the .zip file and run the appropriate driver installer for your OS version. Follow on-screen prompts, then connect the adapter to a USB port. For Windows 8/8.1, it is plug-and-play.

How do I verify the adapter is installed correctly?

On Windows, open Device Manager, expand 'Network adapters'. You should see the device without any exclamation marks or question marks. On Mac, open System Report > Hardware > USB and look for the adapter.

Can I use this adapter as a Wi-Fi hotspot?

Yes, the adapter supports Access Point mode. In the Realtek utility, switch to AP mode via the Mode menu. You can then configure SSID, security, and share an internet connection using ICS (Internet Connection Sharing).

What security protocols are supported?

The adapter supports 64/128-bit WEP, WPA, and WPA2 with TKIP or AES encryption. WPA2-PSK with AES is recommended for best security.

How do I connect to a wireless network using the Realtek utility?

Click the tray icon to open the utility. Go to the 'Available Networks' tab, select your network, and click 'Add to Profile'. Enter the security key if required. You can also use Windows native Wi-Fi management.

What does the LED indicator mean?

The LED is off when there is no power, and on or blinking when a link is established and there is activity. If it remains off, check the USB connection.

Is the adapter compatible with Linux?

Yes, it is compatible with Linux kernel 3.2 and up. You may need to install the driver manually; check the manufacturer's website for Linux drivers.

How do I use WPS to connect?

Press the WPS button on the adapter, then activate WPS on your router (push button or PIN). Alternatively, use the Realtek utility's WPS Setup tab for PIN or push-button methods.

What are the operating temperature limits?

The adapter can operate in temperatures from 0°C to 60°C (32°F to 140°F) and can be stored from 0°C to 70°C (32°F to 158°F). Avoid exposing it to extreme heat or cold.

Does the adapter support dual-band?

Yes, it supports both 2.4 GHz and 5 GHz bands, providing AC1200 speeds (up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). It is backwards compatible with 802.11a/b/g/n.

USER MANUAL USB867WAC22 StarTech.com

USB 3.0 to AC1200 Dual Band Wireless-AC Adapter

USB867WAC22

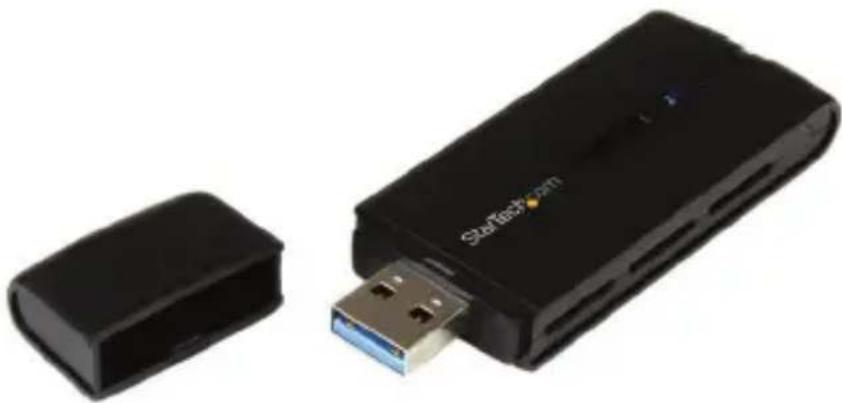

Black USB device with a lid and external port, no visible text or symbols on the device body

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limit set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction......1

Packaging Contents .... 1

System Requirements....1

Product Overview .... 1

Installation 2

Verifying Installation....3

Windows....3

Mac OS 4

Operation 4

Windows 4

Specifications....22

Technical Support 23

Warranty Information....23

Introduction

Packaging Contents

• 1 x USB Wireless Adapter
• 1 x Instruction Manual

System Requirements

• Available USB port

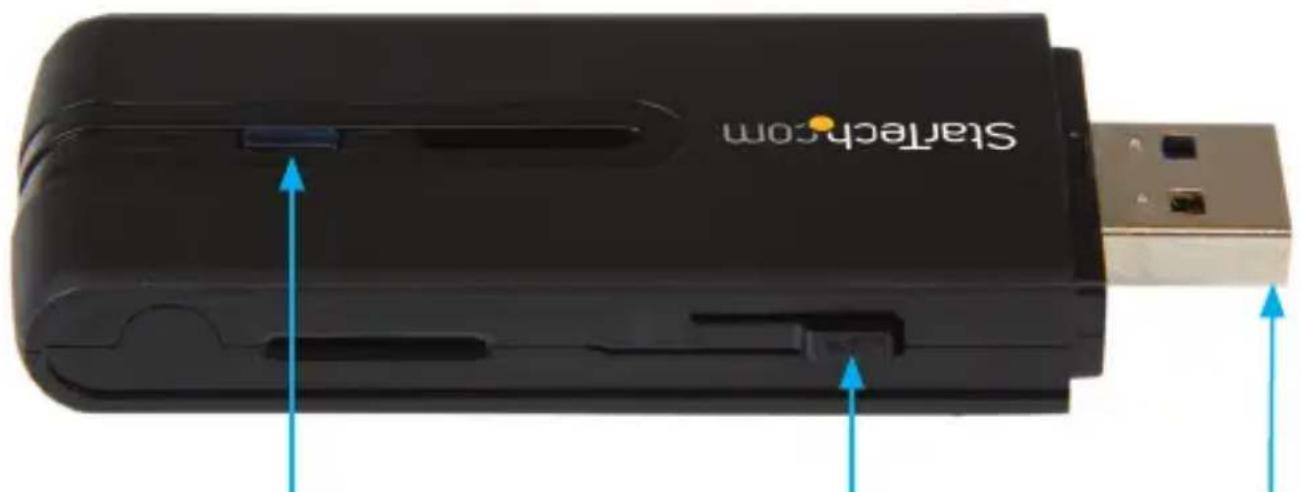

Product Overview

Link/Activity LED WPS Button USB 3.0

LED Indicator

Off – No power to adapter

On / Blinking – Link established / Activity

Installation

Note: The USB867WAC22 is plug-and-play supported in Windows 8/8.1.

1. Using a web browser, enter www.startech.com/USB867WAC22 in the address line.
2. On the Product page, click the Support tab located in the middle of the screen.
3. On the Drivers and Downloads section, click on the driver link that corresponds with the operating system running on the host laptop.
4. Once the download is complete, extract the contents of the .zip file.
5. Click the appropriate driver for the version of operating system that you are running and follow the on-screen prompts to complete the installation.
6. Connect the device to an available USB port.

Verifying Installation

Windows

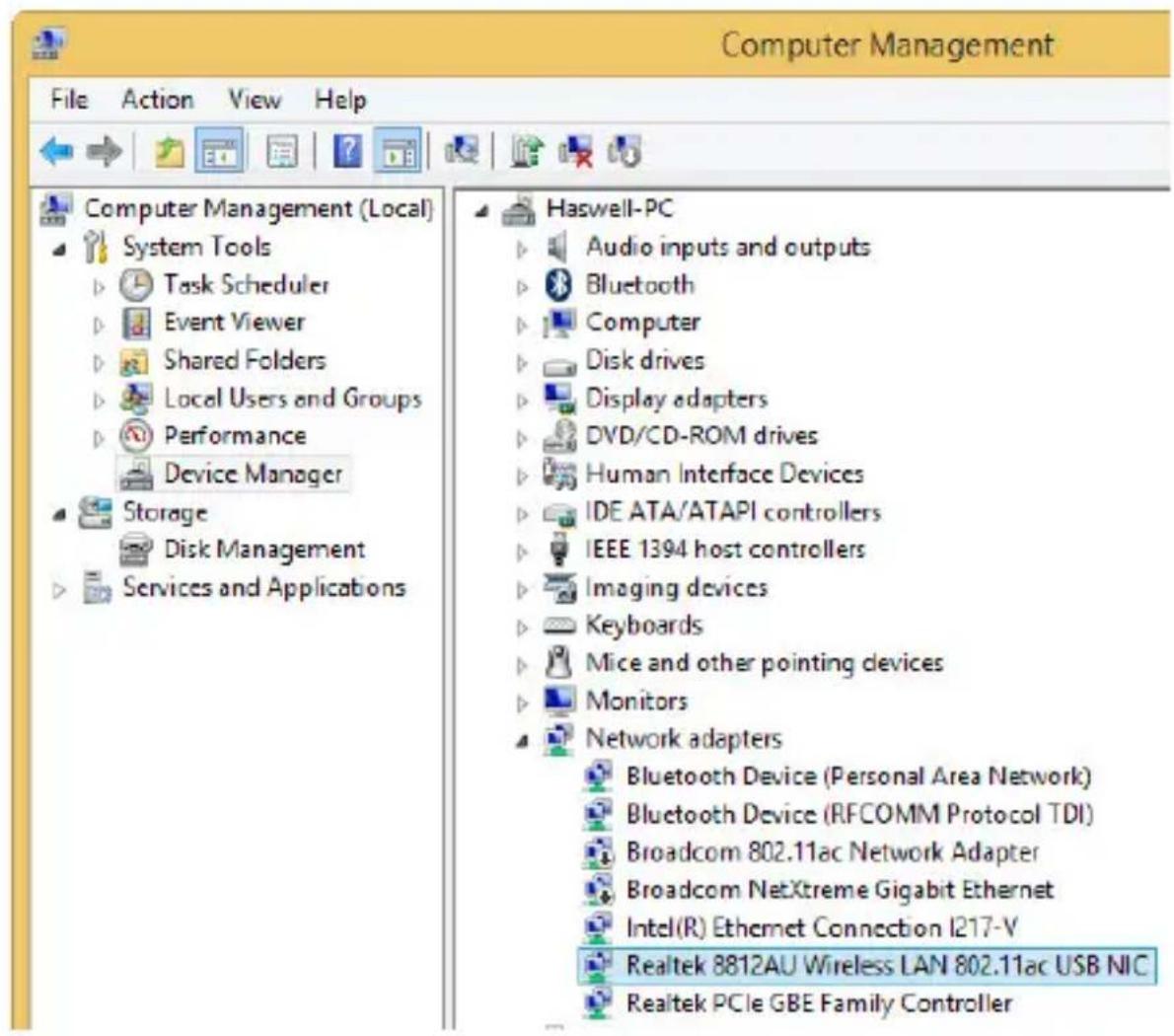

1. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new Computer Management window, select Device Manager from the left window panel (For Windows 8, open the Control Panel and select Device Manager).
2. Expand the "Network adapters" section. On a successful install, you should see the following device in the list with no exclamation points or question marks.

Mac OS

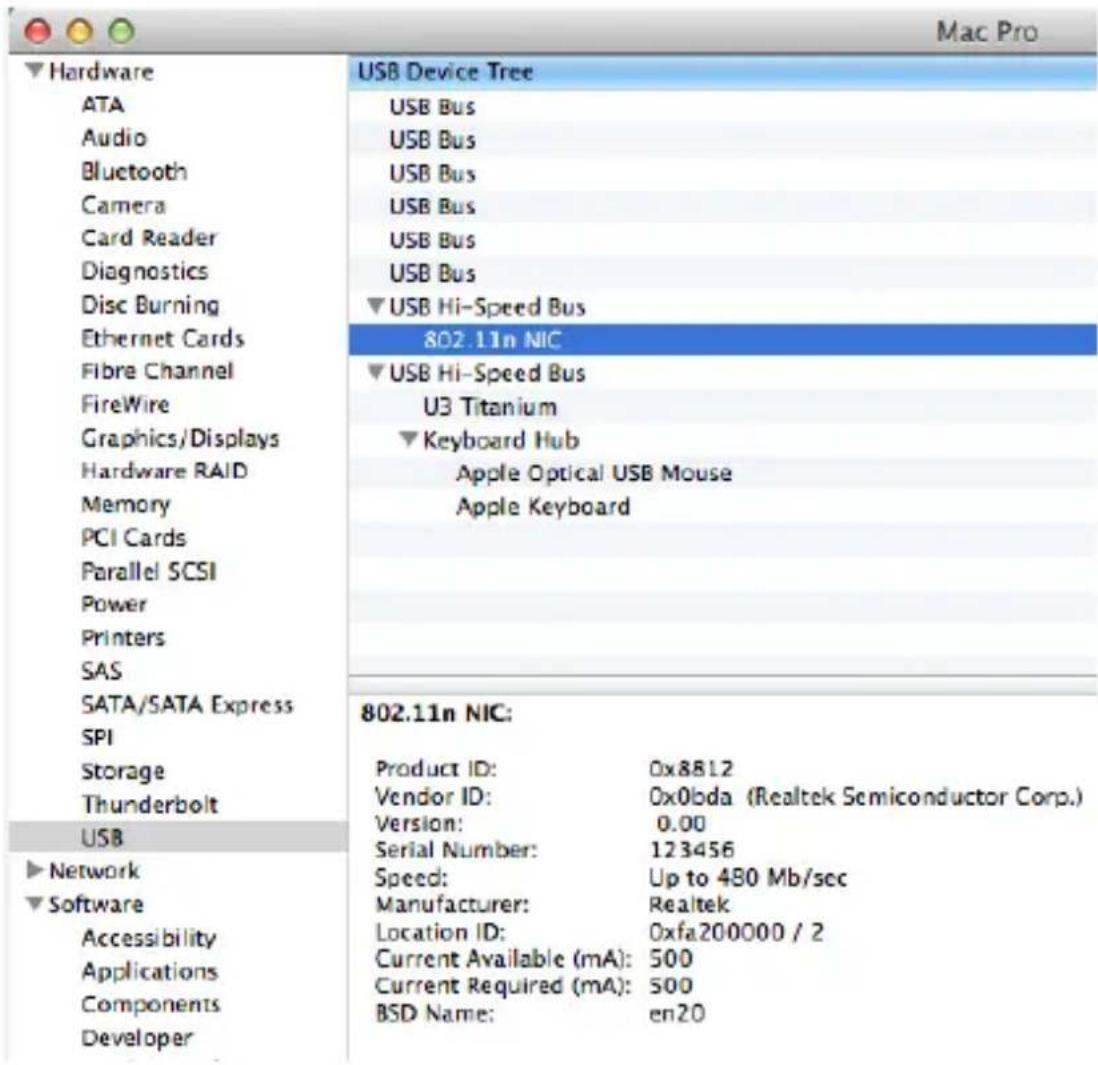

1. Open the System Report by clicking the Apple symbol in the top left corner, selecting About this Mac, then select System Report
2. Expand the "Hardware" section and click "USB" in the left column. With the adapter connected, you should see the following device in the list.

Operation

Windows

Connecting to a wireless network is done through either the Windows wireless configuration utilities, or through the Realtek utility. You must know the name of the wireless network (SSID), the type of security it is using (if any) and its associated password to connect to a wireless network. Consult the documentation for your wireless access point (AP) or contact your network administrator for details.

Depending on your version of Windows, you can display the list of available networks using one of the following methods:

Windows 8	Move the cursor to the upper right corner to open the Charms Bar, select Settings and then select Wifi
Windows 7 Click the network adapter tray icon
Windows Vista Click Start, then Connect To
Windows XP	Right-click the wireless adapter tray icon and select View Available Wireless Networks

Realtek Utility

Tray Icon

The tray icon will display one of the following three statuses:

Utility running, but no WLAN adapter detected	WLAN adapter detected, not connected to a wireless network	WLAN adapter detected and connected to a network

Client Mode

Click on the tray icon to open the configuration window.

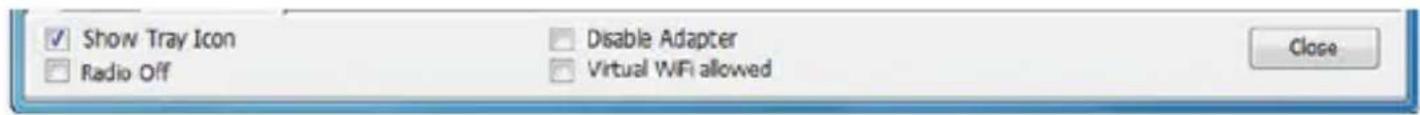

Some basic device controls are shown at the bottom of the interface:

Show Tray Icon – Show / Hide the tray icon.

Radio Off – Disable the wireless radio.

Disable Adapter – Disable the device.

Virtual WiFi allowed – Enable Virtual WiFi (soft AP).

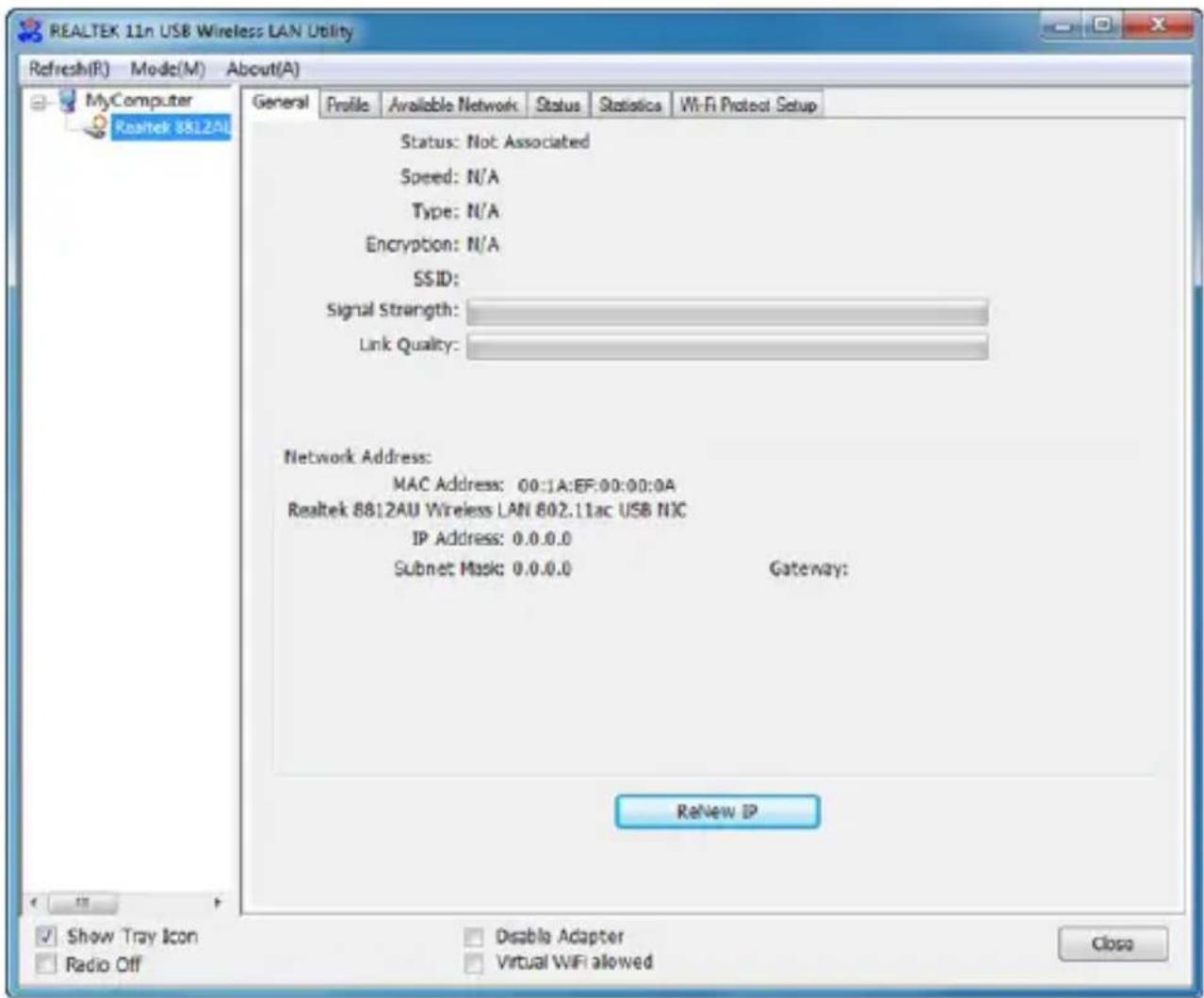

General Tab

Displays information related to the currently connected network.

Signal Strength – Strength of the link between the adapter and the connected AP.

Link Quality – Measurement of transmit / receive performance over the radio.

Renew IP button – Refresh IP settings between the adapter and the connected AP

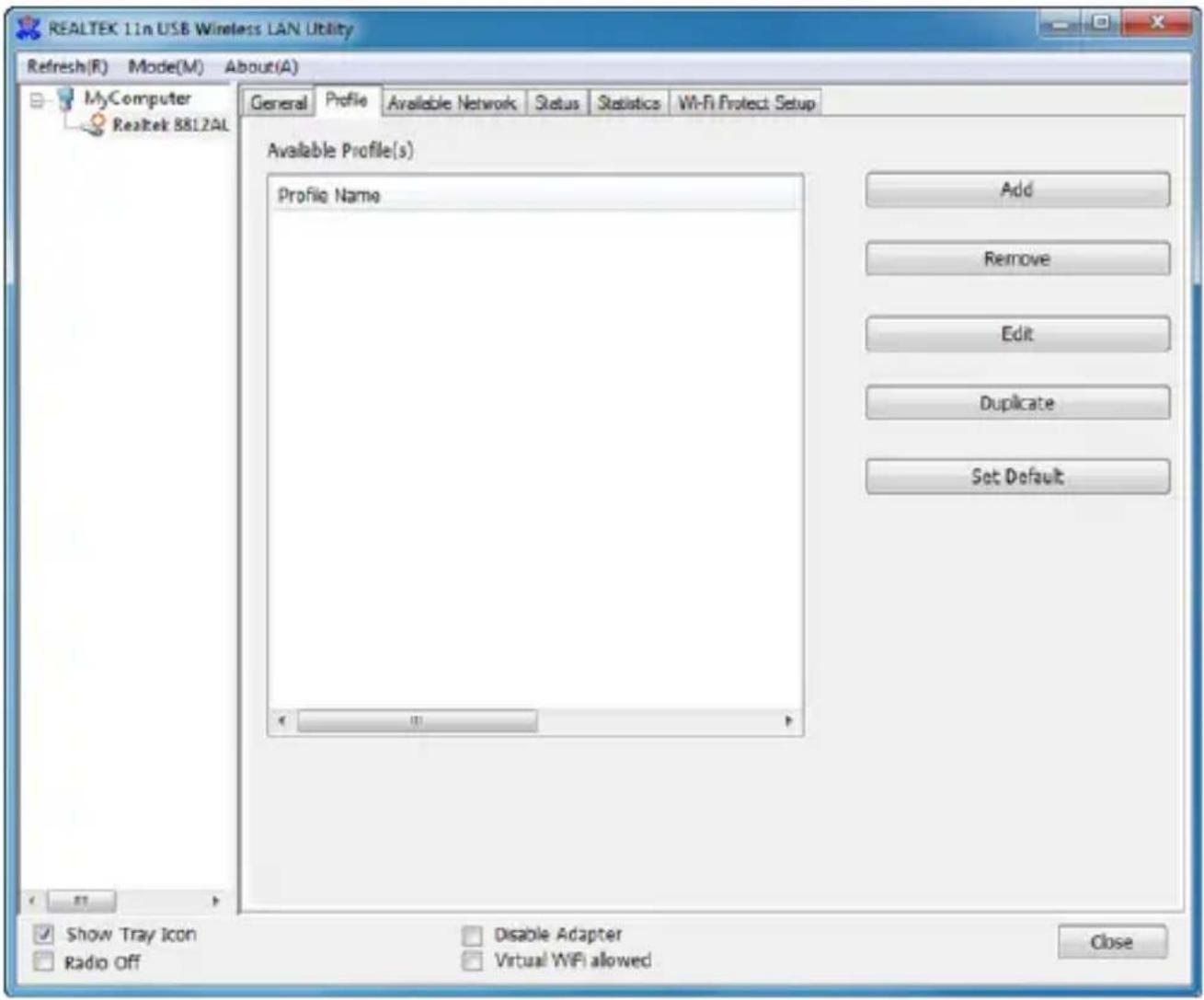

Profile Tab

Add, Remove, Edit, Duplicate or Set Default wireless profiles.

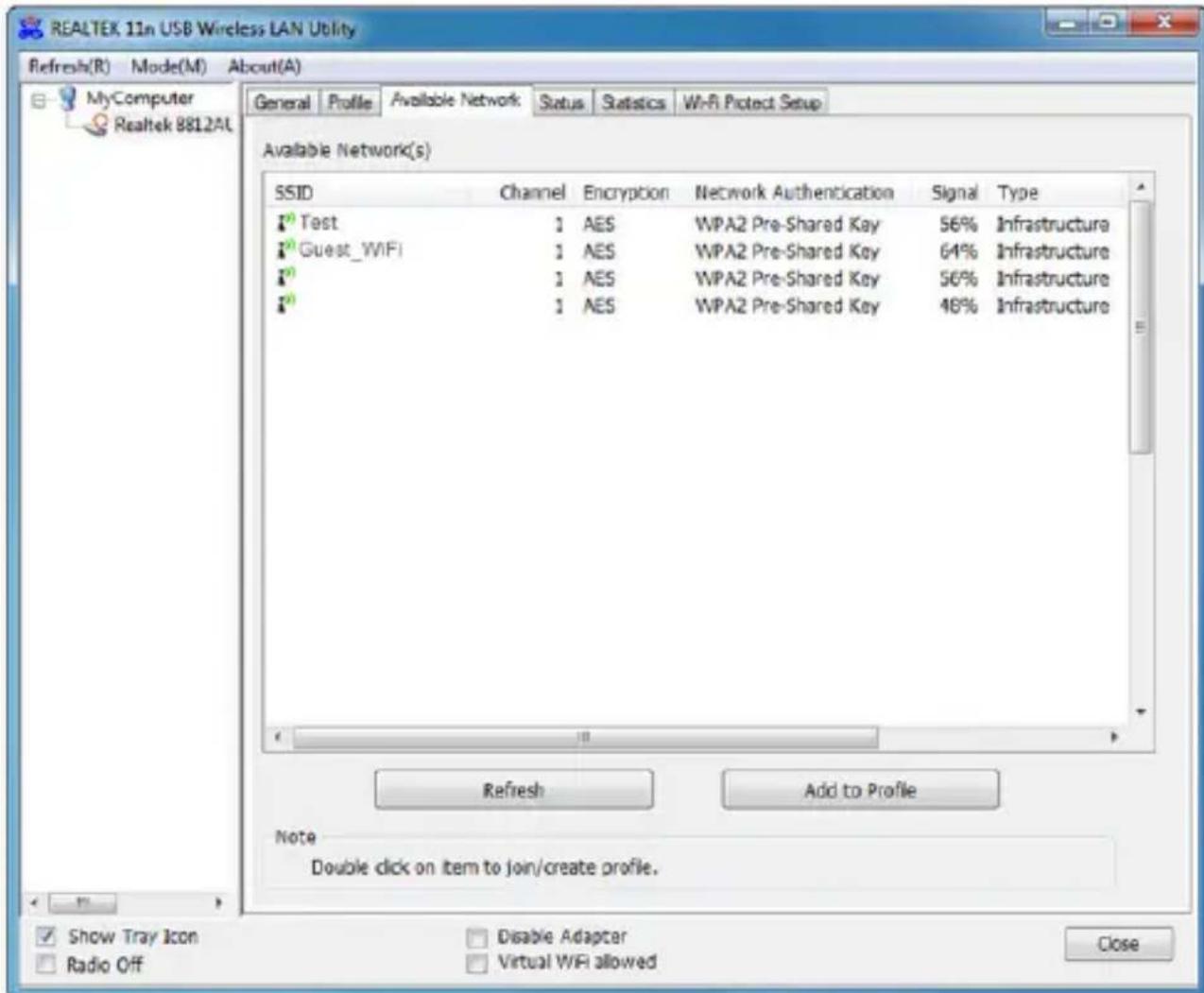

Available Networks Tab

Displays a site survey of networks within range of the adapter.

Refresh – Rescan for available networks.

Add to Profile – Select a network from the list and click to create a profile for that network.

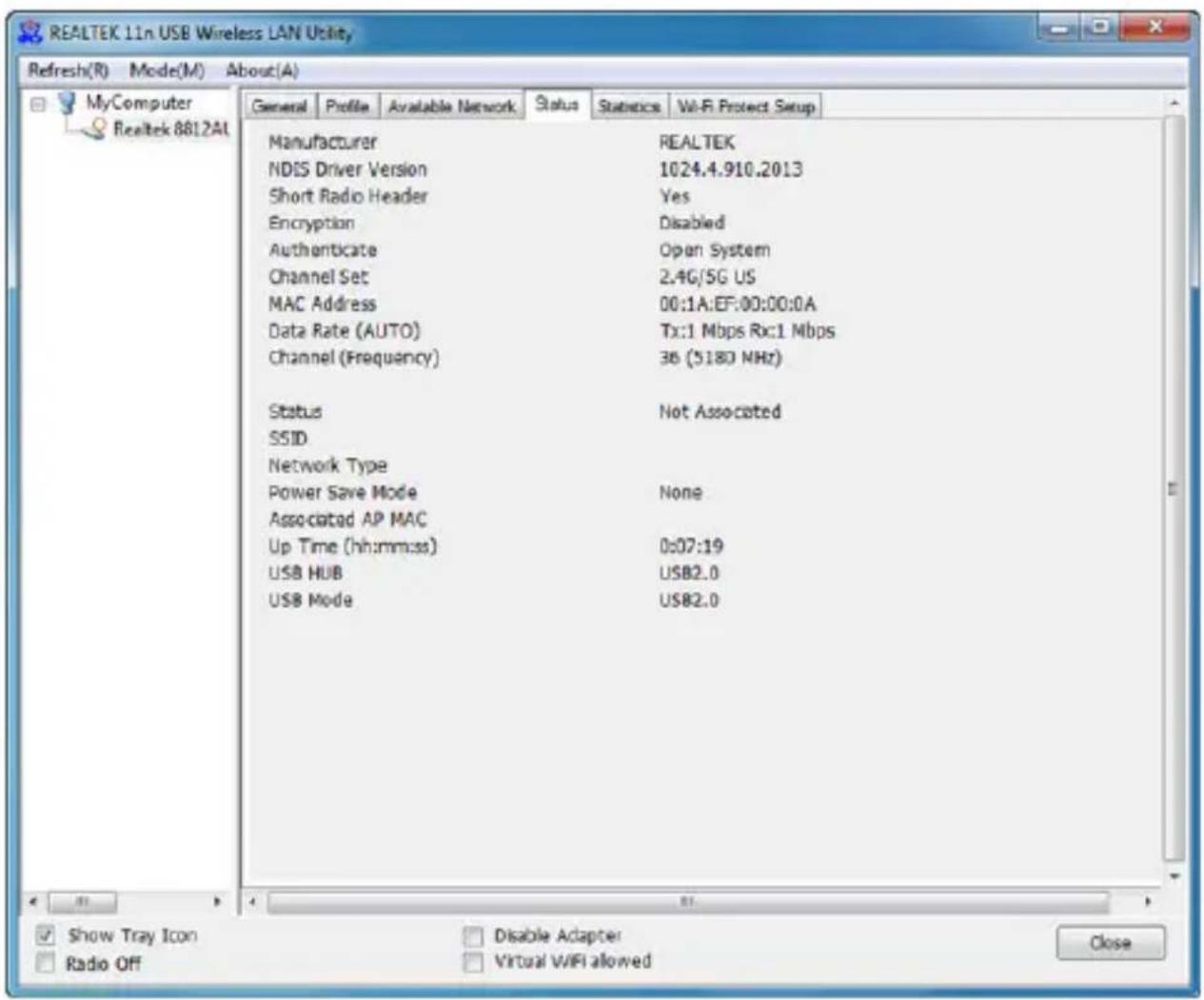

Status Tab

Displays networking and device driver version details for the adapter.

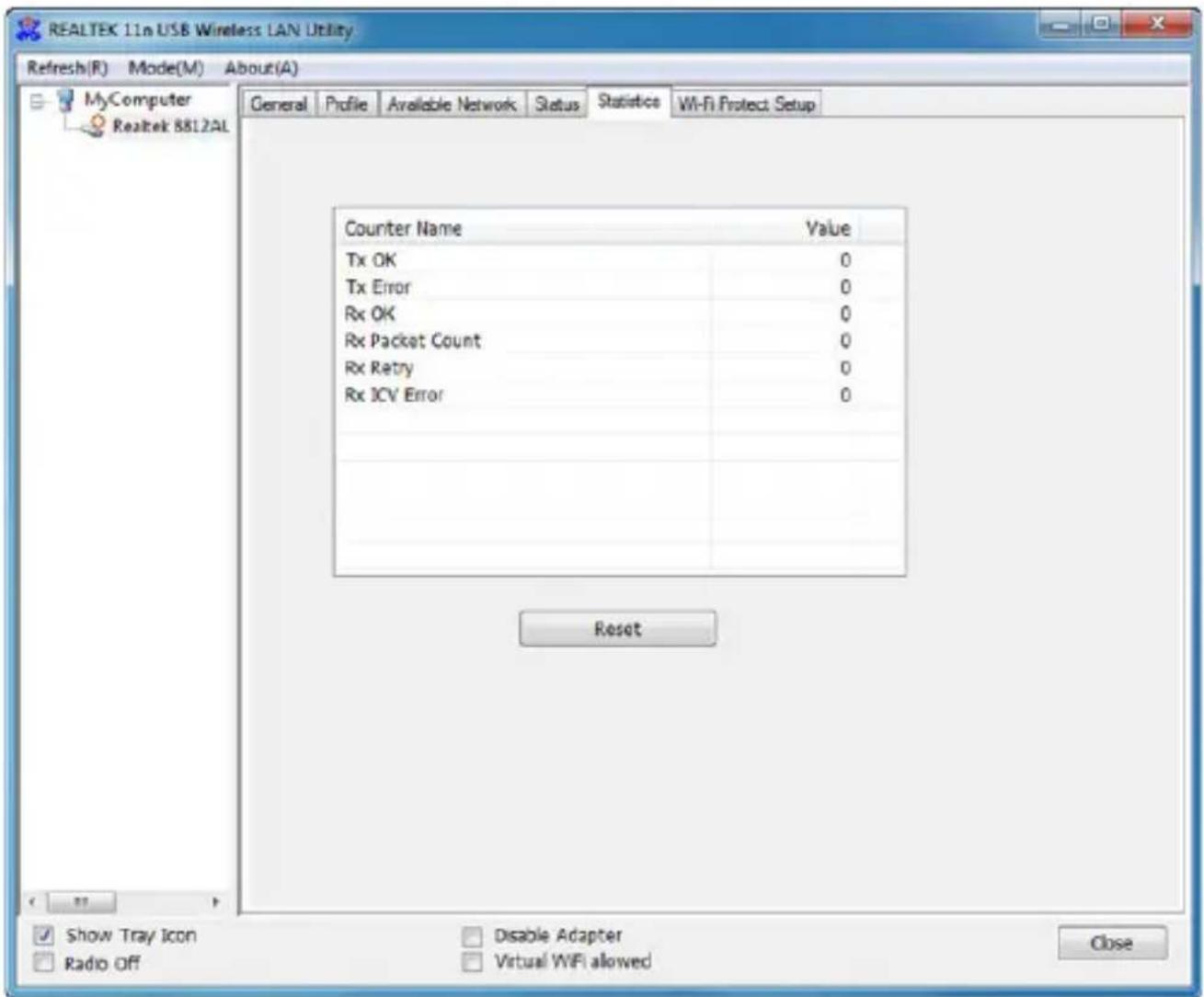

Statistics Tab

Displays connection transmit / receive statistics.

Reset – Resets all counters.

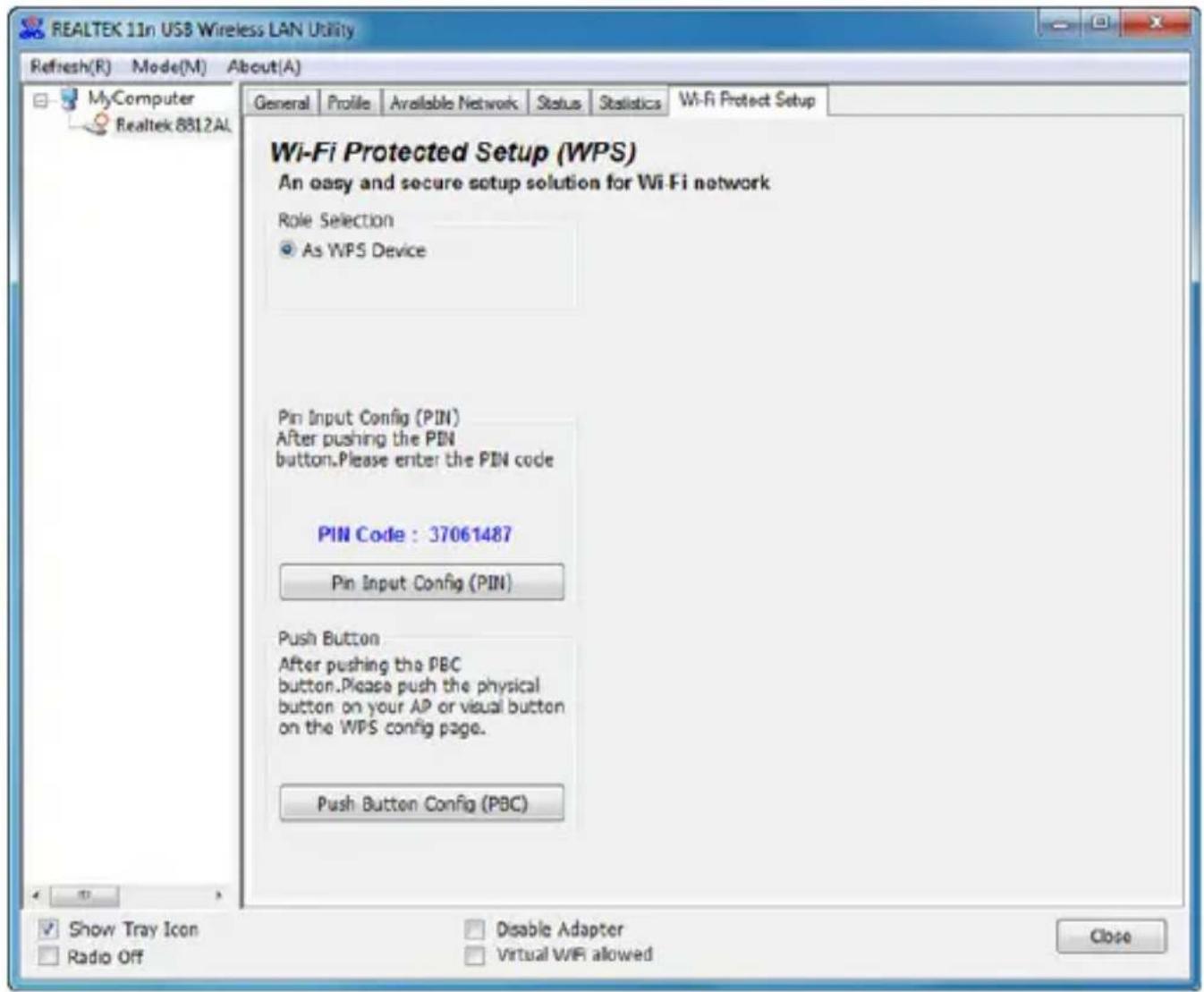

WPS Setup Tab

Allows for WPS PIN code or Push-button modes.

Access Point Mode

The device can also act as a Wireless Access Point, allowing other devices to connect and gain Internet access through it.

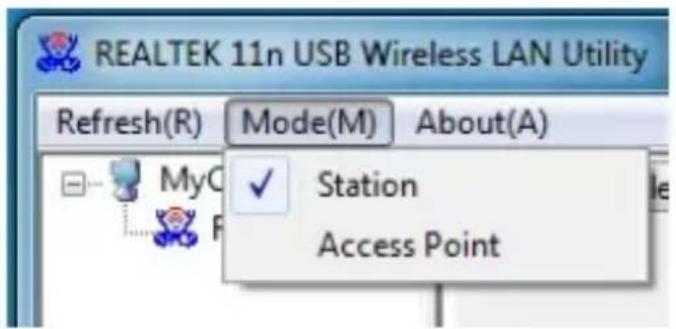

Switch modes using the Mode menu at the top of the interface:

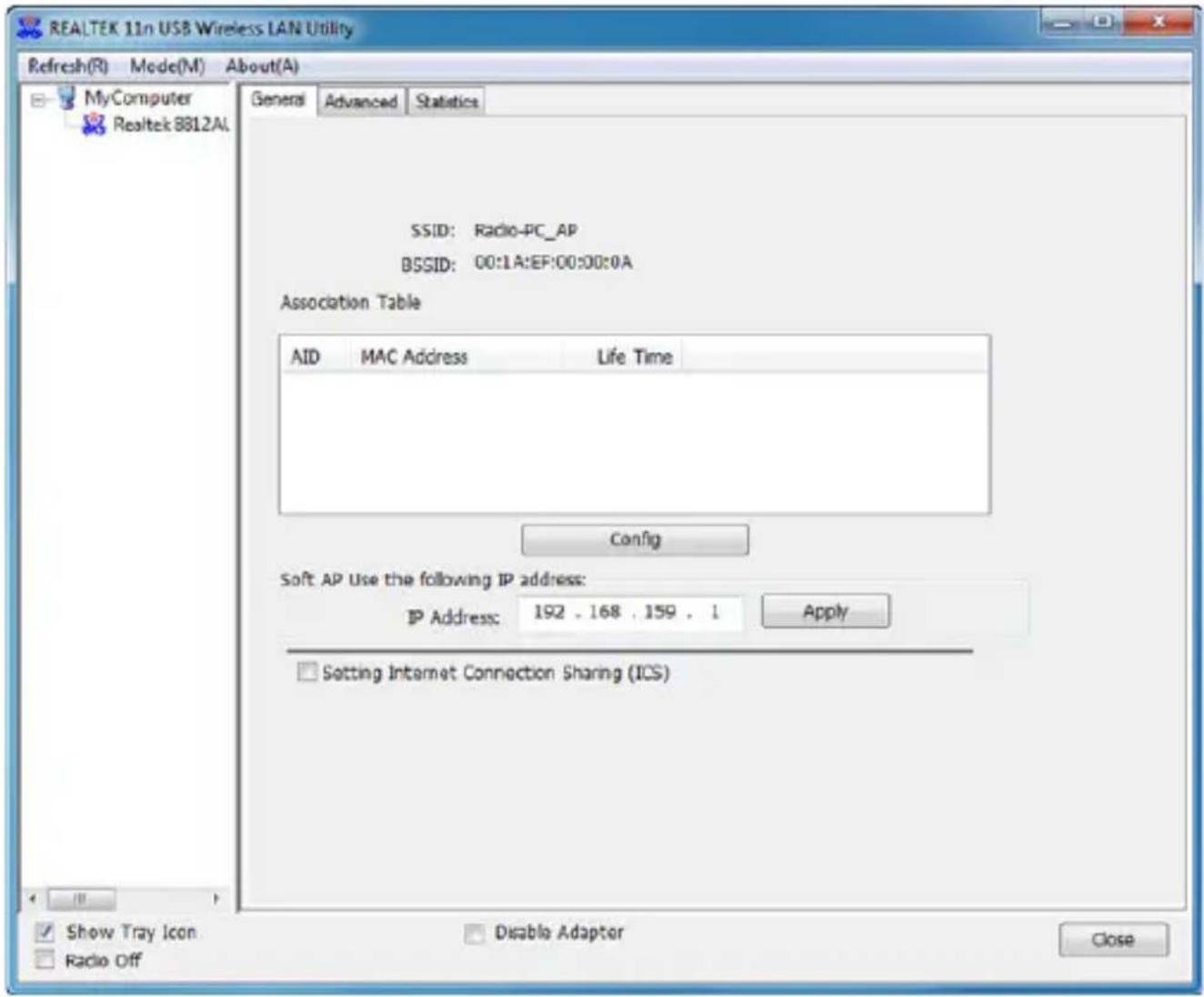

General Tab

Displays general information about the device in AP mode and a list of joined APs.

SSID - The network name of this AP.

BSSID - The MAC address of this AP.

Association Table

Displays the list of joined stations to this AP.

AID (Association ID) – A unique 16-bit ID value assigned by an AP during association.

MAC address - The MAC address of each joined station.

Life Time – A keep alive timer that counts down from 10 minutes after the successful connection of a station. If a station associated this AP does not have any interaction with the AP in 10 minutes, it will be disassociated from the Infra-structure.

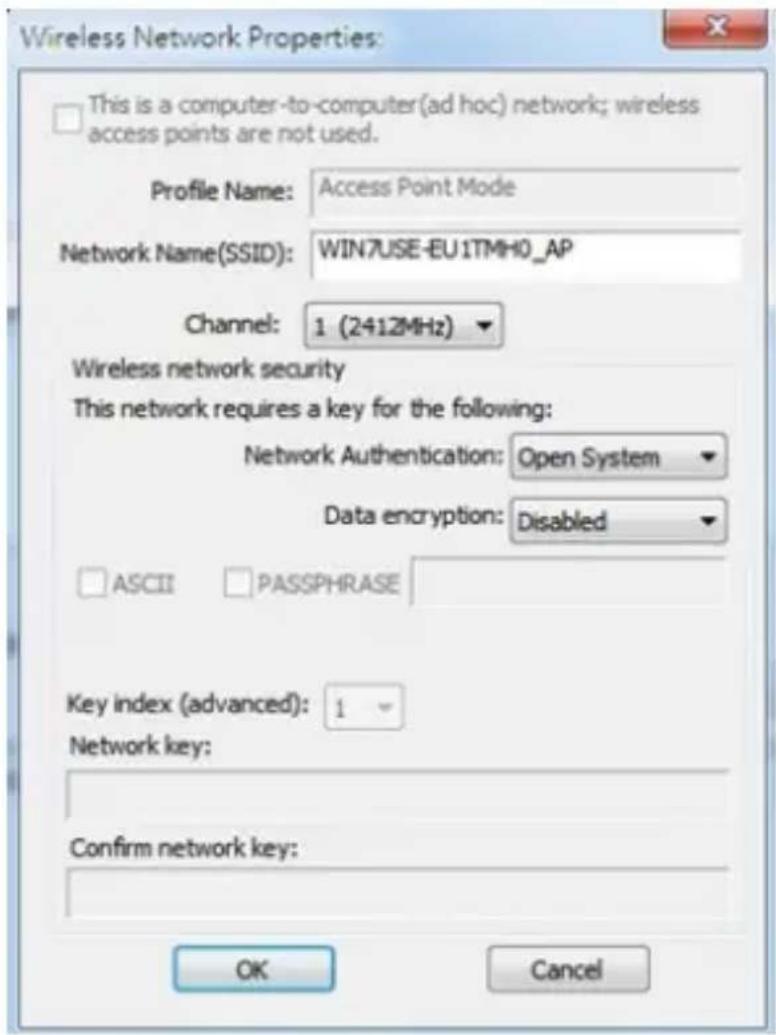

Config – Opens a dialog of for modifying AP settings (shown below).

ICS (Internet Connection Sharing) - Enables this AP to share this internet/intranet network connection.

Network Name (SSID) - The network name of the AP, searchable by other wireless nodes. The length of SSID should be shorter than 32 characters.

Channel - Select your preferred wireless channel.

Network Authentication & Data Encryption – Choose your desired Authentication type and Encryption method from: Open System, Shared Key + WEP, WPA-PSK + TKIP & WPA2-PSK + TKIP (recommended).

ASCII - Provide either 5 or 13 ASCII characters in the Network key field.

PASSPHRASE - Input a sequence of words as the network key.

Key index (advanced) (1 \~4) - At most four key index to represent the opposite network key.

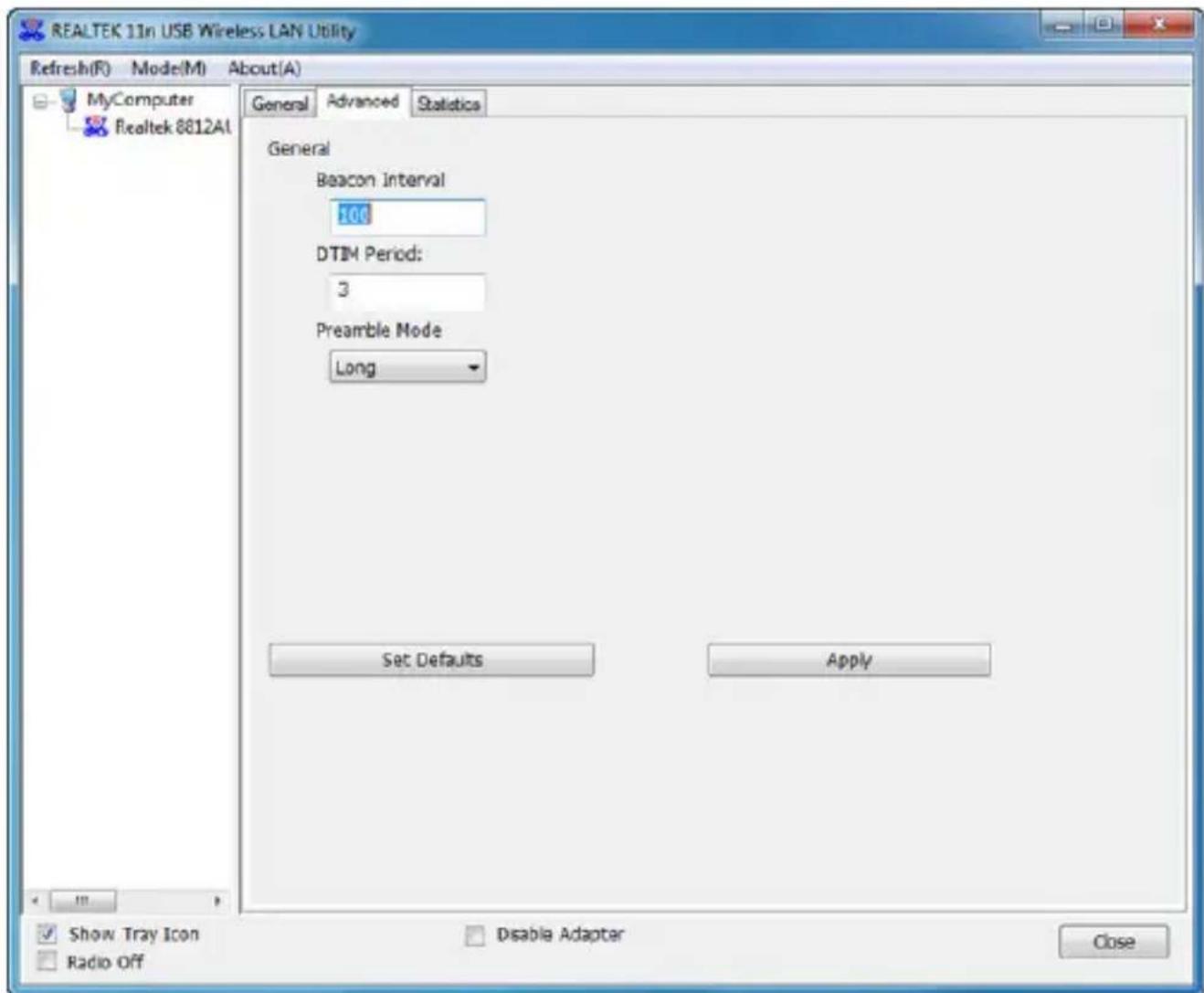

Advanced Tab

Provides advanced configuration options for the AP.

Beacon Interval – The frequency at which the beacon packet is sent, In TU unit (1024 micro-seconds).

DTIM Period - The number of Beacon intervals between successive DTIMs.

Preamble Mode:

Long - Higher quality but with lower performance than preamble short mode.

Short - Normal quality but with higher performance then preamble long mode.

Auto - Select the proper preamble mode by current signal frame information.

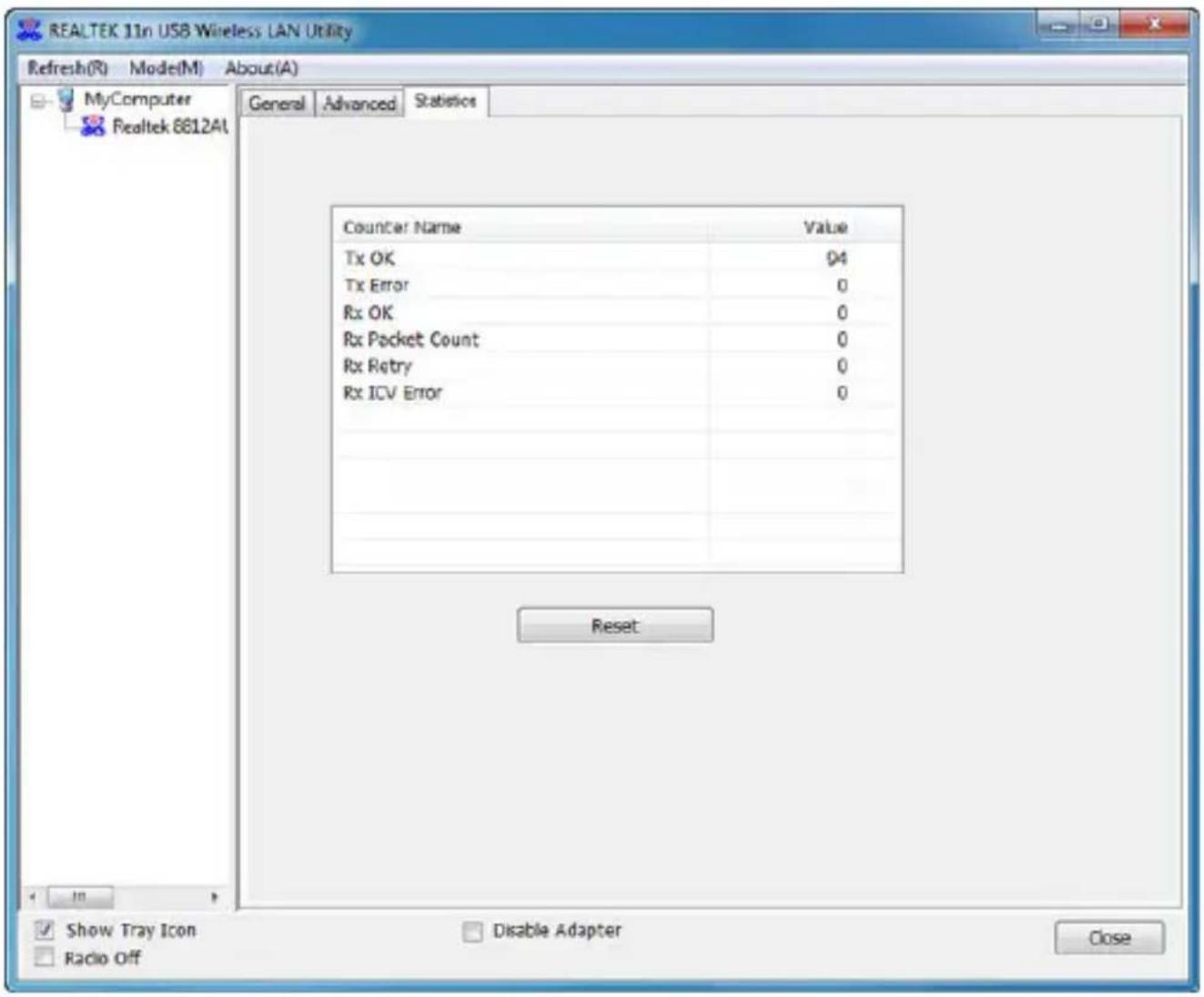

Statistics Tab

Displays connection transmit / receive statistics.

Mac OS

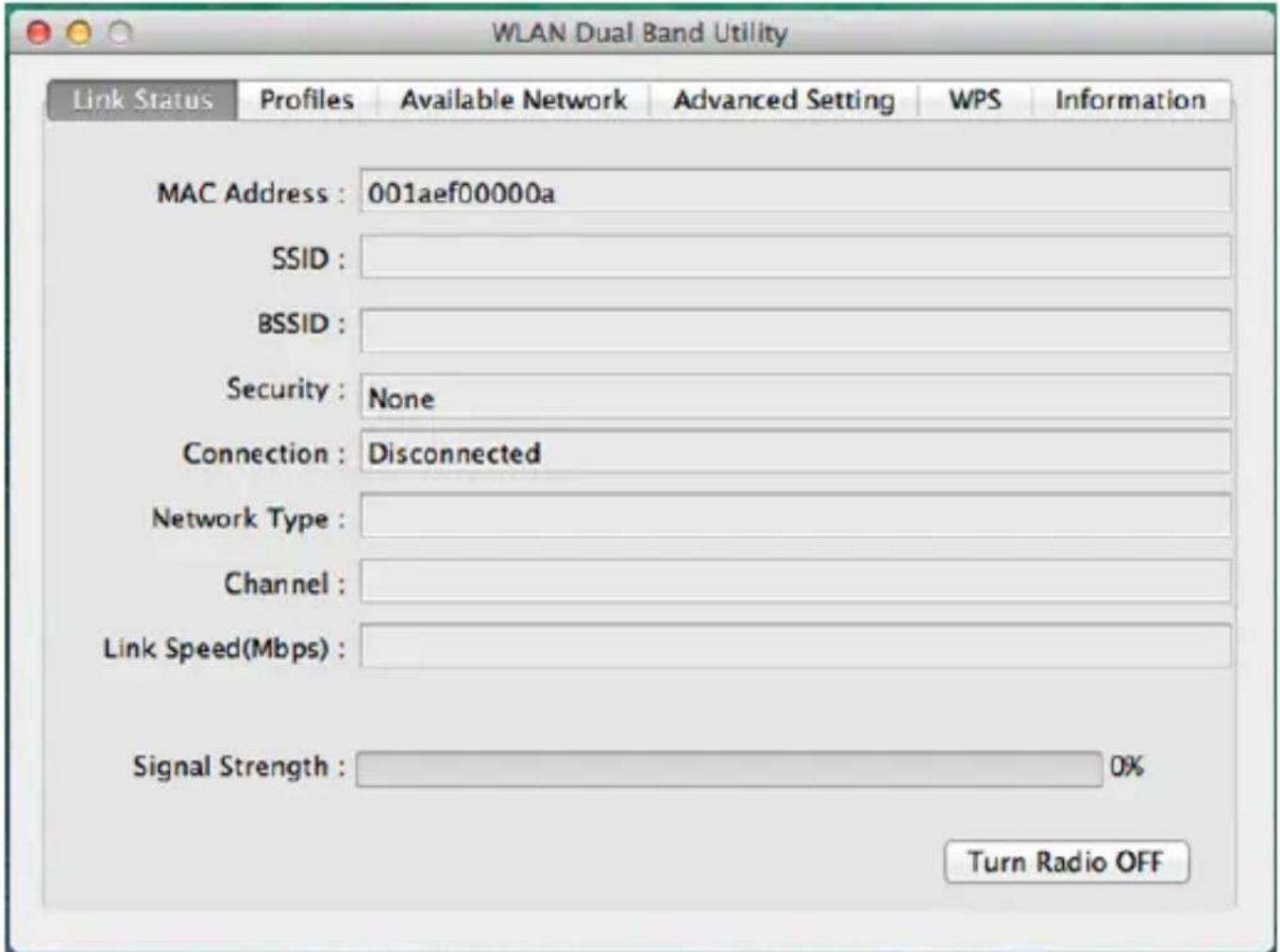

Link Status Tab

Displays information related to the currently connected network.

Signal Strength – Strength of the link between the adapter and the connected AP. Radio Off – Disable the wireless radio.

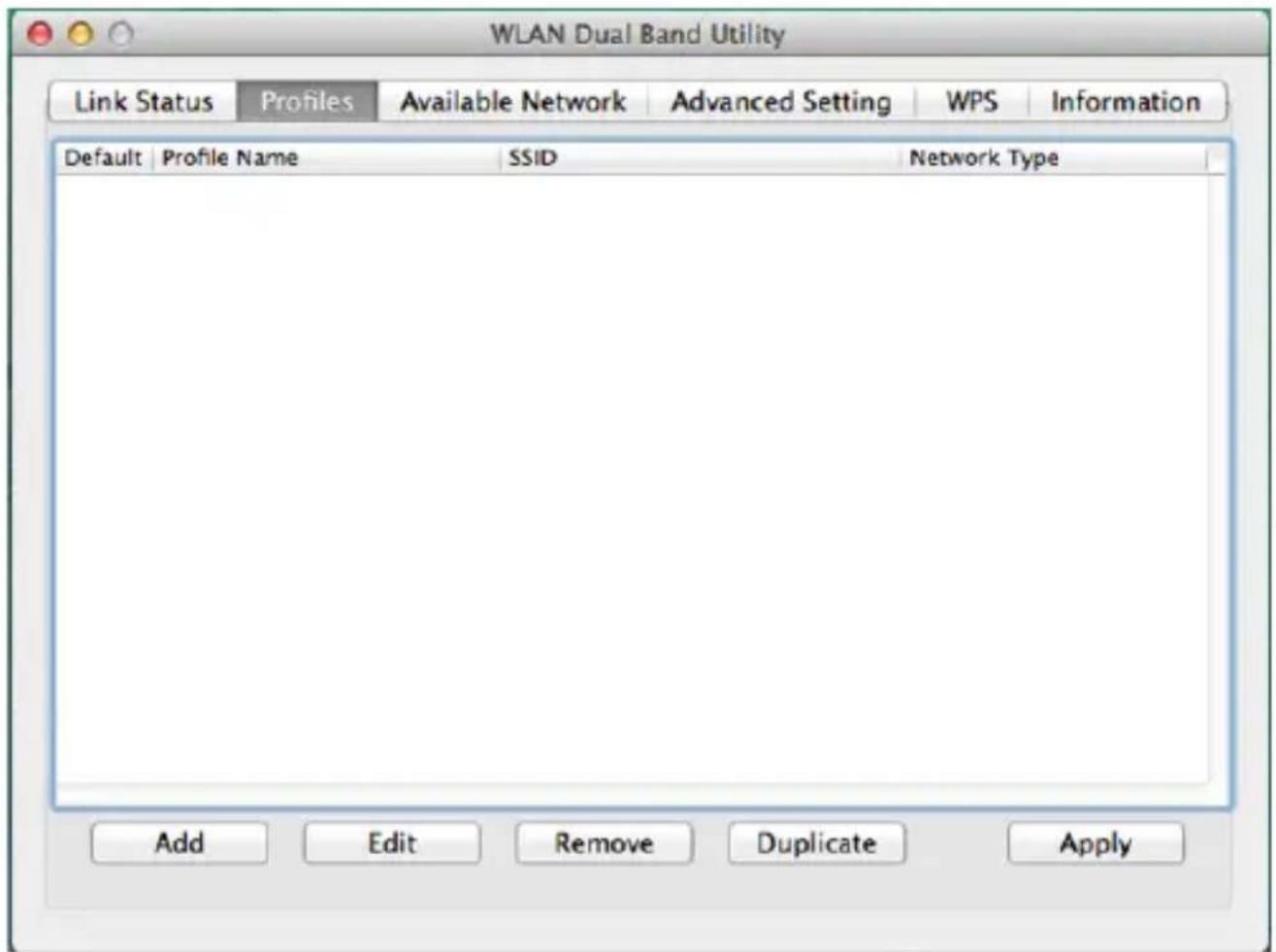

Profiles Tab

Add, Remove, Edit, Duplicate or Set Default wireless profiles.

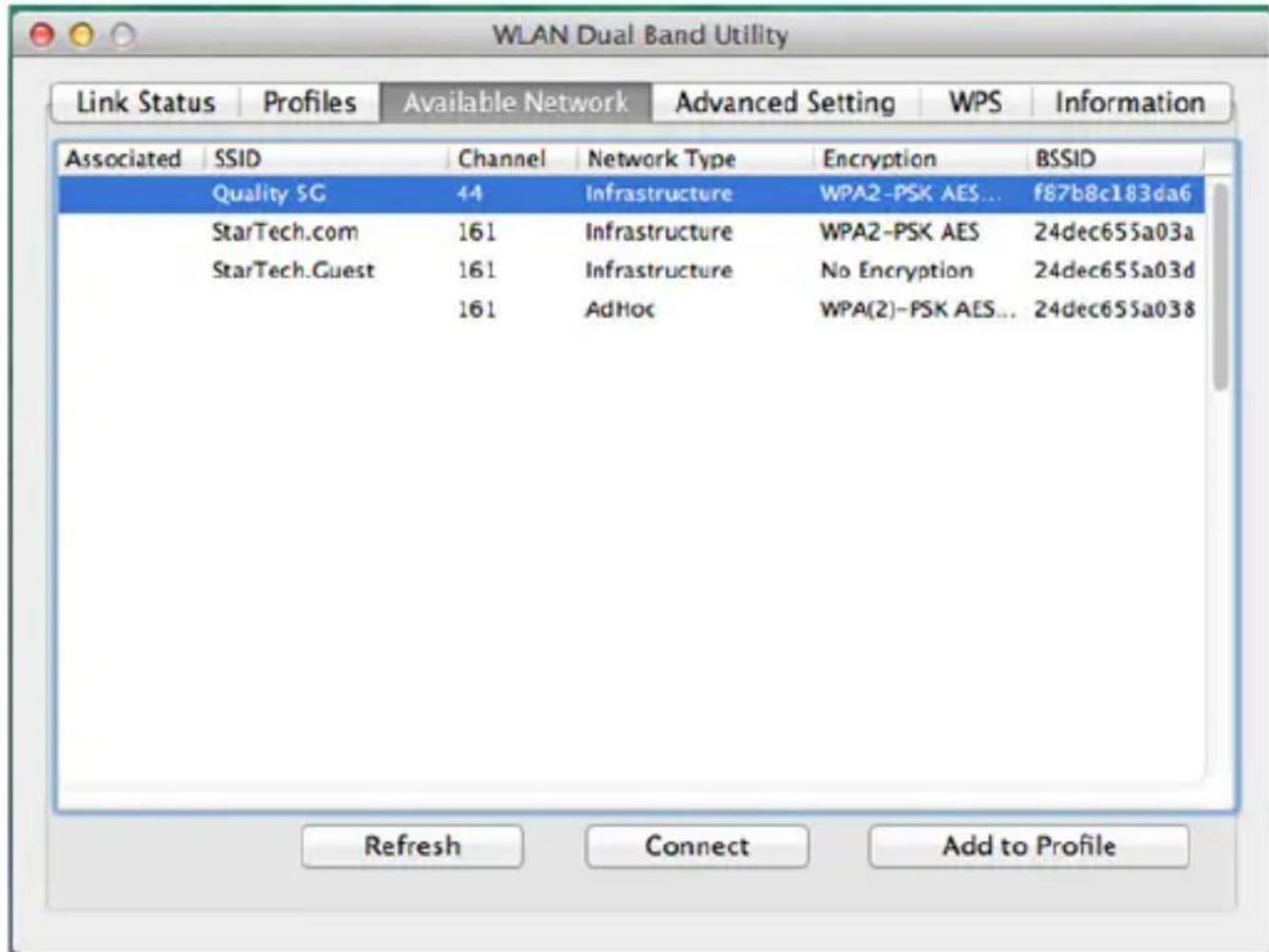

Available Networks Tab

Displays a site survey of networks within range of the adapter.

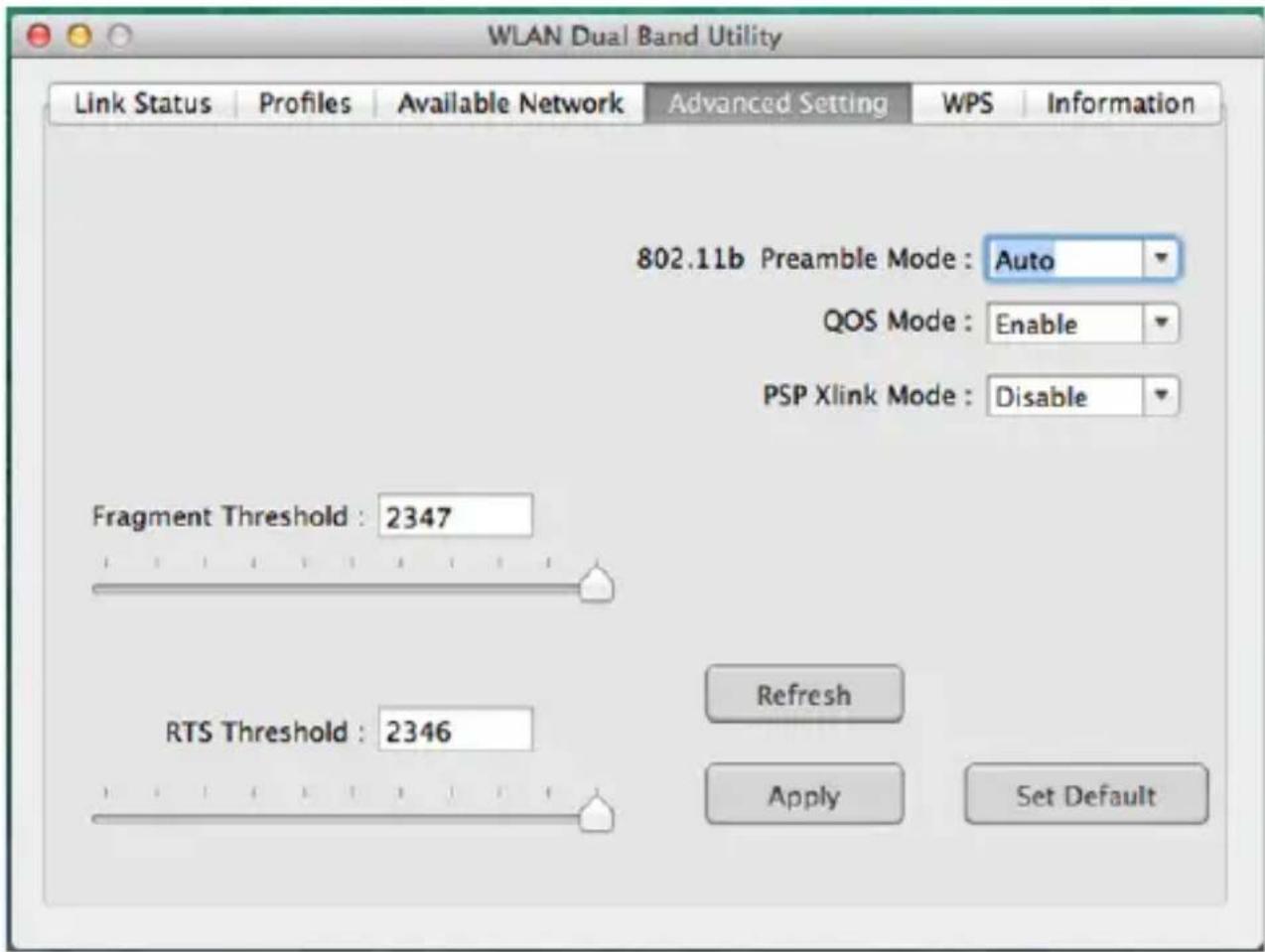

Advanced Settings Tab

Provides advanced configuration options for the device.

Preamble Mode:

Long - Higher quality but with lower performance than preamble short mode. Short - Normal quality but with higher performance then preamble long mode. Auto - Select the proper preamble mode by current signal frame information.

QoS Mode – Enable / Disable packet prioritization.

PSP Xlink Mode – Enable / Disable PSP Xlink support.

Fragment Threshold – Specify the size at which large packets should be fragmented. RTS Threshold – Enable RTS/CTS for packets over the specified size.

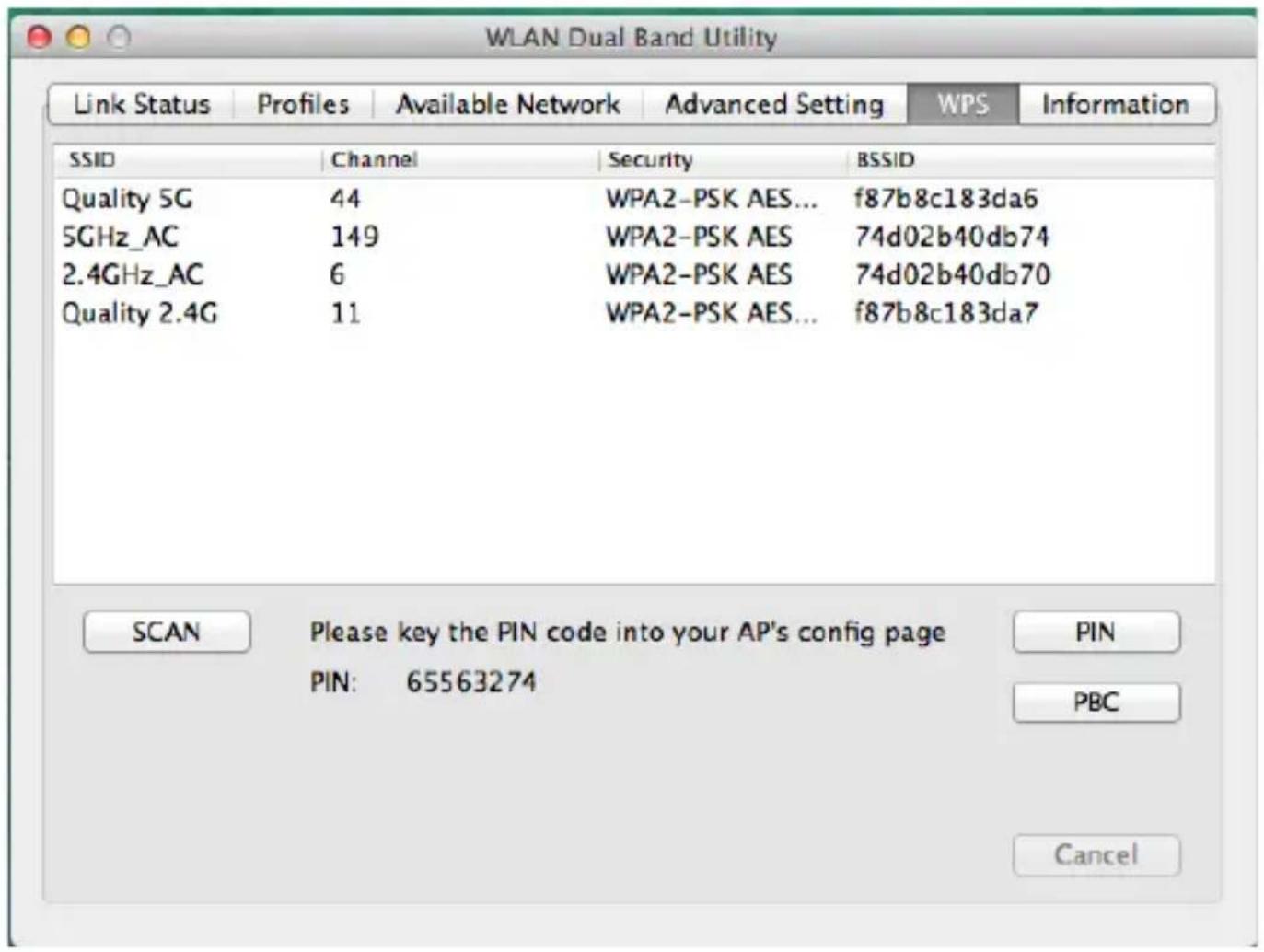

WPS Tab

Allows for WPS PIN code or Push-button modes.

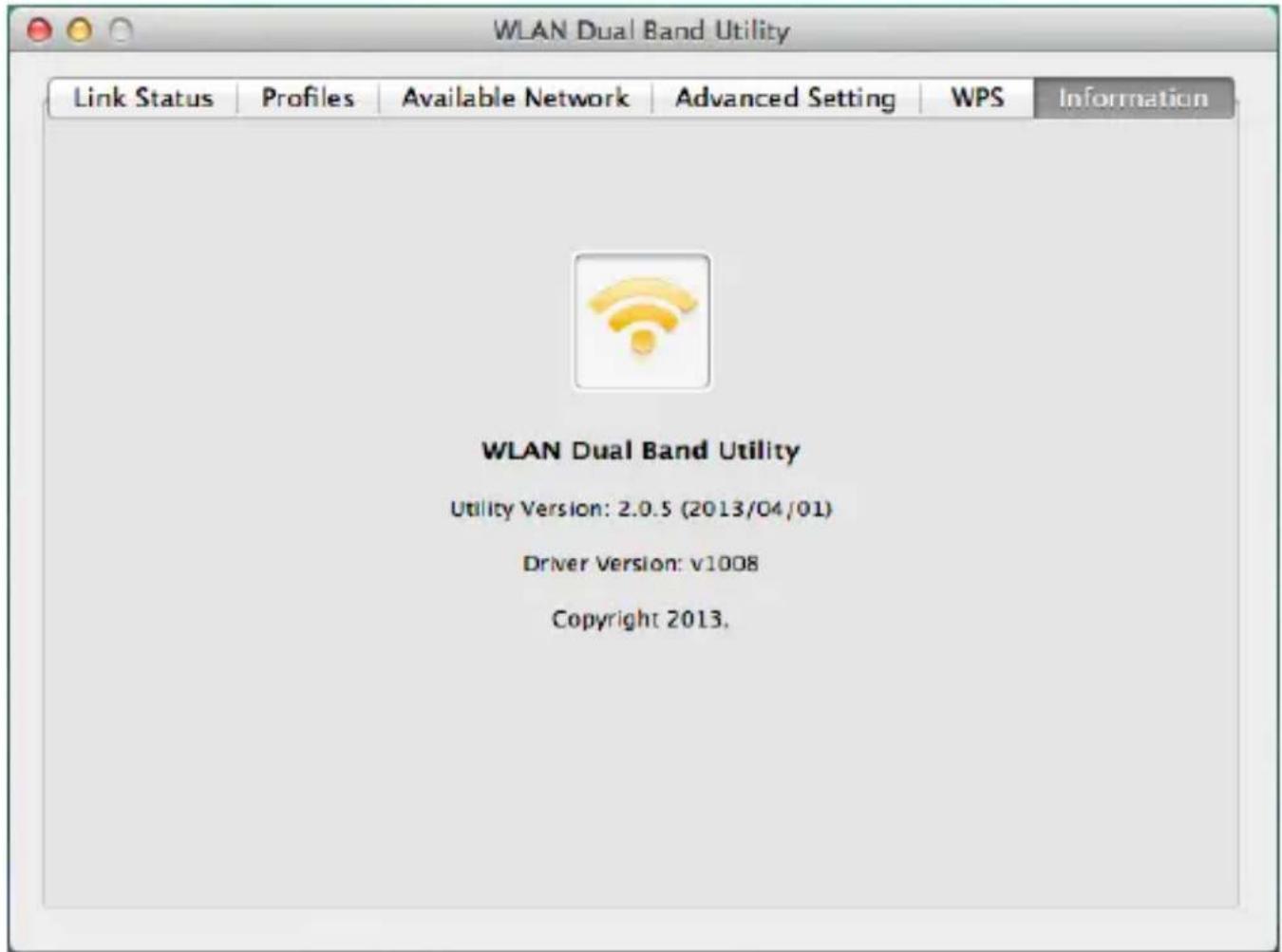

Information Tab

Displays utility and driver version information.

Specifications

Host Interface USB 3.0
Chipset Realtek - RTL8812AU
External Connectors 1 x USB 3.0 A Male
Supported Standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Draft 2.0
Antenna Configuration 2x2:2 (TxR:S)
Wireless Frequencies	2.400GHz ~ 2.484GHz5180GHz ~ 5805GHz
Supported Security Schemes 64/128 bit WEP, WPA, WPA2 (TKIP/AES)
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature 0°C ~ 70°C (32°F ~ 158°F)
Humidity 10% ~ 90% RH
Dimensions 80 x 29 x 10mm
Weight 15g
Compatible Operating Systems	Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)Windows Server® 2012, 2008 R2, 2003(32/64)Mac OS® 10.4 and up (Tested up to 10.9)Linux kernel 3.2 and up

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
