USER MANUAL BQ61TDE SMEG

  1. WAARSCHUWINGEN VOOR HET GEBRUIK....92

  2. INSTRUCTIES VOOR DE AFVALVERWERKING - ONZE ZORG VOOR HET MILIEU 93

  3. WAARSCHUWINGEN VOOR DE VEILIGHEID 94

  4. GEBRUIK WAARVOOR HET APPARAAT IS BESTEMD....96

  1. LEER UW APPARAAT KENNEN 97

  2. VÓÓR DE INSTALLATIE 98

  3. INSTALLATIE......98

Isometric line drawing of a 3D geometric structure resembling a truncated pyramid or truss, with no text or symbols present.

Geometric line drawing of a triangular structure with intersecting lines and a base (no text or symbols)

Geometric diagram of a 3D pyramid with arrows indicating rotational direction (no text or symbols)

Isometric line drawing of a 3D geometric structure with internal dashed lines and square cutouts (no text or symbols)

5. LEER UW APPARAAT KENNEN

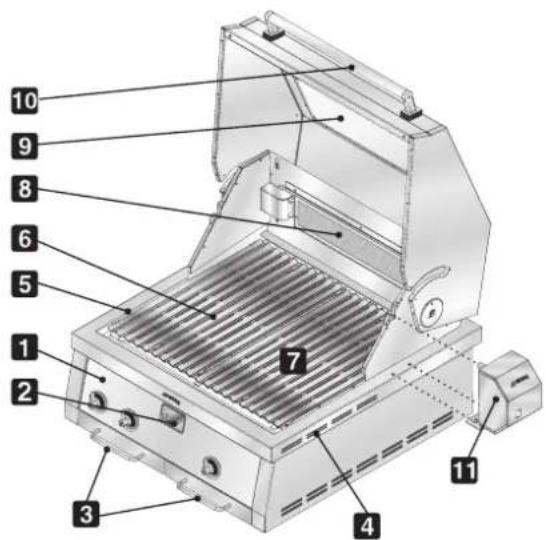

BQ61T
Labeled diagram of a portable electric stove or grill with numbered components for identification.

BQ6130T
Labeled diagram of a portable gas stove or oven with numbered components for identification.

BQ91T
Labeled diagram of a portable electric stove with numbered components for identification

1 BEDIENINGSPANEEEL
2 SMOKER
3 LEKBAK VOOR HET OPVANGEN VAN SAPPEN
4 WARMTE- AFVOEROPENINGEN
5 GATEN VOOR DE MANUELE ONTSTEKING VAN DE BRANDERS RECHTS EN LINKS
6 ROOSTERS
7 KERAMISCHE PLATEN (ONDER DE ROOSTERS)
8 BRANDER STRALINGSGRILL GLAS DEKSEL
9 10 THERMOMETER VOOR TEMPERATUUR- AANDUIDING MET GESLOTEN DEKSEL
11 MOTOR VAN HET DRAAISPIT:
12 HULPBRANDER
13 SNELBRANDER
14 PANDRAGER VAN DE BRANDER

6. VÓÓR DE INSTALLATIE

SMEG BQ61TDE - VÓÓR DE INSTALLATIE - 1

SMEG BQ61TDE - VÓÓR DE INSTALLATIE - 2

Close-up of a mechanical component with a magnified inset showing a bolt and nut assembly (no visible text or symbols)

Line drawing of a 3D architectural structure with two rectangular units and a central platform (no text or symbols)

MATEN VOOR DE INBOUWINSTALLATIE VAN DE BARBECUE

MODELLEN

MATERIALEN WAARDE BQ61T BQ91T BQ6130T

NIET ONTVLAMBARE

A 610 910 910

C 150 150 150

B 620 920 920

ONTVLAMBARE

D 200 200 200

C F A A A

DRAAIKNOP BEDIENING STRALINGSBRANDER

8 O' F Δ Δ Δ

"SMOKER" KLEINE LADE

Technical diagram of a device with numbered components labeled 1 through 5, showing internal structure and layout.

C A 2 5 1 3 4

Metallic rack with vertical slats and two hook ends (no text or symbols)

Close-up of a metallic mechanical component with labeled point B (no text or symbols beyond label)
