Type of Product	Graphics Tablet
Brand	Medion
Model	LIFE X89003 (MD 86332)
Active Surface (Height x Width)	9 x 12 inches
Maximum Resolution	3048 lpi / 120 lpmm
Sensitivity	512 Steps
Connectivity	USB
Pen Battery Type	1 x AAA (1.5 V)
Mouse Battery Type	1 x AAA (1.5 V)
System Requirements	PC/AT compatible, Pentium 200 MHz or higher, 32 MB RAM, 10 MB free HDD, CD-ROM drive, USB port
Supported Operating Systems	Windows 98SE/ME/2000/XP
Included Items	Graphics tablet, pen, wireless mouse, 2 AAA batteries, installation CD, user manual
Pen Buttons	2 programmable buttons
Mouse Buttons	3 programmable buttons
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	20% - 80% (non-condensing)
Certifications	CE, FCC, VCCI
Warranty	1 year limited warranty
Languages	English user manual

Frequently Asked Questions - LIFE X89003 (MD 86332) MEDION

How do I install the battery in the pen?

Turn the rear end of the pen counterclockwise, remove it, insert one AAA battery with the positive end toward the pen tip, then replace the rear end and tighten clockwise.

How do I install the battery in the wireless mouse?

Turn the mouse over, remove the battery compartment cover using the plastic tab, insert one AAA battery with the positive end on the right side, then replace the cover until it locks.

How do I calibrate the drawing pen?

Open the Graphics tablet configuration screen, select the Control tab, set Tracking Mode to Pen Absolute, click the grey box, then tap the top-left and bottom-right corners of the tablet with the pen.

How do I install the driver for the graphics tablet?

Connect the tablet to a free USB port, insert the installation CD, and follow the on-screen instructions. If Autorun is disabled, run 'setup' from the CD manually.

What are the system requirements for the graphics tablet?

A PC/AT compatible computer with a Pentium 200 MHz or higher processor, 32 MB RAM (64 MB recommended), 10 MB free hard disk space, a CD-ROM drive, a USB port, and Windows 98SE/ME/2000/XP.

Why is the LED on the tablet blinking?

The LED blinks when the pen and/or mouse are not within range of the tablet. Move them closer to the active surface. A steady LED indicates normal operation.

Can I use the pen and mouse simultaneously?

No, do not use the pen and mouse simultaneously. Only one input device should be used at a time.

How do I troubleshoot if the tablet is not recognized?

Check all cable connections, ensure the USB ports are active and configured correctly, and verify that the batteries are inserted properly and not depleted. Restart your computer if needed.

How do I dispose of used batteries?

Batteries are toxic and must be properly disposed of. Replace them only with the same or equivalent battery type, and follow local regulations for battery disposal.

What is covered under the warranty?

The product is warranted against defects in materials and workmanship for one year from the original purchase date. MEDION will repair or replace defective parts or units. Exclusions apply; see manual for details.

USER MANUAL LIFE X89003 (MD 86332) MEDION

© 2004 Medion®. All rights reserved.

Trademarks:

Microsoft, MS-DOS and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Other trademarks are property of their respective owners.

Artwork is for illustrative purposes only. Actual product appearance may vary. Medion can not be held liable for misprints or typos.

CONTENTS

Safety and Maintenance ....3

Ergonomics.... 4

Inventory 4

Technical data 5

System requirements .... 5

Usage 5

Getting Started....6

Insert the Battery into the pen....6

Insert the battery into the cordless mouse....6

Used batteries - waste disposal 7

Graphics tablet diagram....7

Installation of the graphics tablet 8

Driver installation 9

Installation of the applications 10

Uninstalling applications 11

Configuring the Graphics tablet.... 11

Calibrating the drawing pen 11

Customer service ....12

What to do in the event of problems.... 12

Basic hints.... 12

Troubleshooting 12

Technical Support.... 13

Additional Support.... 13

Warranty 14

SAFETY AND MAINTENANCE

Keep these instructions with your graphics tablet at all times. The proper set up, use and care can help extend the life of your graphics tablet. In the event that you transfer ownership of this device, please provide these instructions to the new owner.

Whenever you edit your data, make backup copies on an external data medium (e.g., floppy disks, CD). We not liable for loss of data and consequential damages.
→ This product is designed to run on a PC/AT (IBM-compatible) computer with a free USB-port.
→ Follow the safety instructions for the computer to which you are connecting the device.
⇒ Never open up the component housings. This might lead to a short-circuit or even a fire.
→ Never allow children to use electronic devices unsupervised. Children may not always correctly identify potential hazards.
→ Arrange the connection set so that no one can tread on or trip-over it.
This device should only be repaired by an authorized service partner. Please contact customer service if you have any technical problems.
Only a qualified engineer should perform upgrades and repairs. If you do not have the necessary qualifications, go to an appropriate Service Engineer. Please contact customer care if you are experiencing technical problems with this device.
Keep the device away from moisture and avoid dust, heat and direct sunlight. Ensure an ambient temperature that is suitable for office equipment.
Allow a clearance of at least 20 inches from sources of high-frequency and magnetic interference (TV, mobile telephone, infrared devices, loudspeaker cabinets, etc), in order to avoid malfunctions and loss of data. The clearance between the transmitter and the charging/slave station should be greater than 20 inches.
Position and operate this device only on a stable, flat and vibration-free surface.

Before cleaning the devices, remove the cable connection from the computer. Clean the devices and other components with a damp cloth. Do not use any solvents, corrosive or gaseous detergents.
When connecting additional or other components the EMC (electromagnetic compatibility) directives must be adhered to. Do not operate the mouse when it is in the charger. The devices are not intended for use in a heavy industry environment.

ERGONOMICS

Medical studies have shown that certain physical ailments and injuries are linked to prolonged and repetitive movements in an unsuitable working environment and to bad working habits. Take frequent breaks when using a computer. If you experience pain, numbness or tingling in your arms, wrists, hands or fingers, consult a medical doctor.

Remove the power plug of your computer from the power outlet and contact customer care:

• if the connections are grazed or damaged;
• if liquid has entered the device housing;
• if a device does not operate correctly;
• if a device is dropped or the housing damaged.

INVENTORY

Please check that these contents are complete and notify us within 14 days of purchase if any item is missing. The product you have purchased contains:

Graphics tablet with USB cable set

Pen*

Wireless mouse*

2 batteries (AAA, 1.5 V)

Installation and application software

This user manual

* ONLY for use with the Graphics tablet.

TECHNICAL DATA

Active surfaces	9 x 12 in. (height x width)
Maximum resolution 3048	lpi / 120 lpmm
Sensitivity 512 Steps
Connection USB
Environment temperature	41°F - 104°F
Humidity	20% - 80% (non-condensing)
Mouse operating battery Microcells LR03 AAA type, 1.5V
Pen operating battery Microcells LR03 AAA Type, 1.5V
Certification CE, FCC, VCCI	CI.II

SYSTEM REQUIREMENTS

Computer PC/AT compatible computer
Processor performance	Pentium class 200MHz or higher
Operating system Windows	® 98SE/ME/2000/XP
RAM 32 MB, 64 MB or more	recommended
Hard disk storage at least 10 MB of free storage
Installation	CD-ROM Drive
Connection	USB

USAGE

With this Graphics tablet, new forms of graphics data input are available to you. The familiar ergonomics of the touch-sensitive pen allow you to draw directly into your Graphics program. You will be able to increase the efficiency of the input of your designs. Digitally, the drawing produced with the Graphics tablet, as always, can be further processed by specific digital imaging application software. The drawing pen has two buttons available, which can be programmed with the desired functions. The included cordless mouse offers you three programmable buttons for optimal functionality and control.

GETTING STARTED

INSERT THE BATTERY INTO THE PEN

1. Turn the rear end of the pen counterclockwise, as you would with a ballpoint pen, and remove the rear end.
2. Put one of the included batteries into the pen, (see above illustration). Make sure that the end of the battery marked with "+" appears at the pen top and that end marked with "-" points to the end of the rear contact spring
3. Replace the rear end of the pen again and turn it clockwise to tighten.

INSERT THE BATTERY INTO THE CORDLESS MOUSE

Two simple electrical components with battery symbols, one open and one closed, both without any text or labels.

1. Turn the mouse over and remove the battery compartment cover by using the small plastic tab (see arrow). Press carefully backwards and remove upwards.
2. Put one of the included batteries into the battery compartment of the mouse, (see above illustration). Make sure that the end of the battery marked with "+" appears on the right side and the end marked with "-" points to the rear contact spring.
3. Replace the battery compartment cover. It should lock into place.

USED BATTERIES - WASTE DISPOSAL

Important note: Batteries are toxic and must be properly disposed of. Replace the empty batteries only with the same or an equivalent battery type.

GRAPHICS TABLET DIAGRAM

3D geometric shape resembling a truncated cone or funnel with a labeled point (6), no text or symbols present.

Functioning elements
1	Operating display
2	Function buttons
3	Active surface
4	Pen buttons
5	Sensitive pen point
6	Buttons of the remote mouse
Graphics tablet connection cables
7	USB Connection

INSTALLATION OF THE GRAPHICS TABLET

The following installation instructions are applicable to the Microsoft® Windows® operating system versions 98SE/ME/2000/XP. The installation is basically the same with all of these operating systems. Here are some tips to complete the installation successfully.

• Have ready the Installation CD for the Graphics tablet.
• Also have ready the Installation CD of your computer's operating system in case you need it.
• If you use Windows ^® 2000 or XP, login with administrator rights in order to successfully install the driver and software.

During the installation procedure important files can be changed or even deleted. To avoid problems with using older files after installation, make sure you back up your hard disk and important files.

Note: If your operating system is configured so that the installation procedure accepts only signed drivers and software (the default) this information screen will appear:

Although the software lacks the digital signature it still works properly. Click on "Tell me why this testing is important" to get detailed information.

Confirm by clicking on "Continue Anyway".

DRIVER INSTALLATION

1. Follow the guidelines in the chapter "Safety and Maintenance" (from page 2).

2. Place the PC, the Graphics tablet, the pen and the mouse on your work surface so that you can work comfortably and safely with them.

3. Switch on the computer and all the connected peripherals (monitor, printer, external modem etc.), and wait until the operating system has been fully started.

4. Locate a free USB port on your computer.

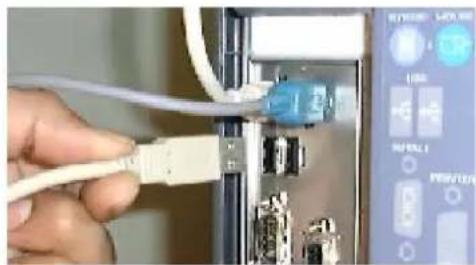

5. Connect the end of the USB cable (①) with a free USB port on your computer (②).

Close-up of a hand inserting a white cable into a device panel with control buttons (no readable text)

1. The operating system should now recognise the Graphics tablet. The operating system may request that you insert its installation disc at this time.

2. After the operating system has recognized the USB device, insert the Graphics tablet Installation CD in order to start the software installation routine.

The green LED of the Graphics tablet (page 7, ①) shows the system is working correctly. If the mouse and/or the pen are near the Graphics tablet, the LED glows steadily. The LED blinks if the pen and/or mouse are not within reach. DO NOT use the mouse and the pen simultaneously.

Note: If the CD does not start automatically, it is likely that the CD Autorun function has been deactivated. Read the respective chapter in Windows Help on how to activate this function. What follows is an example of a manual installation without the CD Autorun function:

1. Click on Start and select the item Run... (Or hit + R to launch the corresponding dialog).

2. Now enter the letter of the CD-ROM drive followed by a colon and the program name setup:

1. Click on "OK".

2. Follow the instructions given by the setup program.

3. A window now appears with which you can start the driver's installation. Click on the USB Tablet Driver icon and follow the instructions on screen.

INSTALLATION OF THE APPLICATIONS

In order for you to be able to use your Graphics tablet optimally, we have enclosed application software.

1. If you have already installed the driver (see previous pages), you can now install the application software.

2. Select the required application from the program window of the CD. If the window is no longer visible, simply insert the CD again.

3. Follow the program's installation instructions.

4. After a successful installation, you can find the new programs in the Start menu under Programs. Restart the PC in order to fully complete the installation.

UNINSTALLING APPLICATIONS

In order to remove the installed software from your PC, follow the steps below:

1. Click on

1. Click on

1. Finally, double click on the following icon:

Select the appropriate program from the list, start the uninstallation and follow the instructions on screen.

CONFIGURING THE GRAPHICS TABLET

Click on

Click on

Double click on the Pad 9570 icon in order to configure the Graphics tablet. You may need to click Switch to Classic View on the upper left portion of the screen in order to reveal the Pad 9570 icon.

This screen is where you can configure the individual buttons of the pen and mouse. You can also adjust the sensitivity of the Graphics tablet and choose a unit of measurement.

CALIBRATING THE DRAWING PEN

In order to improve the accuracy of your drawing pen, you should first make sure that it is properly calibrated with your Graphics tablet.

1. Follow the instructions above to open the Graphics tablet configuration screen.
2. Select the Control tab.
3. Under Tracking Mode select Pen Absolute.
4. Click once with the mouse in the grey box.
5. Use the drawing pen to tap the top left corner of the Graphics tablet.
6. Use the drawing pen to tap the bottom right corner of the Graphics tablet.
7. Select OK.

WHAT TO DO IN THE EVENT OF PROBLEMS

BASIC HINTS

➢ Run the Windows® programs "Defrag" and "Scandisk" regularly to remove sources of error and increase system performance.

TROUBLESHOOTING

Start with a careful visual check of all cable links. If the indicator lights are not working, make sure that the power is reaching the computer and all attached peripherals.

Switch the computer off and check all cable connections. Once you have ascertained that the power supply is not at fault and all connections are intact, switch on the computer again.
➢ Check that the USB ports are active and correctly configured and that there are no resource conflicts with other devices. Please refer to your PC user manual on this point.
Have the batteries been inserted incorrectly or are they spent? Check the polarity (+/-) and exchange them for new ones if necessary.
➢ Follow the instructions on page 11 to calibrate your drawing pen and Graphics tablet.

TECHNICAL SUPPORT

This program has been extensively and successfully tested in our test laboratory with a number of different PC setups. It is nevertheless quite normal for the drivers to be updated from time to time. This means that problems of compatibility with other, as yet untested, components (programs, devices) may arise. Driver updates and the most up-to-date information on this product can be found at the following Internet address:

Internet: http://www.medion-usa.us

ADDITIONAL SUPPORT

Medion offers additional customer support information on our website, including a Knowledge Base and e-mail support. In addition, our friendly and professional call center staff are ready to help you via telephone. Before you call, however, please have the following information available:

• The model of your computer
• A list of all peripherals (e.g., printers, external mice) that are attached to the computer
• A list of the software that is installed on the computer
• The software that you were using when the issue occurred
• Any error messages that may have appeared
• Is the issue repeatable? Can you make it happen again?
• What troubleshooting steps have you taken before contacting customer support?
• If you have been given a customer number previously, please have this available.

This page is intentionally left blank.

WARRANTY

MEDION warrants to our customers that this product is free from defects in materials and workmanship as follows: for a period of one (1) year from the date of original purchase, defective parts or a defective product returned to a MEDION repair facility or a MEDION Authorized Service Facility ("ASF") for such product, as applicable, and proven to be defective upon inspection, will be exchanged for new or comparable rebuilt parts, or a refurbished product, as determined by the MEDION repair facility or the ASF.

Limited warranty repair or replacement shall not extend the original limited warranty period of the defective product. This limited warranty does not cover any supplies or accessories, including but not limited to: software, blank media, user-installed drives, etc.

EXCLUSIONS: this limited warranty does not apply, and you will have no remedy hereunder with respect to (a) products that have been modified, opened, repaired or otherwise altered, except by MEDION or an ASF, (b) products that have been damaged or destroyed after delivery to the customer, (c) any third party software, interfaces, parts, supplies, peripherals or other products or any defects resulting from use of the product in connection with such third party products, (d) defects resulting from improper or inadequate maintenance, calibration or site preparation, (e) defects resulting from any misuse, abuse, accident, neglect, negligence or any use other than in accordance with the handling or operating instructions provided by MEDION, (f) defects resulting from exposure to unusual physical or electrical stress or from any operation other than in accordance with the published environmental specifications for the product.

TO THE EXTENT ALLOWED UNDER APPLICABLE LAW, THE ABOVE WARRANTIES ARE EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND MEDION SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND NO IMPLIED WARRANTY APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED WARRANTY STATED ABOVE. Some countries, states or provinces do not allow exclusions or limitations on the duration of an implied warranty, so the above limitation or exclusion might not apply to you. This limited warranty gives you specific legal rights and you might also have other rights that vary from country to country, state to state, or province to province.

MEDION's limited warranty is valid in any country or locality where MEDION has a support presence for this product and where MEDION has marketed this product. The level of warranty service you receive may vary according to local standards. MEDION will not alter form, fit or function of the product to make it operate in a country for which it was never intended to function.

TO THE EXTENT ALLOWED UNDER APPLICABLE LAW, THE REMEDIES IN THIS LIMITED WARRANTY STATEMENT ARE YOUR SOLE AND EXCLUSIVE REMEDIES. EXCEPT AS INDICATED ABOVE, IN NO EVENT WILL MEDION OR ITS SUPPLIERS BE LIABLE FOR LOSS OF DATA OR FOR INDIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. IN NO EVENT SHALL RECOVERY OF ANY KIND AGAINST MEDION BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY MEDION WHICH CAUSED THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF USE OR MISUSE OF, OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF MEDION. Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT AS LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

Please note the following:

Be sure to keep your purchase receipt in a safe place. MEDION, at its option, may require a copy of the receipt to validate the warranty period effective date (i.e. date of purchase). Warranty liability only applies to material or factory faults. It does not apply to damage due to breakage, for example, a crack in the housing. Our service includes unit exchange or send-in repair:

Unit Exchange

In locations where Unit Exchange is available, MEDION will send you a replacement unit. You must return the defective unit to MEDION (using the shipping carton that the new one came in.)

Send-In Repairs

In locations where Send-In Repair Service is available, repair service can be obtained by shipping your unit to the MEDION Repair Center. The unit will be repaired and returned to you.

For either Unit Exchange or Send-In Repairs, you must have an authorized RMA number from Medion support before shipping your defective product.

Replacement products may be either new or equivalent in performance to new. MEDION replacement or repaired products may contain remanufactured parts equivalent to new in performance or may have been subject to incidental use.

Out-of-Warranty Support

In addition to providing free technical support during the warranty period, MEDION is also available to support your product after the warranty period has ended. This out-of-warranty support will be provided on a fee basis.
