EG-2550BS - Hob Vivax - Free user manual and instructions

Product Type	Electric Contact Grill / Hob
Brand	Vivax
Model	EG-2550BS
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W
Protection Class	Class I
Heating Element	Built-in M-shaped heating element for fast and even heat distribution
Grilling Surface	Flat plate, ideal for cooking eggs, bacon, onions, mushrooms, tomatoes
Grease Management	Grease grooves for low-fat cooking; removable grease container
Temperature Control	Thermostat knob with adjustable temperature
Indicators	Red power indicator light; green temperature indicator light
Safety Features	Safety switch (prevents accidental heating); overheating protection with RESTART button
Temperature Probe	Removable thermostat-controlled probe for consistent temperature
Material	Housing: durable plastic; grill plate: metallic with non-stick coating
Cleaning	Removable grease container and basket dishwasher safe; wipe housing with damp cloth
Weight	Approx. 2.95 kg
Accessories Included	Grease container, temperature probe
Warranty	12 months (24 months for Vivax Imago TVs); extended if repair takes >10 days
Spare Parts Availability	Service and spare parts guaranteed for 7 years from purchase date
Intended Use	Household indoor use only; not for commercial purposes

Frequently Asked Questions - EG-2550BS Vivax

What is the maximum oil capacity of the Vivax EG-2550BS?

The grill is not a deep fryer; it uses minimal oil or no oil for grilling. The removable grease container collects drippings.

Can I use butter or olive oil on the grill plate?

No, avoid margarine, olive oil, or butter as they smoke at low temperatures. Use high-quality frying oil or grease suitable for high heat.

How do I clean the grill plate after use?

Unplug and let cool. Wipe the inner oil tank with paper towel, then a damp soapy cloth. Never immerse the heating element in water. The grease container and basket are dishwasher safe.

What does the RESTART button do?

The RESTART button resets the overheating protection. If the device overheats (e.g., turned on without oil), unplug, let cool completely, then press the RESTART button with a plastic or wooden object.

Why does the green indicator light turn on and off during cooking?

That is normal. The green light indicates the thermostat is maintaining the set temperature by cycling the heating element.

Can children use this grill?

Children under 8 years must not use it. Children 8+ can use it only under continuous supervision. Keep the appliance and cord out of reach of children under 8.

What should I do if the supply cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Is the grill suitable for frozen foods?

Yes, but pat dry moist or frozen foods to prevent excessive foaming. Do not exceed 2/3 capacity in the basket if used for frying items.

How do I change the oil or fat?

Allow oil to cool, then pour out from the removable grease container or oil pot. For solid fat, let it solidify in the container and remove.

Where can I find the EU Declaration of Conformity?

Download from: www.msan.hr/dokumentacijaartiklala

USER MANUAL EG-2550BS Vivax

Close-up of a metallic heating element with vertical slots and a small black button (no text or symbols visible)

Ravna ploča: Idealna je za spremanje raznih jela, uključujući jaja, slaninu, luk, gljive i rajčice.

Close-up of a metallic heating element with vertical fins and a small black button (no text or symbols visible)

Ugrađeni grejač u obliku slova M: Grejač je ugrađen (zaliven) u ploču za zagrevanje kako bi se osiguralo brzo zagrevanje i ravnomerna distribucija toplote.

Žlebovi za mast: Ovo služi za efikasno pečenje uz nizak sadržaj masti

3. Odstranjiva posuda za mast

Skuplja masti i sokove tokom pripreme hrane.

Primerena za pranje u perilici posuđa

4. Sonda za kontrolu temperature

Kontrolna sonda je pod termostatskom kontrolom kako bi se osigurala stalna temperatura i odstranjiva je zbog transporta i lakog čišćenja.

PRE PRVE UPOTREBE

Izvadite uređaj i dodatke iz kutije. Odstranite nalepnice, zaštitnu foliju i plastiku sa uređaja.

Close-up of a metallic heating element with vertical fins and a small black button (no text or symbols visible)

Close-up of a metallic ventilation grille with no visible text or symbols

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.

SAFETY PRECAUTIONS

1. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Keep the appliance and its cord out of reach of children less than 8 years. Children should be supervised to ensure that they do not play with the appliance
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
5. Cooking appliance should be positioned in a stable situation with handles (if any) positioned to avoid spillage of the hot liquids.
6. The user must not leave the device unattended while it is connected to the supply.
7. This appliance is only to be used for household purposes and only for the purpose it is made for.
8. This appliance is intended for indoor use only
9. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
10. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
11. Only use the appropriate power plug and power socket for this device.

12. Do not use this appliance near water, in a wet basement or near a swimming pool. Do not expose the device to direct sunlight, humidity or excessive dust.

13. Do not let cord hang over edge of table or counter.

14. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments; - farm houses

• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Failure to maintain the appliance in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless continuously supervised.
• Steam cleaner is not to be used.

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Before you connect your new device to the power supply 230V, 50Hz, make sure the voltage in your household and socket type correspond to the voltage indicated on the nameplate. If you have any doubt, consult with a licensed electrician.

Before using for the first time

1. Remove the packaging.
2. Make sure that the packaging and the bags must be kept out of reach of small children. Do not allow children to play with packaging because there is a risk of suffocation and injury.
3. Take the lid off the deep fat fryer. In the deep fat fryer, you will find a frying basket. Take all objects out of the fryer.
4. It is highly recommended to clean the lid, casing, container and frying basket as described in Cleaning section.
5. Please pull the connecting cable out of the cable compartment.

Electrical connection

• Make sure that the voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 230 V \~ 50 Hz, 2000W socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 2000W. With this connected load a separate supply line protected by a 10A household circuit breaker is recommended.

CAUTION: OVERLOAD:

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

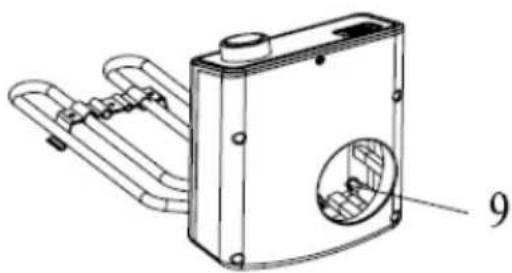

Overview of the Components

1 Power indicator light (Red)
2 Temperature indicator light (Green)
3 Thermostat knob
4 Oil pot
5 Frying basket
6 Housing
7 Safety button switch
8 RESTART – button
9 Cable compartment

10 Lid

Technical line drawing of a mechanical device with internal components and a numbered label (9), no readable text or symbols present.

Special Safety Instructions for this Device

• Never add water to the oil!
• Oils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! First turn the thermostat to the lowest position and then remove the mains plug.
• Please do not operate the device with an external timer or a separate remote control system.

Intended Use

This device is used for deep-frying food.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

Useful hints for use

1. Always remove the food remaining in the oil (e.g. pieces of French fries). After the device has been used several times you should change the oil.

Use high quality frying oil or frying grease.

1. Fats and oils must be heat able to high temperatures.

Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures.

We recommend the use of liquid frying oil.

WARNING:

Please note this important information if you intend to use fat!

If you use fat, please divide it up into small pieces. Turn the thermostat to a low temperature and add the pieces slowly. Once the fat has melted and the correct oil level is reached you can set the desired temperature on the thermostat.

Under no circumstances should you place the fat in the deep frying basket!

1. In order to reduce the acrylamide content of food containing starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 170^ C (or possibly 175^ C). Furthermore, the frying time should be kept as short as possible and the food only fried until it turns golden yellow.

2. Please note that the safety switch (7) is operated when the control element is inserted into the guide mechanism.

3. Choose the right frying temperature and check the conditions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

4. Do not carry or move the deep fryer if the oil or grease is still hot.

5. When frying dough-like foods scrape off the excess dough and put the pieces carefully into the oil.

6. Please ensure that the handle of the deep fat frying basket has been correctly attached.

7. Press the ends of the wire together at the free end of the handle.

8. Insert the brackets into wire hoops inside the basket.

9. The deep fat frying basket must not be more than 2/3 full. Do not overfill the frying basket.

10. Rub dry humid foods with a cloth before frying.

CAUTION:

In the case of foodstuffs which are too moist (e.g. frozen chips etc.) large amounts of foam may form, which under certain circumstances may cause the oil to overflow.

Instructions for Use

1. Make sure that the appliance is unplugged and switched off (The control lamps are off.).
2. Take the lid off the deep fryer.
3. Remove the frying basket and fill the container with oil or grease (maximum 3L). The filling level must be located between the minimum and the maximum level.
4. Insert the plug into a 220-240V, 50 Hz power socket. The red control lamp lights up. Set the desired temperature by turning the temperature control (3).
5. The green control lamp lights up. Once the set temperature has been reached the green control lamp goes off. Place the frying basket containing the items to be fried carefully into the hot fat.
6. The green control lamp switches on and off several times during frying. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained. Once the frying time is over (the frying times are to be found on the packaging of the food or in the recipe), please take out the frying basket.
7. Let the oil drip from the food being fried.
8. In order to switch off the machine, please turn the temperature regulator to OFF and remove the plug from the socket. Wind the mains lead up in the form of a spiral in the cable compartment.

REFERENCE MENU

The frying time given in this chart is only for reference.

FOOD TYPE TEMPERATURE(°C) TIME (min)

Shrimp 130°C 2-4

Mushrooms 150°C 3-5

Crumbed chicken 170°C 12-14

Vish cakes 170°C 3-5

Fillets 170°C 5

Onions 190°C 2-4

French fries 190°C 8-10

Potato chips 190°C 10-15

Cleaning and maintenance

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

1. Make sure the deep fryer is switched off both the thermostat and timer knobs before cleaning and maintenance.
2. Allow the oil or fat to cool down.
   Caution: Do not move the deep fry and the contents until it is completely cool down.
3. If the deep fryer is not used regularly. It is recommended to store the oil or liquid fat after cooling in a container preferably in the fridge or some other cool place. Open the lid and remove the basket. Filter the oil or fat through a fine sieve into the container to remove food particles from the oil or fat.
4. If the deep fryer contains solid fat, allow the fat to solidify in the deep fryer and store the fat in the deep fat fryer. Please refer to chapter of frying with solid fat for details.
5. Empty the fryer and clean the inner part of oil tank with a paper towel, then wipe with a wet cloth dipped in soapy water. Wipe with a damp cloth and allow it to dry.
   Warning: Never immerse the heating element in water and do not clean these parts under running water.
6. Clean regularly the outer part of the fryer with damp cloth and dry it with a soft and clean towel.
   Note: Do not use abrasive detergents.
7. Clean the basket and the handle in warm soapy water. Dry thoroughly before reusing.
8. Dry completely before storage.
9. Store the appliance in a dry, well-ventilated position which is out of reach of

children, when the deep fryer is not in use.

1. Store in its original package when not using for a long time to avoid soiling

CAUTION

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Under no circumstances should the device be immersed in water for cleaning.

Deep frying fat container

• In order to change the oil, pull out the deep frying fat container and pour the oil out at the side.
• Clean the deep frying fat container, the lid and the housing with a damp cloth and household detergent if necessary. Please do not immerse in water.
• The deep frying basket can be cleaned in the usual way in soapy water.

Housing

- Clean the housing after use with a slightly damp cloth.

Troubleshooting guide

Device is not working

• Check the mains connection.
• Check the position of the thermostat.

Other possible causes:

The device is fitted with a safety switch (7).

This prevents the heater being switched on accidentally.

Check that the control element is correctly in place.

Overheating Protection

• If you should accidentally switch on your deep fat fryer when there is no oil or fat in it the overheating protection is automatically turned on. The appliance is no longer ready to be used. Unplug the deep fryer.
• Only after the device has been left to cool down completely should the „RESTART“ button (8) on the rear of the control element be operated in order to use the deep fat fryer again. For this you should use a plastic or wooden object that is the least 4 cm long.

Technical Data

Model: DF-2003SS

Power supply: 220-240 V, 50 Hz

Power consumption: 2000 W

Protection class: I

Filling quantity: max.3.0 Litre

Net weight: 2.95 kg

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU Declaration of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartiklala

EG-2550BS

CZ

Návod k použití

Elektrický gril

VÍTEJTE!

INSTALACE VAŠEHO GRILU

Exterior view of a rectangular electronic device with vertical ventilation slots (no text or symbols visible)

Close-up of a metallic heating element with vertical fins and mounting base (no text or symbols visible)

Close-up of a metallic heating element with vertical fins and a flat surface (no text or symbols visible)

Close-up of a metallic heating element with vertical fins and a flat base (no text or symbols visible)

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
