WGCXS116SKB - Wall socket HAGER - Free user manual and instructions

Product Type	Wall Socket
Brand	Hager
Model	WGCXS116SKB
Color	White
Material	Thermoplastic
Rated Voltage	230 V AC
Rated Current	16 A
Frequency	50/60 Hz
Number of Sockets	1 (single socket)
Child Protection	Yes (shutter system)
Mounting Type	Flush mounting
Dimensions (H x W x D)	80 mm x 80 mm x 35 mm
Weight	0.1 kg
Operating Temperature	-5°C to 40°C
IP Rating	IP20
Standards	IEC 60884-1
Wiring Connection	Screw terminals

Frequently Asked Questions - WGCXS116SKB HAGER

What is the rated voltage and current for the Hager WGCXS116SKB wall socket?

The socket is rated for 230 V AC and 16 A, suitable for standard household appliances.

Does the wall socket have child safety protection?

Yes, it is equipped with a shutter system that prevents insertion of foreign objects, ensuring child safety.

What are the dimensions of this socket?

The dimensions are approximately 80 mm x 80 mm x 35 mm (height x width x depth).

How do I install the Hager WGCXS116SKB wall socket?

Installation should be done by a qualified electrician. Ensure power is off. Connect wires to screw terminals (L, N, E) and mount flush into a standard 60mm wall box.

What is the IP rating of this socket?

The IP rating is IP20, meaning it is protected against solid objects larger than 12.5 mm but not against water. Use indoors only.

Can I use this socket in a bathroom or outdoor area?

No, it is not designed for wet or outdoor locations. For bathrooms, use sockets with higher IP rating and RCD protection.

What is the maximum load this socket can handle?

At 230 V and 16 A, the maximum load is 3,680 W. Do not exceed this to avoid overheating.

How do I clean the wall socket?

Disconnect power. Wipe with a dry cloth. Do not use water, solvents, or abrasive cleaners.

Is this socket compatible with USB chargers?

It is a standard AC socket; you can plug in any USB charger adapter. It does not have built-in USB ports.

What is the warranty period for this product?

Hager typically offers a 2-year warranty. Check with your retailer for specific terms.

USER MANUAL WGCXS116SKB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

German socket outlet for electrical installations in buildings. 3pole design with shutter for enhanced contact protection.

Compatibility

The socket outlet is compatible with the following plug types:

Plugs Plug types Plug designs Pins Amperage Plug standards
	Type “F”	3pole round pin (∅ 4.8 mm) with earthing contact	L, N, ⊕	max. 16A CEE 7/4
	Type “E+F”	3pole round pin (∅ 4.8 mm) with earthing contact	L, N, ⊕	max. 16A CEE 7/7
	Type “C” 2pole round pin (∅ 4.8 mm) L, N max. 16A CEE 7/17
	Type “C” Europlug	2pole round pin (∅ 4.0 mm) L, N max.	2.5A CEE 7/16

Correct use

• For the flush-mounted installation in standard wall boxes (wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Socket rated current: 16 A

Conductor cross-section of screw terminals: min. 1 x 1.5 mm² ... max. 2 x 4 mm²

Distance of fixing holes: 60.3 mm

Socket compliance: IEC 60884-1

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

1A

Hager Muse

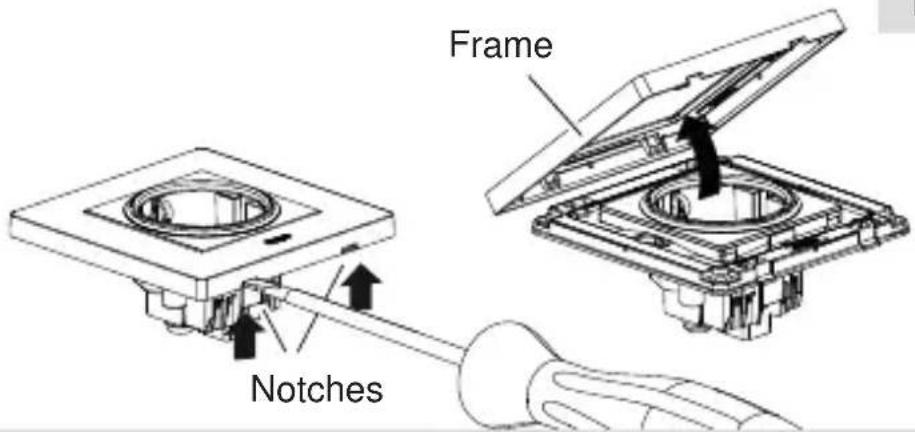

■ Hager Muse: Carefully loosen the frame on the notch with a flat-blade screwdriver. Lift up and remove the frame (1A).

■ Hager Inspire: Carefully loosen the frame on the notches with a flat-blade screw-driver. Lift up and remove the frame (1B).

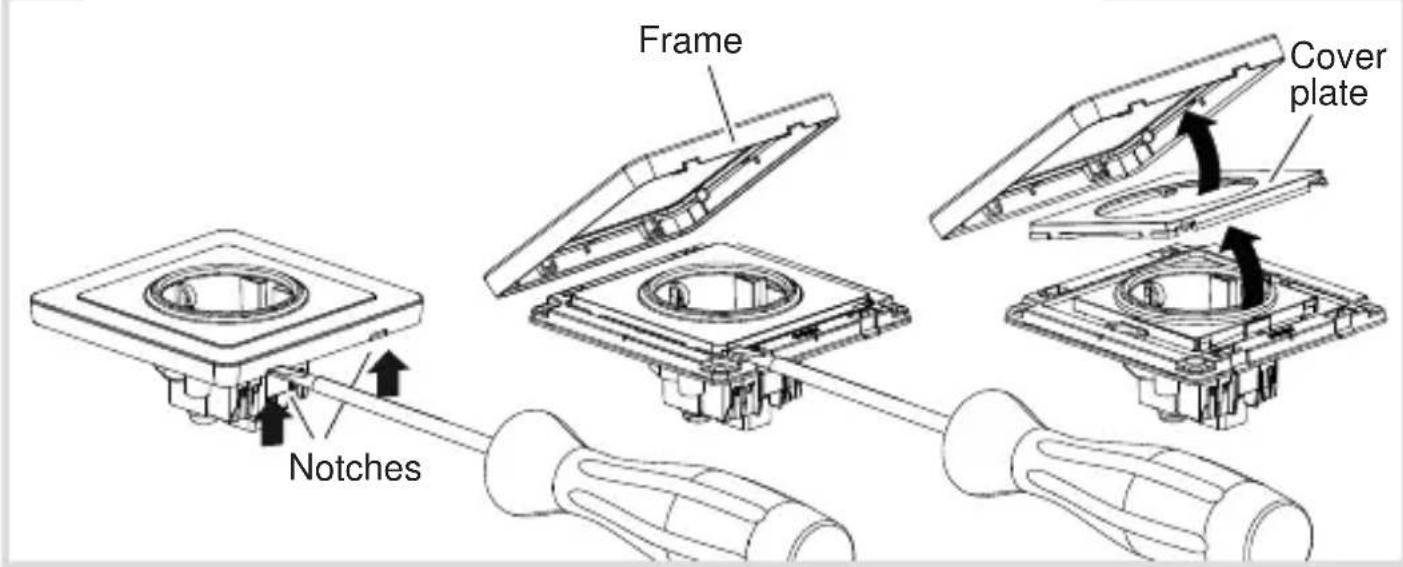

■ Hager Inspire: Remove the cover plate also with a flat-blade screwdriver (1B).

Connecting the device

2

• Strip connection cables approx. 10 ... 12 mm.

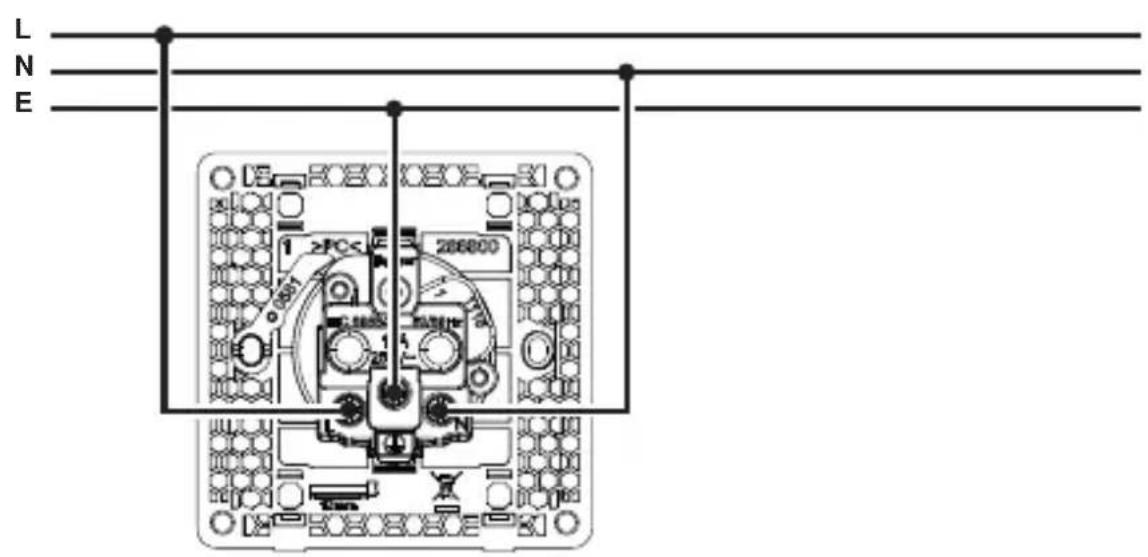

  ■ Wire the device according to the appropriate connection diagram (2).

Installing the device into the wall box

3

Technical diagram of a mechanical assembly with a central component and wiring, showing no text or symbols.

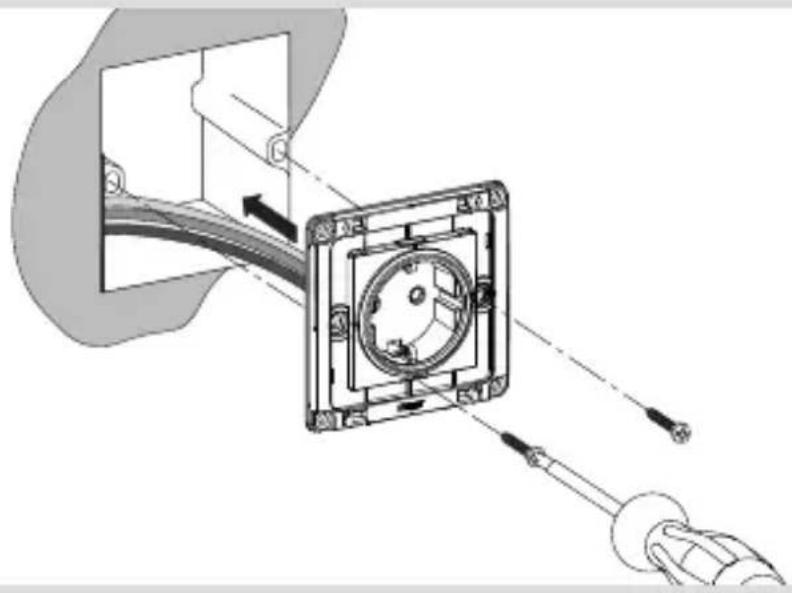

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the covers

4A
Hager Muse

4B
Hager Inspire

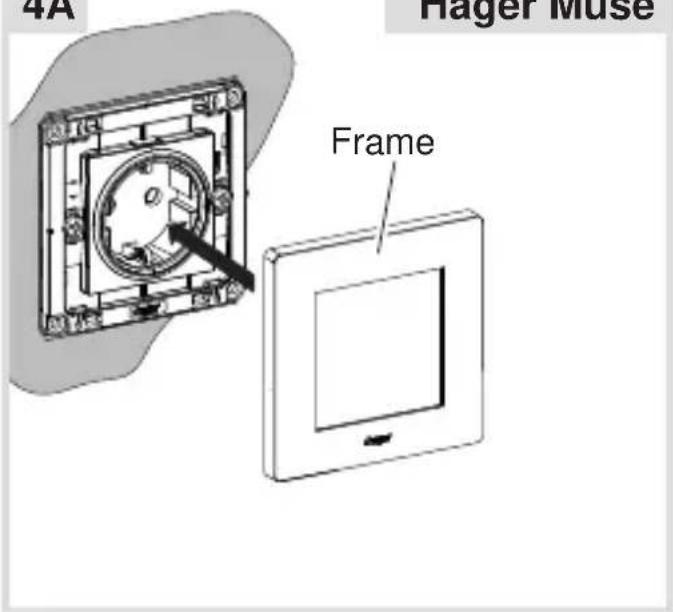

■ Hager Muse: Snap the frame onto the device (4A).

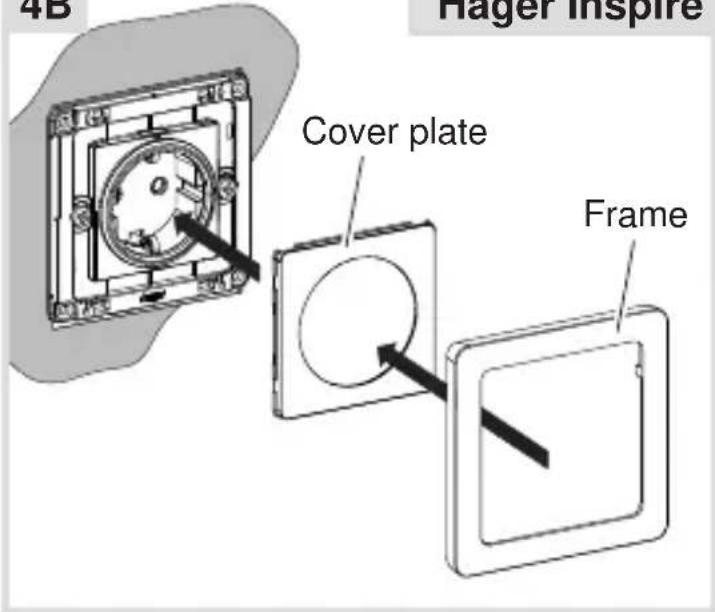

■ Hager Inspire: Place the cover plate in the correct position and fix with frame (4B).

2-5gang frames are available for multiple combinations.
