Product Type	DLP Video Projector
Brand	Toshiba
Model	TDP-T95U
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	2000 ANSI Lumens
Contrast Ratio	2000:1
Aspect Ratio	4:3 (native), 16:9 compatible
Lamp Type	200W UHP
Lamp Life	2000 hours (standard), 3000 hours (eco mode)
Projection Distance	1.2 - 12.0 m
Image Size	0.76 - 7.62 m (30 - 300 inches)
Keystone Correction	Vertical ±15°
Input Ports	VGA (D-Sub 15pin), Composite Video, S-Video, Audio (3.5mm)
Audio	Built-in 1W mono speaker
Power Consumption	260W (max)
Power Supply	AC 100-240V, 50/60Hz
Dimensions (W x D x H)	300 x 218 x 99 mm
Weight	2.8 kg
Included Accessories	Remote control, power cord, VGA cable, user manual

Frequently Asked Questions - TDP-T95U TOSHIBA

How do I connect my laptop to the Toshiba TDP-T95U?

Connect your laptop to the projector using a standard VGA cable. Plug one end into the laptop's VGA port and the other into the projector's VGA input port. Then press the Source button on the projector or remote to select RGB as the input source. You may also need to adjust your laptop's display settings to extend or duplicate the screen.

What is the lamp life and how do I replace it?

The lamp life is approximately 2000 hours in standard mode and up to 3000 hours in eco mode. When the lamp nears end of life, the LAMP indicator will flash or the projector will shut down. To replace, turn off the projector, unplug it, and let it cool for at least 45 minutes. Open the lamp cover on the side, loosen the lamp screws, and carefully remove the old lamp. Install a new Toshiba-certified lamp (model TLP-LM11), tighten screws, and close the cover. Reset the lamp timer via the menu (Main Menu > Option > Lamp Mode > Reset).

Why is the projector not turning on?

If the projector does not power on, first ensure the power cord is firmly connected to both the projector and a working wall outlet. Check if the POWER indicator is lit. If the LAMP or TEMP indicator is flashing, it may indicate a lamp failure or overheating. Allow the projector to cool down if hot. Also, verify that the lamp cover is properly closed. If the issue persists, consult the manual or contact support.

How can I clean the air filter?

Turn off the projector and unplug it. Wait for it to cool down. Locate the air filter on the side or bottom. Gently remove the filter cover and take out the filter element. Use a soft brush or vacuum cleaner to remove dust from both sides. Do not use water or solvents. If the filter is heavily soiled or damaged, replace it with a new one. Reinstall the filter and cover before using the projector.

How do I adjust the focus and zoom?

Use the Focus ring on the projector lens to sharpen the image. Rotate the Zoom ring to adjust the projected image size without moving the projector. For best results, project onto a flat, white screen and fine-tune the focus until text is crisp.

What does the LED indicator mean?

The POWER indicator: green when on, orange in standby, flashing green during startup. The LAMP indicator: steady green when lamp is on, flashing red when lamp needs replacement or is faulty. The TEMP indicator: flashing red indicates overheating. If TEMP is red, the projector will shut down automatically; check air filter and ventilation.

Can I use a 3D feature?

The Toshiba TDP-T95U is an older DLP projector and does not support 3D functionality. It is designed for standard 2D presentations and video playback. For 3D, consider a newer model with DLP Link or active shutter technology.

How do I mount the projector on a ceiling?

Use a compatible ceiling mount kit (e.g., universal mount with VESA pattern). Ensure the mount is securely attached to a ceiling beam. Attach the projector to the mount using the three screw holes on the bottom. Adjust the mount's tilt and swivel for proper alignment. Refer to the ceiling mount instructions for safety and weight limits.

Why is the image blurry or distorted?

First, adjust the Focus ring on the lens. If the image is still blurry, check the projector's distance from the screen – it should be within the recommended range. Use Keystone Correction (vertical ±15°) if the image is trapezoidal. Ensure the projector is placed on a flat surface and perpendicular to the screen. Clean the lens gently with a soft cloth.

Where can I download the user manual?

You can download the user manual from the support section of the Toshiba website or from user manual repositories like ManualsLib. On this page, click the Download button to get a PDF version in English. Alternatively, request a translated version by selecting your language and providing your email.

USER MANUAL TDP-T95U TOSHIBA

Line drawing of a projector with front panel and side screen (no text or symbols)

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING: Handling the cord on this product or cords associated with accessories sold with USA only this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling

WARNING: This [product] contains mercury. Disposal of mercury may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. USA only

MODEL NAME: TDP-T95/TDP-T100 USA only

TRADE NAME: DATA PROJECTOR

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

RESPONSIBLE PARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

9740 Irvine Blvd., Irvine, CA 92618-1697 U.S.A

Phone: [phone]

WARNING: USA only Changes or modifications made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user's authority to operate the equipment.

Notice: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This unit is fully transistorized and does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner's Manual

After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source which does not exceed the voltage range specified on the rating label and the power cord. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.

4. Ventilation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided.

5. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

6. Water and Moisture

Do not use this product near water. - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.

7. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth for cleaning.

8. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

9. Overloading

Do not overload wall outlets; to reduce the risk of electric shock, do not use the polarized plug with an extension cord, receptacle, or other outlet unless the blades can be inserted completely with three-wire grounding type to prevent blade exposure. As this can result in a risk of fire or electric shock.

IMPORTANT SAFETY INSTRUCTIONS (Continued)

10. Lightning storms

For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. However, while it is thundering or lightning, do not touch the apparatus and any connected cable and/or equipment. This will prevent you from receiving the electric shock by an electric surge.

11. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

12. Do not place the product vertically

Do not use the product in the upright position to project the pictures at the ceiling, or any other vertical positions. It may fall down and dangerous.

13. Stack Inhibited

Do not stack other equipment on this product or do not place this product on the other equipment. Top and bottom plates of this product develops heat and may give some undesirable damage to other unit.

14. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

15. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

16. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e) If the product has been dropped or damaged in any way (If the cabinet should break, please handle with care to avoid injury).
f) When the product exhibits a distinct change in performance - this indicates a need for service.

17. If glass components, including lens and lamp, should break, contact your dealer for repair service.

This product incorporates glass components, including a lens and a lamp. If such parts should break, please handle with care to avoid injury and contact your dealer for repair service. The broken pieces of glass may cause to injury. In the unlikely event of the lamp rupturing, thoroughly clean the area around the projector and discard any edible items placed in that area.

18. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS (Continued)

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.)

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Do not leave thermal-paper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.

The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.

22. Do not use the product in a closed installation state.

Do not place the product in a box or in any other closed installation state. Otherwise it may overheat. This could result in a risk of fire.

23. Do not look into the laser light source of the remote control or direct the laser pointer toward a person or a mirror.

The laser beam may cause damage to the eyes or sight.

POWER SUPPLY CORD SELECTION

If your line voltage is 220 to 240V, use one of the following types of cable.

Plug configuration

Plug type

Line voltage

EURO

220 – 240V

UK

220 – 240V

Use a 5A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.

Plug configuration

Plug type Line voltage

Australian240V10A

200 – 240V

	Switzerland	200 – 240V
	240V
	6A

	North American 200-240V
	240V
	15A

IMPORTANT PRECAUTIONS

Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your projector. For maximum protection, repack the set as it was originally packed at the factory.

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the lens and the crucial internal parts. To prevent the unit from possible damage, do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature.

Place and Manner of Installation

• Do not place in hot locations, such as near heating equipment. Doing so could cause malfunction, and shorten the life of the projector.
• A v oid locations with oil or cigarette smoke. Doing so will dirty the optical parts, shortening their lives, and darkening the screen.
• Do not use this product in the upright position or tilt it up or down by more than 20^ from level. Doing so may cause a failure or shorten the life of the product.
• Using this instrument near a TV or radio may cause interference to the images or audio sound. If this happens, move it away from the TV or radio.
• M o ving the projector from a low-temperature room to a high-temperature room may cause condensation on the lens or internal parts in the instrument. If you continue to use it in that situation, the malfunction may result. Ensure to wait until the condensation naturally disappears.
• In a high altitude location where air is thin, cooling efficiency is reduced so use the projector with [Fan mode] set to [High]. p.40

IMPORTANT PRECAUTIONS (Continued)

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will leave marks on the finish. If cleaning with a chemically saturated cloth, be sure to follow the product's precautions.

EXEMPTION CLAUSES

• Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems.
• T oshiba Corporation bears no responsibility for incidental damages (lost profit, work interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit.
• T oshiba Corporation accepts no liability whatsoever for any damages arising from not having followed the descriptions in this Instruction Manual.
• T oshiba Corporation accepts no liability whatsoever for any damages arising from malfunctions arising from combination with equipment or software that is not related to Toshiba Corporation.

OTHER CAUTIONS AND INFORMATIONS

Copyrights

Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze or resize functions, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without first consulting with the copyright holder. For this reason, please take appropriate measures before performing one of the actions listed above, including obtaining a license from the copyright holder.

In the spaces provided below, record the Model and Serial No. located at the bottom of your projector.

Model No. Serial No.

Retain this information for future reference.

Disposal

This product contains substances which are harmful to humans and the environment. • The lamp contains mercury.

Please dispose of this product or used lamps in accordance with local regulations.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Trademarks

• V GA, SVGA, XGA, SXGA, UXGA are trademarks or registered trademarks of International Business Machines Corporation.
• Digital Light Processing, Digital Micromirror Device and DMD are trademarks of Texas Instruments.
• Macintosh is a registered trademark of Apple Computer, Inc.
- Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.
- Adobe is a registered trademark and Acrobat Reader is a trademark of Adobe Systems Incorporated.

Notational Conventions Used in This Manual

• References to pages with related information are annotated as follows. For example, if making a reference to page 36: p.36
• The illustrations in this document are for reference purposes only and may not reflect your package exactly.

REMOTE CONTROL BATTERIES

Caution

- N ever throw batteries into a fire.

Using the batteries improperly may cause them to explode or leak and lead to burn or injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid is spilt on an instrument, avoid contact and wipe it off using tissue paper. (Dispose of the used tissue paper as flammable garbage after moistening with water.)

Notes

• Be sure to use AAA (LR03) size batteries.
• Dispose of batteries in a designated disposal area.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not mix different battery types or combine used batteries with new ones.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace both batteries with new ones.
• If the batteries are dead or if you will not be using the remote control for a long time, remove the batteries to prevent battery acid from leaking into the battery compartment.

CONTENTS

Before Using

SAFETY PRECAUTIONS 2

IMPORTANT SAFETY INSTRUCTIONS 4

POWER SUPPLY CORD SELECTION 9

IMPORTANT PRECAUTIONS 9

EXEMPTION CLAUSES 10

OTHER CAUTIONS AND INFORMATIONS 10

REMOTE CONTROL BATTERIES 11

CONTENTS 12

Preparations

Checking the package contents 14

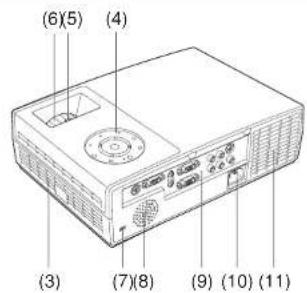

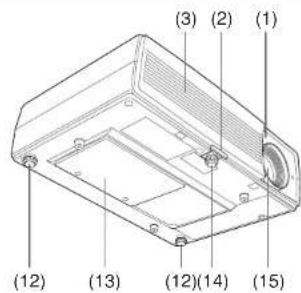

Names of each part on the main unit 15

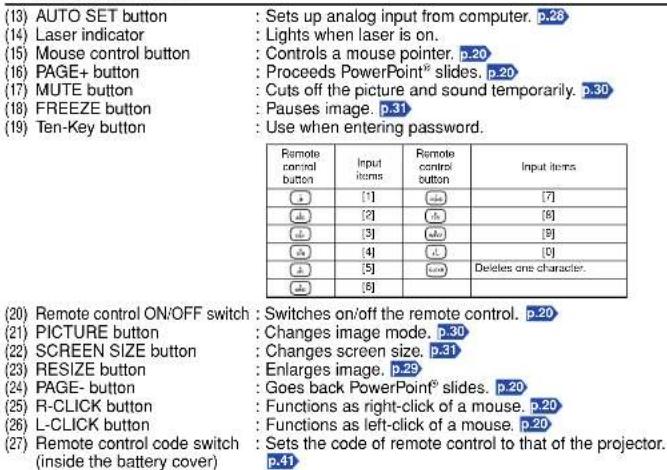

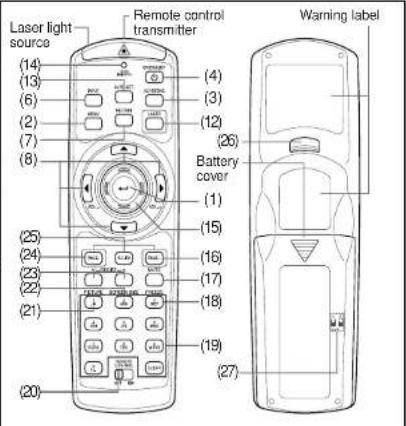

Names of each part on the control panel and remote control 16

Label locations 17

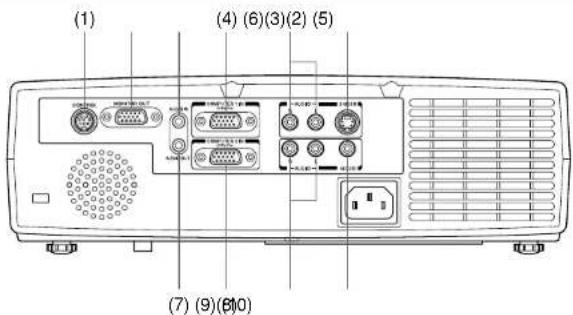

Names of the terminals on the rear panel.... 18

Preparing and using the remote control 19

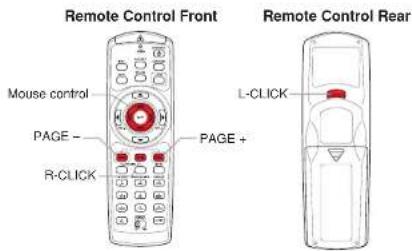

Operating a computer using the remote control 20

Placement 21

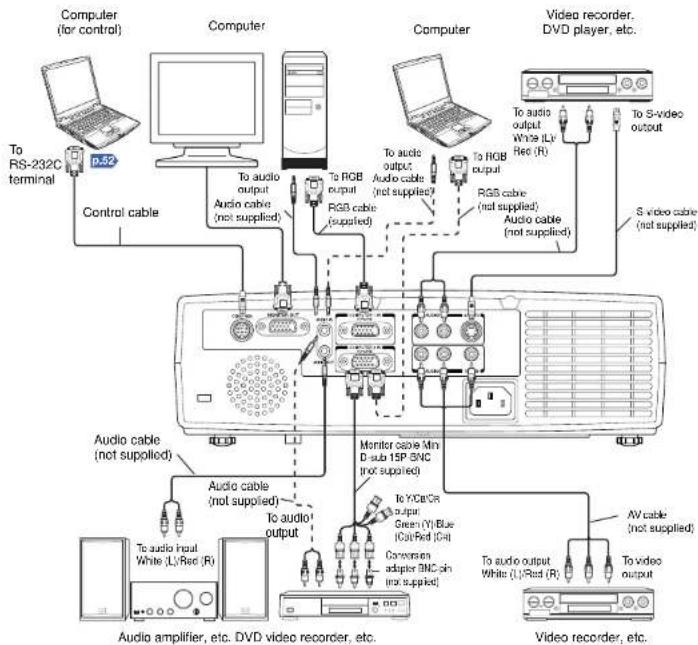

Connection 22

Operations

Turning the power on and off 24

Basic operations 26

Using handy features 28

Using auto setting (Only for input from computer) 28

Correcting the keystone distortion 28

Resizing image 29

Cutting off the picture and sound temporarily (Mute) 30

Changing picture mode 30

Changing screen size 31

Freezing the image (Freeze) 31

Password function 32

Using the menus 34

How to use the menus 34

The image adjustment menu 35

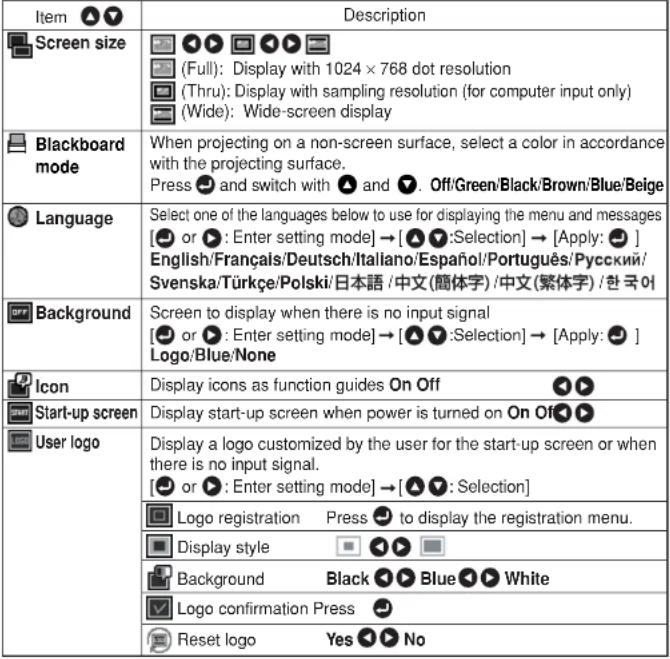

The display setting menu 37

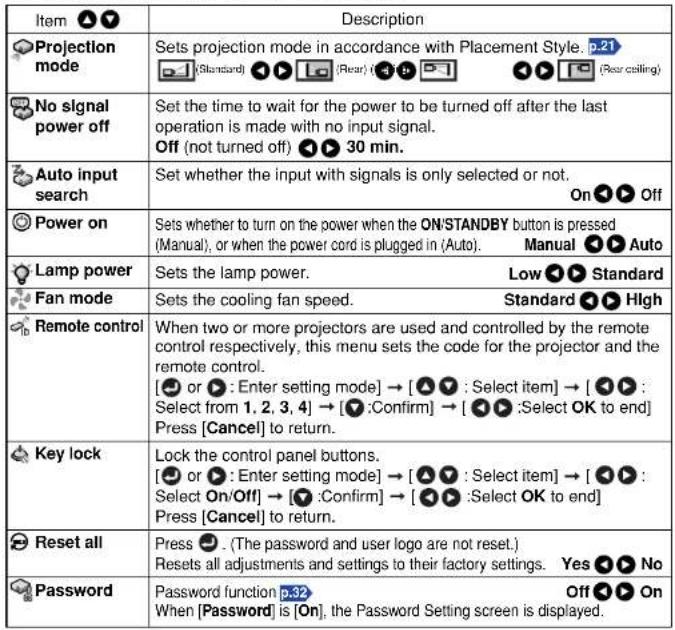

The default setting menu 40

Displaying Information (Status display) 42

Maintenance

About lamp 43

Lamp replacement 44

Lens and main unit cleaning 46

Others

Trouble indications 47

Before calling service personnel 48

Specifications 49

List of general specifications 49

Separately sold product 49

List of supported signals (RGB signals) 50

List of supported signals (Y/PB/PR signals) 51

List of supported signals (Video, S-Video signals) 51

Pin assignment of COMPUTER 1 IN, COMPUTER 2 IN &

MONITOR terminals 51

CONTROL terminal 52

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If any item is missing, please contact the store immediately where you purchased the product.

(2)

(6)

(3)

(4)

(7)

□(1) Remote control
☐ (2) LR03 (SIZE AAA) batteries for remote control (2)
□(3) CD-ROM
□(4) Owner's Manual
□(5) RGB cable (3m)

(6) Power cord (see note)

□ (7) Carrying bag

☐ (8) Mouse remote control receiver

Note

The shape and number of supplied power cords vary depending on the product destination.

◆The Supplied CD-ROM

The supplied CD-ROM contains an owner's manual, including information not available for the printed Owner's manual (Getting started) and Acrobat® Reader™ to view the manual.

■Installing Acrobat® Reader™

Windows®: Run the CD-ROM, select the Reader/English folder, and run ar500enu.exe. Follow the on-screen instructions. Macintosh: Run the CD-ROM, select the Reader/English folder, and run Reader Installer. Follow the on-screen instructions to install the software.

■Viewing the manual

Run the CD-ROM and double-click on Start.pdf. Acrobat® Reader™ launches, and the menu screen of the Owner's manual appears. Click on your language. The Owner's Manual cover and list of bookmarks appear. Click on a bookmark title to view that section of the manual. Click on 5. to view a reference page with related information. See the Help menu for more information about Acrobat® Reader™.

Names of each part on the main unit

(6)(5) (4) (3) (7)(8) (9) (10) (11)

Back Front

(3) (2) (1) (12) (13) (12)(14) (15)

Name

: Function

(1) Infrared remote sensor

(2) Foot adjuster release button

(3) Air intake

(4) Control panel

(5) Zooming lever

(6) Focusing ring

(7) Antitheft lock hole

(8) Speaker

(9) Terminals on the rear panel

(10) AC IN socket

(11) Air exhaust

(12) Tilt adjuster

(13) Lamp cover

(14) Foot adjuster

(15) Lens

: Senses commands from the remote control. p.19

: Press to set up or stow the foot adjuster. p.27

: Draws in air from outside the projector.

: Operates the projector. p.16

: Adjusts screen size. p.27

: Adjusts screen focus. p.27

: Attach a safety cable or any other antitheft device.

: Outputs audio sound.

: Connects external devices. p.18

: Connect the supplied power cord here.

: Expels air that has grown hot inside the projector.

: Adjusts the projector's horizontal tilt. p.27

: Remove to replace lamp. p.44

: Adjusts the vertical projection angle. p.27

: Projects expanded image.

Names of each part on the control panel and remote control

Control panel Remote Control

(9) (10) (11) (8) (7) (6) (5)(4) (1) (2) (3)

CAUTION

- Do not look into the laser light source of the remote control or direct the laser pointer toward a person or a mirror. - Handling and adjusting other than described here may lead to dangerous exposure to laser.

Laser light source (14) (13) (6) (2) (7) (8) (25) (24) (23) (22) (21) (20) Remote control transmitter (4) (3) (12) (26) Battery cover (1) (15) (16) (17) (18) (19) (27) Warning label

Name : Main Function

Control panel

(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
(3) KEYSTONE button: Adjusts keystone distortion.
(4) ON/STANDBY button: Turns the power on/off (standby).
(5) ON/STANDBY indicator : Displays whether power is on or off (standby).
(6) INPUT button : Selects input.
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.

注意

(9) LAMP indicator
(10) TEMP indicator
(11) FAN indicator : Displays cooling fan mode.

Remote control

(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
(3) KEYSTONE button: Adjusts keystone distortion.
(4) ON/STANDBY button: Turns the power on/off (standby).
(6) INPUT button : Selects input.
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.34
(12) LASER button : Shows a laser pointer.

Name: Main Function

(13) AUTO SET button : Sets up analog input from computer. p.26 (14) Laser indicator : Lights when laser is on. (15) Mouse control button : Controls a mouse pointer. p.20 (16) PAGE+ button : Proceeds PowerPoint® slides. p.20 (17) MUTE button : Cuts off the picture and sound temporarily. p.30 (18) FREEZE button : Pauses image. p.31 (19) Ten-Key button : Use when entering password. Remote control button Input items Remote control button Input items [1] [2] [3] [4] [5] [6] [7] [8] [9] [0] [5] Delete one character. [6] (20) Remote control ON/OFF switch : Switches on/off the remote control. p.20 (21) PICTURE button : Changes image mode. p.30 (22) SCREEN SIZE button : Changes screen size. p.31 (23) RESIZE button : Enlarges image. p.29 (24) PAGE- button : Goes back PowerPoint® slides. p.20 (25) R-CLICK button : Functions as right-click of a mouse. p.20 (26) L-CLICK button : Functions as left-click of a mouse. p.20 (27) Remote control code switch : Sets the code of remote control to that of the projector. (inside the battery cover) p.41

Note

- For the remainder of this manual, buttons are referred to as follows:

Selection buttons → ▲ ▼ ◀ ▶; ENTER button → 📞

Label locations

Diagram showing a mobile phone connected to a device with a warning label and Chinese text instructions.

Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

(1) (4) (6)(3)(2) (5) (7) (9)(8)(0)

Name: Main Function

(1) CONTROL terminal	: When operating the projector via a computer, connect this to the controlling computer's RS-232C port.5.52
(2) MONITOR terminal	: Connect to a computer display, etc.
(3) AUDIO IN terminal	: Input audio signals from a computer, or from video equipment with a component video signal output terminal.
(4) COMPUTER 1 IN terminal	: Input RGB signal from a computer or other source, or a component video signal (Y/PB/PR) from video equipment.
(5) AUDIO (L/R) terminal	: Input audio signals from video equipment.
(6) S-VIDEO terminal	: Input S video signals from video equipment.
(7) AUDIO OUT terminal	: Outputs audio signals.
(8) COMPUTER 2 IN terminal	: Input analog RGB signal from a computer or other source, or a component video signal (Y/PB/PR) from video equipment.
(9) AUDIO (L/R) terminal	: Input audio signals from video equipment.
(10) VIDEO terminal	: Input video signals from video equipment.

Preparing and using the remote controlNames

■Loading dry-cell batteries into the remote control

① Remove the battery cover.

②Insert the dry-cell batteries.

Be sure to align the plus and minus ends of the batteries properly.

Two batteries (LR03, SIZE AAA) are used.

③Replace the battery cover.

■Operating the remote control

Turn on the ON/OFF switch of the remote control.

Point toward the projector's infrared remote sensor, and press a button on the remote control.

- Operating the projector from the front

When operating the remote control from behind the projector, the laser light is reflected on the projecting surface and may travel a shorter distance to reach the projector depending on the shape and material of the projecting surface.

Dry-cell batteries

• Before using the batteries, be sure to observe the Safety Precautions described in previous pages.
• Remove batteries from remote control when not using for extended periods.
• If the remote control stops working, or if its range decreases, replace all the batteries with new ones.

The remote control

• Turn off the ON/OFF switch of the remote control when not in use or to store in baggage.
• The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.
• Do not drop or bang.
• Do not leave in hot or humid locations.
• Do not get wet or place on top of wet objects.
• Do not take apart.
• In rare cases, ambient conditions could impede the operation of the remote control. If this happens, point the remote control at the main unit again, and repeat the operation.

Operating a computer using the remote control

A computer can be operated using the projector's remote control. This function is available on any computer with the Windows ^ 98/98SE, Windows ^ Me, Windows ^ 2000, or Windows ^ XP OS, that is equipped with a USB port which can support USB1.1 (The mouse remote control receiver is also supported on OS 9 or OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers.

① Connecting a computer

Connect the mouse remote control receiver (supplied) to a computer.

To USB port Mouse remote control receiver

The remote control may fail to operate if the mouse remote control receiver is exposed to bright sunlight or fluorescent lighting.

In such a case, change position or direction of the mouse remote control receiver and retry.

② Operating a computer

Operate remote control's buttons towards the mouse remote control receiver.

●Moving the mouse pointer

Press the mouse control button in the direction you wish the mouse pointer to move, then press.

●To left click

Press the L-CLICK button.

●To right click

Press the R-CLICK button.

●To drag and drop

Holding down the L-CLICK button, move the mouse control button until the mouse pointer is over the desired location, then release the L-CLICK button.

●Using the computer's page up [↑] and down [↓] function

Press the PAGE+ and PAGE- buttons to switch PowerPoint slides.

Remote Control Front Mouse control PAGE - R-CLICK PAGE + Remote Control Rear L-CLICK

20

Placement

Placement Styles

As shown in the figures below, this device can be placed in 4 different styles. The factory setting is "floor-mounted front projection." Set the [Projection mode] in the Default setting menu p.40, in accordance with your needs.

Floor-mounted front projection Floor-m

ounted rear projection

Ceiling-mounted front projection Ceiling

mounted rear projection

WARNING

• Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit. Attempting to clean/replace the lamp at a high site by yourself may cause you to drop down, thus resulting in injury.
- If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, resulting in an accident.
- If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let everyone involved with the use of the projector know that fact.

Projection Distance and Size

Use the figures, tables, and formulas below to determine the projection size and projection distance. (Projection sizes are approximate values for full-size picture with no keystone adjustment.)

Screen As seen from above 90° As seen from the side Lens center 90°

a is the distance (m) between the lens and the screen, and corresponds to a range of 1.07 m to 11.09 m.

projection size (inches)	projection distance a (m)
	min (length max zooming max)	max length zooming min
30 1.07 1.75
40 1.45	2.35
60 2.19	3.55
80 2.93	4.74
100 3.67	5.93
150 5.53	8.92
200 7.38		-
250 9.24		-
300	11.09	-

Connection

Before connection

• Read the owner's manual of the device you are connecting to the projector.
• Some types of computer cannot be used or connected to this projector.
  Check for an RGB output terminal, supported signal p.50, etc.
  • T urn off the power of both devices before connecting.
• The figure is a sample connection. This does not mean that all of these devices can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Notes

• The COMPUTER 1 IN terminal functions identically to the COMPUTER 2 IN terminal.
- The MONITOR OUT terminal outputs signals from the COMPUTER 1 IN terminal or the COMPUTER 2 IN terminal, or outputs Y/Pa/Pn as selected with the INPUT button. If no input is selected, the MONITOR OUT terminal outputs the input signals last selected for each input terminal
- Signals are output from MONITOR OUT terminal even in standby mode. However, from AUDIO OUT terminal, no audio signal is output.
- A computer monitor cannot accept Y/B/PR signals correctly.
• The AUDIO IN terminal doubles for devices connected to COMPUTER terminals 1 and 2.
- When an AUDIO OUT terminal is connected, sound is not output from the projector speaker.
- Output volume of AUDIO OUT terminal can be adjusted by the VOL button.
- M o ving pictures played back on computers using DVD software may appear unnatural if is projected with this projector, but it is not a malfunction.

Turning the power on and off

■Connecting the power cord

① Insert the power cord connector into the AC IN socket of the projector.
② Insert the power cord plug into a wall or other power outlet.

The ON/STANDBY indicator will change to orange, indicating standby mode.

■Removing the lens cover

Be sure to remove the lens cover when the power is turned on. If it is left on, it could become deformed due to heat.

■Turning the power on Press the ON/STANDBY button.

The power turns on, and the following 3 green indicators light: ON/STANDBY LAMP, and FAN. After a moment, the start-up screen appears.

Control panel

Remote Control

Start-up screen

CAUTION

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.
• Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.
• Do not place your hands, face, or other objects near the air exhaust. Doing so could cause burns, deform break the object.

Notes

• The start-up screen will disappear after a moment. You can dismiss the start-up screen before this by performing any operation. You can also configure the start-up screen not to appear via the Display setting menu p.37.
• The first time you use the projector after purchase, after the start-up screen disappears, the start menu is displayed p.26.
• When [Key lock] is [On], the operation buttons of the projector do not work p.41
• When [Password] is [On], enter password then the start-up screen is displayed after the Password entry screen disappears p.32.

■Turning the power off

① Press the ON/STANDBY button.

A message appears on the screen, confirming that you wish to shut off the power. This message will disappear after a moment. (This operation is no longer valid after the message disappears.)

② Press the ON/STANDBY button again.

The screen turns off, but the internal cooling fan continues to operate for a short while. Then, the projector goes into standby mode.

When cooling lamp During internal cooling After cooling complete

A During cooling, the LAMP indicator flashes. In this state, the power cannot be turned back on. If you are in a hurry, there is no problem with unplugging the power cord in this state.
B After the LAMP indicator goes off, the FAN indicator keeps lighted and the cooling fan continues to operate for a short while, in order to expel excess internal heat.
C In standby mode

Note

- The projector consumes about 9W of power in standby. We recommend that you unplug the power cord if you will not be using the projector for an extended period.

PRECAUTION

- If the power cord is unplugged before cooling is complete, give the lamp time (about 5 minutes) to cool before plugging it back in. If the lamp overheats, it may fail to light.

Basic operations

① Turn on the power.

Turn on the power by following the instructions in "Turning the power on" p.24.

② Select the language and the lamp power (When using the first time).

When the projector is used for the first time after purchase, the start menu for language (to display the menus and messages on the screen) and lamp power selection and configuration is displayed in English. (If the screen is out of focus, adjust it according to the step 6.)

① Use the 🔊 button to select the desired language and press the 🔊 button. Message for setup confirmation is displayed in a selected language. Then, the menu for lamp power selection and configuration is displayed. It is automatically set as Standard. To change the setting, follow the step ②

English......	English
Français......	French
Deutsch......	German
Italiano......	Italian
Español......	Spanish
Portugues......	Portuguese
Русский......	Russian
Svenska......	Swedish
Türkçe......	Turkish
Polski......	Polish
日本語......	Japanese
中文(简体字)......	Chinese (simplified)
中文(繁體字)......	Chinese (traditional)
한국어......	Korean

② Use the 🔒 button to select the lamp power and press the 🔒 button. The lamp power, if selected, will be toggled without pressing the 🔒 button. The display automatically disappears in a few seconds.

Notes

• When the projector is turned on the next time, the start menu does not appear upon startup. However, if [Reset all] is executed from the Default setting menu p.40, the start menu will be displayed the next time when the power is turned on.
• The language can also be set via the Display setting menu p.37 and Lamp power via the Default setting menu p.40.

- This owner's manual assumes that English has been selected.

③ Activate the connected device.

Turn on and start the connected device such as a computer.

4 Press the INPUT button.

An image of the connected equipment is projected. Each time you press the INPUT button, it switches to the input of the connected equipment that is outputting video signals.

Notes

• When [Auto Input search] is set to [Off] in the Default setting menu p.40 (factory setting is [On]), the Switch Input menu appears if you press the INPUT button p.40
• If no signal is being output from the connected equipment, pressing the INPUT button does not change the input and "There is no other input signal." will appear.

⑤ Projector placement angle adjustments

The placement angle and the height of the projected image can be adjusted by the foot adjuster.

① Lift up the front of the projector to the desired angle, then press the foot adjuster release button. The foot adjuster extends. Release the button to lock the position.
②To fine adjust the angle, twist the foot adjuster.
③To adjust the horizontal angle, use the right and left tilt adjusters.
- To stow the foot adjuster, hold up the projector while pressing the foot adjuster release button, then slowly lower the projector.

⑥ Adjusting the screen size and focus

① Use the zooming lever to adjust the screen size.
②Use the focusing ring to adjust the focus.

⑦ Adjusting the volume with the 🔊 buttons

The speaker volume can be adjusted when an audio signal is being input.

Notes

• Note that lamp characteristics may rarely cause the brightness to fluctuate slightly.
• A lamp is consumable item. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on conditions of use.)
• The DMD ^™ is made using extremely advanced technology, but there may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. Please note that these are not malfunctions.
• Although this projector supports a wide range of RGB signals p.50, any resolutions not supported by this projector (XGA) will be expanded or shrunk, which will affect image quality slightly. To view high-quality images, it is recommended that the computer's external output should be set to XGA resolution.
• With some models of computer having LCD displays or the like, displaying images simultaneously on the projector and the monitor's display may prevent the images from displaying properly. If this happens, turn off the computer's LCD display. For information on how to turn off the LCD display, see the owner's manual of your computer.
• If no signal is being input from the connected equipment or signal input is stopped while projecting, the "No signal" will appear.
• If a signal not supported by the projector is input, the "Unsupport signal" will appear.
• If an unavailable operation button is pressed, the ✗ icon will appear.

Diagram showing a hand holding a device with labeled parts, including numbered components and colored indicators.

Using handy features

■Using auto setting (Only for input from computer)

This function sets up the projector to the optimum state such as sampling phase, frequency, screen position, and clamp for each type of the input signal by using simple operations.

Press the remote control's AUTO SET button. For computer input, the icon will appear during processing. You can set as well by selecting [Auto setting] in the Image adjustment menu p.35.

Notes

• The image may not be projected or auto adjustment/setting may not be performed correctly for input signals other than those supported by the projector p.50, p.51.
• If auto setting fails adjustment, adjust manually with [Position] in the Image adjustment menu p.35.

■Correcting the keystone distortion

When the projector placement angle against the screen is changed while projecting the image, the picture will undergo keystone (trapezoidal) distortion.

This projector is capable of correcting this keystone distortion.

① Press the KEYSTONE button.

The Keystone menu appears. By default, [Auto v-keystone] is selected.

Item Description
Auto v-keystone	Automatically corrects the vertical distortion. Press 📂 .
V-keystone	Screen shrinking at S45h shrinking at bottom top

Adjusting Keystone distortion [Auto]

② Press the button.

The keystone distortion is automatically corrected. The neon appears during this correction. When adjustment is finished, the Keystone menu appears again. For fine adjustment, select [V-keystone] by the button and adjust image manually by the buttons.

Adjusting Keystone distortion [Manual]

① Press the KEYSTONE button.

② Select [V-keystone] by the button.

③ Use the ● buttons for keystone adjustment.

Note

- Depending on the amount of keystone adjustment and the content of images, some information may be lost, or the picture quality may suffer.

■Resizing Image

The projected image can be resized (zoomed in/out).

① Press the remote control's RESIZE button.

Each time you press the RESIZE button, zoom ratio is up. You can keep pressing.

To zoom out, press the remote control's RESIZE button.

Each time you press the RESIZE Button, zoom ratio is down. You can keep pressing. (However, the image cannot be smaller than the original size.)

③ To move the area to zoom in, use the ▼ ▲ ▶ ▲ buttons.

④ To reset the zoom, press the RETURN button. The image is reset to the original size.

Remote Control ④ ③ ① ②

Using handy features (Continued)

Notes

• The ☐ on appears while resizing.
- Operating a function other than Mute will release resizing.
- As zooming is processed digitally, the image quality is degraded in larger zoom ratio.
- During resizing or moving the zooming area, the image may be distorted.

■Cutting off the picture and sound temporarily (Mute)

When you want to project the images of another projector, overhead projector, etc. temporarily, this projector's images and sound can be turned off.

- Press the remote control's MUTE button.

The picture and sound are cut off. (The Mute function is released when pressing the MUTE button again.)

Notes

• The icon will appear while mute is in effect.
- Operating any other functions will also cancel the muting.

■Changing picture mode

The projected image mode can be selected.

- Press the remote control's PICTURE button.

① The Picture mode menu appears.

When connected with computer 1/2/3/4/5

When connected with video equipment 1/2/3

② Select a mode using ▼ then press .

Though the button is not pressed, the picture mode changes as the setting is changed and the display turns off automatically in a few seconds.

Note

• [Picture mode] of the Image adjustment menu has the same function p.35.

Remote

Remote

■Changing screen size

The screen size for the projected image can be changed.

Press the remote control's SCREEN SIZE button. Pressing the button switches Full/Thru/Wide in turn.

Notes

• Thru display is available for computer-input images.
• [Screen size] of the Display setting menu has the same function p.37.
• If you use this function on commercial video software, broadcast or cable-broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

■Freezing the image (Freeze)

The image being projected can be frozen. This function is to be used to pause a video during a presentation, etc.

- Press the remote control's FREEZE button.

The picture pauses. (The Freeze function is released when pressing the FREEZE button again.)

Notes

• The icon will appear while freeze is in effect.
• Other operation will also release the freeze.
• E v en if an image is frozen on the projector, the pictures are running on the video or other equipment.
• If you use this function on commercial video software, broadcast or cable-broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Remote
Control

Remote
Control

Using handy features (Continued)

■ Password function

When the password function is added and [Password] is set to [On], image projection requires an entry of the preset password at power-on.

To add the password function, perform the following procedure:

(The password function, once added, cannot be deleted. Set [Password] to [Off] if you do not want to use it after addition.)

How to add password
① Set the projector to the operating status or the standby mode.
② Select and hold the ① button until the LAMP, TEMP, and FAN indicators light in orange.

The password function is added when the steps up to here have been completed. It is also added to the Default setting menu.

● How to set password (from [Off] to [On])
⑦ Select [Password] in the Default setting menu and press the 🔊 or ➤ button.

The password setting confirmation screen is displayed. ([OK] or [Cancel])

② Select [On] and press the ⏻ button.
The password entry screen is displayed.
③ Enter a four-digit number for the password using numeric keys of the remote control.
The input number appears as [***].
④ Re-enter the same password for confirmation.

When the password is confirmed, the setting is complete and the password becomes [On].

If the password is wrong, repeat the procedure from step ②.

● How to operate when password is [On]
① Turn on the power.
② The lamp lights and the password entry screen appears.
③ Enter the password using numeric keys of the remote control.

If the entered password is correct, the start-up screen appears and the projector goes into normal operation. If the password is wrong, a message appears to prompt you to re-enter the password, and again the password entry screen is displayed. If you enter a wrong password for more than 5 times, the projector will automatically power off and enter standby mode.

● How to cancel password (from [On] to [Off])
Select [Password] in the Default setting menu and press the 📄 or button.

The password entry screen is displayed.

② Enter the password using numeric keys of the remote control.
③ The password cancel confirmation screen is displayed. ([OK] or [Cancel])
④ Select [OK] and press the ⏻ button.

The [Password] is canceled and becomes [Off].

Note

- The password entry screen appears when the power is turned back on only after the power cord is unplugged.

You cannot release password by yourself. If you forgot password, please inquire your dealer.

Using the menus

You can call up on-screen menus, and conduct a number of adjustments and settings using the operation buttons p.16 on the control panel (main unit side) and remote control.

■ How to use the menus

The menu shown below is for operation instructions purposes and might differ from the actual display.

1. Press the MENU button Display the Setting display menu.

2. Select a Category

: Select a category by using

: There are following four

categories:

Displays the current adjustments and settings of selected category. Item shown with gray cannot be adjusted with the current input source.

1. Adjustments & Settings Press 📋 or ▼ to open the menu.

1. End Press the MENU button.

(The menu disappears 30 seconds after the last operation.)

■The image adjustment menu

Use this menu to set or adjust image-related items. Items that can be set or adjusted are marked with "Yes", and those that cannot be marked with "No". (When an item is masked, it indicates that you cannot select for the current input.)

Item ▲▼	Description	Computer Y/Pa/Pn Video			S-video
Contrast Adjust the	image contrast. Yes Yes Yes Yes Lower ➕ ➕ Higher
Brightness Adjust the brightness of the image. Yes Yes Yes Yes Darker ➕ ➕ Brighter
Color Adjust the color of the image. No Yes Yes Yes Lighter ➕ ➕ Deeper
Sharpness	Adjust the sharpness of the image. Softer ➕ ➕ Sharper	No	Yes	Yes	Yes
Noise reduction1	Set the function to reduce screen noise. On (Enable) ➕ ➕ Off (Disable)	No	Yes	Yes	Yes
Picture mode	Press 🔑 Toggle the picture mode with ➕ ➕ 1/2/3	No	Yes	Yes	Yes
	1/2/3/4/5	Yes No	No	No
R-level	Adjust red of the image color. Less red ➕ ➕ More red	Yes	Yes	Yes	Yes
G-level	Adjust green of the image color. Less green ➕ ➕ More green	Yes	Yes	Yes	Yes
B-level	Adjust blue of the image color. Less blue ➕ ➕ More blue	Yes	Yes	Yes	Yes
NTSC mode2	Set the black level with ➕ ➕. US : NTSC (US) mode JAPAN : NTSC (JAPAN) mode	No	No	Yes	Yes
Auto setting	Automatically adjusts items such as the sampling phase depending on the type of input signal.	Yes	No	No	No
Position	Press ➕ then change mode using ➕ ➕ and adjust with ➕ ➕	Yes	No	No	No
	Phase Adjust to eliminate flicker.	Yes	No	No	No
	Frequency Adjust to eliminate periodic patterns and flickering when many fine vertical lines appear on the screen.	Yes	No	No	No
	H-position Adjust the horizontal position of the image.	Yes	No	No	No
Item ▶▼	Description	Computer Y/Pe/Pr Vdeo			S-video
Position	V-positionAdjust the vertical position of the image.	Yes	No	No	No
	Clamp 1Adjusts the clamp pulse position.	Yes	No	No	No
	Clamp 2Adjusts the clamp pulse width.	Yes	No	No	No

*1: [Noise reduction] may not work depending on signal type.
*2: [[NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] or [NTSC4.43]. NTSC mode is set to JAPAN when the language is set to Japanese. It is set to US for other languages.

■The display setting menu

Use this menu to set screen display-related items.

(The items in gray color cannot be set with the current input selection.)

Detailed description

[Screen size]

- If "Thru" is selected for [Screen size], portions exceeding the native resolution (1024 × 768 pixels) will not appear on the screen. Note that for RGB signals with clock frequency 140MHz or lower, all input pixel signals are sampled. However, if the clock speed is higher than this, the RGB pixel signal is thinned before sampling.

Using the menus (Continued)

Note

- If you use the screen size setting function on commercial video software, broadcast or cable-broadcasting programs to display images with the varying aspect ratio except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

[Blackboard mode]

Projects the image in colors more like projecting on a screen.

Precaution

- The projected image may differ depending on the type, color, and material of the blackboard and wall even if the selected color is the same as the projected screen.

[Background]

• T OSHIBA is set for [Logo] by factory setting.

- If user's logo has been registered, it is displayed when [Logo] is set for background.

[Start-up screen]

If user's logo has been registered and this setting is [On], the logo is displayed at start-up.

[User logo]

Registers a part of the image that is input from computer, as a stationary picture and displays it as a logo at start-up and when no signal is input.

How to register user logo

① Select [User logo] in the Display setting menu, and press the 📄 or 🔊 button.

② Select from the displayed menu list and press the ⏻ button.

③ The registration area is displayed for confirmation. Select [OK] or [Cancel] and press the ⏻ button.

- If the registered picture does not fall within the display area, operate the computer to scroll the screen.

④ Select [Yes] to register and press the button.

⑤ Registration starts.

- A message is displayed while registration is in process.

Notes

• Y ou can register a logo from computer input only.
• The area that can be registered is 512 × 384 dots at the center of the screen. To register a company logo, prepare the image within the limit.
• Only one logo can be registered. When a new image is registered, the old one is erased.
• The time needed to register or display the image varies depending on the data size.
• If you use this function on commercial video software, broadcast or cable-broadcasting except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.

Select the size of the registered logo.

■: Displays the registered image in original size at center of the screen.
■: Displays the registered image by enlarging fully in the s (As processed digitally, the image quality is degraded.)

Sets background color when [Center] is selected for the logo [Display style].

You can preview the registered logo.

You can reset the registered logo, display style and background to the factory setting. (The logo set for the start-up screen and background is reset.)

Using the menus (Continued)

■The default setting menu

This menu shows placement status and other settings.

Detailed description

[Auto input search]

[On]: Automatically searches the signals that can be projected, and switches input from the connected device that outputs the video signals each time the INPUT button is pressed. The input from the connected device that outputs no video signals is skipped.

[Off]: Displays the Input select menu.

Toggle with ▼▲ buttons and press 🔊 button. (The input without signals can be selected.) 40

Input select menu

Input select

● Computer 1

○ Y/PB/PR1

● Computer 2

○ Y/PB/PR2

● Video

○ S-video

●/○ shows whether signal is input or not.

[Power on]

Note that if [Power on] is set to [Auto], then if the power is supplied when restored after a power outage, the projector will come on.

[Lamp power]

When [Lamp power] is set to [Low], the screen becomes a little darker, but the cooling fan noise gets quieter.

[Fan mode]

Setting [Fan mode] to [High] increases the cooling fan speed. (The cooling fan noise gets louder.) Set this option to use the projector, for example, at high altitude (over 1,500 meters above sea level). - Do not set Fan mode to [High] when using the projector at a lower altitude.

[Remote control]

Sets a remote control code from 4 types. You can set each code respectively for up to 4 projectors. The factory setting is [1].

To switch codes, set the same code for the projector and the remote control.

A remote control code is applied after the setting is done.

- Y ou cannot operate the remote control if the codes of the projector and the remote control do not match.

Remote control code setting for remote control

Remove the battery cover and set the same remote control code switch as the projector. p.16 (Use a screwdriver with thin tip to set.)

[Key lock]

Protect from operating errors by locking on the control panel buttons of the projector. (The remote control operations are available.)

Control panel operations are locked after the setting is done, and accordingly operation with the control panel buttons is disabled.

- To release the key lock, set the [Key Lock] to [Off] using remote control. Pressing the [RETURN] button on the projector for 10 seconds also sets the [Key Lock] to [Off]. (In the latter case, the LAMP, TEMP, and FAN indicators light in orange for 3 seconds.)

Using the menus (Continued)

■Displaying Information (Status display)

This displays information about the input signal, lamp use time, etc.

"Yes": displayed, "No": not displayed

Item Description		Computer	Y/Pa/Pr Video S-video
Projector
Input Input source name Yes Yes Yes Yes
Mode name RGB input mode [Note 1]		Yes	No	No	No
Resolution	Resolution (in dots)	Yes	No	No	No
Frequency	Sync frequency	Yes	No	No	No
Sync Sync signal polarity [Note 2]		Yes	No	No	No
Signal format	Y/PB/PR signal format	No	Yes	No	No
Video mode	Color method of video signal	No	No	Yes	Yes
Lamp time	Time of lamp use [Note 3]	Yes	Yes	Yes	Yes
Lamp reset count	The count for lamp replacement	Yes	Yes	Yes
Total time	The total time that this projector is used.	Yes	Yes	Yes	Yes
Version	Firmware version[Note 4]	Yes	Yes	Yes	Yes

Notes

1: The mode of supported RGB signals p.50 is shown.

2: Sync signal polarity shown as P (positive) or N (negative) for [H/V].

3: Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be used as a counter of guaranteed lamp time.) When the displayed time approaches 2,000 hours, consult with a dealer about getting replacement for:

TLPLW9 for TDP-T95 or

TLPLW10 for TDP-T100

(sold separately)

4: [Version] shows the version of the projector's internal control program. This version is referred to for customer service, etc.

Note

- The displayed information will not be refreshed if the status changes. To refresh the information, dismiss the display, then display it again.

About lamp

The product's light source is a mercury lamp that lights at increased internal pressure. Be sure to fully understand the following characteristics of the lamp and handle it with extreme care.

• The lamp may burst with a loud noise due to impact or deterioration, or fail to light at the expiration of its life.
• How long it takes before the lamp bursts or the life expires may vary greatly by lamp. Some may burst shortly after first use.
• Burst is likely to happen if the lamp is used after the replacement period has elapsed.
• When the lamp bursts, the broken pieces of glass may get inside the product or be released outside from the openings for ventilation.
• When the lamp bursts, a slight amount of mercury gas enclosed in the lamp along with glass dust may be released from the openings for ventilation.

- Immediately replace the lamp when a sign appears on the screen.

• When the replacement time approaches, a message will appear on the screen.
• The risk of burst will increase if the lamp is continuously used without being replaced.
• F frequently check the used hours and prepare spares when the replacement time approaches. (Refer to "Status display". p.42)

■ When the lamp is broken

• If glass components, including a lamp and a lens, should break, handle the broken pieces with care to avoid injury and contact your dealer for repair service.
• In the event of lamp burst, unplug the product from the wall outlet, leave and completely ventilate the room. Then, thoroughly clean the area around the projector and discard any edible items placed in that area.
• When the lamp bursts, consult a doctor if glass dust or mercury gas gets into your eyes or you breathe it.

Lamp replacement

A lamp is consumable supplies. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on condition of use.) If this happens, replace it with a new one.

WARNING

• If the projector is mounted on the ceiling, it is recommended to use your Toshiba dealership when the lamp has to be exchanged.
  Uncovering the lamp while the projector is mounted on a ceiling may lead to a danger of damage from falling pieces of glass if the lamp is broken. Besides, working at high elevations can also be hazardous. Do not attempt to replace the lamp by yourself.
• When replacement is required, be sure to use: TLPLW9 for TDP-T95 or
  TLPLW10 for TDP-T100
  (sold separately).

CAUTION

• If you have been using the projector, the lamp will be very hot, and may cause burn injuries. Wait for the lamp to cool (for longer than 1 hour) before replacing it.
• If the lamp should break, please handle with care to avoid injury due to broken pieces and contact your dealer for repair service.

Unplug power cord.

Wait until lamp is sufficiently cooled.

Wait for at least 1 hour.

Remove the lamp cover.

Loosen the two screws, raise the lamp cover with your fingers as shown to remove the lamp cover. Use care to avoid any damage to nails and/or tip of your finger(s). If you have any difficulty in removal, you can use a screwdriver or any other smaller tool for your convenience.

3

Pull out the lamp.

Loosen the three lamp locking screws, pull up the handle, and remove the lamp.

4

Mount the new lamp.

Align the orientation, press down the new lamp until the bottom is reached, and lock in place using the three lamp locking screws.

5

Diagram showing a blue component mounted on an electronic device with labeled parts and directional arrows

Replace the lamp cover.

Align the cover, and press it in, then tighten the screws loosened in step ⚙ until the lamp cover is no longer loose.

Reset the lamp timer.

See the lamp's manual for instructions on resetting the lamp timer.

Notes and Precautions

• The Lamp time item in the Status display menu indicates the time of lamp use (as a rough guide). p.42
• It is recommended that the lamp be replaced after 2,000 hours of use. When [Lamp time] reaches 2,000 hours, the icon and a message will appear. (After 2,000 hours, they will appear when the power is on at the first time every 100 hours.) This display disappears when you press the button.
• Attach the lamp cover correctly so that it is not loose. If it is not attached correctly, the projector may fail to be powered on or the lamp may fail to come on.
  • Always replace the lamp with a new one.
• The lamp is made out of glass. Do not touch the glass surface with your bare hands, bang it, or scratch it. (Dirt, jolts, scratches and the like could break the lamp.)

Used Lamps

This projector's lamps contain trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations.

Lens and main unit cleaning

WARNING

- Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership. Attempting to clean/replace the lamp at a high site by yourself may cause you to fall down, thus resulting in injury.

■Lens cleaning

• Clean the lens with a commercially available blower and/or lens cleaner.
• The lens is easily scratched, so do not rub it with hard objects, or strike it.

■Main unit cleaning

• Clean the main unit after unplugging the power cord.
• Wipe dirt off the main unit gently with a soft cloth.
• Do not wipe the main unit with a damp cloth. Doing so may allow water to get inside, resulting in an electric shock or failure.
• Do not use benzene, thinner and the like as they may deform or discolor the unit or damage the paint surface.
• When using a chemically treated cloth, follow the precautions included with the cloth.

and/or objects,

Trouble indications

The indicator lights to inform you of internal abnormalities.

	No power⇒ Problem with projectorUnplug the power cord, and contact your dealer.
	Lamp went out during use, or won't come on⇒ Lamp temperature is high so that it is difficult to turn on, the lifetime of the lamp has ended or the projector is malfunctioning.Unplug the power cord and wait for a short while, then turn the power back on.If a lamp burns out, replace it with a new one.After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
(Hed 11)	Power went out during use⇒ Internal overheating, or the outside temperature is too high.Place the projector so that the air intake and exhaust are not blocked.Unplug the power cord and wait for a short while, then turn the power back on.Theicon will appear before the power goes out.After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
(Hed 11)	Power went out during use⇒ Problem with internal cooling fan.Unplug the power cord, and contact your dealer.Theicon will appear before the power goes out.After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
(Hed 11)	Power went out during use, or power won't come on⇒ The lamp cover is not properly attached.Unplug the power cord, and reattach the lamp cover.p.44After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.
(Hed 11)	Power went out during use⇒ Problem inside the projector.Unplug the power cord and wait for a short while, then turn the power back on.If the above action will not clear the problem, unplug the power cord, and contact your dealer.Theicon will appear before the power goes out.After approx. one minute of abnormal display, the projector returns to the standby state waiting for internal cool down.

Before calling service personnel

If you think something is wrong, check the followings before contacting customer service. Please see "Trouble indications" p.47 as well.

If This Happens	Check
No power	• Is the power cord plugged in? Is it connected to the projector?• Is the outer lamp cover attached properly? p.44
Power goes out during use	• Is the ambient temperature high? p.47• Is the air intake or air exhaust blocked? p.47
No picture	• Is the projector turned on? (When [Auto input search] is [Off]) p.40• Is the mute function on? p.30• Is the brightness setting minimized? p.35• Are the connections set up correctly? p.22• Are all the connected devices functioning properly?
No audio	• Is the mute function on? p.30• Is the volume setting minimized? p.27• Are the connections set up correctly? p.22• Are all the connected devices functioning properly?
Picture not displayed correctly	• Is the input signal supported by the projector? p.50 , p.51• Is there something generating an abnormal video signal, for instance the video tape?
Picture blurred Part of picture out of focus	• Is the lens dirty? p.46• Is the lens focus adjusted optimally? p.27• Is the projection distance within the projector's supported range? p.21• Is the projector's screen placement angle tilted too far? p.21• Are the sharpness or sampling phase adjustments off? p.35
Image is dark	• Are the brightness or contrast adjustments off? p.35• Is the lamp nearing the end of its service life? p.42
Colors too light Bad shading	• Are the color, tint, R-level, G-level, or B-level adjustments off? p.35• Is the screen dirty?• Is the blackboard mode set properly? p.37• Is the lamp nearing the end of its service life? p.42
Control panel key doesn't work	• Is the key lock function on? p.41
Remote control doesn't work	• Is the remote control ON/OFF switch set off? p.19• Is the remote control code identical with the projector's code? p.41• Are the remote control's batteries drained?• Are the batteries inserted into the remote control correctly? p.19• Is the remote control being used within the effective range? p.19• Are there any obstructions between the remote control and projector?• Are there any fluorescent or other bright lights shining at the projector's infrared remote sensor?

Specifications

■List of general specifications

Item Specification		on
Consumption Power TDP-T95: 310 W
Weight TDP-T95: 2.9 kg
		TDP-T100: 3.0 kg
External Dimensions(including protruding parts)		300 × 99 × 218 mm( W × H × D)
Cabinet material PC+ABS resin and ABS resin
Conditions for usage environment		Temp: 5^ C to 35^ C ; relative humidity: 30% to 70%
Display pixels		1 chip DMDTM
Picture elements		786,432 pixels (1024H × 768V)
Lens Zoom lens F=2.07		2.64 f=20.5-32.8 mm
Lamp TDP-T95: High-pressure mercury lamp (210 W)
			TDP-T100: High-pressure mercury lamp (275 W)
Projection screen size 30-300 inches
Projection distance 1.07-11.09 m
Speaker 1W (Mono)
Connection terminal	COMPUTER 1IN terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use)
	COMPUTER 2IN terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use)
	MONITOR terminal	Mini D sub 15 pin RGB / Y/PB/PR (dual use)
	S-VIDEO terminal	Mini DIN 4 pin
	AUDIO (L/R) terminal	RCA Pin Jack × 2, 1.5 V (rms), 22 kΩ or more
	VIDEO terminal	RCA Pin Jack, 1 V (p-p), 75Ω
	AUDIO (L/R) terminal	RCA Pin Jack × 2, 1.5 V (rms), 22 kΩ or more
	AUDIO IN terminal	3.5mm dia. stereo mini-jack, 1.5 V (rms), 22 kΩ or more
	AUDIO OUT terminal	3.5mm dia. stereo mini-jack
	CONTROL terminal	Mini DIN 8 pin (RS-232C)

Notes

• This model complies with the above specifications.
- Designs and specifications are subject to change without notice.
- This model may not be compatible with features and/or specifications that may be added in the future.

■Separately sold product

Replacement Lamp for TDP-T95

Replacement Lamp for TDP-T100

Model TLPLW9

Model TLPLW10

Specifications (Continued)

■List of supported signals (RGB signals)

This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show flicker or streaking. Please adjust the projector if this happens.

Resolution	Mode	Refresh rate (Hz)	H-frequency (kHz)	Clock (MHz)
720 x 400	720x400_85	85.039	37.927	35.500
640 x 480	VGA_60	59.940	31.469	25.175
	VGA_72	72.809	37.861	31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
800 x 600	SVGA_56	56.250	35.156	36.000
	SVGA_60	60.317	37.879	40.000
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
832 x 624	MAC16"	74.550	49.725	57.283
1024 x 768	XGA_60	60.004	48.363	65.000
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	MAC19"	74.700	60.134	79.857
1152 x 864	SXGA1_75	75.000	67.500	108.000
1280 x 960	QuadVGA_60	60.000	60.000	108.000
	QuadVGA_85	85.002	85.938	148.500
1280 x 1024	SXGA3_60	60.020	63.981	108.000
	SXGA3_75	75.025	79.976	135.000
	SXGA3_85	85.024	91.146	157.500
1400 x 1050	SXGA+	59.978	65.317	121.750
1600 x 1200	UXGA_60	60.000	75.000	162.000
	UXGA_65	65.000	81.250	175.500
	UXGA_70	70.000	87.500	189.000
	UXGA_75	75.000	93.750	202.500
	UXGA_85	85.000	106.250	229.500

Note

- Signals whose resolution exceeds the native resolution (1024 × 768 pixels) will be compressed. For this reason, some information may be lost, or image quality may be affected.

■ List of supported signals (Y/P B /P R signals)

Signal format fh( kHz) fv( Hz)
480i(525i) @ 60Hz 15.73	59.94
480p(525p) @ 60Hz 31.47	59.94
576i(625i) @ 50Hz 15.63	50.00
576p(625p) @ 50Hz 31.25	50.00
720p(750p) @ 60Hz 45.00	60.00
720p(750p) @ 50Hz 37.50	50.00
1080i(1125i) @ 60Hz 33.75	60.00
1080i(1125i) @ 50Hz 28.13	50.00

■List of supported signals (Video, S-Video signals)

Video mode fh(kHz)	fv(Hz) fsc(MHz)
NTSC 15.73 60	3.58
PAL15.63 50	4.43
SECAM 15.63 50	4.25 or 4.41
PAL-M 15.73 60	3.58
PAL-N 15.63 50	3.58
PAL-60	15.73 60	4.43
NTSC4.43	15.73 60	4.43

■Pin assignment of COMPUTER 1 IN, COMPUTER 2 IN & MONITOR terminals

Mini D sub 15 Pin connector

Input Signal

- RGB input

RGB signals: 0.7V (p-p) 75 Ω

Horizontal sync signal: TTL level (Pos/neg polarity)

Vertical sync signal: TTL level (Pos/neg polarity)

- Y/PB/PR input

Y signal: 1.0V (p-p) 75 Ω

P_B / P_R signals: 0.7V (p-p) 75 Ω

Pin No.	Pin description
	During RGB input	During Y/R/Pa input
1	Video signal (R)	Color difference signal (Pn)
2	Video signal (G)	Luminance signal (Y)
3	Video signal (B)	Color difference signal (Pa)
4	GND	*
5	GND	*
6	GND (R)	GND (Pn)
7	GND (G)	GND (Y)
8	GND (B) GND (P	u)
9	N.C	*
10	GND	*
11	GND	*
12	N.C	*
13	Horizontal sync signal	*
14	Vertical sync signal	*
15	N.C	*

* Do not connect anything.

Specifications (Continued)

■CONTROL terminal

●Pin assignment

Mini DIN 8 pin connector

Pin No.	Signal Name	Description
1	RXD	Receiving data
2	CTS	Consent to send
3	DSR	Data set ready
4	GND	Signal ground
5	RTS	Request to send
6	N.C	No connection
7	TXD	Sending data
8	GND	Signal ground

●Interface format

1 Communication method RS-232C, 9600bps, No Parity, Data Length: 8 bits;

Stop Bit Length: 1 bit

2 Communication format STX (02h) Command (3Byte) ETX (03h)

Only 1 command valid per communication.

3 Data format For input commands, only ASCII-compliant all-uppercase

alphanumeric characters supported

4 Replies Acknowledge ACK (06h) CR (0Dh) Data ... Normally ended

ACK (06h) ESC (1Bh)... Aborted

No acknowledge NAK (15h)

If commands are to be sent consecutively, wait for the response from the projector

before sending the next command.

●Main Commands

Item Command
Power on PON
Power off	POF
Icon display on	MO0
Icon display off	MO1
Auto setting (RGB input)	PAT
Status display on	DON
Status display off	DOF

Note

- Contact your dealer for control cable and other commands.

TOSHIBA CORPORATION
