USER MANUAL CA-R-PI.082 PIONEER

Steering wheel control interface installation kit for:

HYUNDAI/KIA

Model:

Hyundai Santa Fe 2006>2010;

Kia Carens 2006>2011; Sportage 2006>2011;

Kit content:

SWC resistive interface

wiring harness

Radio adapter

Customer code:

CA-R-PI.082

PIONEER CA-R-PI.082 - HYUNDAI/KIA - 1

natural_image Coiled electronic circuit components with colored wires and connectors (no visible text or symbols)

INSTALLATION MANUAL

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

04/2018 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R0

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

04/2018 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

PIONEER CA-R-PI.082 - INSTALLATION MANUAL - 1

natural_image Coiled electronic circuit components with colored wires and connectors (no text or symbols visible)

ATTENTION!

In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side.

Connect cables to the radio side as follow:

1- to ISO CONNECTORS (black and red housings)
2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)

Connect cables to the car side as follow:

3- to CAR CONNECTOR

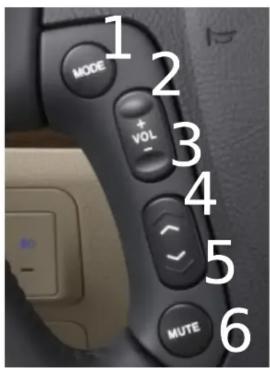

MODE + VOL - 2 3 4 5 MUTE 6

The steering wheel buttons perform the following functions (if supported by the radio and vehicle):

1- Source
2- Volume +
3- Volume -
4- Prest up
5- Preset down
6- Attenuate

Voice (if supported by radio and vehicle)

Accept incoming call (if supported by radio and vehicle)

Reject incoming call (if supported by radio and vehicle)

Manual assistant
