30-140 - Drill RIKON - Free user manual and instructions

Product Type	Radial Bench Drill Press
Brand	RIKON
Model	30-140
Motor Power	1/3 HP, TEFC
Motor Speed (no load)	1,720 RPM
Voltage	120 V, 60 Hz
Amperage	5.5 A
Speed Range	620 - 3,100 RPM
Number of Speeds	5
Chuck Size	5/8"
Chuck Taper	JT3
Drilling Capacity	5/8"
Spindle Travel	3-1/8"
Spindle Taper	MT2
Head Rotation	360°
Head Tilt	45° Right, 90° Left
Table Dimensions	7-3/4" x 7-3/4"
Table Tilt	45°
Table Rotation	360°
Max Chuck to Table	10-3/4"
Max Chuck to Base	15-1/4"
Column Diameter	2-5/16"
Height	37"
Net Weight	84 lbs
Warranty	5-Year Limited Warranty

Frequently Asked Questions - 30-140 RIKON

How do I change the speed on the RIKON 30-140 drill press?

Disconnect power. Open belt cover. Loosen belt tension lock and pull motor forward. Move belt to desired pulley positions as per speed chart. Push motor back for 1/2" deflection, tighten lock, close cover.

How do I install the chuck and arbor?

Clean tapers of chuck and arbor with grease remover. Open chuck jaws fully, insert arbor. Align flat part of arbor with spindle, drive assembly into spindle using a mallet or wood block and hammer. Never use metal hammer.

How do I set the drilling depth?

Loosen depth stop collar lock. Lower spindle to desired depth, then turn depth stop collar clockwise until it stops. Tighten lock. Alternatively, set pointer to desired depth on scale before drilling.

What maintenance is required?

Regularly clean machine with soft cloth or compressed air. Lubricate quill and spindle with machine oil. Apply #2 tube grease to worm gears. Keep column clean and waxed. Check belt tension and wear. Do not lubricate sealed bearings.

What safety precautions should I follow?

Always wear eye protection and dust mask. Keep loose clothing, hair, and jewelry away. Disconnect power before adjustments. Use clamps to secure workpiece. Never start drill with bit contacting workpiece. Keep guards in place.

Why is my drill bit burning the material?

Possible causes: incorrect speed (change speed on pulleys), chips not clearing (retract bit frequently), dull bit (resharpen), too slow feed (increase feed rate), or lack of lubrication (lubricate bit).

How do I tilt the drill press head?

Loosen lock handle on right side. Pull out guide pin on left side, rotate head to desired angle (45° right, 90° left). Tighten lock handle. To return, loosen lock, pull pin, rotate to vertical until pin seats, tighten lock.

How do I raise or lower the table?

Loosen column lock on table support bracket. Turn crank to raise/lower table. Tighten column lock. The table can also rotate 360° by loosening table lock handle.

What is the warranty period?

RIKON offers a 5-year limited warranty for original retail purchaser. Covers defects in materials and workmanship. Does not cover misuse, abuse, or normal wear. Commercial/industrial use has 2-year warranty.

Where can I find replacement parts?

Replacement parts are available from RIKON. Use part numbers from the manual's parts list. Contact tech support at 877-884-5167 or email [e-mail]. Provide serial number for warranty parts.

USER MANUAL 30-140 RIKON

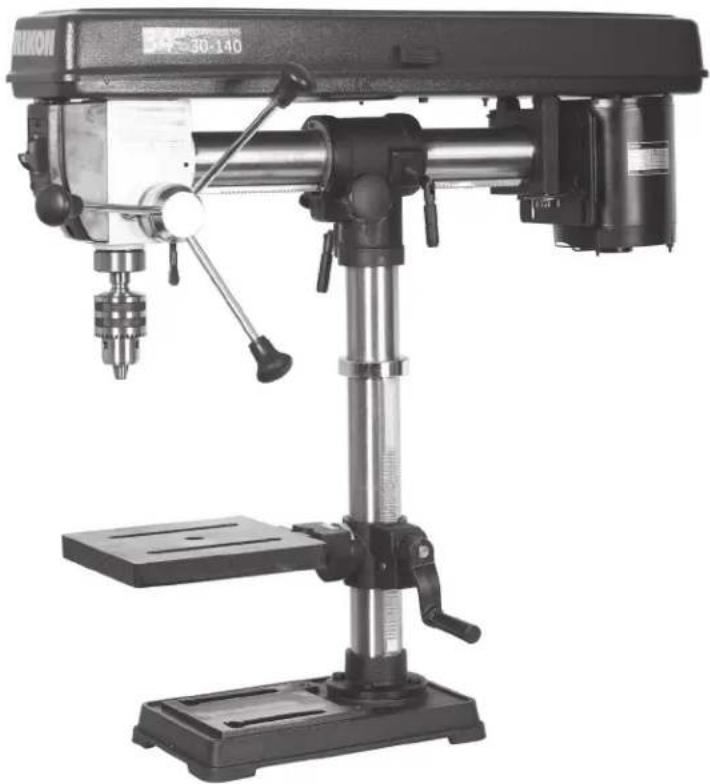

34" Radial Bench Drill Press

Operator's Manual

Record the serial number and date of purchase in your manual for future reference.

The serial number can be found on the specification label on the rear of your machine.

Serial Number: Date of purchase:

For technical support or parts questions, email [e-mail] or call toll free at [phone]

TABLE OF CONTENTS

Safety Warnings....3-6

Electrical Requirements....5,16

Drill Press Safety Rules 6

Contents of Package....7

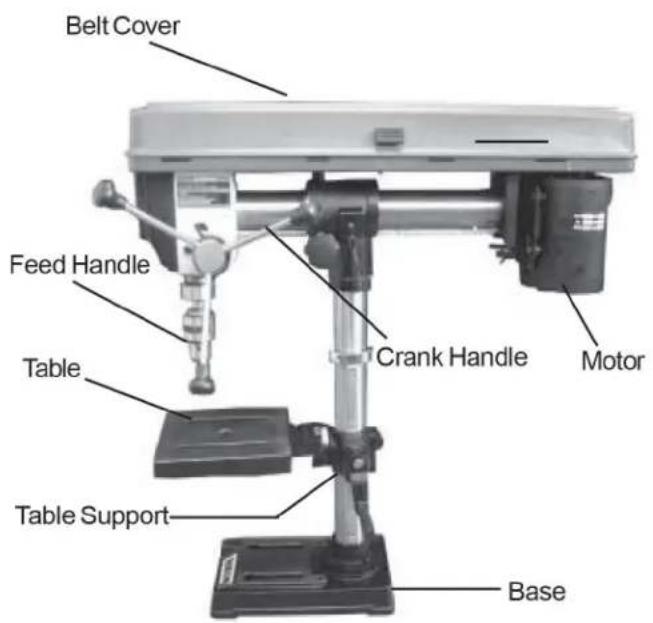

Getting To Know Your Drill Press....8

Installation 8

Assembly 9-12

Head Assembly....9,10

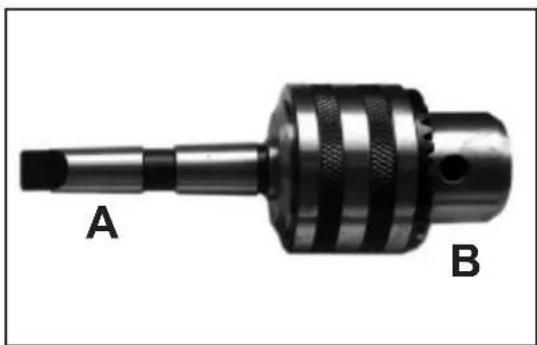

Installing & Removing the Chuck and Arbor....10,11

Installing the Table....12

Adjustments....12-15

Head Adjustments ......12,13

Table Adjustments....13,14

Changing Spindle Speeds....14

Setting the Spindle Lock....15

Setting the Drill Depth....15

Maintenance....15

Wiring Diagram....16

Warranty 16

Troubleshooting 17

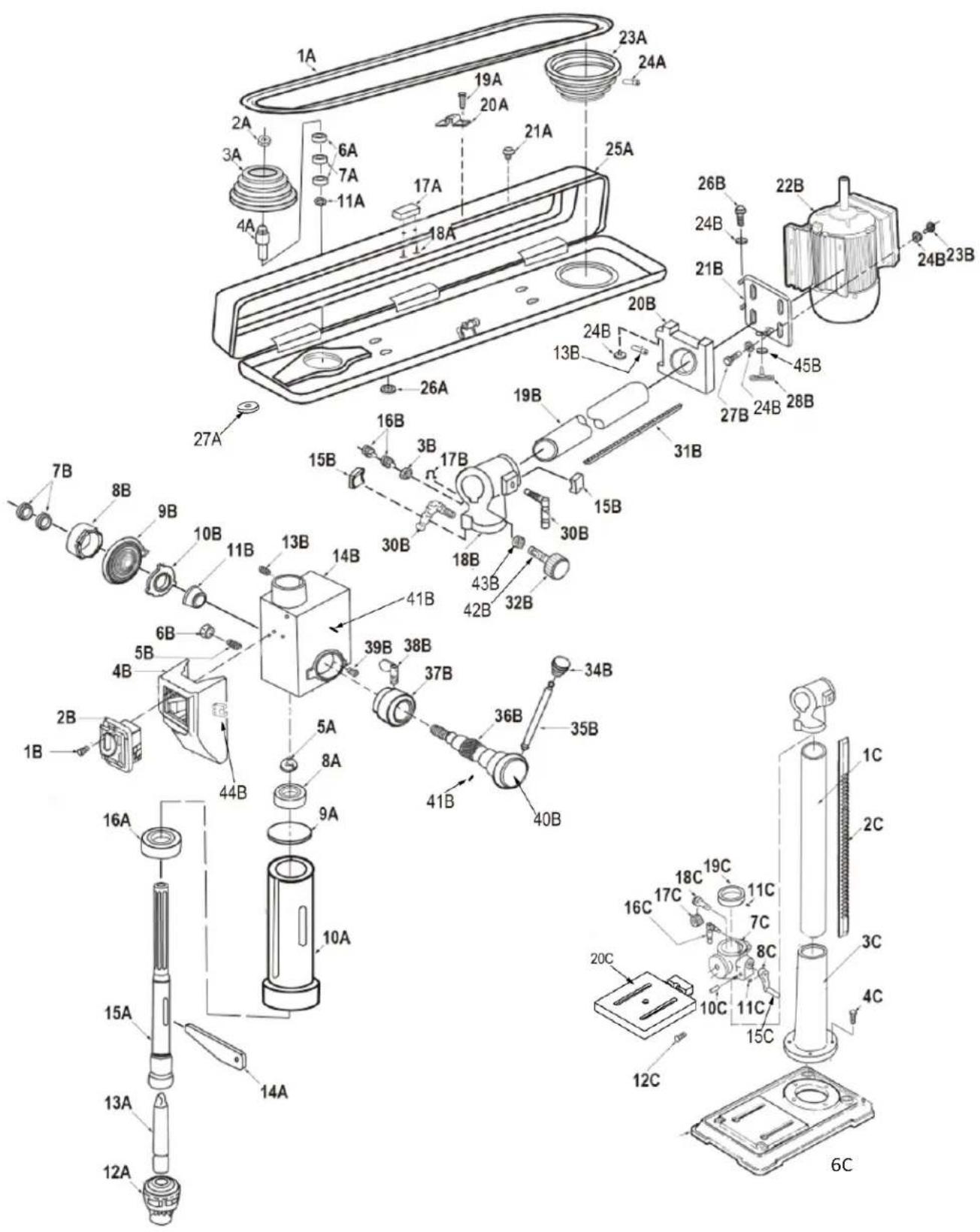

Parts Diagram 18

Parts List 19

SPECIFICATIONS

Motor 1/3 HP, TEFC

Motor Speed (no load).... 1,720 RPM

Volts 120 V

Amps, Hertz 5.5 A, 60 Hz

Speed Range (RPM) 620 - 3,100

Speeds 5

Chuck Size 5/8"

Chuck Taper....JT3

Drilling Capacity 5/8"

Spindle Travel 3-1/8"

Spindle Taper .... MT2

Head Rotates 360°

Held Tilts 45° Right, 90° Left

Quill Diameter 2-3/16"

Table (LxW) 7-3/4" x 7-3/4"

Table Tilts 45°

Table Rotates 360°

Maximum Chuck To Table 10-3/4"

Maximum Chuck To Base 15-1/4"

Column Diameter 2-5/16"

Height 37"

Base Size 13-3/4" x 8-1/2"

Net Weight 84 lbs.

NOTE: The specifications, photographs, drawings and information in this manual represent the current model when the manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.

SAFETY INSTRUCTIONS

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. If you have any questions about its application, do not use the tool until you have contacted us and we have advised you.

SAFETY SYMBOLS

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used in conjunction with other symbols or pictographs.

Indicates an DANGER serious injur

imminently hazardous situation, which, if not avoided, could result in death or

Indicates a WARNING injury.

potentially hazardous situation, which, if not avoided, could result in death or serious

CAUTION indicates a moderate in

potentially hazardous situation, which, if not avoided, could result in minor or

NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.

GENERAL SAFETY

KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific potential hazards.

BEFORE USING YOUR MACHINE

To avoid serious injury and damage to the tool, read and follow all of the Safety and Operating Instructions before operating the machine.

1. Some dust created by using power tools contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.

• Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• READ the entire Owner's Manual. LEARN how to use the tool for its intended applications.

• GROUND ALL TOOLS. If the tool is supplied with a 3-prong plug, it must be plugged into a 3-contact electrical receptacle. The 3rd prong is used to ground the tool and provide protection against accidental electric shock. DO NOT remove the 3rd prong. See Grounding Instructions on the following pages.

• AVOID A DANGEROUS WORKING ENVIRONMENT. DO NOT use electrical tools in a damp environment or expose them to rain.

• DO NOT use electrical tools in the presence of flammable liquids or gases.
• ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an environment with floor surfaces that are slippery from debris, grease, and wax.
• KEEP VISITORS AND CHILDREN AWAY. DO NOT permit people to be in the immediate work area, especially when the electrical tool is operating.
• DO NOT FORCE THE TOOL to perform an operation for which it was not designed. It will do a safer and higher quality job by only performing operations for which the tool was intended.
• WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckties, or jewelry. These items can get caught in the machine during operations and pull the operator into the moving parts. The user must wear a protective cover on their hair, if the hair is long, to prevent it from contacting any moving parts.
• CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical receptacles, and using padlocks.
• ALWAYS UNPLUG THE TOOL FROM THE ELECTRICAL RECEPTACLE when making adjustments, changing parts or performing any maintenance.

SAFETY INSTRUCTIONS

1. KEEP PROTECTIVE GUARDS IN PLACE AND IN WORKING ORDER.

2. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the "OFF" position before plugging in the power cord to the electrical receptacle.

3. REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning "ON" the machine.

4. USE ONLY RECOMMENDED ACCESSORIES. Use of incorrect or improper accessories could cause serious injury to the operator and cause damage to the tool. If in doubt, check the instruction manual that comes with that particular accessory.

5. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to the "OFF" position. DO NOT leave the tool until it has come to a complete stop.

6. DO NOT STAND ON A TOOL. Serious injury could result if the tool tips over, or you accidentally contact the tool.

7. DO NOT store anything above or near the tool where anyone might try to stand on the tool to reach it.

8. MAINTAIN YOUR BALANCE. DO NOT extend yourself over the tool. Wear oil resistant rubber soled shoes. Keep floor clear of debris, grease, and wax.

9. MAINTAIN TOOLS WITH CARE. Always keep tools clean and in good working order. Keep all blades and tool bits sharp, dress grinding wheels and change other abrasive accessories when worn.

10. EACH AND EVERY TIME, CHECK FOR DAMAGED PARTS PRIOR TO USING THE TOOL. Carefully check all guards to see that they operate properly, are not damaged, and perform their intended functions. Check for alignment, binding or breaking of moving parts. A guard or other part that is damaged should be immediately repaired or replaced.

11. DO NOT OPERATE TOOL WHILE TIRED, OR UNDER THE INFLUENCE OF DRUGS, MEDICATION OR ALCOHOL.

12. SECURE ALL WORK. Use clamps or jigs to secure the work piece. This is safer than attempting to hold the work piece with your hands.

13. STAY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN OPERATING A POWER TOOL.

A moment of inattention while operating power tools may result in serious personal injury.

1. ALWAYS WEAR A DUST MASK TO PREVENT INHALING DANGEROUS DUST OR AIRBORNE

PARTICLES, including wood dust, crystalline silica dust and asbestos dust. Direct particles away from face and body. Always operate tool in well ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.

1. USE A PROPER EXTENSION CORD IN GOOD CONDITION. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. The table on the following page shows the correct size to use depending on cord length and nameplate amperage rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the larger diameter of the extension cord. If in doubt of the proper size of an extension cord, use a shorter and thicker cord. An undersized cord will cause a drop in line voltage resulting in a loss of power and overheating.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS A 3-PRONG GROUNDING PLUG AND A 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG.

1. ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from:

• Power Tool Institute 1300 Summer Avenue Cleveland, OH 44115-2851 www.powertoolinstitute.org

• National Safety Council 1121 Spring Lake Drive Itasca, IL 60143-3201 www.nsc.org

• American National Standards Institute 25 West 43rd Street, 4th Floor New York, NY 10036 www.ansi.org

• ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor regulations www.osha.gov

1. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others.

SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and requires a grounding plug (not included). The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY ANY PLUG. If it will not fit the electrical receptacle, have the proper electrical receptacle installed by a qualified electrician.

IMPROPER ELECTRICAL CONNECTION of the equipment grounding conductor can result in risk of electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. DO NOT connect the equipment grounding conductor to a live terminal if repair or replacement of the electric cord or plug is necessary.

CHECK with a qualified electrician or service personnel if you do not completely understand the grounding instructions, or if you are not sure the tool is properly grounded when installing or replacing a plug.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS THE PROPER TYPE OF A 3-PRONG GROUNDING PLUG THAT MATCHES THE MACHINE'S 3-PRONG PLUG AND ALSO THE 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG. *

REPLACE A DAMAGED OR WORN CORD IMMEDIATELY.

This tool is intended for use on a circuit that has an electrical receptacle as shown in FIGURE A. It shows a 3-wire electrical plug and electrical receptacle that has a grounding conductor. If a properly grounded electrical receptacle is not available, an adapter as shown in FIGURE B can be used to temporarily connect this plug to a 2-contact ungrounded receptacle. The adapter has a rigid lug extending from it that MUST be connected to a permanent earth ground, such as a properly grounded receptacle box. THIS ADAPTER IS PROHIBITED IN CANADA.

EXTENSION CORDS

WARNING: THE USE OF AN EXTENSION CORD WITH THIS MACHINE IS NOT RECOMMENDED. For best power and safety, plug the machine directly into a dedicated, grounded electrical outlet that is within the supplied cord length of the machine.

If an extension cord needs to be used, it should only be for a limited operation of the machine. The extension cord should be as short as possible in length, and have a minimum gauge size of 14AWG.

WARNING: Check extension cords before each use. If damaged replace immediately. Never use a tool with a damaged cord, since touching the damaged area could cause electrical shock, resulting in serious injury.

Use a proper extension cord. Only use cords listed by Underwriters Laboratories (UL). Other extension cords can cause a drop in line voltage, resulting in a loss of power and overheating of tool. When operating a power tool outdoors, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)

120 VOLT OPERATION ONLY
	25' LONG	50' LONG	100' LONG	150' LONG
0 to 6 Amps	18 AWG	16 AWG	16 AWG	14 AWG
6 to 10 Amps	18 AWG	16 AWG	14 AWG	12 AWG
10 to 12 Amps	16 AWG	16 AWG	14 AWG	12 AWG

A WARNING Ackee the division cord clear of the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with your power tool.

* Canadian electrical codes require extension cords to be certified SJT type or better.
** The use of an adapter in Canada is not acceptable.

SAFETY INSTRUCTIONS

SPECIFIC SAFETY INSTRUCTIONS FOR DRILL PRESSES

This machine is intended for the drilling of wood, composite materials, plastics, ferrous and non-ferrus metals. The permissible workpiece dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.

ATTENTION: Use of this drill press still presents risks that cannot be eliminated by the manufacturer. Therefore, the user must be aware that wood working machines are dangerous if not used with care and all safety precautions are adhered to.

1. Do not operate the Drill Press until it is assembled and you have read all of the instructions.
2. Do not operate the Drill Press unless you are familiar with its safe operation. If you are not familiar with the operation of a Drill Press seek advice from your supervisor, instructor or other qualified individual.
3. If you are using a bench top Drill Press, it must be securely fastened to a stand or bench.
4. If you are operating a floor Drill Press it must be securely fastened to the floor.
5. Always clear the table and work area before turning on the Drill Press.
6. Always use drill bits, cutting tools and accessories with a 1/2" shank or less.
7. Never place hands near the drill bit, cutting tool or accessory while operating the Drill Press.
8. Always wear approved, safety eye wear and hearing protection while operating the Drill Press.
9. Never wear loose clothing, gloves or ties while operating the Drill Press. Tie loose hair back.
10. Always wear a dust mask and use adequate dust collection and proper ventilation.
11. Always have a firm footing while operating the Drill Press.
12. Always keep the work surface and work areas clear of debris.

13. Never attempt to do set-up work, assembly or layout work on the Drill Press while it is in operation.

14. Always lock all table, column and head locks before turning on the Drill Press.

15. Never start the Drill Press with the drill bit, cutting tool or accessory in contact with the work piece.
16. Never operate the Drill Press with a damaged drill bit, cutting tool or accessory.
17. Always check that the drill bit, cutting tool or accessory is held tight in the chuck.
18. Never operate the Drill Press with the chuck key in the chuck.
19. Always adjust the depth stop to avoid drilling into the table surface.
20. Never drill material unless it is properly supported. Non flat work pieces require additional support.
21. Always clamp the work piece to the table.
22. Always support large work pieces at the same height as the table.
23. Never remove the work piece or clear the table until the Drill Press comes to a complete stop.
24. Never operate the Drill Press with missing, damaged, worn, loose or defective parts.
25. Never adjust, change speeds or perform maintenance on the Drill Press while it is operating.
26. Always clean the work surface and work area when finished operating the Drill Press.
27. Always disconnect the power when adjusting or performing maintenance on the Drill Press.
28. Always disconnect the power when finished using the Drill Press to prevent accidental operation.

SAVE THESE INSTRUCTIONS. Refer to them often.

This owner's manual is not a teaching aid. Use of this owner's manual is intended to show assembly, adjustments, and general use.

California Proposition 65 Warning

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.

For more information go to www.P65Warnings.ca.gov/wood.

CONTENTS OF PACKAGE

Model #30-140 34" Benchtop Radial Drill Press is shipped complete in one box.

Unpacking and Clean-up

1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface for easy identification and assembly. If any parts are missing or broken, please call RIKON Customer Service (877-884-5167) as soon as possible for replacements. DO NOT turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to the machine.
2. Report any shipping damage to your local distributor. Take photographs for any possible insurance claims.
3. Clean all rust protected surfaces with ordinary house hold type grease or spot remover. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage painted surfaces.
4. Apply a coat of paste wax to the table to prevent rust. Wipe all parts thoroughly with a clean dry cloth.
5. Set packing material and shipping carton aside. Do not discard until the machine has been set up and is running properly.

LIST OF LOOSE PARTS

TABLE OF LOOSE PARTS

A Drill Press Head 1

B Chuck Arbor

C Drive Belt 1

D Table Assembly 1

E Column Assembly 1

F Base 1

G Loose Parts Bags 2

H Chuck & Key & Arbor 1

I Manual 1

1 TOOLS NEEDED FOR ASSEMBLY

• Hex Wrenches - 3, 4mm (provided)
• Phillips Screwdriver
• 10mm, 16mm or Adjustable Wrench
• Rubber Mallet or Hammer & Block of Wood

GETTING TO KNOW YOUR MACHINE

For reference, the Parts Diagram and Parts List are on pages 16 and 17.

INSTALLATION

MOVING & INSTALLING THE DRILL PRESS

CAUTION

When moving the assembled Drill Press, at least two people are recommended. The machine is very heavy, and top heavy. Tilt the drill press backwards so that one person can hold the head section. Then the base can be lifted by the second person, and the machine moved to the desired new location.

DO NOT move or carry the Drill Press with the work table, chuck or operating handles, as this may damage the machine.

1. Position the machine on a solid, level bench that is located in an area that has ample space in front and to both sides of the drill press for the moving of lumber and projects to be drilled.

2. Align the machine so that during use, any kickback will not face aisles, doorways, or other work areas that bystanders may be in. Do not locate or use the machine in damp or wet conditions.

3. If possible, secure the machine to the bench with lag screws or other fasteners (not supplied). This will ensure the stability of the machine and reduce any possible vibration during use. If this is not possible, the base can be bolted to a larger piece of plywood to help stabilize the machine. DO NOT use a mobile base with this machine.

4. For best power and safety, the Drill Press should be directly plugged into a dedicated grounded electrical outlet that is within the supplied cord length of the machine. The use of an extension cord is not recommended.

ASSEMBLY

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

BASE AND COLUMN ASSEMBLY

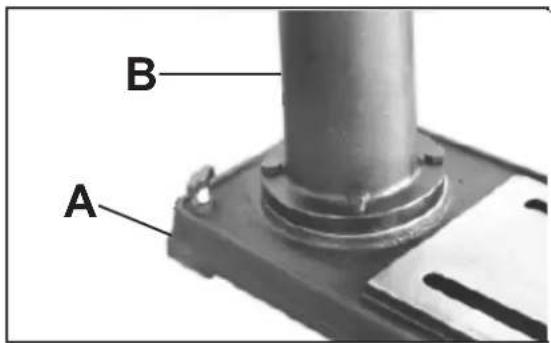

1. Place the base (A-Fig. 1) on a level floor where the machine will be used.
2. Attach the column (B-Fig.1) to the base (A-Fig.1) using four M8x20 hex bolts. Tighten all four bolts.

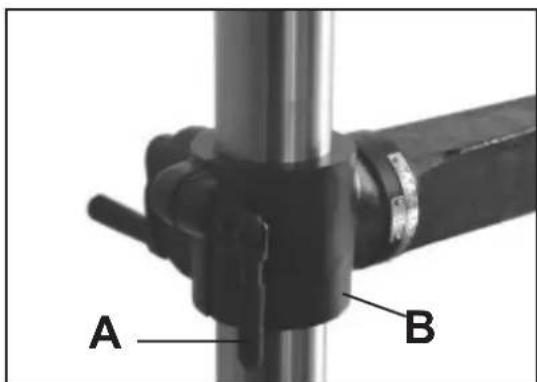

3. Using a hex wrench (C-Fig. 2) remove the column collar (D-Fig. 2) as shown.
4. Insert the worm elevation gear (E-Fig. 3) into the table support bracket (F-Fig. 3) as shown.
5. Place rack (G-Fig. 4) inside the table support bracket (F-Fig. 4) lining up the teeth as shown.
6. Slide the table support and rack assembly over the column and replace the column collar.

Figure 3

Figure 1

Figure 2

Figure 4

HEAD ASSEMBLY

1. Place the locking shoe (part# 15B) in the recessed pocket of the head. Fig. 5.

CONTINUED ON PAGE 10

Figure 5

ASSEMBLY

CAUTION

sistance is needed forthis next step.

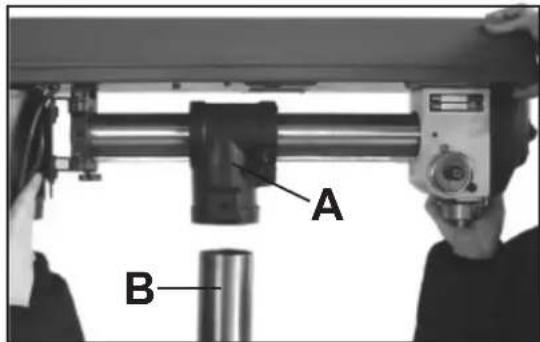

1. Place the drill press head (A-Fig. 6) onto the column (B-Fig. 6) as far as it will go.
2. Attach the 2 clamping levers (part# 30B) on the drill press column guide (part# 18B). Fig. 7.
3. Align the drill press head (A-Fig. 8) with the base of the drill press.
4. Tighten the drill press head (A-Fig. 6) to the column (B-Fig. 6) by tightening the locking clamping lever (part# 30B) on the left side of the guide column (part# 18B).
5. Attach the three feed handles (part# 35B) to the hub (part# 36B). Fig. 8.

WARNING

THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

INSTALLING & REMOVING THE CHUCK AND ARBOR

IMPORTANT! It is important that the chuck and arbor are free of any grease or rust protection. Use ordinary household grease remover to clean the tapers.

INSTALLING THE CHUCK AND ARBOR

1. Open the chuck jaws as wide as possible to prevent any damage. Fig. 9.
2. Insert the arbor (A-Fig.10) into the chuck (B-Fig.10) as shown.

CONTINUED ON PAGE 11

Figure 6

Figure 7

Figure 8

Figure 9

ASSEMBLY

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

1. Carefully insert the chuck and arbor assembly into the spindle, making sure to align the flat part of the arbor with the spindle. Fig. 11.
2. Using a mallet or a piece of wood and a hammer, drive the chuck and arbor assembly into the spindle. This will properly seat the chuck assembly on the spindle. Fig. 12.

CAUTION

NEVER HIT THE CHUCK

ASSEMBLY WITH A METAL HAMMER. This could damage the chuck assembly or spindle.

1. Close the chuck jaws with the chuck key provided.

REMOVING THE CHUCK

1. Open the chuck jaws as wide as possible to prevent damage.

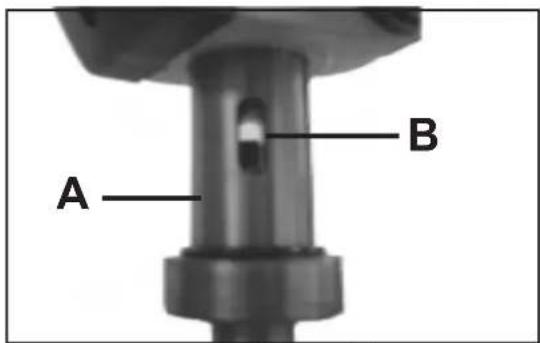

2. Lower the spindle (A-Fig.13) until the slot in the spindle (B) is exposed. Fig. 13.
3. Position the table approximately 1/2" below the extended chuck.
4. Turn the chuck until a through hole is exposed in the spindle.
5. Insert the metal Key-drift tool, provided, into the slot. Fig. 14.
6. Gently tap the key-drift with a mallet to release the chuck.

NOTE: To avoid damage to the chuck, make sure to place a hand below the chuck to catch it as it is released from the spindle.

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

ASSEMBLY

INSTALLING THE TABLE

1. Install the arm onto the table support with hex bolt (A-Fig.15) and make sure the scale is on zero position (B-Fig.15). If necessary, adjust the hex socket screw (C-Fig.16) to lever the table 90 degree to the spindle.

Figure 15

1. Insert the table post (A-Fig.16) into the table support bracket (B-Fig.16) as shown.
2. Tighten the locking lever (A-Fig.17) onto the table support bracket (B-Fig.17) and install the table raising/ lowering handle (C-Fig.17).

Figure 16

Figure 17

ADJUSTMENTS

HEAD ADJUSTMENTS

Tilting the Drill Press Head 45° Clockwise and 90° Counterclockwise

1. Loosen the lock handle (A-Fig.18) on the right side of the drill press head.
2. Pull the guide pin out on the left side of the drill press head (A-Fig.19) and rotate 90° . Thehead may be tilted to the desired angle.
3. Tighten the lock handle.
4. To return to the original position, loosen the lock handle.

CONTINUED ON PAGE 13

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

Figure 18

ADJUSTMENTS

1. Move the head back to a vertical position.
2. Pull the guide pin out and rotate until it seats in the guide pin slot.
3. Tighten the lock handle.

Adjusting the Drill Press Head Forward and Backwards

1. Loosen the lock handle on the right side of the head.
2. Turn the handle (A-Fig.20, 21) to the desired position.
3. Tighten the lock handle.

TABLE ADJUSTMENTS

Raising and Lowering the Table

1. Loosen the column lock (A-Fig.22) on the table support bracket (B-Fig.22).
2. Turn the crank to raise or lower the table to the desired height.
3. Tighten the column lock (A-Fig.22).

The table can rotate 360° by loosening the table lock handle and turning to the desired position. Fig. 23.

Figure 19

Figure 20

Figure 21

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

Figure 22

Figure 23

TILTING THE TABLE

1. Loosen the nut below the table. Fig. 24.
2. Tilt table to desired angle.
3. A Tilt scale and pointer are provided on the bracket to indicate the angle.
4. Tighten nut.

1. Turn off and disconnect the power to the Drill Press.
2. Open belt cover.
3. Release the tension on the belt by loosening the belt tension lock (A-Fig.25) and pull forward on the motor (B-Fig. 25).
4. Choose the desired speed by referring to the speed selection chart.
5. Place the belt on the pulleys in relation to the speed chosen on the speed selection chart starting with the motor pulley first. Fig. 26.
6. Push back on the motor until there is approximately 1/2" deflection in the belt. Fig. 27.
7. Tighten the belt tension lock handle.
8. Close the belt guard.
9. Reconnect the Drill Press to the power.

Figure 24

THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS, MAINTENANCE OR ANY NECESSARY REPAIRS ARE COMPLETE.

B

A

Figure 25

Figure 27

Figure 26

ADJUSTMENTS

1. Loosen the depth stop collar lock (A-Fig.28).
2. Lower the spindle to the desired depth. Fig. 29.
3. Turn the depth stop collar clockwise until the collar stops (B-Fig.28).
4. Tighten the depth stop collar lock.

SETTING THE DRILL DEPTH

1. With the spindle in the up position, loosen the depth stop collar lock (A-Fig.28).
2. Turn the depth stop collar clockwise until the pointer reads the desired drill depth on the scale (B-Fig.28).
3. Tighten the depth stop collar lock.

Figure 28

Turn the power switch "OFF" and disconnect the plug from the outlet prior to adjusting or maintaining the machine.

1. Before each use:
2. Check the power cord and plug for any wear or damage.
3. Check for any loose screws, hardware or parts.

4. Make sure the area is clear of any misplaced tools, lumber, cleaning supplies, etc. that could hamper the safe operation of the machine.

5. To avoid a build-up of wood dust, regularly clean all parts of the machine using a soft cloth, brush or compressed air. A general cleaning should be done after every use to avoid future problems and ensure the machine is ready for its next use.

WARNING: If blowing sawdust, wear proper eye protection to prevent debris from blowing into eyes.

1. Keep the machined surfaces of the drill press table and base free of resin and rust. Clean them regularly with a non-flammable solvent, then coat with a light film of dry lubricant spray or wax.

2. Lubricate the table bracket and locking lever bolts to keep them operating smoothly.

3. Clean the column on a regular basis to prevent the build-up of dust, drilling residue and rust. Treat the posts with a dry lubricant spray or a light coating of wax. Do not use ordinary oil which will collect dust and hamper the movement of column parts.
4. Periodically, lower the quill assembly and apply a light coating of machine oil to the quill and spindle surfaces. Raise and lower the quill a few times to distribute the oil on all of the internal surfaces.
5. Apply #2 tube grease to the worm gears in the table elevation mechanism and rack to keep them operating smoothly.
6. The ball bearings in the spindle and pulley assemblies are lifetime lubricated, sealed, and do not need any further care.
7. Keep the drive belt and pulley surfaces free of oil and grease. Periodically, check the drive belt for wear and replace if necessary.

WIRING DIAGRAM

WARNING:

This machine must be grounded. Replacement of the power supply cable should only be done by a qualified electrician. See page 5 for additional electrical information.

DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance.

WARRANTY

RIKON

POWER TOOLS®

5-Year Limited Warranty

RIKON Power Tools Inc. ("Seller") warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, belts, guide bearings and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, proof of purchase documentation must be provided which has the date of purchase and an explanation of the complaint.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To register your machine online, visit RIKON at www.rikontools.com/warranty

To take advantage of this warranty, or if you have any questions, please contact us at 877-884-6167 or email [e-mail]

TROUBLESHOOTING

TROUBLE PRO-BABLE CAUSE REMEDY
Noisy Operation 1. Incorrect belt tension. 1. Adjust tension.2. Dry Spindle. 2. Lubricate spindle.3. Loose spindle pulley. 3. Checking tightness of retaining nut on pulley and tighten if necessary.4. Loose motor pulley. 4. Tighten set screws in pulleys.
Drill Bit Burns 1. Incorrect speed. 1. Change speed.Material 2. Chips not coming out of hole. 2. Retract drill bit frequently to clear chips.3. Dull drill bit. 3. Resharpen drill bit.4. Feeding too slow. 4. Increase the speed.5. Not Lubricated 5. Lubricate drill bit.
Drill bit leads off, hole not round.	1. Hard grain in wood or lengths of cutting lips and/ or angles not equal.2. Bent drill bit.	1. Resharpen drill bit correctly.2. Replace drill bit.
Wood splinters on underside of workpiece.	1. No "back up material" under workpiece.	1. Use "back-up material"
Wood piece pulled loose from hands.	1. Not supported or clamped properly.	1. Support workpiece or clamp it.
Drill bit binds in workpiece. or excessive	1. Workpiece pinching drill bitive feed pressure.2. Improper belt tension.	1. Support workpiece or clamp it.2. Adjust belt tension.
Excessive drill bit runout or wobble.	1. Bent drill bit.2. Worn spindle bearings.3. Drill bit not properly installed in chuck.4. Chuck not properly installed.	1. Use a straight drill bit.2. Replace bearings.3. Install drill bit properly.4. Install chuck properly.
Quill Returns too slow or too fast.	1. Spring has improper tension.	1. Adjust spring tension.
Chuck will not stay attached to spindle, it falls off when trying to install it. tapered surface.	1. Dirty, grease, or oil on the tapered inside surface of chuck or on the spindle's face.	1. Using a household detergent, clean the tapered surface of the chuck and spindle to remove all dirt, grease and oil.

PARTS DIAGRAM

PARTS LIST

KEY

NO.

DESCRIPTION

PART NO.

1A	Belt - “V”	P30-140-1A
2A	Pulley nut	P30-140-2A
3A	Spindle pulley	P30-140-3A
4A	Insert pulley	P30-140-4A
5A	Retaining ring	P30-140-5A
6A	Ball bearing	P30-140-6A
7A	Spacer 1302023	P30-140-7A
8A	Ball bearing	P30-140-8A
9A	Washer rubber	P30-140-9A
10A	Tube quill	P30-140-10A
11A	Retaining ring	P30-140-11A
12A	Chuck	P30-140-12A
13A	Arbor	P30-140-13A
14A	Drift key	P30-140-14A
15A	Spindle	P30-140-15A
16A	Ball bearing	P30-140-16A
17A	Knob	P30-140-17A
18A	Cross pan head screw M5x6	P30-140-18
19A	Cross pan head screw M5x12	P30-140-19A
20A	Clamp cord	P30-140-20A
21A	Screw	P30-140-21A
23A	Motor pulley	P30-140-23A
24A	Socket hd cap screw M6x10	P30-140-24A
25A	Belt guard	P30-140-25A
26A	Form washer	P30-140-26A
27A	Rubber bushing	P30-140-27A
1B	Tapping screw	P30-140-1B
2B	NO-VOLT Switch	P30-140-2B
3B	Nut	P30-140-3B
4B	Box switch	P30-140-4B
5B	Screw 1302021	P30-140-5B
6B	Nut M8	P30-140-6B
7B	Hex nut	P30-140-7B
8B	Cap - Spring	P30-140-8B
9B	Spring - Torsion	P30-140-9B
13B	Socket head cap screw M8x8	P30-140-13B
14B	Head	P30-140-14B
15B	Locking shoe	P30-140-15B
16B	Hex screw	P30-140-16B
17B	Retaining ring	P30-140-17B
18B	Guide - column	P30-140-18B

KEY

NO.

DESCRIPTION

PART NO.

19B	Horizontal - tube	P30-140-19B
20B	Cover mount	P30-140-20B
21B	Motor mount	P30-140-21B
22B	Motor	P30-140-22B
23B	Nut M8	P30-140-23B
24B	Flat washer	P30-140-24B
26B	Hex bolt M8x16	P30-140-26B
27B	Hex bolt M8x20	P30-140-27B
28B	Thumb nut	P30-140-28B
30B	Clamping - lever	P30-140-30B
31B	Horizontal - rack	P30-140-31B
32B	Blade tension knob - seat	P30-140-32B
	Blade tension knob - cover
34B	Feed - knob	P30-140-34B
35B	Feed - rod	P30-140-35B
36B	Hub	P30-140-36B
37B	Ring - depth stop	P30-140-37B
38B	Lock - depth screw	P30-140-38B
39B	Pin - stop	P30-140-39B
40B	Handle seat	P30-140-40B
41B	Roller pin	P30-140-41B
42B	Adjustable handle	P30-140-42B
43B	Helical gear	P30-140-43B
44B	Key holder	P30-140-44B
45B	Flat washer	P30-140-45B
1C	Column	P30-140-1C
2C	Rack	P30-140-2C
3C	Column support	P30-140-3C
4C	Hex bolt M8x20	P30-140-4C
6C	Base	P30-140-6C
7C	Table support	P30-140-7C
8C	Crank	P30-140-8C
10C	Pin gear	P30-140-10C
11C	Socket hd cap screw M6x10	P30-140-11C
12C	Bolt M12x25	P30-140-12C
15C	Handle assembly	P30-140-15C
16C	Support clamp	P30-140-16C
17C	Gear - helical	P30-140-17C
18C	Worm - elevation	P30-140-18C
19C	Column collar	P30-140-19C
20C	Table	P30-140-20C

NOTE: Please reference the Manufacturer's Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.

For more information:

16 Progress Road

Billerica, MA 01821

877-884-5167 / 978-528-5380

[e-mail]

LINK TO RIKON WEBSITE
