USER MANUAL 30-251 RIKON

34" Floor Radial Drill Press

Industrial drill press machine with 34-inch 30-251 title and adjustable shaft (no visible text or symbols)

Operator's Manual

Record the serial number and date of purchase in your manual for future reference.

The serial number can be found on the specification label on the rear of your machine.

Serial Number: ____ Date of purchase: ____

For technical support or parts questions, email [e-mail] or call toll free at [phone]

SAFETY INSTRUCTIONS

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. If you have any questions about its application, do not use the tool until you have contacted us and we have advised you.

General Safety Warnings

KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific potential hazards.

△DANGER	ALWAYS GROUND ALL TOOLS.If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle.If you use an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a known ground. Never remove the third prong of the plug.ALWAYS AVOID DANGEROUS ENVIRONMENTS.Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.
△DANGER	ALWAYS REMOVE THE ADJUSTING KEYS AND WRENCHES FROM TOOLS AFTER USE.Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.ALWAYS KEEP YOUR WORK AREA CLEAN. Cluttered areas and benches invite accidents.
△DANGER	ALWAYS KEEP VISITORS AWAY FROM RUNNING MACHINES.All visitors should be kept a safe distance from the work area.ALWAYS MAKE THE WORKSHOP CHILDPROOF.Childproof with padlocks, master switches, or by removing starter keys.
△DANGER	NEVER OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS,MEDICATION, OR ALCOHOL.
△DANGER	ALWAYS WEAR PROPER APPAREL.Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is recommended for the best footing.
△DANGER	ALWAYS USE SAFETY GLASSES AND WEAR HEARING PROTECTION.Also use a face or dust mask if the cutting operation is dusty.
△DANGER	NEVER OVERREACH.Keep your proper footing and balance at all times.
△DANGER	NEVER STAND ON TOOLS.Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.

DANGER

ALWAYS DISCONNECT TOOLS.

Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters.

ALWAYS AVOID ACCIDENTAL STARTING.

Make sure switch is in "OFF" position before plugging in cord.

NEVER LEAVE TOOLS RUNNING UNATTENDED.

DANGER

ALWAYS CHECK FOR DAMAGED PARTS.

Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other damaged parts should immediately be properly repaired or replaced.

Special Safety Rules For Drill Press

This machine is intended for the drilling of wood, composite materials, plastics, ferrous and non-ferrus metals. The permissible workpiece dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.

ATTENTION: Use of this drill press still presents risks that cannot be eliminated by the manufacturer. Therefore, the user must be aware that wood working machines are dangerous if not used with care and all safety precautions are adhered to.

1. Do Not operate the Drill Press until it is assembled and you have read the instructions.
2. Do Not operate the Drill Press unless you are familiar with its safe operation. If you are not familiar with the operation of a Drill Press seek advice from your supervisor, instructor or other qualified individual.
3. If you are using a bench top Drill Press, it must be securely fastened to a stand or bench.
4. If you are operating a floor Drill Press it must securely fastened to the floor.
5. Always clear the table and work area before turning on the Drill Press.
6. Always use drill bits, cutting tools and accessories with a 1/2" shank or less.
7. Never place hands near the drill bit, cutting tool or accessory.
8. Never wear loose clothing, gloves or ties while operating the Drill Press.
9. Always have a firm footing while operating the Drill Press.
10. Always keep work surface and work areas clear of debris.
11. Never attempt to do set-up work, assembly or layout work on the Drill Press while it is in operation.
12. Never start the Drill Press with the drill bit, cutting tool or accessory in contact with the work-piece.

13. Always lock all table, column and head locks before turning on the Drill Press.

14. Never operate the Drill Press with a damaged drill bit, cutting tool or accessory.

15. Always check the drill bit, cutting tool or accessory in tight in the chuck.
16. Never operate the Drill Press with the chuck key in the chuck.
17. Always adjust the depth stop to avoid drilling into the table surface.
    be18. Never drill material unless it is properly supported. Non flat work-pieces require additional support.
18. Always clamp the work piece to the table.
19. Always support large work-pieces at the same height as the table.
20. Never remove the work-piece or clear the table until the Drill Press comes to a complete stop.
21. Always wear a face shield and safety glasses while operating the Drill Press.
22. Never operate the Drill Press with missing, damaged, worn, loose or defective parts.
23. Never adjust, change speeds or perform maintenance on the Drill Press while it is operating.
24. Always clean the work surface and work area when finished operating the Drill Press.
25. Always disconnect the power when adjusting or performing maintenance on the Drill Press.
26. Always disconnect the power when finished using the Drill Press to prevent accidental operation.

SAVE THESE INSTRUCTIONS.

Refer to them often.

TABLE OF CONTENTS

Safety Instructions.... 2 , 3

Specifications 4

Contents of Package....5

Unpacking and Cleaning the Drill Press....5

Getting To Know Your Drill Press....6

Assembly 7

Head Assembly....8

Installing/Removing the Chuck and Arbor....9-10

Installing the Table....10

Adjustment and Operation....11

Head Adjustments ...... 11

Table Adjustments....12

Changing Spindle Speeds....12-13

Setting the Spindle Lock....13

Setting the Drill Depth....13

Maintenance....14

Wiring Diagram....14

Electrical Requirements....15

Troubleshooting 16

Parts Explosion 17

SPECIFICATIONS

Type ...... Floor Model 30-251

Swing 17"

Motor 1/3 HP, TEFC

Volts, Hertz 120 V, 60 Hz

Amps, Phase 5.5 A, 1 Ph

Motor Speed (No Load) 1,720 RPM

Speeds 5

Speed Range 620-3,100 RPM

Chuck Size 5/8"

Chuck Taper JT3

Drilling Capacity 5/8"

Spindle Travel 3-1/8"

Spindle Taper MT2

Head Rotates 360°

Head Tilts 45° Right, 90° Left

Quill Diameter 2-3/16"

Table Size 11-13/16" Round

Table Tilts (Degrees) 45°

Table Rotates (Degrees) 360°

Maximum Chuck to Table 28-3/8"

Maximum Chuck to Base 47-3/4"

Column Diameter 2-7/8"

Overall Height 64"

Base Size 18" x 10-5/8"

NOTE: The specifications, photographs, drawings and information in this manual represent the current model when the manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.

CONTENTS OF PACKAGE

Model #30-251 34" Floor Radial Drill Press is shipped complete in one box.

Unpacking and Clean-up

1. Carefully remove all contents from the shipping carton. With the help of another person, carefully lift the Drill Press head out of the box. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface for easy identification and assembly. If any parts are missing or broken, please call RIKON Customer Service (877-884-5167) as soon as possible for replacements. DO NOT turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to the machine.
2. Report any shipping damage to your local distributor. Take photographs for any possible insurance claims.
3. Clean all rust protected surfaces with ordinary house hold type grease or spot remover. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage painted surfaces.
4. Apply a coat of paste wax to the table and column to prevent rust. Wipe all parts thoroughly with a clean dry cloth.
5. Set packing material and shipping carton aside. Do not discard until the machine has been set up and is running properly.

TABLE OF LOOSE PARTS

Item Part Name Qty

A Drill Press Head 1

B Table Arm 1

C Table Support 1

D Table 1

E Column Assembly 1

Item Part Name Qty

F	Base	1
G	Hardware Bags	2
H	Chuck & Key	1
I	Owner's Manual	1

GETTING TO KNOW YOUR MACHINE

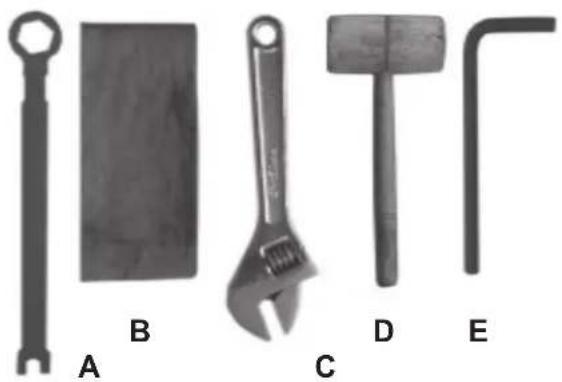

TOOLS REQUIRED FOR ASSEMBLY

Five different hand tools labeled A through E, including a wrench, flat panel, wrench, hammer, and L-shaped tool (no text or symbols on the tools themselves)

A. Table Bolt Hex Wrench (provided)
B. Household grease remover.
C. Adjustable wrench or open end wrench.
D. Rubber mallet or block of wood and hammer.
E. Allen wrenches (provided).

California Proposition 65 Warning

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.

For more information go to www.P65Warnings.ca.gov/wood.

INSTALLATION

MOVING & INSTALLING THE DRILL PRESS

When moving the assembled Drill Press, at least two people are needed. The machine is extremely heavy, and top heavy. Tilt the drill press backwards so that one person can hold the head section. Then the base can be lifted by the second person, and the machine moved to the desired new location.

DO NOT move or carry the Drill Press with the work table, chuck or operating handles, as this may damage the machine.

1. Position the machine on a solid, level foundation that is located in an area that has ample space in front and to both sides of the drill press for the moving of lumber and projects to be drilled.

2. Align the machine so that during use, any kickback will not face aisles, doorways, or other work areas that bystanders may be in. Do not locate or use the machine in damp or wet conditions.

3. If possible, secure the machine to the floor with lag screws or other fasteners (not supplied). This will ensure the stability of the machine and reduce any possible vibration during use. If this is not possible, the base can be bolted to a larger piece of plywood to help stabilize the machine. DO NOT use a mobile base with this machine.

4. For best power and safety, the Drill Press should be directly plugged into a dedicated grounded electrical outlet that is within the supplied cord length of the machine. The use of an extension cord is not recommended.

ASSEMBLY

THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

BASE AND COLUMN ASSEMBLY

1. Place the base (A-Fig. 1) on a level floor where the machine will be used.

2. Attach the column (B-Fig.1) to the base (A-Fig.1) using four M8x20 hex bolts. Tighten all four bolts.

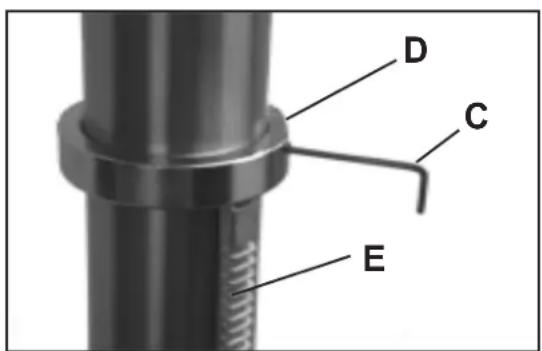

3. Using an Allen wrench (C-Fig. 2), make sure that the gear rack (E-Fig. 2) is secure in the column collar (D-Fig. 2).

Figure 1

Figure 2

ASSEMBLY

WARNING THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

HEAD ASSEMBLY

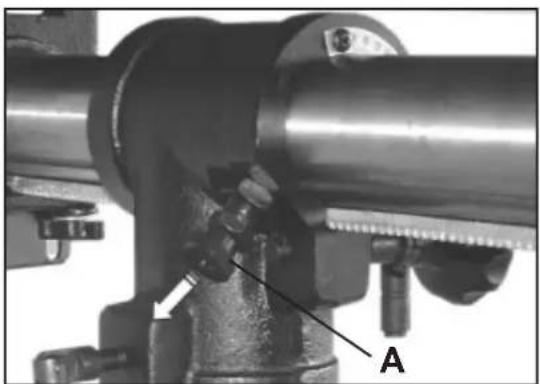

1. Place the locking shoe (part #15B) in the recessed pocket of the head. (Fig. 3)

⚠️ CAUTION Assistance is needed for this next step.

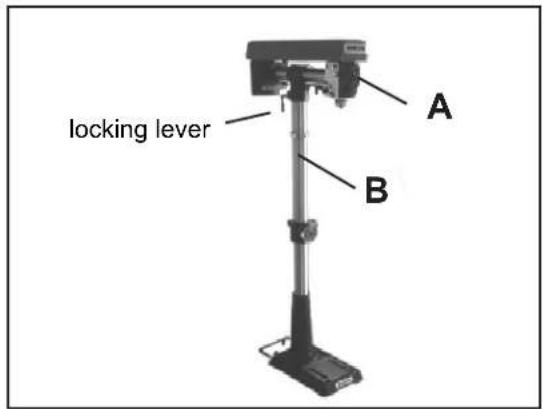

1. Place the drill press head (A-Fig. 4) onto the column (B-Fig. 4) as far as it will go.

2. Attach the 2 clamping levers (part #30B) on the drill press column guide (part #18B). (Fig. 5)

Figure 5

1. Align the drill press head (A-Fig. 6) with the base of the drill press.

2. Tighten the drill press head (A-Fig. 6) to the column (B-Fig. 8) by tightening the locking lever (part# 30B) on the left side of the guide column (part# 18B).

3. Attach the three feed handles (part# 35B) to the hub (part# 36B). Fig. 7

Figure 3

Figure 4

Figure 6

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Figure 7

ASSEMBLY

INSTALLING & REMOVING THE CHUCK AND ARBOR

IMPORTANT! It is important that the tapered hole in the chuck, tapered hole in the spindle and both tapered ends of the arbor are free of any grease, oil, lacquer or rust protection.

These tapered surfaces must be absolutely clean for a precision fitting of the parts, so slipping of the chuck during use does not occur unless there is extreme rotational pressure during use. This is a safety feature of this type of friction fit joint.

INSTALLING THE CHUCK AND ARBOR

1. Open the chuck jaws as wide as possible to prevent any damage. (Fig.8)
2. Insert the arbor (A-Fig.9) into the chuck (B-Fig.9) as shown.
3. Carefully insert the chuck and arbor assembly into the spindle, making sure to align the flat part of the arbor with the spindle. (Fig. 10)
4. Using a rubber mallet, or hammer with a block of wood protecting the chuck, tap the chuck with its arbor into the drill press spindle. This will securely seat the chuck in place for drilling. (Fig. 11)
5. Close the chuck jaws with the chuck key provided.

CAUTION NEVER HIT THE CHUCK WITH A METAL HAMMER. This could damage the chuck assembly, arbor or drill press spindle.

Figure 8

Mechanical component with labeled parts A and B, showing a shaft and threaded shaft assembly (no text beyond labels)

Figure 9

Mechanical component with a cylindrical shaft and threaded base, showing a small hole and an arrow indicating direction (no text or symbols present)

Figure 10

Close-up of a mechanical drill bit pressing into a cylindrical component (no visible text or symbols)

Figure 11

ASSEMBLY

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ASSEMBLY IS COMPLETE.

REMOVING THE CHUCK

1. Open the chuck jaws as wide as possible to prevent damage.

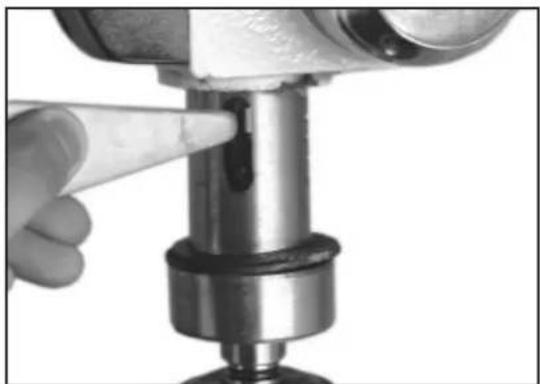

2. Lower the spindle until the slot in the spindle is exposed. (Fig.12)
3. Position the table approximately 1/2" below the extended chuck.
4. Turn the chuck until a through hole is exposed in the spindle.
5. Insert the Drift-Key into the slot (Fig.13)
6. Gently tap the drift-key with a mallet to release the chuck. NOTE: Be prepared to catch the chuck as it is released to prevent any damage to it or the arbor.

INSTALLING THE TABLE

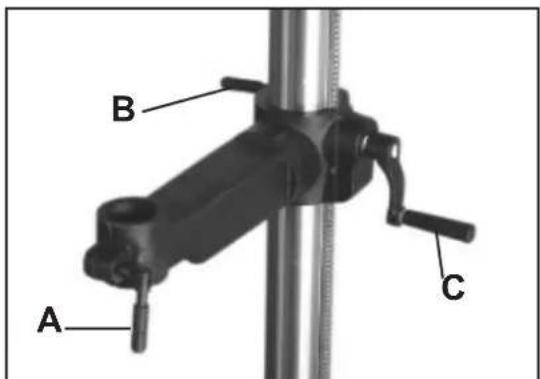

1. Install the arm onto the table support with hex bolt (A-Fig.14) and make sure the scale is on zero position (B-Fig.14). If necessary, adjust the hex socket screw (C-Fig.14) to level the table 90 degree to the spindle.

Figure 14

1. Insert the table post (A-Fig.15) into the table support bracket (B-Fig.15) as shown.
2. Tighten the locking lever (A-Fig.16) onto the table support bracket (B-Fig.16) and install the table raising/lowering handle (C-Fig.16).

Figure 12

Close-up of a hand using a tool to press or install a mechanical component (no visible text or symbols)

Figure 13

Mechanical assembly diagram showing two labeled parts A and B, with a hand adjusting a cylindrical component (no text or symbols beyond labels)

Figure 15

Figure 16

ADJUSTMENTS

HEAD ADJUSTMENTS

Tilting the Drill Press Head 45° Clockwise and 90° Counterclockwise

1. Loosen the lock handle (A-Fig.17) on the right side of the drill press head.
2. Pull the guide pin out on the left side of the drill press head (A-Fig.18) and rotate 90°. The head may be tilted to the desired angle.
3. Tighten the lock handle.
4. To return to the original position, loosen the lock handle.
5. Move the head back to a vertical position.
6. Pull the guide pin out and rotate until it seats in the guide pin slot.
7. Tighten the lock handle.

Adjusting the Drill Press Head Forward and Backwards

1. Loosen the lock handle on the right side of the head.
2. Turn the handle (A-Fig. 19, 20) to the desired position.
3. Tighten the lock handle.

Figure 19

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

Mechanical assembly diagram showing a shaft and mounting bracket with labeled component A (no text or symbols beyond label)

Figure 17

Close-up of a mechanical assembly with labeled component A (no readable text or symbols)

Figure 18

Mechanical assembly diagram showing a lever mechanism with labeled component A (no text or symbols beyond label)

Figure 20

ADJUSTMENTS

TABLE ADJUSTMENTS

Raising and Lowering the Table

1. Loosen the column lock (A-Fig.21) on the table support bracket (B-Fig.21).
2. Turn the crank to raise or lower the table to the desired height. NOTE: Always raise the table to your final height so that the gears mesh together best to prevent slippage.
3. Tighten the column lock (A-Fig.21).

The table can rotate 360^ by loosening the table lock handle and turning to the desired position. (Fig. 22)

TILTING THE TABLE

1. Loosen the nut below the table. (Fig. 23)
2. Tilt table to your desired angle.
3. A Tilt scale and pointer are provided on the bracket to indicate the table angle.
4. Tighten the nut to secure the table in place.

Disconnect machine from the power source.

1. Turn off and disconnect the power to the Drill Press.
2. Open the top belt cover.
3. Release the tension on the belt by loosening the belt tension lock (A-Fig.24) and pull forward on the motor (B-Fig. 24).
4. Choose the desired speed by referring to the speed selection chart in Figure 25, page 13.

Close-up of a black mechanical lever joint with labeled points A and B (no text or symbols beyond labels)

Figure 21

Mechanical assembly diagram showing four circular components mounted on a stand with a central shaft (no text or symbols visible)

Figure 22

Close-up of a metallic vertical pole with intersecting metal blades and a central knob (no text or symbols visible)

Figure 23

Figure 24

ADJUSTMENTS

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

CHANGING SPINDLE SPEEDS CONTINUED

1. Place the belt on the pulleys in relation to the speed chosen on the speed selection chart starting with the motor pulley first. (Fig.25)
2. Push back on the motor until there is approximately 1/2" deflection in the belt. (Fig.26)
3. Tighten the belt tension lock handle.
4. Close the belt guard.
5. Reconnect the Drill Press to the power.

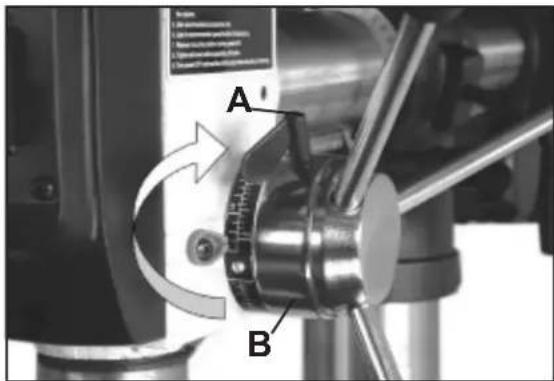

1. Loosen the depth stop collar lock (A-Fig.27) as shown.
2. Lower the spindle to the desired depth. (Fig.28)
3. Turn the depth stop collar clockwise until the collar stops (B-Fig.27).
4. Tighten the depth stop collar lock.

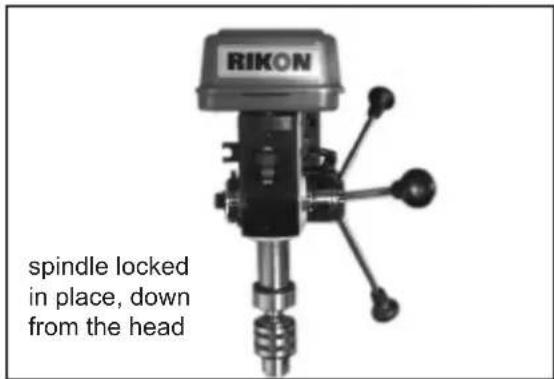

NOTE: Figure 28 shows the spindle in the locked position, extended down from the head.

SETTING THE DRILL DEPTH

1. With the spindle in the up position, loosen the depth stop collar lock (A-Fig.27) as shown.
2. Turn the depth stop collar clockwise until the pointer reads the desired drill depth on the scale (B-Fig.27).
3. Tighten the depth stop collar lock.

Figure 25

Mechanical assembly diagram showing a cylindrical component with a shaft and housing, no visible text or symbols

Figure 26

Figure 27

Figure 28

MAINTENANCE

WARNING: Turn the power switch "OFF" and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance.

1. Before each use:

2. Check the power cord, plug and drive belts for any wear or damage, and replace if necessary.

3. Check for any loose screws, hardware or parts.

4. Check the area to make sure it is clear of any misplaced tools, lumber, cleaning supplies, etc. that could hamper the safe operation of the machine.

5. To avoid a build-up of wood dust, regularly clean all parts of the machine using a soft cloth, brush or compressed air. A general cleaning should be done after every use to avoid future problems and ensure the machine is in ready condition for its next use.

WARNING: If blowing sawdust, wear proper eye protection to prevent debris from blowing into eyes.

1. Keep the machined surfaces of the drill press table and base free of resin and rust. Clean them regularly with a non-flammable solvent, then coat with a light film of dry lubricant spray or wax.

2. Clean the columns on a regular basis to prevent the build-up of dust, drilling residue and rust. Treat the posts with a dry lubricant spray or a light coating of wax. Do not use ordinary oil which will collect dust and hamper the movement of parts along the column.

3. Lubricate the table bracket, locking lever bolts, worm gear in the table elevation mechanism and rack bar to keep them operating smoothly.

4. Periodically, lower the quill assembly and apply a light coating of machine oil to the quill and spindle surfaces. Raise and lower the quill a few times to distribute the oil on all of the internal surfaces.
5. Apply #2 tube grease to the worm gears in the table elevation mechanism and rack to keep them operating smoothly.
6. The ball bearings in the spindle and pulley assemblies are lifetime lubricated, sealed, and do not need any further care.
7. Keep the drive belt and pulley surfaces free of oil and grease. Periodically, check the drive belt for wear and replace if necessary.
8. Keep the ventilation slots of the motor clean to prevent it from overheating.

Replacement parts can be ordered through your local RIKON Tool Distributor, or directly from RIKON.

Visit www.rikontools.com for contact information.

WIRING DIAGRAM

WARNING: This machine must be grounded. To avoid electrocution or fire, any repairs to electrical system should be done only by a qualified electrician, using genuine replacement parts.

ELECTRICAL SAFETY

ELECTRICAL SAFETY

WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and requires a grounding plug (not included). The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY ANY PLUG. If it will not fit the electrical receptacle, have the proper electrical receptacle installed by a qualified electrician.

IMPROPER ELECTRICAL CONNECTION of the equipment grounding conductor can result in risk of electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. DO NOT connect the equipment grounding conductor to a live terminal if repair or replacement of the electric cord or plug is necessary.

CHECK with a qualified electrician or service personnel if you do not completely understand the grounding instructions, or if you are not sure the tool is properly grounded when installing or replacing a plug.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS THE PROPER TYPE OF A 3-PRONG GROUNDING PLUG THAT MATCHES THE MACHINE'S 3-PRONG PLUG AND ALSO THE 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG. *

REPLACE A DAMAGED OR WORN CORD IMMEDIATELY.

This tool is intended for use on a circuit that has an electrical receptacle as shown in FIGURE A. It shows a 3-wire electrical plug and electrical receptacle that has a grounding conductor. If a properly grounded electrical receptacle is not available, an adapter as shown in FIGURE B can be used to temporarily connect this plug to a 2-contact ungrounded receptacle. The adapter has a rigid lug extending from it that MUST be connected to a permanent earth ground, such as a properly grounded receptacle box. THIS ADAPTER IS PROHIBITED IN CANADA.

EXTENSION CORDS

WARNING: THE USE OF AN EXTENSION CORD WITH THIS MACHINE IS NOT RECOMMENDED. For best power and safety, plug the machine directly into a dedicated, grounded electrical outlet that is within the supplied cord length of the machine.

If an extension cord needs to be used, it should only be for a limited operation of the machine. The extension cord should be as short as possible in length, and have a minimum gauge size of 14AWG.

WARNING: Check extension cords before each use. If damaged replace immediately. Never use a tool with a damaged cord, since touching the damaged area could cause electrical shock, resulting in serious injury.

Use a proper extension cord. Only use cords listed by Underwriters Laboratories (UL). Other extension cords can cause a drop in line voltage, resulting in a loss of power and overheating of tool. When operating a power tool outdoors, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)

120 VOLT OPERATION ONLY
	25' LONG	50' LONG	100' LONG	150' LONG
0 to 6 Amps	18 AWG	16 AWG	16 AWG	14 AWG
6 to 10 Amps	18 AWG	16 AWG	14 AWG	12 AWG
10 to 12 Amps	16 AWG	16 AWG	14 AWG	12 AWG

A WARNING A keep the division cord clear of the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with your power tool.

* Canadian electrical codes require extension cords to be certified SJT type or better.
** The use of an adapter in Canada is not acceptable.

TROUBLESHOOTING

TROUBLE PROBABLE CAUSE REMEDY
Noisy operation 1. Incorrect belt tension. 1. Adjust tension.2. Dry spindle. 2. Lubricate spindle.3. Loose spindle pulley. 3. Checking tightness of retaining nuton pulley and tighten if necessary.4. Loose motor pulley. 4. Tighten setscrews in pulleys.
Drill bit burns 1. Incorrect speed. 1. Adjust speed. material 2. Chips not coming out of hole. 2. Retract drill bit frequently to clear chips.3. Dull drill bit.4. Feeding too slow.5. Not Lubricated
Drill bit leads off, hole not round	1. Hard grain in wood or lengths of cutting lips and/ or angles not equal.2. Bent drill bit.	1. Resharpen drill bit correctly.2. Replace drill bit.
Wood splinters on underside of workpiece	1. No "back up material" under workpiece.	1. Use "back-up material"
Wood piece pulled loose from hands	1. Not supported or clamped properly.	1. Support workpiece or clamp it.
Drill bit binds in workpiece	1. Workpiece pinching drill bit or excessive feed pressure.2. Improper belt tension, belt slips.	1. Support workpiece or clamp it.2. Adjust belt tension.
Excessive drill bit runout or wobble	1. Bent drill bit.2. Worn spindle bearings.3. Drill but not properly installed in chuck.4. Chuck not properly installed.	1. Use a straight drill bit.2. Replace bearings.3. Install drill bit properly.4. Install chuck properly.
Quill Returns too slow or too fast	1. Spring has improper tension.	1. Adjust spring tension.
Chuck will not stay attached to spindle, it falls off when trying to install it	1. Dirty, grease, or oil on the tapered inside surface of chuck or on the spindles tapered surface.	1. Using a household detergent clean the tapered surface of the chuck and spindle to remove all dirt, grease and oil.

NOTES

Use this section to record maintenance, service and any calls to Technical Support:

WARRANTY

RIKON

POWER TOOLS®

RIKON Power Tools Inc. ("Seller") warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, belts, guide bearings and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, proof of purchase documentation must be provided which has the date of purchase and an explanation of the complaint.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To register your machine online, visit RIKON at www.rikontools.com/warranty

To take advantage of this warranty, or if you have any questions, please contact us at 877-884-6167 or email [e-mail]

PARTS DIAGRAM

30-251

34" Floor

Radial Drill

Press

PARTS LIST

KEYNO.	DESCRIPTION	PART NO.
1A	V-Belt	P30-251-1A
2A	Pulley nut	P30-251-2A
3A	Spindle pulley	P30-251-3A
4A	Insert pulley	P30-251-4A
5A	Retaining ring	P30-251-5A
6A	Ball Bearing	P30-251-6A
7A	Spacer 1302023	P30-251-7A
8A	Ball bearing	P30-251-8A
9A	Washer rubber	P30-251-9A
10A	Tube quill	P30-251-10A
11A	Retaining ring	P30-251-11A
12A	Chuck	P30-251-12A
13A	Arbor	P30-251-13A
14A	Drift key	P30-251-14A
15A	Spindle	P30-251-15A
16A	Ball bearing	P30-251-16A
17A	Knob	P30-251-17A
18A	Pan head screw M5X6	P30-251-18A
19A	Pan head screw M5X12	P30-251-19A
20A	Clamp cord	P30-251-20A
21A	Screw	P30-251-21A
23A	Motor pulley	P30-251-23A
24A	Socket head screw M6X10	P30-251-24A
25A	Belt guard	P30-251-25A
26A	Form washer	P30-251-26A
27A	Rubber bushing	P30-251-27A
1B	Tapping screw	P30-251-1B
2B	NO-VOLT Switch	P30-251-2B
3B	Nut	P30-251-3B
4B	Box switch	P30-251-4B
5B	Screw 1302021	P30-251-5B
6B	Nut M8	P30-251-6B
7B	Hex nut	P30-251-7B
8B	Cap-Spring	P30-251-8B
9B	Spring-Torsion	P30-251-9B
13B	Socket head screw M8X8	P30-251-13B
14B	Head	P30-251-14B
15B	Locking shoe	P30-251-15B
16B	Hex screw	P30-251-16B
17B	Retaining ring	P30-251-17B
18B	Guide-column	P30-251-18B
19B	Horizontal-tube	P30-251-19B
20B	Mount-cover	P30-251-20B
21B	Mount-motor	P30-251-21B
22B	Motor	P30-251-22B

KEYNO.	DESCRIPTION	PART NO.
23B	Nut M8	P30-251-23B
24B	Flat washer	P30-251-24B
26B	Hex bolt M8X16	P30-251-26B
27B	Hex bolt M8X20	P30-251-27B
28B	Thumb nut	P30-251-28B
30B	Clamping - lever	P30-251-30B
31B	Horizontal-rack	P30-251-31B
32B	Tension knob - seat & Tension knob - cover	P30-251-32B
34B	Feed-knob	P30-251-34B
35B	Feed-rod	P30-251-35B
36B	Hub	P30-251-36B
37B	Ring-depth stop	P30-251-37B
38B	Lock-depth screw	P30-251-38B
39B	Pin-stop	P30-251-39B
40B	Handle seat	P30-251-40B
41B	Roller pin	P30-251-41B
42B	Adjustable handle	P30-251-42B
43B	Helical gear	P30-251-43B
44B	Key holder	P30-251-44B
45B	Flat washer	P30-251-45B
1C	Column	P30-251-1C
2C	Rack	P30-251-2C
3C	Column support	P30-251-3C
4C	Hex bolt M10X40	P30-251-4C
6C	Base	P30-251-6C
7C	Table support	P30-251-7C
8C	Crank	P30-251-8C
9C	Socket head screw M10X12	P30-251-9C
10C	Pin gear	P30-251-10C
11C	Socket head screw M6X10	P30-251-11C
12C	Bolt M16X35	P30-251-12C
13C	Support clamp	P30-251-13C
14C	Arm support	P30-251-14C
15C	Handle assembly	P30-251-15C
16C	Support clamp	P30-251-16C
17C	Gear - helical	P30-251-17C
18C	Worm-elevation	P30-251-18C
19C	Column collar	P30-251-19C
20C	Table	P30-251-20C
21C	Support frame	P30-251-21C
22C	Locking knob	P30-251-22C
23C	Nut M8	P30-251-23C
24C	Hex bolt M8X40	P30-251-24C

NOTE: Please reference the Manufacturer's Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required.

For more information:

16 Progress Road

Billerica, MA 01821

877-884-5167 / 978-528-5380

[e-mail]

LINK TO RIKON WEBSITE
