USER MANUAL MHWS18 Cambro

This owner's manual applies to the following Mobile Handwash Station models:

MHWS18

Interior view of a gray public厕 toilet with open lid and water level (no text or symbols visible)

Exterior view of a gray plastic enclosure with mounting holes and a label reading 'CAUTION' (no other text or symbols visible)

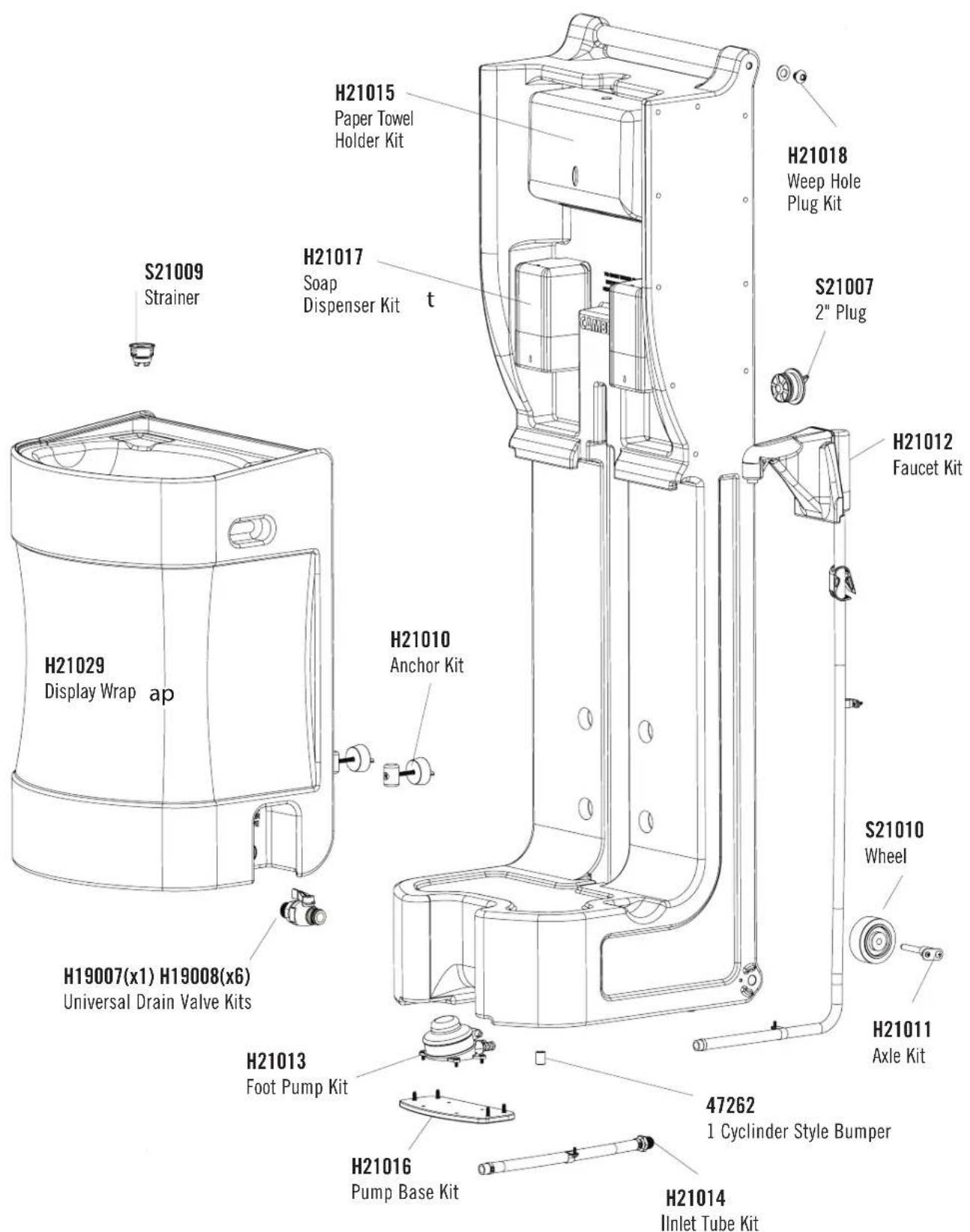

H21015 Paper Towel Holder Kit H21018 Weep Hole Plug Kit S21009 Strainer H21017 Soap Dispenser Kit t S21007 2" Plug H21012 Faucet Kit H21010 Anchor Kit S21010 Wheel H21013 Foot Pump Kit H21016 Pump Base Kit 47262 1 Cyclinder Style Bumper H21014 Inlet Tube Kit H21029 Display Wrap ap H19007(x1) H19008(x6) Universal Drain Valve Kits

II. Usage Guidelines

Filling the Freshwater Tank

Fill the freshwater tank with a standard hose until water begins to overflow and/or use a finger to feel if the water has reached the max fill line. The fill time from empty to full will take 2-3 minutes on average.

GREEN FRESH WATER PORT MAX FILL

Operating the Unit:

Repeatedly depress foot pump to start and continue the flow of fresh water from the faucet. When finished, simply discontinue depressing foot pump.

Technical line drawing of a mechanical device with internal components and an inset close-up view (no text or symbols)

Scan to watch videos for filling and draining this unit.

Draining the Freshwater Tank:

To drain the freshwater tank, release the drain port on the side of the unit opposite the wastewater drain valve.

CAULI PORT CAULI PORT

Draining the Wastewater Tank:

To drain wastewater, a standard garden hose can be attached (optional) to the threaded end of the wastewater valve on the side of the unit. By turning the valve left a quarter turn, the wastewater tank will begin draining. (Check local ordinance for wastewater disposal.)

WASTE WATER VALVE WASTE WATER VALVE

II. Usage Guidelines (continued)

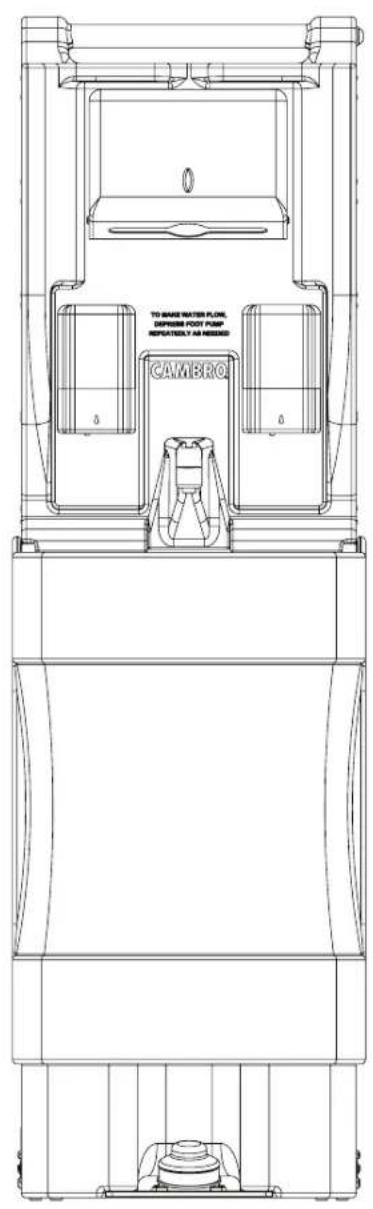

Soap Dispensers

• Use access key to unlock and remove lid. If access key is lost, use a flathead screwdriver to unlock soap dispenser lid.
• Press the clip to remove the dispenser from the mounting plate.
• Four AA batteries (not included) are installed on the underside of the dispenser.

TO SHAPE WATER FLOW, DESPRING FOOT PUMP REPIATED AS NECESSO CAMBRO

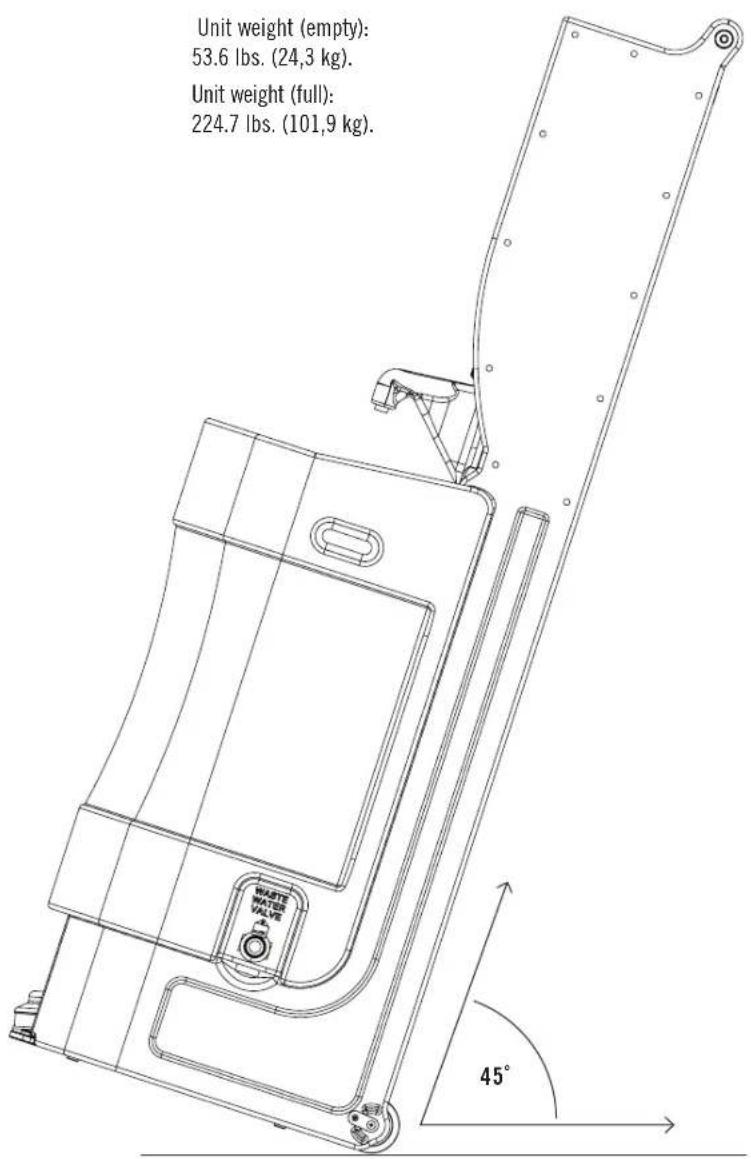

Unit weight (empty): 53.6 lbs. (24,3 kg). Unit weight (full): 224.7 lbs. (101,9 kg). WASTE WATER VALVE 45°

Note

Soap dispenser can leak from the top during transport. Recommend to transport with soap dispenser empty and/or do not tilt unit back more than 45 degrees to prevent soap spillage.

III. Care and Maintenance

Cleaning and Water Maintenance:

- Use a mild soap to clean all surfaces and component parts.

Cleaning for Storage:

• Drain all water from the tanks.
• Flush tank with a solution of chlorine and water.
• Depress the foot pump to run the chlorine solution through the lines.
• Drain all water from the tanks and while the drains are open, continue to depress the foot pump to clear all of the liquids from the lines.

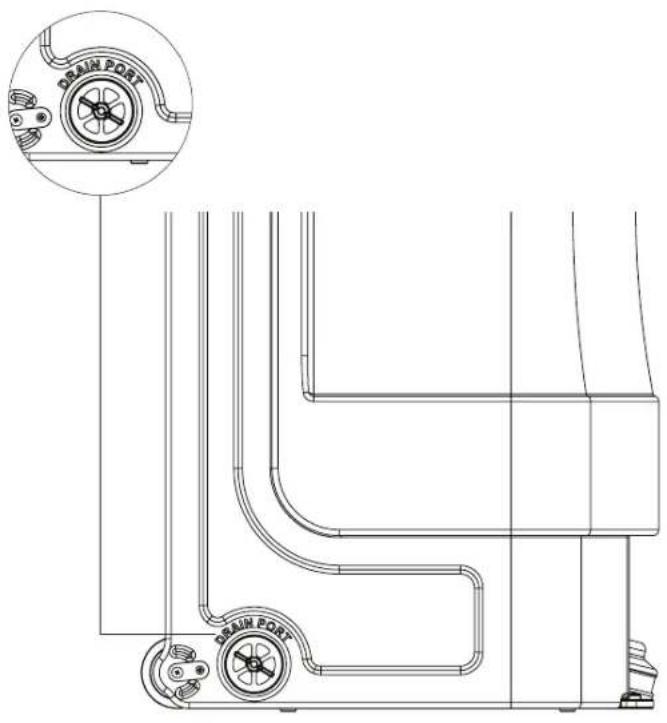

DRAIN PORT DRAIN PORT

Short Term Storage:

- Keep the yellow plugs in. Plugs out will invite contamination.

Long Term Storage:

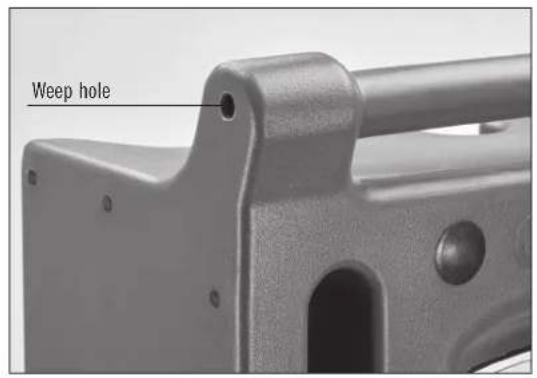

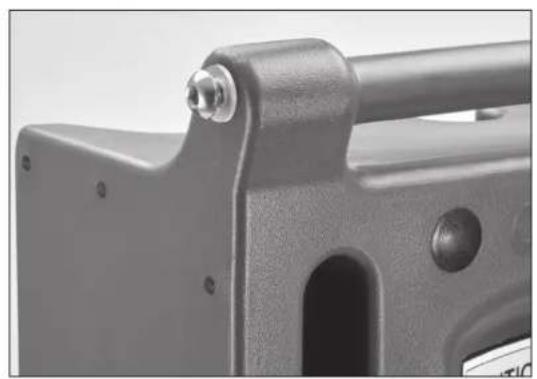

- Leave yellow plugs out to promote air circulation and complete drying of the tanks. Remove plug at the weep hole near top handle and tilt unit flat or even upside down to remove all excess water left in freshwater tank.

Weep hole

Close-up of a metallic mechanical bracket with bolted joints and a handle (no visible text or symbols)

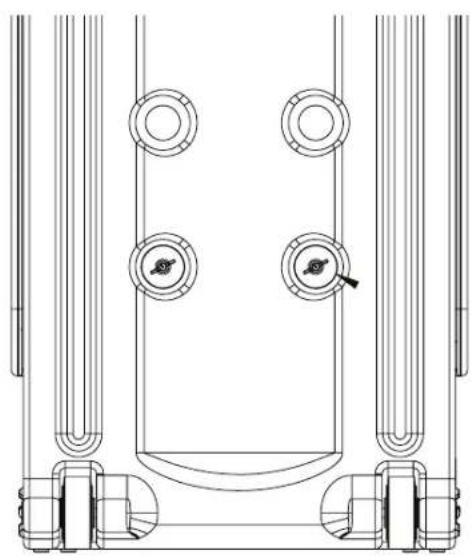

Removing the Wastewater Tank:

- Anchors on rear of unit must be unscrewed to remove the wastewater tank (if needed). Do not over tighten the anchors when reinstalling the wastewater tank.

Technical line drawing of a mechanical or architectural component with four circular features and a central curved base (no text or symbols)

IV. Replacement Parts

Please visit www.cambro.com/parts for a complete list of replacement parts for the MHWS18.

TO ORDER REPLACEMENT PARTS:

• Call Cambro Customer Service at 800 833 3003
• From International markets, call 714 848 1555
- Email [e-mail]
- Call your local Cambro Representative or Distributor

V. Cambro Warranty and Product Liability

Cambro warrants to the original buyer that if a product proves defective:

1. Within 1 year from the date of manufacture, Cambro will replace the product free of charge; or,.
2. After 1 year and up to 2 years from the date of manufacture, Cambro will grant a credit of 2/3 off replacement product; or.,
3. After 2 years and up to 3 years from the date of manufacture, Cambro will grant a credit of 1/3".

RETURN POLICY: Cambro Manufacturing products cannot be returned without prior written factory authorization (RMA). The restocking charge is 15% plus any costs required to recondition the equipment. No returns accepted after 90 days from date of invoice. Electrical components returned are subject to inspection prior to credit being issued. Electrical components which have been installed by an operator or non-approved service agent are not returnable for credit.
