Product Type	Griddle (Plancha)
Brand	Kicker
Model	KMTES8
Dimensions (L x W x H)	55 x 30 x 8 cm
Weight	4.5 kg
Power Supply	220-240V, 50/60Hz, 1500W
Cooking Surface Material	Stainless Steel with Non-Stick Coating
Temperature Control	Adjustable Thermostat (80°C - 230°C)
Heating Indicator	Power and Ready Light
Drip Tray	Removable and Dishwasher Safe
Cleaning	Wipe with damp cloth; non-abrasive cleaner
Safety Features	Auto Shut-Off, Cool-Touch Handles, Overheat Protection
Accessories Included	Spatula, Cleaning Scraper
Spare Parts Available	Replacement Cooking Plate, Drip Tray
Warranty	2 Years
Certifications	CE, RoHS

Frequently Asked Questions - KMTES8 KICKER

How do I clean the griddle?

Allow the griddle to cool completely. Remove the drip tray and wash it with warm soapy water. Wipe the cooking surface with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads to protect the non-stick coating.

What are the temperature settings for different foods?

The adjustable thermostat ranges from 80°C to 230°C. For pancakes or eggs, use low to medium (80-150°C). For meat or fish, use medium to high (180-230°C). The indicator light shows when the set temperature is reached.

Can I use metal utensils on the griddle?

No, metal utensils can scratch the non-stick surface. Use wooden, silicone, or plastic utensils to prolong the life of the coating.

Is the griddle dishwasher safe?

The drip tray is dishwasher safe, but the main griddle body and cooking surface should be hand washed to prevent damage to electrical components and the non-stick layer.

How do I store the griddle?

Ensure the griddle is clean and completely dry. Store in a dry place. You can wrap the cooking surface with a soft cloth to avoid scratches. Keep the power cord loosely coiled.

What does the auto shut-off feature do?

The auto shut-off automatically turns off the griddle after 30 minutes of inactivity or if the temperature exceeds safe limits, providing peace of mind and preventing accidents.

Can I use the griddle outdoors?

The KMTES8 is designed for indoor use only. Using it outdoors may expose it to moisture and debris, increasing the risk of electrical shock or damage.

What is the maximum load capacity of the cooking surface?

The griddle can safely hold up to 5 kg of food evenly distributed. Overloading may affect cooking performance and stability.

How long does it take to preheat?

Preheating typically takes 5-8 minutes depending on the desired temperature. The indicator light turns off when the set temperature is achieved.

Where can I purchase replacement parts?

Replacement parts such as the cooking plate and drip tray are available through the Kicker website or authorized retailers. Contact customer support for specific ordering information.

USER MANUAL KMTES8 KICKER

Owner's Manual | English

The KICKER KM Tower Enclosures are the perfect way to bring your music out into the marine or power sports environment. The KMTES8 is compatible with the KICKER KM8 speaker. The injection-molded ABS enclosures are UV treated, splash resistant, and weather resilient. Mount the KM Tower Enclosures in your boat or get creative with a pair of them in the garage, on your 4x4 or Side-by-Side's roll bars, or in any other bar-mounted application.

INSTALLATION

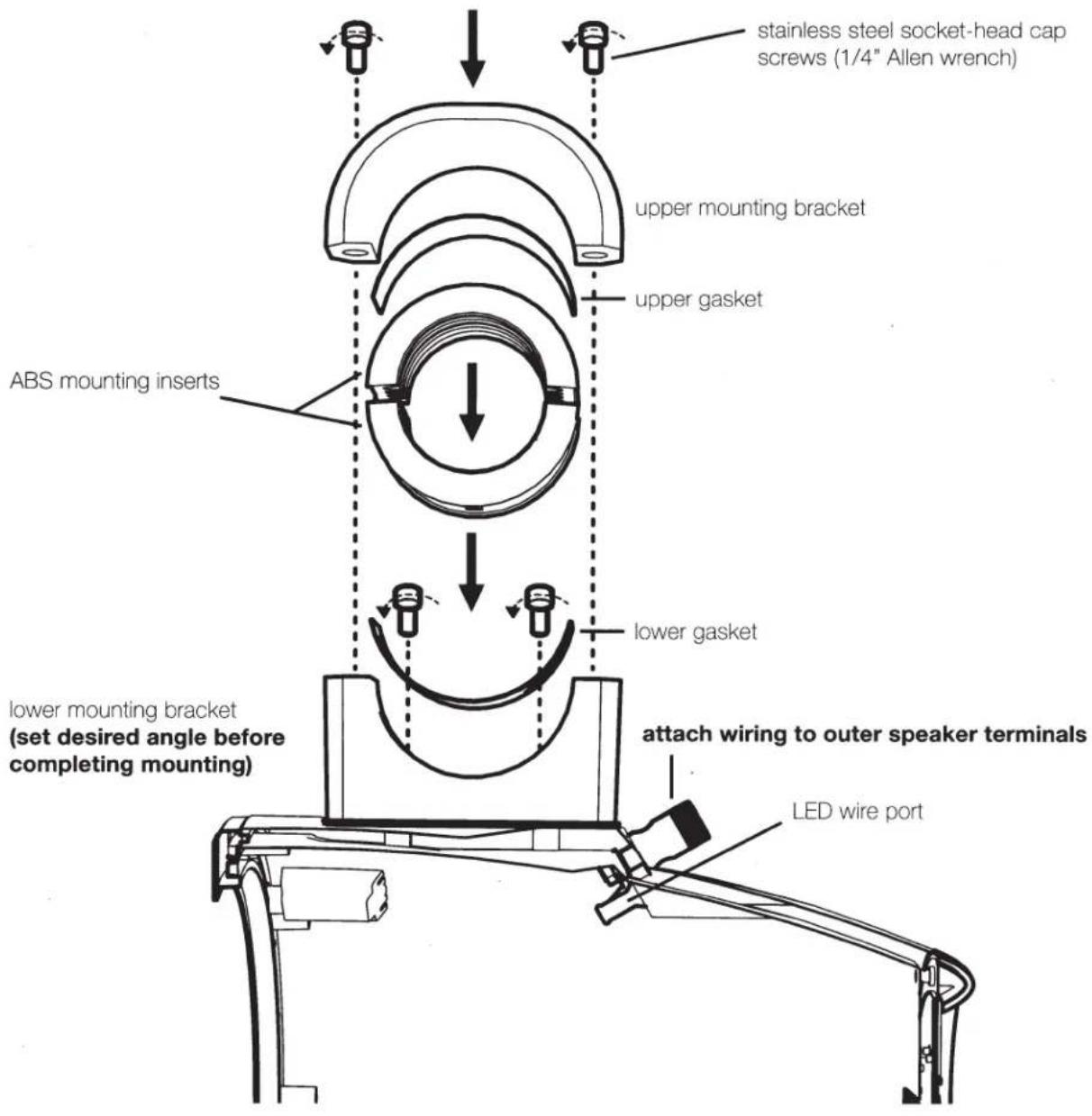

Mounting: Your KM Tower enclosures include plastic adaptor inserts for use with the four most popular tower tubing diameters: 2-1/4", 2-3/8", 2-1/2" and 2-5/8" (without inserts). If your tubing diameter is different, you may need to use the KMTAP Accessory pack, which includes adaptors for 1-5/8", 1-3/4", 1-7/8" and 2". For other tubing diameters, additional shims may be needed. Place the included upper and lower gaskets between the mounting inserts and mounting brackets.

Study your mounting bar for the best possible mounting locations. Spreading the KM Tower Enclosures apart will provide better stereo performance, and is usually preferable. When determining the best locations for mounting, be careful to look for obstacles or obstructions that could complicate mounting the KM Tower Enclosures. Please keep in mind the routing of your speaker wires as this can affect where you finally mount your KM Tower Enclosures.

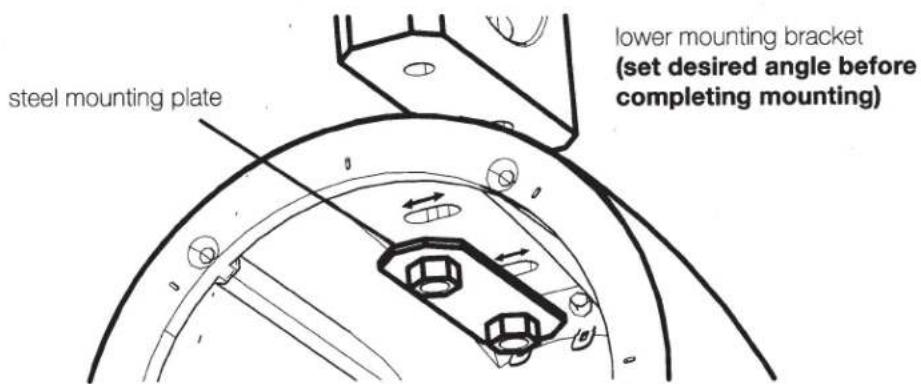

Aiming: The mounting hardware design provides flexibility in angular mounting of your KM Tower-Enclosures. This is accomplished by using the included female-threaded internal mounting plates. It is recommended that you loosely assemble your KM Tower Enclosures and attach them to your mounting bar/tower to determine proper angular alignment.

Start by inserting two stainless socket-head cap screws through the lower mounting bracket, through the enclosure mounting holes, and into the threaded mounting plate. Leave these screws loose for the moment. Attach the enclosure to your mounting bar using the upper mounting bracket and two more stainless socket-head cap screws. While still loosely assembled, visually align your KM Tower Enclosures to the desired angle. Using tape, a pencil, or some other means, mark the mounting angle of the mounting bracket bottom in relation to the KM Tower Enclosure(s). Remove the enclosures and then do final tightening of the lower mounting bracket to the enclosure, aligning it with the marks you made. Once your final adjustments are made do not use excessive force to further aim the enclosures. If your aim is off, remove the KM Tower Enclosures and loosen the screws between the enclosure and the lower mounting bracket, then reset the angle.

loosely fill the enclosure with poly-fil, the white protective layer in the packaging. The KMTES will use one sheet for a woofer and one-half sheet for a horn.
attach soldered wiring from inner terminals to speaker terminals, keeping in mind the polarity of each.

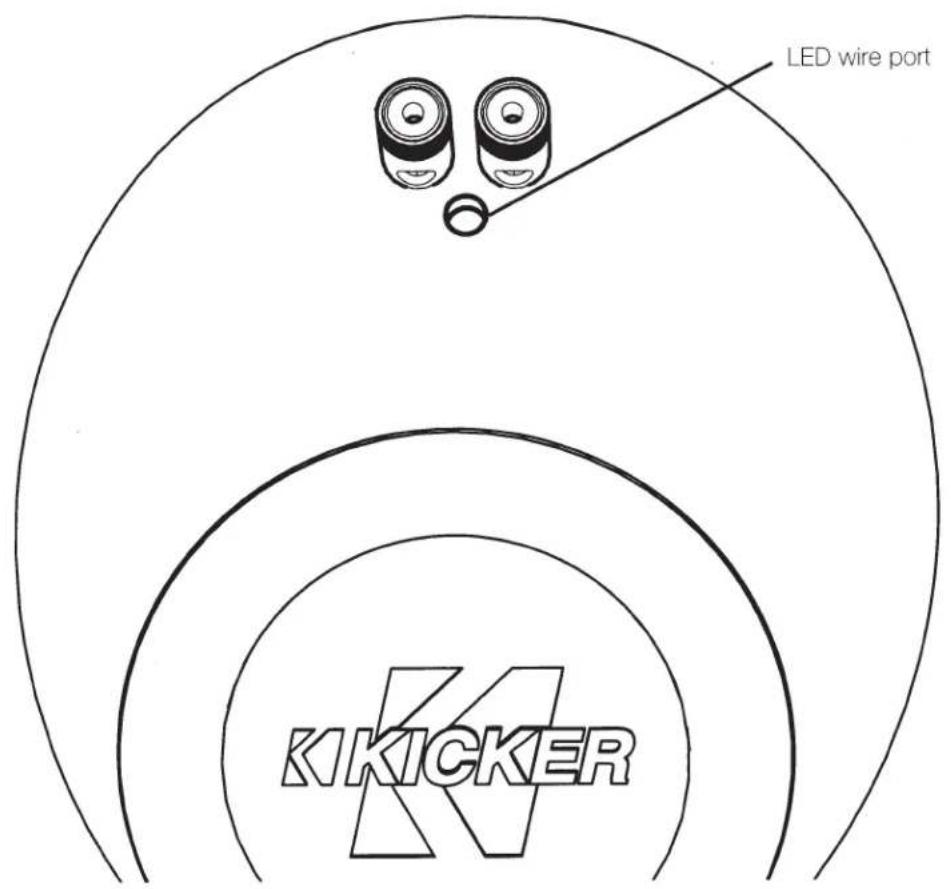

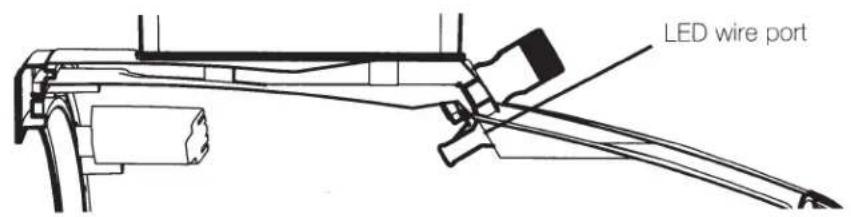

Wiring: Attach the wiring from your amplifier to the outer speaker terminals. Attach the included internal wiring from the KMTES to your speaker, and then mount the speaker to the enclosure. If you are using a speaker or grille equipped with LED wiring, run this wire through the LED wire port located underneath the outer speaker terminals and then through the LED wire grommet.

LED wire grommet - Use to form a seal around the LED wiring and hole, preventing moisture from entering the enclosure.

Two identical light bulb components with leads, no text or symbols present

LED wire plug - Use to seal the LED wire hole located below the speaker terminals when LED-equipped speakers are not in use.

ACOUSTICS LIMITED WARRANTY

When purchased from an Authorized KICKER Dealer, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase. If this product is identified as "Refurbished" or "B Goods", the warranty is limited to a period of THREE (3) MONTHS from date of original purchase. In all cases you must have the original receipt. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or replace (at its discretion) the defective merchandise with equivalent merchandise. Warranty replacements may have cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products. This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties; therefore, these exclusions may not apply to you. This warranty gives you specific legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE:

Defective merchandise should be returned to your local Authorized Stillwater Designs (KICKER) Dealer for warranty service. Assistance in locating an Authorized Dealer can be found at www.kicker.com or by contacting Stillwater Designs directly. You can confirm that a dealer is authorized by asking to see a current authorized dealer window decal.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package only the defective items in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband St, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Please return only defective component systems. The return of functioning items increases your return freight charges. Non-defective items will be returned freightcollect to you. For example, if a subwoofer is defective, only return the defective subwoofer, not the entire enclosure. Include a copy of the original receipt with the purchase date clearly visible, and a "proof-of-purchase" statement listing the Customer's name, Dealer's name and invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover:

o Damage due to improper installation
o Subsequent damage to other components
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation
o Damage through negligence, misuse, accident or abuse. Repeated returns for the same damage may be considered abuse

o Any cost or expense related to the removal or reinstallation of product

o Speakers damaged due to amplifier clipping or distortion

o Items previously repaired or modified by any unauthorized repair facility

o Return shipping on non-defective items

o Products with tampered or missing barcode labels

o Products with tampered or missing serial numbers

o Products returned without a Return Merchandise Authorization (RMA) number

o Products purchased from an UNAUTHORIZED dealer

o Freight Damage

o The cost of shipping product to KICKER

o Service performed by anyone other than KICKER

stillwaterdesigns

HOW LONG WILL IT TAKE?

KICKER strives to maintain a goal of one-week service for all acoustics (subwoofers, midrange drivers, tweeters, crossovers, etc) returns. Delays may be incurred if lack of replacement inventory or parts is encountered. Failure to follow these steps may void your warranty. Any questions can be directed to the KICKER Customer Service Department at [phone]. Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

Note: All specifications and performance figures are subject to change. Please visit www.kicker.com for the most current information.

P.O. Box 459 • Stillwater, Oklahoma 74076 • USA • [phone]

16KMTES8-C-20151023

INTERNATIONAL WARRANTY

Contact your International KICKER dealer or distributor concerning specific procedures for your country's warranty policies.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

WARNING: KICKER products are capable of producing sound levels that can permanently damage your hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than listening to an undistorted system at the same volume level. The threshold of pain is always an indicator that the sound level is too loud and may permanently damage your hearing. Please use common sense when controlling volume.
