Product Type	Center Channel Speaker
Brand	Infinity
Model	Alpha 37C
Color	Black
Dimensions (W x H x D)	21.25 x 6.5 x 9.75 inches (540 x 165 x 248 mm)
Weight	15 lbs (6.8 kg)
Power Handling (RMS)	100 Watts
Impedance	8 Ohms
Sensitivity	89 dB (2.83V @ 1 meter)
Frequency Response	55 Hz - 20 kHz
Tweeter	1-inch dome
Woofers	Two 5.25-inch cones
Crossover Frequency	2.5 kHz
Enclosure Type	Bass-reflex (ported)
Recommended Amplifier Power	10 - 150 Watts per channel
Magnetic Shielding	Yes
Placement	Bookshelf or TV unit
Grille Included	Yes, detachable
Warranty	2 years
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquids or cleaners.
Safety Precautions	Place on stable surface; keep away from heat sources and moisture.
Replacement Parts / Service	Contact Infinity customer support for authorized service.

Frequently Asked Questions - Alpha 37C INFINITY

How do I connect the Alpha 37C to my receiver?

Use standard speaker wire. Connect the receiver's center channel output to the speaker terminals, observing polarity (red to red, black to black). Ensure the receiver is set to Center Speaker mode.

What is the ideal placement for a center channel speaker?

Place the Alpha 37C directly above or below your TV, centered horizontally. It should be at ear level when seated for optimal dialog clarity. Avoid enclosures that block the front or rear ports.

Can I use this speaker as a bookshelf speaker?

Yes, the Alpha 37C can be used as a bookshelf speaker, but it is optimized for center channel use. As a bookshelf, it may lack low-end compared to dedicated bookshelf models. Ensure proper placement and avoid placing it in a closed cabinet.

How do I clean the speaker?

Gently dust the cabinet and grille with a soft, dry cloth. Do not use any liquids, abrasives, or compressed air, as they may damage the drivers or finish. For the grille, use a lint roller if needed.

What are the power requirements?

The speaker is passive and receives power from your amplifier or receiver. It handles up to 100 watts RMS and requires an amplifier rated between 10 and 150 watts per channel at 8 ohms.

Why is there no sound coming from the speaker?

Check that the speaker wire is properly connected to both the speaker and receiver terminals. Verify the receiver is set to a surround mode that includes the center channel. Also test the speaker on another channel to rule out a driver issue.

Does the speaker come with a grille?

Yes, the Alpha 37C includes a detachable black cloth grille. It attaches magnetically for easy removal and reattachment.

Can I bi-wire this speaker?

No, the Alpha 37C has a single pair of binding posts. It is not designed for bi-wiring or bi-amping. Use a single speaker wire connection.

What is the warranty period?

Infinity provides a 2-year limited warranty for the Alpha 37C from the date of purchase, covering defects in materials and workmanship.

How do I position the speaker for optimal sound?

Place the speaker at ear level, tilted slightly upward if below the TV. Keep it away from walls to reduce bass boom. Ensure the front of the speaker is not obstructed. Use the supplied rubber feet to prevent sliding.

USER MANUAL Alpha 37C INFINITY

Two black audio speakers with visible sound waves, no text or symbols present

Infinity Alpha™ Series

The Alpha Series of loudspeakers continues Infinity's longstanding commitment to accurate sound reproduction. Our patented Ceramic Metal Matrix Diaphragm™ (C.M.M.D.) drivers, precision dividing networks and rigid, heavily braced enclosures combine to deliver uncompromised performance in any stereo or multichannel home theater system. The Alpha 37c is the perfect center channel loudspeaker to complete any home theater system.

UNPACKING THE SPEAKER

If you suspect damage from transit, report it immediately to your dealer. Keep the shipping carton and packing materials for future use.

For best results, the Alpha 37c should be placed on top of, or directly below, the television and aimed toward the listening area (see Figure 1).

The terminal cup has an adjustable foot to angle the speaker toward the listening position (see Figure 2).

An Important Note for Proper Installation

The Infinity Alpha 37c is magnetically shielded. When placing it directly on top of a television, please follow the simple installation guidelines below to prevent any interference with your television picture.

1. Turn off the TV that the speaker will be placed on top of.
2. While keeping the front of the speaker facing forward, lift and place the Alpha 37c on top of the TV.
3. Connect the speaker as described in this owner's guide.
4. You may now turn on the TV.

FIGURE 1 – This overhead view shows a typical home theater plan.

Left Front Channel Center Channel Right Front Channel Infinity Subwoofer (optional) Couch Left Surround Channel Right Surround Channel

FIGURE 2

INPUT

Loosen thumbscrew.

INPUT Slide rod down the desired amount

INPUT Tighten thumbscrew.

WIRING THE SYSTEM

IMPORTANT: Make sure all equipment is turned off before making any connections.

For speaker connections, use a minimum #16-gauge speaker wire with polarity coding. The side of the wire with a ridge or other coding is usually considered positive polarity (i.e., +).

NOTE: If desired, consult your local Infinity dealer about speaker wire and connection options.

FIGURE 3

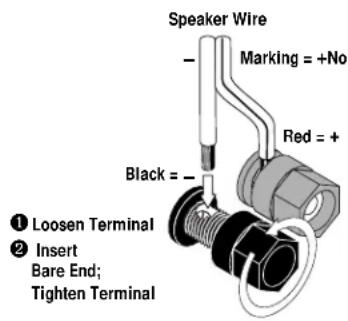

The Alpha 37c features color-coded terminals. This example shows the most common way of connecting speaker wire by directly inserting into terminals.

Speaker Wire Marking = +No Red = + Black = - ① Loosen Terminal ② Insert Bare End; Tighten Terminal

To ensure proper polarity, connect each + terminal on the back of the amplifier, receiver or television to the respective+ (red) terminal on each speaker, as shown in Figure 3. Similarly, connect the - (black) terminals in the same way. Also, see the owner's guides that were included with your amplifier or receiver to confirm connection procedures.

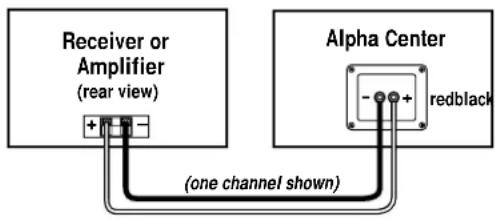

FIGURE 4 – Wiring diagram shows polarity connections for one channel of a stereo or home theater system.

Receiver or Amplifier (rear view) Alpha Center (redblack) (one channel shown)

IMPORTANT: DO NOT reverse polarities (i.e., + to - or - to +) when making connections. Doing so will cause poor imaging and diminished bass response.

FINAL ADJUSTMENTS

Check the speakers for playback first by setting the system volume control to a minimum level, and then by applying power to your audio system. Following the directions provided with your receiver/processor, adjust the center channel volume so that it matches the output of the left and right speakers.

CARE OF YOUR SPEAKER

The Alpha 37c's enclosure has a wood-vinyl finish that does not require any routine maintenance. When needed, use a soft cloth, dampened with water only, to remove any fingerprints or dust.

Clean the grille by gentle vacuuming.

NOTE: Do not use any cleaning products or polishes on the enclosure or grille.

SPECIFICATIONS

Alpha 37c

Frequency Range: 45Hz - 22,000Hz (±3dB)

Recommended Amplifier Power Range: 10 – 150 watts

Sensitivity (2.83V @ 1 meter):

91dB spl

Nominal Impedance: 8Ω

Crossover Frequency: 500Hz, 3000Hz; 24dB/octave

Low-Frequency Drivers: Dual 6-1/2" (165mm) C.M.M.D., magnetically shielded

Mid-Frequency Driver: 5-1/4" (133mm) C.M.M.D., magnetically shielded

High-Frequency Driver: 1" (25mm) C.M.M.D., magnetically shielded

Dimensions (H x W x D):

9" x 23" x 12-1/2" (229mm x 584mm x 318mm)

Weight: 32 lb (14.6kg)

Infinity continually strives to update and improve existing products, as well as create new ones. The specifications and construction details in this and related Infinity publications are therefore subject to change without notice.

Infinity.

H A Harman International Company

© 2002 Harman International Industries, Incorporated

250 Crossways Park Drive, Woodbury, NY 11797 USA 800.553.3332 (USA Only)

www.infinitysystems.com

Infinity is a registered trademark of Harman International Industries, Incorporated.

Ceramic Metal Matrix Diaphragm (C.M.M.D.) patent nos. 6,327,372 and 6,404,897.

Printed In USA 9/02 Part No. 350581-001
