| Product Type | Built-in Undercounter Refrigerator |
| Brand | Marvel |
| Model | Professional ML15RAR |
| Overall Dimensions (W x H x D) | 15" x 34" x 24" (approx.) |
| Weight | 85 lbs (approx.) |
| Power Supply | 115V / 60Hz / 1.5A |
| Energy Star Certified | Yes |
| Total Capacity | 4.5 cu. ft. (approx.) |
| Cooling System | Forced air with automatic defrost |
| Temperature Range | 33°F to 42°F (adjustable digital thermostat) |
| Shelving Type | Adjustable wire or glass shelves (2 included) |
| Door Style | Stainless steel with professional handle |
| Reversible Door | Yes (field reversible) |
| Interior Light | LED (auto on when door opens) |
| Lock | Optional lock kit available |
| Installation | Built-in or freestanding (ventilation required) |
| Cleaning | Wipe with mild soap and water; avoid abrasives |
| Defrost | Automatic (no manual defrost needed) |
| Spare Parts Availability | Contact Marvel customer service or authorized dealers |
| Warranty | 2 years parts and labor |
| Safety Certifications | UL listed, NSF certified (if applicable) |
Frequently Asked Questions - Professional ML15RAR Marvel
What are the recommended temperature settings for the Marvel Professional ML15RAR?
The recommended temperature for most food storage is between 34°F and 40°F. Use the digital thermostat to adjust within the 33°F to 42°F range.
How do I install the refrigerator under a counter?
Ensure proper ventilation by leaving a gap at the top and front as specified in the manual. The unit must be leveled and the door aligned. Electrical connection should be on a dedicated circuit.
Can I reverse the door swing?
Yes, the door is field reversible. Follow the instructions in the manual to swap the hinge and handle sides.
How often should I clean the condenser coils?
Clean the coils every 6 months using a soft brush or vacuum to remove dust and debris for optimal efficiency.
What should I do if the refrigerator is not cooling properly?
Check the thermostat setting, ensure the door is sealing, clean the condenser coils, and verify that the unit is not in direct sunlight or near a heat source. If the problem persists, contact customer service.
Is the Marvel ML15RAR Energy Star certified?
Yes, this model is Energy Star certified, ensuring it meets energy efficiency guidelines.
Can I install this refrigerator in a garage or outdoors?
It is designed for indoor use only (ambient temperature 50°F to 100°F). Installation in unheated spaces may affect performance.
What type of shelves does it have?
The refrigerator comes with adjustable wire or glass shelves (depending on configuration) that can be repositioned to accommodate tall items.
How do I replace the interior light?
The interior light is LED and designed to last the life of the unit. If it fails, contact Marvel for service.
Where can I find replacement parts?
Replacement parts can be ordered through Marvel customer service or authorized dealers. Have your model number ready.
User questions about Professional ML15RAR Marvel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Fridge in PDF format for free! Find your manual Professional ML15RAR - Marvel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Professional ML15RAR by Marvel.
USER MANUAL Professional ML15RAR Marvel
- Dynamic Cooling Technology™ delivers the industry's best temperature stability and rapid cool down, tested and proven to cool nearly 2x faster than competitors
• Thermal-efficient cabinet ensures optimum preservation and energy efficiency while maximizing capacity - Now even quieter operation thanks to exclusive design enhancements to buffer and minimize sound
Storage Capabilities
• 2.7 cu. ft. capacity, stores (72) 12-oz cans
• (2) white steel-framed glass shelves are cantilevered and fully adjustable
Touchpad Controls
- Multifunction Marvel Intuit™ Integrated Controls allow you to select a precise cabinet temperature from 34°F to 42°F
• Vacation mode conserves energy during times when unit is not in use
Aesthetics
- Pristine white interior easily wipes clean
• Efficient arctic white LED lighting illuminates interior for better viewing - Easy-to-install panel overlay option features soft-close integrated hinge for a truly flush fit with cabinetry
- Finish options: stainless steel, black or overlay (panel ready)
Additional Convenience
- Close Door Assist System™ gently and automatically draws door to a close, ensuring door is never accidentally left ajar
- Black toe kick adjustable to 4" with leveling legs
- Filler kit available for 18" wide opening
• 1-year parts and labor warranty, 5-year sealed system parts warranty
Ordering Options
| Solid Stainless Steel Door, Right Hinge, Stainless Designer Handle | ML15RAS1RS |
| Solid Stainless Steel Door, Left Hinge, Stainless Designer Handle | ML15RAS1LS |
| Black Door, Right Hinge, Black Designer Handle | ML15RAS1RB |
| Black Door, Left Hinge, Black Designer Handle | ML15RAS1LB |
| Panel-Ready Solid Overlay Door, Integrated Right Hinge (Handle Not Included)* | ML15RAP2RP |
| Panel-Ready Solid Overlay Door, Integrated Left Hinge (Handle Not Included)* | ML15RAP2LP |
*Easy installation! No panel kit required. Consult your cabinet maker for overlay panel and handle options.


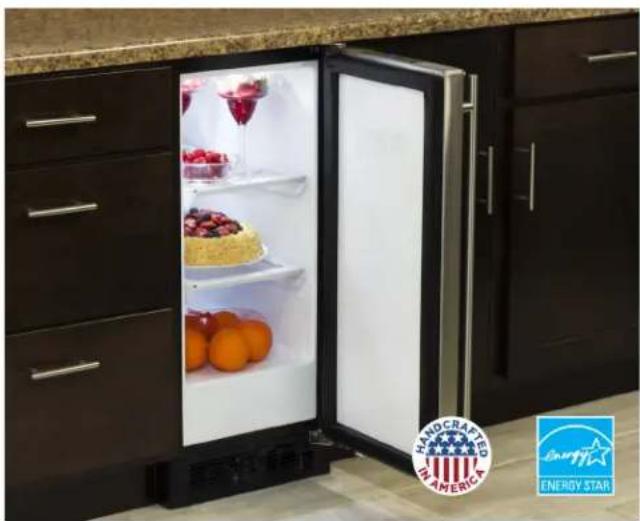

Interior view of a modern kitchen appliance with a door open, featuring fruit and bread inside (no visible text or symbols)Finish Options
Frame
Framed Overlay (Panel Ready)*
Solid Overlay (Panel Ready)*
Black FrameStainless Ste
Product Dimensions

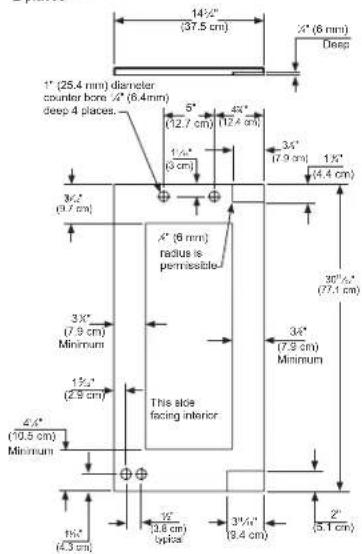

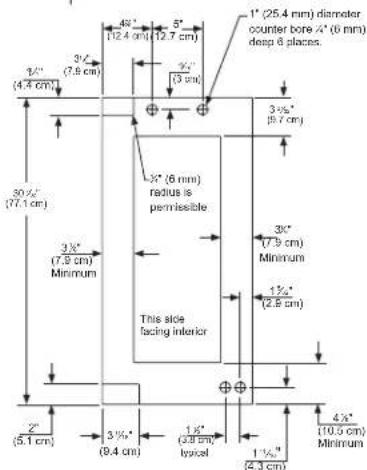

Panel Overlay Dimensions (Frame Door)

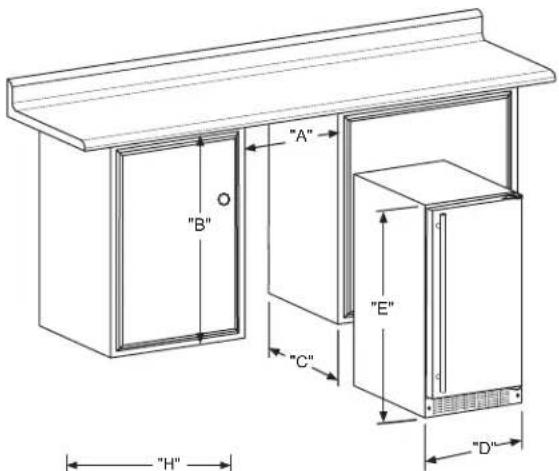

Rough-In Dimensions
| A. Rough-In Width 15" | ||
| B. Rough-In Height | Solid Door 34 to 35" | |
| Overlay Door | 34 1/4 to 35 1/4" | |
| C. Rough-In Depth 24" | ||

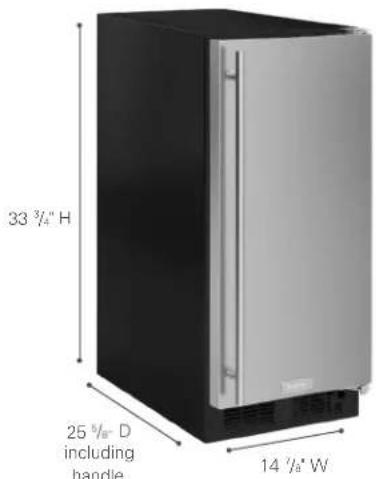

Product Dimensions
| D. Width 14 7/8" | ||
| E. Height | Solid Door | 33 3/4" to 34 3/4" |
| Overlay Door 34" to 35" | ||
| F. Depth 21 1/2" | ||
| G. Depth to Front of Door | Solid Door 23 23/32" | |
| Overlay Door | 22 7/8" Without Handle | |
| H. Depth to Handle 25 21/32" (Stainless Steel) | ||
| I. Depth with door at 90° | Solid Door 37 13/32" | |
| Overlay Door 37 1/2" | ||
Product Features
| Interior Cabinet Finish Black | |
| Capacity Up to 72 12-oz cans | |
| Sholving System Cantilover | |
| Shelf Fronts White Steel-Framed | |
| Other Storage NA | |
| Interior Lighting White LED | |
| Toe Grill Finish | Black |
| Hinge | Classic Hinge |
| Handle | Slim Designer Handle(Panel Overlay DoesNot Include Handle) |
| Control Type | IntuitTM |
| Temperature Range | 34° to 42° F |
| Lock | No |
| Electrical Requirements | 120V / 60Hz / 15A |
| Length of Power Cord | 6' |
| Shipping Weight | 125 lbs |
| Finishes | Stainless Steel, Overlay, Black |
| Vacation Mode | Yes |
| Agency Approvals | CSA, ENERGY STAR |
For comprehensive installation instructions, please visit www.marvelrefrigeration.com to access the owner's guide.

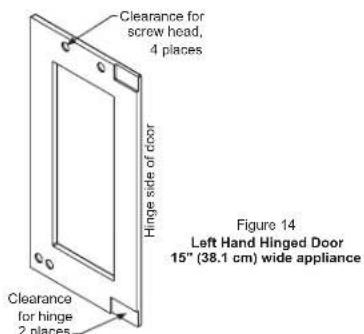

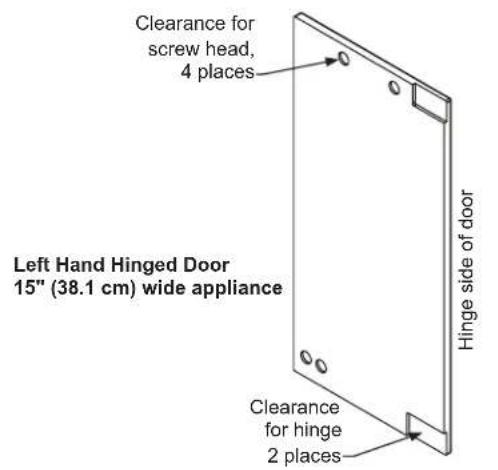

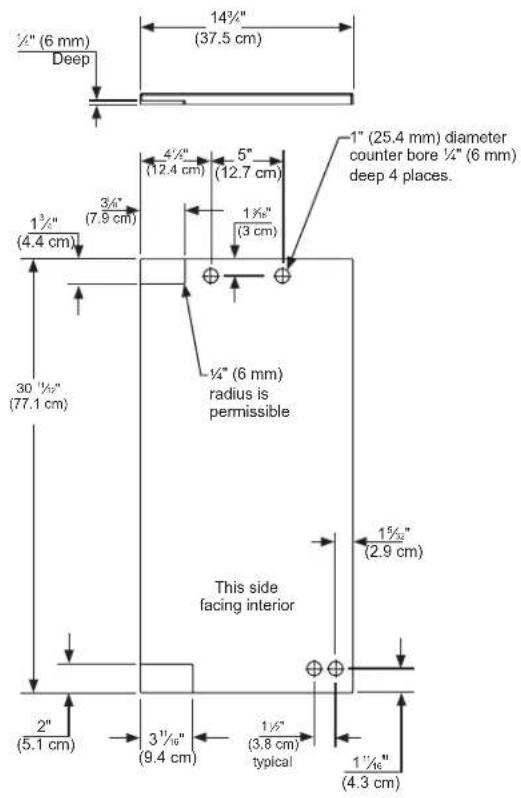

Left Hand Hinged Door 15" (38.1 cm) wide appliance

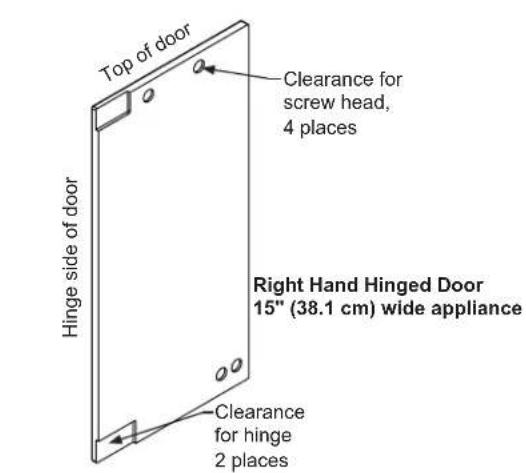

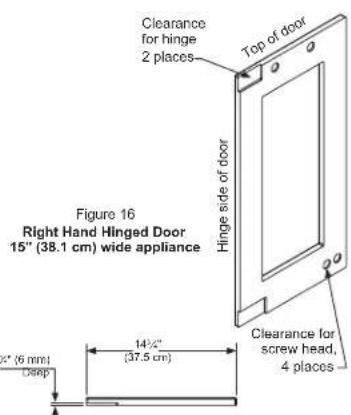

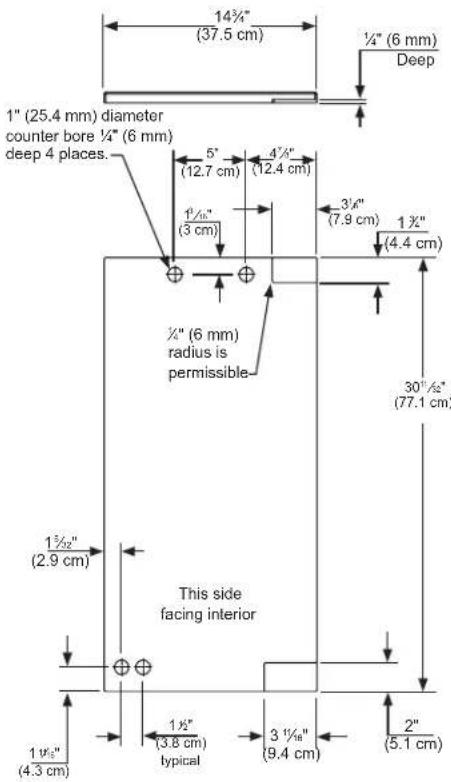

Right Hand Hinged Door 15" (38.1 cm) wide appliance
