Product Type	Rack Enclosure Colocation Kit
Model Number	SRCOLOKIT45UDP
Brand	Tripp Lite
Compatible Rack Size	45U
Application	Converts standard 45U rack into colocation-style rack with divided compartments
Material	Steel
Color	Black
Included Parts	Colo Door Hinge Brackets (10 total), Divider Plate (1), Roof Cable Channel (1), Blocking Plate (1), Divider Plate Brackets (2), M6 Screws, M6 Flat Head Screws, Cone Washers, M4 Screws, Cable Channel Plate
Hardware Included	M6 screws (10mm and 16mm), M4 screws, zinc cone washers
Tools Required	Phillips Head Screwdriver (user supplied)
Installation Steps	10 steps including door removal, hinge attachment, divider installation, cable channel installation, roof installation
Safety Note	Extremely heavy; do not attempt to unpack, move, assemble or install without assistance. Stabilize before loading equipment.
Cable Management	Includes cable channels with tabs; optional blocking plate for single channel use
Divider Installation	Install with lower doors closed; use M6 washers and screws; brackets must be inside rack vertical rails
Channel Covers	Upper and lower covers differentiated by hole location (upper cover holes closer to bottom edge)
Roof Installation	No fasteners required
Series	SmartRack
Country of Origin	USA (designed and manufactured by Tripp Lite, Chicago, IL)
Support	tripplite.com/support
Weight	Not specified; approximate kit weight 10 lbs (4.5 kg)
Dimensions	Designed for standard 45U rack enclosure; kit dimensions not specified

Frequently Asked Questions - SRCOLOKIT45UDP Tripp Lite

What models is this kit compatible with?

This kit is designed for Tripp Lite SmartRack models SRCOLOKIT45U and SRCOLOKIT45UDP. It fits 45U rack enclosures.

How many hinge brackets are included?

The kit includes a total of 10 hinge brackets: 4 for front doors, 4 for rear doors, and 2 additional brackets for the colo door hinge assembly.

What tools do I need for installation?

You will need a Phillips Head Screwdriver (user supplied). All necessary screws and washers are included in the kit.

Can I install this kit alone?

No. The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install without assistance. Use extreme caution to prevent tipping and personal injury.

Do I need to remove the doors before installation?

Yes, the first step is to remove the front and rear doors. Then attach the colo door hinge brackets to the door frame before reinstalling the doors.

How do I differentiate between upper and lower channel covers?

The upper channel cover has holes located closer to the bottom edge than the lower cover. This helps identify which cover goes where during cable channel installation.

When should I install the blocking plate?

Install the blocking plate only if you are using only one cable channel. Secure it to the divider on the side opposite the cable channel.

What screws are provided with the kit?

The kit includes M6 screws (10mm and 16mm flat head), M4 screws, and zinc cone washers. These are used for securing the divider and other components.

Where can I get support or additional information?

Visit tripplite.com/support or contact Tripp Lite at 1111 West 35th Street, Chicago, IL 60609 USA. The manual is available for free download on their website.

What is the purpose of the divider plate?

The divider plate separates the rack into two compartments, allowing for colocation setups where different equipment needs to be isolated within the same rack.

USER MANUAL SRCOLOKIT45UDP Tripp Lite

Assembly Instructions

SmartRack®

Models: SRCOLOKIT45U, SRCOLOKIT45UDP

Technical line drawing of a multi-tiered server or rack cabinet with mounting feet and internal compartments (no text or symbols)

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2022 Tripp Lite. All trademarks are the sole property of their respective owners.

Parts List

Technical line drawing of two mechanical components with internal features and dot patterns (no text or symbols)

Isometric line drawing of a mechanical part with two cylindrical features (no text or symbols)

A B C D E F

Colo Door Hinge

Brackets

x4x4 x2

Divider

Plate

x1

Roof Cable

x1

Channel

Blocking

Plate

x1

GHIJKLM

Divider Plate

Bracket

M6 Screw

M6 x 10 mm

Flat Head

Screw

M6 x 16mm

Flat Head

Screw, Zinc

Cone Washer M4 Screw

Cable

Channel Plate

Required tools (User Supplied):

Phillips Head Screwdriver

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to tipping and could cause property damage and/or personal injury. Use extreme caution when assembling the enclosure. Do not attempt to install equipment without first stabilizing the enclosure.

step

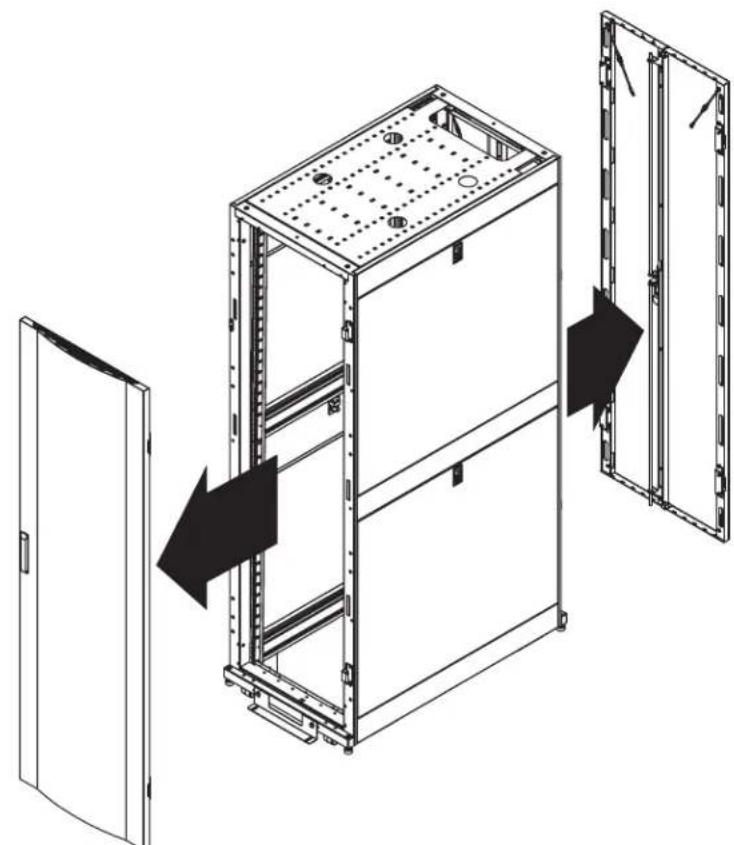

Remove front and rear doors.

Technical line drawing of a server rack cabinet with open doors and internal compartments (no text or symbols)

step

For front doors, attach additional hinge brackets to door frame on the same side as the existing hinge brackets.

2

4

Technical line drawing of a server rack cabinet with an inset close-up showing internal components (no text or symbols)

For rear doors, move two hinge brackets so that all brackets are on the same side of the door frame.

step

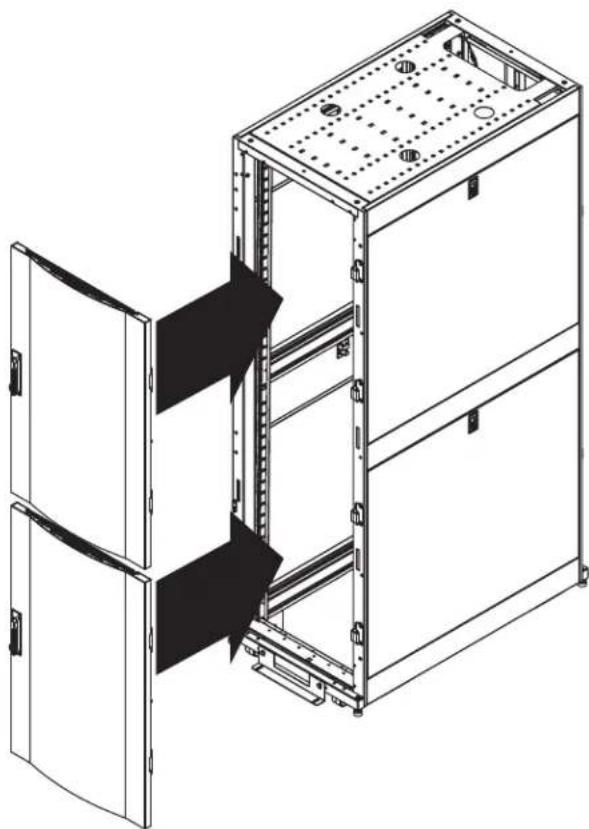

Attach colo doors to hinges on frame.

Repeat step 3 for rear doors.

Technical line drawing of a server rack cabinet with two doors open, showing internal structure and mounting holes (no text or labels)

step

Assemble divider plate brackets onto divider plate. There are left and right brackets. Make sure the flat surface of the brackets face away from each other when assembled to divider plate.

Pure electrical circuit lines without any symbols

step

5

Using an assistant, install divider. Divider should be installed with lower doors installed and completely closed so divider can rest on the lower doors while installing M6 washers and screws. Lock the doors to prevent them from opening and damaging the divider. Brackets on divider should be on the inside of the rack vertical rails.

Technical line drawing of a multi-level electronic device with internal components and a highlighted section (no text or symbols)

step

6

Install upper M6 washers and screws in the topmost hole of "U" number 23 for a 45U rack. DO NOT open lower doors until four of these washers and screws are installed onto the four vertical rails.

Technical line drawing of a server rack cabinet with internal components and connection lines (no text or symbols)

step

Once upper M6 hardware is installed, the bottom doors can safely be opened to install the lower M6 hardware.

4

4

Technical line drawing of a server rack cabinet with internal components and connection lines (no text or symbols)

step

Simple line drawing of a vertical panel or panel with no text, numbers, or symbols

2

4

2

Note: There is an upper channel cover and a lower channel cover. These can be differentiated by hole location: the upper cover has holes closer to bottom edge than the lower cover.

Install cable channels onto the cable managers using the tabs.

step

If you only put in one cable channel, install the blocking plate on the side opposite the cable channel. Secure the plate to the divider.

1

2

Technical line drawing of a server rack with mounting hardware and a magnified inset showing internal components (no text or symbols)

step

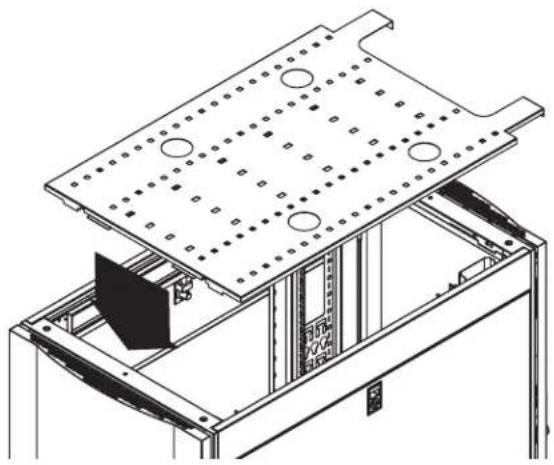

Install roof. No fasteners are needed.

1

Technical line drawing of a server rack with mounting base and internal components (no text or symbols)

1111 West 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Tripp Lile has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
