ABTK02FSB - Keyboard Aluratek - Free user manual and instructions

Product Type	Bluetooth Keyboard Folio Case
Brand	Aluratek
Model	ABTK02FSB
Compatibility	iPad 2, 3, 4th Generation
Connectivity	Bluetooth
Battery Type	Built-in rechargeable lithium-ion
Charging Time	Approximately 4 hours
Charging Port	Micro USB
LED Indicators	Red (charging), Green (fully charged), Blue (pairing)
Power Switch	Slide switch
Pairing Button	Yes
Dimensions (approx.)	9.5 x 7.5 x 0.8 inches (241 x 190 x 20 mm)
Weight (approx.)	0.5 lb (230 g)
Material	Synthetic leather and plastic
Color Options	Various
Included Accessories	Micro USB charging cable
Warranty	1 year limited
FCC Compliance	Class B digital device (Part 15)
Keyboard Layout	US English (QWERTY)
Stand Feature	Integrated folio case provides adjustable viewing angles
Cleaning	Wipe with dry or slightly damp cloth

Frequently Asked Questions - ABTK02FSB Aluratek

How do I charge the ABTK02FSB keyboard?

Connect the microUSB end of the provided cable to the keyboard and the other end to a computer. Charge for at least 4 hours. The red LED indicates charging; it turns green when fully charged.

How do I pair the keyboard with my iPad?

Turn on the keyboard using the power switch. Press the pairing button next to it (blue LED flashes). On your iPad, go to Settings > General > Bluetooth and turn Bluetooth ON. Select 'ABTK02F' from the list. Enter the 4-digit PIN shown on the iPad screen using the keyboard and press 'Enter'. The blue LED will turn off, indicating successful pairing.

What is the PIN code for pairing?

The PIN code is generated by the iPad and displayed on its screen. You must enter that 4-digit code on the keyboard and press Enter.

Why won't my keyboard pair with my iPad?

Ensure the keyboard is turned ON and in pairing mode (blue LED flashing). Make sure iPad's Bluetooth is ON and not connected to another device. If needed, reset the keyboard by turning it off and on, then repeat pairing.

How long does the battery last on a full charge?

Battery life is not explicitly stated, but typical Bluetooth keyboards last several weeks to months with moderate use. Factors include backlight usage (if any) and frequency of use.

Can I use this keyboard with devices other than iPad?

While designed for iPad 2/3/4, it can pair with any Bluetooth device that supports the HID keyboard profile, such as Android tablets or computers. However, the folio case is shaped for the specific iPads.

How do I know if the keyboard is charging?

When connected to power, the red LED lights up and stays on while charging. Once fully charged, the LED turns green.

Is the ABTK02FSB compatible with iPad Air or newer models?

No, it is specifically designed for iPad 2, 3, and 4th generation (with 30-pin connector). Newer iPads have different dimensions and connector types.

What should I do if the keyboard stops working?

First, try recharging the keyboard fully. Then, re-pair it with your device. If the issue persists, contact Aluratek support at 1-866-580-1978 or [e-mail] for troubleshooting.

Does the keyboard come with a warranty?

Yes, Aluratek provides a 1-year limited warranty against defects in materials or workmanship. For details, visit http://aluratek.com/warranty-return-policy.

USER MANUAL ABTK02FSB Aluratek

Slim Color Folio Case with Bluetooth Keyboard for iPad 2, 3 and 4th Generation

Aluratek

Charging the battery

The battery is not fully charged and it is highly recommended that you charge ABTK02Fxx before you begin using it.

Note: Using ABTK02Fxx “out of the box” will not harm the device. You will experience reduced battery life as the unit will not be fully charged.

Connect the microUSB end of the USB cable provided to the keyboard and the other end of the USB cable to a computer. Please charge the battery for a minimum of 4 hours. The red LED will be on while charging. When charging is complete, the red LED will turn green.

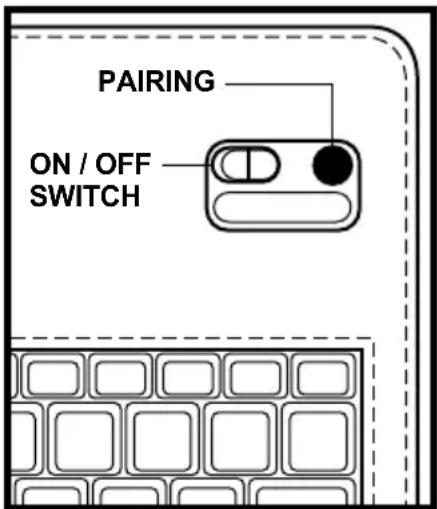

Pairing ABTK02Fxx with your iPad

1. Make sure ABTK02Fxx is turned ON by sliding the power switch to ON. The blue LED will flash once.
2. Activate ABTK02Fxx pairing mode by pressing the button next to the power switch. The blue LED will start to flash.
3. Activate your iPad's Bluetooth function by going to Settings > General > Bluetooth > ON. Select "ABTK02F" when it is found.
4. Please enter the 4 digit PIN code shown on the iPad on the keyboard and press "Enter". The blue LED will turn OFF.
5. The keyboard should be paired/connected and ready to use.

Slim Color Folio Case with Bluetooth Keyboard for iPad 2, 3 and 4th Generation

Aluratek

Radio and TV Interference Statement

WARNING!!! This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by whatever measures may be required to correct the interference.

Technical Support & Warranty

If you need further assistance, please contact the Aluratek support department for troubleshooting prior to returning this device by calling toll free 1-866-580-1978 or email: [e-mail].

Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of purchase.

• For more information, please visit: http://aluratek.com/warranty-return-policy
• You can register your product online at: http://aluratek.com/product-registration
