Product Type	Notebook computer with optional docking station
Processor	Intel Core 2 Duo ULV, Pentium ULV, or Celeron ULV
Chipset	Mobile Intel GS45 Express
Graphics	Intel GMA 4500MHD (shared memory)
Display	13.3" LED backlight, 1366x768
Memory	2x DDR3 SO-DIMM slots (upgradable)
Storage	2.5" SATA HDD: 250GB/320GB/500GB
Optical Drive	DVD Super Multi Dual-Layer writer
Connectivity	802.11 b/g/n WiFi, Bluetooth 2.1+EDR, Gigabit Ethernet, optional WWAN 3G
Ports	2x USB 2.0, 1x eSATA/USB combo, HDMI, VGA, RJ-45, mic-in, headphone-out, 4-in-1 card reader
Security	Kensington lock slot, biometric fingerprint reader
Battery	Removable Li-ion (specific capacity not given, supports quick battery life test via touchpad button)
Power Adapter	65W, output 19V DC, 3.42A; input 100-240V AC, 50/60Hz
Dimensions (Laptop)	Approx. 330 x 230 x 30 mm (estimated for 13.3" model)
Weight (Laptop)	Approx. 2.0 kg (estimated)
Docking Station (Optional)	Adds 6x USB 2.0, HDMI, DVI, VGA, RJ-45, audio jacks; includes NVIDIA GeForce GT 220 GPU with 1GB DDR3
Operating System	Pre-installed Windows (likely Windows 7, as manual mentions)
Maintenance	Clean exterior with damp cloth and approved cleaner; LCD with approved LCD cleaner only; avoid liquid spills
Safety	Do not block vents; use only supplied AC adapter; avoid prolonged skin contact with base; dispose battery properly
Repairability	User-upgradable memory, hard drive, and optional WWAN module; battery and optical drive removable; docking station supports easy attachment/detachment

Frequently Asked Questions - Booktop M1305 GIGABYTE

Why does my computer switch to hibernation mode too quickly?

This is due to Windows Power Management settings. Go to Start > Control Panel > Performance and Maintenance > Power Options, and adjust the 'Turn off monitor' time to your preference. You can set different times for AC power and battery.

How can I improve program launch speed?

Perform disk maintenance: run Disk Cleanup to remove unnecessary files and Disk Defragmenter to reorganize fragmented file blocks. These utilities are available in Windows.

What kind of external microphone can I use?

You need a self-amplifying (powered) microphone. Standard passive microphones may not work without amplification.

How do I stop echoes from my speakers?

Double-click the speaker icon on the taskbar, then under Microphone Balance, check the 'Mute' box to disable microphone feedback.

How can I force a shutdown if Windows won't respond?

Press and hold the power button for at least 5 seconds. This will force the computer to shut off completely.

Why can't I charge the battery after not using the notebook for a long time?

The battery may have entered low voltage protection mode. Connect the AC adapter and allow it to slow-charge for several hours. Once fully charged, normal operation resumes.

What should I do if I see 'CMOS Battery Low'?

The CMOS settings may have been lost due to prolonged power loss. Press F2 to enter BIOS setup, select 'Load Optional Defaults', then 'Save Changes and Exit' to reconfigure.

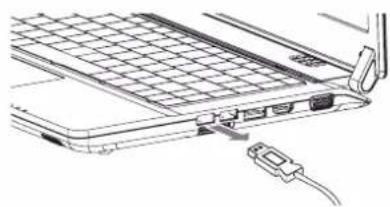

How do I safely remove a USB device?

Double-click the 'Safely Remove Hardware' icon in the system tray, select the device, click Stop, then wait for the safe removal notification before unplugging. Never unplug during data transfer to avoid data loss.

Does the M1305 have a hardware switch for Bluetooth?

Yes, use the hotkey combination Fn+F10 for 3.5G and Fn+F11 for Bluetooth to enable/disable these functions.

What is the maximum SDHC card capacity supported?

The M1305 SD card reader supports SDHC cards up to 32GB, as per the SD Association specifications.

USER MANUAL Booktop M1305 GIGABYTE

Copyright © 2009 by GIGABYTE TECHNOLOGY CO., LTD.

All rights reserved.

GIGABYTE Booktop™ M1305 Series Notebook Computer User's Manual

Release Edition: 2009/10

This manual guides you in setting up and using your new notebook.

Information in the manual has been carefully checked for accuracy and is subject to change without notice.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, by photocopy, recording, or otherwise, without prior written consent from GIGABYTE.

Trademarks

GIGABYTE ^™ , Booktop ^™ is registered trademarks of GIGABYTE Technology.

All other brands or product names mentioned in this manual are trademarks or registered trademarks of their respective companies.

Safety Instructions

Use the following safety guidelines to help protect yourself and your notebook.

When Using Your Booktop™ M1305 Notebook Computer

CAUTION: Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can build up in the base. Allowing sustained contact with the skin can cause discomfort or a possible burn.

• Do not attempt to service the notebook yourself. Always follow installation instructions closely.
• Do not carry a battery in your pocket, purse, or other container where metal objects (such as car keys) could short-circuit the battery terminals. The resulting excessive current flow can generate extremely high temperature and may cause burns to your skin.
• Be sure that nothing rests on your AC adapter's power cable and that the cable is not located where it can be tripped over or stepped on.
• While you are using the computer or charging the battery, place the AC adapter in a ventilated area, like on a desktop or on the floor. Do not cover the AC adapter with papers or other items that may prevent ventilation. Also, do not use the AC adapter while it is inside a carrying case.

• Do not insert objects into the air vent of your notebook computer. Doing so can cause short-circuiting and may result in fire or electrical shock.

• Use only the AC adapter and batteries that are supplied by your notebook manufacturer. Using other types of battery or AC adapter may heighten the risk of fire or explosion.

• Incorrectly installed or placed batteries may result in an explosion.
• Replace only with the same or a compatible battery recommended by the manufacturer.
• Please discard used batteries according to the manufacturer's instructions.
• Before you connect your notebook to a power source, ensure that the voltage rating of the AC adapter matches that of the available power source.
• 115 V/60 Hz in most of North and South America and some Far Eastern countries such as South Korea.
• 100 V/50 Hz in eastern Japan and 100 V/60Hz in western Japan.
• 230 V/50 Hz in most of Europe, the Middle East, and the Far East.
• If you use an extension cord with your AC adapter, ensure that the total ampere rating of all devices plugged into the extension cord does not exceed its total capacity.
• When removing a battery from your notebook, first turn off the system, disconnect the AC adapter from the electrical outlet, and then remove the battery.
• To avoid risk of an electrical shock, do not connect or disconnect any cables, or perform any maintenance or reconfiguration of this product during a thunderstorm.
• Do not throw batteries into a fire, doing so may cause explosion. Check with local authorities first for battery disposal instructions.

• When setting up your notebook for work, place it on a level surface.

• When traveling, do not check your notebook as baggage. You can put your notebook through an X-ray security machine, but never put your notebook through a metal detector. If you have your notebook checked by hand, be sure to have a charged battery ready in case you are asked to turn on your notebook.

• When traveling with the hard drive removed from your notebook, wrap the drive in an insulated material, such as cloth or paper. If you have the drive checked by hand, you may be asked to install the drive into your notebook. Your can have the hard drive checked through an X-ray machine, but never put the drive through a metal detector.
• When traveling, do not place your notebook in the overhead storage compartment where it could shift around. Do not drop your notebook or subject it to other mechanical shocks.
• Protect your notebook, battery, and hard drive from environmental hazards such as dirt, dust, food, liquids, extreme temperature, and direct exposure to sunlight.
• When you move your notebook in environments where there is a substantial difference of temperature or humidity level, condensation may form on or within your notebook. To avoid damaging your notebook, please allow sufficient time for the moisture to evaporate before continuing use of the notebook.

NOTICE: When taking your notebook from a colder to a warmer environment or vice versa, allow your notebook enough time to adapt to the new environment before turning on power.

- When unplugging the power cord, please make sure that you pull on its connector or on its strain relief loop, and not on the power cord itself. As you pull out the connector, please ensure

that it is pulled out evenly in order not to bend its connecting pins. Also, before you connect the power cord, make sure that both connectors are correctly oriented and aligned.

• Before you clean your notebook, turn it off first, unplug it from its power source, and remove the battery.
• Handle interior components with care. When removing a component, please hold it by the edge and not on the connecting pins (such as the memory module).

When using your telephone equipments, safety instructions should always be followed in order to prevent fire, electrical shock or injuries, these instructions include:

• Do not use this product near water, for example, near a bathtub, washing basins, kitchen/laundry sinks, wet basements or swimming pools.
• Avoid using cordless phones during an electrical storm as lightening may cause electrical shocks.
• Do not use the telephone to report a gas leak within the leakage area.

WARNING: Voiding of the Warranty

* If the battery is not properly handled, there may be a risk of explosion; make sure you are using the same or compatible battery.
* Please discard used batteries according to the instructions given by the manufacturer.
* Please be aware that use of cracked, severely scratched or poor quality discs may damage the optical drive and corrupt data in the disc. Such discs may break while drive operates in high-speed, in this case, your product warranty may be voided.

Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• All external cables connecting to this basic unit must be shielded.

For cables connecting to PCMCIA cards, see the option manual or installation instructions.

RF exposure

This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

CE Notice (European Union)

This symbol indicates this Booktop M1305 notebook complies with the EMC Directive and the European Union's Low Voltage Directive. This symbol also indicates that M1305 meets the following technical standards:

• EN 55022 — “Limitations and Methods of Measurement for the Radio Interferences of Information Technology Equipment.”
• EN 55024 — “Information technology equipment - Immunity characteristics - Limits and methods of measurement.”
• EN 61000-3-2 — “Electromagnetic compatibility (EMC) - Chapter 3: Limits - Section 2: Limits on the harmonic current emissions (Equipment input current up to and including 16 A per phase).”
• EN 61000-3-3 — “Electromagnetic compatibility (EMC) - Chapter 3: Limits - Section 3: Limits on the voltage fluctuations and flicker in low-voltage power supply systems for equipment with rate current up to and including 16 A.”
  • EN 60950 — “Safety of Information Technology Equipment.”

NOTE: EN 55022 emissions requirements provide for two classifications

• Class A governs commercial use
• Class B is governs residential use

For CB:

- Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer

• Do not remove any batteries from the computer while it is powered on
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook's system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal & Caution

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws. It may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used battery according to the manufacturer's instructions.

BSMI Notice (Taiwan Only)

Most Booktop computers are classified by the Bureau of Standards, Meteorology and Inspection (BSMI) as Class B information technology equipment (ITE).

R32323

The symbol above must be attached to the product indicating compliance with the BSMI standard.

Replaceable batteries

If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an explosion (for example, with some lithium batteries), the following applies:

• if the battery is placed in an operator access area, there shall be a marking close to the battery or a statement in both the operating and the servicing instructions;
• if the battery is placed elsewhere in the equipment, there shall be a marking close to the battery or a statement in the servicing instructions.

This marking or statement shall include the following or similar text:

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS

Illustration of a person running toward a doorway with motion lines indicating speed (no text or symbols)

Introduction

Congratulations and thank you for purchasing the the GIGABYTE Booktop™ M1305 series notebook computer. This portable notebook computer provides excellent expansion capability thanks to the docking station, includes multimedia functionality, and is designed to provide reliable, no fuss computing.

This manual will tell you how to setup and begin using your M1305. It provides basic configuring, operations and care, and troubleshooting.

Content

Safety Instructions ....I

Regulatory Notices & Certifications....III

Introduction......VII

Chapter 1 Knowing your Booktop™ M1305

1.1 Hardware checklist ....2

1.2 Using the Battery Pack 2

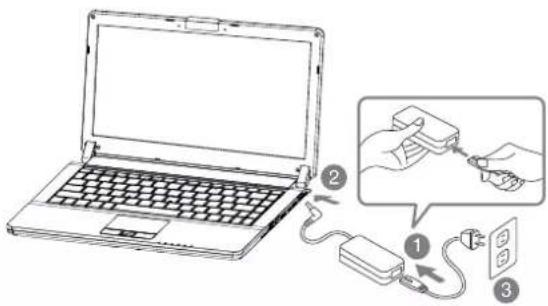

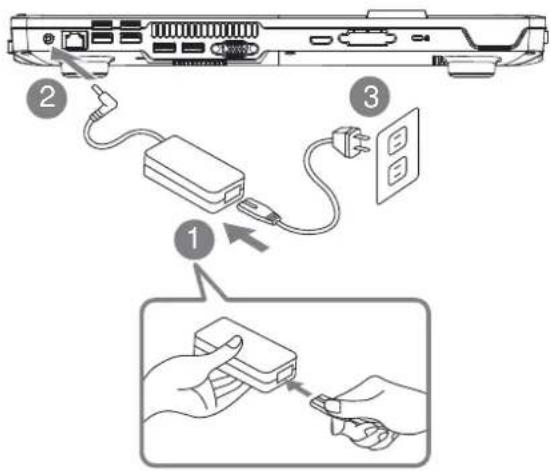

1.3 Connecting the AC adaptor ....3

1.4 Opening the LCD panel 4

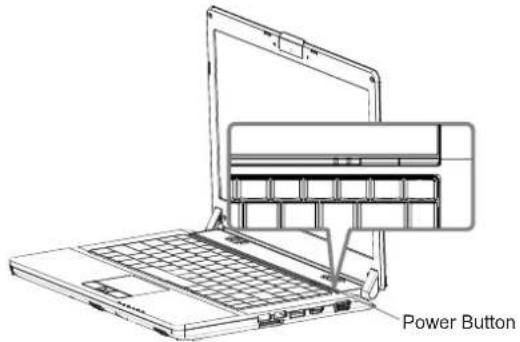

1.5 Turning on the unit....5

1.6 Turning off the power 6

Chapter 2 The Booktop™ M1305 Tour

2.1 Front View 8

2.2 Rear View 8

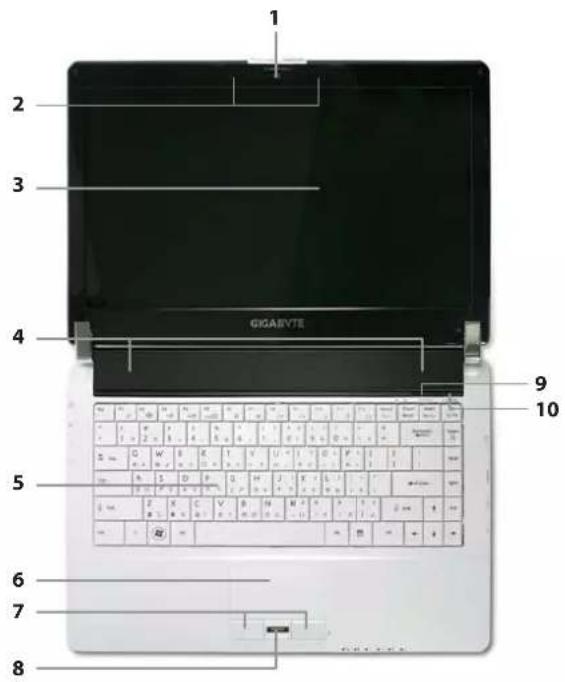

2.3 Top view 8

2.4 LED indicators 9

2.5 Left view 10

2.6 Right view 10

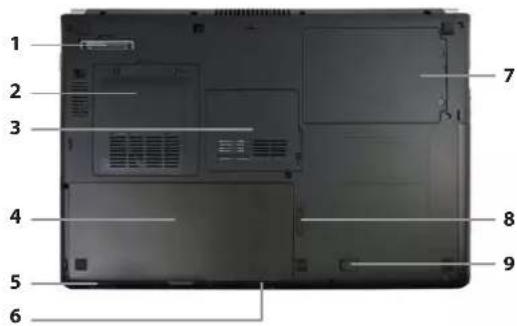

2.7 Base view 11

Chapter 3 Using the Booktop™ M1305

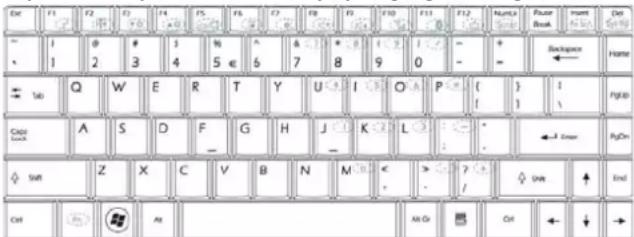

3.1 The M1305 Keyboard 14

3.2 The Touchpad 16

3.3 The Fingerprint Reader 16

3.4 The Web Camera 17

3.5 Optical disc drive 18

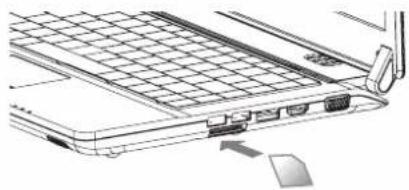

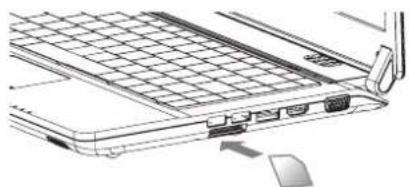

3.6 Using a Memory Card ....19

Chapter 4 The Booktop™ M1305 Specifications

4.1 The M1305 Notebook Hardware 22

4.2 The M1305 Special functions .....23

4.3 The M1305 Quick Battery life test 24

Chapter 5 The Booktop™ M1305 Utilities

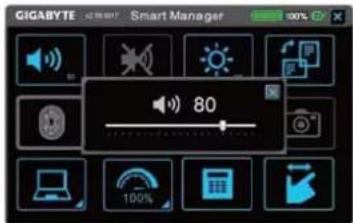

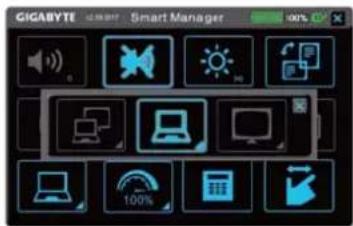

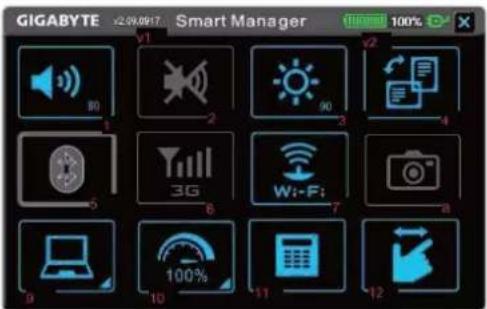

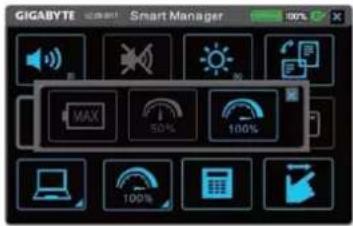

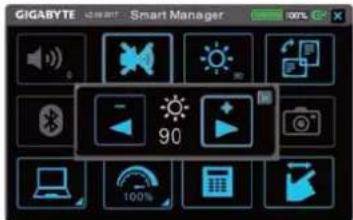

5.1 GIGABYTE Smart Manager 26

5.2 GIGABYTE Xpress Recovery 28

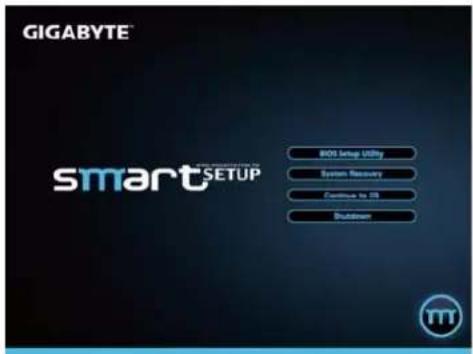

5.3 GIGABYTE Smart Setup 29

5.4 GIGABYTE Utility Driver Disc 30

Chapter 6 Connecting Peripherals and upgrade

6.1 How To Connect USB Devices 32

6.2 How To Connect Displays 32

6.3 How to Connect an HDMI Display 33

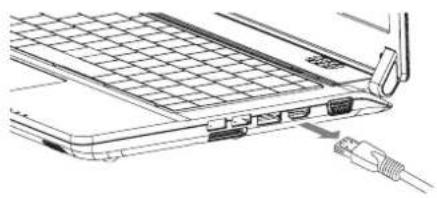

6.4 Ethernet LAN connection 33

6.5 How To Secure the Notebook ....34

6.6 Upgrade the Memory 34

6.7 WWAN 3G Connection ....35

Chapter 7 Docking Station

7.1 Features & Specifications....38

7.2 Top View: Docking Station 39

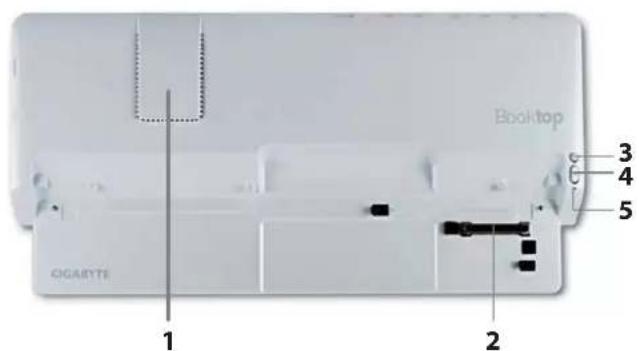

7.3 Rear View: Docking Station 40

7.4 Side Views: Docking Station 40

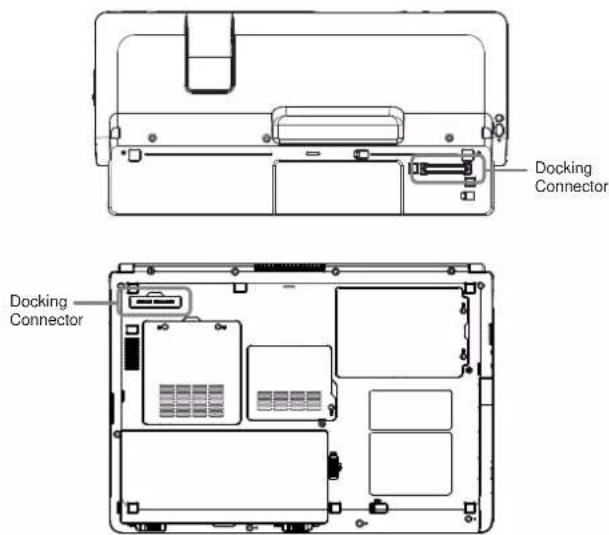

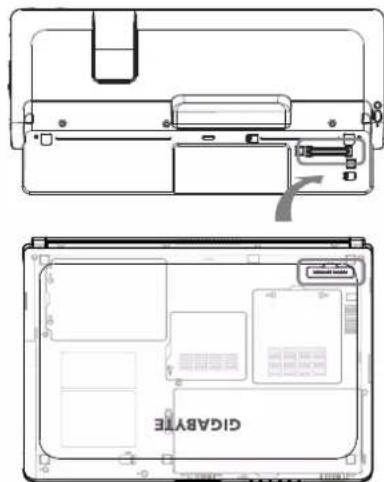

7.5 Attachment 41

7.6 Attachment: Undocking the Notebook 43

7.7 How to Connect an external D-Sub Display ....43
7.8 How to Connect an external DVI Displayv ....44
7.9 How to Connect a USB Devices 44

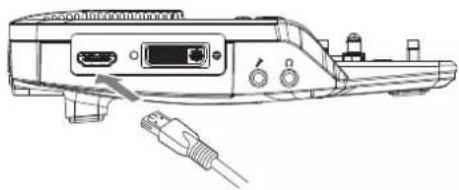

7.10 How To: Connect an HDMI Display 45
7.11 How To: Connect an RJ45 Ethernet LAN 45

Chapter 8 Troubleshooting / Q&A

8.1 Troubleshooting 48
8.2 Frequently Asked Questions ....51
8.3 Questions And Answers 53
8.4 The Notebook Care 54
8.5 GIGABYTE Service Information 54

Illustration of a stack of books with question marks and a document, held by hands (no text or symbols)

Chapter 1 Knowing your Booktop™

M1305

This chapter provides basic information to start using the Booktop™ M1305 notebook.

Some of the features described herein may not function properly or at all unless used in conjunction with the pre-installed operating system. Any change to the operating system may cause improper function.

1.1 Hardware checklist

Carefully unpack the M1305 notebook, taking care to save the box and any packaging for possible future use.

In The Box

Check to make sure you have all the following items:

●GIGABYTE Booktop™ M1305 Notebook Computer
- AC adaptor and Power cord (plug depends on region)
•The Battery pack
●GIGABYTE Booktop™ M1305 Notebook Computer
- AC adaptor and Power cord (plug depends on region)
•The Battery pack

1.2 Using the Battery Pack

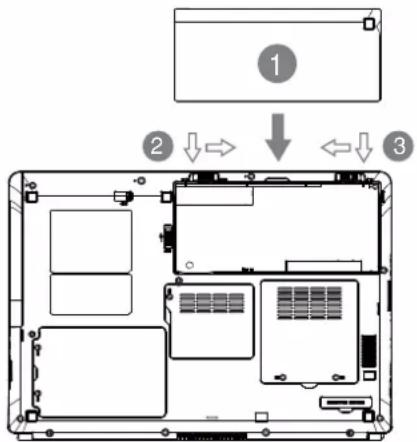

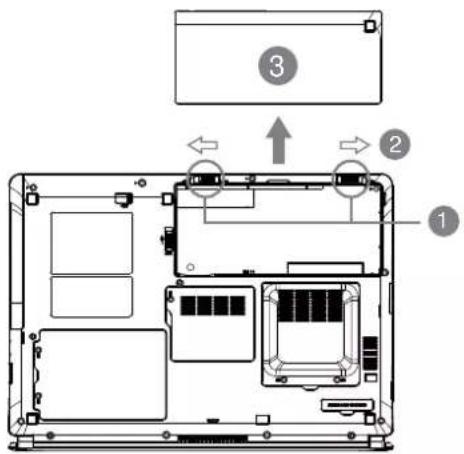

How to Insert the Battery Pack

To insert the battery simply follow the easy steps below.

Locate the battery bay, which should be empty (located on the right side of the notebook when viewed as in the image above) and then align and place the battery into the bay.

Press the battery down to activate the 2 clips (Shown as 2 & 3) that secure the battery into the bay. Clip 2 needs to be manually pressed to the right to lock in place. Clip 3 will automatically clip into place.

How To Remove the Battery Pack

To remove the battery simply follow the easy steps below.

Locate the 2 battery clips (Shown as 1 & 2) and clip them in opposite directions. Clip 1 will stay locked; clip 2 needs to be held in the open position. Locate the gap (circled) and use it to lift the battery.

Once lifted, pull the battery out of the bay, (Shown as 3) and continue until the battery is completely out of the bay. Ensure to store the units battery in a safe and secure place so that it does not get damaged.

1.3 Connecting the AC adaptor

Connect the AC adaptor when you need to charge the battery or want to operate using direct power. If the notebook is new and has not been used the battery pack will need to be charged before you can operate from the battery use battery power.

The AC adaptor can be connected to any power source supplying from 100 to 240 volts and 50 or 60 hertz. This allows the AC Adaptor to work in most countries and regions.

It is recommended to use only the AC Adaptor supplied with the M1305 and any AC Adaptor approved by the supplier. Using any other adaptor could cause damage or malfunction and might result in injury.

1. Connect the power cord to the AC adaptor.
2. Connect the AC adaptor to the DC-In Jack on the left side of the notebook.
3. Connect the power cord to the power outlet

1.4 Opening the LCD panel

The display panel can be opened to an almost any angle for an optimal display, depending on the hinges of the LCD.

While holding down the palm rest with one hand so that the notebook does not lift with the panel, lift the display panel itself and adjust the tilt until the viewing angle is comfortable.

Illustration of a tablet device with a curved arrow pointing right (no text or symbols)

Use extreme care when opening and closing the LCD display panel. Opening it too fast or slamming it closed could damage the panel or notebook.
Do not open the panel too far as this could stress or damage the hinges and loosen the panel, as it has no restraining latch and it relies on the hinges to remain closed and open.
Do not press or push on the panel or panel cover as it could cause damage to the panel.

Do not lift the notebook using the panel and do not put anything in between the panel and the keyboard when closing the panel.
When opening or closing the display panel, place one hand on the palm rest to hold the computer in place and use the other hand to slowly open or close the display panel (Do not use excessive force when opening or closing the display panel)

1.5 Turning on the unit

This section explains how to turn on the M1305 - the Power indicator will show if the unit is then on or not by illuminating.

After you turn on the M1305 for the very first time, do not power it down until the operating system has been configured. Please note that the set volume cannot be changed until Windows Setup has completed.

Starting up the M1305 for the first time

Depending on your configuration, the Microsoft Windows Startup Screen will be the first screen that you are shown when the notebook is booted up.

Follow the on-screen prompts and instructions in order to configure the units operating system.

When the Software License Terms are displayed, be sure to read them and agree with them before proceeding.

1.6 Turning off the power

System Shut Down

When you turn off the power (Shut Down), the system is fully powered off. The notebook will boot normally when switched on again.

a. If you have unsaved work or are busy, ensure that you save it to the hard disk drive or any other storage device.
b. Make sure that the storage device or media are not in use before you remove the media or device. If not done, data loss may occur.
c. Make sure that the hard disk or optical disc drive indicator light is off. If you turn off the system while either is being accessed, data loss can occur and disk damage may occur.
d. Never turn off the notebook will any program is running, as doing so may result in data loss or the program no longer working as intended.
e. The Shut Down Method is slightly different for each operating system.

For Windows 7, use the Start Menu to shut down the system. Under Windows 7, choose the "Shut Down" icon.

Chapter 2 The Booktop™ M1305 Tour

This chapter will show you the various ports and components of the M1305 and familiarizes you with the notebook. Certain parts of the notebook can be user upgraded while others are fixed and cannot be changed.

2.1 Front View

Side view of a flat electronic device with black and white casing (no visible text or symbols)

Please be careful when opening the LCD display panel. It is suggested to open it by holding the silver tip.

2.2 Rear View

Close-up of a black electronic device casing with ventilation grilles and mounting holes (no visible text or symbols)

The air vent is used as the exit port for the hot air in the system. This Vent should never be blocked and covered in any way as the system could overheat.

2.3 Top view

Icon Item Description

1 Web camera			Web camera for video communication.
2	∅	Microphone	Internal microphone for sound recording.
3 LCD display Displays computer output.
4 Speakers			Left and right speakers deliver stereo audio.
5 Keyboard			For entering data into your computer.
6 Touchpad			Touch-sensitive pointing device which functions like a computer mouse.
7 Click buttons			The left and right buttons function like the left and right mouse buttons.
8	+SMART	Fingerprint reader	Fingerprint scanner for added system security.

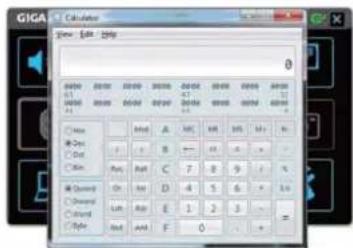

9		a). Smart Setup b). Smart Manager	a). During the off mode, press “+SMART” button to enter “Smart Setup” menu. You can choose BIOS Setup Utility, System Recovery, and other functions in this setup menu. b). In the Windows operating system, press “+SMART” button to initiate “Smart Manager”.

10 ⏻ POWER Power button Turns the computer on and off.

2.4 LED indicators

These LED lights show that stats of certain system components and their activity.

# Icon Item Description
1		Num Lock LED	Indicates the computer's embedded numeric keyboard status for numeric data input.
2		Cap Lock LED	Indicates the computer's input are all capital letters.
3		WWAN status LED	Indicates when the WWAN device is active. (WWAN module may be optional)
4		Bluetooth status LED	Indicates when the Bluetooth device is active. (Bluetooth may be optional)
5		Wireless LAN status LED	Indicates when the WiFi LAN device is active.
6		HDD status LED	Indicates when the hard disk drive is active.
7		Battery status LED	Flash when charging, and off when the battery is full.
8		Power status LED	Indicates the computer's power status.

2.5 Left view

Icon Item Description

1	Kensington lock slot	Connects to a Kensington-compatible computer security lock.
2 DC-in-jack Connects to an AC adapter.
3 Ethernet port		Connects to an Ethernet 10/100/1000 based network.
4	Headphone jack	Connects to audio line-out devices such as speakers and headphones.
5	Microphone jack	Accepts inputs from external microphones.
6 Optical disc drive		The optical disc drive is used to read and write to CD and DVD discs depending on the notebooks configuration.

2.6 Right view

Icon Item Description

1 USB2.0 port			Connects to USB devices such as USB mouse, USB printers and USB external HDD.
2	[IMAGE]	Multi card reader	Accepts Secure Digital (SD), Multi Media Card (MMC), Memory Stick (MS) and Memory Stick PRO (MS PRO).Note: Push to remove/install the card.
3	eSATA	eSATA /USB 2.0 combo port	The combo port doubles as an eSATA and a USB port allowing USB devices and external Hard Drives to be connected using just one port.

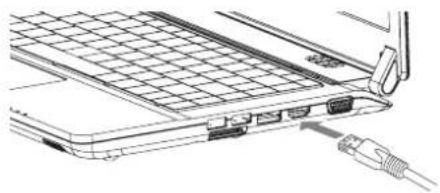

4	HDMI	HDMI port	Supports high definition digital video connections.

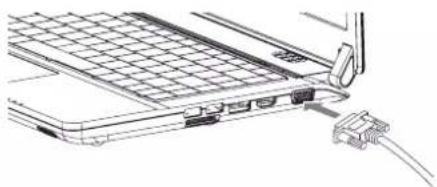

5	[IMAGE]	External display (VGA) port	Connects to a display device such as external monitor and LCD projector.

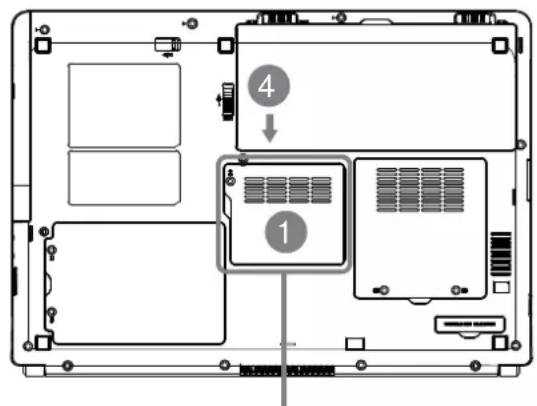

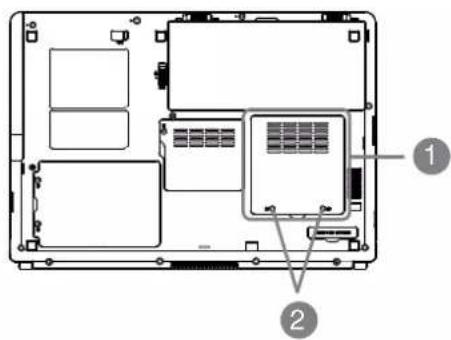

2.7 Base view

Icon Item Description

1 Docking port			Connects to the Docking station for extension function. (Docking may be optional)
2		Memory compartment	Housed the computer's main memory (secured with screws).
3		Communication Bay	Housed the computer's WiFi LAN and WWAN card (secured with screw).
4 Battery bay			Houses the computer's battery pack.
5	<0 2	Battery release latch	Release the battery for removal.
6	LOCK 1ID>	Battery lock Locks the battery in position.

7 Hard disk bay			Housed the computer's hard disk (secured with screws).
8	1	Optical disc drive lock	Locks the optical disc drive in position.
9	2	Optical disc drive release latch	Release the optical disc drive for removal.

Chapter 3 Using the Booktop™ M1305

This chapter will briefly explain the basics of using the M1305 Notebook. It will also explain any necessary precautions when using the M1305.

3.1 The M1305 Keyboard

The M1305 features a Windows Compatible Keyboard. The set language of the keyboard will depend on the region. This section is for the English Qwerty Layout Keyboard. It is compatible with a standard 104/105 Key Windows Keyboard, accessed by using specific key press combinations and the Hotkeys. The number of keys on the keyboard will also vary by language and region.

(English M1305 QWERTY Keyboard Layout)

The M1305 Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output. To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey Function Description

Fn+F1 Z^z	Sleep Puts the computer in Sleep mode.
Fn+F2	Wireless LAN	Enables/disables the Wireless LAN function.
Fn+F3	Brightness down	Decrease the screen brightness.
Fn+F4	Brightness up	Increases the screen brightness.
Fn+F5	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
Fn+F6	Touchpad toggle	Turns the internal touchpad on and off..
Fn+F7	Speaker toggle	Turns the speaker on and off.
Fn+F8	Volume down	Decreases the sound volume.
Fn+F9	Volume up	Increases the sound volume.
Fn+F10	WWAN	Enables/disables the WWAN function.
Fn+F11	Bluetooth	Enables/disables the Bluetooth function.
Fn+F12	Webcam	Turns the internal webcam on and off.

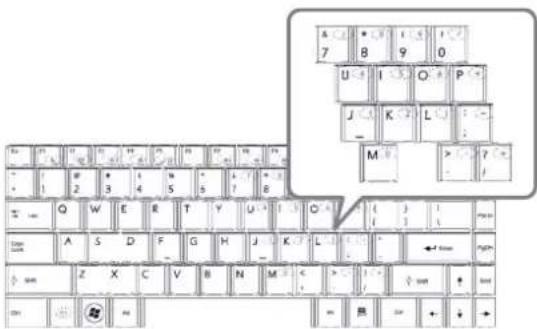

M1305 Keypad Overlay

The M1305 keyboard does not have a numeric keypad but it does have the keypad overlay so that it can function like one would. It is located as seen above towards the center right side of the keyboard. The function of each key is shown in light blue to show what it does.

Enabling The Overlay

The numeric keypad overlay acts the same way a normal numeric keypad would. To enable the numeric keypad overlay, simply hit the key.

This will enable the numeric keys and convert those keys to their blue (secondary) value. The keys will operate in this mode until the overlay is disabled by again pressing the key.

(M1305 Keypad Overlay)

Windows Keys

The M1305 keyboard has two keys that are specific to windows, namely the Windows Start Button key, which activates the Start menu.

Application key

And the Application key which acts like the right click or right mouse button.

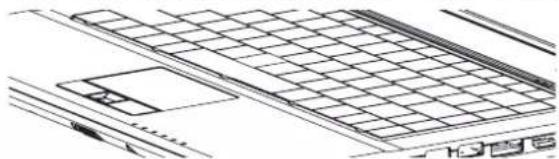

3.2 The Touchpad

The touchpad is very simple to use. It represents the mouse pointer on screen. Simply use your finger and slide it in the direction you want the pointer to move. The touchpad reads only 1 finger at a time. Do not use anything other than your finger on the touchpad.

Pure technical line drawing of a grid-patterned panel or circuit board layout without any text, numbers, or symbols

Touchpad Buttons

The touchpad has two buttons, these serve as the Left and Right side mouse buttons like those on a standard mouse. The Left button is used to select and manipulate icons, graphics, text and other items. The Right button is used to display a Context Options menu for the unit's operating system and/or programs.

In the center of the two buttons you will notice a Fingerprint Reader. We will now briefly discuss the use of the fingerprint reader.

3.3 The Fingerprint Reader

The M1305 features a fingerprint reader. It includes a Security Tool to use to store your fingerprints and use the tool for quick authentication and also remove the need for typed passwords. The Fingerprint reader allows you to:

Swipe your finger instead of typing passwords: Can be used for websites Applications, Windows Passwords.

Allows the user to protect files and folders and access to them requiring the fingerprint to decrypt and allow access.

Log into Windows, Unlock Windows and disable password based items such as Screen Saver or Sleep/Hibernation.

Method to swipe your finger(s)

Use the below steps to correctly swipe your finger and record the needed fingerprint information into the system. This will help you to ensure that you do not struggle setting up the security feature. Launch the security tool to start the process and follow all on screen prompts carefully.

Line up the finger central to the reader and at the start of the fingerprint (Not the tip of your finger, but near the first joint) and then place this section onto the reader and draw the finger back towards you, not too fast, so that the scanner can read the print. You will be notified if it is a good scan or a bad scan, and it will store once successful. It is recommended to store more than one fingerprint as a precaution; 2 to 3 Prints will be ideal. As you will see in the illustration below, it will show the ideal way to scan.

Draw finger in this direction

Avoid using the fingerprint scanner when: Your fingers are dirty or grimy, Soiled, Oily, Injured, Very Dry or Flaky, Wet, Soaked, Swollen or Wrinkled as this could damage the reader or prevent it from accurately reading the stored prints. Do not use any foreign objects on the scanner.

3.4 The Web Camera

he Web Camera is an embedded camera that is used to capture video, take still images and to do video conference calls or person to person video chat. Programs like Windows Live Messenger take advantage of web cameras, otherwise known as webcams.

Technical line drawing of a mechanical bracket or frame (no text or symbols)

3.5 Optical disc drive

The M1305 features a preinstalled DVD Super Multi Optical Writer Drive. When in use, the drive has a flashing LED in the face and will not open.

It supports a wide range media types. The drive can also support or be Dual Layer.

Supported CD Writable Formats

1 CD-R - These discs can be written on once. The data put on the disc cannot be changed or erased/deleted.
2 CD-RW -These discs can be written to more than once and can be erased. They have a limited number of erases.

Supported DVD Writeable Formats

For a Super Multi DVD Writer drive

1 DVD-R and DVD+R discs - These can only written on once. The data on the DVD Disc cannot be changed or erased/deleted.
2 DVD-RW, DVD+RW and DVD-RAM discs support being written on to more than once. They have a limited number of erases.

For a Super Multi Dual Layer DVD Writer drive

1 DVD-R, DVD+R, DVD-R (Dual Layer) and DVD+R (Double Layer) discs can only be written on once. As with other write once discs the data that is on the discs cannot be changed or erased/deleted.
2 DVD-RW, DVD+RW and DVD-RAM discs can be recorded to more than once. They have a limited number of erases.

Optical disc drive

To open the optical disc drive, press the button on the drive shown below and the drive will pop out. Pull the drive gently to extend it. Media will then need to be pressed onto the center spindle to secure the media. To close the drive simply press it closed until it clicks into place. The drive will then initialize and the disc will be read by the drive.

Line drawing of a portable electronic device with ports and buttons (no text or symbols)

Drive Release Button

1. Press the drive release button to open the drive. Pull gently once it pops open.
2. Place the disc into the center of the drive and click into place onto the round spinner section to secure the disc.
3. Close the drive to initiate reading of the disc.

Emergency Release

Line drawing of a portable electronic device with ports and cables, showing an upward arrow indicating motion (no text or symbols present)

In the event that the drive will not open, an emergency release will need to be performed. Take a thin long item, such as a paper clip and put it gently into the small hole on the side of the drive and press inwards until the units drive clicks out. This should only be performed if the drive is stuck and will not open at all using the release button or the eject command in windows.

3.6 Using a Memory Card

How To: Insert a Memory Card

To Insert the Memory Card, place the front of the card (Contacts facing down) into the card reader slot and push or click in (depending on cards format). Your operating system should auto-play the card.

Diagram of a laptop keyboard layout showing keyframe and internal components (no text or labels)

Remove a Memory Card

To remove the Memory Card, gently pull the card from the slot. Ensure that the card is not being read from or written to when removing.

Diagram of a laptop keyboard with ventilation slots and a mouse pointer (no text or symbols)

Chapter 4 The Booktop™ M1305 Specifications

4.1 The M1305 Notebook Hardware

The M1305 will be available in a number of different specifications. The listing below shows the possible configurations supported by the M1305. The actual specifications will depend on the M1305 model purchased.

Processor

Intel ^® Core ^TM 2 Duo ULV Processor
Intel® Pentium® ULV Processor
Intel ^® Celeron ^® ULV Processor

Memory

The M1305 supports 2x DDRIII Modules

Chipset

■ Mobile Intel ^® GS45 Express Chipset

Graphics

Intel® Mobile GMA 4500MHD Graphics Controller. *This graphics controller shares system memory.

Display

13.3", LED Backlight, Wide XGA - 1366x768 Framed

Hard Disk

250GB/320GB/500GB 2.5" SATA HDD

Optical Disk Drive

■ Slim-Body DVD- Super Multi Dual-Layer Drive

Bluetooth

■ Bluetooth 2.1 with EDR (Enhanced Data Rate) *Bluetooth Depends on model purchased

Ethernet, WiFi and 3.5G

■ 10/100/1000 Base-T RJ45 Ethernet
■ 802.11 b/g/n Wireless LAN
■ Built-In 3.G Antenna - Optional 3.5G Modem Mini Card

Audio

■ 2x 1.5 Watt Speakers
Internal Mic-in

Card Reader

4-in-1 Card Reader –

■ Support Secure Digital (SD)
■ Multi Media Card (MMC)
■ Memory Stick (MS)
■ Memory Stick PRO (MS PRO)

I/O Port

■ 2x USB 2.0, 1x eSATA/USB Combo
■ 1x HDMI, 1x D-sub
1x RJ45
■ Mic-in, Earphone-out
■ 4-in-1 Card Reader
DC-in Jack
- Docking Port

AC Adaptor

■ Output: 19V DC, 3.42A, 65W Input: 100\~240V AC, 50/60Hz Universal

Security

■ Kensington Lock Hole Biometric Fingerprint Reader

Dimension & Weight

■ More service information, please refer to http://www.GIGABYTE.com.tw

●●●●●●●●●●●●●●●●●●●

The above specification is for users' reference. The final configuration depends on the Booktop M1305 users bought.

4.2 The M1305 Special functions

Docking Station (Optional)

The M1305 supports the unique docking station. The docking station provided the main options to connect peripherals.

Second Battery Pack (Optional)

The M1305 supports unique second battery pack, you can dismount the optical disc drive, and install second battery pack to extend battery life.

4.3 The M1305 Quick Battery life test

How To: Test the Battery Life

The M1305 features a special function to test the life remaining in the battery. This function is tied to the secondary mouse button of the units touchpad. The below section briefly explains how to use this feature on the notebook to enable you to check the battery life of the M1305.

Locate the secondary mouse button (Right Button) and look for the small battery icon next to the button as shown below. You can then press the button in for about 3 to 5 seconds to begin the test. (The notebook needs to be off to enable the test).

Once pressed, the 6 Status LED Lights will illuminate between 1 and 6 - The more lights illuminated, the higher the battery capacity of the battery, while the less lights, the lower the capacity.

Pure technical line drawing of a bent pipe or duct with no text, numbers, or symbols

e.g. 5 out of 6 Illuminated

Simple line drawing of a device panel with a battery icon and cursor arrow (no text or symbols)

Battery status, Press here.

Abstract illustration of stylized human figures walking on curved roads (no text or symbols)

Chapter 5 The Booktop™ M1305 Utilities

5.1 GIGABYTE Smart Manager

The GIGABYTE Smart Manager is a simple utility that gives direct control of system settings to the user in a simple interface. Simple things such as turning the Wireless LAN on or off to adjusting the display brightness can be controlled from this simple yet powerful tools.

Smart Manager Introduction

Due to variations of Smart Manager versions, the interface, icons, sequence and functions might be different comparing to the guide. Please operate the Smart Manager by the version preloaded.

100% Battery Status:

Battery icon will be shows the capacity after properly install the battery. If the battery icon turns in 'red' color, it means the battery is under low power usage.

AC-in:

If the AC Adapter is plugged in, the AC-in icon turns in 'green' color.

Volume control:

Move the slider left and right to adjust the level of the volume.

Mute:

Tick or un-tick the mute button to disable or enable the sound on the M1305.

Brightness:

Click the + and - button to brighten or dim the level of the displays backlight brightness.

Display Rotation:

Tick the Display rotation button to rotate the display direction.

Bluetooth:

Tick or un-tick the Bluetooth button to enable or disable Bluetooth radio. (Optional)

WWAN:

Tick or un-tick the WWAN button to enable or disable WWAN device. (Optional)

Wireless LAN:

Tick or un-tick the Wireless LAN button to enable or disable Wireless LAN connectivity.

Camera:

Tick or un-tick the Camera button to on or off Webcam power.

Monitor Switch:

Switch to duplicate mode:

to set LCD and Video-out simultaneously mode.

Switch to computer only:

to set notebook display only.

Switch to Projector only:

to set Video-out only.

Power management selection:

Switch the Max-battery mode:

most aggressive.

Switch the Balanced mode:

normal power saving.

Switch the High performance mode:

minimal power saving.

Calculator:

Click to launch calculator application.

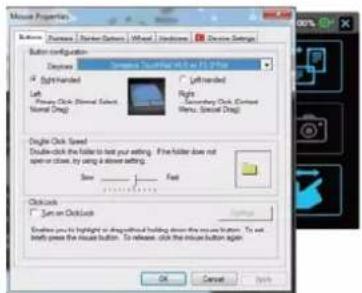

Touch pad setting:

Click to launch Touch pad device settings.

5.2 GIGABYTE Xpress Recovery

System Recovery - Restore your M1305 Operating System

The hard drive of the M1305 has a hidden partition that contains a full backup image of the operating system that can be used to recover the system in the event that something happens to the operating system.

If the hard drive is removed or the partition deleted, the recover options will no longer be available and a recovery service will be needed.

Launch System Recovery

The System Recover feature is part of the notebook installation and it ships preset from the factory. The Options menu allows you to launch the Windows Recovery tool to reinstall the operating system to factory defaults.

Below will briefly describe how to launch the Recovery Tool and to get the recovery started.

1. Turn off or restart the Notebook.
2. Turn the notebook on and press and hold the F9 key to launch the tool.

1. The recovery window will open and give you the option to "Recovery" in the toolbar. You will be prompted if you want to recovery. Click on "Recovery" to begin the repair if you do.

1. The "Recovering" Window will open and begin the recovery.

1. Once it is complete you will be prompted to reboot the notebook.

5.3 GIGABYTE Smart Setup

During the off mode, press SMART button to enter "Smart Setup" menu. You can choose BIOS Setup Utility, System Recovery, and other functions in this setup menu.

Press"BIOS Setup Utility" button to enter BIOS setup utility.

BIOS Setup Utility

Press"System Recovery" button to enter GIGABYTE Xpress Recovery.

System Recovery

Press"Continue to OS" button to enter operating system.

Continue to OS

Press"Shutdown" button to shutdown the system.

Shutdown

5.4 GIGABYTE Utility Driver Disc

The GIGABYTE M1305 Comes with a Driver and Utilities Disk should you need to reinstall any drivers, or if you are installing the operating system because it did not ship with the notebook. If the M1305 shipped with an installed operating system the drivers should be present.

Before installing drivers, check on the notebook and with the supplier as to whether they have already installed all the drivers with the operating system, if not, please follow the steps below:

1. You can find the Utility Driver CD like the one shown below: Your Driver CD might differ in look to the one below and it will have the same notebook model on the Driver CD.
2. Put the CD into the optical device. An installation screen will appear. You can then install all or the needed drivers from the interface.

Illustration of a hand holding a wrench and a key, with motion lines indicating movement (no text or symbols)

Chapter 6 Connecting Peripherals and upgrade

6.1 How To Connect USB Devices

Connect a USB Device

To connect a USB device simply line it up with the USB port on the unit and press it into the port securely. It will only go in one way because of the notching used so ensure that it is lined up correctly and do not force the USB connector into the port if it does not want to go in. USB Devices support Plug and Play and should auto discover inside the units operating system and install drivers or request drivers.

Line drawing of a laptop with a cable inserted, showing internal grid layout and port connections (no text or symbols)

Disconnect a USB Device

To remove the device, look for the Safely Remove Hardware icon on the taskbar and open the tool by double clicking with the left mouse button. Select the dive you would like to remove and click on stop, and windows will then let you know that it is safe to remove the device, and then pull the cable out of the port.

Line drawing of a laptop keyboard with ventilation slots and cable (no text or symbols)

6.2 How To Connect Displays

Connect an external Display

To insert the cable, simply line it up with the port on the side of the M1305 and press it into the port securely. Please note that the port does not have screw pin holes and the connector cannot be screwed into the M1305. Please make sure that the cable is seated firmly and securely.

Line drawing of a laptop with a cable inserted, showing internal components and wiring (no text or symbols)

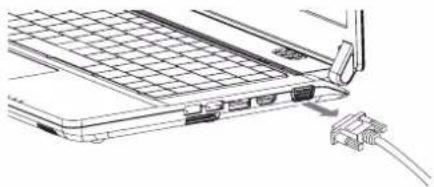

Disconnect an external Display

To remove the cable simply grab the head of the cable and gently pull out of the M1305, ensuring that the port is no longer active with a display output. DO NOT pull by the cable itself is this can damage the display cable of the monitor or projector or display device.

Line drawing of a laptop with a cable inserted, showing internal grid layout and connector (no text or symbols)

6.3 How to Connect an HDMI Display

Connect an HDMI Display

To insert the cable, simply line it up with the HDMI port on the M1305 unit and press it into the port securely. It will click lightly into place when it is inserted properly. Use the operating systems display properties to then get an image on the HDMI Output port. Depending on your configuration the HDMI port can also carry a sound signal.

Line drawing of a laptop with attached USB cable (no text or symbols)

Disconnect an HDMI Display

To remove the cable simply grab the head of the cable and gently pull out of the M1305, ensuring that the port is no longer active with a display output. DO NOT pull by the cable itself is this can damage the HDMI cable or the cables connector head as well as the HDMI port.

Line drawing of a laptop with attached cable and connector (no text or symbols)

6.4 Ethernet LAN connection

The M1305 features an RJ45 Ethernet port with an integrated LAN controller capable of operational speeds of 10Mbps, 100Mbps or Gigabit (1000Mbps), depending on configuration.

Ethernet LAN Connection

The built-in LAN controller defaults to Auto Discovery when any LAN cable is connected and will be able to operate on a Peer 2 Peer basis. If the Notebook will be part of a domain, the controller and system can. And will need to be, configured to connect to a domain network. This will need to be done by the network administrator.

The connection speed will also be determined by the cable used and the network hardware that you connect to.

For Gigabit (1000Base-T) a CAT5E (Category 5E) Cable is required For 100Mbps (100BASE-T) a CAT5 (Category 5) Cable is required

To connect to a LAN, simply take the cable and align it, contacts facing down, and push it into the RJ45 LAN port until it clicks into place.

Line drawing of a computer monitor with cable connector (no text or symbols)

To disconnect, simply push the clip arm down and pull the cable out of the port to remove it.

Line drawing of a device rear panel with cable connectors (no text or symbols)

6.5 How To Secure the Notebook

Connect a Kensington Lock

To insert the cable, simply line it up with the Kensington lock with the hole and insert. If you have the key type, turn the key in the lock direction and then remove the key to secure the lock into the hole. If you have the type that uses a combination lock, enter the combination, insert the Kensington lock, turn, and then spin the combination to random numbers to lock. Ensure the other end of the cable is secured to the desk or security lock.

Line drawing of a device with a cable and connector, no text or symbols present

Disconnect a Kensington Lock

To remove the cable simply insert the key or enter the correct combination, twist in the unlock direction and then pull the lock out of the securing hole on the M1305 Notebook.

Line drawing of a portable electronic device with cable and connector (no text or symbols)

6.6 Upgrade the Memory

To upgrade the memory of the notebook, follow the simple steps below. If you do not wish to do the upgrade yourself you can contact the M1305 supplier for assistance.

1. Locate the memory bay cover (Shown as 1) - The memory modules and slots are located below this cover.
2. Remove the 2 security screws (Shown as 2) and use a correct size screwdriver to remove them being sure not to damage the screws. lift the cover off to expose the memory. Locate the empty socket OR populated memory socket.

Diagram of a mechanical component with four slots and a base, showing rotation arrows (no text or symbols)

1. If the slot is empty, places the new or upgrade module on the slot (1) and presses it into the contacts, then you press the chip (2) down and it clips into place. (Reverse these steps to remove a module). Replace and then secure the memory bay cover.

6.7 WWAN 3G Connection

The M1305, depending on configuration, features a WWAN 3G Connection. This section will briefly explain how to install and set up the WWAN 3G unit if it did not ship with your M1305.

If you purchased the GIGABYTE WWAN 3G Module separately you should have these items in the package:

■ 1x WWAN 3G Mobile Broadband Card
1x Driver CD
■ 1x Quick Installation Guide

To install the 3.5G Mini Card please follow these steps, however if you are not comfortable doing so, please contact the supplier to install the Module for you. Ensure the M1305 is off before proceeding:

1. Remove the Comm. Bay cover shown above to reveal the Mini Card slots. There should be one open slot available.
2. Line up the 3.5G Mini Card with the slot, making sure to check the alignment of the notch, and press the card into the slot.
3. There should be an antenna plug available to plug into the Mini Card to allow for signal reception and transmission - Plug this into the port on the card. Follow the software installation steps on the next page.
4. The SIM Card slot is under the battery in the battery bay. Follow the How To Remove Battery guideline to gain access to the slot and then install the SIM Card.

2 3

Line drawing of a device rear panel with labeled ports (no text or symbols)

Chapter 7 Docking Station

This section will tell you how to connect and operate the docking station. It provides basic configuring, operations.

7.1 Features & Specifications

The extensive features of the GIGABYTE Docking Station are designed for enhanced usability and functionality and to extend the usability of M1305.

The Docking Station providing expansion, while the graphics GPU for improved graphics performance. The GPU is a fully compliant High Definition supported GPU.

Docking Station Specifications

The docking station features a number of ports and connections allowing for easy management and control of multiple peripherals. Below lists the types of connections available to the user.

Compatibility

GIGABYTE M1305 Notebook

I/O Port

6x USB 2.0
■ HDMI, DVI, D-sub
RJ45
■ Mic-in, Earphone-out
DC-in Jack

Graphics (VGA model)

■ GPU: NVIDIA® GeForce® GT 220
■ VRAM Size: DDRIII 1GB
■ D-sub Max Resolution: 2048x1536
■ DVI/HDMI Max Resolution: 2560x1600

LAN

■ 10/100/1000Base-T Compliant Ethernet LAN

Buttons

■ Power On / Off Button
■ Unplug Docking Button

Status LED

Power LED

Security

■ Kensington Lock Security Port

Dimensions

■ 357(W) x 177(D) x 45(H)mm

Weight

■ about 800g

7.2 Top View: Docking Station

The below image shows the top of the docking station. When placing the notebook into the docking station is sure to align the connection ports on the notebook and the docking station.

# Item Description
1 Air Vent	This vent is used to allow the vent on the rear of the notebook to expel the hot air from the system without restrictions from the docking station. Please be careful not to block this port.
2 Docking Port Connector	The docking port is used to interface between the notebook and the station itself allowing control and connectivity. This port is very fragile. Care must be taken when connecting and disconnecting.
3 Un-Docking	If the docked computer is on, press “Un-Docking” button to initiate the un-docking process.
4 Power Button	The Power On / Off button can switch on and shut down the attached notebook.
5 Power LED The On / Off status is shown by the LED.

The (1) Symbol in the image above shows the dipped area where the CPU Fan Vent will be aligned when docked. The section is like this to allow flow of air to the systems fan. Please ensure that this section remains free from obstruction to allow the notebook to adequately cool itself.

7.3 Rear View: Docking Station

The below image shows the rear of the docking station. All of the interface ports for peripherals are on the rear of the docking station. Please refer to the below image to see placement of the ports.

Item Description

1 Air Vent	This vent is used to allow the vent on the rear of the notebook to expel the hot air from the system without restrictions from the docking station. Please be careful not to block this port.
2 DC-In Jack	The DC Jack is used to connect power to the dock to power the ports on the station itself as well as to charge the units battery and power the graphics.
3 RJ-45 LAN Port	The LAN Port is used to connect the Docking Station and docked notebook to a wired network. The port is capable of speeds up to 1Gbps.
4 USB Ports	The Docking Station has a total of 6 available ports for peripheral connections and the ports are USB 2 Compliant (USB 2.0).
5 VGA D-Sub Port	The VGA D-Sub port is used to connect an external analogue monitor to the docking station. These can be CRT, LCD or TV Displays.

7.4 Side Views: Docking Station

The below image shows the Left and Right sides of the GIGABYTE Docking station. Please refer to the below images for reference to ports / connectors.

Left Side View

The left side of the docking station has the following:

# Item Description
1 HDMI Port	For connecting High Definition Monitors and TV's/Panels.
2 DVI Port For connecting Digital LCD Monitors.
3 Mic-In Jack For connecting an external Microphone.
4 Audio Jacks	For connecting External Speakers/Headphones.

Right Side View

Exterior view of a modern office building (no signage)

Notebook Release Arm (Ejector Switch)

The right side of the docking station has the Notebook Release Arm; this is pulled to unlock the notebook from the docking station.

7.5 Attachment

Attachment: The AC adaptor

Connect the AC adaptor to ensure that the Docking Station is powered. A number of ports on the docking station also use the power to operate. It will also enable the charging of the notebook battery pack when the unit is attached to the docking station.

The AC adaptor can be connected to any power source supplying from 100 to 240 volts and 50 or 60 hertz. This allows the AC Adaptor to work in most countries and regions.

It is recommended to use only the AC Adaptor supplied in the box with the "Docking Station and any AC Adaptor approved by the supplier. Using any other adaptor could cause damage or malfunction and might result in injury.

1. Connect the power cord to the AC adapter.
2. Connect the AC Adaptor to the DC-In Jack on the left side of the rear of the docking station.
3. Connect the power cord to the power outlet.

Attachment: The Docking Station

This section explains how to connect the notebook to the docking station. Please look at the images carefully and follow the instructions on how to connect them.

The images above show the notebook and the docking station. Please take note of the placement of the docking ports. When the notebook is placed the right way up, the docking connectors will be on the same side. Ensure that these are aligned correctly before trying to dock the notebook to the docking station.

Attachment

Please ensure that the ports are lined up and follow the instructions as below:

Line up the notebook with the docking station as shown above and make sure of the positioning. Once aligned gently place the notebook onto the docking station and press down firmly once aligned until the notebook is connected, you will hear a solid click to confirm that the notebook is then connected. The Battery light should come on to indicate that it is seated and connected properly. Ensure that the AC Adaptor is connected first before connecting the notebook to the docking station.

7.6 Attachment: Undocking the Notebook

Follow the guide below to undock the notebook from the docking station: Please follow the instructions to learn how to remove the notebook.

1. If the docked computer is on, you can initiate the undocking process by 1) Pressing the "Un-Docking" button on the Docking Station. 2) Clicking the "Un-Docking" icon in the Docking Control Gadget.
2. Pull the Ejector Level out and back until the notebook unclips from the docking station.
3. Lift the notebook off of the docking station from the back of the notebook so as not to damage the docking connector.

An alternate option to step one is to Shut Down the notebook first and the follow steps 2 and 3.

WARRING:

To avoid system crash or data loss, make sure to follow the above instruction to safely remove the computer from the Docking Station.

7.7 How to: Connect an external D-Sub Display

Connect an external D-Sub Display

To insert the cable, simply line it up with the port on the back of the dock and press it into the port securely. Tighten the two securing screws so as to ensure that the cable stays connected.

Diagram of a computer monitor rear panel showing internal ports and an external cable (no text or labels)

Disconnect an external D-Sub Display

To remove the cable simply loosen the securing screws and grab the head of the cable and gently pull it out of the dock, ensuring that the port is no longer active with a display out-put. DO NOT pull by the cable itself is this can damage the display cable of the monitor or projector or display device.

Diagram of a computer rear panel showing internal components and an external cable (no text or labels)

7.8 How to: Connect an external DVI Display

Connect an external DVI Display

To insert the cable, simply line it up with the port on the back of the dock and press it into the port securely. Tighten the two securing screws so as to ensure that the cable stays connected.

Line drawing of a device rear panel with connectors and ports (no text or symbols)

Disconnect an external DVI Display

To remove the cable simply loosen the securing screws and grab the head of the cable and gently pull it out of the dock, ensuring that the port is no longer active with a display out-put. DO NOT pull by the cable itself is this can damage the display cable of the monitor or projector or display device.

Technical line drawing of a device with ports and connectors (no text or symbols)

7.9 How to: Connect a USB Devices

Connect a USB device

To connect a USB device simply line it up with the USB port on the unit and press it into the port securely. It will only go in one way because of the notching used so ensure that it is lined up correctly and do not force the USB connector into the port if it does not want to go in. USB Devices support Plug and Play and should auto discover once detected within the operating system.

Line drawing of a rear panel with connectors and ports, no text or symbols present

Remove the USB device

To remove the device, look for the Safely Remove Hardware icon on the taskbar and open the tool by double clicking with the left mouse button. Select the dive you would like to remove and click on stop, and windows will then let you know that it is safe to remove the device, and then pull the cable out of the port. If there is no notebook installed on the docking station you will be able to pull the cable out without needing to follow the Safety Remove steps.

Diagram of a rear panel with connectors and ports, showing internal wiring (no text or labels)

7.10 How To: Connect an HDMI Display

Connect an HDMI Display

To insert the cable, simply lines it up with the HDMI port on the HDMI port on the docking station and press it into the port. It will click lightly into place when it is inserted properly. Use the operating systems display properties to then get an image on the HDMI Output port.

Line drawing of a device with ports and connectors, showing cable connection (no text or symbols)

Disconnect an HDMI Display

To remove the cable simply grab the head of the cable and gently pull out of the GRFN, ensuring that the port is no longer active with a display output. DO NOT pull by the cable itself is this can damage the HDMI cable or the cables connector head as well as the HDMI port.

Line drawing of a device with ports and cables, no text or symbols present

7.11 How To: Connect an RJ45 Ethernet LAN

The docking station features an RJ45 Ethernet port with an integrated LAN controller capable of operational speeds of 10Mbps, 100Mbps or Gigabit (1000Mbps) – When active it will override the port on connected notebooks.

Ethernet LAN Connection

The built-in LAN controller defaults to Auto Discovery when any LAN cable is connected and will be able to operate on a Peer 2 Peer basis. If the Notebook will be part of a domain, the controller and system can. And will need to be, configured to connect to a domain network. This will need to be done by the network administrator.

The connection speed will also be determined by the cable used and the network hardware that you connect to.

For Gigabit (1000Base-T) a CAT5E (Category 5E) Cable is required For 100Mbps (100BASE-T) a CAT5 (Category 5) Cable is required

To connect to a LAN, simply take the cable and align it, contacts facing down, and push it into the RJ45 LAN port until it clicks into place.

To disconnect, simply push the clip arm down and pull the cable out of the port to remove it.

Line drawing of a computer rear panel with connectors and ports (no text or symbols)

Illustration of a human head silhouette with a brain containing three question marks, symbolizing thinking or confusion (no text present)

Chapter 8 Troubleshooting / Q & A

This section will briefly cover some frequently encountered problems and questions and provide a quick guide to assist with solve these problems. Most problems can be resolved quickly, simply and easily and are not always a system problem. Should you encounter a problem that is not yet or differently listed, please consult the GIGABYTE Website or call your unit supplier for assistance?

For website assistance go to the Support section of www.gigabyte.com.tw for telephonic assistance please call the supplier of your unit or take the unit to the supplier directly for assistance.

8.1 Troubleshooting

Warning: Under the condition that you can't handle problems, please contact to your dealer to get professional assistance and service.

AC Adapter

Trouble Solution
No power supplied to Notebook	Make sure the AC adapter is well connected to the power source and Notebook.
	Check the cable and plug to make sure they are OK. If they are broken, please contact your local dealer ASAP.

Battery packr

Trouble Solution
No power supplied to Notebook	The remaining power in battery pack may be not enough to power on the machine. Connect AC Adapter to recharge it.
Can't be recharged after connecting AC Adapter	Check temperature of battery pack's surface.Battery pack can't be recharged if its temperature is too high or too low. Recharge it onlyafter its temperature is the same with the normal environment one.
	If battery pack is fully discharged, it won't be recharged at once. Please wait for a few some minutes.
	If the power indicators of the battery pack are always not lit up, its life may be over. Please contact your dealer to buy another one.

	Battery life depends on usage conditions of the Notebook. You can change the settings in the Power Manager of the OS to save power.
Battery life is not as long as it should be	Battery pack can't exert its full capacity if it works when not fully recharged frequently.Power Notebook by battery pack until its power drops to a critically low level and the machine emits a high-pitched beep or displays a warning message; after that, recharge battery packs to make battery pack work longer.

WARNING: Please pay attention to the following information regarding the battery pack:

1. Be sure to recycle the waste batteries property.
2. Do not place the batteries near high-temperature locations, fire source or in burning fire as this may cause the batteries to explode
3. Do not assemble/disassemble /modify the batteries without authorization.
4. Use the battery pack provided by the original manufacturer only. Batteries other than those supplied by the original manufacturer may damage the device.

Keyboard

Trouble Solution
Press character keys but number displayed instead of character	Check if Num Lock is activated.
Confusing display	Make sure there is no software to configure the keyboard.

WARNING: Please pay attention to the following information about keyboard maintenance.

1. Dust build-up may occur in the keyboard after long-term use. It is recommended to clean the keyboard with a small brush. Please shut down the machine before cleaning the surface of the keyboard and wipe it with a soft cloth, dipped in cleaner or water, gently.

2. In case any liquid enters the keyboard, shut off the power supply immediately, remove the batteries and contact the original manufacturer directly for repair. Do not disassemble the keyboard yourself for repair.

Hard disc drive (HDD)

Trouble Solution
HDD can't be booted	The operating system is corrupted by incorrect operation or virus. Try to clean the virus and then configure your operating system correctly.
	Maybe the documents of your OS run in error; please refer to the manual of your OS.
HDD performs very slowly	There is too much file fragment. Use disk defrag tools to rearrange the programs on the hard disk.

WARNING: Please pay attention to the following information about Hard Drive maintenance.

1. The hard disk is a high-speed data storage device. Avoid using the Notebook in unstable locations as far as possible to prevent hard disk damage and data loss.

2. Please use the computer in accordance with normal startup/shutdown procedures; improper startup/shutdown may shorten the service life of the hard disk.

LCD

Trouble Solution
The screen is blank	Press hot key Fn + F5 to change the display mode if certain external monitor is connected.
	Make sure the system isn't in the mode of Hibernation or Standby.

WARNING: Please pay attention to the below points on the mounting design of the panel for the LCD module.

1. Do not put heavy force along the edges of the active area.
2. Do not put a heavy shock or stress on the panel and film surface.
3. Do not put heavy goods on the display panel.
4. The LCD screen is the most fragile component of the Notebook and is prone to damage under external forces. Do not place any object on the keyboard or between the keyboard and the screen to prevent damage to the LCD screen.
5. When traveling with GIGABYTE Notebook, place it in a special case in a tidy manner as far as possible. Excess objects may squeeze the machine and therefore damage the LCD screen.
6. Do not touch the screen with sharp objects or fingers directly.
7. It is recommended that the LCD screen be wiped with a special screen cleaning cloth. Wipe the screen gently to avoid breakage of the screen.
8. Prevent any liquid from entering the LCD screen as this may damage the elements of the LCD screen.

Printer

Trouble Solution
The data can't be output from Notebook to printer	Make sure the printer is powered on.
	Make sure its cable is OK and its USB interface is well connected to Notebook.
Error printing	Make sure your printer is compatible with your Notebook.
	Please refer to the user's manual of your printer for help.

Audio

Trouble Solution
No sound emitted	Adjust sound controller.
	Check the setting of sound volume of software.
	Check if the ear phone is firmly connected.
	Check the Devices Manager of Windows. Be sure the Sound function has been activated and isn't interfering with other hardware.

USB

Trouble Solution
Equipments connected can't work	Check and be sure USB port of Notebook is firmly connected with the USB cord of the equipment.
	Be sure the driver of the equipment is installed correctly.

Stand by / Hibernation

Trouble Solution
Can't enter into Standby/Hibernation	Please check if the Windows Media Player is running. If Yes, the Notebook can't enter into Standby or Hibernation mode.
	Please close Windows Media Player.

LAN

Trouble Solution
Can't be connected	Be sure the RJ45 connector is firmly connected to the Network Hub or Switch.

8.2 Frequently Asked Questions

My computer switches to hibernation mode much too quickly and I have to constantly hit a key or move the mouse to bring back the screen. What can I do?
This is part of Windows Power Management. Access Power Management by clicking on Start / Control Panel / Performance and Maintenance / then Power Options, and change the time next to the "Turn off Monitor" option to the time you want. You have the choice of either adjusting time for the power supply or for the battery.
I've heard that cleaning and rearranging files on the hard drive will improve program's launch speed. How do I do this?
Good disk maintenances can improve program launch speed. This normally includes deleting unnecessary files, and defragmenting the hard disk so the files can be more efficiently grouped. Windows contains maintenance based utilities for these tasks; run Disk Cleanup to remove unnecessary files, and Disk Defragmenter to defragment fragmented file blocks. For more info on these utilities, please refer to your Windows documentation or Windows help.
What kind of external microphone can I use with my notebook computer?
- You will need to use a self-amplifying microphone.

There are echoes coming from my speakers. What can I do?
Double click on the Speaker icon on the task bar. Then, under the Microphone Balance, check the Mute box.
Because of a software problem, I was unable to shut the computer down from Windows, I pressed the power button to power off the computer, but it didn't work. How can I force a power off computer switches to hibernation mode much too quickly and I have to constantly hit a key or move the mouse to bring back the screen. What can I do?
Make sure you press the power button for at least 5 seconds. Normally, this will force the computer to shut off completely.
Why can't I charge the battery of my notebook computer after it is out of use for some time?
After your notebook computer has not been used for a long time (for example: more than one month), the battery will enter into low voltage protection mode. Under this circumstance, restoring to normal voltage will require the battery to be slowly charged for several hours. Once the battery has been fully charged, your computer will resume to normal operation sure you press the power button for at least 5 seconds. Normally, this will force the computer to shut off completely.

My computer says: "CMOS Battery Low", what should I do?

If your computer is without power (i.e. unplug the computer power source from the power outlet and remove the battery pack from it) for over 45 days, you would lose the information stored in CMOS. Please follow the steps below to reconfigure your CMOS settings:

step1. Press F2 to enter into the BIOS setup utility.

step2. Select "Load Optional Defaults?" When you see the following prompt, choose and then press .

step3. Select "Save Changes and Exit", select and press to restart your computer

How to unplug or eject devices?

1. In the notification area next to your task bar, double-click on the Safe Removal icon. Safe removal displays a list of Plug and Play devices that support safe removal and that are currently attached to the system. If you do not see the Safe Removal icon, your device does not support safe removal, and you cannot unplug or eject your device using Safe Removal.
2. In Safely Remove Hardware, in the list of devices, select the device that you want to unplug or eject, and then click on Stop. This tells the system that you will be unplugging or ejecting the device.
3. In Stop a Hardware device, click OK. A notification appears stating that it is now safe to unplug or eject the device.

Caution

- Unplugging or ejecting a device that supports safe removal without first than using the Safe Removal application to warn the system can cause data to be lost or your system to become unstable. For example, if a device is unplugged during a data transfer, data loss is likely. If you use Safe Removal, however, you can warn the system before you unplug or eject a device, preventing possible loss of data. If you use Safe Removal, however, you can warn the system before you unplug or eject a device, preventing possible loss of data.

Note

- For removable storage devices that can safely be removed while the system is on, the system disables write caching by default. It does this so the devices can be removed without loss of data. When write caching is disabled, however, the system will likely experience slower performance, so be sure to enable write caching when you have finished removing the device.

Does the M1305 provide a hardware switch or function button to enable/disable the Bluetooth function?
the M1305 provides a combined function button to enable/disable the 3.5G (Fn+F10) and Bluetooth (Fn+F11) functions.
What is the capacity of SDHC cards that M1305 can support?
The specification of SDHC that M1305 SD card reader supports shall be in accordance with that of the SD Association. Currently, the maximum capacity announced by SD Association is 32GB http://www.sdcard.org/developers/tech/sdhc/

How can M1305 BIOS be upgraded in the DOS and Windows mode?
Please refer to GIGABYTE website "How to upgrade M1305 BIOS in the DOS and Windows mode?"

8.3 Questions And Answers

Q: I can feel a mild heat next to the battery pack. Is this normal?

A: The battery will generate heat during recharging and discharging. There is a protection circuit inside the Notebook to prevent overheating. User needs not worry.
Q: My battery operation time is not as long as it should be. Why?

A: The battery is heat sensitive and can only be charged to its maximum if the battery and its environmental temperature remain within 15-25°C (59-77°F). The more the temperature deviates from this range during recharging, the less chance there is for the battery to be fully charged. In order to recharge the pack to its full capacity, users are requested to cool down the unit by unplugging the AC Adapter. Wait until it is cooled down. Then plug in the AC Adapter to start recharging again.

Q: I did not use my spare battery for a few days. Even though it was fully recharged, there wasn't as much power left as a newly charged one. Why?
A: The batteries will self-discharge when they are not being recharged. To make sure a battery pack is fully charged, recharge before use. Always keep the battery inside the Notebook and have the AC adapter connected whenever possible.
Q: I did not use my spare battery for months. I have a problem with recharging it.
A: If you happen to leave your battery pack to go through an extended period of self-discharge, say more than three months, the battery voltage level will become too low and needs to be Pre-Charged (to bring the battery voltage level high enough) before it automatically (for Li-Ion only) resumes its normal Fast Charge. Pre-Charge may take 30 minutes. Fast Charge usually takes 2\~3 hours.

8.4 the Notebook Care

Through prolonged use the Notebook might become dirty or due to some form of accident require cleaning. It may also become damaged due to travel and use. Please follow the below guideline s to care for and clean the Notebook.

Ensure to always carry your Notebook in a Handy Bag or Case so that it is protected during travel and is better able to handle any of the normal bumps, knocks and drops that occur.

Should the work surface of the notebook (Palm Rest, Touch Pad etc.) become dirty, a slightly damp cloth and certified computer cleaner can be used to clean the surface. Do not use any Household or abrasive cleaners as these can damage the surface.

To clean the LCD Panel, please use a slightly damp cloth and approved LCD Cleaner ONLY. Any form of Household or abrasive cleaner can damage the LCD Panel.

In the event that any liquid is spilled in / onto the notebook immediately switch off the machine regardless of any data that might be lost, remove the AC Adaptor if plugged in and remove the battery pack. DO NOT switch the unit back on, immediately contact the provider of the notebook to arrange to have the unit dried and checked for any kind of damage.

8.5 GIGABYTE Service Information

More service information please link to GIGABYTE official website: http://www.gigabyte.com.tw
