Product Type	Island Range Hood
Brand	Smeg
Model	KSEG120X1
Installation Type	Ceiling mounted (reinforced ceiling required)
Minimum Distance from Hob	650 mm (may be lower for some models)
Control Panel	Electronic push buttons with LED indicators
Suction Speeds	3 speeds + Intensive (10 min timed)
Lighting	Halogen lamps (replaceable)
Grease Filters	Metal, washable in dishwasher; clean when all LEDs light continuously (approx. every 2 months)
Activated Charcoal Filter	For recirculation version; not washable; replace when LEDs flash (approx. every 4 months)
Filter Saturation Alarm	Yes, for metal grease filters after 100 working hours; for charcoal filters after 200 working hours
Automatic Shutdown Delay	Yes, 30 minutes (motor + lights) via T4 button
Remote Control	Included (requires 2x LR03 AAA batteries, not supplied)
Ducting Diameter	Minimum 120 mm
Power Supply	220-240 V, 50/60 Hz (as per rating plate)
Max Power Consumption	Not specified in manual
Noise Level	Not specified in manual
Weight	Not specified in manual
Dimensions (Width)	1200 mm (inferred from model designation)
Safety Features	Class I appliance; requires earthing; two-pole switch with 3 mm contact gap
Spare Parts Available	Grease filters, charcoal filters, halogen lamps

Frequently Asked Questions - KSEG120X1 SMEG

How do I reset the filter saturation alarm after cleaning the grease filters?

After cleaning, press and hold the T1 button for approximately 2 seconds with all loads (motor and lights) turned off. The LEDs will turn off, indicating the alarm has been reset.

How often should I clean the metal grease filters?

Clean the metal grease filters when all command LEDs light up continuously, or at least once every 2 months. They can be washed in the dishwasher.

How do I replace the halogen lamps?

Open the spotlight cover, remove the old halogen lamp, and insert a new lamp with the same characteristics, ensuring the two pins are properly inserted into the lamp holder. Then close the cover.

What is the minimum distance between the hob and the range hood?

The minimum safety distance is 650 mm for most models. However, always refer to the specific installation instructions for your model and gas hob requirements.

How do I activate the activated charcoal filter alarm?

Press and hold the T4 button for 5 seconds. Two flashes of LEDs (L1-L2-L3) indicate the alarm is enabled; one flash indicates it is disabled. This should be done on installation for recirculation versions.

Can I use the remote control to operate the hood?

Yes, the hood comes with a remote control. To enable or disable it, press and hold T2 for 5 seconds with all loads off. Two flashes indicate enabled, one flash indicates disabled. The remote requires 2x LR03 AAA batteries (not included).

What does the intensive speed do and how long does it last?

Intensive speed activates maximum suction for 10 minutes. After that, the hood automatically returns to the previously set speed. It can be activated by pressing and holding T3 for 2 seconds.

How do I clean the activated charcoal filter?

The activated charcoal filter cannot be washed or regenerated. It must be replaced when all LEDs start flashing (approximately every 4 months). Remove the metal grease filters first, then replace the charcoal filters.

What should I do if the lights do not turn on?

Check if the lighting system is turned on by pressing L button. If still off, try pressing and holding L for 2 seconds to toggle reduced intensity. If not working, the halogen lamps may need replacement. Also ensure the hood is properly connected to power.

Is it safe to use the hood with a gas hob?

Yes, but ensure the room has adequate ventilation to prevent backflow of exhaust gases. The negative pressure must not exceed 0.04 mbar. Follow the gas hob installation instructions and maintain the minimum distance of 650 mm (or as specified by the hob manufacturer).

USER MANUAL KSEG120X1 SMEG

Installation instructions

Disassembly notice

Assembly instructions

Assembly instructions

RECOMMENDATIONS AND SUGGESTIONS 10

CHARACTERISTICS 11

INSTALLATION....12

USE 13

MAINTENANCE 14

TABLE OF CONTENTS

FR

CONSEILS ET SUGGESTIONS....16

CARACTERISTIQUES....17

INSTALLATION....18

UTILISATION 18

MAINTENANCE 20

TABLE OF CONTENTS

EN

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

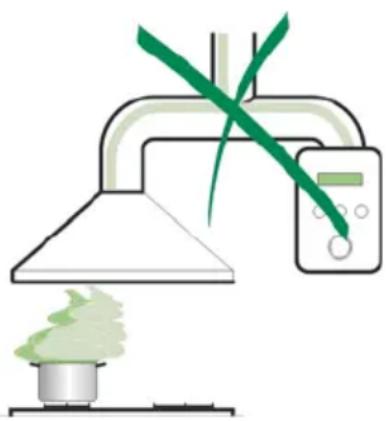

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance than specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the filters after the specified time period (fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Dimensions

Components

Ref. Q.ty Product components
- 1 Hood Body complete with: Controls, Light, Suction Unit, Filters
- 2 Reinforced ceiling
Q.ty Documents
1 Instruction and maintenance
1	Installation	instructions

Warning: do not exceed a distance of 1600 mm between the cooker hob and the hood (in this case the ceiling) to guarantee that the cooking fumes will be captured properly.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Control panel

Button	Function Led
L Turns the lighting system on and off. -
Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity.		-
T1 Turn the suction motor on and off at speed one. On.
Press and hold the button for approximately 2 seconds, with all the loads turned off (Motor and Lights), to reset the Filters and turn off the Leds that are lit.		After 100 working hours all the LEDs (L1-L2-L3-L4) will light up and remain lit to indicate saturation of the metal grease filters.After 200 working hours all the LEDs (L1-L2-L3-L4) will light up and start to flash to indicate saturation of the activated charcoal filters.
T2 Turn the suction motor on at speed two. On.
Press and hold for approximately 5 seconds, with all the loads turned off (Motor and Lights), to enable/disable the Remote control.		2 flashes, Remote control Enabled.1 flash, Remote control Disabled.
T3 Turn the suction motor on at speed three. On.
Press and hold the button for 2 seconds to activate intensive speed. This speed is timed to run for 10 minutes. At the end of this time the system will automatically return to the speed set before.
T4 Press and hold the button for approximately 2 seconds to activate automatic shutdown with a 30' delay (Motor+Lights).		On.
Press and hold for approximately 5 seconds to enable/disable the Activated Charcoal Filter alarm.		2 Flashes of the Leds (L1-L2-L3) Filter Alarm Enabled.1 Flash of the Leds (L1-L2-L3) Filter Alarm Disabled.

REMOTE CONTROL

The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type (not included).

• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.

Control panel

Button	Function Display
➊	Turns the Motor On/Off. -
-	Decreases the speed of the Motor. -
+	Increases the speed of the Motor. -
➊i	INTENSIVE- It cannot be activated if the Delay function is in use.- Activates/Deactivates Intensive speed.- Intensive speed is timed to run for 10 minutes. At the end of the 10 minutes the system will automatically return to the speed that was set before.	-
➊	DELAY FUNCTION- Activates/Deactivates the Delay function.- It cannot be activated if the Intensive function is in use.	-
➌	- Press briefly to turn the lighting system on and off.- Press and hold for approx. 2 seconds to turn the lighting system on and off at reduced intensity.	-

Metal grease filters

These can also be washed in the dishwasher, and need to be cleaned when all the command LEDs light up in a continuous manner or at least once every 2 months use, or more frequently if use is particularly intensive.

Resetting the alarm signal

- Press button T1 (see the paragraph on Use).

Cleaning the Filters

- Remove the Filters one at a time, supporting them with one hand while you pull the lever down with the other.

- Wash the Filters without bending them, and leave them to dry completely before replacing.

- Replace, taking care to ensure that the handle faces forwards.

Activated Charcoal Filter (Recirculation Version)

- This cannot be washed or regenerated, and must be changed when all the command LEDs start to flash, or at least once every 4 months.

Activating the alarm signal

- In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at a later date.

- Press and hold the Delay button (T4) on the keypad for 5 seconds and the following will be displayed:

- Leds (L1-L2-L3) flash twice – Activated Charcoal Filter saturation alarm ACTIVATED.

- Leds (L1-L2-L3) flash once – Activated Charcoal Filter saturation alarm DEACTIVATED.

CHANGING THE ACTIVATED CHARCOAL FILTER

Resetting the alarm signal

- Press button T1 (see the paragraph on Use).

Changing the Filter

• Remove the metal grease filters.
• Remove the saturated activated charcoal filters, as indicated (A). • Fit the new filters, as indicated (B).
• Replace the metal grease filters.

Lighting

Light replacement

Halogen lamps

• Open the spotlight cover.
• Remove the halogen lamp from the lamp holder.
• Replace it with another lamp that has the same characteristics, making sure that the two pins are inserted properly into the housings in the lamp holder.
• Close the spotlight cover.
