Product Type	Range Hood
Brand	German Pool
Model	P7457
Dimensions (H x W x D)	316 mm x 700 mm x 457 mm
Net Weight	13.0 kg
Power Supply	220 V / 50 Hz
Power Consumption	220 W
Lighting	2 x 10 W
Motor Speed	2,800 R.P.M.
Exhaust Flow	1,260 m³/hr
Exhaust Outlet Diameter	152 mm (6 inches)
Installation Height (above cooking range)	700 ± 50 mm
Speed Levels	Low, High, Turbo
Turbo Boost Function	Runs for 2-3 seconds before selected speed
Control Type	Button panel with indicators
Filter	Metal panel with oil collector inside
Exhaust Pipe Requirement	6-inch diameter, independent vent to outdoors
Cleaning Frequency	At least once a week
Oil Collector Capacity	Empty when more than half full
Safety Features	Must be earthed; disconnect power before cleaning; do not ignite flame under hood
Warranty	1 year full, 10 years on motor (conditions apply)

Frequently Asked Questions - P7457 German Pool

What should I do if the light does not turn on?

Check that the power plug is properly inserted. If the plug is secure, the light bulb may be defective and needs replacement. Also inspect the power cord for any disconnection.Always disconnect power before inspecting.

Why is the motor not working at all?

Common causes include a stuck impeller (fan blade), a faulty capacitor, or a damaged motor. Clear any obstructions from the impeller. If the issue persists, contact a qualified technician for repair or replacement.

What causes the range hood to vibrate excessively?

Vibration may occur if the hood is not firmly mounted to the wall or cabinet, if the motor is not secured properly, or if the impeller is damaged and unbalanced. Tighten all mounting screws and ensure the hood is level. If the impeller is damaged, it must be replaced.

How often should I clean the range hood?

To maintain optimal performance and reduce fire risk, clean the easily-soiled parts (metal panel, oil collector) at least once a week. Use a soft cloth with mild detergent, then wipe with a damp cloth. Avoid abrasive cleaners.

How do I clean the oil collector?

Open the metal panel and unscrew the oil collector located under the fan. Wash it with mild detergent, dry it thoroughly, then screw it back into place. Empty the collector when it is more than half full to prevent oil spillage.

Why is the exhaust efficiency poor?

The most common cause is the hood being mounted too high above the cooking range. The recommended installation height is 700 ± 50 mm. Also ensure that the exhaust pipe is as short as possible and free of obstructions, and that windows are not open too wide to cause air convection.

What is the correct installation height?

The range hood should be installed 700 ± 50 mm above the cooking range. A distance close to 700 mm yields the best venting efficiency.

Can I discharge the air into a flue used for gas appliances?

No. The air must not be discharged into a venting pipe used for exhausting fumes from gas or other fuel-burning appliances. It must have an independent vent to the outdoors.

What is the warranty coverage for this model?

Under normal use, the range hood carries a 1-year full warranty and the motor has a 10-year warranty from the date of purchase. Warranty registration must be completed within 10 days. The original purchase invoice is required for service.

What should I do if the fan only works at one speed?

This indicates a possible switch malfunction or circuit connection issue. The power switch or speed control circuit may need repair or replacement. Contact customer service or a licensed technician.

USER MANUAL P7457 German Pool

Line drawing of a German P90L air purifier with ventilation grilles and control panel (no text or symbols on the fan itself)

Please read these instructions and warranty information carefully before use and keep them handy for future reference.

C ∈

Please register your warranty information now!

For Warranty Terms & Conditions,

please refer to the last page of these operating instructions.

注意事項 Notice Before Use 04

產品結構 Product Structure

- M28 - P6356 / P7356 / P8356 / P9356 06

- M28 - P6457 / P7457 / P8457 / P9457 07

- M28 - P6482 / P7482 08

For safety purpose, you should read the instructions carefully before using the appliance for the first time. Save the instructions for future reference.

The appliance is designed for domestic use and may only be installed and operated in accordance with these instructions for use.

1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or any individual lacking of experience and knowledge, unless they have been given supervision or instruction.
2. Keep children away from the appliance. Do not let them use the appliance without supervision.
3. If the power supply cord is damaged, do not operate the appliance. Contact German Pool or licensed technician for a replacement immediately.
4. Disconnect the power supply before cleaning, repairing or dismantling the range hood.
5. The range hood must be earthed.
6. Connect the range hood with an independent air vent to exhaust lampblack.
7. The air must not be discharged into a venting pipe that is used for exhausting fumes from appliances burning gas or other fuels.
8. The connection opening at the top of the range hood must be connected to the exhaust pipe for exhausting fumes to the outdoors. Exhaust pipe of 6 inches in diameter should be used.
9. The appliance should be positioned 700 ± 50 mm above the cooking range.
10. Please wear safety gloves for installation, cleaning, light bulb changing and dismantling, in order to prevent injuries.

11. To protect electrical parts, do not splash or spray the range hood with water.

12. 德國寶抽油煙機抽吸力特強，大部分油煙在抽油煙機操作時已被抽出室外，故此集油器的油污量很少，請放心使用。

13. 當使用抽油煙機時，如房間內同時使用燃氣或其他能源的器具，房間必須有足夠通風。
    14.用戶必須遵照有關排放空氣的條例來安裝及使用本產品。
14. 抽油煙機易沾油污的部份之表面均須最少每星期進行清洗一次，避免油污因長時間積聚而引致火警危險。

15. 切勿在抽油煙機下直接燃點明火。

16. German Pool range hood has high venting efficiency. Most of the grease vapor will be exhausted through the air vent when the range hood is in operation. Only very little amount of residual oil will be collected in the Oil Collecting Tray.

17. There should be adequate ventilation in the room when the range hood is used along with appliances that burn gas or other fuels.
18. Regulations concerning the discharge of air have to be fulfilled.
19. To prevent fire hazard in case of oil build-up, the easily-soiled parts must be cleaned at least once a week.
20. Do not ignite a flame under the range hood.

M28 - P6356 / P7356 / P8356 / P9356

1. 摩打風箱
2. Motor Cover
3. 安装螺孔
4. Screw Hole
5. 機身
6. Body
7. 照明燈
8. Light
9. 控制面板 5. Control Panel
10. 金屬底板
11. Metal Panel
    (內附集油杯)
    (oil collector inside)

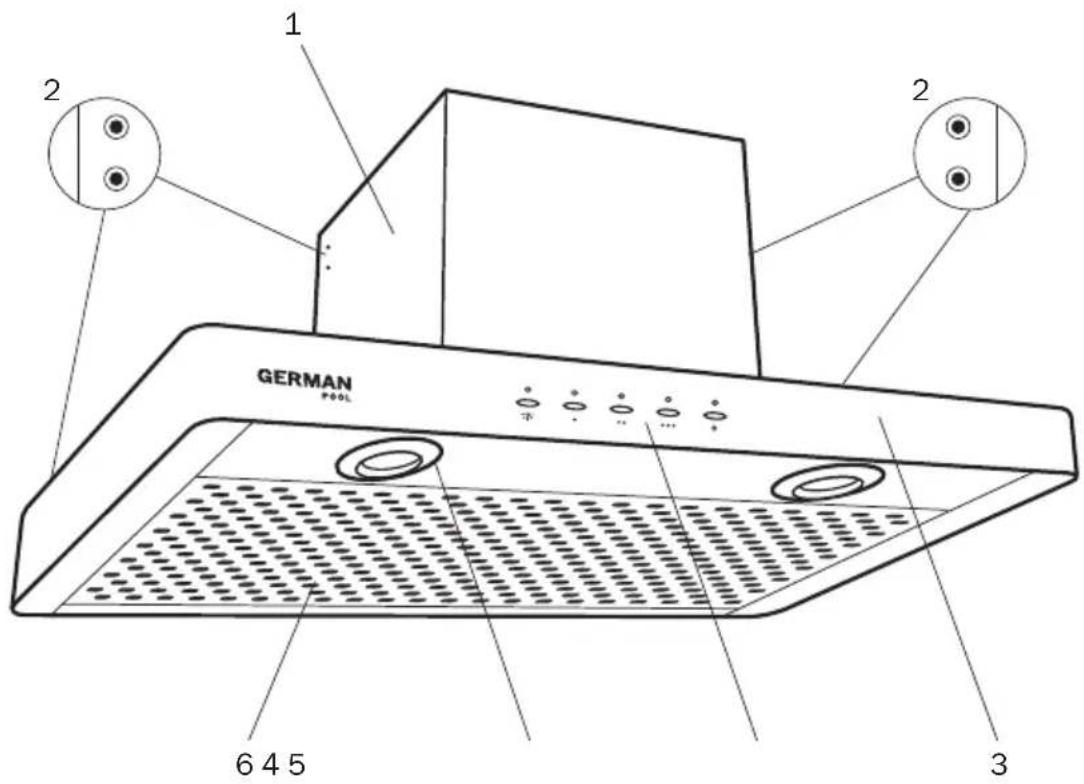

M28 - P6457 / P7457 / P8457 / P9457

1. 摩打風箱
2. Motor Cover
3. 安装螺孔
4. Screw Hole
5. 機身
6. Body
7. 照明燈
8. Light
9. 控制面板 5. Control Panel
10. 金屬底板
11. Metal Panel
    (內附集油杯)
    (oil collector inside)

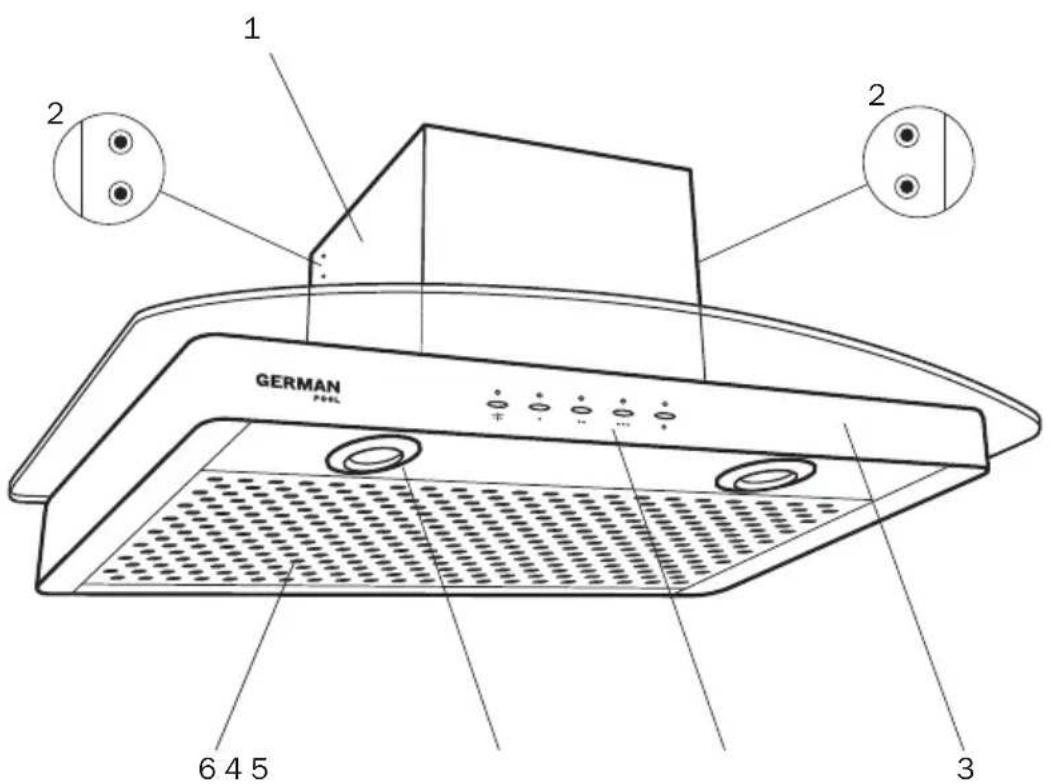

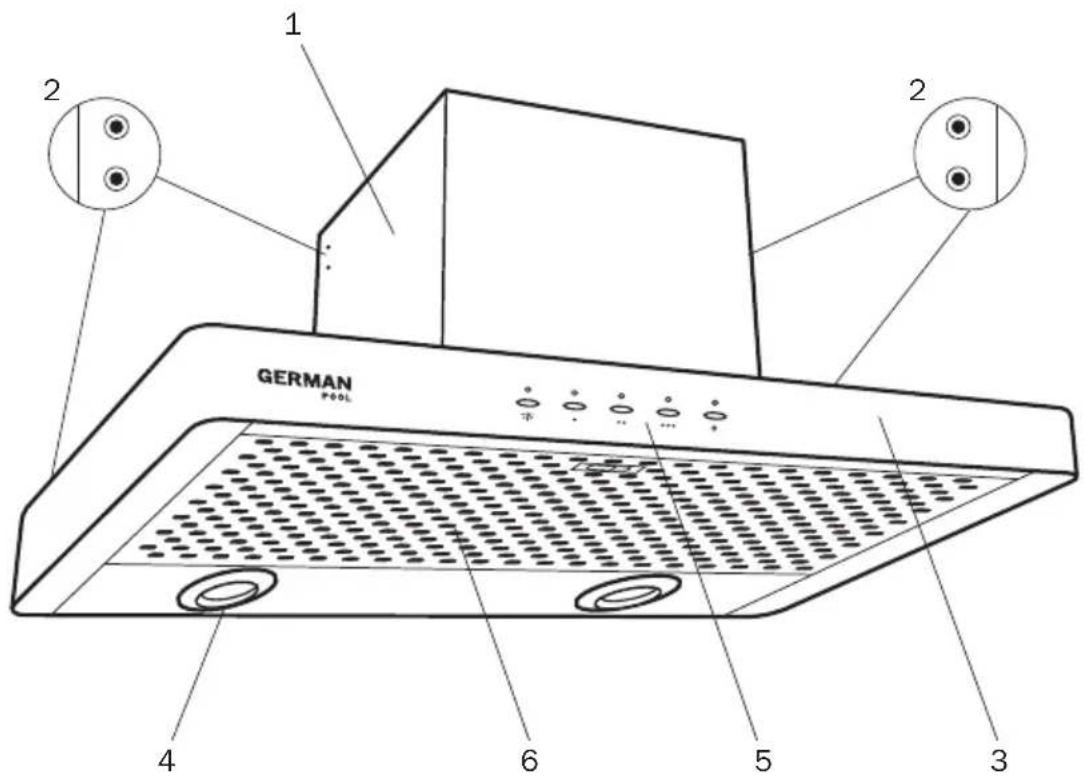

M28 - P6482 / P7482

1. Motor Cover
2. Screw Hole
3. Body
4. Light
5. Control Panel
6. Metal Panel

(oil collector inside)

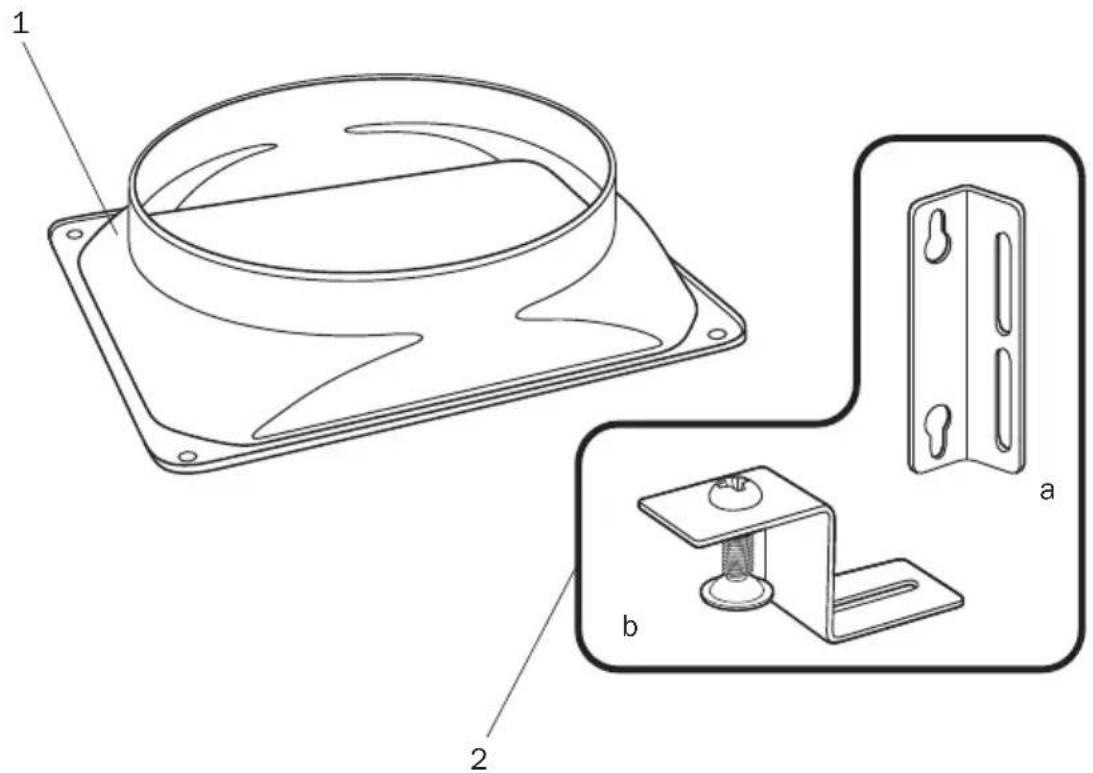

1. 風口連接山
2. 固定碼

a. 獨立式掛牆安裝用
b. 廚櫃嵌入式安裝用

1. Exhaust Pipe Connector
2. Mounting Bracket

a. for free-standing installation
b. for cabinet built-in installation

安装前注意

Pre-installation Notice

The range hood must be installed and repaired by authorized qualified technicians.

Before installation, plug in and check if all switches are functional.

Installation Environment

For efficient air extraction, avoid opening too many windows surrounding range hood for this will cause air convection which prevents cooking fumes from rising to 25 cm (the effective suction / exhaust area).

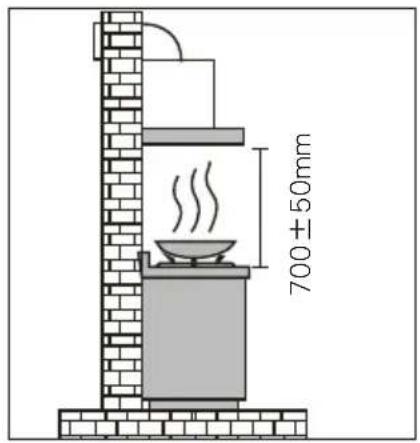

Height of Installation

The appliance should be positioned 700 ± 50mm above the cooking range. A distance that is near 700mm results in higher venting efficiency (Fig A).

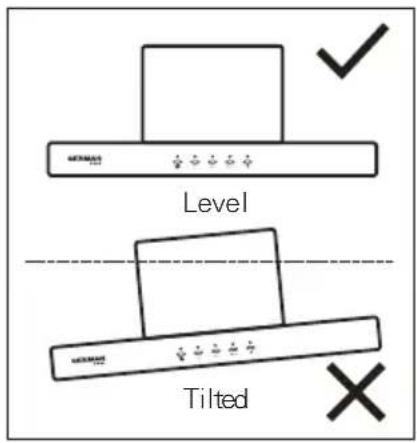

Keep the Hood Level

The installation of the hood should remain level, in order to prevent oil from spilling over from oil collectors (Fig B).

Installation Method

Drill holes in the wall according to the distance between the 2 mounting brackets and the diameter of the 2 holes on the mounting bracket. Install the anchor screws in the holes. Fix the range hood onto the screw and secure with nuts.

Length of Exhaust Pipe

The connection opening at the top of the range hood must be connected to the exhaust pipe for exhausting fumes to the outdoors. Exhaust pipe of 6 inches in diameter should be used. The length of the exhaust pipe should be minimized to avoid air turbulence inside the pipe (Fig C).

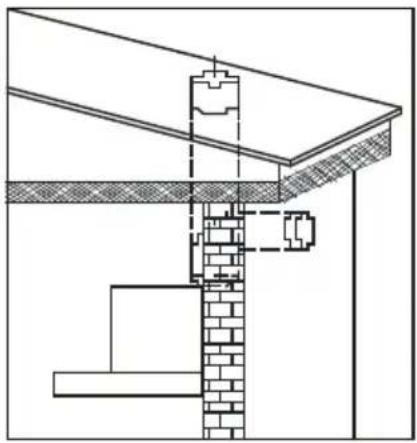

圖B Fig B圖A Fig A 圖C Fig C

Architectural cross-section diagram showing structural components with no visible text or symbols

1. The exhaust duct must be exposed outdoors.
2. There should be adequate ventilation in the room when a gas cooking range or other fuels are in use for cooking.
3. The air from the range hood must not be discharged into a venting pipe that is used for exhausting fumes from appliances burning gas or other fuels.

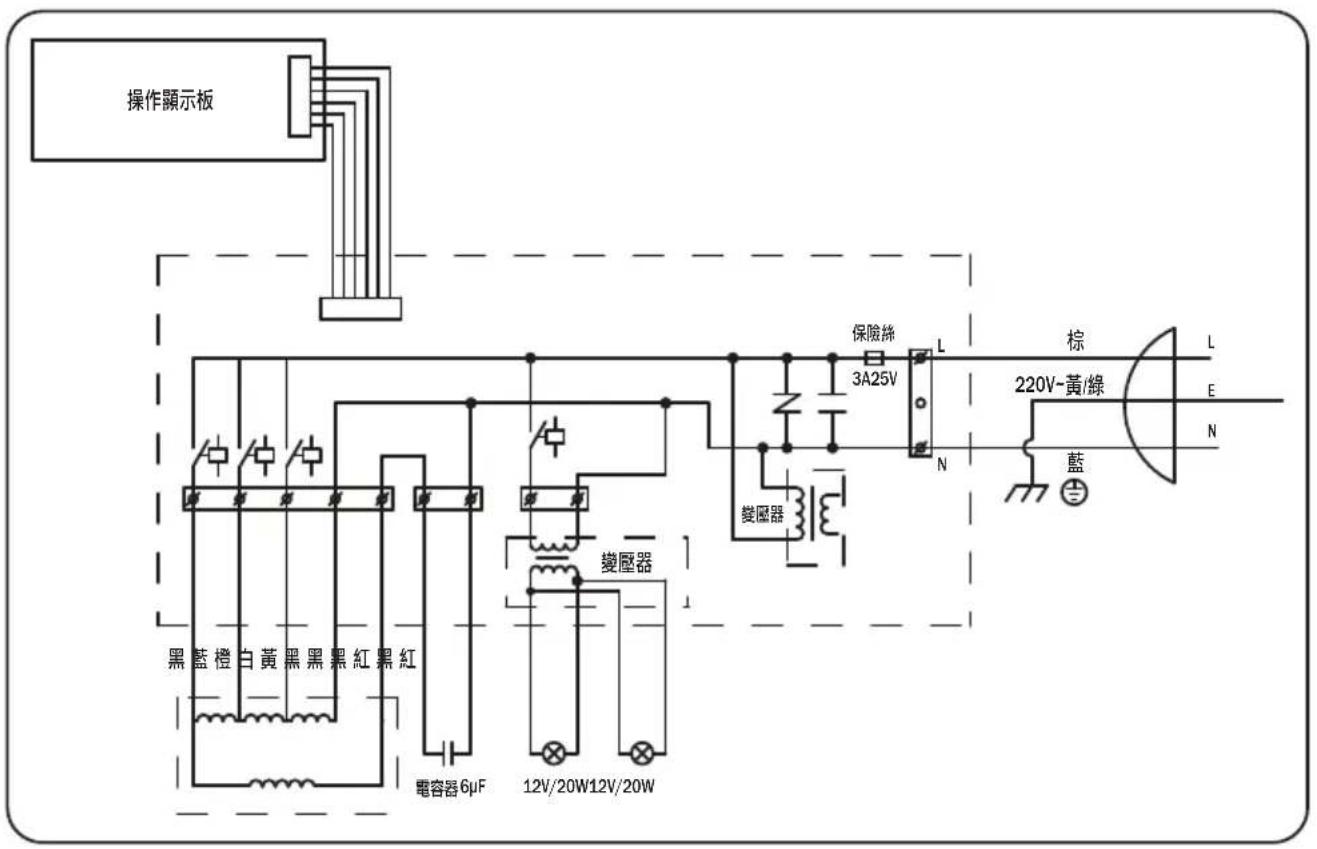

4. Ensure the electrical rating shown on the rating plate corresponds with the power supply in your house before switching on the power supply.

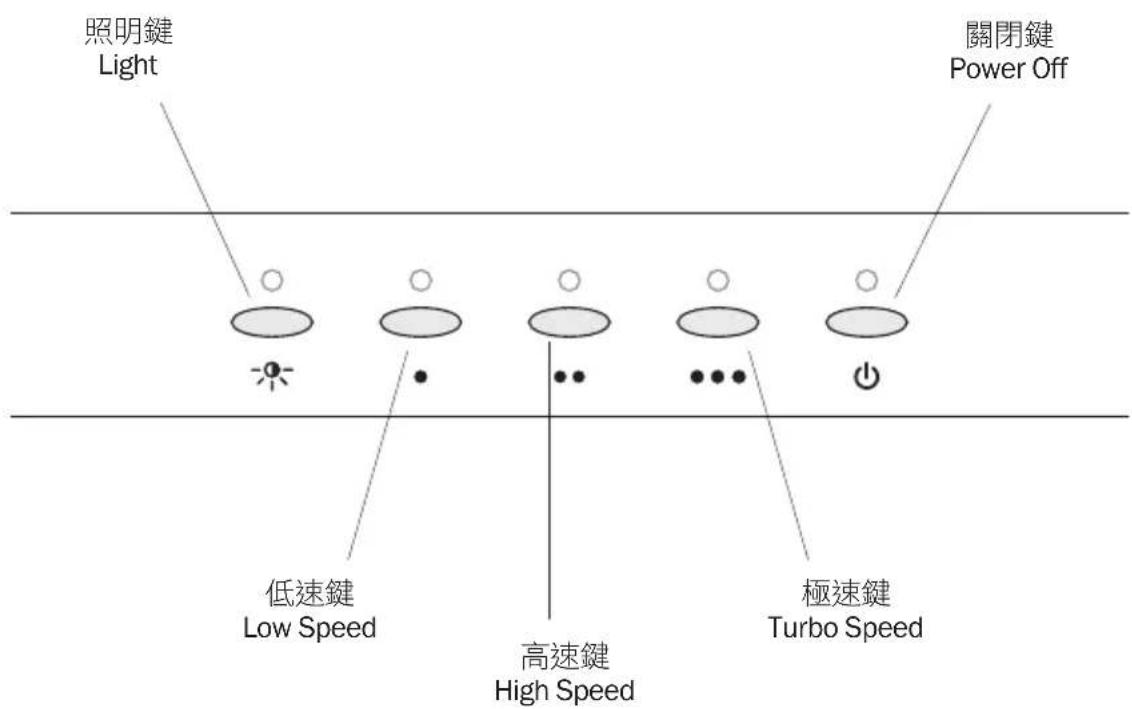

操作面板 Control Panel

1. 照明鍵

• Press this button to turn on the light. The indicator light will also be on.
• Press this button again to turn it off.

II. Low Speed ●

- Press this button to select low fan speed. The corresponding indicator light will be on.

III. High Speed ● ●

- Press this button to select high fan speed. The corresponding indicator light will be on.

IV. Turbo Speed● ● ●

- Press this button to select turbo fan speed. The corresponding indicator light will be on.

V. Power Off ⏻

- Press this button to turn off the range hood. All indicator lights will be off.

Note:

- When Low or High Speed is selected, the hood will run in Turbo Speed for 2 – 3 seconds before running at the selected fan speed. This design helps keep the hood durable.

重要事項

• To ensure the most optimum efficiency, the range hood must be cleaned at least once a week.

• There is a risk of fire if repair and cleaning of the range hood (especially easily-soiled parts) are not carried out in accordance to the instructions.

• Power plug must be disconnected before cleaning and repair.

• Use soft cloth with mild detergent to clean the surface of the hood from outside and inside each time after use and then clean with a cloth soaked with water. Avoid scraping the surface.
• Clear oil from oil collectors when they are more than half full of grease in order to avoid spilling. Open metal panel and unscrew the oil collector placed under the fan. Wash and wrap it dry. Then screw it back (Fig D).

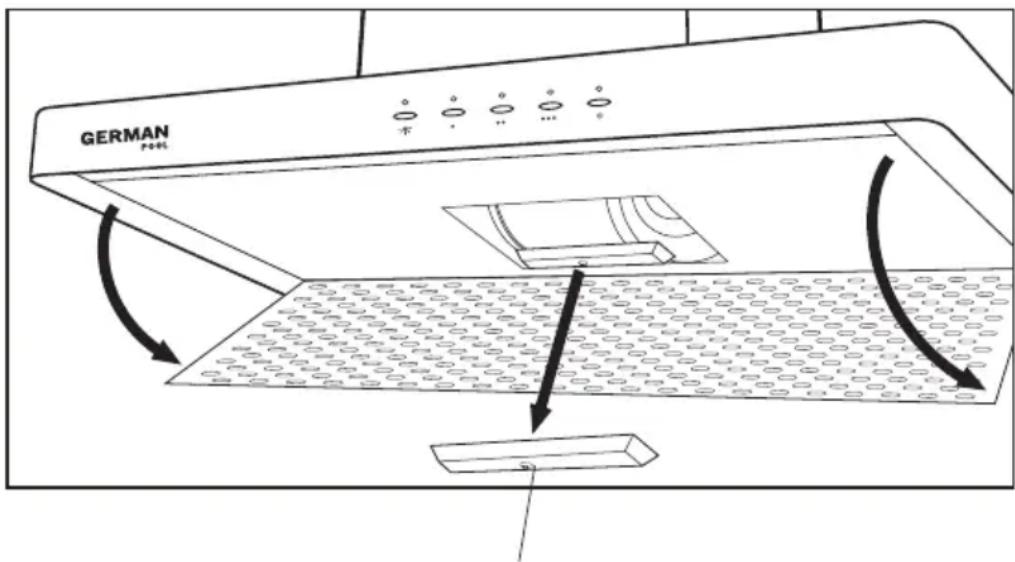

圖D Fig D

集油杯 Oil Collector

If you encounter the following common troubles, please solve according to the following instructions. If the problem cannot be solved or a cause cannot be found, please contact our customer services centre.

Note: For safety purpose, do not dismantle the product for repair by yourself.

故障現象 Phenomenon	原因分析 Possible Cause	處理方法 Solution
按下照明鍵,照明燈不運作。Press the light button, but lighting is not working.	- 電源插頭未插好- 照明燈壞- 電源線脫落或接觸不良- The plug is not inserted to the socket properly- The light is out of order- Power cord comes off and is not attached properly	- 檢查插頭,應可靠地插入插座- 更換照明燈- 維修或更換- Check whether the plug is properly plugged to the socket- Change the light bulb- Repair or replace
電機不運作。The machine is not working.	- 葉輪被卡阻- 電容器接觸不良或損壞- 電機損壞- Impeller gets stuck- Capacitor is not well connected or damaged- Motor is damaged	- 排除葉輪卡阻故障- 維修或更換- 維修或更換- Clear impeller from obstructions- Repair or replace- Repair or replace
機身震動。The hood vibrates.	- 機身懸掛不牢固- 電機安裝不牢固- 葉輪受損平衡被破壞- Not firmly mounted- Not installed securely- Impeller is damaged and becomes imbalanced	- 緊固機身- 緊固機身- 維修或更換- Secure the hood- Secure the hood- Repair or replace
選擇不同風速,但風機不運作。Fan works at one speed but not at another.	- 控制開關失靈- 轉換電路未接通- Power switch malfunction- Circuit not connected well	- 維修或更換- 維修或更換- Repair or replace- Repair or replace
抽油煙效果不好。Does not exhaust effectively.	- 機身安裝過高- The hood is mounted at a rather high position	- 降低安裝高度- Lower the installation position
型號 Model M28-P6356 M28-P7356
電壓 Voltage / 頻率 Frequency	220 V / 50 Hz	220 V / 50 Hz
功率 Power 220 W 220 W
照明燈 Lighting 2 x 10 W 2 x 10 W
摩打轉速 Motor Speed	2,800 R.P.M. 2,800 R.P.M
排風量 Exhaust Flow	1,260 m3/hr 1,260 m3/hr
排風口直徑 Exhaust Outlet Diameter	∅ 152 mm / 6” ∅ 152 mm	/ 6”
機身尺寸 Dimensions	(H) 316 mm(W) 600 mm(D) 356 mm	(H) 316 mm(W) 700 mm(D) 356 mm
淨重 Net Weight	11.5 kg 12.0 kg
專利編號 Patent No.	HK1040354	HK1040354

型號 Model M28-P8356 M28-P9356
電壓 Voltage / 頻率 Frequency	220 V / 50 Hz	220 V / 50 Hz
功率 Power 220 W 220 W
照明燈 Lighting 2 x 10 W 2 x 10 W
摩打轉速 Motor Speed	2,800 R.P.M. 2,800 R.P.M
排風量 Exhaust Flow	1,320 m3/hr 1,320 m3/hr
排風口直徑 Exhaust Outlet Diameter	∅ 152 mm / 6" ∅ 152 mm	/ 6"
機身尺寸 Dimensions	(H) 316 mm(W) 800 mm(D) 356 mm	(H) 316 mm(W) 900 mm(D) 356 mm
淨重 Net Weight	12.5 kg 13.0 kg
專利編號 Patent No.	HK1040354	HK1040354
型號 Model M28-P6457 M28-P7457
電壓 Voltage / 頻率 Frequency	220 V / 50 Hz	220 V / 50 Hz
功率 Power 220 W 220 W
照明燈 Lighting 2 x 10 W 2 x 10 W
摩打轉速 Motor Speed	2,800 R.P.M. 2,800 R.P.M
排風量 Exhaust Flow	1,260 m3/hr 1,260 m3/hr
排風口直徑 Exhaust Outlet Diameter	∅ 152 mm / 6” ∅ 152 mm	/ 6”
機身尺寸 Dimensions	(H) 316 mm(W) 600 mm(D) 457 mm	(H) 316 mm(W) 700 mm(D) 457 mm
淨重 Net Weight	12.0 kg 13.0 kg
專利編號 Patent No.	HK1040354	HK1040354

型號 Model M28-P8457 M28-P9457
電壓 Voltage / 頻率 Frequency	220 V / 50 Hz	220 V / 50 Hz
功率 Power 220 W 220 W
照明燈 Lighting 2 x 10 W 2 x 10 W
摩打轉速 Motor Speed	2,800 R.P.M. 2,800 R.P.M
排風量 Exhaust Flow	1,320 m3/hr 1,320 m3/hr
排風口直徑 Exhaust Outlet Diameter	∅ 152 mm / 6" ∅ 152 mm	/ 6"
機身尺寸 Dimensions	(H) 316 mm(W) 800 mm(D) 457 mm	(H) 316 mm(W) 900 mm(D) 457 mm
淨重 Net Weight	14.0 kg	15.0 kg
專利編號 Patent No.	HK1040354	HK1040354
型號 Model M28-P6482 M28-P7482
電壓 Voltage / 頻率 Frequency	220 V / 50 Hz	220 V / 50 Hz
功率 Power 220 W 220 W
照明燈 Lighting 2 x 10 W 2 x 10 W
摩打轉速 Motor Speed	2,800 R.P.M. 2,800 R.P.M
排風量 Exhaust Flow	1,260 m3/hr 1,260 m3/hr
排風口直徑 Exhaust Outlet Diameter	∅ 152 mm / 6” ∅ 152 mm	/ 6”
機身尺寸 Dimensions	(H) 316 mm(W) 700 mm(D) 482 mm	(H) 316 mm(W) 900 mm(D) 482 mm
淨重 Net Weight	16.0 kg	19.0 kg
專利編號 Patent No.	HK1040354	HK1040354

產品規格及設計如有變更，恕不另行通知。

Specifications are subject to change without prior notice.

中英文版本如有出入，一概以中文版為準。

If there is any inconsistency or ambiguity between the English version and the Chinese version, the Chinese version shall prevail.

Please fill out the form below. This information and the original purchase invoice will be required for any repairs.

Warranty will be invalid if information provided is found to be inaccurate or purchase invoice is not presented.

型號 Model No.: □ M28-P356 □ M28-P457 □ M28-P482

機身號碼 Serial No.: ____ 發票號碼 Invoice No.: ____

購買商號 Purchased From: ____ 購買日期 Purchase Date: ____

保用條款

Warranty Terms & Conditions

Under normal operations, the range hood will receive a 1-year full warranty and the motor therein a 10-year warranty provided by German Pool (effective starting from the date of purchase).

* This warranty is not valid until Customer's registration information is returned to and received by our Service Centre within 10 days of purchase via one of the following methods:

1) Visit our website and register online: www.germanpool.com/warranty 2) Complete all fields on the attached Warranty Card and mail it back to our Customer Service Centre along with a photocopy of the purchase invoice (Warranty Card and invoice copy will not be returned to Customer)

1. Customer who fails to present original purchase invoice will be disqualified for free warranty.
2. Customer should always follow the operating instructions. This warranty does not apply to:
3. labour costs for installation, on-site check-up, replacement of parts and other transportation costs;
4. damages caused by accidents of any kind (including transport and others);
5. casing of hood body, light bulbs, plastic parts and accessories such as oil collecting cups;

6. operating failures resulted by incorrect voltage, improper operations and unauthorized installations or repairs.

7. This warranty is invalid if:

8. purchase invoice is modified by unauthorized party;
9. product is used for any commercial or industrial applications;
10. product is repaired or modified by unauthorized personnel, or unauthorized parts are installed;

11. serial number is modified, damaged or removed from the product.

12. German Pool will, in its discretion, repair or replace any defective part.

13. This warranty will be void if there is any transfer of ownership from the original purchaser.

* Service area includes Hong Kong Island, Kowloon and New Territories only. Repairs in Tung Chung, Discovery Bay or other areas are subject to an extra service charge.
