USER MANUAL WRX-723 German Pool

Line drawing of a modern industrial air purifier unit with labeled 'GERMAN POOL' and fan controls (no text beyond label)

在使用之前請詳細閱讀「使用說明書」及「保用條例」，並妥為保存。Please read these instructions and warranty information carefully before use and keep them handy for future reference.

C €

For safety purpose, you should read the instructions carefully before using the appliance for the first time. Save the instructions for future reference.

The appliance is designed for domestic use and may only be installed and operated in accordance with these instructions for use.

1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or any individual lack of experience and knowledge, unless they have been given supervision or instruction.
2. Keep children away from the appliance. Do not let them use the appliance without supervision.
3. If the power supply cord is damaged, do not operate the appliance. Contact German Pool or licensed technician for a replacement immediately.
4. Disconnect the power supply before cleaning, repairing or dismantling the range hood.
5. The range hood must be earthed.
6. Connect the range hood with an independent air vent to exhaust lampblack.
7. The air must not be discharged into a venting pipe that is used for exhausting fumes from appliances burning gas or other fuels.
8. The appliance should be positioned 700±50mm above the cooking range.
9. Please wear safety gloves for installation, cleaning, light bulb changing and dismantling, in order to prevent injuries.
10. To protect electrical parts, do not splash or spray the range hood with water.

11. German Pool range hood has high venting efficiency. Most of the grease vapor will be exhausted through the air vent when the range hood is in operation. Only very little amount of residual oil will be collected in the Oil Collecting Tray.

12. 當使用抽油煙機時，如房間內同時使用燃氣或其他能源的器具，房間必須有足夠通風。

13. 用戶必須遵照有關排放空氣的條例來安裝及使用本產品。
14. 抽油煙機的風輪及易沾油污的部份之表面均須最少每星期進行清洗一次，避免油污因長時間積聚而引致火警危險。

15. 切勿在抽油煙機下直接燃點明火。

16. There should be adequate ventilation in the room when the range hood is used along with appliances that burn gas or other fuels.

17. Regulations concerning the discharge of air have to be fulfilled.
18. To prevent fire hazard in case of oil build-up, the Turbine Impellers and other easily-soiled parts must be cleaned at least once a week.
19. Do not ignite a flame under the range hood.

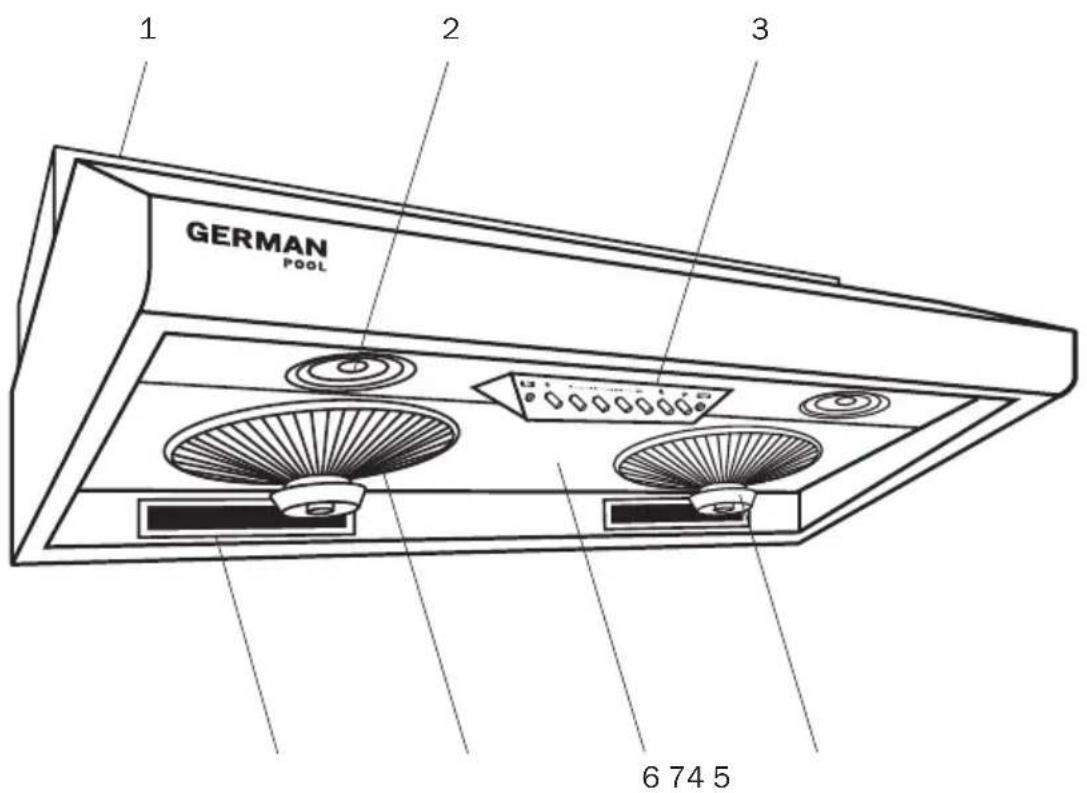

1. 上罩
2. LED燈(一對)
3. 控制面板
4. 油杯 (一對)
5. 風機(一對)
6. 底蓋

7. 防漏油杯 (一對)

8. Top Cap

9. LED Light (1 pair)
10. Control Panel
11. Oil Collector (1 pair)
12. Fan (1 pair)
13. Bottom Cover
14. Oil Collector (Small) (1 pair)

安装前注意

Pre-installation Notice

The range hood must be installed and repaired by authorized qualified technicians.

Before installation, plug in and check if all switches are functional.

周圍環境

Installation Environment

For efficient air extraction, avoid opening too many windows surrounding range hood for this will cause air convection which prevents cooking fumes from rising to 25 cm (the effective suction / exhaust area).

Height Of Installation

The appliance should be positioned 700 ± 50mm above the cooking range. A distance that is near 700mm results in higher venting efficiency (Fig A).

Length of Exhaust Pipe

The length of the exhaust pipe should be minimized to avoid air turbulence inside the pipe (Fig B).

Keep the Hood Level

The installation of the hood should remain level, in order to prevent oil from spilling over from oil collectors (Fig C).

圖B Fig B圖A Fig A 圖C Fig C

Architectural cross-section diagram showing structural layers and components (no text or labels)

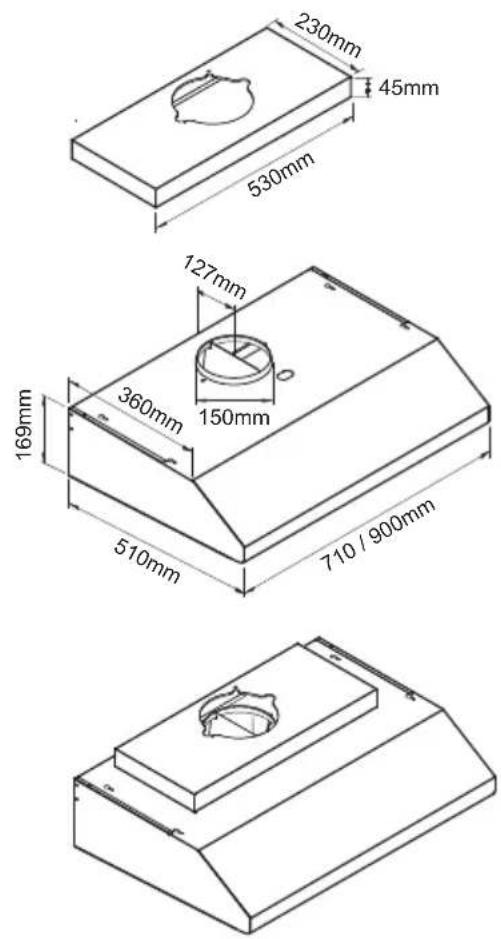

嵌入式安裝專用上罩（隨機附設）

Top cap designed for built-in installation (included)

Line drawing of a kitchen interior with overhead appliances and a double boiler (no text or symbols)

專為嵌入式安裝而設，亦可作獨立式安裝之用（比機身窄） Perfect for built-in installation, also suitable for free-standing installation (narrower than range hood)

獨立式安裝專用上罩（另供選配）

Top cap designed for free-standing installation (optional)

Line drawing of a kitchen oven with two gas burners and a coiled exhaust chimney (no text or symbols)

專為獨立式安裝而設（闊度與機身相同）
Perfect for free-standing installation (as wide as the range hood)

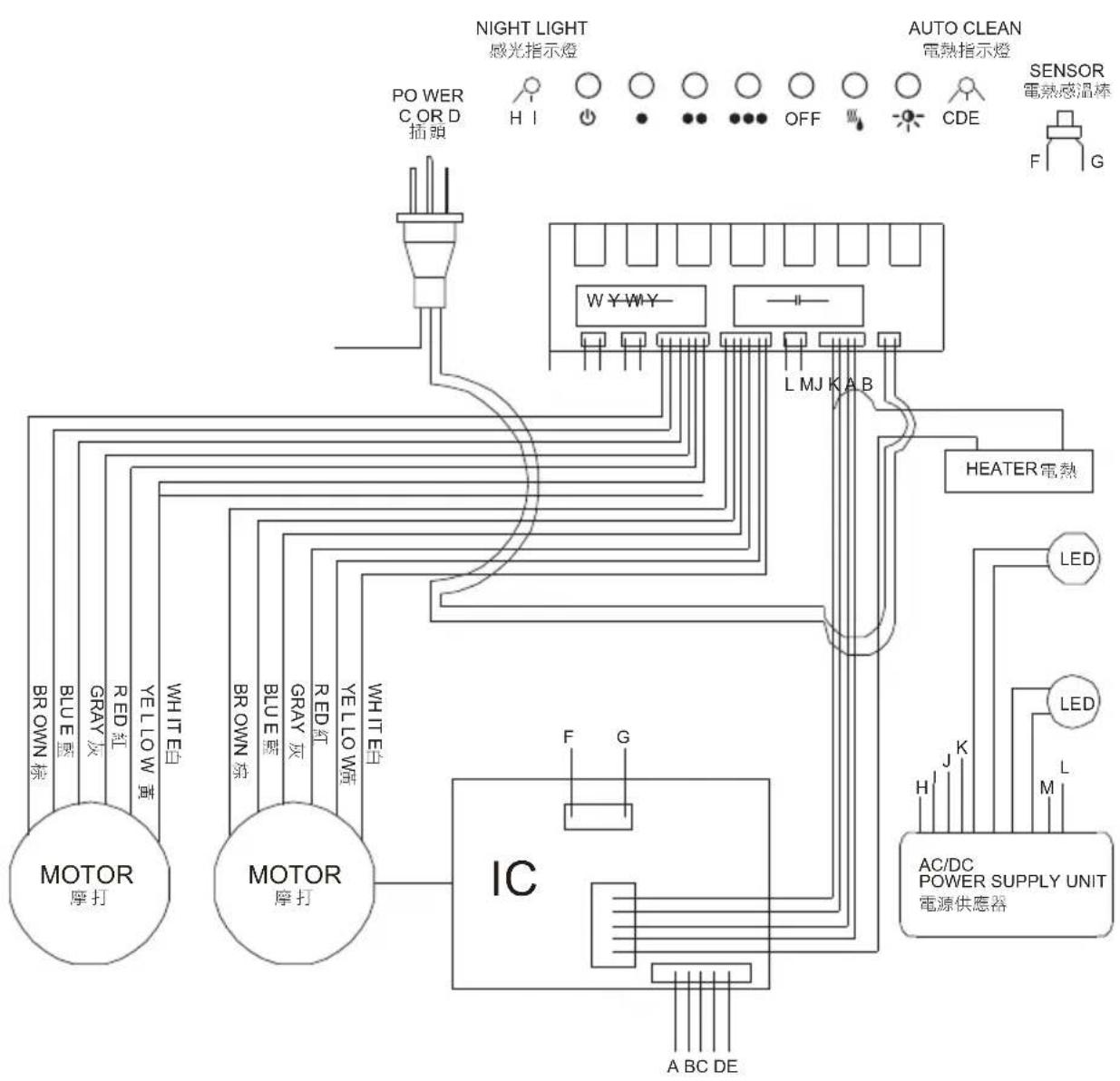


重要事項

1. The exhaust duct must be exposed outdoors.
2. There should be adequate ventilation in the room when a gas cooking range or other fuels are in use for cooking.
3. The air from the range hood must not be discharged into a venting pipe that is used for exhausting fumes from appliances burning gas or other fuels.

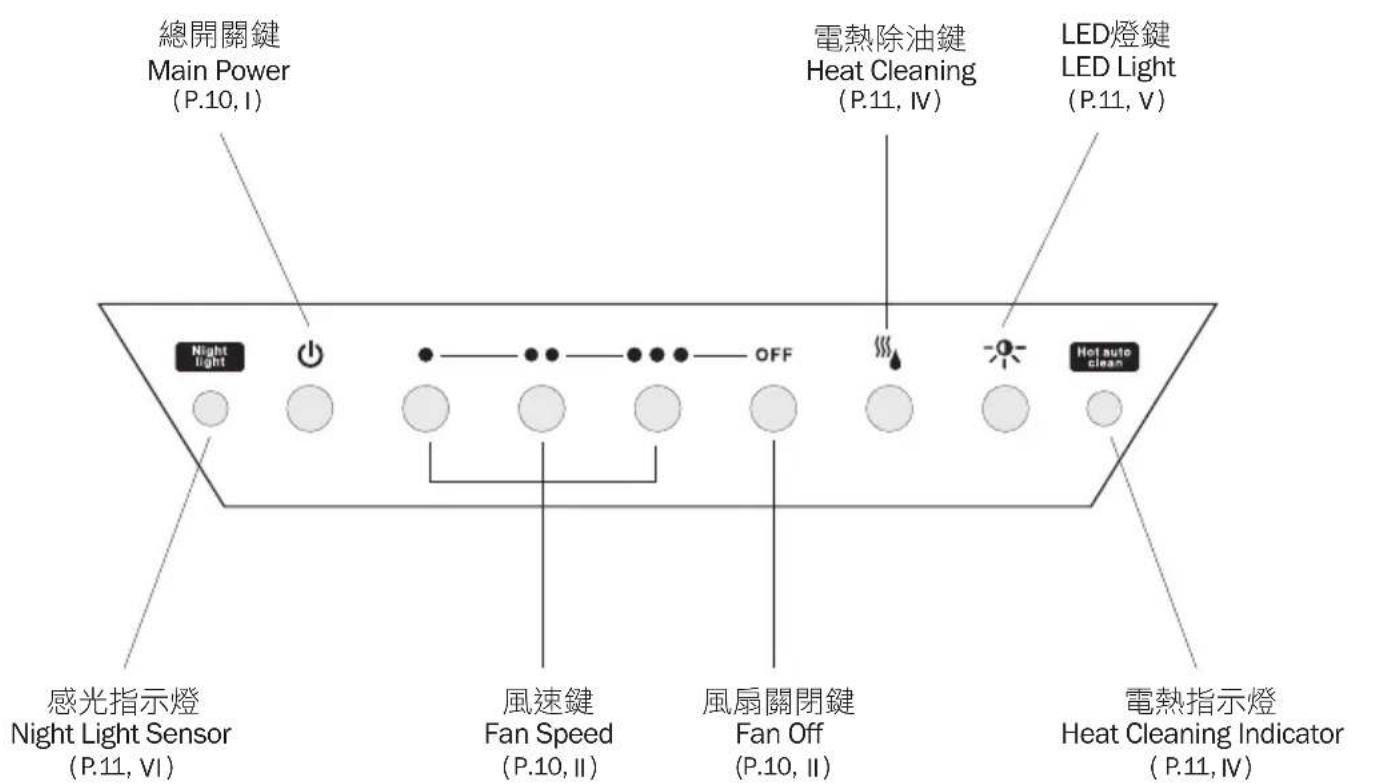

操作面板 Control Panel

• When Main Power button ⏻ is pressed, range hood enters stand-by status. All functions can be activated.
• When Main Power button ⏻ is pressed again, all functions will be turned off.

II. Fan Speed

- Select fan speed: After the Main Power button is pressed, press one of the Fan Speed buttons.

- Fan off: To turn off the fan, just press the Fan OFF button, or Main Power button.

Note: Do not press two Fan Speed buttons at the same time. It is to prevent the motor from being damaged.

III. Heat-Activated Auto Start

Note: Make sure the unit is in stand-by status for heat-activated auto start to operate.

• When the gas cooking range is working without the fan being turned on, and the air temperature under the range hood reaches 55\~60°C (130\~140°F), thermal sensor will activate the fan to run at high speed for 2.5 min automatically.
• If the cooking temperature reaches 55\~60°C (130\~140°F) again after the auto start has completed, the above function will be activated again.

Note:

• After this function has completed for once, you need to press the desired Fan Speed ●—●●—●●● if you want to keep the fan running.
• To stop this function, press the desired Fan Speed or turn off the Main Power ⏻.
• To keep this function, remain the Main Power button ⏻ on.

IV.電熱除油

Note: Make sure the unit is in stand-by status for heat cleaning to operate.

1. Press Heater button 🎨. The Heat Cleaning Indicator turns Red, indicating the heating function is on.
2. The heater will work for 15 minutes.
3. After 15 minutes, the fan speed automatically changes to operate in high speed for another 30 seconds, in order to exhaust the residue or saturated oil. During this period, the Heat Cleaning Indicator turns Green.
4. After 30 seconds, the Heat Cleaning Indicator turns Neutral. than half full of grease, in order to avoid spilling.

Note:

• If Heater button is pressed when the fan is running, the fan will return to the original speed after the heating finishes.
• If Heater button is pressed without the Fan Speed button being pressed, the fan will remain off after the grease removal programme finishes.

V. Lighting

Note: Make sure the unit is in stand-by status before turning on the LED light.

• Press the LED Light button - to turn it on.
• Press the button - again to turn it off.

VI. Automatic Night Light

Note: Make sure the unit is in stand-by status before turning on the automatic LED night light.

• When the surroundings are getting darker (or completely dark), the night light function will be automatically activated. LED will light up at 20% of its normal brightness.
• When the surroundings are getting brighter (or completely bright), the sensor will turn off the night light function automatically.
• To shut off the automatic night light function, turn off the Main Power ⏻ after cooking.

重要事項

• To ensure the most optimum efficiency, the range hood must be cleaned at least once a week.

• There is a risk of fire if the repair and cleaning of the range hood (especially the fan and other easily-soiled parts) are not carried out in accordance to the instructions.

• Power plug must be disconnected before cleaning and repair.

• Use mild detergent to clean surface of the hood each time after use.
• Clear oil from oil collectors when they are more than half full of grease, in order to avoid spilling.

If you encounter the following common troubles, please solve according to the following instructions. If the problem cannot be solved or a cause cannot be found, please contact our customer services centre.

Note: For safety purpose, do not dismantle the product for repair by yourself.

故障現象 Phenomenon	原因分析 Possible Cause	處理方法 Solution
按下開關,抽油煙機和照明燈不運作。Press the power button, but the hood and lighting are not working.	- 電源插頭未插好- 照明燈壞- 電源線脫落或接觸不良- The plug is not inserted to the socket properly- The light is out of order- Power cord comes off and is not attached properly	- 檢查插頭,應可靠地插入插座- 更換照明燈- 維修或更換- Check whether the plug is properly plugged to the socket- Change the light bulb- Repair or replace
照明燈運作,電機不運作。Lighting is working, but the machine is not working.	- 葉輪被卡阻- 電容器接觸不良或損壞- 電機損壞- Impeller gets stuck- Capacitor is not well connected or damaged- Motor is damaged	- 排除葉輪卡阻故障- 維修或更換- 維修或更換- Clear impeller from obstructions- Repair or replace- Repair or replace
機身震動。The hood vibrates.	- 機身懸掛不牢固- 電機安裝不牢固- 葉輪受損平衡被破壞- Not firmly mounted- Not installed securely- Impeller is damaged and becomes imbalanced	- 緊固機身- 緊固機身- 維修或更換- Secure the hood- Secure the hood- Repair or replace
風機一轉速能運作,另一轉速不運作。Fan works at one speed but not at another.	- 控制開關失靈- 轉換電路未接通- Power switch malfunction- Circuit not connected well	- 維修或更換- 維修或更換- Repair or replace- Repair or replace
抽油煙效果不好。Does not exhaust effectively.	- 機身安裝過高- The hood is mounted at a rather high position	- 降低安裝高度- Lower the installation position
型號 Model WRX-923 WRX-723
電壓 Voltage / 頻率 Frequency	220-240 V / 50 Hz	220-240 V / 50 Hz
功率 Power 350 W 350 W
照明燈 Lighting 3 W LED 3 W LED
傳動方式 Rotating Method	雙摩打 Twin motor	雙摩打 Twin motor
風速選擇 Speed Selection	3(極速 Turbo / 高 High /低 Low)	3(極速 Turbo / 高 High /低 Low)
摩打轉速 Motor Speed Max. 2,300±50	RPM Max. 2,300±50 RPM
排風量 Exhaust Flow	Max. 1,000±50 m3/hr	Max. 1,000±50 m3/hr
機身尺寸 Dimensions	(H) 169 mm(W) 900 mm(D) 510 mm	(H) 169 mm(W) 710 mm(D) 510 mm
排風口直徑 Exhaust Outlet Diameter	152 mm	152 mm
淨重 Net Weight	17 kg	16 kg

產品規格及設計如有變更，恕不另行通知。

Specifications are subject to change without prior notice.

中英文版本如有出入，一概以中文版為準。

If there is any inconsistency or ambiguity between the English version and the Chinese version, the Chinese version shall prevail.

Please fill out the form below. This information and the original purchase invoice will be required for any repairs.

Warranty will be invalid if information provided is found to be inaccurate or purchase invoice is not presented.

Warranty Terms & Conditions

Under normal operations, the range hood will receive a 1-year full warranty and the motor therein a 10-year warranty provided by German Pool (effective starting from the date of purchase).

* This warranty is not valid until Customer's registration information is returned to and received by our Service Centre within 10 days of purchase via one of the following methods:

1) Visit our website and register online: www.germanpool.com/warranty 2) Complete all fields on the attached Warranty Card and mail it back to our Customer Service Centre along with a photocopy of the purchase invoice (Warranty Card and invoice copy will not be returned to Customer)

1. Customer who fails to present original purchase invoice will be disqualified for free warranty.
2. Customer should always follow the operating instructions. This warranty does not apply to:
3. labour costs for installation, on-site check-up, replacement of parts and other transportation costs;
4. damages caused by accidents of any kind (including transport and others);
5. casing of hood body, light bulbs, plastic parts and accessories such as oil collecting cups;

6. operating failures resulted by incorrect voltage, improper operations and unauthorized installations or repairs.

7. This warranty is invalid if:

8. purchase invoice is modified by unauthorized party;
9. product is used for any commercial or industrial applications;
10. product is repaired or modified by unauthorized personnel, or unauthorized parts are installed;

11. serial number is modified, damaged or removed from the product.

12. German Pool will, in its discretion, repair or replace any defective part.

13. This warranty will be void if there is any transfer of ownership from the original purchaser.

* Service area includes Hong Kong Island, Kowloon and New Territories only. Repairs in Tung Chung, Discovery Bay or other areas are subject to an extra service charge.

Customer Service Centre

German Pool (Hong Kong) Limited Room 2-4, Upper G/F, Newport Centre, 116 Ma Tau Kok Road, Tokwawan, Kowloon, Hong Kong

Tel : [phone] Fax : [phone] Email : [e-mail]

Room 2-4, Upper Ground Floor, Newport Centre 116 Ma Tau Kok Road, Tokwawan, Kowloon, Hong Kong

電話 (Tel):

[phone]

[phone]

傳真 (Fax):

[phone]

[phone]

電郵 (E-mail):

[e-mail]

© All rights reserved. Copying, reproducing or using the contents of this leaflet is not allowed without prior authorization from German Pool, violators will be prosecuted.

www.germanpool.com
