USER MANUAL H9922 Fero

Technical illustration of a mechanical device with control panel and mesh casing (no visible text or symbols)

INSTALLIONS FOR INSTALLATION AND USE DIE GEBRACHS-, UND INSTALLATIONSANSWEISUNG NOTICE D.INSTALATION ET D.EMPLOI
ELECTRIC CONTACT GRILL
PS - 2010 L/R, PM - 2015 L/R, PD - 2020 L/R/M

3	DECLARATION OF A STANDARDS CONFORMITY
5	INSTRUCTION FOR USE
6	CELANING AND MAINTENANCE
7	DIE NOMENEUBEIESTIMMUNGSDEKLARATION
9	GEBRACHSANSWEISUNG:
10	DIE REINIGUING UND INSTANDSHALTUNG
11	DECILARATION DE CONFORMITE
12	MODE DE EMPLOI
13	NETTOVAGE ET ENTREITEN

CONTENT

DECARATION OF A STANDARDS COMPANY

TECHNICAL DATA

Label with technical data is placed on the back side of the device. Study the electrical diagram of connection and all following information before installation.

MODEL	SODIALS=VH2L	WATERCE (Ω)	SEVERLEWES (kPa)	WEIGHT (kg)
Ps - 2010 L	230 / 50	3 000	26 x 24	30.4 x 40.5 x 20
Ps - 2010 R	230 / 50	3 000	26 x 24	30.4 x 40.5 x 20
Pm - 2015 L	230 / 50	3 000	36.5 x 24	40.9 x 40.5 x 20
Pm - 2015 R	230 / 50	3 000	36.5 x 24	40.9 x 40.5 x 20
Pd - 2020 L	400 / 3N / 50	6 000	57 x 24	62 x 40.5 x 20
Pd - 2020 R	400 / 3N / 50	6 000	57 x 24	62 x 40.5 x 20
Pd - 2020 M	400 / 3N / 50	6 000	57 x 24	62 x 40.5 x 20

PACKING AND DEVICE CHECK

The device leaves our stocks properly packed with appropriate symbols and labels. There are also appropriate instructions for use. In case the packing shows bad handling or damage, it must be reciaimed at transporter immediately by writing and signing of a damage protocol.

Important notice:

safety elements, installation, use

• this product corresponds with valid standards • this guide must be properly deposited for future use

- Keep the country's away from manufacturers' place it is necessary to make yourself sure that the staff or professional service has got acquired with control and installation instructions from enclosed guide. When selling of moving the product to another place it is necessary to make yourself sure that the staff or professional service has got acquired with control and installation instructions from enclosed guide.

• can be use only grilling food (mainly meat).

• we recommend to have the product checked by professional service min. once a year

• by damage of break down disconnect all the teeders (water, gas, electricity) and call professional service • producer refuses any responsibility in case of damages caused by wrong installation, by disbeserving of above mentioned recommendations or by other use etc.

- safety fuse of the feeder and inner mains can stand the loading of the device (see label of the matrix) - mains are equipped with effective grounding according to standards (CSN) and conditions given by law - socket or switch of the feed is well accessible from device

PLACEMENT

The device must be installed in well ventilated room what is necessary for regulation of the function of the device.

(1) 2017. I must go by valid standard (CON....). If the device is situated close to the wall or if it is in contact with the furniture walls, these walls must resist the temperatures ranging to 30^ . The following conditions are:

operation must be done by qualified person who is competent for this and according to the valid standards.

Wrap up the device and check whether it was not damaged during transport. Settle the device on horizontal

surface (max imbalance 2°). Settle the device under the fumehood to eliminate and had, smell. The device can

be installed separately of in a set with devices of our production. Min. distance 10 cm from other subjects must be kept. It is also necessary to prevent the product from other subjects.

must make corresponding changes to secure heat izolation of combustible parts.

SAFETY MEASURES FROM THE STANDS OF THE

SAFETY MEASURES FROM THE STANDPOINT OF THE FIRE PROTECTION ACCORDING TO ČSN 061008 ČL. 21

• only adults can operate the device

- device must be safely used in common surroundings according to ČSN 332000-1

- device must be placed so as to stand or hang on the noncombustible surface. No subjects from combustible materials can be placed directly on the device or in distance which is shorter than safety distance (the subject

distance is 10 cm).

- safety distances from various materials of different degree of combustion and information about the degree of comb. of common building materials - see chart:

Chart:

Combustion degree of building materials classified according to the combustion degree of materials and products (ČSN 730823)

A noncomputable

A noncombustible B uneasily combustible

granit, sandstone, concretes, bricks, ceramic wallfacing tiles, plaster akumine, heraklite, libnos, itavere

C1 hardly combustible leafy wood, plywood, sirkoklit, rare paper formica

C3 easily combustible wood-fibreboards, polystyrene, polyurethane, PVC

Devices must be installed in a software. When installed, we can continue to use the device.

hygienic orders according to:

- ČSN 061008 fire protection of local devices and sources of heat - ČSN 332000 surrounding for electric devices

CONNECTION OF THE ELECTRIC CABLE TO THE ELECTRICITY

installation of electric feeder - This feeder must be separately protected by a safety fuse according to the specific electric stream which depends on the wattage of the installed device. Check the wattage on the label at the back of the device. Connect the device directly to the electricity but you must put the switch between the device and electric net. The switch must be placed in min. distance 3 mm between the particular contacts according to the standards and loading. The feeder of grounding (yellow-green) cannot be interrupted by this switch. In every case feeding cable must be placed so that no point of the cable will reach the temperature which is 50°C higher than the temperature of the surrounding. Before connecting the device check that:

Exterior view of a stainless steel grating machine with labeled control buttons (A, B, C, D) and no visible text or symbols on the device itself.

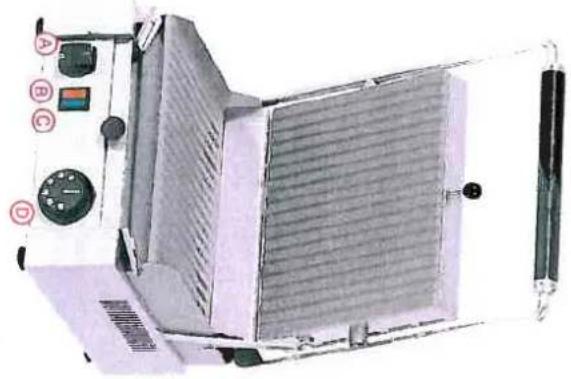

Switch on by main switch (A), turn the knob (D) and adjust required performance. Pilot lamps (B) and (C) will light. Pilot lamp (B) indicates operation of the device and pilot lamp (C) lights when the heating spirals are on. Pilot lamp (C) goes out when the device reaches adjusted temperature. Switch the device off by turning the knob (A) into position "0" and switch off the main switch (D).

INSTRUCTION FOR USE

BEFORE THE FIRST USE it is necessary to remove all the protection foil and to clean the device - see chapter "cleaning and maintenance". It is recommended to leave it function empty at the max. power for 15-20 min while keeping the room as well ventilated as possible.

We refuse any responsibility in case of not respecting above mentioned rules. Before the first use it is necessary to remove all the protection foil and to clean the device - see chapter "cleaning and maintenance".

- socket or switch of the feed is well accessible from device

Any activity connected with regulation etc. must be done only when the device is disconnected from electricity. If it is necessary to have the device connected to the electricity (during repairs) you must be very careful.

Important:

CLEANING AND MAINTENANCE

ATTENTION! The device cannot be cleaned by direct or pressure water. Clean it daily. Daily maintenance keeps

from electricity. Always switch off the main feeder to the device. Stainless parts wash with cleaning cloth and detergent without groove parts than dry it by the cloth. Do not use abrasive and corrosive detergents.

Important:

Regular maintenance done by customer includes regulation of yoke that assures stabilization of top working surfaces in open position. You can regulate the yoke with the key (part of the delivery) after removing stainless cover on the back side of the device. The cover covers shaft and yokes. Regulation is done by tighten or loosen the screw of the yoke. Eased yoke cause insufficient aretation of the top surfaces in open position and in the contrary tight yoke cause extrem resistance which can cause deformation of lengwise holders - hold top working surfaces. You must do this regulation regularly at about once in three weeks.

WHAT TO DO IN CASE OF BREAK-DOWN Switch off the electric feeder and call seller's

INDICATION

Guarantee does not cover all consumption parts succumable to common wear (rubber seals, bulbs, glas and plastic parts etc.). The guarantee does not refer to the devices which were not installed in correspondence with instructions - by qualified worker, in confirmity with standards and when somebody handled incompetently the device (interventions into inner equipment) or the device was operated by nonqualified staff or at variance with instructions for use. Guarantee does not also cover the damages caused due to influence of nature or other outer intervention.

Exterior view of a stainless steel grating machine with labeled control buttons (A, B, C, D) and no visible text or symbols on the device itself.

GEBRAUCHSANWEISUNG

Vorsicht!

DÉCLARATION DE CONFORMITÉ

Exterior view of a stainless steel grating with open lid and control buttons (no visible text or symbols)

RÉPARATIONS ET ENTRETIEN

PM-2015, PS-2010
WIRING DIAGRAM / SCHALTPLAN / SCHEMA DU ELECTRIGUE

1	TERMINAL BOARD	KLEMSMERIT	BORNS ARRIVE LIGNE
2	MAIN SWITCH	HAUPTCSHALTR	INTERAVETER PRINCIPAL
3	ORANGE CONTROL LIGHT	ORANGE KONTROLAMPE	ORANGE VERT
4	THEMOSTAT	THEMOSTAT	THEMOSTAT
5	GREEN CONTROL LIGHT	ORANGE KONTROLAMPE	VOYANT VERT
6	TERMINAL BOARD	ANSHLUBSRETT	BORNS ARRIVE LIGNE
7	HEATING ELEMENT	HEIZELEMENT	RESISTANCE DE CHAUFAGE
8	SAFETY THEMOSTAT	THEMOURSICHERUNO	THEMOSTAT O.ASSURANCE

PD-2020
WIRING DIAGRAM / SCHALTPLAN / SCHEMA DU ELECTRIOUE
