USER MANUAL ALX2-36CD Alfresco

Open Air Culinary Systems

Alfresco ALX2-36CD - 1


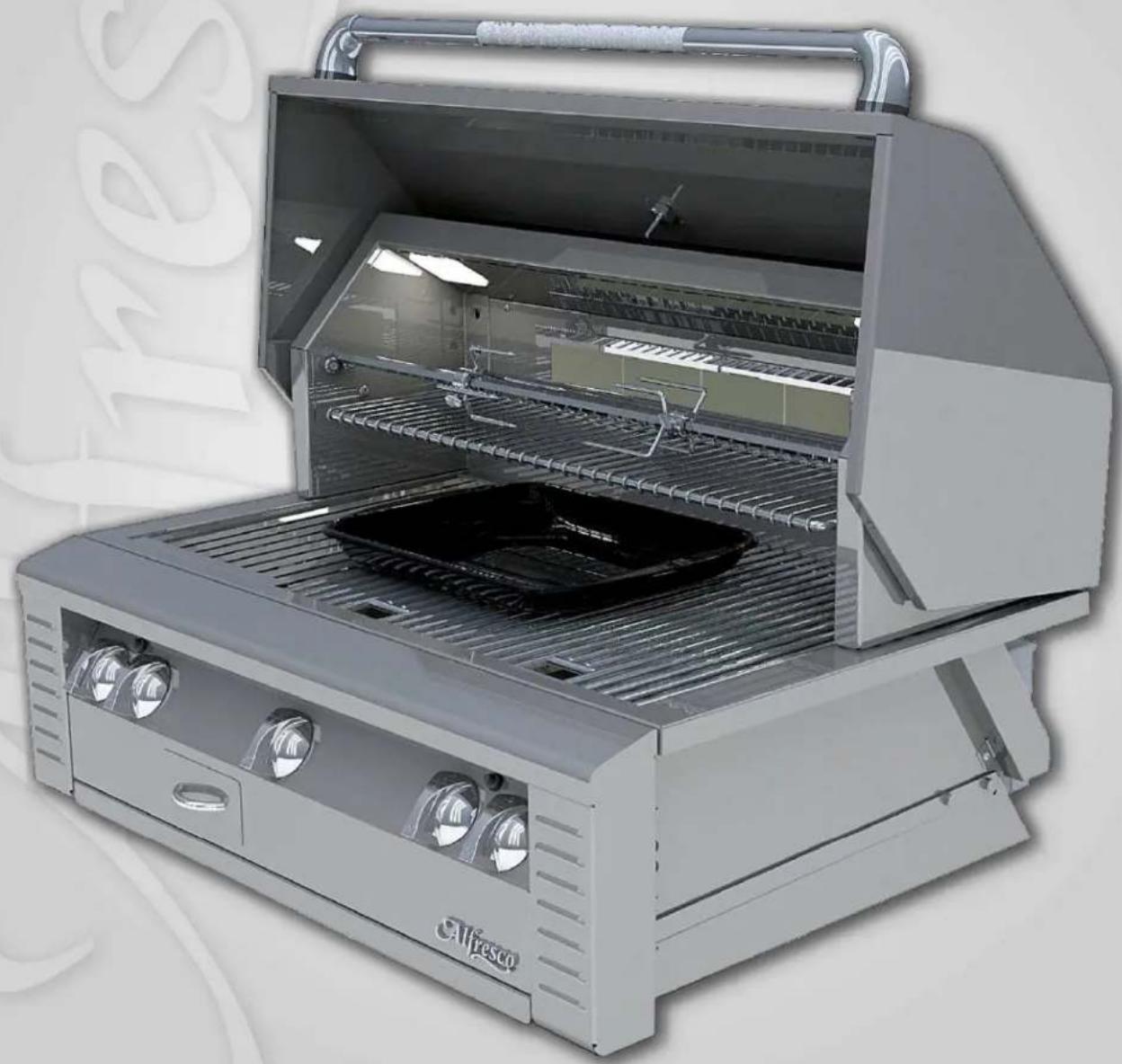

Exterior view of a multifesa grill with open grating and black interior (no visible text or symbols)

ALX2-36 / 36SZ Parts Manual

For models S/N: 11-00000 forward.

BILL OF MATERIAL

NO.	PART #	DESCRIPTION	QTY
1	100-1877	ALX2 - ROTISSERIE CHAIN COVER	1
2	200-0057	SCREW 1/4-20 X 1/2 - TRUSS HEAD - PHILPS	12
3	200-0087	WASHER - 1/4" SPRING LOCK- REGULAR - SS	9
4	200-0089	BOLT - HEX HEAD 1/4-20 x 1/2" L	5
5	200-0093	WASHER - PUSH LOCK 1/8" ID X 3/8" OD (LOGO)	2
6	200-0111	SCREW 8-18 X 1⁄2 - SELF TAP - 410 SS	2
7	200-0219	HEX HD MACHINE SCREW 1/4-20 UNC X 5/8 LONG SS	4
8	200-0244	WASHER, FLAT 1/4 TYPE B - REGULAR, SS	4
9	290-0031	LOGO - ALFRESCO	1
10	290-0038	BURNER - GRILL - "U" SHAPE	3
11	290-0052	ALFRESCO SEAR ZONE ^TM BURNER ASSEMBLY	1
12	290-0059	ROTISSERIE DRIP PAN	1
13	290-0096	FORK ASSEMBLY	2
14	290-0116	CHAIN - ANSI # 25 - 1⁄4" PITCH - .13" ∅ X 1/8" ROLLER	1
15	290-0347	ALX2-36 WARMING RACK - SS	1
16	290-0348	GRILL ALX2-36 BBQ - 10-7/16" WIDE - SS	3
17	290-0349	SPEAR - ROTISSERIE - ALX2-36	1
18	510-0131	ALX2-36 - GAS MANIFOLD ASSEMBLY	1
19	510-0504	ALX2 - SMOKER BURNER ASSEMBLY	1
20	510-0660	ALX2-36 BBQ - FIRE BOX ASSEMBLY	1
21	510-0663	ALX2-36 - FRONT PANEL MAIN ASSEMBLY	1
22	510-0665	ALX2-36 - BACK HOOD WITH RIM ASSEMBLY	1
23	510-0668	ALX2-36 - FRONT HOOD - MAIN ASSEMBLY	1
24	510-0670	ALX2-36 - SMOKER TRAY ASSEMBLY	1
25	510-0671	ALX2-36 - GREASE TRAY ASSEMBLY	1
26	510-0676	ALX2-36 - SEARZONE ^TM GRILL ASSEMBLY	1
27	510-0677	ALX2-36 - BRICKETTE TRAY ASSEMBLY	3

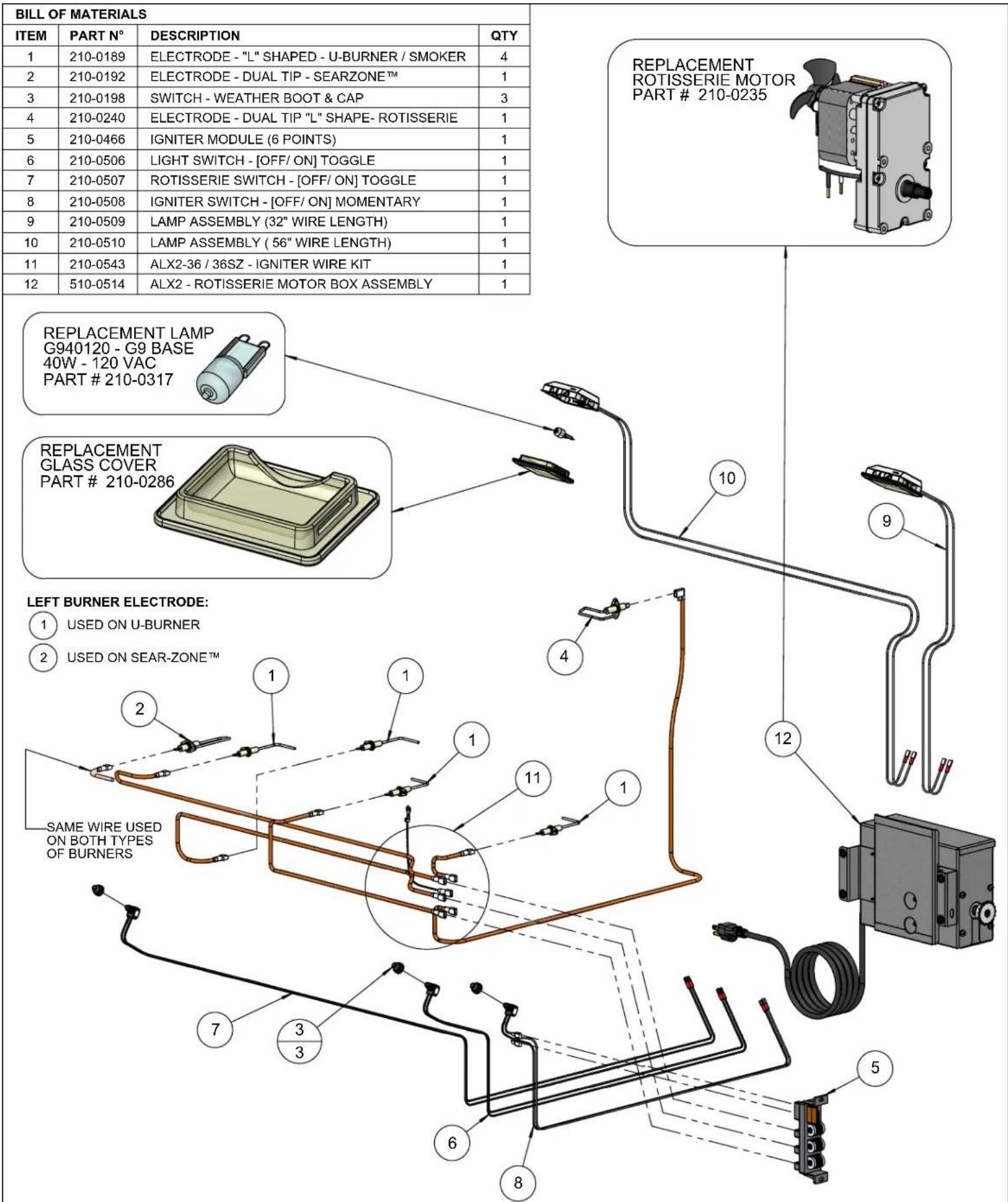

28	510-0678	ALX2-36 / 36SZ - ELECTRICAL COMPONENTS	1

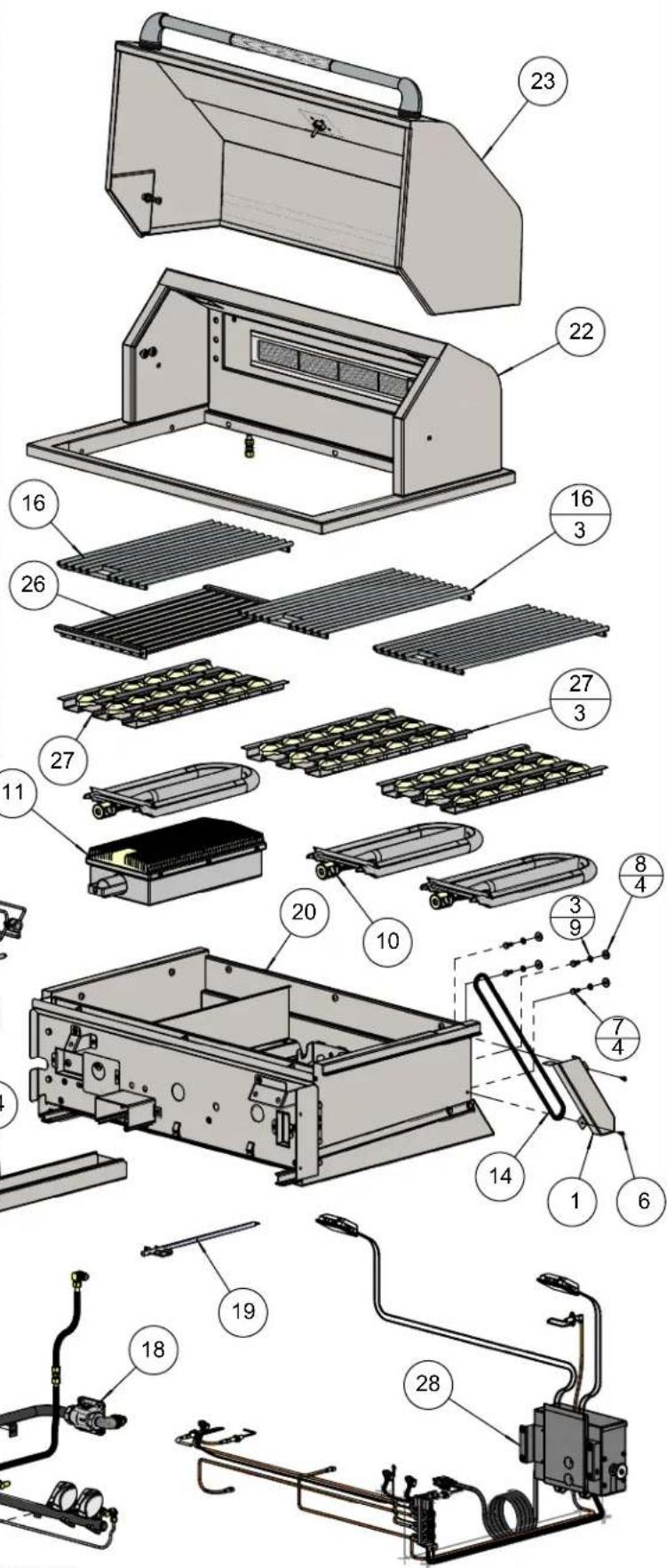

Exploded view diagram of an industrial machine with numbered components for identification

NOTE:
SEARZONE™ BURNER 11 AND GRILL 26 USED ON ALX2-36SZ
OTHERWISE ONLY BURNER 10, GRILL 16 AND BRIQUETTE 27 USED ON ALX2-36.

Alfresco ALX2-36CD - 3
SUPERIOR EQUIPMENT SOLUTIONS 7039 EAST SLAUSON AVENUE COMMERCE, CA. 90040
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION FROM SUPERIOR EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY: ADRIAN CRISCI
CREATED: 1/23/2012 1:55:37 PM
PROJECT TITLE:
ALX2-36 / 36SZ
DRAWING TITLE:
ALX2-36 / 36SZ UNIT - BUILT IN
DRAWING NO 500-0105 MANUAL
SHEET 1 OF 1

BILL OF MATERIAL

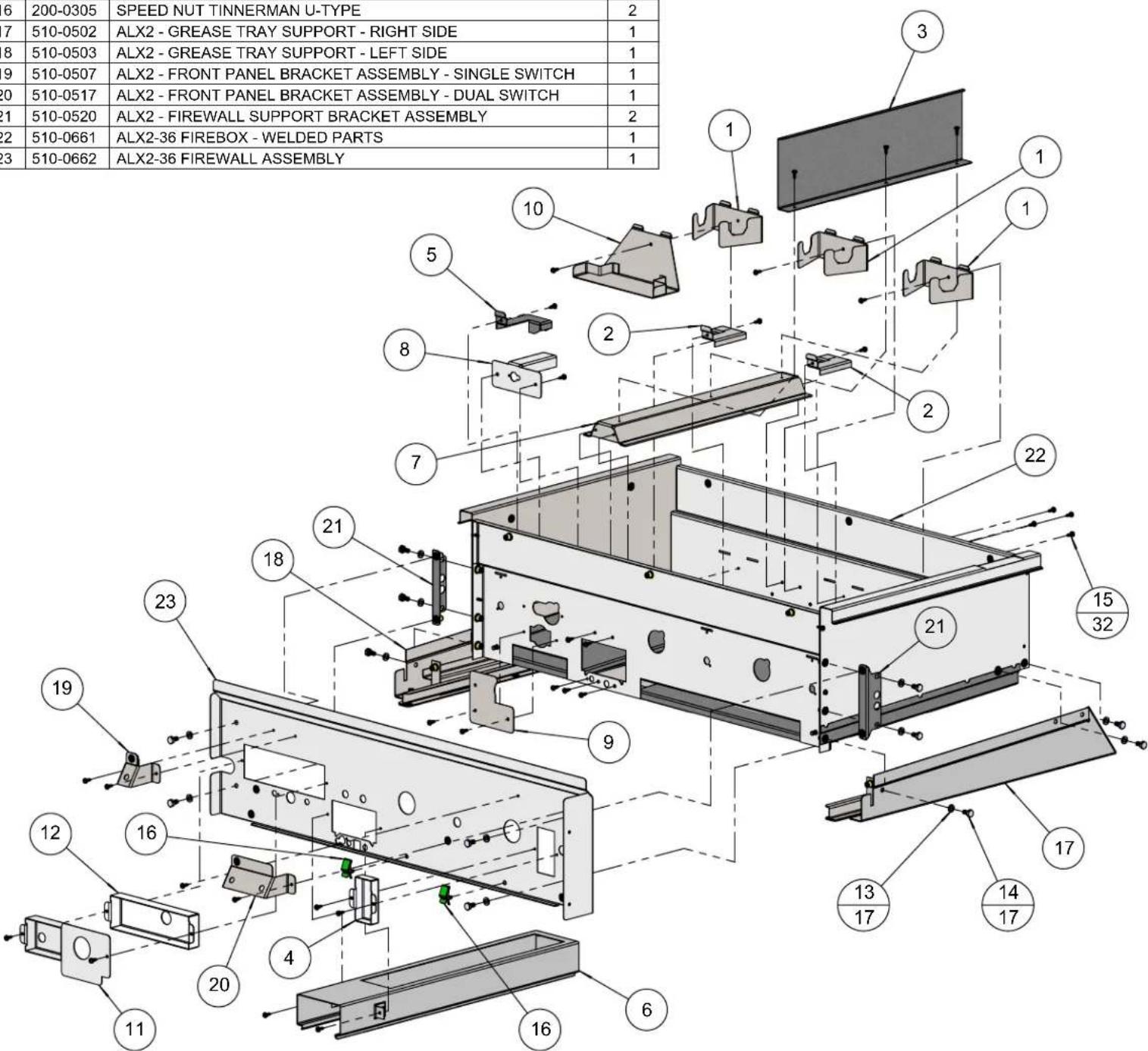

NO.	PART #	DESCRIPTION	QTY
1	100-1846	ALX2 - U-BURNER BRACKET	3
2	100-1848	ALX2 - IGNITER SHIELD	2
3	100-1866	ALX2 - SEAR-ZONE BURNER SHIELD	1
4	100-1888	ALX2 - SINGLE VALVE FIREWALL COVE	1
5	100-2202	ALX2-36 - IGNITER SHIELD - LEFT SIDE	1
6	100-2204	ALX2-36 - SMOKER BOX BODY	1
7	100-2205	ALX2-36 SMOKER BOX TOP DIFUSSER	1
8	100-2210	ALX2-36 - SEAR-ZONE IGNITER BRACKET / SHIELD	1
9	100-2211	ALX2-36 - SEARZONETM OPENING FIREBOX COVER	1
10	100-2212	ALX2-36 - SEAR-ZONETM BURNER BRACKET	1
11	100-2213	ALX2-36 - DUAL VALVE FIREWALL COVER FOR U-BURNER	1
12	100-2214	ALX2-36 - DUAL VALVE FIREWALL COVE	1
13	200-0087	WASHER - 1/4" SPRING LOCK- REGULAR - SS	17
14	200-0089	BOLT - HEX HEAD 1/4-20 x 1/2" L	17
15	200-0111	SCREW 8-18 X 1⁄2 - SELF TAP - 410 SS	32
16	200-0305	SPEED NUT TINNERMAN U-TYPE	2
17	510-0502	ALX2 - GREASE TRAY SUPPORT - RIGHT SIDE	1
18	510-0503	ALX2 - GREASE TRAY SUPPORT - LEFT SIDE	1
19	510-0507	ALX2 - FRONT PANEL BRACKET ASSEMBLY - SINGLE SWITCH	1
20	510-0517	ALX2 - FRONT PANEL BRACKET ASSEMBLY - DUAL SWITCH	1
21	510-0520	ALX2 - FIREWALL SUPPORT BRACKET ASSEMBLY	2
22	510-0661	ALX2-36 FIREBOX - WELDED PARTS	1
23	510-0662	ALX2-36 FIREWALL ASSEMBLY	1

NOTE:

BRACKETS USED ON ALX2-36 MODEL ONLY:

1 2 5 9 11

BRACKETS USED ON ALX2-36SZ ONLY:

1 2 3 10 8 12

Alfresco

SUPERIOR EQUIPMENT SOLUTIONS 7039 EAST SLAUSON AVENUE COMMERCE, CA. 90040

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION FROM SUPERIOR EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.

DRAWN BY: ADRIAN CRISCI CREATED: 1/30/2012 2:27:39 PM

PROJECT TITLE:

ALX2-36 / 26SZ

DRAWING NO.:

510-0660

DRAWING TITLE:

ALX2-36 BBQ - FIRE BOX ASSEMBLY

BILL OF MATERIALS

ITEM	PART N°	DESCRIPTION	QTY
1	100-1092	ALX2 - ROTISSERIE GEAR COVER	1
2	200-0062	10-32 X 3/4 - PAN HEAD - PHILIPS SCREW	2
3	200-0086	1/4-20 X 3/8 - TRUSS HEAD - PHILIPS SCREW	2
4	200-0087	WASHER - 1/4" SPRING LOCK- REGULAR - SS	4
5	200-0089	BOLT - HEX HEAD 1/4-20 x 1/2" L	4
6	200-0111	SCREW 8-18 X 1⁄2 - SELF TAP - 410 SS	1
7	200-0148	SCREW 10-32 X 3/4" - FLAT HEAD - PHILIPS - 82° - SS	2
8	200-0305	SPEED NUT TINNERMAN U-TYPE	4
9	290-0119	ROLLER WHEEL - STAINLESS STL - 3⁄4" ∅ -	2
10	510-0139	ALX2 - ROTISSERIE GEAR ASSEMBLY	1
11	510-0511	ALX2 - WARMING RACK BRACKET ASSEMBLY - LEFT SIDE	1
12	510-0519	ALX2 - WARMING RACK BRACKET ASSEMBLY- RIGHT SIDE	1
13	510-0666	ALX2-36 - BACK HOOD AND RIM - WELDED PARTS	1
14	510-0673	ALX2-36 - ROTISSERIE PANEL - MAIN ASSEMBLY	1

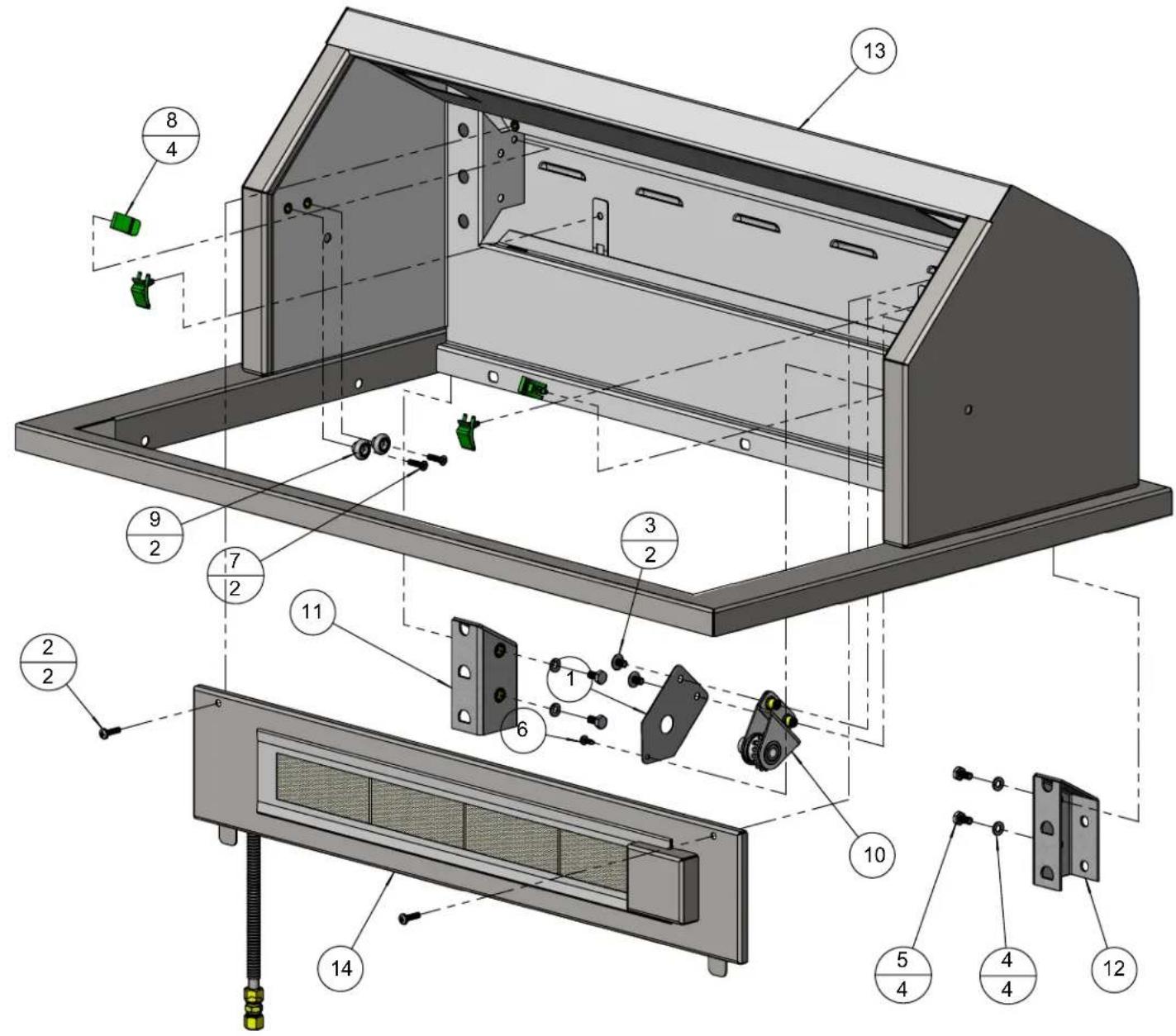

Technical diagram of a device's internal structure with numbered components and labeled parts

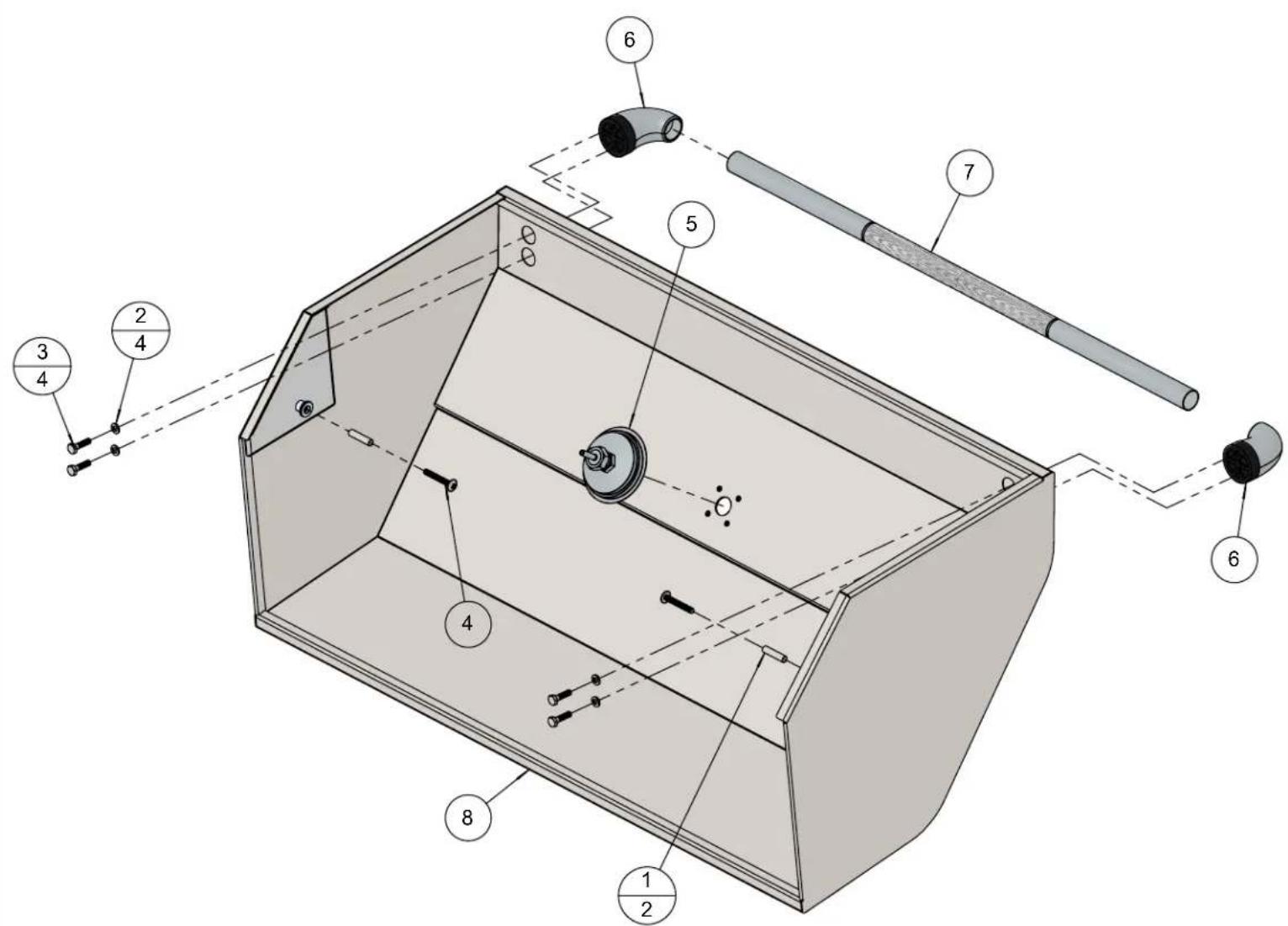

BILL OF MATERIALS
ITEM	PART N°	DESCRIPTION	QTY
1	100-1873	ALX2 - FRONT HOOD PIVOT SLEEVE	2
2	200-0087	1/4" LOCK WASHER	4
3	200-0091	HH- HD - 1/4-20 x 1 x .75 THREAD	4
4	200-0165	SCREW 1⁄4-20 X 13⁄4 - TRUSS HEAD - PHILIPS - 410 SS	2
5	210-0418	ALFRESCO - 3-1/8"∅ - ALX2 THERMOMETER	1
6	290-0063	HANDLE - END CAP ASSEMBLY	2
7	290-0346	HANDLE BAR - 30" KNURLED	1
8	510-0669	ALX2-36 - FRONT HOOD - WELDED PARTS	1

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

AlfrescoSUPERIOR EQUIPMENT SOLUTIONS7039 EAST SLAUSON AVENUECOMMERCE, CA. 90040	THE INFORMATION CONTAINED IN THIS DRAWING IS THESOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONSIN: ANY REPRODUCTION IN PART OR AS WHOLEWITHOUT WRITTEN PERMISSION FROM SUPERIOREQUIPMENT SOLUTIONS, INC. IS PROHIBITED.	PROJECT TITLE:ALX2-36 / 36SZ	DRAWING NO.:510-0668
			SHEET 1 OF 1
	DRAWN BY: ADRIAN CRISCICREATED: 7/20/2011 8:41:34 AM	DRAWING TITLE:ALX2-36 - FRONT HOOD - MAIN ASSEMBLY

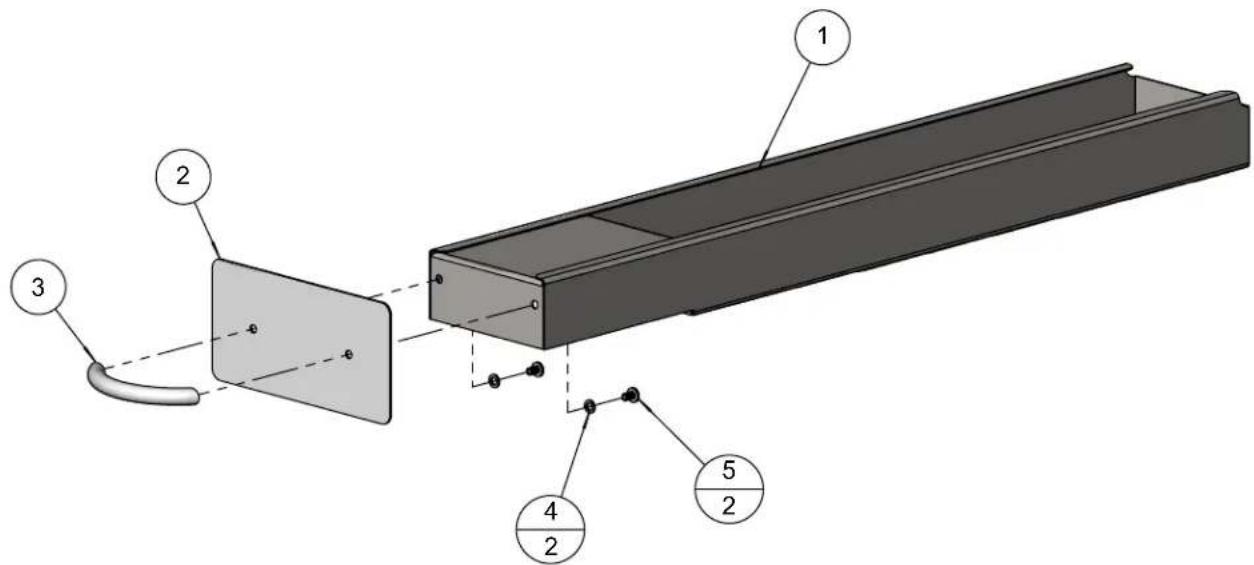

BILL OF MATERIAL

NO.	PART #	DESCRIPTION	QTY
1	100-2203	ALX2-36 - SMOKER TRAY	1
2	100-1881	ALX2 - SMOKER TRAY HANDLE PLATE	1
3	290-0135	HANDLE - 3/8"∅ X 3" L - TAPPED	1
4	200-0200	WASHER - # 8 - LOCK SPRING - SS	2
5	200-0083	8-32 X 1/4 - PAN HEAD - PHILIPS SCREW	2

Technical diagram of a mechanical assembly with numbered components, likely a valve or connector assembly.

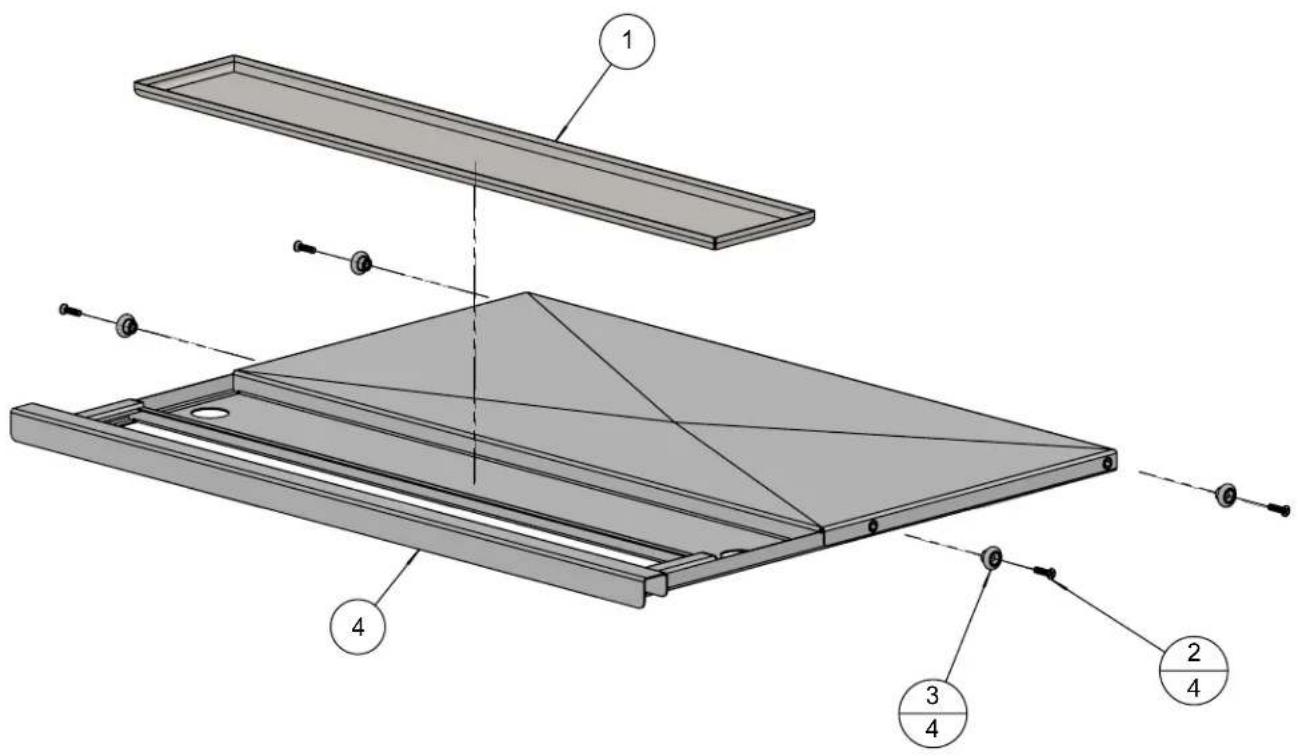

BILL OF MATERIALS

ITEM	PART N°	DESCRIPTION	QTY
1	100-2216	ALX2-36 - GREASE TRAY REMOVABLE PAN	1
2	200-0148	SCREW 10-32 X 3/4" - FLAT HEAD - PHILIPS - 82° - SS	4
3	290-0119	ROLLER WHEEL - STAINLESS STL - 3/4" ∅ -	4
4	510-0672	ALX2-36 - GREASE TRAY WELDED PARTS	1

Technical diagram of a mechanical assembly with numbered components and alignment lines

BILL OF MATERIALS

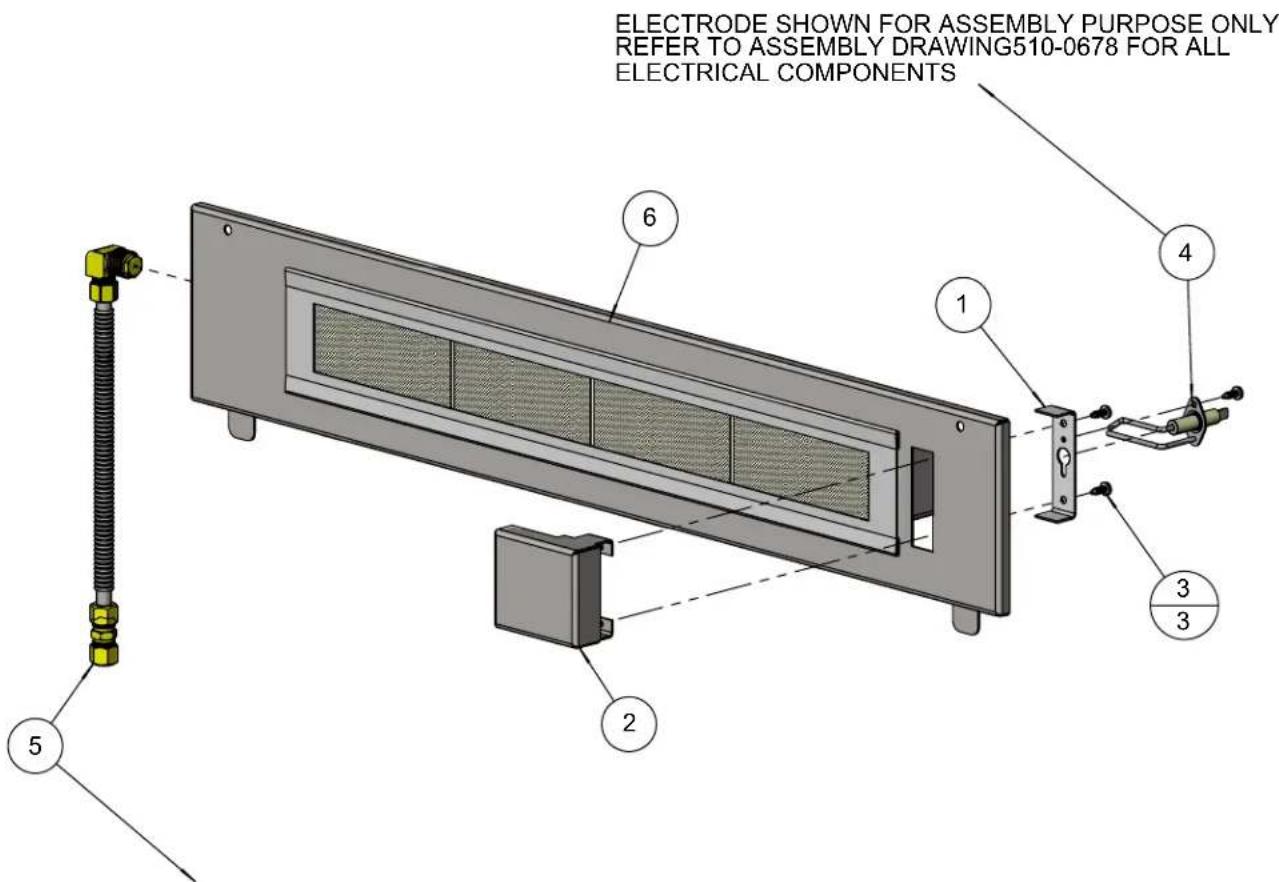

ITEM	PART N°	DESCRIPTION	QTY
1	100-1226	ROTISSERIE ELECTRODE BRACKET	1
2	100-1882	ALX2 - ROTISSERIE ELECTRODE COVER	1
3	200-0111	SCREW 8-18 X 1⁄2 - SELF TAP - 410 SS	3
4	210-0240	ELECTRODE - DUAL TIP "L" SHAPE- ROTISSERIE	1
5	510-0469	ALX2 - ROTISSERIE PIPING SUBASSEMBLY	1
6	510-0674	ALX2-36 - ROTISSERIE PANEL - WELDED PARTS	1

ELECTRODE SHOWN FOR ASSEMBLY PURPOSE ONLY REFER TO ASSEMBLY DRAWING510-0678 FOR ALL ELECTRICAL COMPONENTS

THESE PARTS SHOWN FOR ASSEMBLY PURPOSES ONLY REFER TO ASSEMBLY DRAWING 510-0675 FOR COMPLETE PARTS BREAKDOWN AND ORIFICE INFORMATION

BILL OF MATERIALS				NOTE: ORIFICE OR VALVE ASSEMBLY TO CHANGE ACCORDING TO FUEL SUPPLY: NATURAL GAS OR LIQUID PROPANE
ITEM	PART N°	DESCRIPTION	QTY
1	100-0917	SEAR ZONETM GAS LINE (8"L x 3/8" Ø - SS. FLEX TUBE)	1
2	100-0917	ROTISSERIE GAS LINE EXTENSION - 3/8"∅ X 8" - SS	1
3	100-1067	ALX2- SMOKER & SZTM ORIFICE BRACKET	1	ITEM	NG GAS	LP GAS
4	100-1851	ALX2 - SMOKER ORIFICE BRACKET	1	ITEM	PART # PART #
5	100-1949	ROTISSERIE GAS LINE (36"L x 3/8" Ø - SS. FLEX TUBE)	1	19	290-0310 290-0311
6	100-2217	ALX2-36 SMOKER GAS LINE	1	20	220-0285 220-0286
7	200-0274	ELBOW 90° - CAST IRON - 1/2" FPT x 1/2" MPT	1	21	220-0313 220-0314
8	220-0151	COUPLING 3/8" x 3/8" - COMPRESSION - BRASS	1	22	220-0289 220-0290
9	220-0273	ELBOW 90° - 1/8" FPT x 3/16" COMP	2
10	220-0275	NIPPLE - 1/2" MPT X 3/8" OD FL	1
11	220-0276	ELBOW 3/8" MPT x 1/8" FPT x 3/8" COMP	1

Alfresco ALX2-36CD - 10

SUPERIOR EQUIPMENT SOLUTIONS 7039 EAST SLAUSON AVENUE COMMERCE, CA. 90040

DRAWN BY: ADRIAN CRISCI CREATED: 7/20/2011 2:50:42 PM

PROJECT TITLE:

ALX2-36 / 36SZ

DRAWING NO.:

510-0675

SHEET 1 OF 1

DRAWING TITLE:

ALX2-36 - GAS MANIFOLD ASSEMBLY

BILL OF MATERIAL

NO.	PART #	DESCRIPTION	QTY

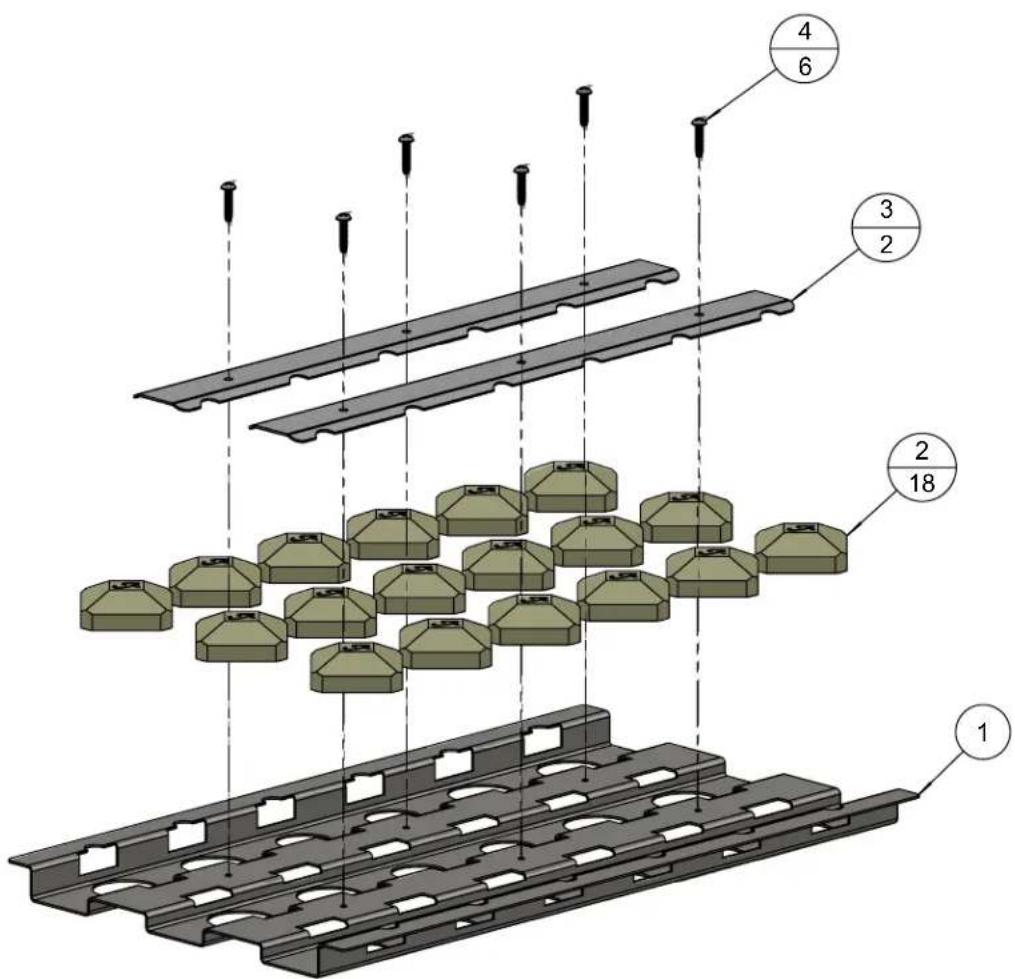

1	100-2220	ALX2-36 - BRIQUETTE TRAY BASE	1
2	265-0005	BRIQUETTE - ALFRESCO CUSTOM	18
3	100-2221	ALX2-36 - BRIQUETTE LOCK BAR	2
4	200-0312	SCREW 8-32 x 3/4"- PAN HEAD - PHILIPS - THREAD CUTTER TYPE F	6

4 6 3 2 2 18 1


			SHEET 1 OF 1

Alfresco

Open Air Culinary Systems

Table of contents Click a title to access it

Alfresco

Manual assistant

Waiting for your message

Product information

Brand : Alfresco

Model : ALX2-36CD
