Product Type	Car horn speaker base
Brand	Steren
Model	TH-010
Material	Steel
Dimensions	45.5 x 37 x 5 cm
Weight	2.5 kg approx.
Warranty	1 year from date of purchase
Warranty Coverage	Defects in workmanship and materials
Installation Required	Yes, onto car roof
Key Accessories	Screws, straps, security bars
Compatible With	Car horn speakers (sold separately)
Protective Feature	Rubber pads to protect car paint
Usage	Mount horn speakers on car roof
Repair Time	Up to 30 natural days
Customer Support	Call Center (Mexico): 01 800 500 9000
Country of Origin	Mexico (implied by addresses)

Frequently Asked Questions - TH-010 Steren

How do I install the TH-010 car base?

First, assemble the horn speakers. Then place the horn speaker base onto the car base and fasten with the provided screws. Install security bars to prevent shaking. Finally, place the car base on the vehicle roof with rubber side down, extend straps over door tops, and close doors.

What is the weight capacity of the base?

The base itself weighs 2.5 kg and supports two horn speakers. Ensure speakers are securely fastened to avoid falling.

Can I install this base on any car roof?

The base is designed for standard car roofs. It uses adjustable straps that go through the doors. Make sure the rubber padding is against the roof to protect the paint.

How do I secure the straps?

After placing the base on the roof, extend the straps over the top of the car doors. Adjust length to keep the base stable, then close the doors to secure them.

What materials is the base made of?

The base is made of steel for durability. The pads that contact the roof are rubber to prevent paint damage.

Does the base include speakers?

No, the base only holds horn speakers. You need to purchase separate horn speakers and attach them to the base using the included screws.

What is the warranty period?

Steren provides a 1-year warranty from the date of purchase against defects in workmanship and materials. The warranty must be presented with the purchase proof and product.

What voids the warranty?

The warranty is void if the product is damaged by accident, misuse, improper repair, failure to follow instructions, or unauthorized service.

How do I clean the base?

Clean with a damp cloth and mild detergent. Avoid abrasive cleaners that may scratch the steel or rubber.

Where can I get spare parts or service?

Contact your nearest retailer or the Steren Call Center in Mexico at 01 800 500 9000. Spare parts are available from authorized dealers.

USER MANUAL TH-010 Steren

Exterior view of a Steren industrial device with black connectors and mounting holes (no text or symbols visible on the device itself)

Part number: TH-010

Horn Speaker Car Base

User-s Manual

V1007

STEREN

Before using your new Horn Speaker Car Base please read this instruction manual to prevent any damage. Put it away in a safe place for future references.

IMPORTANT

• Make sure to install the base firmly, otherwise may cause damages to the paint
• Make sure to install the horn speakers firmly, may fall down and cause injuries

INSTRUCTIONS

1.- Unpack all the accessories, carefully.
2.- Before to install the horn speakers in the base, assemble them.

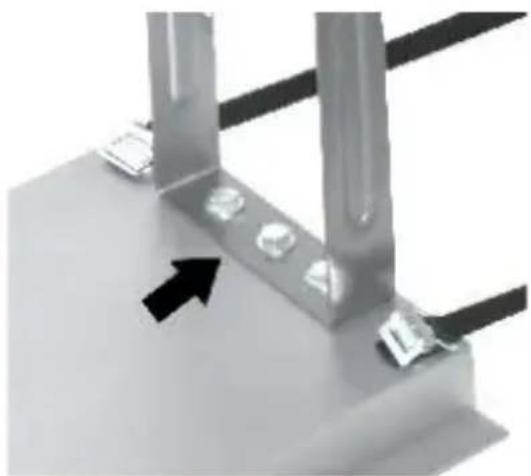

3.- Place the base of a horn speaker over the car base, see the figure for reference. To fasten the horn speaker screw it on tightly (use the supplied screws).

Close-up of a metallic bracket with screws and metal rods, no visible text or symbols

ENGLISH-02

4.- Repeat the process for the second horn speaker.

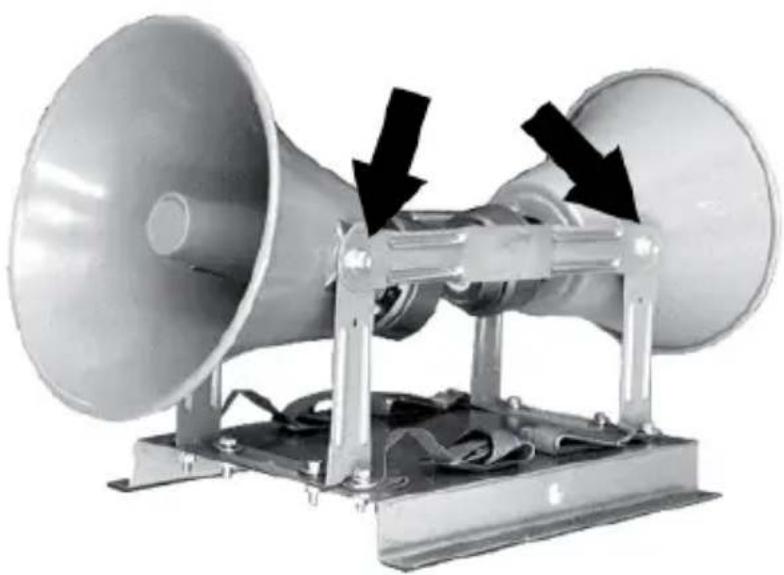

5.- Install the security bars in the horn speakers to avoid their shake.

Mechanical device with two large speakers mounted on a metal base, showing black arrows indicating direction (no text or symbols visible)

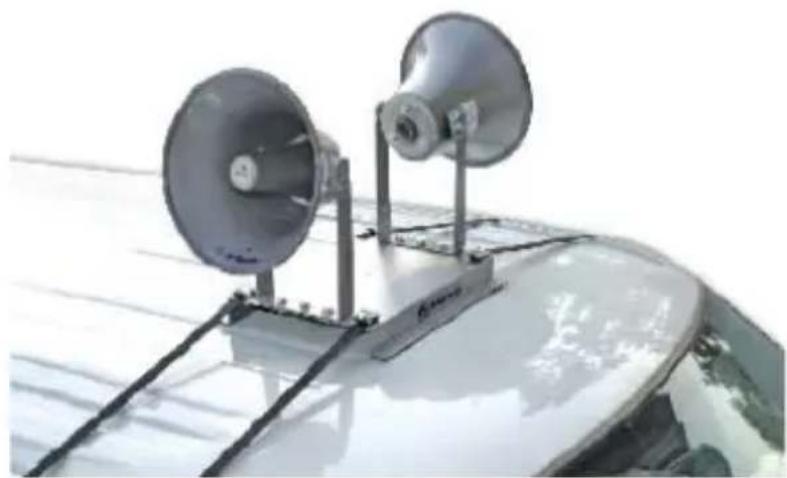

6.- Finally, place the car base over the roof the car. Be sure to install it with the rubber over the roof, they can protect the paint of the car.

Close-up of two large satellite dishes mounted on a vehicle roof, no visible text or symbols

ENGLISH-03

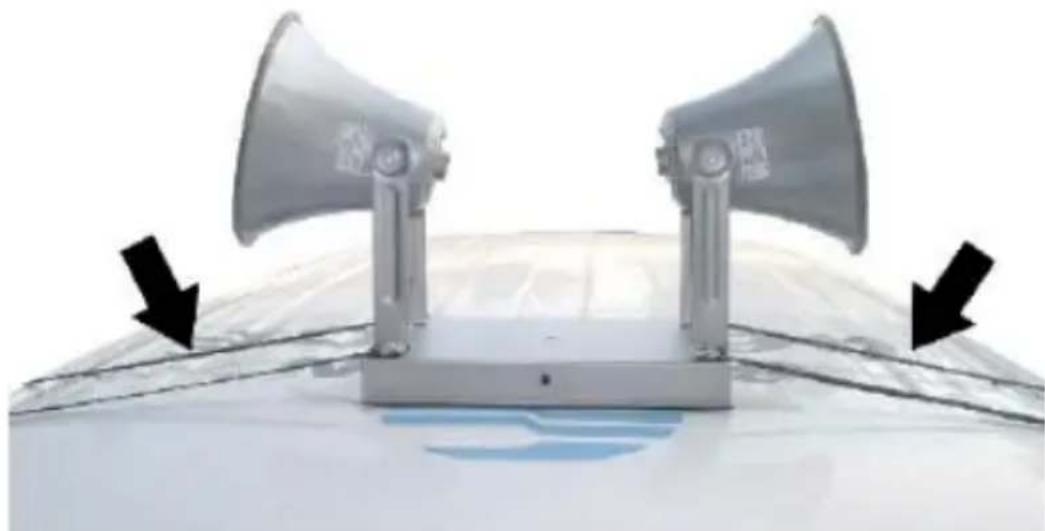

7.- Extend the straps and place the secures in the top of the car door.

Two large megaphones mounted on a metal platform with two black arrows pointing downward (no text or symbols visible)

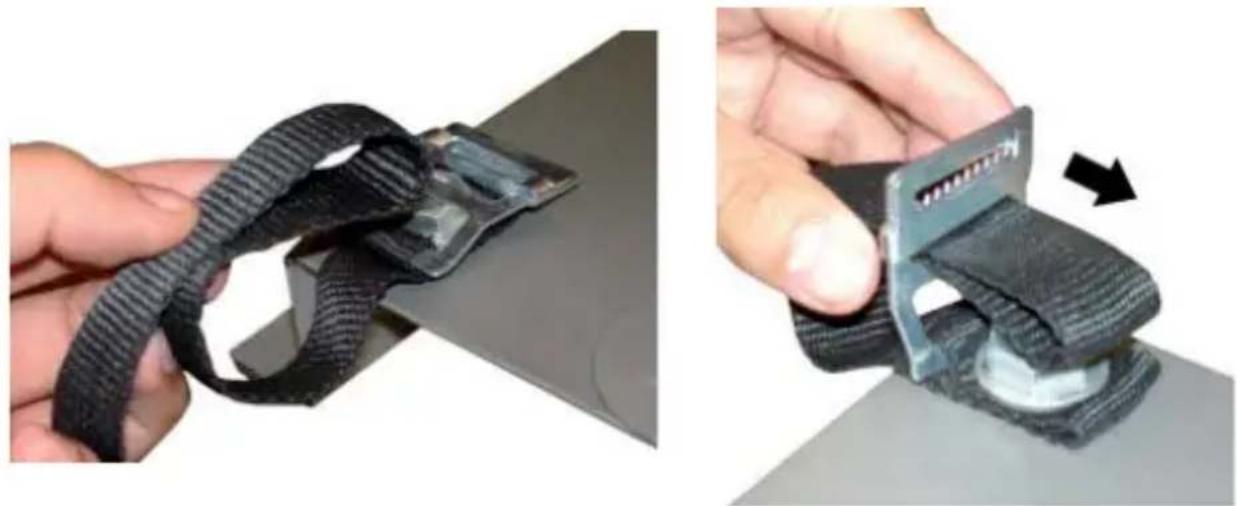

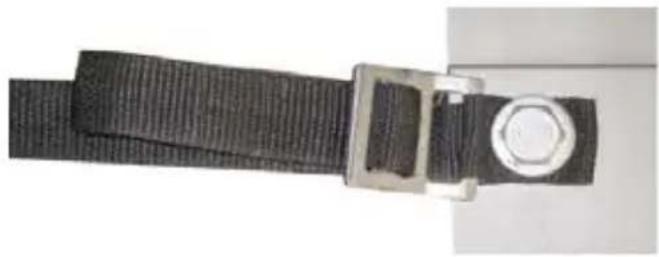

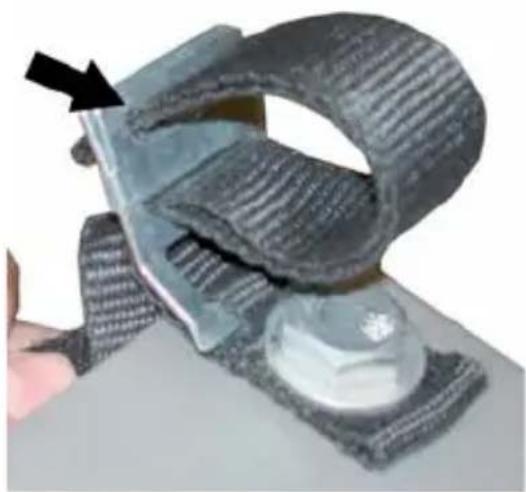

8.- Make sure to extend the straps perfectly to avoid the base moves. If you need to adjust the length of the straps, please refer to the figures.

Two-step photo showing a hand holding a black belt buckle being adjusted, with an arrow indicating the process (no text or symbols present)

ENGLISH-04

Close-up of a mechanical clamp or spring component with a black arrow pointing to a detail (no text or symbols visible)

Close-up of a black textured fabric buckle with a metallic buckle and circular button (no text or symbols visible)

9.- Then, close the car doors.
10.- Wire the speakers. After this, you will begin the use of the horn speakers over your car.

SPECIFICATIONS

Material: Steel

Dimensions: 45,5x37x5cm

Weight: 2,5Kg approx.

Product design and specifications are subject to change, without notice.

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice or purchase ticket, product box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accessories to costumer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

RETAILER INFORMATION

Name of the retailer

Address

Product

Brand

Part number

Serial number

Date of delivery

In case your product fails or have any doubt, please contact your nearest retailer. If you are in Mexico, please give a call to our Call Center.

Call Center

01 800 500 9000
