BWATCH-KIDS-Y - Smartwatch BRIGMTON - Free user manual and instructions

Product Type	Smartwatch for Kids
Brand	Brigmton
Model	BWATCH-KIDS-Y
Display	1.44 inch TFT color touchscreen
Dimensions	Approx. 40 x 35 x 12 mm (watch only)
Weight	Approx. 40 g
Battery	Rechargeable lithium-ion, 400 mAh
Charging	Magnetic USB cable
Operating System	Compatible with iOS 9.0+ and Android 4.4+
GPS Tracking	Real-time GPS + LBS tracking
SOS Function	Three key SOS call to emergency contacts
Safe Zones	Customizable geo-fencing with alerts
Health Monitoring	Step counter, sleep monitor
Remote Monitoring	Remote camera and voice monitoring
Water Resistance	IP67 (splash and dust proof)
Strap Material	Soft silicone (replaceable)
Connectivity	2G / 3G / 4G (depending on region)
Included Accessories	Watch, charging cable, user manual
Maintenance	Clean with a soft damp cloth; avoid solvents
Safety	Designed for children; no sharp edges or small removable parts
Warranty	1 year limited warranty

Frequently Asked Questions - BWATCH-KIDS-Y BRIGMTON

How do I set up the Brigmton BWATCH-KIDS-Y smartwatch?

Download the Brigmton Kids app from the App Store or Google Play. Create an account, scan the QR code on the watch, and follow the setup instructions.

How long does the battery last?

The battery lasts approximately 1-2 days depending on usage, with GPS and continuous monitoring. It charges fully in about 2 hours.

Is the watch waterproof?

The watch is rated IP67, meaning it is protected against dust and splashes. It can handle rain and hand washing but should not be submerged completely.

Can I control the watch from my phone?

Yes, the Brigmton Kids app allows you to set safe zones, view location, send voice messages, and remotely monitor the watch's camera.

How does the SOS function work?

Press and hold the SOS button for 3 seconds. The watch will call up to three pre-set emergency contacts in sequence until one answers.

What SIM card does the watch use?

It uses a micro SIM. Ensure it is activated with data and voice services. The watch supports 2G/3G/4G networks (check compatibility with your carrier).

How do I change the strap?

The strap is replaceable. Use a small screwdriver to remove the spring bars, then attach the new strap. Contact support for official replacement straps.

Why is the GPS not working?

Ensure the watch has a clear view of the sky. GPS works best outdoors. If indoors, it uses LBS (cell tower) positioning. Also verify the SIM card has data.

Can I add multiple children to one app account?

Yes, the app supports multiple watches under one account. You can manage all your children's devices from the same parent profile.

What should I do if the watch won't turn on?

Charge the watch for at least 30 minutes using the magnetic charger. If still unresponsive, perform a reset by holding the power button for 10 seconds. If the issue persists, contact Brigmton support.

USER MANUAL BWATCH-KIDS-Y BRIGMTON

Abstract black circular logo design with curved and angular elements (no text or symbols)

BRIGMTON

surfing technology

Black BRIGMTON smartwatch with app icon and wrist strap (no readable text beyond brand name)

FUNCIONAMIENTO

Four-panel photo sequence showing a yellow and orange smartwatch with a small device, being handled by fingers (no text or symbols visible)

Abstract black circular logo design with curved and angular elements (no text or symbols)

BRIGMTON

surfing technology

Black BRIGMTON smartwatch with app interface and sensor strap (no readable text beyond brand logo)

INSTRUCTION MANUAL

GPS LOCATOR WATCH

BWATCH-KIDS-NARMY

APK

Download this application on your phone

FUNCTIONING

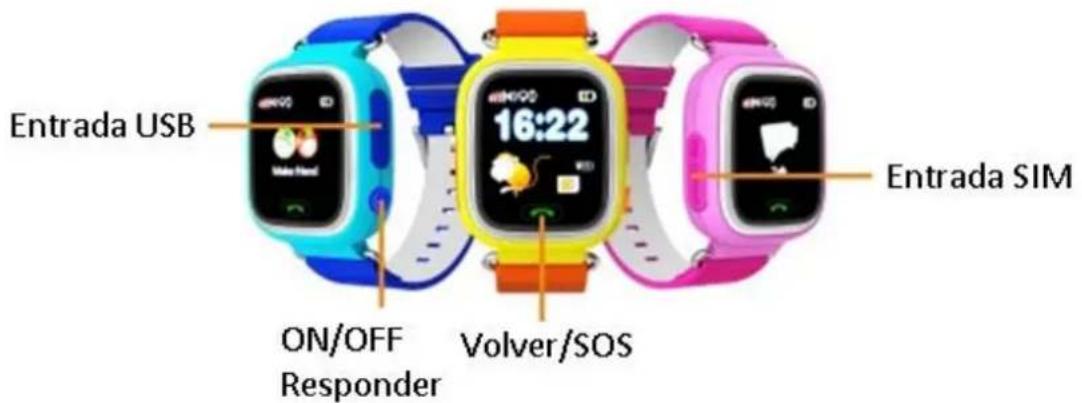

Turn on the device by pressing the ON / OFF button and you will access the main screen where you can see the time and main functions. Insert the SIM card. Slide the screen to the left to see the other functions. Press in the center of the screen to access each of them:

- Contacts (Phone Book): Access the contact list of the card

- Messages (talk): You can receive and send voice messages. Press the button to record the message.

- Friends (Make friends): Two different clocks can connect to each other and talk through the microphone and speaker.

- Steps (Step): Start the pedometer from the application and it will tell you the steps taken.

- Application: scan the code to download the application for your smartpone.

Press the green button to return.

Once you download the application, choose the language and register. Scan the QR code that appears on the back of your watch or enter the number. This code / number is unique for device.

SIM

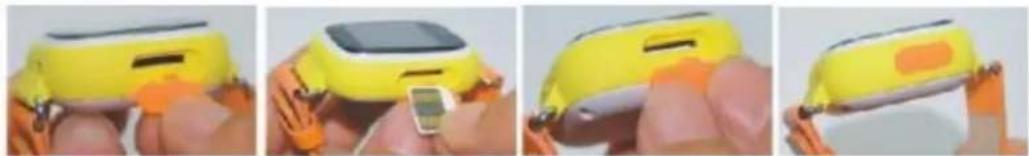

Four-panel photo sequence showing a yellow and orange handheld device with a small screen, being handled by fingers (no text or symbols visible)

Insert the SIM card as shown.

APPLICATION

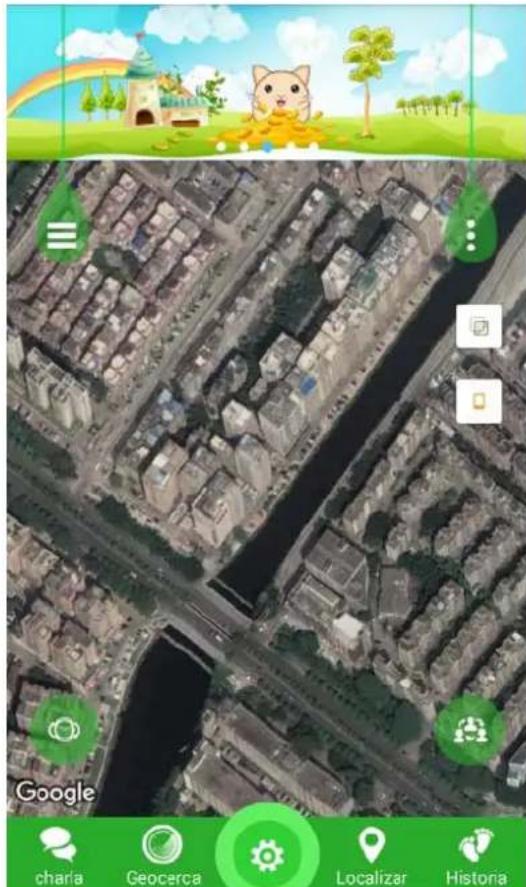

Once you install and configure the application according to the previous steps, when you open it, the location map will appear:

In the upper left corner the button will allow you to configure options such as pedometer (Health), set the disconnection time (do not disturb), Alarms,

Messages and Rewards, which allow you to reward the behavior of the person using the device.

In the upper right corner the button will allow you to access the account settings and personal data.

In the lower left corner the button allows you to see the connected devices.

In the lower right corner you can see the connected friends.

In the lower bar you can find shortcuts to some of the options described above.

LOCALIZE: If you press locate, it will send an SMS message to the device that will return the location of the device, which you can see on the map in real time.

TALK: Pressing this button allows you to send a text or voice message to the device.

In the center of the lower bar you will find the general SETTINGS button to control the operation of the device:

• SOS / Family number: You can set up to 3 direct dial numbers
• Work mode: select units
• Contextual mode: select profiles
• SMS Alarm Settings
• Touch friends: For sending to friends
• Phone: Agenda
• Language and Time Zone
• Change settings: lock configuration
• LBS
• Device: Locator of the device locally
• Remote shutdown

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

TEL/FAX: [phone]

SEVILLA

ESPAÑA

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

DIRECTIVAS EMC

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN62479:2010

EN62209-2:2010

EN50566:2013/AC:2014

EN301 489-1 V1.9.2

EN301 489-3 V1.6.1

EN301 489-7 V1.3.1

EN301 489-24 V1.5.1

EN301 511 V12.1.1

EN301 908-1 V7.1.1

EN301 908-2 V7.1.1

EN300 440-1 V1.6.1

EN300 440-2 V1.4.1
