Product Type	Front Loading Washing Machine
Model	SVL09MI
Rated Voltage	220-240V~, 50Hz
Rated Washing Power	200 W
Rated Spinning Power	600 W
Rated Heating Power	2000 W
Maximum Power	2200 W
Maximum Spin Speed	1400 rpm
Spin-drying Efficiency Class	B
Washing Noise (60°C Cotton Full Load)	60 dB(A)
Spinning Noise (60°C Cotton Full Load)	75 dB(A)
Waterproof Class	IPX4
Water Pressure Range	0.03 - 1 MPa
Power Consumption Off-mode	0.45 W
Power Consumption Left-on Mode	0.5 W
Programs	Cotton, Synthetic, Delicate, Baby Care, Quick 15', Quick 42', Tub Clean, Rinse+Spin, Spin, Wool, Duvet, Sports, Eco, Mix
Additional Functions	Prewash, Soak, Crease Care, Extra Rinse, Pre Delay, Child Lock, Add Garment
Detergent Box	3 compartments (pre-wash, main wash, softener)
Door Lock	Automatic lock during operation, emergency release tab
Tub Clean Program	Yes, with high temperature (60°C)
Child Lock	Yes, activated by holding Pre Delay for 3 seconds

Frequently Asked Questions - SVL09MI SVAN

How do I remove the transport bolts?

Use the supplied wrench to loosen the 4 bolts at the back, twist the rubber grommets, pull out the bolts, and insert the stoppers. Keep the bolts for future transport.

What should I do if the door won't open after a cycle?

Wait for the program to finish and the door lock indicator to turn off. If still locked, ensure water temperature is below 45°C and water level is low. In an emergency, use the manual release tab at the bottom right.

Why does the machine display error code 'IE'?

Error IE indicates water inlet failure. Check that the tap is open, water pressure is adequate, and the inlet filters are not blocked. Also ensure hoses are not frozen.

How do I use the child lock feature?

Press and hold the 'Pre Delay' button for 3 seconds during operation. The child lock lamp will light up. Repeat to unlock. When locked, only the power button works.

What kind of detergent should I use?

Use low-sudsing detergent designed for front-loading washing machines. Do not use too much detergent, as excess foam can cause problems. For delicate fabrics, use specialized detergent.

How often should I clean the pump filter?

Clean the pump filter once a month. Turn off power and water, open the lower cover, unscrew the filter anticlockwise, remove debris, and reinstall tightly.

What does error code 'UE' mean?

Error UE indicates unbalanced load during spin. Try redistributing clothes evenly in the drum and adding more items if the load is too small. Ensure the machine is level.

Can I open the door to add clothes mid-cycle?

Yes, using the Add Garment function. Press Start/Pause to pause, wait for door unlock (about 5 seconds), add clothes, and close the door. Then press Start/Pause again. Ensure water temperature is below 45°C and water level is low.

How do I perform a tub clean cycle?

Ensure the drum is empty. Add liquid bleach to the main wash compartment (no detergent). Select the Tub Clean program and press Start. After completion, dry the door seal.

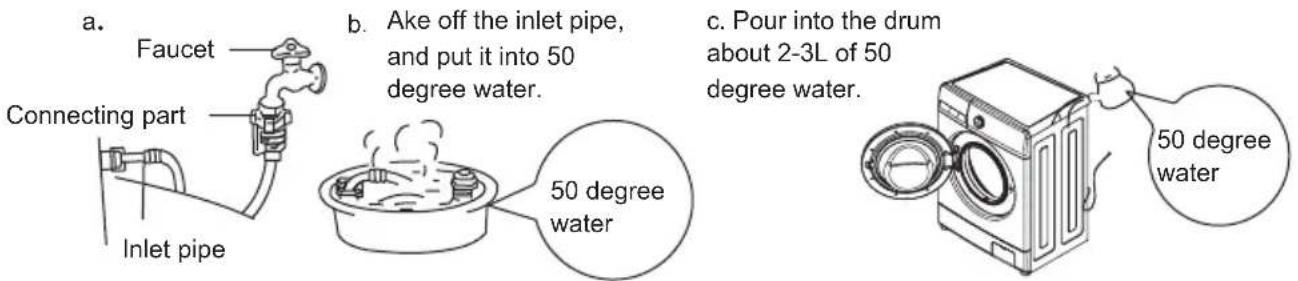

What should I do if the machine freezes in winter?

Cover stopcock and connecting parts with hot towels. Remove inlet hose and place in 50°C water. Pour 2-3 liters of 50°C water into the drum. Reconnect and run a cycle to check.

USER MANUAL SVL09MI SVAN

Posicionamiento

Ajuste horizontal:

Pure mechanical diagram showing a gear or valve assembly without any text, numbers, or symbols

2

3

Simple line drawing of a faucet pouring liquid into a bowl (no text or symbols)

4

Diagram of a washing machine with water supply and sink, showing airflow paths (no text or labels)

Line drawing of a sink with faucet and handle (no text or symbols)

Line drawing of a small box with legs and a rope tied at the end, shown from front and side views (no text or symbols)

Illustration of a washing machine with hand gestures and a close-up of the wheel (no text or symbols)

Line drawings of three household appliances: a faucet, a basin with steam, and a washing machine (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a bag with decorative elements (no text or symbols)

Illustration of a hand pouring liquid from a bottle onto a surface (no text or symbols)

Line drawings of four different garment designs or covers, showing front, side, top, and front views with no text or symbols.

Diagram showing two views of a biological or geological structure with no visible text or symbols

Illustration of a round cake with a cross mark on its side (no text or symbols)

En caso de avería

Fully Automatic Front Loading Washing Machine

Model: SVL10MI

SVL09MI

SVL08MI

SVL08XMI

Content

Safety Notifications----2

Part Name 3

Installation Instruction 4

Methods of Door Lock and Remove 9

The Usage Method of the Detergent Box----9

Function Introduction of Operating Panel 10

The Introduction of Function and Program 12

Introduction of Washing Programs 21

Maintenance 22

Varieties of Functions 24

Notice before Washing 26

Non-fault Conditions 28

Troubleshooting Guide 29

Specification 30

Safety Notifications (Please Must Follow)

- In order to prevent the harm or damage to the user or the person and property of others, please make sure to follow the safety issues.

Warnings

●The risk of electric shock.

1. Please use 220-240V, above 10A with ground wire dedicated socket.
2. When inserting and pulling out the power cord please use the plug, please. Don't use the damaged power cord.
   When the power cord pin is dirty please wipe clean with dry cloth in time.
   3.Do not use the wet hand to insert or pull out the plug.
3. Please pull out the plug when finishing, repairing or cleaning.

● The danger of fire and current leakage
1.Do not allow the washing machine close to the fire, or lighted cigarettes, candles and volatile materials.
2. Please do not sprinkle the water on the control panel of washing machine.
3. Please do not put the washing machine in the place of wet and outside place.
4. Please fix the drain pump and make sure the sewer unobstructed.

● The danger of high temperature

1. When washing in high temperature, the door glass will be heating. Please do not touch the door glass, especially children.

2. When opening the door after high temperature washing, please wait for the temperature cooled down to a safe level and the door will unlocked automatically.

● The danger of getting hurt

1. Please handle the carton box after removing, don't let the children touch or eat.
2. Do not allow the children to operate or climb up to the washing machine.
3. Please close the door after use to avoid the children enter into the drum.

● The danger of injury

1. Do not put any heavy things on the top of the washing machine.
2. If you want to move the machine, please remember ask for help.
3. Please do not ask unprofessional people to repair the machine.

● The danger of damage the cloths

1. Please do not wash the cloths which is waterproof, like Raincoat, feather products, sleeping bags
2. Please wash the cloths which can be washed, if you have any doubt, please following the instructions.

● The danger of explosion

1. Please do not washing the cloths which stained with kerosene, gasoline, thinner, inflammable goods.
2. Please do not washing when gas leakage.

- If want to open the door when the machine running or other circumstances, please check the water level in the drum first in order to avoid the water overflow and cause unnecessary loss.

Part name

Attachment specification

Instruction water hoses wrench

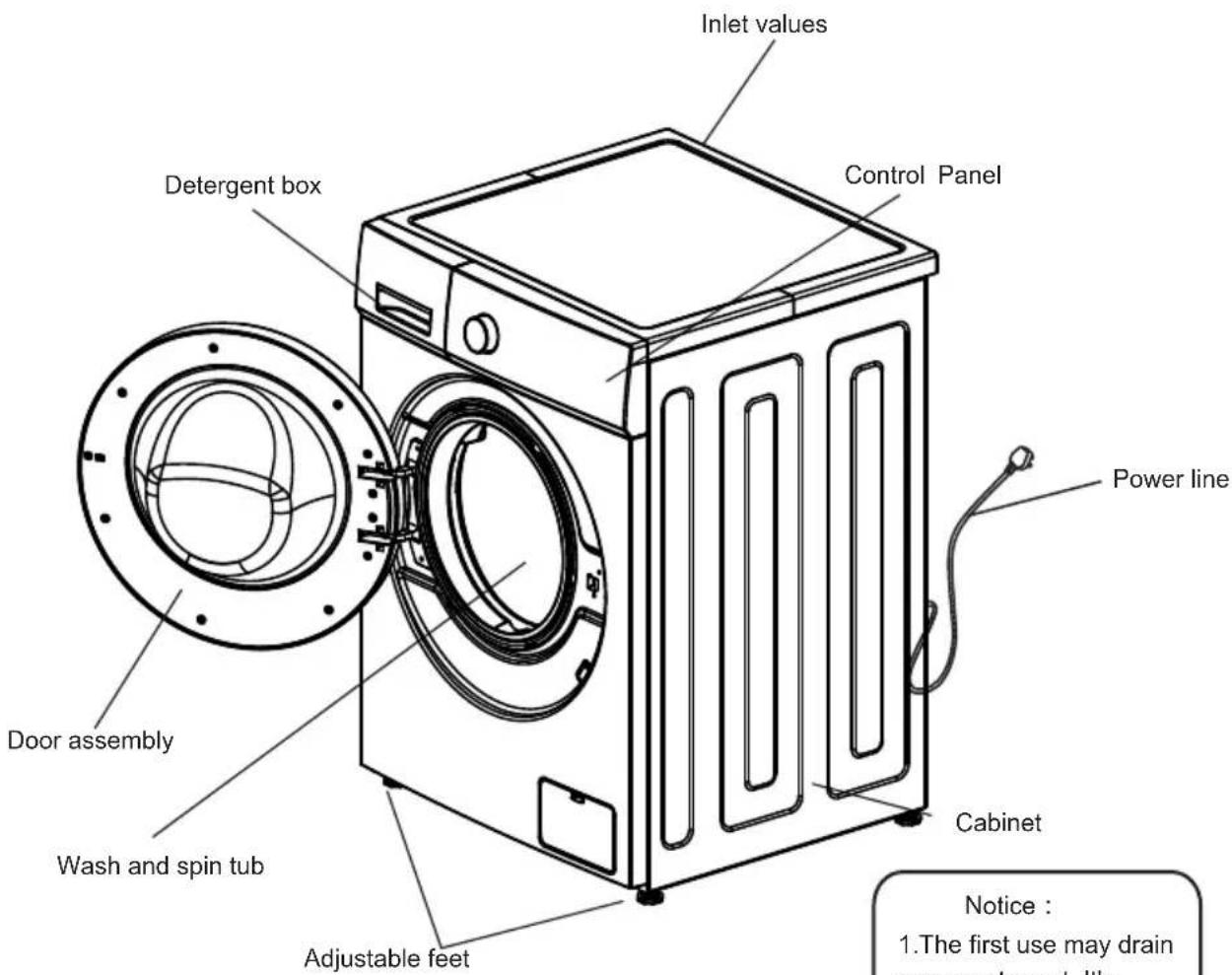

Part name

The above picture is just for reference, the detailed information should be based on the real product!

Notice :

1. The first use may drain some water out. It's residual water after performance test, belong to the normal phenomenon.

2. After each use, please pull the plug and turn off the faucet to prevent accidental flood or fire.

Installation instruction

• Make sure the temperature of the places where the washer is installed or placed above 0°C or put it outside.
• Place the washer correctly according to management standards and regulations.
• Keep the base of washer ventilated when it is placed on the ground with carpet.
• There are too much pests in villages. Please keep the surroundings clean because any damages caused by cockroaches or other pests don't belong to warranty.

Transport bolt

Washers are installed with transport bolt to prevent internal damage in transit.

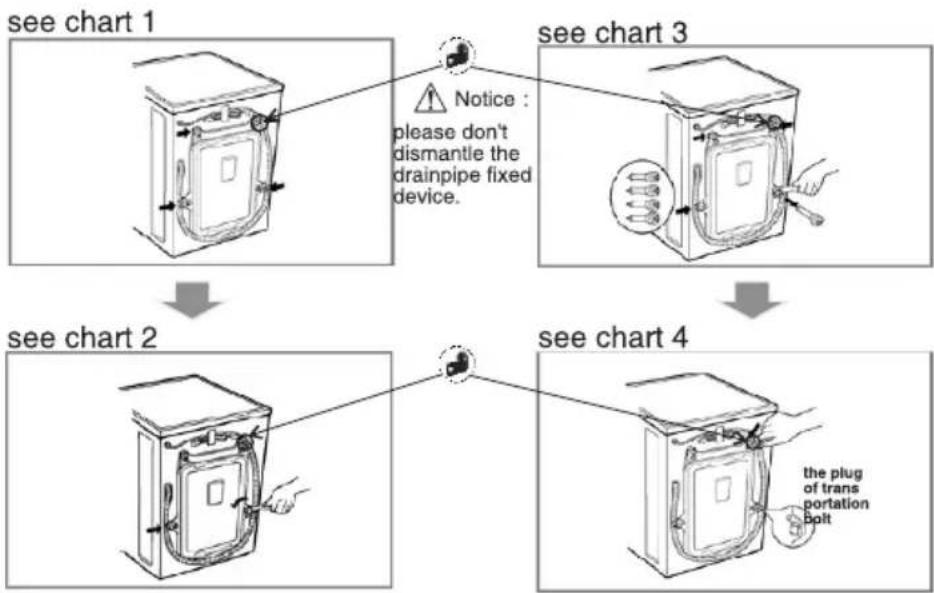

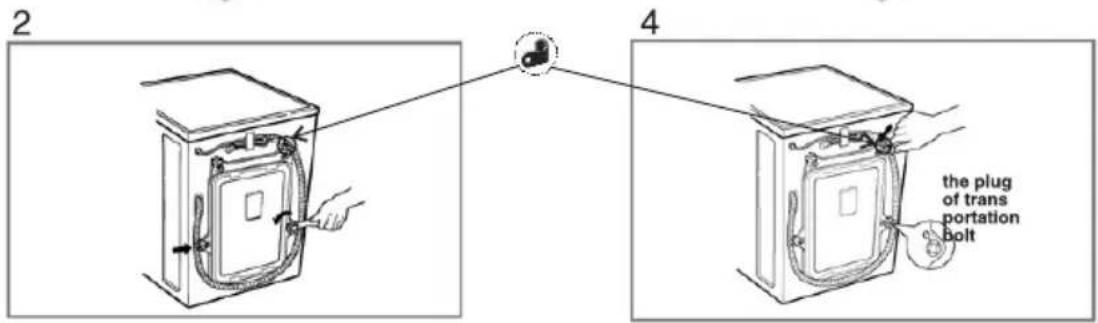

Dismantle the transport bolt

1. In order to prevent internal damage in transit, 4 bolts are installed. Before using the washer, dismantle the bolt (see chart 1).

2. If the bolts are not dismantled, violent vibration, noise and trouble will be caused.

3. Use the attached wrench to loosen the 4 bolts (see chart 2).
4. Twist the bolt rubber slightly and then pull out the bolts, keep the bolts and wrench as standby(see chart 3).
5. The bolts should be remounted no matter when to transport the washer.
6. Use attached stopples to seal the screw holes (see chart 4).

Requires for positions

Horizontal adjustment:

● The slant angle should be less than 1 degree.
Power outlet
● The distance between any side of washer and power outlet should be within 1.5 meters.
- Don't use too many electrical appliances in one outlet.

Environment cleaning

• It's necessary to clean the wall, door and ground.
• Install the washer on a hard and steady ground with floor drain rather than soft blanket or wooden floor.
• Don't put dirty clothes or some other goods on a washer's head cover, otherwise it may impact the normal operation.

Notice

Power connection

1. Don't use the wiring board or something like that.
2. If the power lines are damaged, please contact professionals to repair.
3. After the use of washer, pull the plug and turn the tap off.

4. Connect the washer with grounded outlet to correspond to the wiring principles.

5. Place the washer in which is easy to connect the outlet.

6. Contact the maintenance center and ask professionals to repair the washer. Laypeople may cause damages and troubles on the washer.

7. Don't put the washer in the place where the temperature is below zero. The pipes will be frozen and break. Moreover, the temperature below zero will damage the programming controller.

- If move the washer in an environment whose temperature is below zero, please keep the washer at room temperature for a few hours before starting it.

Grounding introduction

- A washer must have the grounding devices. If a trouble happens, the device can reduce the risk of electrical shock. The device is equipped with a cable (including a wire and a grounded plug). The grounded plug must be inserted in an appropriate outlet. If you want to know if the washer is grounded correctly, please contact with professional maintenance staff. If the plug can't match with the outlet, please don't change the plug by yourself.

- Once your washer smokes or emits an odor, please cur the power and contact with professional maintenance staff.

Washers should be connected with water inlet. Please use attached new plumbing rather than the old.

In order to ensure the quality, water injection tests are carried out before the washer leaves factory, so there may be water inside the internal tub, door seals and door panel, which are normal.

Water inlet connection

1. The pressure of supply water should be between 30kPa and 1000kPa.
2. Don't abrade the screw thread when connect the inlet pipes with valves.

3. Please install dropping equipment if the pressure of supply water surpasses 1000kPa.

4. Two seals are supplied in the connectors of both ends of the pipe to prevent water leaking.
   ● Turn on the tap and check if the connectors leak.

5. Check the pipes regularly. Please change them if necessary.
   ● Make sure the pipes don't be damaged or twine with each other.

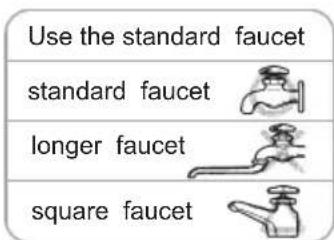

The connection of inlet pipes and taps

1

Check the rubber seals on both sides of the hose. -insert a rubber seal into the threaded fittings on each hose to prevent leaking.

2

Connect the water supply hoses to the water faucets tightly by hand and then tighten another 2/3 turn with pliers. -Connect the blue hose to water faucet.

WARNING

- Do not overtighten. Damage to the coupling can result.

3

After connecting inlet hose to water faucets, turn on the water faucets to flush out foreign substances (dirt, sand or sawdust) in the water lines. Let water drain into a bucket, and check the water temperature.

Simple line drawing of a faucet dispensing liquid into a bowl (no text or symbols)

4

Connect the hoses to the water inlet tightly by hand and then tighten another 2/3 turn with pliers.

WARNING

- Do not overtighten the hoses. Overtightening can damage the valves resulting in leaking and property damage.

5

Check for leaks by turning on the faucets. If water leaks, check steps 1 to 4 again.

- Such washing machine is designed for home appliances, please do not install it on ship, traveling truck or plane.

- Please turn off the stopcock if long time out of use. (e.g vacation)

- Please remove plug and cancel door lock function to avoid child locking himself/herself inside.

- Packing materials(e.g film, foam) could harm child's safety and cause asphyxia! Attention: MAKE ALL PACKING MATERIEALS OUT OF CHILD REACH.

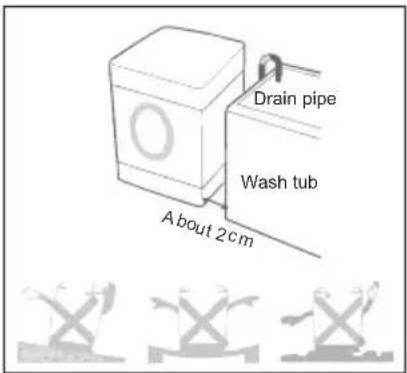

Install drain-pipe

- Please fix the drain-pipe by a lifting rope.

- For the sake of lightening damage of leak towards ground, please place the drain-pipe correctly.

- In order to avoid siphon, the height of drain-pipe should be between (0.85m-1.25m), moreover, the terminal of is should not be placed in water.

- If the drain-pipe is too long, please do not force to insert it into washing machine, which would cause abnormal noise. (Please check sketch map next page)

Line drawing of a sink with faucet and chain handle (no text or symbols)

The instruction of installation of pipe

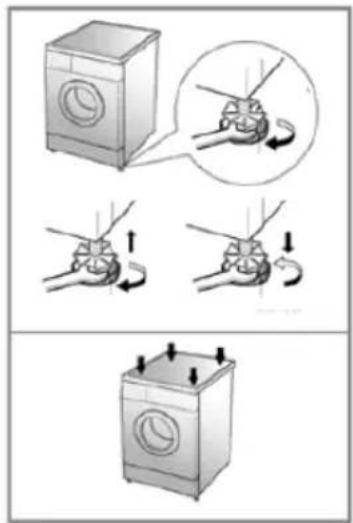

Horizontal Adjustment

- To avoid noise and vibrate by adjusting washing machine level, place it at the room corner preferably.

- If ground not level, please adjust alignment pins. Do not put wood pieces or something like, please make sure four alignment pins touch ground tightly, and machine level completely.

Illustration of a single washing machine with front panel and side buttons (no text or symbols)

- Adjust adjustable feet

Adjust the adjustable feet to make sure the washing machine in balance, which can be placed on the ground steadily. After settling, screw the locknut to guarantee.Do not place the washing machine in the platform ,which is higher than the ground, in order to prevent the machine from falling down because of other accidents.

- The diagonal check

Applying force downward on the diagonal of the washing machine, washing machine should not shake. (both diagonal need to check, if the washing machine shake, must readjust adjustable foot.)

Methods of Door Lock and Remove

DOOR LOCK

- After operating, the door will be locked automatically and "DOOR LOCK" light/picture on the panel is lighting.

Remove Door Lock

• When "DOOR LOCK" light/picture is lighting, press "Start/Pause", WASHING/DEWATERING drum stop operating. Please wait for about 10s, door lock will be removed automatically.
• Unplug directly and wait for about 65s\~85s,door lock will be removed automatically.
• Foam overflowing if open the door during operating, please catch foam with towel.
• If temperature is too high, the door can not be opened during operating.
• If water level is too high, the door can not be open during operating.

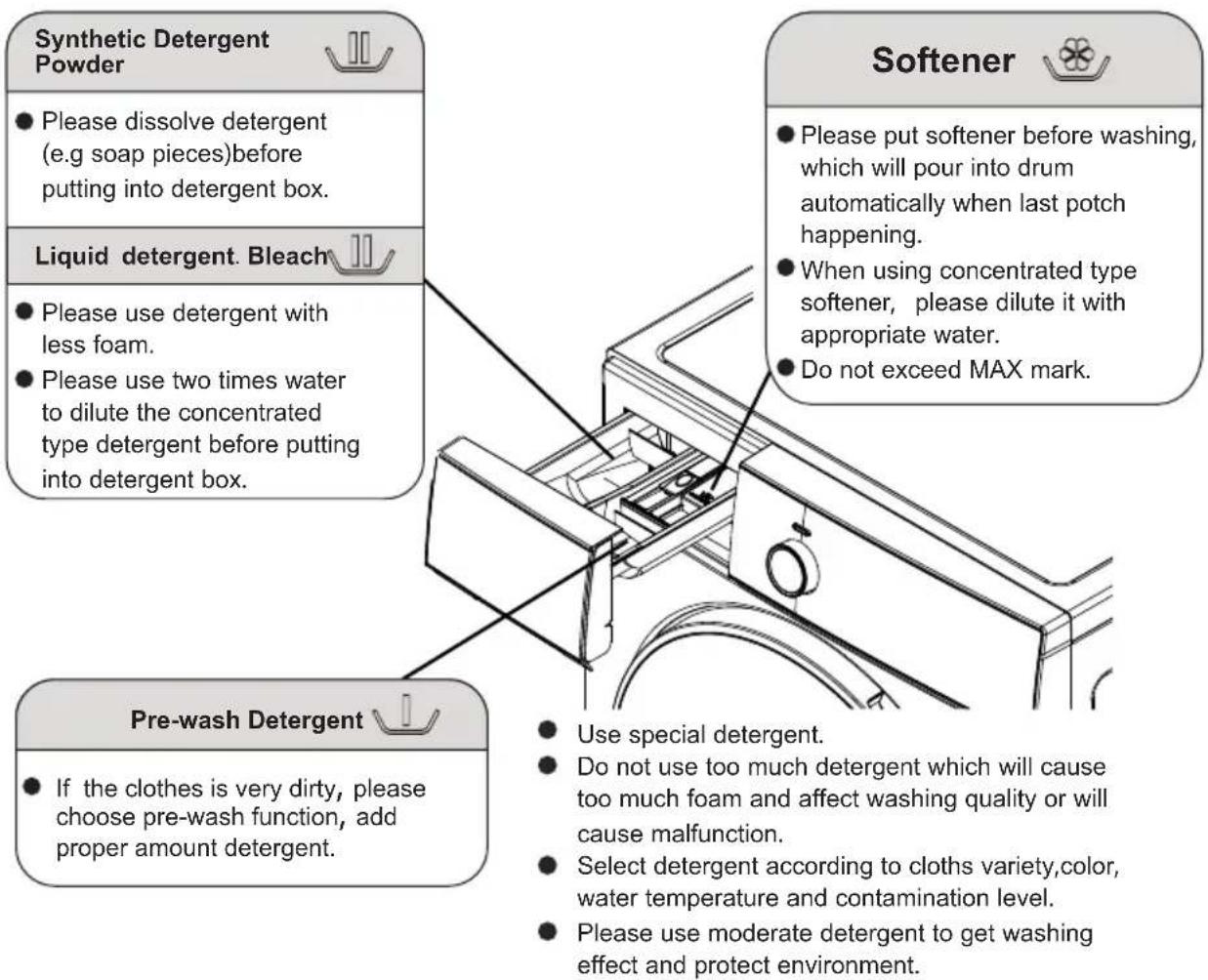

The Usage Method of the Detergent Box

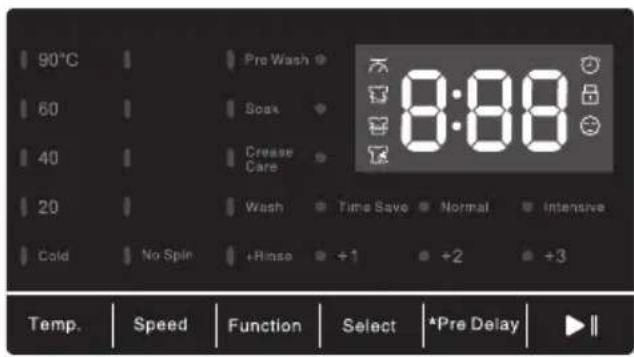

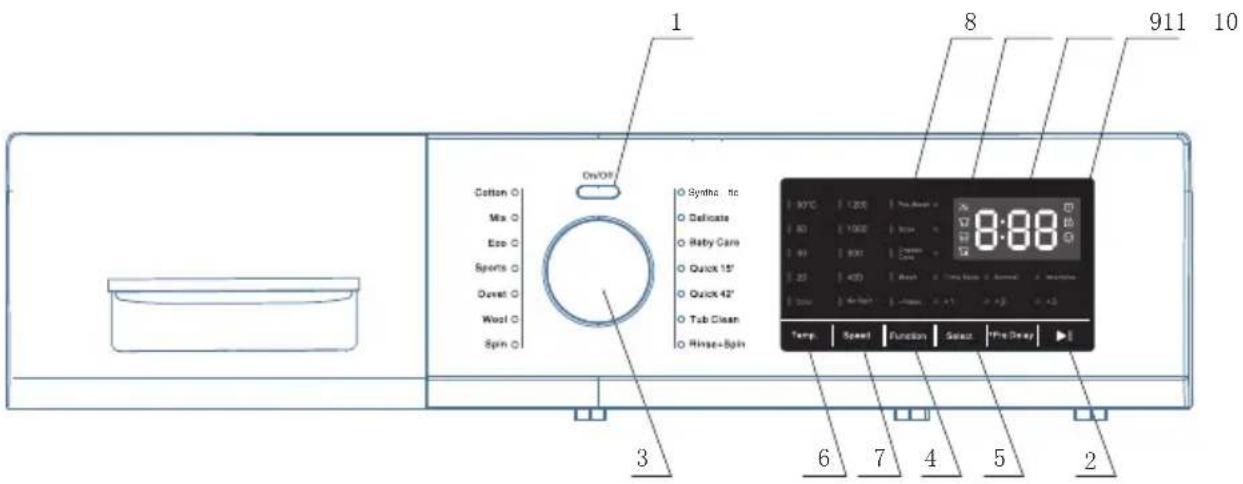

Function Introduction of Operating Panel

Image shown here is indicative only. Actual product you receive may differ.

1 POWER

• Press it to turn off/on power.
  ● Procedure over, power off automatically.

2 Start/Pause

• Press START button to start operation.
• Press PAUSE button to stop, and press it again to continue.

3 Knob

- Rotate it to select additional function.

4 "Function" button

● After starting up the machine by pressing the power button, choose your favorite program, and you can choose different functions by switching from Pre Wash, Soak, Crease Care, Wash, Extra Rinse.

5 "Select" button

● After starting up the machine by pressing the power button, choose your favorite program; After choosing extra function by the function button, you can switch different options or cancel the extra function by pressing the Option button.

6 "Temp." button

- When push the power button to start the machine and select the program, you can choose proper water temperature according to the material of cloths.

7 "Speed" button

- When push the power button to start the machine and select the program, you can choose different spin speed.

8 "Additional Function"

- According to your request, you can add the additional function to the basic programs. The additional function will be different according to different basic programs. (Please take reference the additional functions introduction in details).

9 Child Lock Lamp

● To avoid the children wrongly operations
- If you want to start child lock function, you should push “Pre Delay” button for 3 seconds during the running process of washing machine. To unlock child lock function, you can push “Pre Delay” button for 3 seconds during the running process or under non- running process. (Please check the detailed introduction of child lock function in the “additional function introduction”).

10 Display Screen

• To display the remaining time or prewash time Remaining time gradually reduce in accordance with the washing.
• During the process of washing, if there is a abnormal phenomenon, the screen will display the error code accordingly.
• If the remaining time is different with the real time, the program will adjust according to the real situation. It is not an error.
• If the program has self-weight function, the screen will display “---”. If washing machine is in the process of weighting, the screen will flash “—”. If the weighting function ends, the screen will display the remaining time of washing.

11 The reminding window of washing status

• There are four indicator lamp on the top, represent weighting, washing, rinse and spin.
• When setting the programs before washing, if some indicator lamp lights, it means that this washing program has the following washing process; When the machine is running, if one indicator lamp lights, it means the current washing process is under this status; If some indicator lamp always flash, it means that the following washing process include the corresponding programs.

The introduction of function and program

Usage of routine clothes

1. Preparations

• Open the door put clothes in and closes the door.
• Pull out the detergent box, add detergent and close the box.
• Connect the inlet pipes and make sure the tap turned on.

2. Press the power button

1. The programs can be selected according to requirements.

- Cotton-Synthetic-Delicate-Baby Care-Quick 15'-Quick 42'-Tub Clean-Rinse+Spin-Spin-Wool-Duvet-Sports-Eco-Mix

1. Press Start/Pause button and begin to wash

5. Washing Ending

• The screen displays "End" with a hum.
• Open the door and take out the cloth.
• Pull out the plug and close the faucet.

The usage of self-compiled program

You can use it when need to set washing intensity, rinse times, water temperature, spin speed.

1. Prepare to wash

• Open the door, put clothes in and close the door.
• Pull out the detergent box, add detergent and close the box.
• Connect the inlet pipes and make sure the tap turned on.

2. Press the power button

1. The programs can be selected according to requirements.

2. Push "Temp."/ "Speed"/ "Function" / "Select" / "*Pre Delay" button to set water temperature, spin speed, washing intensity, rinse times, delay time.

3. Press the Start/Pause button to start washing.

4. When the program ends, it will have a hum sound.

5. The screen displays "End" with a hum.

6. Open the door and take out the cloth.
7. Pull out the plug and close the faucet.

Cotton Program Introduction

This program is suitable for the clothes which are moderate or mild dirty, like cotton, beddings, underwear, towels and shirt, etc...

1. Preparation for washing

2. Open the door, put the clothes then close the door

3. Taking the detergent box and add detergent then close it.

4. Connect the water inlet pipe well and make sure the faucet is running.

5. Push "Power" button and connect to the power

6. Turn the program button to choose "Cotton" program

7. The washing program will be selected automatically.

8. Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. When the washing machine washing towel, the yarn will be squeezed, washing will get rough surface, using the fiber softening agent, to prevent this kind of phenomenon happens to the greatest extent.

Synthetic Program Introduction

To wash the synthetic clothes

1. Preparation for washing

2. Open the door, put the clothes then close the door.
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

2.Push "Power" button and connect to the power

1. Turn the program button to choose "Synthetic" program

● The washing program will be selected automatically.
- Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "90°C"

Delicate Program Introduction

Washing gauze, silk underclothes.

1. Prepare for washing

2. Open the door, put the clothes then close the door.
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

2.Push "Power" button and connect to the power.

1. Turn the program button to choose "Delicate" program.

2. The washing program will be selected automatically.

3. Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing.

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "60 °C" and "90 °C".

Baby Care Program Introduction

This program is to wash infant clothing, allergy people clothing and clothing need high temperature bacteria suppression mite.

1. Prepare for washing

2. Open the door, put the clothes then close the door.
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

4. Push "Power" button and connect to the power

5. Turn the program button to choose "Baby Care" program

● The washing program will be selected automatically.
- Choose the needed water temperature; spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. Reach the best temperature aseptic divide mite effect, can choose "90 °C".

- When taking out of clothes, please pay attention to the internal heating steam. To avoid scald, Open the door to exhaust first, and then remove clothes.

Quick 15' Program Introduction

To wash clothes that are changed frequently, not too dirty and thin clothes

1. Prepare for washing.

2. Open the door, put the clothes then close the door.
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

4. Push "Power" button and connect to the power.

5. Turn the program button to choose "Quick 15" program

6. The washing program will be selected automatically.

7. Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing.

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. In order to prevent clothing damage, speed cannot set the highest speed, the temperature can be set to "cold", "20°C", "40°C" prevent the door from distorting.
4. In order to ensure the washing effect, washing is suitable for the washing capacity under 2 kg.

Quick 42' Program Introduction

To wash clothes that are changed frequently, not too dirty and thin clothes

1. Prepare for washing.

2. Open the door, put the clothes then close the door.

3. Taking the detergent box and add detergent then close it.

4. Connect the water inlet pipe well and make sure the faucet is running.

5. Push "Power" button and connect to the power.

6. Turn the program button to choose "Quick 42" program

7. The washing program will be selected automatically.

8. Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing.

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. In order to prevent clothing damage, speed cannot set the highest speed, the temperature can be set to “cold”, “20°C”, “40°C” prevent the door from distorting.
4. In order to ensure the washing effect, washing is suitable for the washing capacity under 2 kg.

Tub Clean Program Introduction

1. Preparation for washing

2. Please make sure nothing in the tub before cleaning.

3. Open the distribution box, add the liquid bleach in the main box.
4. Don't add detergent or laundry detergent to prevent causing too much foam.
5. Close the distribution box.

6. Please make sure the inlet pipes connected well and the tap turned on.

7. Press the On/Off button, connect the power.

8. Rotate the program button and choose the "Tub Clean"

9. Press the Start/Pause button.

● The programs begin to operate after the door locked.

1. When all operations finished, the buzzer emits a noise.

● After finish the program, dry the inside part of the machine to prevent the door from distorting.
- If there are children at home, please don't open the door for too much time.

Rinse and Spin Program Introduction

The machine will not wash, only rinse and spin.

1. Prepare washing

2. Open the door and put the cloths then close the door

3. Push "Power" button and connect to the power
4. Turn the program button to choose "Rinse+ Spin" program
   ● The washing program will be selected automatically.
5. Choose the proper spin speed and rinse times.
6. Push "Start/Pause" button to start washing.
7. When the program ends, it will have a hum sound.

- If you want to change the current setting, please push "Start/Pause" button first and stop washing, then push "Rinse" and "Spin Speed" button to reset.

- The Spin speed can be selected the highest, but the temperature cannot be set.

Spin Program Introduction

The machine will not wash and rinse, only spin.

1. preparation for washing
2. Open the door, put clothes in and closes the door.
3. Press the power button, connect the power.
4. Rotate the program button and choose the "Spin"
5. The default rotate speed is 88r/m, pressing "Speed" button can adjust the speed.
6. Press the Start/Pause button
7. Begin to drain away water and spin.

8. When the program ends, it will have a hum sound.

9. If you want to change the current settings during the process of spin, please push the "Start/Pause" button to stop the washing machine and then push "spin speed" button to change.

10. During the process of spinning, the actual spinning speed may be inconsistent with the program speed, which is because the washer adjust the speed according to the balance between clothes.
11. There may be rhythmic drone during spinning, which is the normal voice of drain bump rather than the machine fault.

Wool Program Introduction

Wash wool fiber texture, such as machine washable wool fabrics, etc.

1. Prepare for washing

- Open the door, put the clothes then close the door.

- Taking the detergent box and add detergent then close it.

- Connect the water inlet pipe well and make sure the faucet is running.

1. Push "Power" button and connect to the power

2. Turn the program button to choose "Wool" program

● The washing program will be selected automatically.

- Choose the needed water temperature, spin speed, rinse times and washing intensity.

1. Push "Start/Pause" button to start washing temperature, dewatering speed and appoint time.

2. When the program ends, it will have a hum sound.

- If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

- In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "60 °C " and "90°C"

● After washing completed, take the clothes in time, drying, after shaking loose plastic deformation in order to avoid placing time is too long.

- Please separate white or bright color clothes from the dark clothes for washing.

- Using special wool detergent can reduce clothing damage, improve the washing effect.

Duvet Program Introduction

The cloths have the machine-washable mark, like bedding, bed sheets, curtains, etc

1. Prepare for washing

- Open the door, put the clothes then close the door

● Taking the detergent box and add detergent then close it.

- Connect the water inlet pipe well and make sure the faucet is running.

2.Push "Power" button and connect to the power

1. Turn the program button to choose "Duvet" program

● The washing program will be selected automatically.

- Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing
5. When the program ends, it will have a hum sound.

• If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.
• In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "60 °C" and "90 °C"
• The electric blanket and carpet cannot be washed.(It will damage the machine and clothes).
• Put the clothes in the washing drum properly and uniform when spinning, in order to avoid large vibration and drying time maybe extended.
• Heavy clothes cannot be entanglement, need to put inside the washing machine after shaking loose.
• Uneven clothes can lead to not spinning (display UE), take out again in the after washing to shake loose.

Sports Program Introduction

Wash the machine- washable sports clothes

1. Prepare for washing

2. Open the door, put the clothes then close the door
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

4. Push "Power" button and connect to the power

5. Turn the program button to choose "Sport" program

● The washing program will be selected automatically.
- Choose the needed water temperature, spin speed, rinse times and washing intensity.

4.Push "Start/Pause" button to start washing

1. When the program ends, it will have a hum sound.

2. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

3. In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "60 °C" and "90 °C"

ECO Program Introduction

To wash the clothes that is not too dirty, it will save time and water.

1. Preparation for washing

2. Open the door, put clothes in and closes the door.

3. Pull out the detergent box, add detergent and close the box.

4. Connect the inlet pipes and make sure the tap turned on.

5. Press the power button, connect the power.

6. Rotate the program button and choose the "ECO"

● The washing program will be selected automatically.
- Choose the needed water temperature, spin speed, rinse times and washing intensity.

1. Press the Start/Pause button and begin to wash.

2. When the program ends, it will have a hum sound.

- When the washer is working, if you want to change its setting, please press the start/pause button to stop running temporarily and then choose the program you need.

Mix Program Introduction

This function can be used to wash mix clothes like cotton, synthetic and soon (please do not mix wash the clothes that easily rub off.

1. Prepare for washing

2. Open the door, put the clothes then close the door
   ● Taking the detergent box and add detergent then close it.

3. Connect the water inlet pipe well and make sure the faucet is running.

2.Push "Power" button and connect to the power

1. Turn the program button to choose "Mix" program

- The washing program will be selected automatically.

- Choose the needed water temperature, spin speed, rinse times and washing intensity.

1. Push "Start/Pause" button to start washing

2. When the program ends, it will have a hum sound.

3. If you want to change the current setting during the process of washing, please push "Start/Pause" button first and stop washing, then push button to reset.

4. In order to prevent clothing damage, speed cannot set the highest speed, the temperature cannot be set to "60 °C" and "90 °C"
5. Please separate white or bright color clothes from dark clothes.

Introduction of Washing Programs

SVL10MI / SVL09MI

Program	Temperature (°C)	Spin Speed (Run/Min.)	Time(m)	Max.Load (Kg)	Wash options
Cotton	cold (20°C, 40°C, 60°C, 90°C)	1000(0,400,800,1400)	65	Rated	Normal(Time Save, Intensive)
Synthetic	40°C(cold 20°C, 60°C)	1000(0,400,800,1400)	68	Rated	Normal(Time Save, Intensive)
Delicate	20°C(cold, 40°C)	800(0,400)	48	≤2.0	Normal(Time Save, Intensive)
Baby Care	60°C(40°C, 90°C)	800(0,400,1000)	142	≤4.0	Normal(Time Save, Intensive)
Quick 15'	cold(20°C, 40°C)	800(0,400)	15	≤2.0	Time Save (Normal,Intensive)
Quick 42'	20°C(cold, 40°C)	800(0,400)	42	≤4.0	Normal(Time Save, Intensive)
Tub Clean	60°C	800	75	—	Normal(Time Save, Intensive)
Rinse+ Spin	—	1000(0,400,800,1400)	17	Rated	—
Spin	—	1000(0,400,800,1400)	11	Rated	—
Wool	40°C(cold ,20°C)	800(0,400)	47	≤2.0	Normal (Intensive)
Duvet	40°C(cold ,20°C)	800(0,400)	88	≤2.5	Normal(Time Save, Intensive)
Sports	cold(20°C, 40°C)	800(0,400)	44	≤4.0	Time Save (Normal,Intensive)
Eco	20°C(cold, 40°C, 60°C)	800(0,400,1000,1400)	52	≤4.0	Time Save (Normal)
Mix	cold(20°C, 40°C)	800(0,400)	76	Rated	Normal(Time Save, Intensive)

Instruction:

1. The needed time can be changed due to water pressure, drain condition, clothing textile, weight, water temperature changing.
2. During the process of washing, the time of washing and spinning will be different with the real running time.
3. During the process of washing, the real display time will beat according to sensing the weight changing of clothing.
4. Due to different weight of clothing and detergent, if the spin speed is too low, the rinse performance will not be good, please increase times of rinse.
5. The data in the chart can be different from different models.
6. When editing the default program as energy efficiency program, washing time will increase automatically.

Introduction of Washing Programs

SVL08MI / SVL08XMI

Program	Temperature (°C)	Spin Speed (Run/Min.)	Time(m)	Max.Load (Kg)	Wash options
Cotton	cold (20°C, 40°C, 60°C, 90°C)	1000(0,400,800,1200)	65	Rated	Normal(Time Save, Intensive)
Synthetic	40°C(cold 20°C, 60°C)	1000(0,400,800,1200)	68	Rated	Normal(Time Save, Intensive)
Delicate	20°C(cold, 40°C)	800(0,400)	48	≤2.0	Normal(Time Save, Intensive)
Baby Care	60°C(40°C, 90°C)	800(0,400,1000)	142	≤4.0	Normal(Time Save, Intensive)
Quick 15'	cold(20°C, 40°C)	800(0,400)	15	≤2.0	Time Save (Normal,Intensive)
Quick 42'	20°C(cold, 40°C)	800(0,400)	42	≤4.0	Normal(Time Save, Intensive)
Tub Clean	60°C	800	75	—	Normal(Time Save, Intensive)
Rinse+ Spin	—	1000(0,400,800,1200)	17	Rated	—
Spin	—	1000(0,400,800,1200)	11	Rated	—
Wool	40°C(cold ,20°C)	800(0,400)	47	≤2.0	Normal (Intensive)
Duvet	40°C(cold ,20°C)	800(0,400)	88	≤2.5	Normal(Time Save, Intensive)
Sports	cold(20°C, 40°C)	800(0,400)	44	≤4.0	Time Save (Normal,Intensive)
Eco	20°C(cold, 40°C, 60°C)	800(0,400,1000,1200)	52	≤4.0	Time Save (Normal)
Mix	cold(20°C, 40°C)	800(0,400)	76	Rated	Normal(Time Save, Intensive)

Instruction:

1. The needed time can be changed due to water pressure, drain condition, clothing textile, weight, water temperature changing.
2. During the process of washing, the time of washing and spinning will be different with the real running time.
3. During the process of washing, the real display time will beat according to sensing the weight changing of clothing.
4. Due to different weight of clothing and detergent, if the spin speed is too low, the rinse performance will not be good, please increase times of rinse.
5. The data in the chart can be different from different models.
6. When editing the default program as energy efficiency program, washing time will increase automatically.

Maintenance

• Please maintenance washing machine to extend service life.
• Before maintenance, please unplug.

Body of washing machine

After washing, please clean it with soft cloth. If much contamination, please use appropriate detergent or soap.

• Do not watering directly.
• Do not use putty-powder, diluent, gasoline, alcohol to clean machine body.

Door Gasket Ring

After washing, please remove contamination, wastepaper and so on, if foreign matter exists, please remove.

The Clearance of Detergent Box

Please clean the detergent box regularly. Pall it out and wash with clean water, then insert back.

The Clearance of Universal coupling (Suggest:Once/ half year)

- If waste accumulated, it will influence water inlet speed.

1. Take off the soft pipe from connecting part side.
2. Take off the screwing device according to the arrow showed.
3. Wash the inside of the screwing device.
4. Install the cleaned crewing device with the inlet soft pipe.

The clearance of inlet water valve (Suggest:Once/ half year)

1. Take off the soft pipe from washing machine side.
2. Take off the filter net from water valve.
3. Clean the filter net with tooth-brash.
4. Install the soft inlet pipe.

Maintenance

When washing machine is frozen

1. Cover stopcock and connecting part with hot towel.

2.ake off the inlet pipe, and put it into 50 degree water.

1. Pour into the drum about 2-3L of 50 degree water.

2. Connect inlet pipe, turn on the stopcock and start the washing machine, please check whether inlet and outlet is normal.

The Clearance of dewatering-pump filter( Suggest: once/month)

1. Press fastener on the pump after dewtering and power off, open the lid of water-pump filter. (Attention: if hot water inside, please go ahead after it be cold.)

2. Take off the filter anti-anticlockwise.

3. Wash the filter.

4. Direct at pump and insert the filter, tighten it clockwise and tighten the lid.

Attention: a. Please tighten the filter well to avoid leak.

b. Please do not clean during operation.

The Drum Clearance (Suggest once/month)

After using for a period, some dirt maybe exist. You can clean the inside and outside of drum by operating the drum procedure.

Attention: please do not put cloths and detergent when clearing the drum.

Emergency Open the Door

When there is power cut and the door cannot be open normally, but you need to open the door, please pull open the emergency door opening tab, and remember to reset the emergency door opening tab.

The pull-tab is located at the front right bottom of the inside of the cover. Please open the cover when use.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Attention

Forbid to use the emergency door opening tab when the machine is running; When you have to use it at emergency, please open the emergency door opening cover when water cooling to avoid scald because there will be excess water flowing out from the inner tub at high temperature.

Varieties of Functions

1. The Function and the Select Button

- Prewash: If the cloths are too dirty, you can choose this program before washing.

- Soak: After selecting this function, there is a period of time for cloth soaking, which can enhance the performance of washing.

- Crease Care: After selecting this function, in order to resist wrinkling or separate from the tub wall, the machine will have some shaking loose actions for several minutes after spinning.at the water. during last time of rinse in order to enhance the performance of rinse.

- Wash

Pressing the Function button to switch to Wash, and press the "Select" button within 3 seconds to switch from 3 different gears of Time Save, Normal, and Intensive.(For default washing option, please refer to the introduction of programs)

- Extra Rinse

Pressing the Function button to switch to Extra Rinse, and press the "Select" button within 3 seconds to choose Extra Rinse times or cancel Extra Rinse. (For default washing option, please refer to the introduction of programs)

1. Pre Delay: When use "Pre Delay" function for washing, the delay time is 0 hours to 24 hours.

- When pushing the button for the first time, the screen display "Oh", then the maximum pre delay time can be 24 hours.

- Push one more time for button, it will increase 1 hour.

- If want to cancel the pre delay function, push "power" button or push one cycle of "Pre Delay" button.

- The pre delay time means from pre delay to wash ending time. You should operate the pre delay function after selecting the program. and before push the button of "Start/Pause".

1. Tub clean: The program of drum clean is use the high water level, high water temperature, high speed to clean the drum and kill the bacteria. The detailed operations ways.

2. Child Lock function: You can lock and unlock the child lock function by pushing "Pre Delay" 3 seconds when the machine is running.

- Once the child lock function set, all the other buttons will be locked except the power button.

- When the washing process ending or push “power off” button or default warning, the child lock function cannot be unlocked. It means that the child lock function must be unlocked by hand. When the power on and start the machine, if the child lock function is going on (the lamp of child lock light up, you need to push “Pre Delay” button for 3 second to unlock the child lock function and then continue to operate the washing machine.

1. Add garment function: During the process running, if you want to add garment, please push "Start/Pause" button to stop running;

- After around 5 seconds, it has a sound of unlocking, meanwhile the door lock mark in the screen disappear then you can open the door.

- Add the additional garment into the drum(Don't let the door clamp clothes, this will cause failure of leakage and error).

- Forced to open the door part, damage may occur, such as safety problem.

- When there are many bubble in the inner barrel and plenty of water, open the door, water and foam will flow out.

- When the inner drum is running, it is in danger status since the temperature of water is above 45^ C and there is plenty of water inside. At this time, the door can not be forced to open. If want to open the door, please follow the below instructions:

(1) Wait till the inner drum stop running.

(2) Wait till the water temperature cool down to below 45^ C. If want to open the door when the water temperature is above 45^ C, please shut off the power and open the door after 5 minutes.

- Abnormal power off for 2 minutes, you can open the door. During the process of running, the required condition for opening door(water level below door gasket, water temperature below 45^ , spin speed is 0), push "Start/Pause" button, wait till door lock mark disappear, then open the door. When closing the door, press the middle place of the door handle.

- Push"Start/Pause"button to start the washing machine, it is normal to hear "Clicking" sound, which is door locking sound not an error. If it occurs"dE" warnings, please use hand to push and shut the door. Push two times of "Start/Pause"button to continue running of the machine.

1. Quick entering into the functions: Power on, push "Power" button, directly push the following functional button(no need to turn the knob).

- Push "Start/Pause" to enter standard washing mode directly.

- "Spin speed" button, the washing machine enter" Spin only"mode(You can choose spin speed), push "Start/Pause" button to start the washing machine.

1. Eliminate the sound: Push "Prewash" button for 3 seconds to start/close the sound during the process running.

2. Power-off Memory: When there is power on again after a period of power-off, the machine will continue the working process at the time node of last power-off action.

3. Automatic Power Off: After the whole washing process is finished, the machine will be automatically powered off after 120 seconds.

Notice before Washing

1. Washing guide identification

- Please check cloths washing guide identification, which shows cloths texture and washing method.

2.Classification washing

- Please wash cloth of the same texture, different texture, different water temperature, speed and washing procedure, please split deep colored cloths from white cloths. Split dyed cloths from cotton, otherwise the white cloths would be discolored. If possible, please do not washing high contaminated cloths with clean ones together.

- The degree of pollution (serious, moderate, slight)

classify clothes and wash according to the degree.

• color (white, light color, deep color)

classify them and wash.

- velveteen (easy to fall off, easy to be adhered)

classify the white and the deep color.

3. Notes

• When put big and small clothes together, put the big first and they have to be less than half of total clothes. Please don't wash single cloth because it may cause the trouble of imbalance. Please add one or two similar clothes.
• Small clothes like silk stockings and handkerchiefs should be put into mesh bags to wash. Before washing the bra with steel rings, please take the rings off. If it is inconvenient to do this, please put them into mesh bags to prevent the bra slipping into the gap between internal and external tubs.
• Check all pockets and make sure nothing in them. Nails, hairpin, match, pen, coin and key will damage your washer and clothes.
• Zip up all clothes, fix the button and hook and tie the loose belt, make sure that other clothes cannot be damaged by them.
• Firstly use the water with a little detergent to wash the parts with too many stains, such as collar and cuffs, which can make the clothes cleaner.

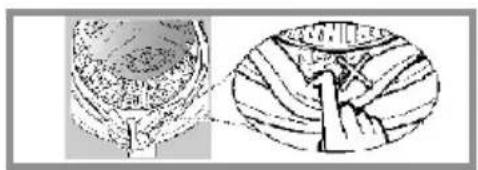

• Check the door seals and make sure nothing on them.
  • Make sure there is nothing in the tub before washing.
• Please use the low bubble detergent specially for front loading washing to wash the cloths.

Simple line drawing of a bag with a handle and spout (no text or symbols)

Illustration of a hand pouring liquid into a container with a handle (no text or symbols)

Line drawings of four different garment types: a pleated skirt, a t-shirt, a collared shirt, and a jacket with X marks (no text or symbols)

Medical illustration showing a cross-sectional view of a biological structure with internal layers and a magnified inset (no text or labels)

Simple line drawing of a bowl with a cross mark on the interior (no text or symbols)

Non-fault conditions

The door can't open.	● The program is running. ● There are clothes between the door and door seals.
There is an odor.	● There may be a smell of rubber because some components are made up of rubber.
There is too little water when wash and rinse.	● Roller washing machine just needs a little water when operating.
No water inflowing.	● Is the tap turned on? ● Is the inlet pipe frozen? ● Are the filters blocked?
Water inflows halfway	● If the water level declines, the washer will supply water automatically.
Water outflows when washing.	● Check if add the detergent with too much bubbles.
Remaining time changes	● If clothes are off center when spin, spinning time will extend to correct the deviation.
There is abnormal noise when spin.	● Check if the power line touches with cabinet. ● Have the transport bolts been dismantled? ● Are there some hairpins or coins in the roller?
The washer can't work after the failure of electricity.	● The washer will stop working after the failure of electricity. When the power is restored, it still can't continue to work. Please press the power button and reset the program.

Troubleshooting guide

Phenomenon	check points	solutions
Washer can't start	Check if press the power button or start/pause button?Is the plug pulling out?Is there a power failure?Check if cut the leakage protector?	Press the power button or start/pause button.Connect the plug.Please wait.Open the leakage protector.
Spinning screen shows "UE"	Check if disassemble the carriage bolt?Is the machine placed steadily?Are the clothes too small or light?Are the locknuts on under the feet tightened up?	Disassemble the carriage bolt.Place the machine on a steady ground.Add more clothes.Tighten up the locknuts.
Water inflow screen shows "IE"	Check if turn the tap off?Is the water supply cut off or the water pressure too low?Are the water inlet pipes frozen?Are the filters blocked?	Open the stopcock.Please wait.Use hot water to unfreeze the pipes.Take out the filters and clean them.
Water outflow screen shows "OE"	Are the outlet pipes placed too highly?Are the outlet pipes frozen?Are the outlet pipes blocked?Are the floor drain blocked?	Please put away the outlet pipes and make sure the height within 1M.Use hot water to unfreeze the pipes.Take out the foreign matter and dredge the pipes.Clean the floor drain.
Door trouble screen shows "DE"	Make sure if start the washer without closing the door well.	Make sure the door truly closed
Not heating screen shows "E"	Please pull out the plug and call for the after sale service
Keep water inletting without stop, screen shows "FE"	Due to the abnormal of water inlet valve and water level sensor	Shut the water tap, pull out the plug and call for the after sale service
The wash drum does not running, screen shows "LE" or "CE"	Please pull out the plug and call for the after sale service
Too much bubble	If adding the amount of detergent is more than the suggested?If use the low bubble detergent which is especially for front loading washing machine?	Add proper amount of detergent.Use the correct type of detergent.

Specification

Model	SVL10MI SVL09MI
Rated voltage	220-240V~,50Hz	220-240V~,50Hz
Rated washing power	200W	200W
Rated spinning power	650W	600W
Power consumption of off-mode	0.45W	0.45W
Power consumption of left-on mode	0.5W	0.5W
Rated heating power	2000W	2000W
Maximum power	2200W	2200W
Maximum spin speed	1400 rpm	1400 rpm
Spin-drying efficiency class	B	B
Washing noise(Airborne acoustical noise emission during washing phase for standard 60 °C cotton programme at full load)	60dB(A)	60dB(A)
Spinning noise(Airborne acoustical noise emission during spinning phase for standard 60 °C cotton programme at full load)	75dB(A)	75dB(A)
Waterproof class	IPX4	IPX4
Water pressure	0.03-1Mpa	0.03-1Mpa
EU Ecolabel award	N/A	N/A

Model	SVL08MI SVL08XMI
Rated voltage	220-240V~,50Hz	220-240V~,50Hz
Rated washing power	200W	200W
Rated spinning power	500W	500W
Power consumption of off-mode	0.45W	0.45W
Power consumption of left-on mode	0.5W	0.5W
Rated heating power	1500W	1500W
Maximum power	1700W	1700W
Maximum spin speed	1200 rpm	1200 rpm
Spin-drying efficiency class	B	B
Washing noise(Airborne acoustical noise emission during washing phase for standard 60 °C cotton programme at full load)	60dB(A)	60dB(A)
Spinning noise(Airborne acoustical noise emission during spinning phase for standard 60 °C cotton programme at full load)	75dB(A)	75dB(A)
Waterproof class	IPX4	IPX4
Water pressure	0.03-1Mpa	0.03-1Mpa
EU Ecolabel award	N/A	N/A

SVAN TRADING S.L.
