Technical specifications 02

Security advise 03

Installation 04

Usage & Maintenance 05

Technical Service 06

TECHNICAL SPECIFICATIONS

CONCEPTVALUE	VALUE
SUCTION 460 m	460 m^3/h
MOTORS 2	2
MOTOR POWER 2 x 90W	2 x 90W
LAMPS 2 x 28W	2 x 28W
TOTAL POWER 236W	236W
AIR OUTLET 12cm diameter	12cm diameter
POWER LEVELS 3	3
ALUMINIUM FILTERS 2	2
WIDTH (mm) 620	620
DEPTH (mm) 370	370
HEIGHT (mm) 190	190
NET WEIGHT 6,9 Kg.	6,9 Kg.

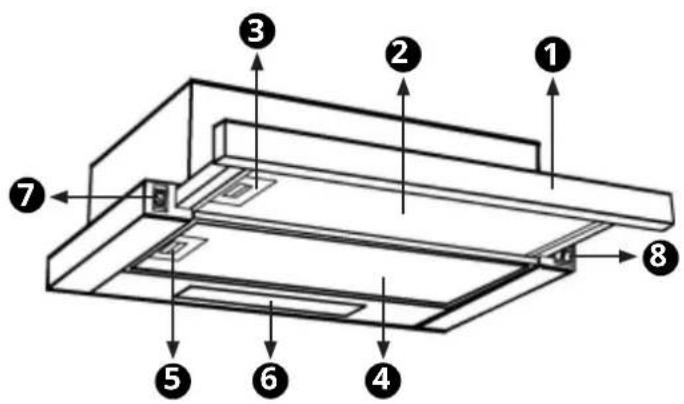

HOOD PART	POSITION
Detachable front	1
Aluminium filter 1	2
Filter opener 1	3
Aluminium filter 2	4
Filter opener 2	5
Light	6
ON / OFF button	7
Power level selector	8

SECURITY ADVISE

Please read carefully all instructions provided in this user manual before manipulating this product, installing it, using it or proceeding to its maintenance. Keep this user manual for your future reference.

This product is intended for domestic interior usage only. Any other usage may cause personal injuries or product damages and Schneider's warranty will be voided.

This appliance must be kept away from children or people with mental or physical disabilities unless they are instructed and supervised by an adult responsible for their safety.

Never try to modify or dismantle this appliance by yourself in any form unless specified in this user manual.

The installation or repairing of this appliance must be held by a qualified technician.

Do not touch any part of the appliance but the control buttons while it is functioning.

Always supervise the operation while you are cooking. Any contact with flames, or boiling oil or any other heating source may cause fire or serious damages to the hood. There is a risk of injuries.

Keep in mind that the light bulbs cover is hot while in use or, even, a few minutes after. Do not touch them unless you are sure you will not get injured.

Do not hang on the hood. Do not press it nor put heavy weight on it. The hood hanging system is conceived to stand the appliance weight only.

Always keep the kitchen correctly vented. Even when the appliance is on.

If have gas cookers or gas heaters or any other gas appliance always supervise them while using the hood as it could cause the gas flames to be extinguished and produce a gas scape, so there is a explosion risk. For your own safety watch always the operation, keep your kitchen correctly vented and do not let the negative pressure under the hood to be over 4 Pa.

Do not flambé under the hood.

This is an electrical appliance so it is important to observe the following safety guidelines:

Never touch it with your hands being wet.

Keep away from it any flammable materials.

Unplug it always before servicing.

Install it according to local regulations.

Verify that your home electricity main complies with the information provided in the rating label of this product.

The installation must be held by a qualified technician.

Keep the plug always accessible.

Keep the appliance always clean.

Never dismantle this appliance. Any repairing must be held by a qualified technician.

INSTALLATION

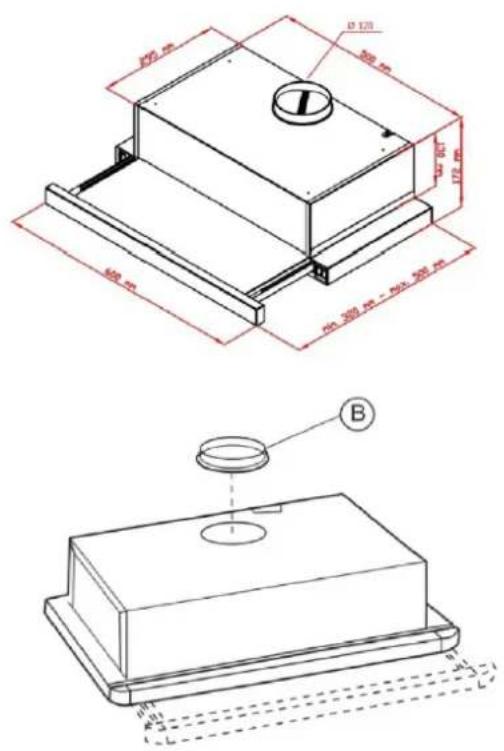

INSTALLATION DIAGRAM

Before installation please ensure the kitchen has enough air circulation.

The installation must be held by a qualified technician.

Before installation please remove all packaging remainings such as plastics, foam, etc.

Verify that your home electricity main complies with the information provided in the rating label of this product. This appliance is class II, so it does not need grounding (Brown = L line and Blue = N neutral).

If you connect the hood directly to the mains you shall use a switch according to the local standards and with a 3mm gap maximum between the bipolar ends.

This hood has been conceived to be built in a specially designed furniture for this kind of usage over the cooker. The built in parts dimensions of the hood are (W x H x D): 500 x 130 x 295 mm. The minimum distance between the cooker and the hood must be 65cm.

The air outlet diameter is 12cm. If yours is different size then you will need to use an adaptor on the connector outside (B). Do not connect under any circumstances the hood outlet to the air vent of a boiler or any other which may content flammable gas.

The hoods hanging kit is included. Please check the packaging.

INSTALLATION

CARBON FILTERS:

Carbon filters are not included, but they are available in the market if you want to buy them. If you have an air outlet you do not need the carbon filters for normal operation. Carbon filters are used for kitchen air recirculation. They clean the kitchen air so it can be pumped back into the kitchen. The air is not pumped out but filtered and returned back to the kitchen.

Carbon filters are not washable and should be replaced around every four months, depending on its usage. Always follow the producer instructions.

KF-A / KF-C filters:

In this case 2 filters must be used, one each side of the plastic cover of the engine, where you can find 2 tabs. Fix the filters with the tabs and turn them 90^ until you hear a click. To unmount the filters you can make the inverse operation.

KF-B filters:

Only one unit of carbon filter shall be used in this case. It should be placed at the front of the metal container of the motor. Fix the filter tabs in the container holes towards the wall, and the clips on top of the carbon filter should be fixed in the metal container and locked.

It is advised to always start the hood before cooking no matter what you are cooking.

Select the power level (1, 2, 3) according to the amount of generated steam while cooking.

When you finish cooking wait for around 15 minutes before turning the hood off. By doing so a better venting of smoke and steam is guaranteed.

MAINTENANCE:

Keep the hood always in perfect cleaning and maintenance conditions for a better performance and to ensure a long working life. Pay special attention to filters. Aluminium filters are conceived to retain fat particles in suspension, in a way that the fat may accumulate on the filters and, not only decrease, but even block the suction capacity of the hood. The fat may accumulate faster or slower depending on the usage of the hood, but, in any case, you should clean them, at least, once every 2 months. In order to do so please follow these instructions:

Use the filter tabs to unmount them.

Put them in water with a neutral detergent for the fat to be softened.

Wash them accurately unblocking any obstruction.

Rinse it well with clean water and let it air dry.

Make sure the filters are completely dry and mount them back in place.

After washing them a few times you may notice the filters loose a bit of colour. This is normal and does not require any action.

CAUTION: Unplug the hood prior any maintenance or cleaning operation.

Carbon filters are not washable. You have to replace them with new filters when their life cycle is ended.

All other hood surfaces but the painted ones, and the vent may be frequently cleaned with an alcohol damped cloth, and/or with neutral, liquid, non abrasive detergent. Do not use rough sponges.

If you need assistance you can find you local Schneider technical service office at www.schneiderespana.es

This symbol on the product or its packaging indicate that this product must not be disposed of with the regular household waste. The user has to return the product to a collection point for the recycling of electric and electronic equipment. The disposal must comply with the local regulations on place
