Product Type	High-pressure pump
Brand	Maruyama
Model	MS253
Engine Type	2-stroke gasoline engine
Displacement	25 cc
Max Pressure	3.0 MPa (435 psi)
Flow Rate	15 L/min (4 GPM)
Inlet/Outlet Size	3/4" NPT
Weight	10 kg (22 lbs)
Dimensions (LxWxH)	400 x 300 x 300 mm
Fuel Type	Gasoline and oil mixture (50:1)
Fuel Tank Capacity	1.0 L
Oil Type	SAE 30 or 2-stroke oil
Pump Type	Diaphragm pump
Max Suction Lift	3 m
Max Temperature	50°C (122°F)
Applications	Agricultural spraying, pest control, cleaning
Maintenance	Clean filter, check oil, replace spark plug annually
Safety Features	Pressure relief valve, engine shut-off

Frequently Asked Questions - MS253 Maruyama

What type of fuel does the Maruyama MS253 pump use?

The Maruyama MS253 uses a gasoline and oil mixture at a ratio of 50:1. Use fresh unleaded gasoline and high-quality 2-stroke oil.

How do I start the Maruyama MS253 pump?

Ensure the fuel tank is filled, the shut-off valve is open, and the throttle is set to start. Pull the starter cord firmly. Refer to the engine start section in the manual for choke and priming procedures.

What is the maximum pressure of the MS253 pump?

The maximum operating pressure is 3.0 MPa (435 psi). Do not exceed this pressure to avoid damage to the pump or spray wand.

How often should I change the oil?

For the engine, change the oil after the first 20 hours of use, then every 50 hours thereafter. The pump diaphragm requires no oil change, but check for leaks.

What should I do if the pump loses pressure?

Check the suction filter for clogs, ensure the inlet hose is not kinked, and verify that the pressure relief valve is properly adjusted. Also inspect the diaphragm for damage.

Can I use the pump with chemicals?

Yes, the MS253 is designed for agricultural chemicals such as herbicides and pesticides. Rinse the pump with clean water after each use to prevent corrosion.

How do I winterize the Maruyama MS253?

Drain all fuel from the tank and carburetor. Run the engine until it stops. Flush the pump with antifreeze solution or store it in a frost-free environment.

What is the recommended nozzle for the MS253?

Use a nozzle compatible with the pump's flow rate and pressure, typically adjustable spray guns with a pressure rating of at least 500 psi. For fan nozzles, select size 02-04.

How do I clean the pump filter?

Unscrew the filter cap, remove the stainless steel mesh, and rinse it with water. Reinstall and tighten securely. Clean the filter after every 10 hours of use.

Where can I find replacement parts for the MS253?

Replacement parts such as diaphragms, valves, and spark plugs are available from Maruyama dealers or online retailers. Use genuine parts for optimal performance.

USER MANUAL MS253 Maruyama

Technical line drawing of a mechanical pump assembly with no visible text or symbols

MANUAL DE

Cartoon illustration of a large, anthropomorphic creature with a small figure and a rocky base (no text or symbols)

Mal instalada

Cartoon illustration of a microscope with musical notes flying around it (no text or symbols)

Bien instalada

2-2. COMO ESCOGER LA POLEA EN V

Cartoon illustration of a character in a wheelchair with a smiling character on his back (no text or symbols present)

Cartoon illustration of two anthropomorphic characters interacting, one holding a tool (no text or symbols present)

Cartoon illustration of a diverging figure with mechanical parts, no text or symbols present

Cartoon illustration of a diverging figure with a small creature and a running creature (no text or symbols)

Regule la presión.

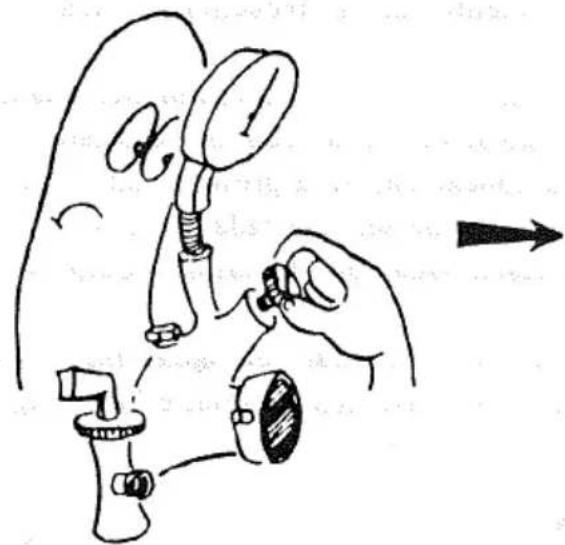

3-2. REGULADOR DE PRESION

Illustration of a hand using a pressure gauge to measure a valve or valve component, with an arrow indicating direction (no text or symbols present)

Cartoon illustration of a person riding a large bird-like creature (no text or symbols)

Cartoon drawing of two anthropomorphic characters interacting, one holding a spoon and the other looking up (no text or symbols)

5. PARADA DEL MOTOR

Cartoon illustration of a character riding a vehicle with a phone, no text or symbols present

7. DESARMADO Y ARMADO

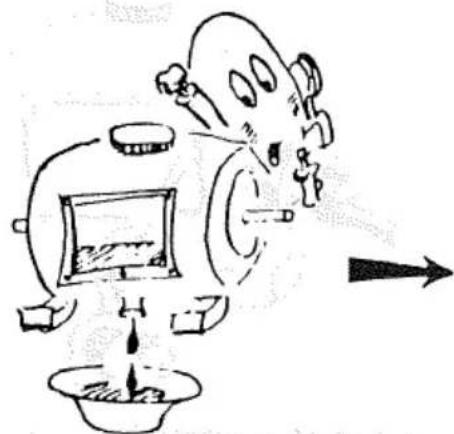

7-1. DESARMADO
