Download the instructions for your Ice machine in PDF format for free! Find your manual B-900PF - Hoshizaki and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. B-900PF by Hoshizaki.
USER MANUAL B-900PF Hoshizaki
Hoshizaki America, Inc.
Storage Bin
Models
B-250PF B-300SF
B-300PF B-500SF
B-500PF B-700SF
B-700PF B-800SF
B-800PF B-900SF
B-900PF BD-300SF
BD-300PF BD-500PF
BD-500PF
"A Superior Degree of Reliability"
www.hoshizaki.com
PARTS LIST
CONTENTS
Auxiliary Codes....3
Note About Ordering Parts 5
A. Storage Bin....6
B. Accessories & Labels 9
Auxiliary Codes
B-250PF
L-5 August 2001
M-5 February 2002
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-500PF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-800PF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-300PF
L-5 July 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
D-6 March 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
BD-300PF
A-5 April 2011
D-5 April 2014
E-5 February 2015
E-6 October 2015
BD-500PF
A-5 July 2011
B-5 April 2015
C-5 April 2013
D-5 January 2014
E-5 January 2015
E-6 September 2015
B-700PF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-900PF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 January 2004
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-300SF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 February 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
D-6 February 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
BD-300SF
A-5 April 2011
D-5 April 2014
E-5 February 2015
E-6 October 2015
B-500SF
L-5 June 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
BD-500SF
A-5 April 2011
B-5 March 2012
C-5 May 2013
D-5 February 2014
E-5 May 2015
E-6 August 2015
B-700SF
L-5 September 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-800SF
L-5 September 2001
M-5 December 2001
N-5 December 2002
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
B-900SF
L-5 June 2001
M-5 December 2001
N-5 January 2003
P-5 December 2003
Q-5 December 2004
R-5 December 2005
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
C-5 January 2013
D-5 January 2014
E-5 January 2015
E-6 August 2015
F-5 January 2016
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from "A" through "V" and the letters "I" and "O" are skipped. The second character indicates significant part changes within a year. Base is "5" and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from "(A)" through "(M)" and the letter "(I)" is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.
A. Storage Bin
B-____PF, BD-____PF, B-____SF, BD-____SF
L-5 to F-5
| Title: A.Storage Bin Model: B-____PF, BD-____PF, B-____SF, BD-____SF | |||||||||||
| Index No. Description | Material or Model Number | Part Number | Required Number | ||||||||
| L-5 to U-5 (C) | U-5 (D) to V-5 | A-5 to D-5 | D-6 to F-5 | ||||||||
| 1 Bin Door (includes item 2) B-250PF | B-500PF/SF | 3A2087G05 1 | - | ||||||||
| 3A2087G10 1 | 1 1 | ||||||||||
| BD-500PF/SF | 1 | ||||||||||
| B-300PF/SF 3A | 2087G04 1 - | ||||||||||
| 3A2087G09 1 | 1 1 | ||||||||||
| BD-300PF/SF | 1 | ||||||||||
| B-700PF/SF 3A | 2087G01 | 1 - | |||||||||
| 3A2087G06 1 | 1 1 | ||||||||||
| B-800PF/SF 3A | 2087G02 1 - | ||||||||||
| 3A2087G07 1 | 1 1 | ||||||||||
| B-900PF/SF 3A | 2087G03 1 - | ||||||||||
| 3A2087G08 1 | 1 1 | ||||||||||
| 2 Bushing | 4A | 2582-01 2 - | |||||||||
| 4A3914-01 | 2 2 | 2 | |||||||||
| 3 Right Hinge | 3A | 0105G01 | - | ||||||||
| 3A3725G01 | 1 1 | 1 | |||||||||
| 3a | Hex Head Bolt | 5×14, SS 7B02 | -0514 2 2 2 2 | ||||||||
| 3b | Washer | 4A0198-01 | 2 2 | 2 2 | |||||||
| 4 Left Hinge | 3A | 0106G01 | - | ||||||||
| 3A3726G01 | 1 1 | 1 | |||||||||
| 4a | Hex Head Bolt | 5×14, SS 7B02 | -0514 2 2 2 2 | ||||||||
| 4b | Washer | 4A0198-01 | 2 2 | 2 2 | |||||||
| 5 Baffle | B-250PF | 104322-01 | 1 1 | 1 1 | |||||||
| B-500PF/SF | 1 | ||||||||||
| BD-500PF/SF | 1 | ||||||||||
| B-300PF/SF 10 | 4391-01 | 1 1 1 | 1 | ||||||||
| BD-300PF/SF | 1 | ||||||||||
| B-700PF/SF 10 | 4323-01 | 1 1 1 | 1 | ||||||||
| B-800PF/SF 10 | 5012-01 | 1 1 1 | 1 | ||||||||
| B-900PF/SF 10 | 4324-02 | 1 1 1 | 1 | ||||||||
| 5a | Thumbscrew | B-250PF | 415949G12 2 | 2 2 2 | |||||||
| B-300PF/SF | |||||||||||
| BD-300PF/SF | |||||||||||
| B-500PF/SF | |||||||||||
| BD-500PF/SF | |||||||||||
| B-700PF/SF | 3 3 | 3 3 | |||||||||
| B-800PF/SF | 4 4 | 4 4 | |||||||||
| B-900PF/SF | |||||||||||
| 5b | Thumbscrew | 434168G01 | 2 2 | 2 2 | |||||||
| 6 Front Frame | B-250PF | 3A0420-01 1 | 1 1 | ||||||||
| B-500PF/SF | 1 | ||||||||||
| B-300PF/SF 3A | 8180-01 | 1 | |||||||||
| BD-300PF/SF | 3A6594-01 | 1 1 | |||||||||
| BD-500PF/SF | 3A6594-02 | 1 1 | |||||||||
| B-700PF/SF 3A | 0446-01 1 1 | 1 | |||||||||
| B-800PF/SF 3A | 0447-01 | 1 1 1 | 1 | ||||||||
| B-900PF/SF 3A | 0447-02 | 1 1 1 | 1 | ||||||||
| 6a | Hex Head Tapping Screw | 7B03I0834 2 | 2 2 2 | ||||||||
| IndexNo. Description | Description | Material orModel Number | Part Number | Required Number | |||||||
| L-5toU-5(C) | U-5(D)toV-5 | A-5toD-5 | D-6toF-5 | ||||||||
| 7 Front Frame Cover B-250PF | B-500PF/SF | 324625-01 1 | 1 1 | ||||||||
| B-300PF/SF 32 | 4617-01 1 1 | 1 | |||||||||
| B-700PF/SF 3A | 0155-01 1 1 | 1 | |||||||||
| B-800PF/SF 32 | 5510-01 1 1 | 1 | |||||||||
| B-900PF/SF 32 | 4619-01 1 1 | 1 | |||||||||
| 8 Too Cover B-250PF | B-500PF/SF | 3A0157-01 | 1 1 1 | ||||||||
| B-300PF/SF 3A | 0156-01 1 1 | - | |||||||||
| 3A8189-01 | 1 | ||||||||||
| BD-300PF/SF | 3A6538-01 | 1 1 | |||||||||
| BD-500PF/SF | 3A6537-01 | 1 1 | |||||||||
| B-700PF/SF 3A | 0158-01 1 1 | 1 | |||||||||
| B-800PF/SF 2A | 0106-01 1 1 | 1 | |||||||||
| B-900PF/SF 2A | 0107-01 1 1 | 1 | |||||||||
| 9 Right Bin Cap | B-250PFB-300PF/SFB-500PF/SFB-700PF/SFB-800PF/SFB-900PF/SF | 3A7473-01 | 1 | ||||||||
| 10 | Left Bin Cap | B-250PFB-300PF/SFB-500PF/SFB-700PF/SFB-800PF/SFB-900PF/SF | 3A7474-01 | 1 | |||||||
| 11 | Back Bin Cap | B-250PFB-500PF/SF | 3A7475-02 | 1 | |||||||
| B-300PF/SF 3A | 7475-01 | 1 | |||||||||
| B-700PF/SF 3A | 7475-03 | 1 | |||||||||
| B-800PF/SF 3A | 7475-05 | 1 | |||||||||
| B-900PF/SF 3A | 7475-04 | 1 | |||||||||
| 12 | Drain Cap | 322015-01 | 1 | 1 | 1 | 1 | |||||
B. Accessories & Labels
B-____PF, BD-____PF, B-____SF, BD-____SF
L-5 to F-5


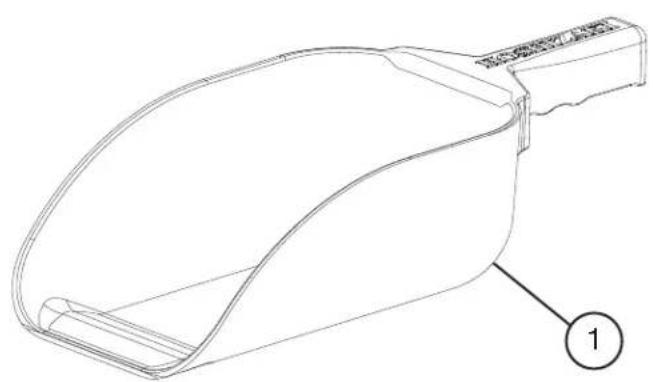

Line drawing of a plastic container with handle and side panel, labeled with number 1 (no text or symbols on the diagram itself)


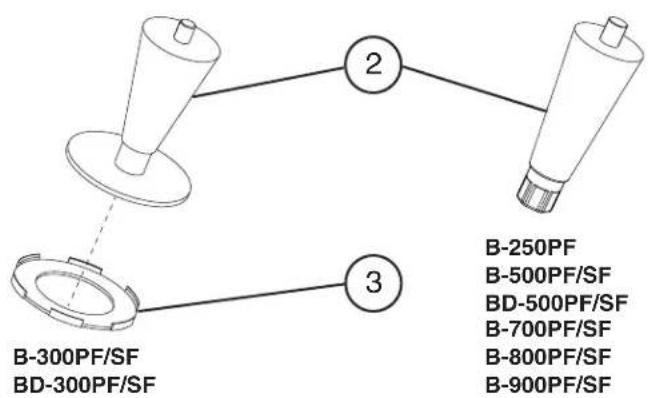

B-300PF/SF BD-300PF/SF 2 3 B-250PF B-500PF/SF BD-500PF/SF B-700PF/SF B-800PF/SF B-900PF/SF| Title: B. Accessories & Labels Model: B-____PF, BD-____PF, B-____SF, BD-____SF | |||||||||||
| IndexNo. Description | Material orModel Number | Part Number | Required Number | ||||||||
| L-5toF-5 | |||||||||||
| 1 Scoop 4A2246-01 1 | |||||||||||
| 2 Leg B-300PF/SF | BD-300PF/SF | 4A2526-01 4 | |||||||||
| B-250PFB-500PF/SFBD-500PF/SFB-700PF/SFB-800PF/SFB-900PF/SF | 4A2525-01 | 4 | |||||||||
| 3 Leg Protector B-300PF/SF | BD-300PF/SF | 3A0134-01 4 | |||||||||
