Nobile PER3562 - Tablet PRESTIGIO - Free user manual and instructions

Product Type	Tablet
Brand	Prestigio
Model	Nobile PER3562
Display Size	10.1 inches
Dimensions (W x D x H)	242 x 171 x 9.5 mm
Weight	520 g
Battery Capacity	6000 mAh
Charging Port	Micro USB
Operating System	Android (version varies)
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Rear Camera	5 MP
Front Camera	2 MP
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Safety Warnings	Do not expose to water or high temperatures
Spare Parts	Battery, screen, charging port available from authorized service centers
Repair Information	Contact Prestigio support or authorized repair center
Manual Language	English (PDF available for download)

Frequently Asked Questions - Nobile PER3562 PRESTIGIO

How do I turn on the Prestigio Nobile PER3562 tablet?

Press and hold the Power button located on the side of the tablet until the screen lights up.

How can I extend battery life?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close unused apps. You can also enable Battery Saver mode in settings.

What should I do if the screen is not responding?

Try performing a force restart by pressing and holding the Power button for 10-15 seconds until the device reboots. If the issue persists, contact support.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, select your network, and enter the password if required.

Can I insert a SIM card?

The Nobile PER3562 is a Wi-Fi only tablet; it does not have a SIM card slot for cellular connectivity.

How do I take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously for a second. The screenshot will be saved in the Gallery.

Why is my tablet charging slowly?

Ensure you are using the original charger and cable. Charging via a computer USB port may be slower. Also, avoid using the tablet while charging.

How to update the Android version?

Go to Settings > About tablet > System update. If an update is available, follow the on-screen instructions to install it.

The tablet won't connect to Bluetooth devices. What should I do?

Make sure Bluetooth is enabled and the device is in pairing mode. Try restarting both devices and moving them closer together. Also, check compatibility.

How do I factory reset my tablet?

Go to Settings > Backup & reset > Factory data reset. Note that this will erase all data, so backup important files first.

USER MANUAL Nobile PER3562 PRESTIGIO

Press and hold the Power Button to turn on the device. It will automatically enter the main menu on Home screen after the start-up screen. The main menu includes Internal Storage, SD Card, Books, History, Dictionary, Pictures, Music, Settings and Applications. Press the Navigation Button and OK Button to move to the desired function and to confirm the option.

Home 20.09.2011, Tuesday 11:33 Internal Storage SD Card Books History Dictionary Pictures Music Settings Applications Recent Reading

Internal Storage

Select the Internal storage icon, all of the files saved in it are displayed.

Internal Storage 21.09.2011, Wednesday 14:21 Internal Storage Audio Audiobooks Ebooks Pictures 1/1

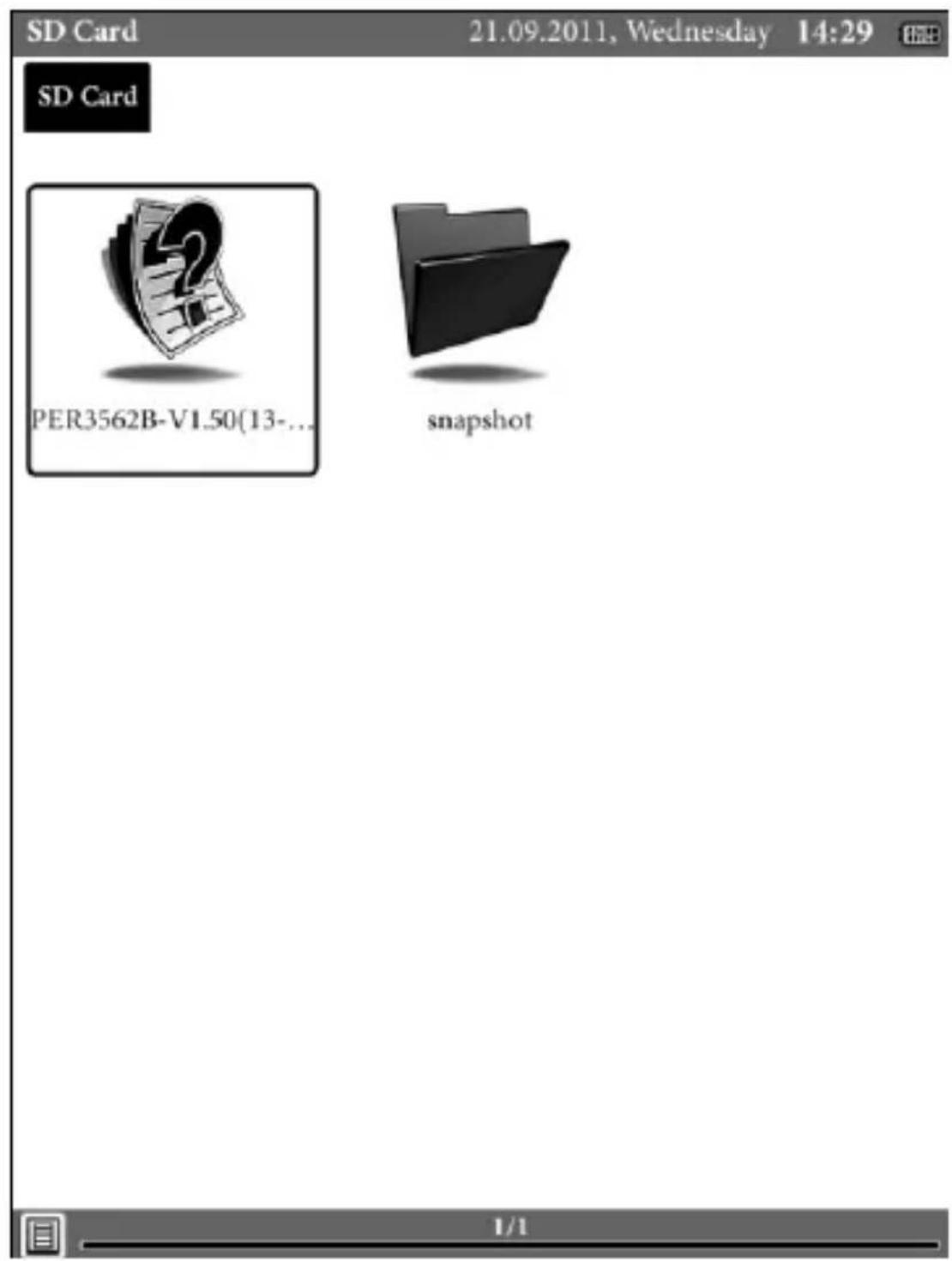

SD Card

Select the SD Card icon, all of the items stored in SD card are displayed.

SD Card 21.09.2011, Wednesday 14:29 SD Card PER3562B-V1.50(13-... snapshot 1/1

The device supports 9 types of file formats, including EPUB, PDF, FB2, MOBIPOCKET, TXT, PDB, HTML, CHM, and DJVU.

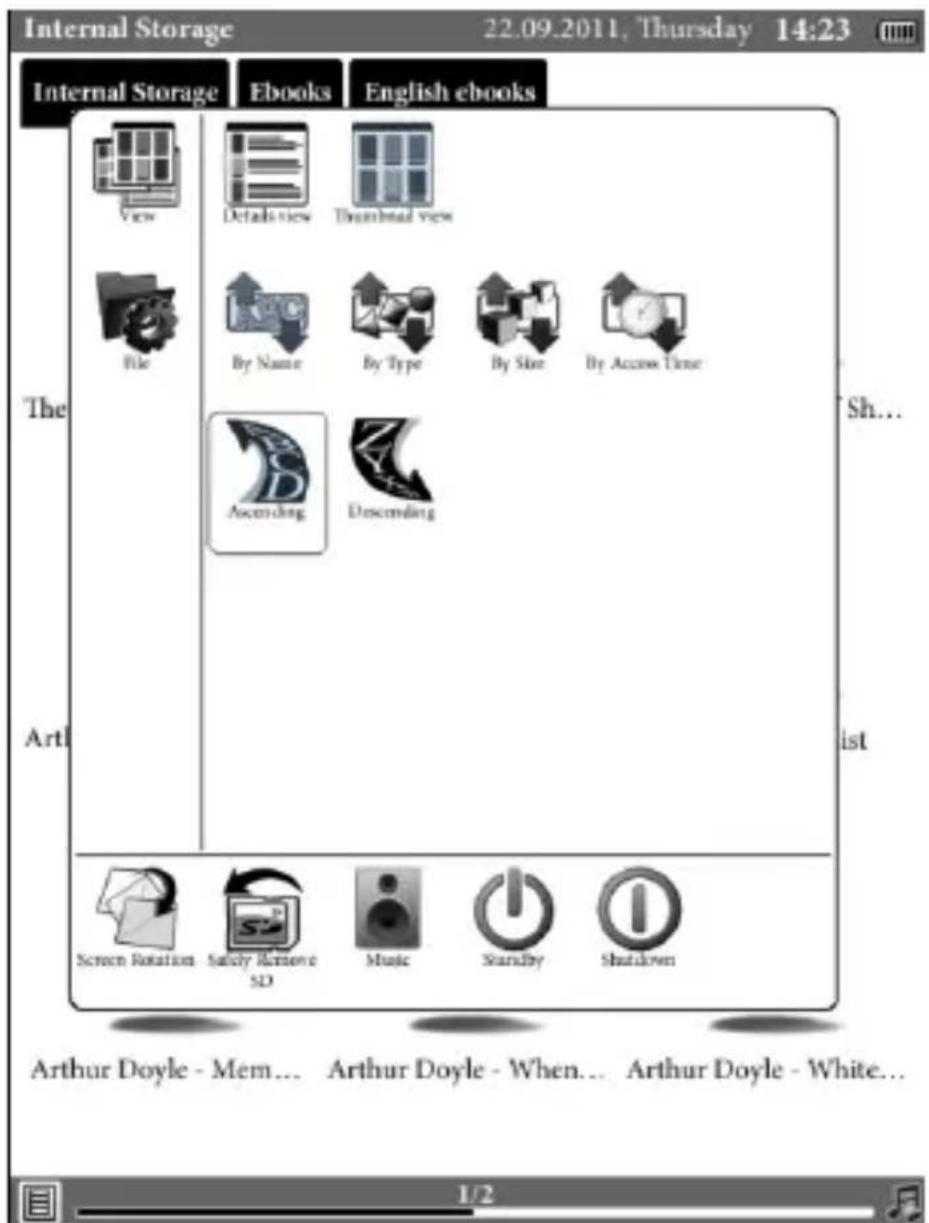

Books Menu

In the Books list, press the Menu Button to enter Books Menu. Press the Navigation Button to select the option and to confirm. Press the BACK Button to exit.

Internal Storage 22.09.2011, Thursday 14:23 Internal Storage Ebooks English ebooks View Details view Thermal view File By Name By Type By Size By Access Time The Ascending Descending Artl Sh... ist Screen Rotation Satisfy Remove SD Music Standby Shutdown Arthur Doyle - Mem... Arthur Doyle - When... Arthur Doyle - White... 1/2

View	Details view and thumbnail view.
Sorting types	Sort by Name, by Type, by Size, by Access Time, by Ascending, by Descending.
Search	Search for a desired keyword. Input the word and press theNavigation Buttonto start the search.
Files	The files can be renamed, copied, cut and deleted

Reading a Book

Press the Direction Button to select the desired book and to start reading. Press the PREV/NEXT PAGE Buttons to turn pages. Press the BACK Button to exit the reading. Press the MENU Button to enter the submenu with detailed as follows.

notes Font Family 12 14 16 18 20 Font 22 24 26 28 30 Style 32 34 36 38 40 Encoding Bold Italic Tool Rotate Screen Full Screen Music Close but admirably balanced mind. He was, I take it,

Font Family: Select the desired font family.

notes Font Family Advis Heli Gel Advis Mirax Gel Advis Muremaz Gel Stu-ramn Vena Serra Stu-ramn Fera Serra A B Bikshman Vena Serra Dygnala Serra Dayana Serra Dayana Serra Fand Style Minesa Pro Myriad Pro Eye Handlc Flush Symbol Set VeryCues's Zea Pro Eloccading Tools Adobe Sicemis Full Screen Music Close but admirably balanced mind. He was, I take it,

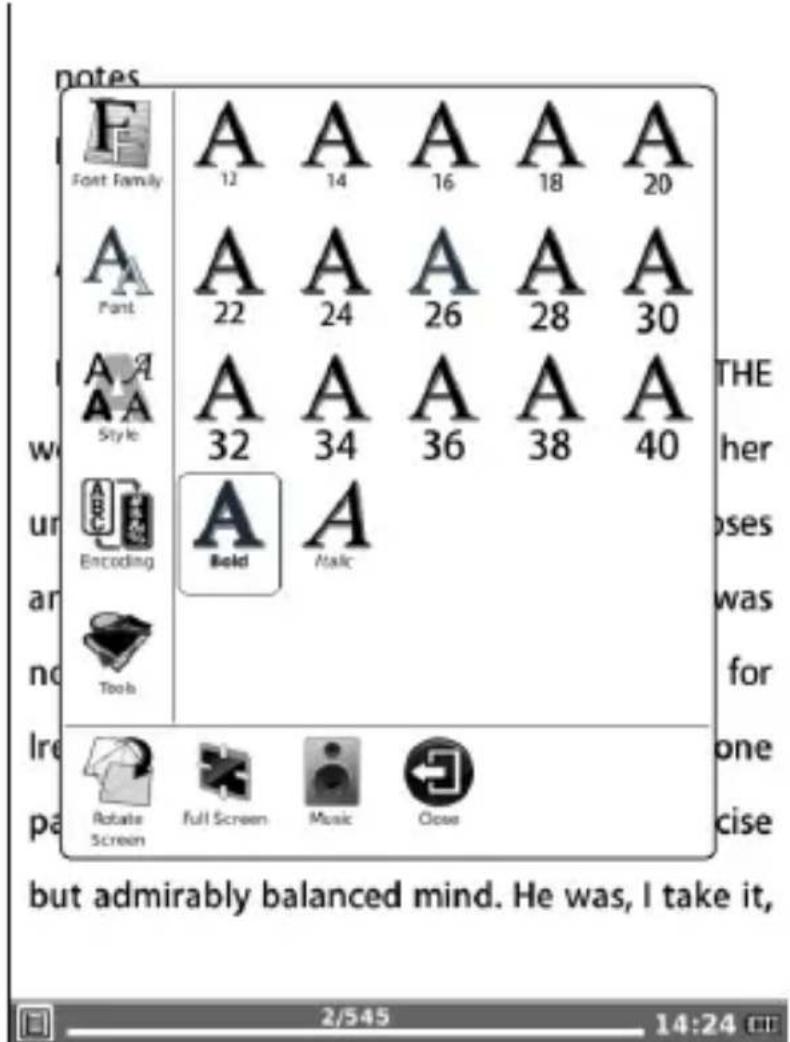

Font: Adjust the font by ratio or by Numbers, select Bold/Italic.

notes Foot Family 12 14 16 18 20 A 22 24 26 28 30 A 32 34 36 38 40 Style Encoding Make A Music the her poses was for one cise note Software Full Service Music Close but admirably balanced mind. He was, I take it,

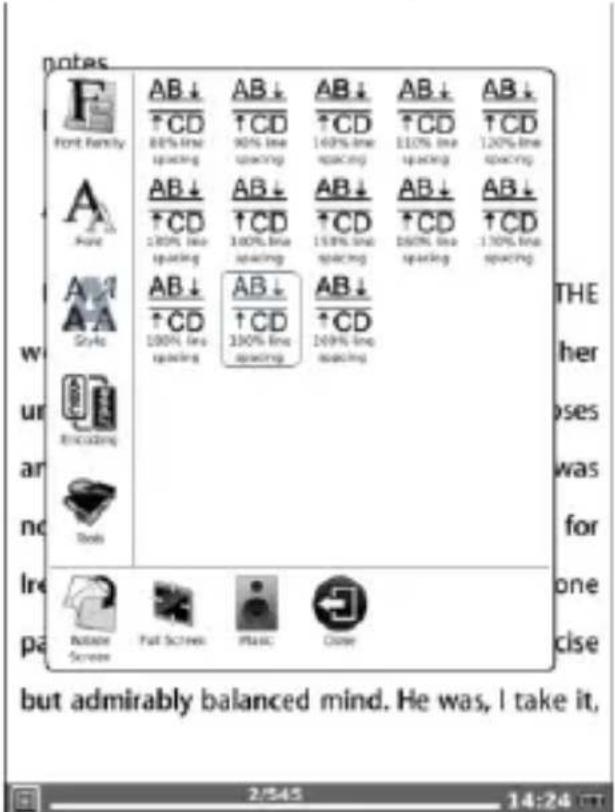

Style: Select the line spacing while viewing documents.

Notes Font Family AB ↓ ↑CD 80% line spacing AB ↓ ↑CD 90% line spacing AB ↓ ↑CD 100% line spacing AB ↓ ↑CD 110% line spacing AB ↓ ↑CD 120% line spacing A Font AB ↓ ↑CD 130% line spacing AB ↓ ↑CD 140% line spacing AB ↓ ↑CD 150% line spacing AB ↓ ↑CD 160% line spacing AB ↓ ↑CD 170% line spacing Style AB ↓ ↑CD 100% line spacing AB ↓ ↑CD 100% line spacing The her loses was for one cise but admirably balanced mind. He was, I take it, w ur an nc lre pa

Encoding: Configure the encoding type while viewing text-based document.

notes Font Family UTF-0 UTF-7 UTF-16 UTF-16BE GB10439 A Bip3 ISO-BR56-1 ISO-BR56-2 windows-125 windows-125 D Type EUC-IP ISO-FG22-IP SMT-JD Encoding Tools Retiree Screen Full Screen Music Coss but admirably balanced mind. He was, I take it,

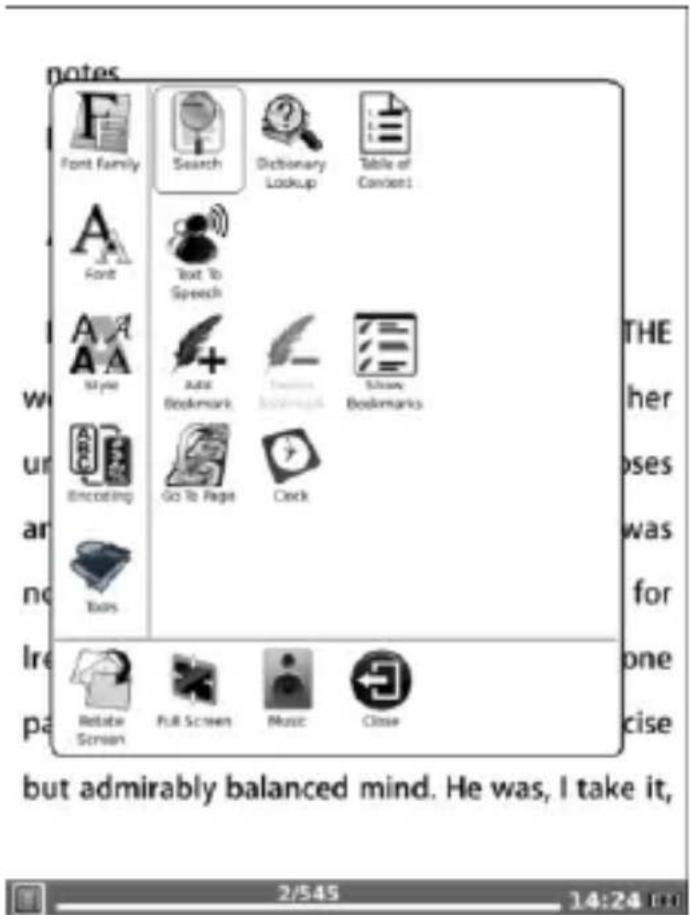

Tools:

notes Font Family Search Dictionary Lookup Table of Content Font Text To Speech Style Add Bookmark Browse Bookmarks Encoding Go To Page Clock Bars Rotate Screen Full Screen Music Close but admirably balanced mind. He was, I take it,

Search	Input the key words to search desired info
Dictionary look-up	Refer to the dictionary instruction
Bookmark	Add bookmark, delete and show all the bookmarks
Go to page	Flip to the desired page
Clock	Show the current time and reading time, same function as in other options.

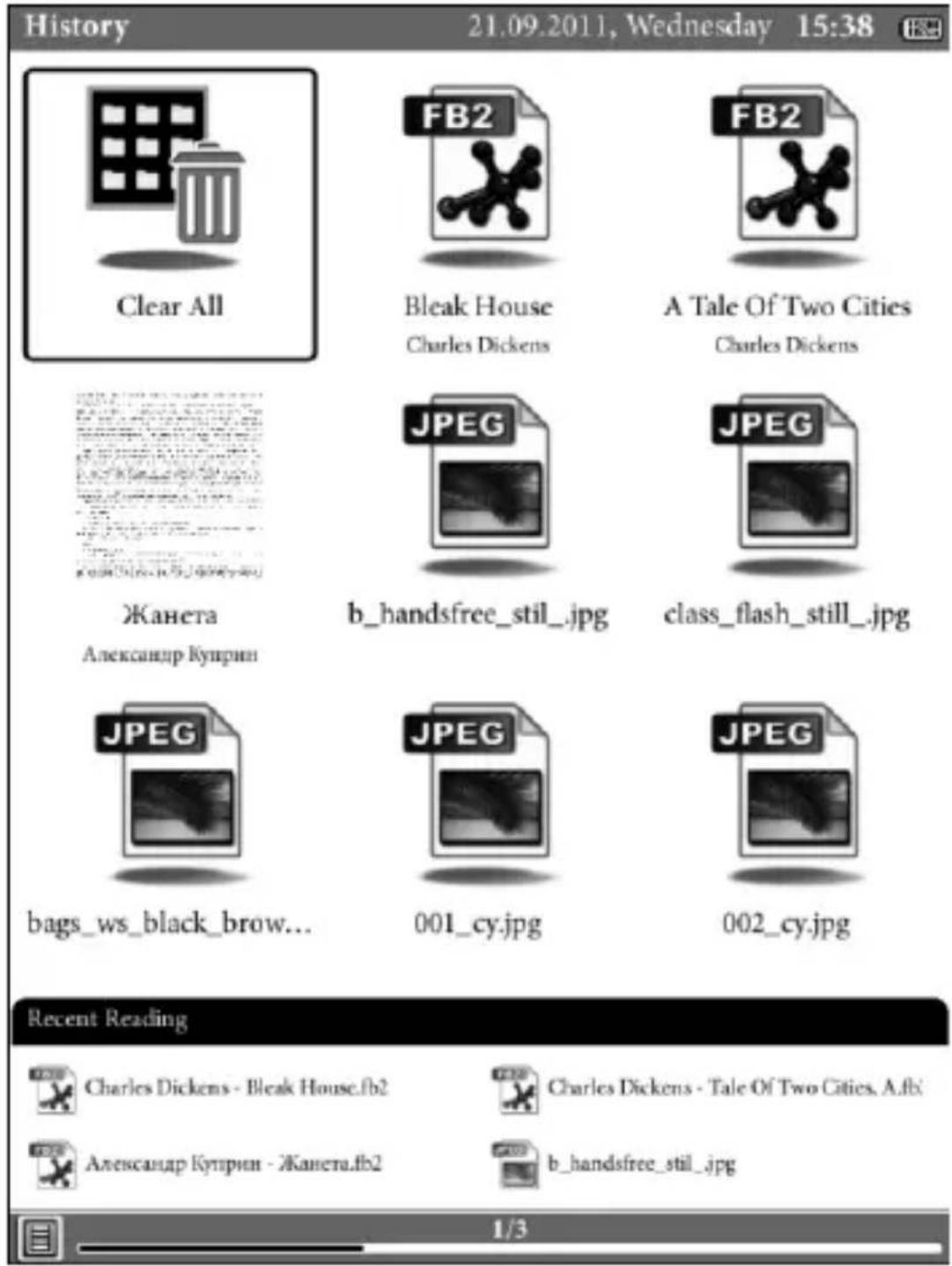

All the recent read documents are displayed. Press the Clear All Button to delete all the files under this button.

History 21.09.2011, Wednesday 15:38 Clear All FB2 A Tale Of Two Cities Bleak House Charles Dickens Charles Dickens JAPEG JPEG class_flash_still.jpg b_handsfree_stil.jpg JAPEG JAPEG bags_ws_black_brow... 001_cy.jpg 002_cy.jpg Recent Reading Charles Dickens - Bleak House.fb2 Charles Dickens - Tale Of Two Cities, A.fb: JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG JAPEG

Dictionary

StarDict compatible programs are available for the device. It supports dictionary format in StarDict.

Installing Dictionaries

Download the dictionary from http://xdxf.revdanica.com/down/, follow the notice to download the dictionary you want accordingly.

Eg: You can summit data:

From: English

To: Russian

Submitted by: Any

Download format: StarDict to the web page.

Create a new folder named dicts in root directory of the SD card. Unzip the downloaded dictionary and put it into SD Card's "dicts" folder. There are 3 files (.dict.dz, idx, ifo) in each dictionary folder.

NOTE:

There's no dictionary pre-installed on the device.

Dictionary look-up

Main page of the dictionary and input the words by software keyboard.

Dictionary Clear 1 2 3 4 5 6 7 8 9 0 q w e r c y u i o a s d f g n | k l z x c v b n m p . + - * - ← + - Shift Symbol Language Forward 00:52

	Dictionaries list: select the dictionary you want to use
	Similar words: check the similar words and their meaning
	Searching: after you input the word, please click it for searching
(ZH4Z]	Explanation: check words meaning
	Voice

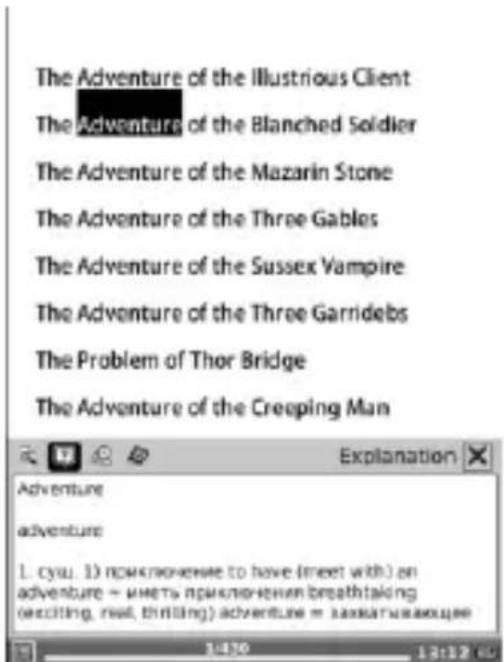

Use Dictionary while reading files:

While reading, press Menu-tools-Dictionary look-up to use the installed dictionaries. Follow the below steps:

1. Select "Retrieve words"
2. Press OK
3. Press down button to start selecting the word, then move

Navigation keys to select words

1. Press OK for words explanation

Note: PDF file can not retrieve words.

The Adventure of the Illustrious Client The Adventure of the Blanched Soldier The Adventure of the Mazarin Stone The Adventure of the Three Gables The Adventure of the Sussex Vampire The Adventure of the Three Garridebs The Problem of Thor Bridge The Adventure of the Creeping Man

Dictionary List English-Russian full dictionary 1/5/06 13:32

The Adventure of the Illustrious Client The Adventure of the Blanched Soldier The Adventure of the Mazarin Stone The Adventure of the Three Gables The Adventure of the Sussex Vampire The Adventure of the Three Garridebs The Problem of Thor Bridge The Adventure of the Creeping Man Explanation Adventure adventure 1. cyu: 1) приключения to have (meet with) an adventure - иметь приключения breathtaking (exciting, real, thinking) adventure в заказиты акции

Pictures

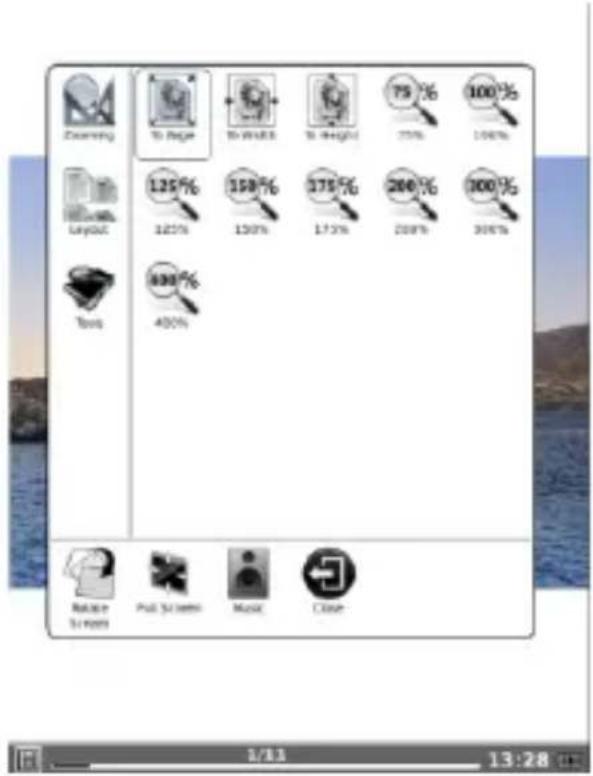

The device supports picture formats such as TIFF, JPEG, GIF, BMP, and PNG. Press the Menu Button to enter the Pictures Menu. Press the Navigation Button to select the option and to confirm. Press the BACK Button to exit.

Draming To Page To-Walk To #High 75% 100% 75% 100% Layout 125% 158% 175% 200% 300% 125% 150% 175% 200% 300% Tools 800% 400% Relapse Screens Pull Screens Music Cloud 1/11 13:28

Zooming:

Adjust the size of the picture to page, to width, to height or by ratio.

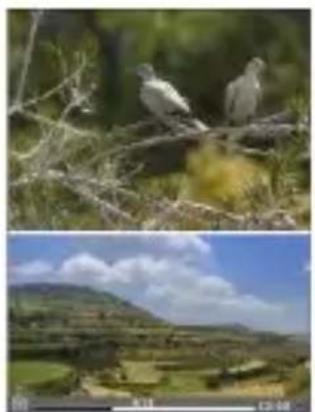

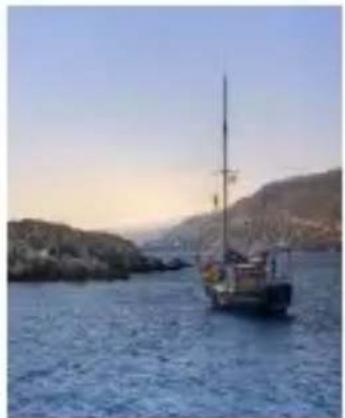

Layout:

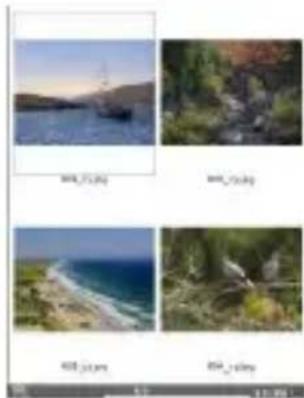

There are three ways of display: single page, scroll page and thumbnail view.

Scenic view of a sailboat on calm water with rocky coastline and distant hills under a twilight sky (no text or symbols visible)

Two birdcrops perched on branches in a natural setting, with a landscape photo below showing green fields and hills under a blue sky.

Four-panel photo collage showing coastal landscapes with mountains, forests, and birds (no text or symbols)

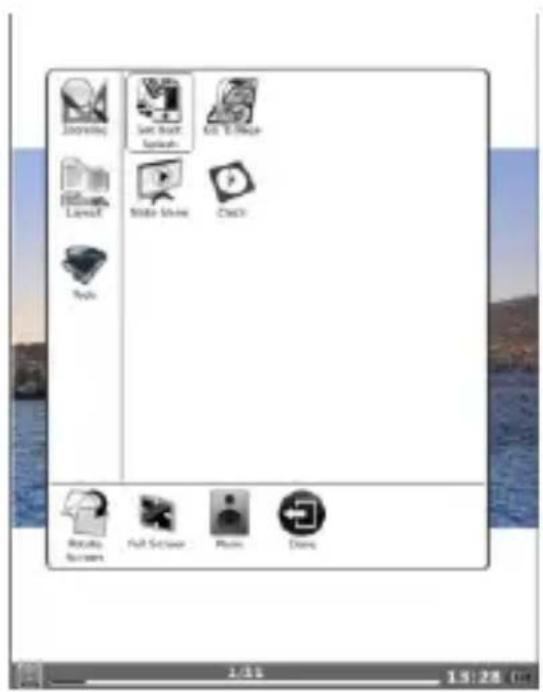

Tools:

There are four tools available for choice.

New Edit Back Watch Edit Help Lewell Watch Menu Check Help Results New Users Full Service Music Delete

Set Boot Splash:

Select desired picture to be start-up screen.

Slide show:

Display the pictures in this way and set the interval time between slides.

Clock:

Display the current time and record your reading time.

Clock 13:46 2011 9-22 Reading time: Less than one minute.

Music

The device supports MP3 and WAV files formats.

Music Player Antonin Dvorjac - Waltz - Jen kdyby moje matka.mp3 Edward Maya ft. Alicia - Stereo Love (DEMO).mp3 Frederik Chopin - Waltz - 2 cis-moll op.64.mp3 Frederik Chopin - Waltz - 7 cis-moll op.64.mp3 Karl Orff 'Carmina Burana' - 1. O Fortuna.mp3 Karl Orff 'Carmina Burana' - 2. Fortune plango vulnera Katy Perry ft. Snoop Dogg - California Gurls (DEMO).n Madcon - Glow (DEMO).mp3 Shatrov I.A. - Waltz - Na sopkah Manchzhurli.mp3 Edward Maya ft. Alicia - Stereo Love (DEMO).n 00:07 00:31

		Repeat all once
		Repeat one audio
		Shuffle mode
		Turn to previous song
		Turn to next song
		Minimize the music player, the playing song can be background music
		Exit from the music menu

Settings

Press the Settings Button to enter the Settings mode directly. In the Settings mode, the following settings can be performed.

	LanguagePress to select desired language from available ones.
	DateSet the current date(year, month, day) and time(hour, minute, second) of device.
	Default FontPress to select desired font family from available ones.
	Preferred ApplicationsPdf Reader and FB Reader are available options.
	Startup Setting
	Screen updateSet the screen fresh time and preferred option(by speed/quality)
	Format flashSelect it and format the internal flash. Note: after doing th operation all of the data in internal storage would be removed.
	Time zone SettingsSelect desired time zone.
	AboutFW info and Memory usage are displayed.

Applications

Press the Applications button to select desired option. There are three applications available: Calculator, Calendar and Clock.

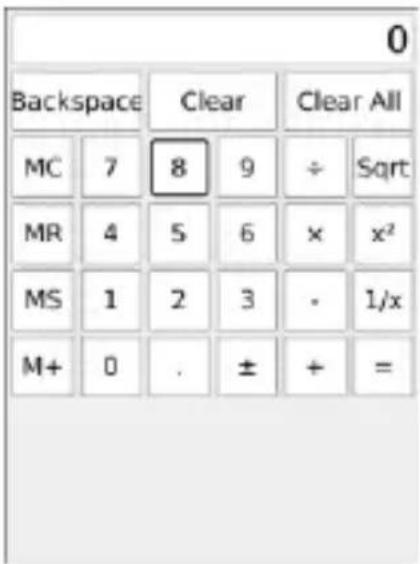

	Calculator
	CalendarPress theNavigation Buttonand thePREV/NEXT PAGEButtonsto turn to desired date. Press theBACK Buttonto exit.
	ClockDisplay the current time in full screen.

0 Backspace Clear Clear All MC 7 8 9 ÷ Sqrt MR 4 5 6 × x² MS 1 2 3 - 1/x M+ 0 . ± + = ___________________

2011 July August Sun Mon Sun Wed Thu Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri FriFri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri Fri FriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFriFreriFRI: 3 2 1 2 1 8 5 6 0 0 1 0 7 8 9 7 8 9 10 11 12 13 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 17 18 19 20 21 22 23 24 25 26 27 28 29 30 24 25 26 27 28 29 30 September October November December Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sun Wed Thu FRI Sun Mon Sonon 1 2 3 A 5 6 7 8 9 10 B 11 12 13 14 15 C 18 19 20 D 24 25 E 26 F 27 G 28 H 29 I 30 J 31 K 32 L 33 M 34 N 35 O 36 P 37 Q 38 R 39 S 40 T 41 U 42 V 43 W 44 X 45 Y 46 Z 47 A 48 B 49 C 50 D 51 E 52 F 53 G 54 H 55 I 56 J 57 K 58 L 59 M 60 N 61 O 62 P 63 Q 64 R 65 S 66 T 67 U 68 V 69 W 70 X 71 Y 72 Z 73 A 74 B 75 C 76 D 77 E 78 F 79 G 80 H 81 I 82 J 83 K 84 L 85 O 86 P 87 Q 88 R 89 S 90 Y 91 W 92 X 93 Y 94 Z 95 A 96 B 97 C 98 D 99 E 100 F 101 G 102 H 103 I 104 J 105 L 106 O 107 P 108 Q 109 R 110 S 111 Y 112 Z 113 A 114 B 115 C 116 D 117 E 118 F 119 H 120 I 121 J 122 K 123 L 124 M 125 Y 126 Z 127 A 128 B 129 C 130 D 131 E 132 F 133 H 134 I 135 J 136 L 137 O 138 P 139

11:48

Thu Sep 22 2011

Technical Specifications

Display	6"
Resolution	800 x 600, 16 Grey scale
Supported File Formats	Book: TXT, HTML, EPUB, CHM, PDB, MOBIPOCKET, FB2, DJVU, and PDF.
	Music: MP3
	Picture: JPG, BMP, GIF, PNG, TIFF
Adobe DRM	DRM for EPUB/PDF, built-in Adobe Reader Mobile
Expansion Slots	SDHC up to 32GB
Battery	Li-on Polymer Battery (1600mAh)
Other Interfaces	Mini USB2.0/3.5mm stereo audio jack
Dimensions	197 mm x 124 mm x 11.3 mm (L x W x H)
Weight	278 g

NOTE:

Under direct sunlight or in low temperatures, the characters displayed on the screen may fade. Please press "Refresh" button to refresh the entire screen.

Technical Support and Warranty Information

Please refer to www.prestigio.com for technical support and included warranty card for warranty information.

Disclaimer

We make every effort to ensure that the information and procedures in this user manual are accurate and complete. No liability can and will be accepted for any errors or omissions. Prestigio reserves the right to make any changes without further notice to any products herein.
