10 DVD+R - DVD MAXELL - Free user manual and instructions

Product Type	DVD+R Recordable Disc
Brand	Maxell
Model	10 DVD+R (Item #634035)
Recording Format	Write-Once
Disc Type	Single-Sided
Storage Capacity	4.7 GB
Recording Time (SP Mode)	2 Hours
Recording Time (EP Mode)	4 Hours
Laser Wavelength (Recording)	655 nm
Laser Wavelength (Playback)	650 nm
Track Pitch	0.74 μm
Sector Size	2048 Bytes
Data Transfer Rate	177.28 Mbps (max)
External Diameter	120 mm (4.75 in)
Internal Diameter	15 mm (0.59 in)
Disc Thickness	1.2 mm (0.047 in)
Weight (per disc)	0.23 lb (approx. 104 g)
Package Contents	10 DVD+R discs in Standard Jewel Case
Compatibility (Write)	DVD+RW/R recorders
Compatibility (Read)	DVD playback devices
Operating Temperature	-5°C to 55°C (23°F to 131°F)
Storage Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	3% to 95% RH (non-condensing)
Recording Material	Organic Dye with Metal Reflective Layer
Substrate Material	Polycarbonate
Warranty	Limited Lifetime Warranty

Frequently Asked Questions - 10 DVD+R MAXELL

Can I use these DVD+R discs in my standard DVD player?

Yes, Maxell DVD+R discs are read compatible with most standard DVD playback devices. They can be played on DVD players, DVD-ROM drives, and gaming consoles that support DVD playback.

How do I record data onto these discs?

Use a DVD+RW/R recorder (such as a computer DVD burner). The recording method is the same as CD-R. Simply insert the disc into the recorder, select the files you want to burn, and follow your software's instructions.

What is the maximum recording time on these discs?

Recording time depends on the mode used: up to 2 hours in Standard Play (SP) mode and up to 4 hours in Extended Play (EP) mode. Actual time may vary based on hardware and recording settings.

Are these discs rewritable?

No, they are write-once discs. Once data is recorded, it cannot be erased or rewritten. For rewritable needs, consider DVD+RW discs.

How much data can I store on one disc?

Each disc has a storage capacity of 4.7 GB, suitable for large files, video, music, or data backups.

Can I store these discs in a hot car?

Avoid extreme temperatures. The recommended storage environment is -10°C to 55°C with humidity between 3% and 95% RH (non-condensing). Prolonged exposure to high heat may damage the disc.

Are these discs compatible with both Windows and Mac?

Yes, as long as your computer has a DVD burner drive that supports DVD+R media. Both Windows and macOS can record and read these discs with appropriate burning software.

What is the data transfer speed of these discs?

The maximum data transfer rate is 177.28 Mbps, which corresponds to approximately 1x speed for DVD recording. Actual write speed depends on your drive.

How many discs are included in this pack?

The pack includes 10 discs in a Standard Jewel Case, making it convenient for multiple recording sessions.

Does this product come with a warranty?

Yes, Maxell DVD+R discs are backed by a Limited Lifetime Warranty and a money-back satisfaction guarantee. Toll-free technical support is also available.

USER MANUAL 10 DVD+R MAXELL

Write-Once · Single-Sided

A Recordable DVD Designed for High Capacity Data Storage and High Quality Video Recording

Features

• High Capacity Storage
-4.7GB
— 120/240 Minutes
• Same Recording Method as CD-R
- Secure Unalterable Data
• Random Access Data Retrieval
• Superior Archival Life

Applications

• Multimedia Storage (Data, Music and Video)
• Large File Storage
• Digital Image Storage
- Data Transfer
• Data Backup & Archival
• Low Volume Distribution

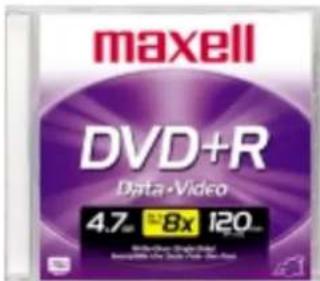

Compatibility

Write compatible with DVD+RW/R recorders. Read compatible with DVD playback devices.

DVD+R

[27HA]	Video Recording Time	Actual recording time may vary based on hardware and recording mode.
	High Quality Mode	1 Hour
	Standard Play Mode	2 Hours
	Long Play Mode	3 Hours
	Extended Play Mode	4 Hours

SPECIFICATIONS

MODEL			DVD+R 47
Recording Capacity			4.7 GB
Recording Time			2 Hours (SP Mode)/4 Hours (EP Mode)
Laser Wavelength		Recording	655 nm
		Playback	650 nm
Format			Write once
Disc Type			Single sided
Recording Film Material			Organic Dye/Metal reflective layer
Substrate Material			Polycarbonate
Track Pitch			0.74μm
Sector Size			2,048 Bytes
Data Transfer Rate			177.28 Mbps (max)
Recording Area (User Area)			50 ~ 116mm
	External Diameter		120mm/4.75"
Dimensions	Internal Diameter		15mm/.59"
	Thickness		1.2mm bonded (.6 mm x 2)
Operating Environment			23° - 131°F (-5° - 55°C)3%-95% RH (no condensation)
Storage Environment			14° - 131°F (-10° - 55°C)3%-95% RH (no condensation)

DVD+R LINEUP

MODEL		DVD+R 1pk.	DVD+R 3pk.	DVD+R 5pk.	DVD+R IOpk.	DVD+R IOpk. Color
Item #:		634030	634039	634032	634035	634052
Package Type:		Tab	Tab	Standard Jewel	Standard Jewel	1/2 Box Jewel Case
Carton Inner/Master Qty:		5/50	5	5	5	5
UPC Codes:	Unit	0-25215-62442-1	0-25215-62589-3	0-25215-62443-8	0-25215-62581-7	0-25215-62627-2
	Inner	300-25215-62442-2	—	—	—	—
	Master	100-25215-62442-8	100-25215-62589-0	100-25215-62443-5	100-25215-62581-4	100-25215-62613-2
Dimensions:	Unit	5.63"W x 5"H x .44"D	5.63"W x 5"H x 1.32"D	5.63"W x 5"H x 2.13"D	5.63"W x 5"H x 4.25"D	5.75"L x 2.0"W x 5.0"H
	Inner	5.63"W x 5"H x 2.13"D	—	—	—	—
	Master	12"L x 11.5"W x 7"H	6.25"L x 7.5"W x 6.25"H	11.25"L x 6.25"W x 5.5"H	22"L x 6"W x 5.5"H	11.375"L x 6.0"W x 6.0"H
Cube:	Unit	0.007	0.022	0.035	0.069	0.033
	Inner	0.035	—	—	—	—
	Master	0.559	0.17	0.224	0.42	0.237
Weight:	Unit	.23 lb.	.67 lb.	1 lb.	2.3 lbs.	1.44 lbs.
	Inner	1.11 lb.	—	—	—	—
	Master	11.4 lbs.	3.5 lbs.	5.5 lbs.	12 lbs.	7.209 lbs.
MODEL		DVD+R ISpk.	DVD+R 20pk.	DVD+R 25pk.	DVD+R 50pk.	DVD+R
Item #:		634028	634038	634050	634053
Package Type:		Spindle Case	Standard Jewel	Spindle Case	Spindle Case
Carton Inner/Master Qty:		6	4	4	4
UPC Codes:	Unit	0-25215-62436-0	0-25215-62596-1	0-25215-62751-4	0-25215-62428-5
	Inner	—	—	—
	Master	100-25215-62436-7	100-25215-62596-8	100-25215-62751-1	100-25215-62428-2
Dimensions:	Unit	5.0"Dia x 2.0"H	5.0"W x 5.0"H x 8.0"D	5.0 Dia" x 2.5"H	5.88 Dia" x 3.75"H
	Inner	—	—	—
	Master	17.5"L x 6.5"W x 4.7"H	17.0"L x 12.0"W x 6.5"H	17.5"L x 6.5"W x 5.8"H	12"L x 12"W x 4.5"H
Cube:	Unit	0.061	0.036	0.72	0.075
	Inner	—	—	—
	Master	0.31	0.77	0.38	0.375
Weight:	Unit	1.19 lbs.	3.7 lbs.	1.2 lbs.	2.3 lbs.
	Inner	—	—	—
	Master	7.15 lbs.	15.0 lbs.	4.5 lbs.	9.25 lbs.

DVD+R
Maxell DVD+R discs are backed by a Limited Lifetime Warranty. Money-back Satisfaction Guarantee and Toll-Free Technical Support.

Maxel Corporation of America 22-08 Route 208, Fair Lawn, NJ 07410 [phone]

Maxell Canada 50 Locke Street, Unit #2, Concord, ON Canada L4K 5R4 (800) 66I-9500

Maxell Latin America Plaza Btesh - Calle 50, Panama City, Panama
