USER MANUAL 1054 Skmei

Operation instruction

A. Features

➢ 12 Digits, Hour, Minutes, Seconds, Month, Day and Week
Daily Alarm and Chime hourly
12 / 24H, Auto Calendar
➢ 1/100 second Chronograph with split count
EL backlight

B. Operational Manual

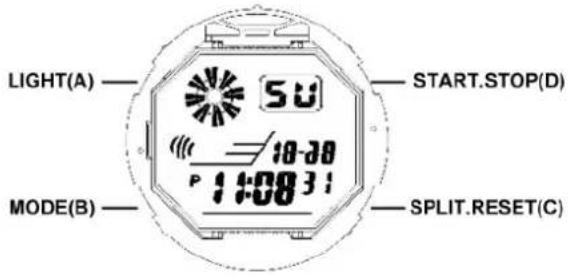

At any station, press A key, the EL back light on for 3 seconds.

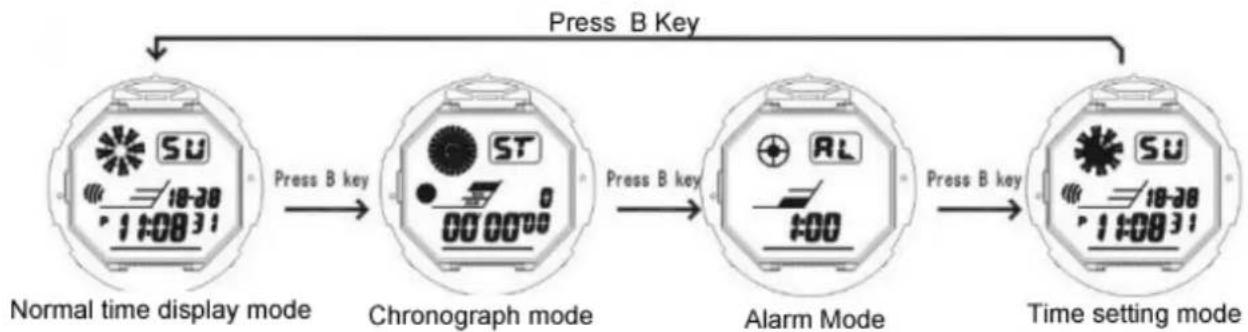

➢ Press B key to convert MODE:


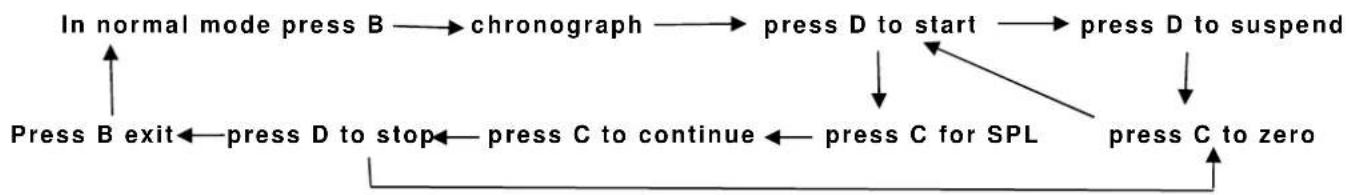

Chronograph functions

In normal display mode: press B key once, enter Chronograph mode

➢ Press D to start, press D again to suspend, press D again to continue, press D to suspend again,.....when suspend, press C key back to 0:00:00.
In Chronograph mode, press D key to start, press C key enter into split function, and the "SPL" symbol appear, press C key again to get the first group record, but the second group still processing in the back ground, press C key again to continue the second group, press C key again to read the second group record.....when the final group finished, Press D key to stop the SPL function, press C key read the final group(SUM) record, press C key again to clear the record to zero.

Alarm & Chime ON/OFF

In normal mode, press B key twice to enter to Alarm Mode, Then press D to ON/OFF "ALM" / "SIG" function.
If "ALM/SIG" symbol appears, means ALM/SIG function ON, otherwise means OFF
“ALM/ ” appear means ALARM Function ON."SIG/CHI/ ” appear means HOURLY CHIME function ON

Alarm setting

in normal Mode, press B twice to enter Alarm mode and press C then "Hours" flashing
➢ Press D to adjust "Hour" for your Alarm. Pay attention to AM/PM
➢ Press C then "Minutes" flashing, Press D to adjust "Minutes" for your alarm. Press B key to exit.

Time & date setting

In Normal Mode, press B three times enter into setting mode and the "Seconds" flashing, Press D to zero.

➢ Press C the "Hours" will flash. Press D to adjust "Hours"
➢ Press C the "Minutes" will flash. Press D to adjust "Minutes".
➢ Press C the “Month” will flash. Press D to adjust “Month”
➢ Press C the "Date" will flash. Press D to adjust "date"
➢ Press C the "Week" will flash. Press D to adjust "Day"
➢ Press B key to exit.
