Product Type	Speaker Mount
Brand	Valcom
Model	V-9912M
Material	Steel
Color	White
Weight	0.5 kg
Dimensions (W x H x D)	120 x 120 x 80 mm
Load Capacity	10 kg
Mounting Type	Wall mount
Compatibility	Valcom ceiling speakers and similar
Adjustability	Tilt and swivel
Installation	Hardware included
Operating Temperature	-10°C to 50°C
Humidity Range	0-95% non-condensing
Warranty	1 year
Maintenance	Wipe with dry cloth
Included Accessories	Mounting brackets, screws, anchors
Safety Certifications	UL listed

Frequently Asked Questions - V-9912M Valcom

What is the maximum weight this mount can hold?

The Valcom V-9912M speaker mount has a load capacity of 10 kg.

Is the mount compatible with all Valcom speakers?

It is designed for Valcom ceiling speakers and other similar models. Check the speaker dimensions and mounting hole pattern for compatibility.

Does the mount allow tilt and swivel adjustments?

Yes, the V-9912M supports both tilt and swivel adjustments for optimal speaker positioning.

What tools are required for installation?

Installation typically requires a Phillips screwdriver and a drill for wall anchors. All necessary hardware is included.

Can this mount be used on a concrete wall?

Yes, but you will need to use appropriate anchors for concrete. The included anchors may be suitable for drywall.

How do I clean the mount?

Clean with a dry or slightly damp cloth. Avoid abrasive cleaners to prevent damage to the finish.

Is the mount suitable for outdoor use?

The V-9912M is designed for indoor use. Outdoor installation may lead to corrosion unless in a sheltered environment.

What is the warranty period?

Valcom offers a 1-year warranty against manufacturing defects.

Does the mount come with installation instructions?

Yes, a manual is included in the package. You can also download a PDF from the Valcom website.

Can the mount be used with third-party speakers?

It may fit, but it is optimized for Valcom speakers. Verify the mounting hole spacing and weight before use.

USER MANUAL V-9912M Valcom

Speaker Support Ring Metal

(FOR ROUND 8 INCH SPEAKER ASSEMBLIES IN NEW CONSTRUCTION SHEETROCK)

Installation Instructions

The V-9912M-10 metal ring can be used in new construction gypsum (sheetrock) ceilings with 16 inch or 24 inch support structure. This product must be ordered in multiples of 10 (to receive 10 metal support rings, order 10 of the V-9912M-10).

BACKBOX APPLICATIONS:

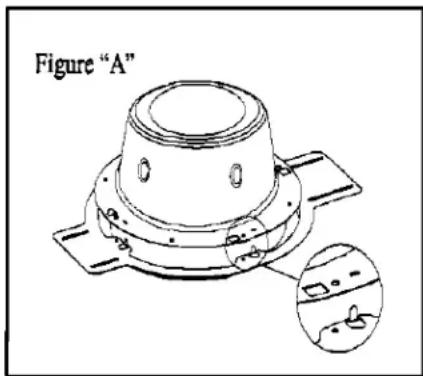

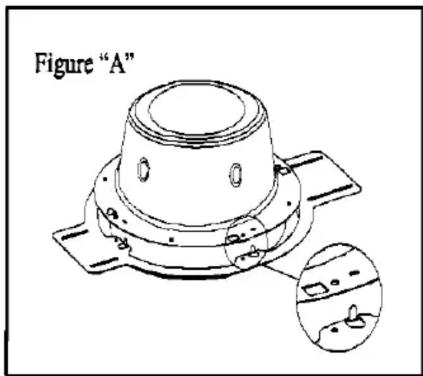

Bend up four horseshoe tabs on metal ring and place through slots in the V9915M-5 backbox as shown in Figure "A".

Secure backbox to metal ring by twisting horseshoe tabs with pliers.

16 INCH STRUCTURES:

Loosely attach to bottom of joists.

Slide along adjustment slots to desired location and secure mounting hardware to joists.

Discard extension brackets and supplied hardware. (The provided hardware is not intended for attaching metal ring to support structure).

24 INCH STRUCTURES WITH PLACEMENT NEAR CENTER OF 24 INCHES:

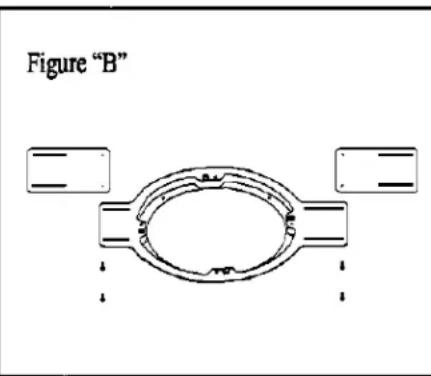

Loosely attach extension brackets to metal ring with provided hardware as shown in Figure "B".

Loosely attach to bottom of joists.

Slide along adjustment slots to desired location and secure extension brackets and mounting hardware to joists.

24 INCH STRUCTURES WITH PLACEMENT NEAR EDGE OF 24 INCHES:

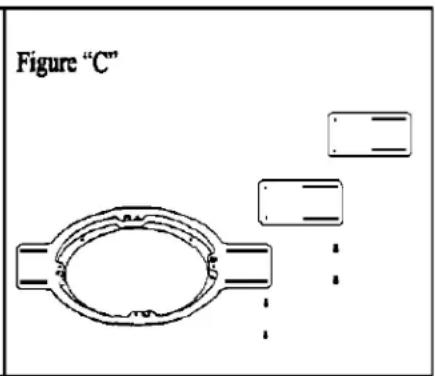

Loosely attach extension brackets to metal ring with provided hardware as shown in Figure "C".

Loosely attach to bottom of joists.

Slide along adjustment slots to desired location and secure extension brackets and mounting hardware to joists.

Figure "A"

Figure "B"

Figure "C"
