V-9915M - Speaker Stand Valcom - Free user manual and instructions

Product Type	Speaker Mount / Bracket
Brand	Valcom
Model	V-9915M
Dimensions (W x H x D)	10 x 5 x 3 inches (25.4 x 12.7 x 7.6 cm)
Weight	1 lb (0.45 kg)
Material	Steel with powder coat finish
Color	Black
Maximum Load Capacity	50 lbs (22.7 kg)
Mounting Type	Wall or ceiling mount
Compatibility	Speakers with standard screw mounts (1/4-20 or M6)
Swivel Angle	180 degrees left/right
Tilt Angle	90 degrees up/down
Installation Hardware Included	Screws, anchors, and Allen key
Tools Required	Drill, screwdriver, level
Use	Indoor or outdoor (weather-resistant)
Certification	UL listed for safety
Warranty	1 year limited

Frequently Asked Questions - V-9915M Valcom

What is the maximum weight capacity of the Valcom V-9915M speaker mount?

The maximum load capacity is 50 lbs (22.7 kg). Always ensure your speaker does not exceed this weight.

Can this mount be used for outdoor speakers?

Yes, the V-9915M is constructed with a weather-resistant powder coat finish suitable for indoor and outdoor use.

What type of screws or bolts does the mount use?

The mount accepts standard speaker screws of 1/4-20 or M6 thread size. Hardware for both sizes is included.

Is the mount adjustable?

Yes, it features 180-degree swivel left/right and 90-degree tilt up/down for flexible positioning.

What tools are needed for installation?

You will need a drill, screwdriver, and a level to ensure proper alignment. All mounting hardware is included.

Can this mount be attached to drywall?

Yes, but for secure installation, use the included anchors and ensure they are properly inserted into studs or use appropriate wall anchors.

Does the mount come with a warranty?

Yes, the V-9915M comes with a 1-year limited warranty against defects in materials and workmanship.

What is the overall size of the mount?

The mount dimensions are 10 x 5 x 3 inches (25.4 x 12.7 x 7.6 cm), and it weighs approximately 1 lb (0.45 kg).

Is this mount compatible with all speaker brands?

It is compatible with most speakers that have a standard threaded insert (1/4-20 or M6). Always check your speaker's mounting hole pattern.

How do I clean and maintain the mount?

Wipe with a damp cloth and mild detergent. Do not use abrasive cleaners. Check screws periodically and tighten if necessary.

USER MANUAL V-9915M Valcom

V-9915M UL LISTED BACKBOX AND V-9904M BRIDGE UL LISTED (UUMW) FLUSH MOUNTED LOUDSPEAKER INSTALLATION INSTRUCTIONS

REGULATORY INFORMATION

• Listed by Underwriters Laboratories, Inc. Category UUMW. Material and construction permits use where ceiling plenum is part of the air handling system.
• Compound knockout(s) provided for listed type metallic fittings for 1/2" and 3/4" plenum rated cable and plenum whip flex conduit.

V-9914M + V-9915M = V-9916M

INSTALLATION INSTRUCTIONS

8 " SPEAKERS

COMPATIBILITY

Product Number Compatible with this Speaker
V-9904M-5 (5 per box)	V-1010C
V-9914M-5 (5 per box)	V-1020C, V-1020KNOB, V-1060A/B, V-1220
V-9916M (1 per box)	V-1020C, V-1020KNOB, V-1060A/B, V-1220

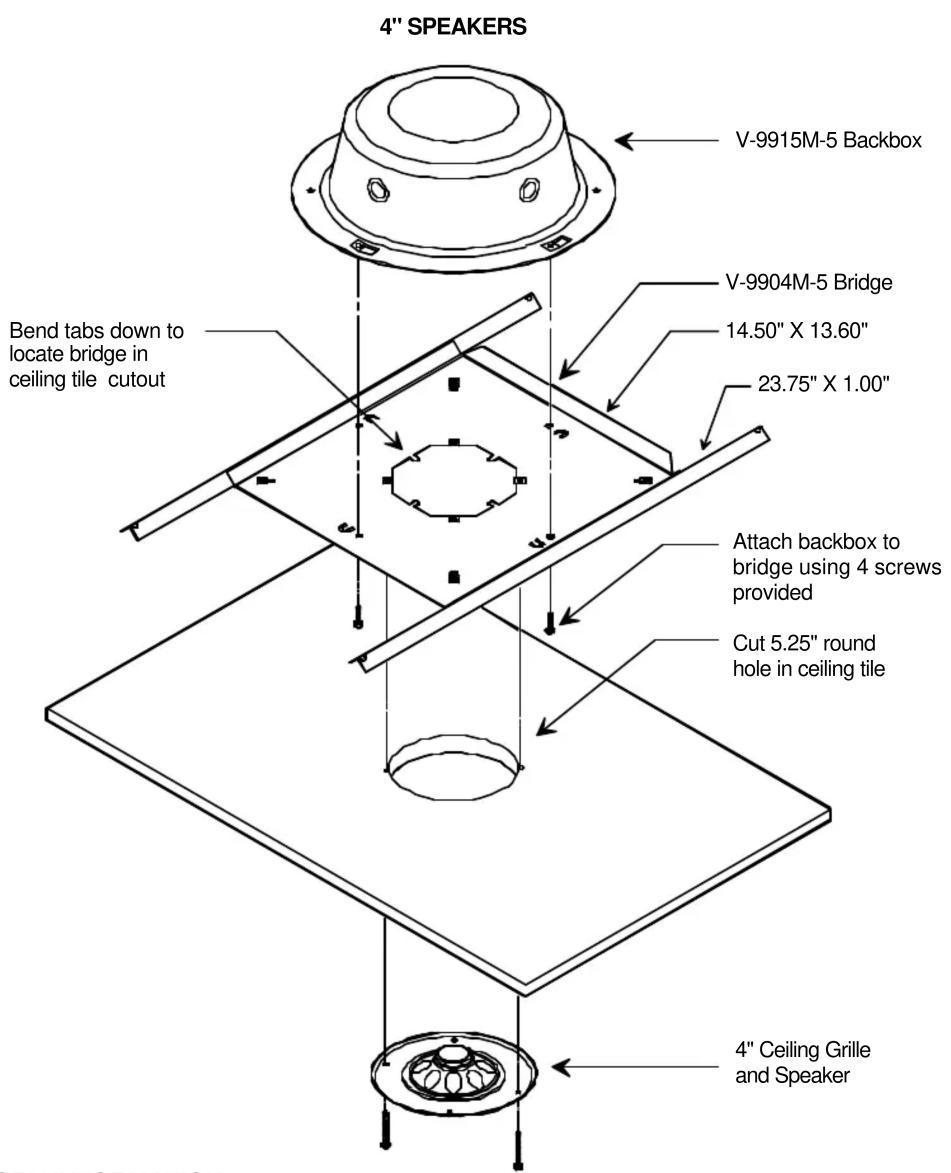

V-9915M-5 * (5 per box)	To use the V-9915M-5 Backbox with the V-1010C Speaker, it is necessary to use the V-9904M-5 Bridge. The backbox may be used alone with the V-1020C, V-1060A/B or the V-1220 as long as provisions are made to support the weight of the assembly.

TECHNICAL ASSISTANCE

Assistance is available from the factory when problems are encountered. Call [phone] and ask for Technical Support, or call [phone] for Valcom 24-hour Faxback System or visit our website at http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating company name, address, phone number, contact person, and the nature of the problem. Send the unit to:

Valcom Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,
2. the defect is not the result of damage, misuse, or negligence after the original shipment,
3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (A service charge plus parts and labor will be applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (Major repairs will be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied, and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the F.O.B. point.
