Product type	Range hood
Brand	Ariston Thermo
Model	HR 6 IX
Mounting type	Wall-mounted
Width	60 cm
Depth	50 cm
Height (with chimney)	100 cm
Net weight	15 kg
Power consumption	200 W
Motor type	Induction motor
Maximum extraction rate	650 m³/h
Noise level (max speed)	65 dB(A)
Grease filter type	Aluminum mesh, washable
Carbon filter	Optional, replaceable
Lighting	LED, 2 x 1.5 W
Controls	Push buttons with speed selection
Energy efficiency class	B
Air outlet diameter	150 mm
Warranty	2 years
Spare parts availability	Through Ariston authorized service centers

Frequently Asked Questions - HR 6 IX Ariston Thermo

How do I install the HR 6 IX range hood?

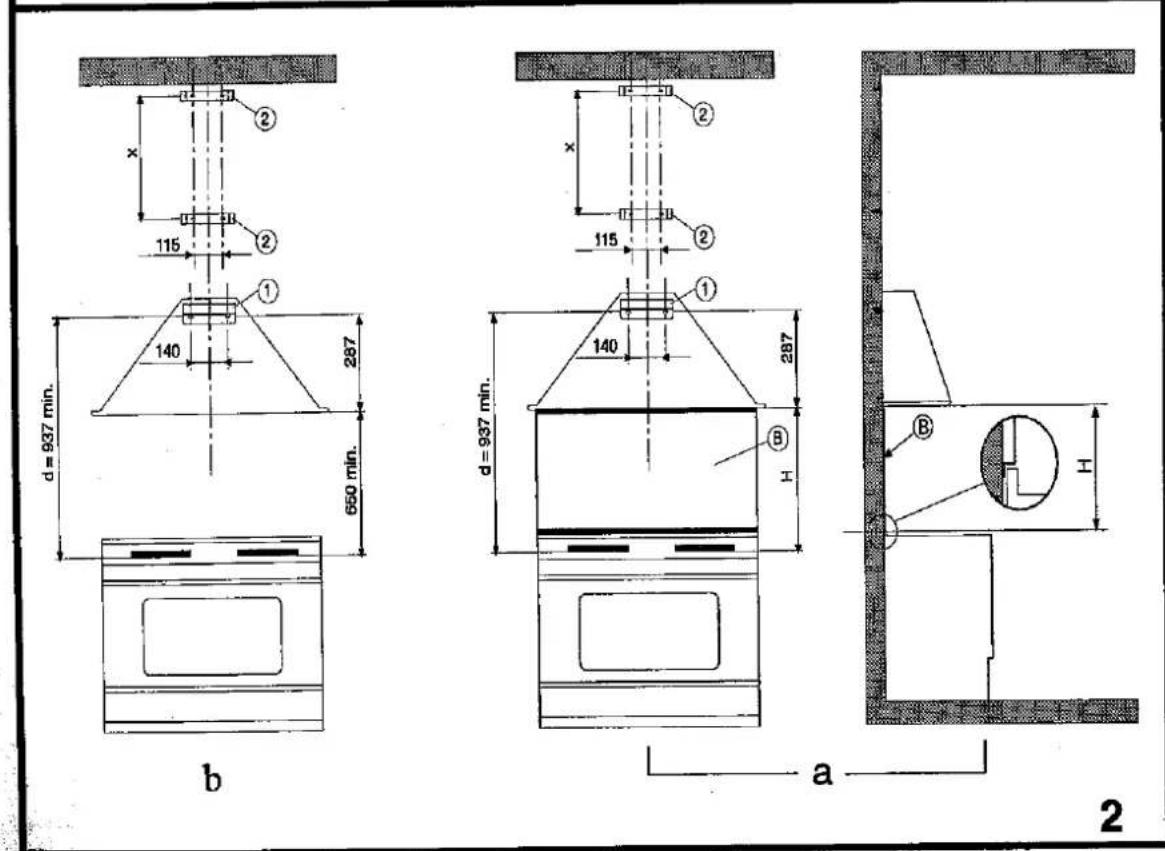

Ensure the hood is mounted at least 65 cm above an electric hob or 75 cm above a gas hob. Use the included mounting bracket and fix it to a solid wall. Connect the exhaust duct to the air outlet (150 mm diameter). Electrical connection must be done by a qualified technician.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2 months under normal usage. Wash them with mild detergent or in the dishwasher at low temperature. Dry thoroughly before reinstalling.

When should I replace the carbon filter?

If the hood is used in recirculation mode, replace the carbon filter every 3-6 months depending on usage. The filter cannot be washed and must be replaced with an original Ariston spare part.

How do I change the LED lights?

The LED lights are integrated and should be replaced by an authorized service center. Do not attempt to replace them yourself as it may damage the unit.

What is the maximum extraction rate and noise level?

The maximum extraction rate is 650 m³/h. At maximum speed, the noise level is 65 dB(A). Lower speeds are quieter.

Can I use the hood without an external exhaust?

Yes, the hood can operate in recirculation mode using a carbon filter (not included). The filtered air is then released back into the kitchen.

What is the warranty period?

Ariston offers a 2-year warranty from the date of purchase covering manufacturing defects. Keep your proof of purchase.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the speed decrease button for 3 seconds until the indicator light turns off.

What should I do if the hood is not working?

Check the power supply and ensure the plug is connected. If the motor does not run, the fuse may have blown. Contact Ariston customer service for further assistance.

Where can I buy spare parts?

Spare parts such as filters, bulbs, and controls are available from Ariston authorized dealers or online parts stores. Use the model number HR 6 IX to find the correct parts.

USER MANUAL HR 6 IX Ariston Thermo

Line drawing of a conical exhaust hood with ventilation slots and a base panel (no text or symbols)

Italiano pag. 3 - 6

English pag. 7 - 10

Français pag. 11 - 14

Diagram of a computer monitor with a grid-patterned screen and a black arrow pointing to it (no text or symbols present)

8
