USER MANUAL A555LB ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2014 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at http://support.asus.com

Table of Contents

About this manual....7

Conventions used in this manual 8

Icons 8

Typography....8

Safety precautions....9

Using your Notebook PC....9

Caring for your Notebook PC 10

Proper disposal....11

Chapter 1: Hardware Setup

Getting to know your Notebook PC 14

Top View....14

Bottom....18

Right Side 20

Left Side 22

Front Side 24

Chapter 2: Using your Notebook PC

Getting started 26

Charge your Notebook PC....26

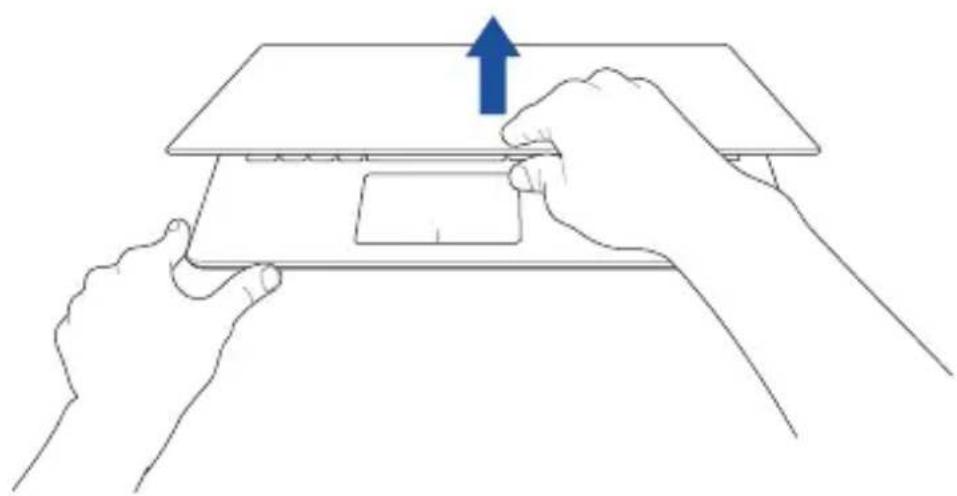

Lift to open the display panel....28

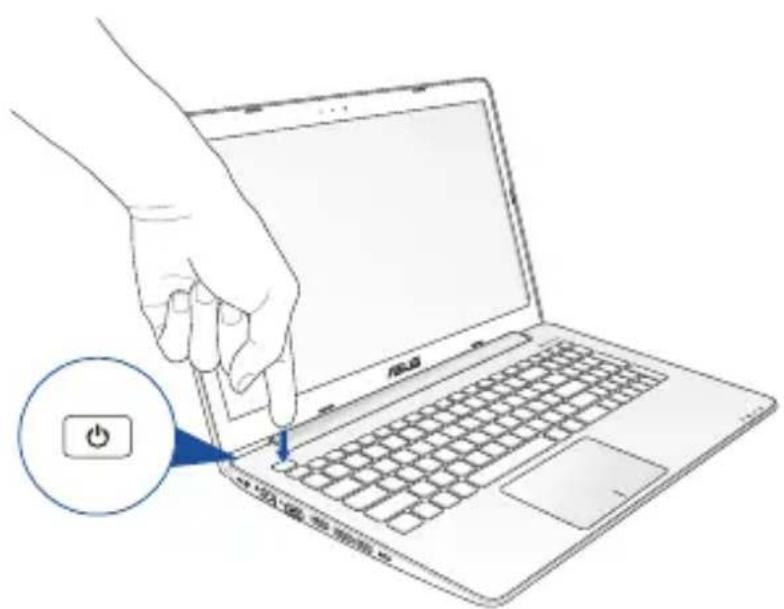

Press the power button....28

Gestures for the touch screen panel* and touchpad 29

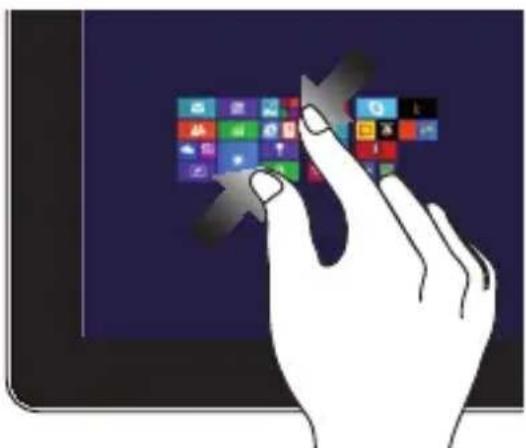

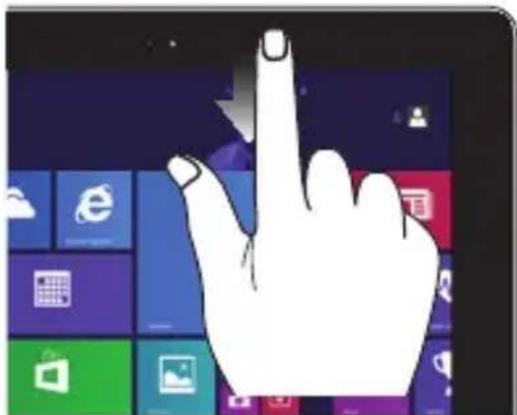

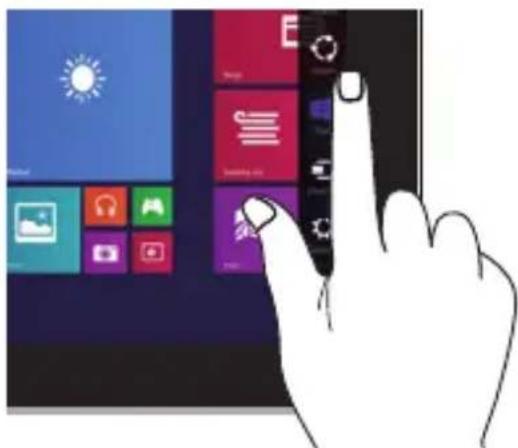

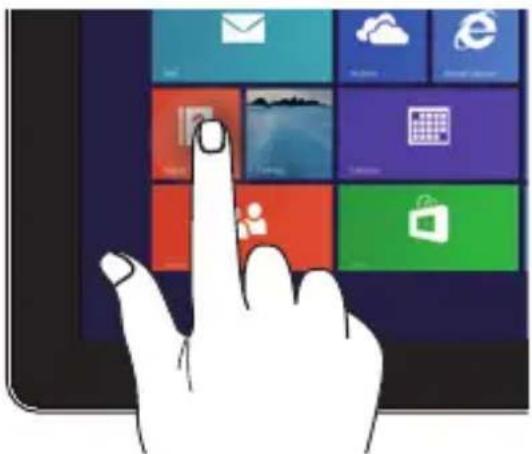

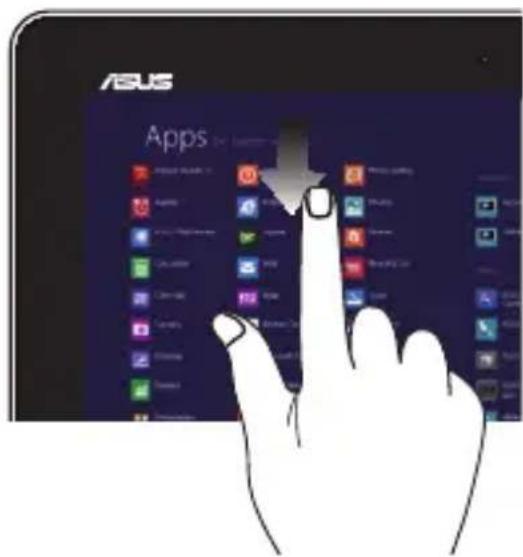

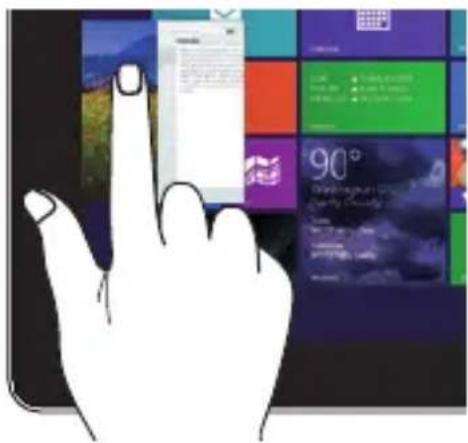

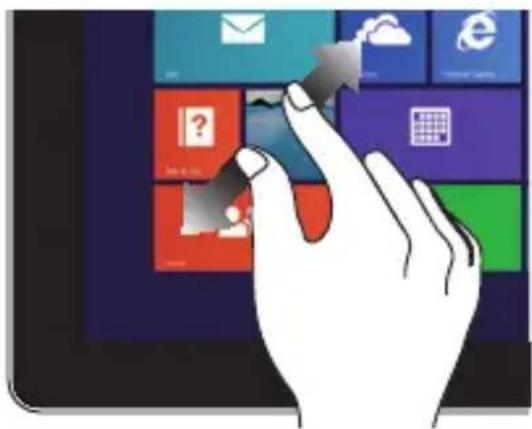

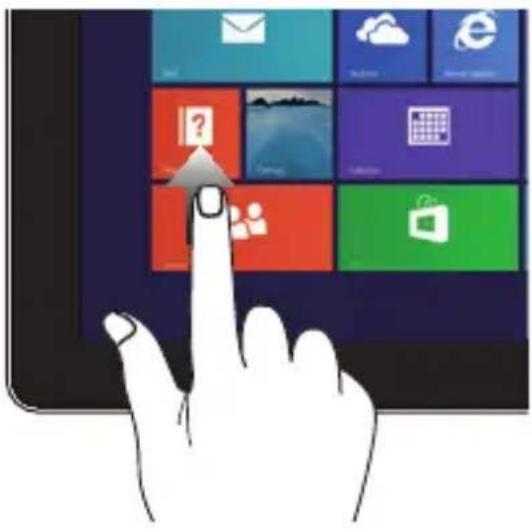

Using touch screen panel gestures* 29

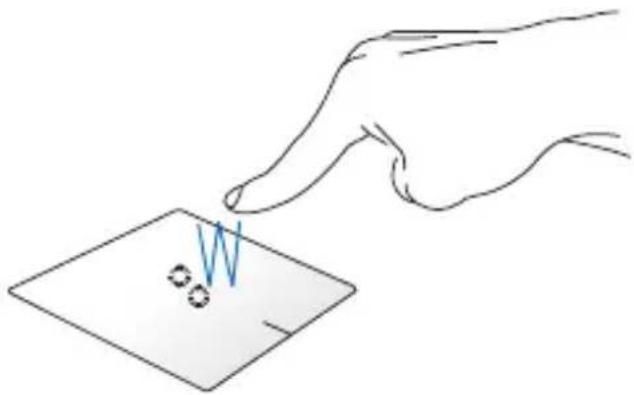

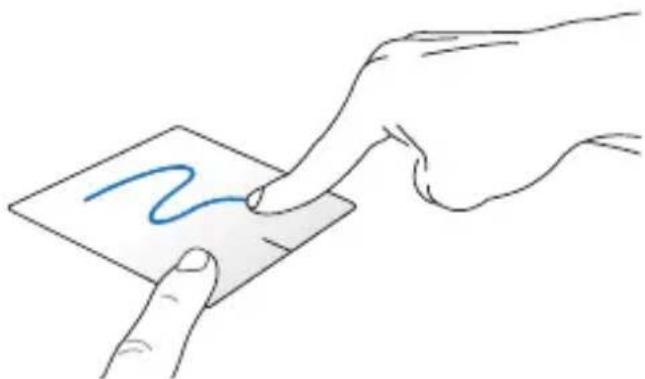

Using touchpad gestures....33

Using the keyboard....40

Function keys 40

Windows ^® 8.1 keys ....41

Multimedia control keys....42

Using the numeric keypad 43

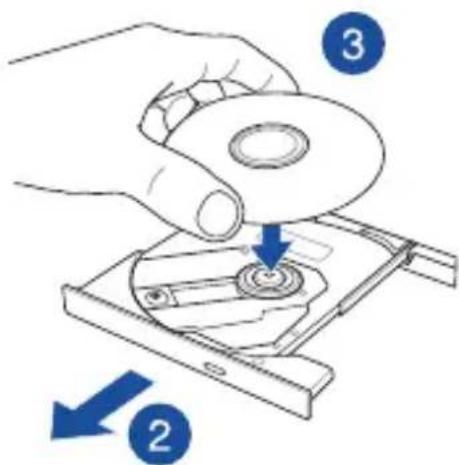

Using the optical drive....44

Chapter 3: Working with Windows® 8.1

Starting for the first time....48

Windows ^® UI......49

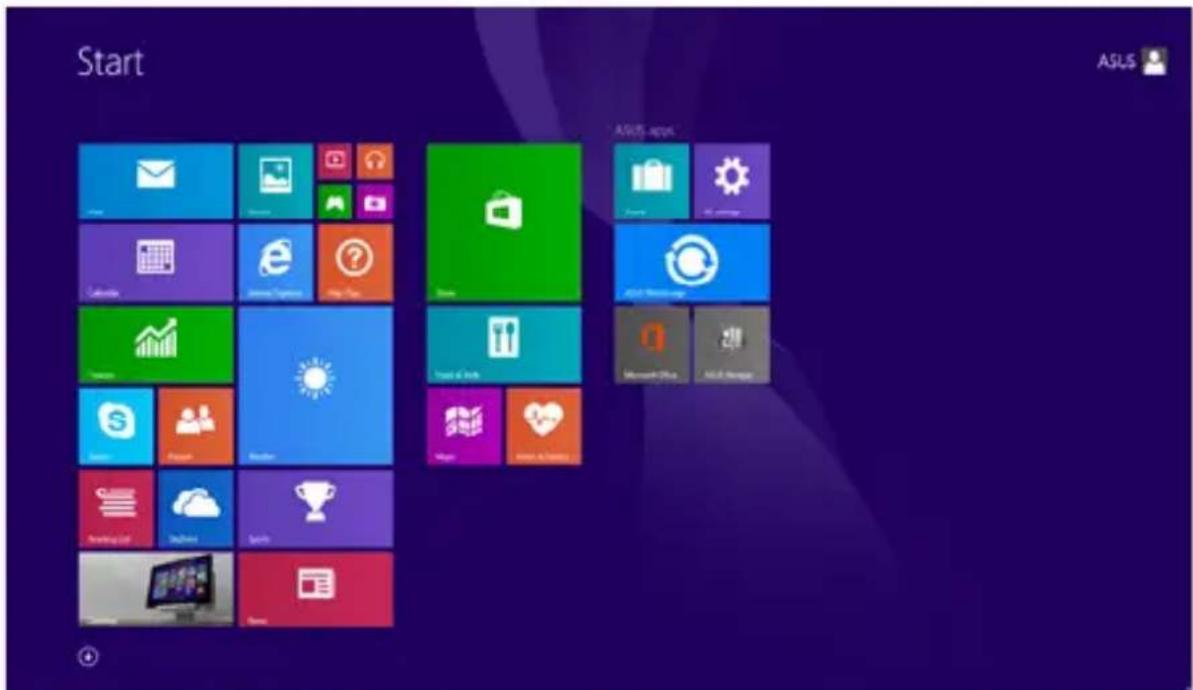

Start screen....49

Hotspots....50

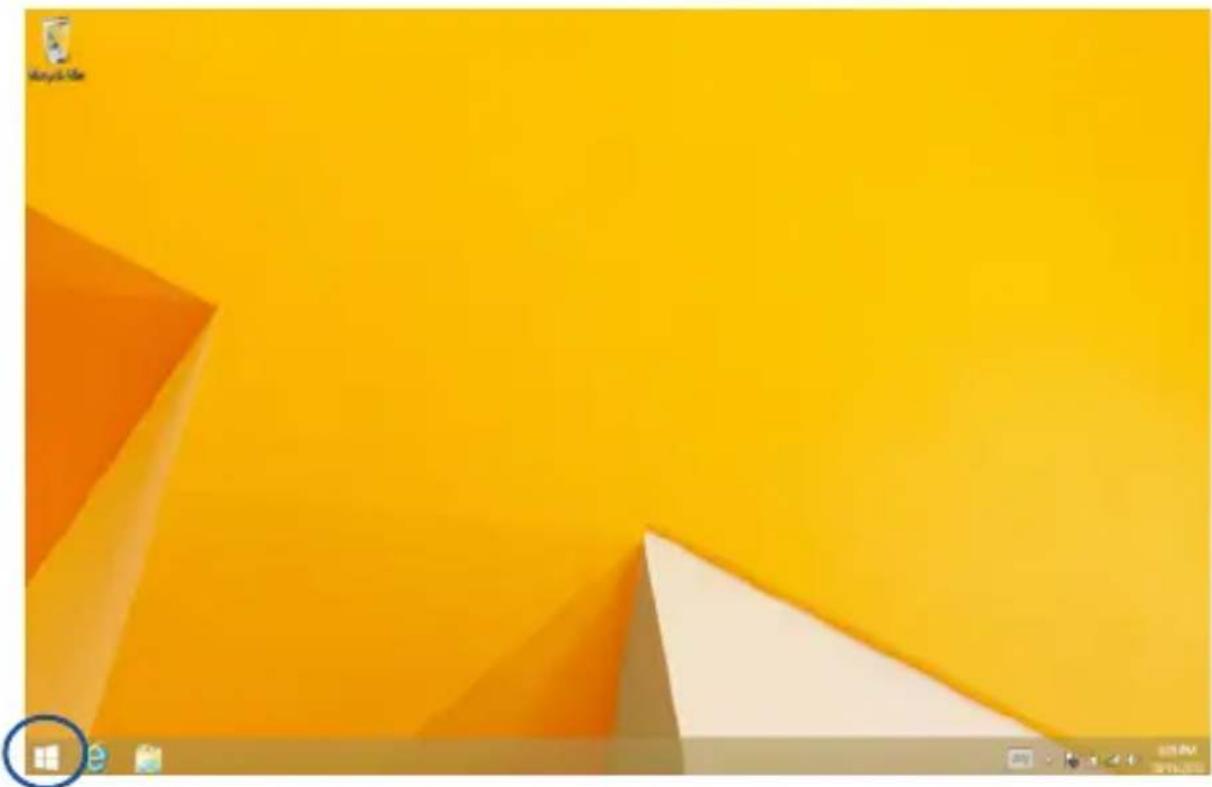

Start button 53

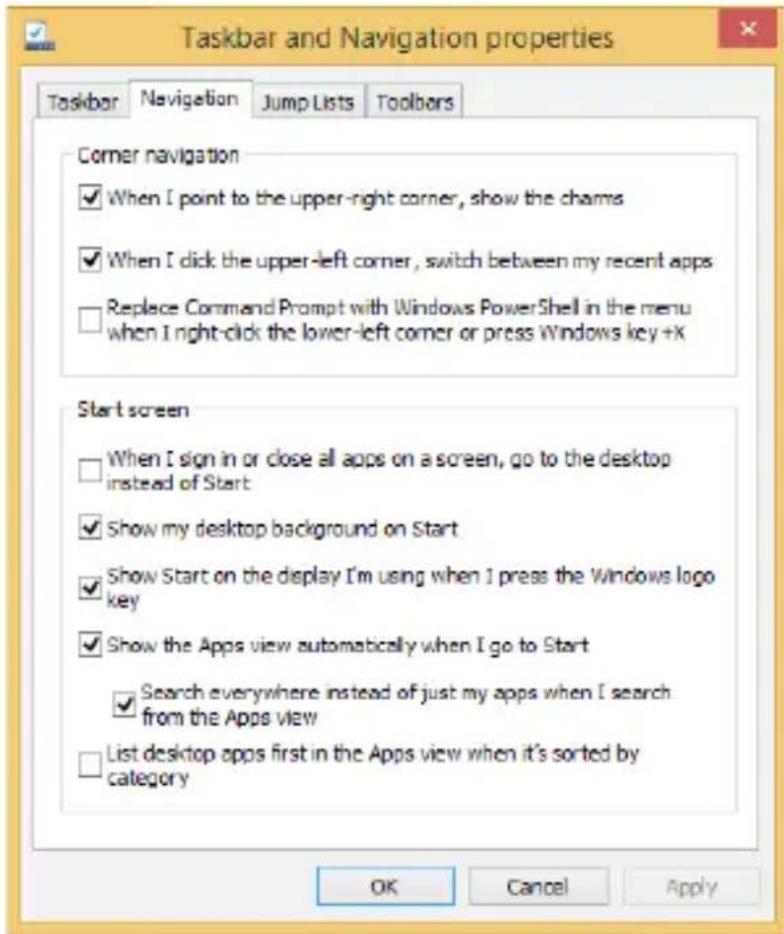

Customizing your Start screen....55

Working with Windows ^® apps ....56

Launching apps....56

Customizing apps....56

Accessing the Apps screen....59

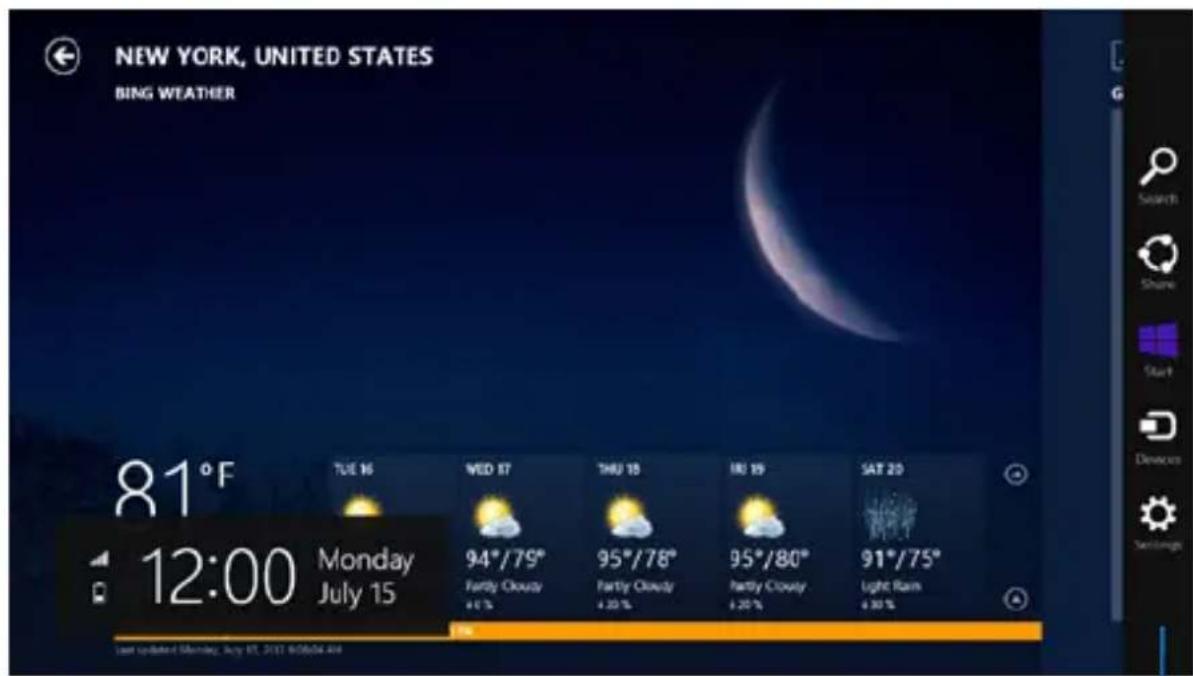

Charms bar....61

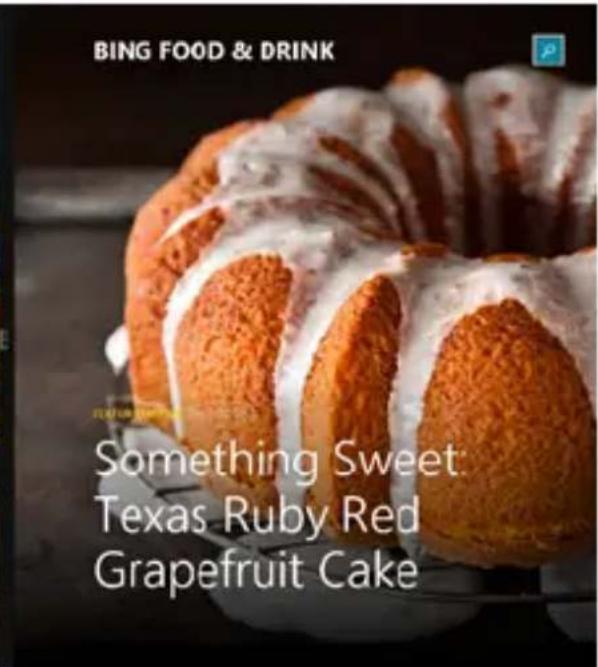

Snap feature 64

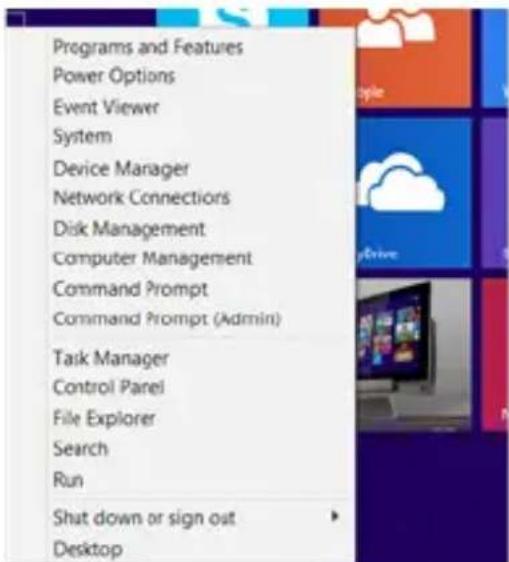

Other keyboard shortcuts 66

Connecting to wireless networks 68

Wi-Fi....68

Bluetooth 69

Airplane mode....70

Connecting to wired networks....71

Configuring a dynamic IP/PPPoE network connection ....71

Configuring a static IP network connection 72

Turning your Notebook PC off....73

Putting your Notebook PC to sleep 73

Windows 8.1 lock screen....74

To proceed from the lock screen....74

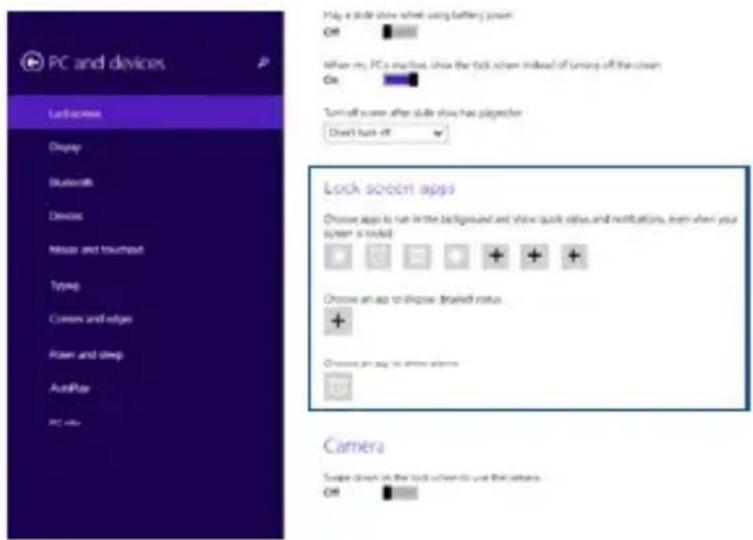

Customizing your lock screen....75

Chapter 4: Power-On Self-Test (POST)

The Power-On Self-Test (POST)....78

Using POST to access BIOS and Troubleshoot....78

BIOS 78

Accessing BIOS 78

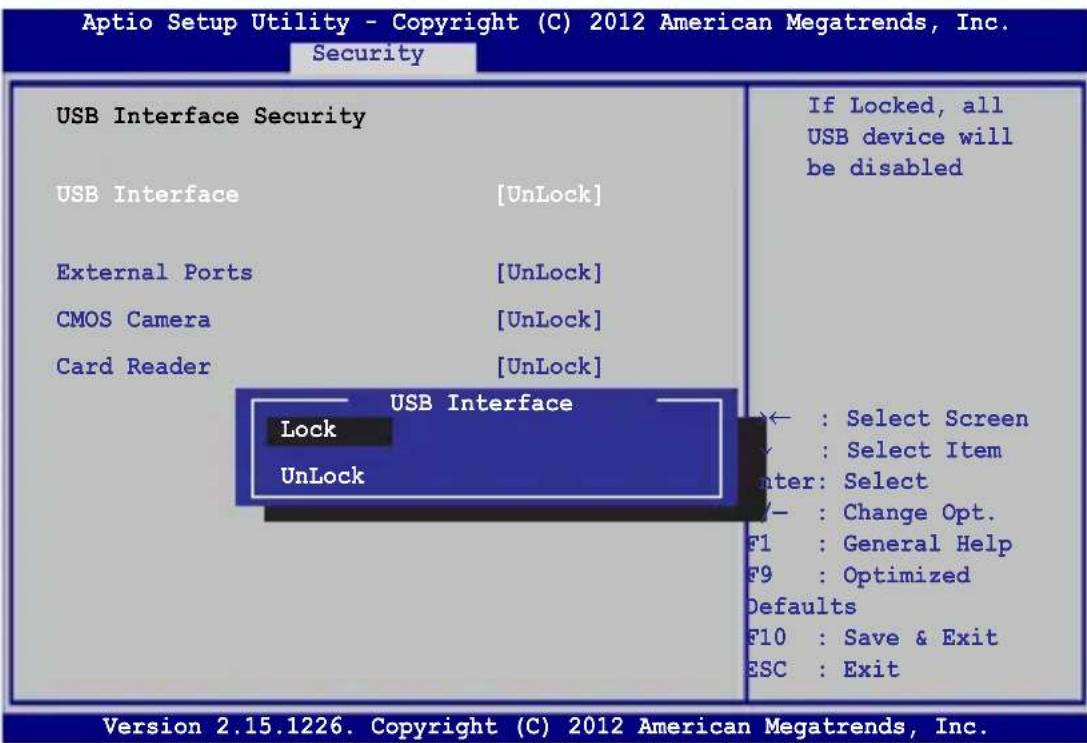

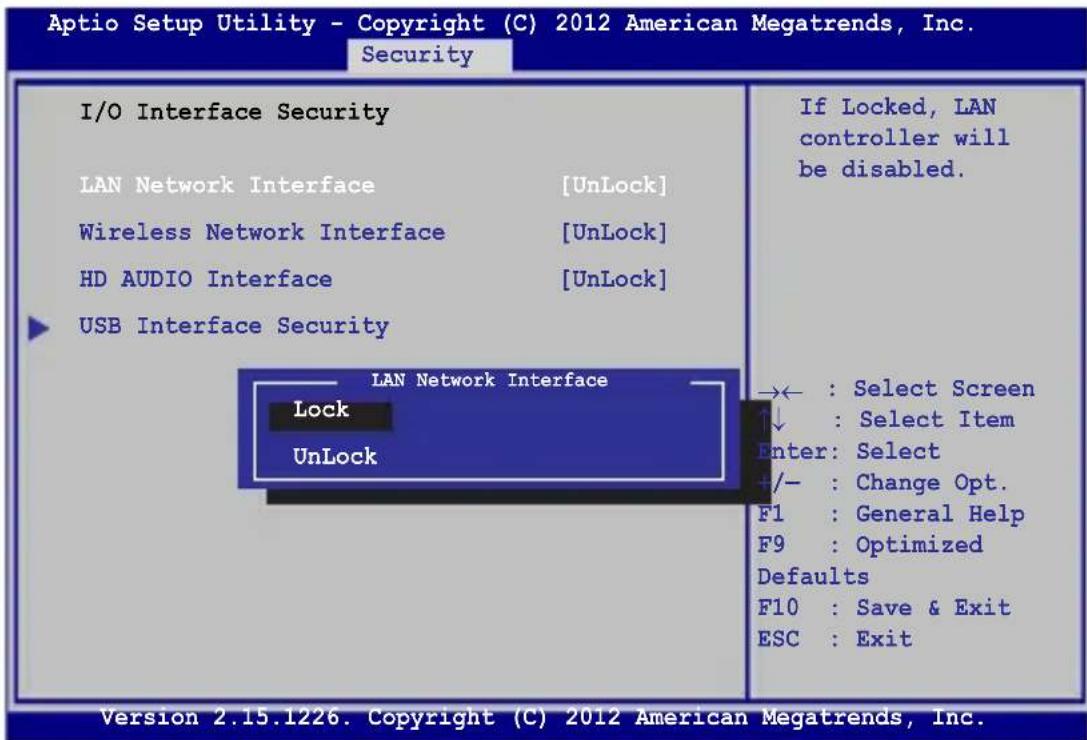

BIOS Settings....79

Troubleshoot....89

Refresh your PC 89

Reset your PC 90

Advanced options....91

Chapter 5: Upgrading your Notebook PC

Installing a Random-access Memory module....94

Appendices

DVD-ROM Drive Information (on selected models)....100

Blu-ray ROM Drive Information (on selected models)....102

Internal Modem Compliancy 102

Overview....103

Network Compatibility Declaration....103

Non-Voice Equipment 103

Federal Communications Commission Interference Statement 105

FCC Radio Frequency (RF) Exposure Caution Statement....106

Declaration of Conformity (R&TTE directive 1999/5/EC)....107

CE Marking....107

IC Radiation Exposure Statement for Canada 108

Wireless Operation Channel for Different Domains....110

France Restricted Wireless Frequency Bands 110

UL Safety Notices....112

Power Safety Requirement....113

TV Notices 113

REACH....113

Macrovision Corporation Product Notice....113

Prevention of Hearing Loss 113

Nordic Lithium Cautions (for lithium-ion batteries)....114

Optical Drive Safety Information 115

CTR 21 Approval (for Notebook PC with built-in Modem)....116

ENERGY STAR complied product 118

European Union Eco-label....118

Global Environmental Regulation Compliance and Declaration 119

ASUS Recycling/Takeback Services....119

Rechargeable Battery Recycling Service in North America.... 119

Regional notice for Singapore 120

Regional notice for India....120

Notices for removable batteries....120

This manual provides information about the hardware and software features of your Notebook PC, organized through the following chapters:

Chapter 1: Hardware Setup

This chapter details the hardware components of your Notebook PC.

Chapter 2: Using your Notebook PC

This chapter shows you how to use the different parts of your Notebook PC.

Chapter 3: Working with Windows® 8.1

This chapter provides an overview of using Windows ^® 8.1 in your Notebook PC.

Chapter 4: Power-On Self-Test (POST)

This chapter shows you how to use POST to change the settings of your Notebook PC.

Chapter 5: Upgrading your Notebook PC

This chapter guides you through the process of replacing and upgrading parts of your Notebook PC.

Appendices

This section includes notices and safety statements for your Notebook PC.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your Notebook PC's data and components.

Icons

The icons below indicate the devices you can use for completing a series of tasks or procedures on your Notebook PC.

= Use the touch screen panel.

= Use the touchpad.

= Use the keyboard.

Typography

Bold = This indicates a menu or an item that must be selected.

Italic = This indicates sections that you can refer to in this manual.

Safety precautions

Using your Notebook PC

This Notebook PC should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F).

Refer to the rating label on the bottom of your Notebook PC and ensure that your power adapter complies with this rating.

Do not leave your Notebook PC on your lap or near any part of your body to prevent discomfort or injury from heat exposure.

Do not use damaged power cords, accessories, and other peripherals with your Notebook PC.

While powered on, ensure that you do not carry or cover your Notebook PC with any materials that can reduce air circulation.

Do not place your Notebook PC on uneven or unstable work surfaces.

You can send your Notebook PC through x-ray machines (used on items placed on conveyor belts), but do not expose them to magnetic detectors and wands.

Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.

Caring for your Notebook PC

Disconnect the AC power and remove the battery pack (if applicable) before cleaning your Notebook PC. Use a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water. Remove any extra moisture from your Notebook PC using a dry cloth.

Do not use strong solvents such as thinners, benzene, or other chemicals on or near your Notebook PC.

Do not place objects on top of your Notebook PC.

Do not expose your Notebook PC to strong magnetic or electrical fields.

Do not use or expose your Notebook PC near liquids, rain, or moisture.

Do not expose your Notebook PC to dusty environments.

Do not use your Notebook PC near gas leaks.

Proper disposal

Do not throw your Notebook PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Chapter 1: Hardware Setup

Getting to know your Notebook PC

Top View

NOTE: The keyboard's layout may vary per region or country.

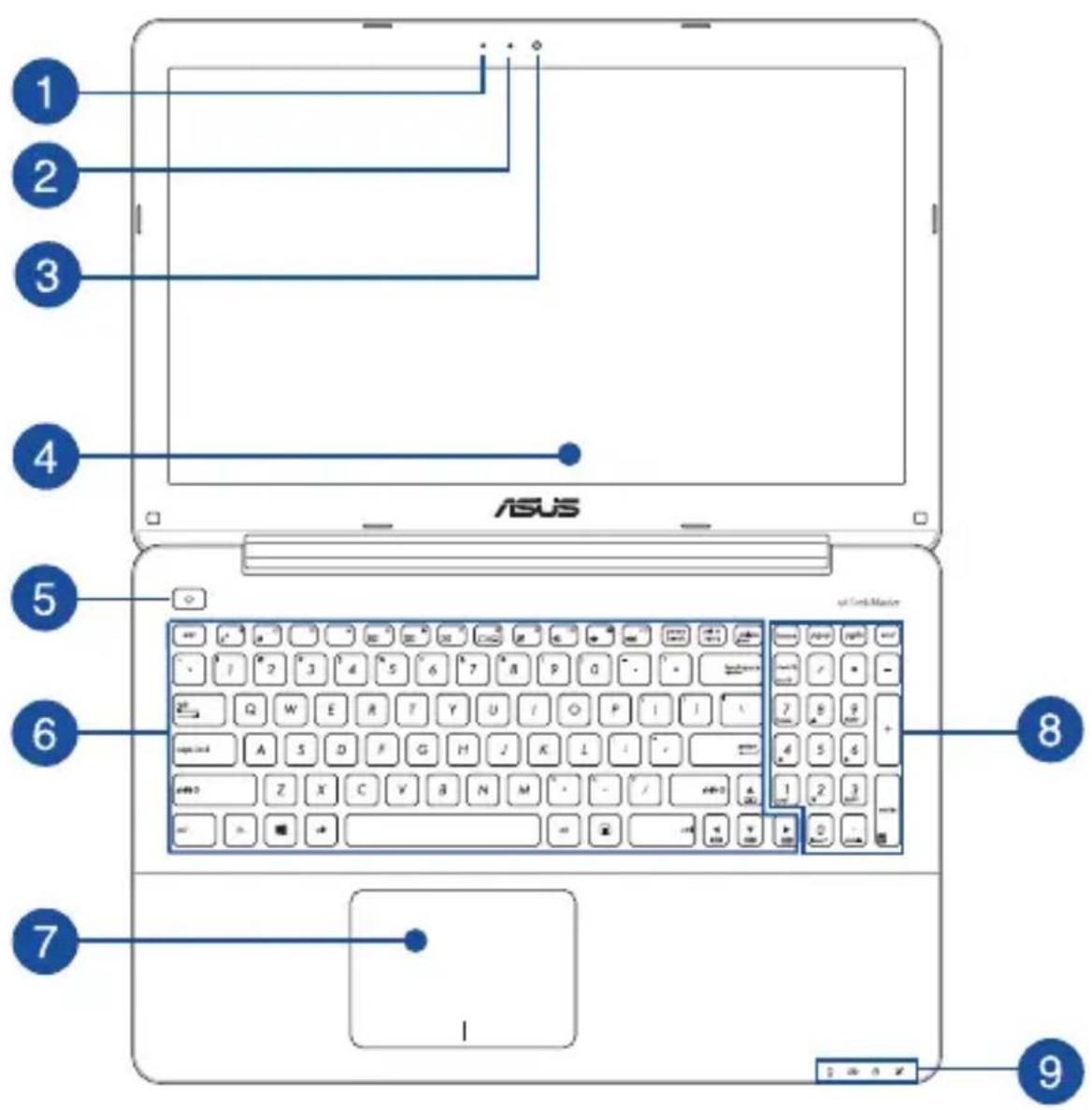

1 2 3 4 ASUS 5 6 7 8 9

Microphone

The built-in microphone can be used for video conferencing, voice narrations, or simple audio recording.

Camera indicator

The camera indicator lights up when the built-in camera is in use.

Camera

The built-in camera allows you to take pictures or record videos using your Notebook PC.

Display panel

This high-definition display panel provides excellent viewing features for photos, videos, and other multimedia files on your Notebook PC.

Touch screen panel\*

This high-definition touch screen panel provides excellent viewing features for photos, videos, and other multimedia files on your Notebook PC. It also allows you to operate it using touch screen gestures.

NOTE: For more details, refer to the Using touch screen panel gestures section in this manual.

Power button

Press the power button to turn your Notebook PC on or off. You can also use the power button to put your Notebook PC to sleep or hibernate mode and wake it up from sleep or hibernate mode.

In the event that your Notebook PC becomes unresponsive, press and hold the power button for about four (4) seconds until your Notebook PC shuts down.

* on selected models only

Keyboard

The keyboard provides full-sized QWERTY keys with a comfortable travel depth for typing. It also enables you to use the function keys, allows quick access to Windows ^® , and controls other multimedia functions.

NOTE: The keyboard layout differs by model or territory.

Touchpad

The touchpad allows the use of multi-gestures to navigate onscreen, providing an intuitive user experience. It also simulates the functions of a regular mouse.

NOTE: For more details, refer to the Using touchpad gestures section in this manual.

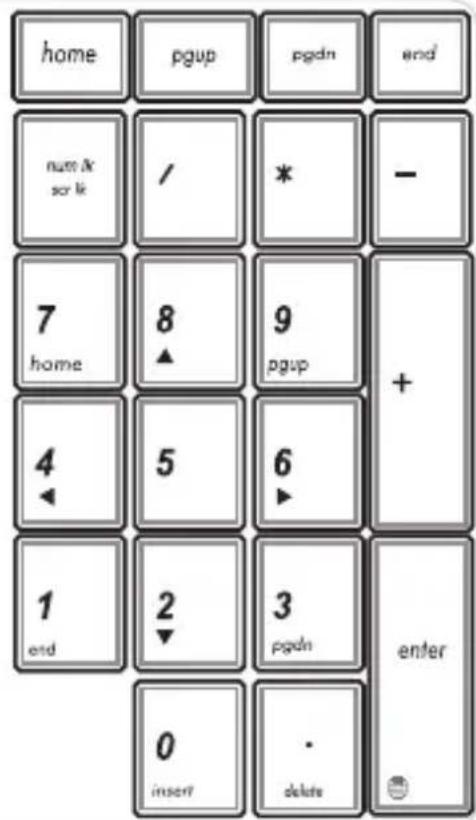

Numeric keypad

The numeric keypad toggles between these two functions: for numeric input and as pointer direction keys.

NOTE: For more details, refer to the Using the numeric keypad section in this manual.

Status indicators

The status indicators help identify the current hardware status of your Notebook PC.

Power indicator

The power indicator lights up when the Notebook PC is turned on and blinks slowly when the Notebook PC is in sleep mode.

Two-color battery charge indicator

The two-color LED provides a visual indication of the battery's charge status. Refer to the following table for details:

Color Status

Solid White The Notebook PC is plugged to a power source and the battery power is between 95% and 100%.

Solid Orange The Notebook PC is plugged to a power source, charging its battery, and the battery power is less than 95%.

Blinking Orange The Notebook PC is running on battery mode and the battery power is less than 10%.

Lights off The Notebook PC is running on battery mode and the battery power is between 10% to 100%.

Drive activity indicator

This indicator lights up when your Notebook PC is accessing the internal storage drives.

Bluetooth / Wireless indicator

This indicator lights up when your Notebook PC's wireless function (Bluetooth or Wi-Fi) is enabled.

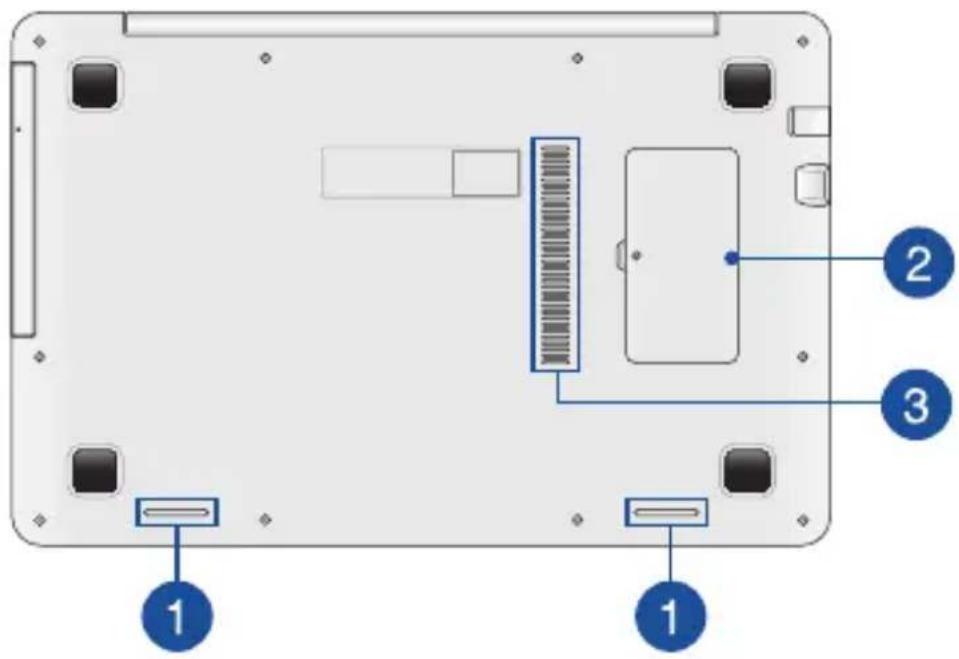

Bottom

NOTE: The bottom side may vary in appearance depending on model.

WARNING! The bottom of the Notebook PC can get warm to hot while in use or while charging the battery pack. When working on your Notebook PC, do not place it on surfaces that can block the vents.

IMPORTANT! Battery time varies by usage and by the specifications for this Notebook PC. The battery pack cannot be disassembled.

Labeled diagram of a computer rear panel showing internal components and numbered parts

Audio speakers

The built-in audio speaker allows you to hear audio straight from the Notebook PC. The audio features of this Notebook PC are software-controlled.

Random-access memory module compartment

This compartment allows you to add RAM (random-access memory) modules to increase the memory capacity of your Notebook PC.

Air vents

The air vents allow cool air to enter and warm air to exit the Notebook PC.

WARNING! Ensure that paper, books, clothing, cables, or other objects do not block any of the air vents or else overheating may occur.

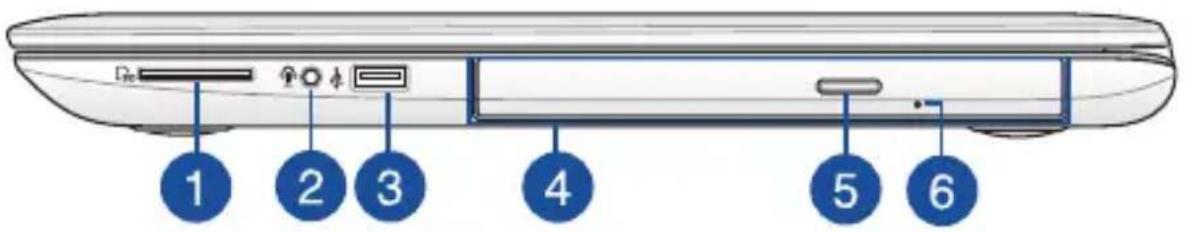

Right Side

1 2 3 4 5 6

Memory card reader

This built-in memory card reader supports SD card formats.

Headphone output/microphone input combo jack port

This port allows you to connect your Notebook PC to amplified speakers or headphones. You can also use this port to connect your Notebook PC to an external microphone.

USB 2.0 port

This USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing devices, flash disk drives, external HDDs, speakers, cameras and printers.

Optical drive

Your Notebook PC's optical drive may support several disc formats such as CDs, DVDs, recordable discs, or rewritable discs.

NOTE: For more details, refer to the Using the optical drive section in this manual.

Optical disc drive eject button

Press this button to eject the optical drive tray.

Optical disc drive manual eject hole

The manual eject hole is used to eject the drive tray in case the electronic eject button does not work.

WARNING! Use the manual eject hole only when the electronic eject button does not work. For more details, refer to the Using the optical drive section in this manual.

Left Side

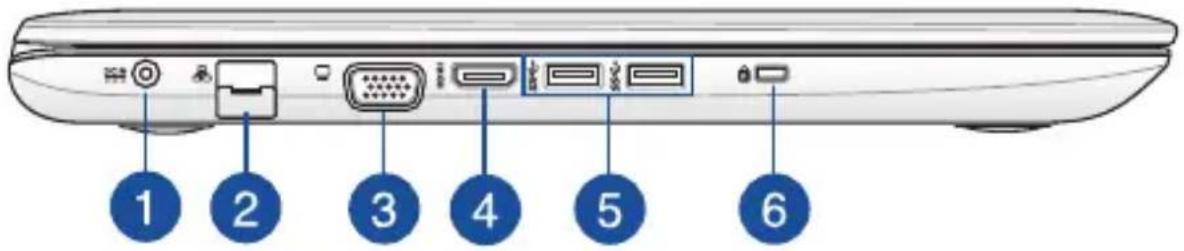

1 2 3 4 5 6

1

Power (DC) input port

Insert the bundled power adapter into this port to charge the battery pack and supply power to your Notebook PC.

WARNING! The adapter may become warm to hot while in use. Do not cover the adapter and keep it away from your body while it is connected to a power source.

IMPORTANT! Use only the bundled power adapter to charge the battery pack and supply power to your Notebook PC.

2

LAN port

Insert the network cable into this port to connect to a local area network.

3

VGA port

This port allows you to connect your Notebook PC to an external display.

HDMI port

This port is for a High-Definition Multimedia Interface (HDMI) connector and is HDCP compliant for HD DVD, Blu-ray, and other protected content playback.

USB 3.0 ports

These Universal Serial Bus 3.0 (USB 3.0) ports provide a transfer rate of up to 5 Gbit/s and are backward compatible to USB 2.0.

Kensington® security slot

The Kensington ^® security slot allows you to secure your Notebook PC using Kensington ^® compatible Notebook PC security products.

Front Side

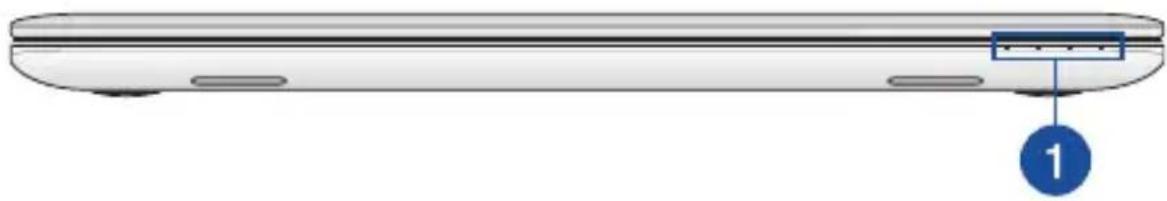

Illustration of a flat electronic device with labeled component '1' (no text or symbols on the device itself)

Status indicators

The status indicators help identify the current hardware status of your Notebook PC.

NOTE: For more details, refer to the Top View section in this manual.

Chapter 2:

Using your Notebook PC

Getting started

Charge your Notebook PC.

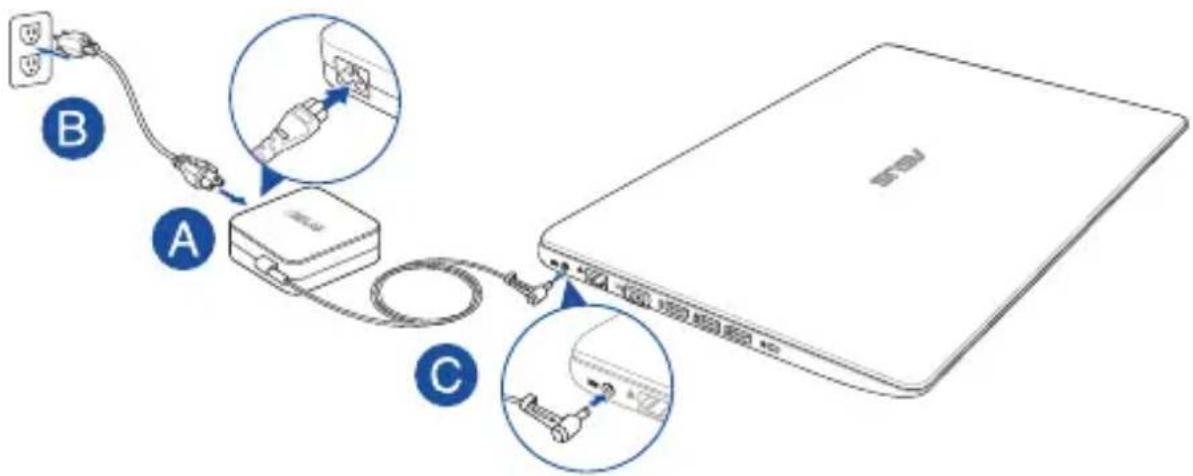

A. Connect the AC power cord to the AC/DC adapter.

B. Plug the AC power adapter into a 100V\~240V power source.

C. Connect the DC power connector into your Notebook PC's power (DC) input.

Charge the Notebook PC for 3 hours before using it in battery mode for the first time.

NOTE: The power adapter may vary in appearance, depending on models and your region.

Diagram showing cable connection to a device with labeled points A, B, and C, including a close-up of electrical plug details.

IMPORTANT!

Power adapter information:

• Input voltage: 100-240Vac

• Input frequency: 50-60Hz

• Rating output current: 2.37A (45W) / 3.42A (65W)

• Rating output voltage: 19V

IMPORTANT!

• Locate the input/output rating label on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
• Ensure that your Notebook PC is connected to the power adapter before turning it on for the first time. We strongly recommend that you use a grounded wall socket while using your Notebook PC on power adapter mode.
• The socket outlet must be easily accessible and near your Notebook PC.
• To disconnect your Notebook PC from its main power supply, unplug your Notebook PC from the power socket.

WARNING!

Read the following precautions for your Notebook PC's battery.

• Only ASUS-authorized technicians should remove the battery inside the device.
• The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
• Follow the warning labels for your personal safety.
• Risk of explosion if battery is replaced by an incorrect type.
  • Do not dispose of in fire.
• Never attempt to short-circuit your Notebook PC's battery.
  • Never attempt to disassemble and reassemble the battery.
  • Discontinue usage if leakage is found.
• The battery and its components must be recycled or disposed of properly.
• Keep the battery and other small components away from children.

Lift to open the display panel.

Line drawing of two hands holding a flatboard with an upward arrow, no text or symbols present

Press the power button.

Illustration showing a hand pressing a laptop keyboard with a power button icon, indicating press function or navigation.

Gestures for the touch screen panel\* and touchpad

Gestures allow you to launch programs and access the settings of your Notebook PC. Refer to the following illustrations when using hand gestures on your touch screen panel* and touchpad.

NOTE: The following screenshots are for reference only. The touch screen panel's appearance may vary depending on model.

Using touch screen panel gestures\*

The gestures allow you to launch programs and access the settings of your Notebook PC. Functions can be activated using the following hand gestures on your Notebook PC's touch screen panel.

Left edge swipe Right edge swipe

Hand pointing at a smartphone screen displaying app icons and a 90° angle setting, likely for smart home control or app interface.

Swipe from the left edge of the screen to shuffle your running apps.

Hand interacting with a tablet displaying app icons (no text or symbols visible)

Swipe from the right edge of the screen to launch the Charms bar.

* on selected models only

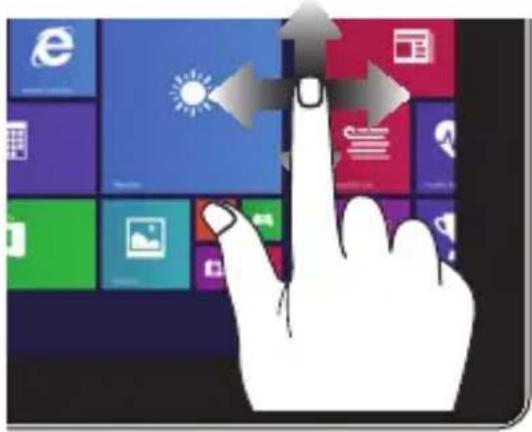

Top edge swipe Finger slide

Hand pointing upward on a tablet screen displaying various app icons (no text or symbols visible)

• In the Start screen, swipe from the top edge of the screen to view the Customize bar.

- In a running app, swipe from the top edge of the screen to view its menu.

Hand interacting with a tablet displaying a grid of app icons (e.g., Windows, macOS, iPad) and arrows pointing at the screen (no text or symbols on icons)

Slide your finger to scroll up and down and slide your finger to pan the screen left or right.

Zoom out Zoom in

Hand interacting with a tablet displaying colorful app icons (no text or symbols visible)

Bring together your two fingers on the touch panel.

Hand interacting with a tablet displaying a grid of app icons (no readable text or symbols)

Spread apart your two fingers on the touch panel.

Tap/Double tap Tap/click and hold

Hand interacting with a tablet displaying a grid of app icons (no text or symbols visible)

• Tap an app to launch it.

- On Desktop mode, double-tap an item to launch it.

Hand interacting with a tablet displaying a grid of app icons including email, cloud, and smart glasses.

• To move an app, tap and hold the app tile and drag it to a new location.

• To close an app, tap and hold the top side of the running app and drag it down to the bottom of the screen to close it.

Swipe up Swipe down

Hand interacting with a tablet displaying a grid of app icons, including email, cloud, and email app icons.

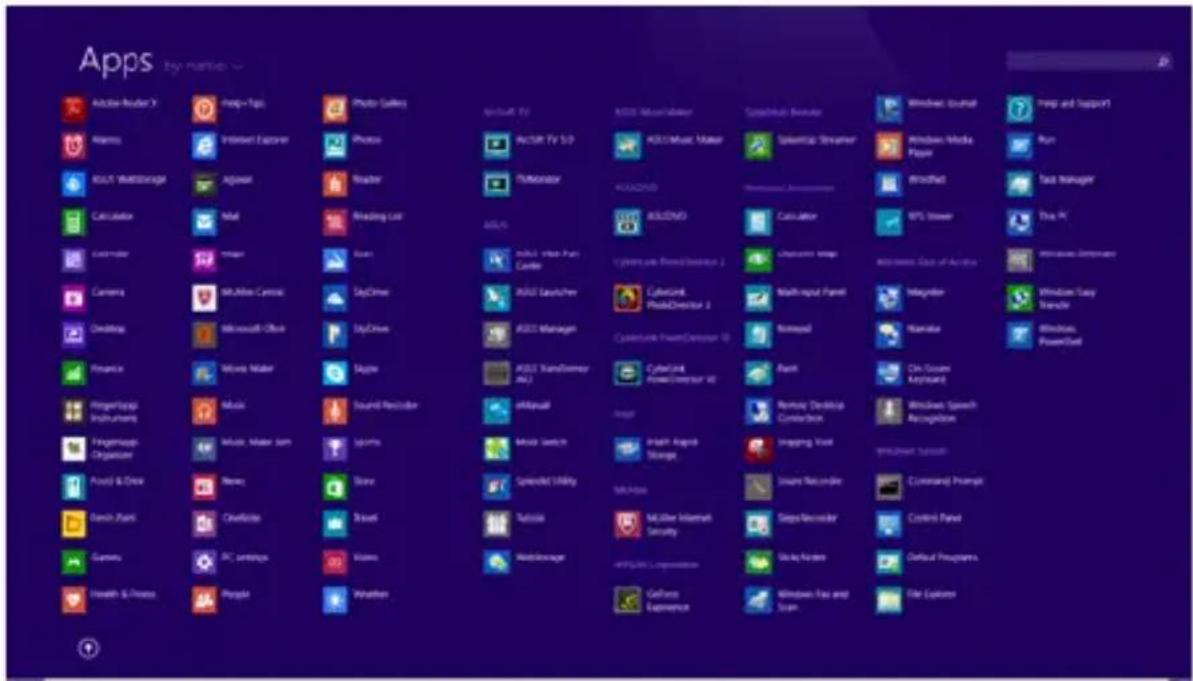

Swipe up from the Start screen to launch the Apps screen.

ASUS Apps

Swipe down from the Apps screen to return to the Start screen.

Using touchpad gestures

Moving the pointer

You can tap or click anywhere on the touchpad to activate its pointer, then slide your finger on the touchpad to move the pointer onscreen.

Slide horizontally

Hand pressing down on a card with two arrows indicating left and right motion (no text or symbols)

Slide vertically

Hand holding a card with two arrows pointing downward (no text or symbols)

Slide diagonally

Hand pointing at a square with three arrows indicating directional movement (no text or symbols)

One-finger gestures

Tap/click, Double tap/double click

Hand placing a blue 'W' mark on a flat surface with small circular symbols below (no text or labels)

• In the Start screen, tap/click an app to launch it.
- In Desktop mode, double tap/double click an application to launch it.

Drag and drop

Hand drawing a blue wavy line on a flat surface with small circular marks (no text or symbols)

Double tap/double click an item, then slide the same finger without lifting it off the touchpad. To drop the item to its new location, lift your finger from the touchpad.

Left-click Right-click

Hand holding a small object with a blue arrow pointing downward, placed on a flat surface (no text or symbols)

Hand holding a small electronic component with a blue arrow indicating force or insertion (no text or symbols)

• In the Start screen, click an app to launch it.
- In Desktop mode, double-click an application to launch it.

• In the Start screen, click an app to select it and launch the settings bar. You can also press this button to launch the All Apps bar.
• In Desktop mode, use this button to open the right-click menu.

NOTE: The areas inside the dotted line represent the locations of the left mouse button and the right mouse button on the touchpad.

Top edge swipe

Illustration of a hand holding a pen over a square object, no text or symbols present

• In the Start screen, swipe from the top edge to launch the All Apps bar.
  • In a running app, swipe from the top edge to view its menu.

Left edge swipe Right edge swipe

Illustration of a hand holding a card with a finger pointing to it (no text or symbols present)

Hand inserting a card into a square sheet, no text or symbols visible

Swipe from the left edge to shuffle your running apps.

Swipe the right edge to launch the Charms bar.

Two-finger gestures

Tap/click Rotate

Hand holding a pen tip over a square object with a small circular mark (no text or symbols)

Tap/click two fingers on the touchpad to simulate the right-click function.

Hand pressing a curved arrow on a flat surface (no text or symbols)

To rotate an image, place two fingers on the touchpad then turn one finger clockwise or counterclockwise while the other stays still.

Two-finger scroll (up/down) Two-finger scroll (left/right)

Illustration of a hand pressing down on a card with arrows indicating movement (no text or symbols)

Slide two fingers to scroll up or down.

Hand holding a card with two arrows indicating movement (no text or symbols)

Slide two fingers to scroll left or right.

Zoom out Zoom in

Hand holding a card with a small starburst graphic (no text or symbols)

Bring together your two fingers on the touchpad.

Hand holding a pen writing on a document with two arrows pointing downward (no text or symbols present)

Spread apart your two fingers on the touchpad.

Drag and drop

Illustration of a hand inserting a blue wavy line onto a square card (no text or symbols)

Select an item then press and hold the left button. Using your other finger, slide down the touchpad to drag and drop the item to a new location.

Three-finger gestures

Swipe up Swipe down

Hand holding a card with a pointing arrow (no text or symbols)

Illustration of a hand holding a card with a small arrow icon (no text or symbols)

Swipe three fingers upward to show all running applications.

Swipe three fingers downward to show the Desktop mode.

Using the keyboard

Function keys

The function keys on your Notebook PC's keyboard can trigger the following commands:

Puts the Notebook PC into Sleep mode

Turns Airplane mode on or off

NOTE: When enabled, the Airplane mode disables all wireless connectivity.

Decreases display brightness

Increases display brightness

Turns the display panel off

Toggles the display mode

NOTE: Ensure that the second display is connected to your Notebook PC.

Enables or disables the touchpad

Turns the speaker on or off

Turns the speaker volume down

Turns the speaker volume up

Windows® 8.1 keys

There are two special Windows® keys on your Notebook PC's keyboard used as below:

Press this key to go back to the Start screen. If you are already in the Start screen, press this key to go back to the last app you opened.

Press this key to simulate the right-click functions.

Multimedia control keys

The multimedia control keys allow you to control multimedia files, such as audios and videos, when played in your Notebook PC.

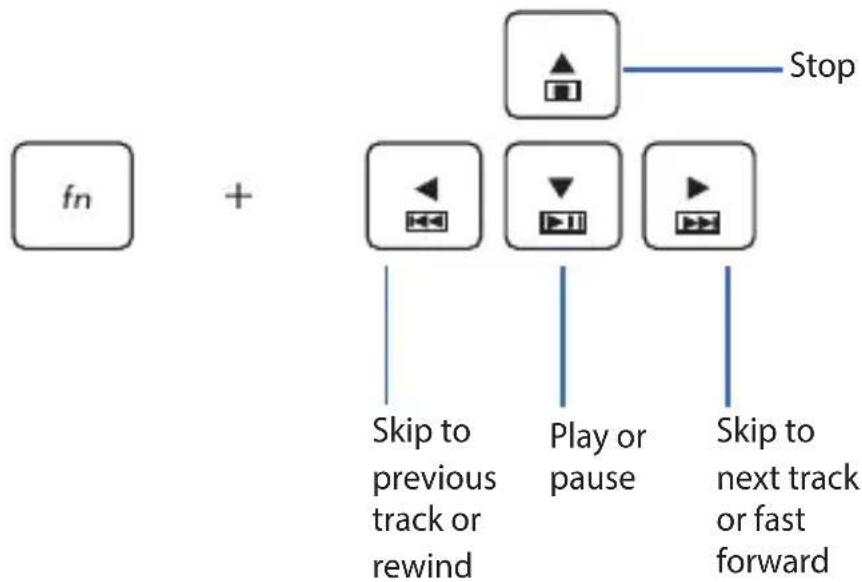

Press in combination with the arrow keys on your Notebook PC, illustrated as below.

Using the numeric keypad

NOTE: The numeric keypad layout may differ by model or territory but the usage procedures remain the same.

home pgup pgdn end num & scr & / * - 7 home 8 9 + 4 5 6 1 end 2 3 pgdn enter 0 insert delete

A numeric keypad is available on selected Notebook PC models. You can use this keypad for numeric input or as pointer direction keys.

Press

toggle between using the keypad as number keys or as pointer direction keys.

Using the optical drive

NOTE:

- The actual location of the electronic eject button may vary depending on your Notebook PC model.

- The actual appearance of the Notebook PC optical drive may also vary depending on model but usage procedures remaining the same.

Inserting an optical disc

1. While the Notebook PC is on, press the electronic eject button to partially eject the optical drive tray.

Line drawing of a hand holding a tool near a diagonal line (no text or symbols)

1. Gently pull out the drive tray.

IMPORTANT! Be careful not to touch the optical drive lens. Ensure that there are no objects that may get jammed under the drive tray.

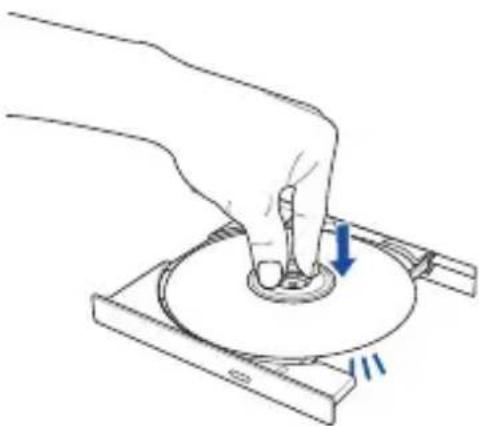

1. Hold the disc by the edge, with its printed side up, then gently place it inside the hub.

Diagram showing a hand holding a CD or DVD disc with two blue arrows labeled 2 and 3 indicating process steps.

1. Push down the disc's plastic hub until it snaps onto the optical drive hub.

Line drawing of a hand pressing down on a circular component with a blue arrow indicating motion (no text or symbols)

1. Push the drive tray gently to close the optical drive.

NOTE: While data is being read, it is normal to hear some spinning and vibrating in the optical drive.

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

Using the manual eject hole

The manual eject hole is located on the optical drive door and is used to eject the optical drive tray in case the electronic eject button does not work.

To manually eject the optical drive tray, insert a straightened paper clip into the manual eject hole until the drive tray opens.

WARNING! Use the manual eject hole only when the electronic eject button does not work.

Chapter 3:

Working with Windows® 8.1

Starting for the first time

When you start your computer for the first time, a series of screens appear to guide you in configuring your Windows ^® 8.1 operating system.

To start your Notebook PC for the first time:

1. Press the power button on your Notebook PC. Wait for a few minutes until the setup screen appears.
2. From the setup screen, pick a language to use on your Notebook PC.

3. Carefully read the License Terms. Select I accept.

4. Follow the onscreen instructions to configure the following basic items:

5. Personalize

6. Get online
7. Settings

8. Your account

9. After configuring the basic items, Windows® 8.1 proceeds to install your apps and preferred settings. Ensure that your Notebook PC is kept powered on during the setup process.

10. Once the setup process is complete, the Start screen appears.

Windows® UI

Windows® 8.1 comes with a tile-based user interface (UI) which allows you to organize and easily access Windows® apps from the Start screen. It also includes the following features that you can use while working on your Notebook PC.

Start screen

The Start screen appears after successfully signing in to your user account. It helps organize all the applications you need in just one place.

Start ASLS ASLS apps Apple Microsoft Office Microsoft Office ASLS Manage

Windows® Apps

These are apps pinned on the Start screen and displayed on tiled-format for easy access.

NOTE: Some apps require signing in to your Microsoft account before they are fully launched.

Hotspots

Onscreen hotspots allow you to launch programs and access the settings of your Notebook PC. The functions in these hotspots can be activated using the touchpad.

Hotspots on a running app

Close-up of a bee pollinating a vibrant red flower with yellow center (no text or symbols visible)

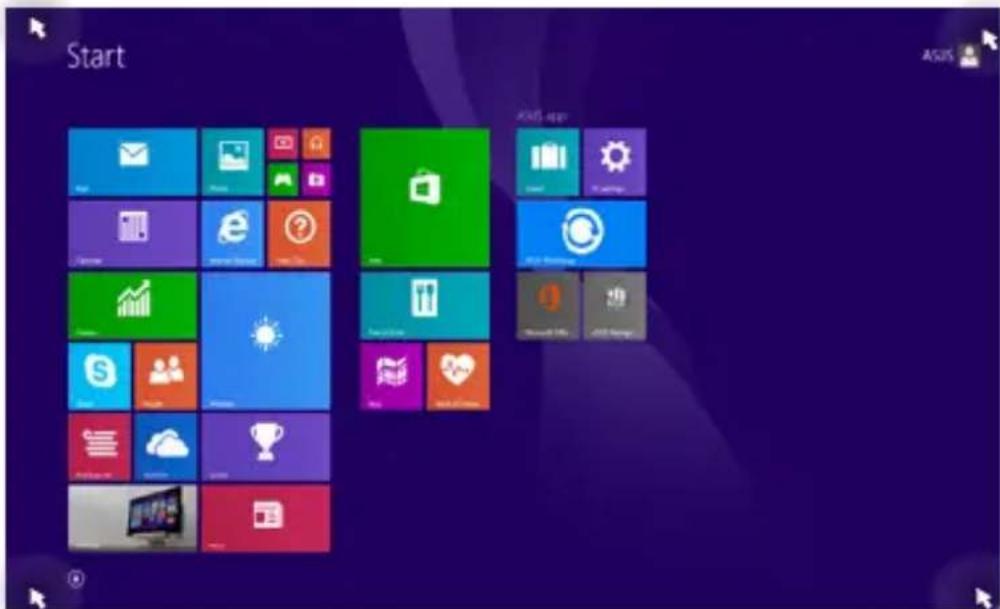

Hotspots on the Start screen

Start ASUS iOS Help Start Chat Settings Windows Internet Explorer QQ Server Google iTunes Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams

Hotspot Action

upper left corner Hover your mouse pointer on the upper left corner then tap/click on the recent app's thumbnail to revert back to that running app.

If you launched more than one app, slide down to show all running apps.

lower left corner From a running app screen:

Hover your mouse pointer on the lower left corner then tap/click Start screen.

NOTE: You can also press the Windows key on your keyboard to go back to the

Start screen.

From the Start screen:

Hover your mouse pointer on the lower left corner then tap/click back to that

app.

Hotspot Action

top side Hover your mouse pointer on the top side until it changes to a hand icon. Drag then drop the app to a new location.

NOTE: This hotspot function only works on a running app or when you want to use the Snap feature. For more details, refer to the Snap feature under Working with Windows® apps.

upper or lower right corner Hover your mouse pointer on the upper or lower right corner to launch the Charms bar.

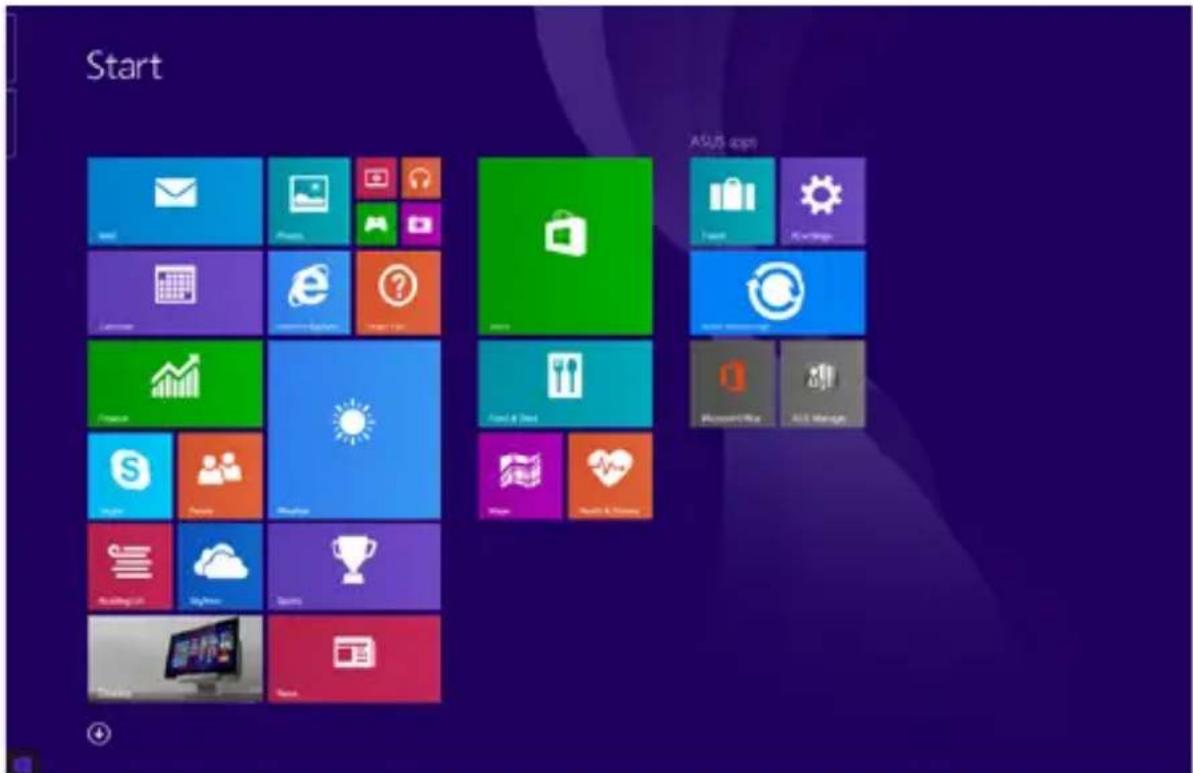

Start button

Windows® 8.1 features the Start button which allows you to switch between the two most recent apps that you opened. The Start button may be accessed from the Start screen, while on Desktop mode, and on any app that is currently open onscreen.

Start button on the Start screen

NOTE: The actual color of your Start button varies depending on the display settings you chose for your Start screen.

Start ASUS apps Apple Alibaba Microsoft Office Android Windows Apple Store iTunes Facebook Google Spotify Airbus Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams Microsoft Teams

Hover your mouse pointer over the left corner of your Start screen or any opened app to call out the Start button.

Start button on Desktop mode

Computer desktop wallpaper showing orange and white geometric shapes on a yellow background (no text or symbols)

Context menu

The context menu appears as a box filled with quick access to some of the programs inside Windows® 8.1. The context menu appears when you right-click on the Start button.

The context menu also includes the following shut down options for your Notebook PC: sign out, sleep, shut down, restart.

Programs and Features Power Options Event Viewer System Device Manager Network Connections Disk Management Computer Management Command Prompt Command Prompt (Admin) Task Manager Control Panel File Explorer Search Run Shut down or sign out Desktop

Customizing your Start screen

Windows® 8.1 also enables you to customize your Start screen, allowing you to boot directly to the Desktop mode and customize the arrangement of your apps onscreen.

To customize the settings of your Start screen:

or

1. Launch the Desktop.

2. Right-click anywhere on the taskbar, except on the Start button, to launch the pop-up window.

3. Click Properties then select the Navigation tab to tick the Navigation and Start screen options you want to use.

Taskbar and Navigation properties Taskbar Navigation Jump Lists Toolbars Corner navigation ✓ When I point to the upper-right corner, show the charms ✓ When I click the upper-left corner, switch between my recent apps ☐ Replace Command Prompt with Windows PowerShell in the menu when I right-click the lower-left corner or press Windows key +K Start screen ☐ When I sign in or close all apps on a screen, go to the desktop instead of Start ✓ Show my desktop background on Start ✓ Show Start on the display I'm using when I press the Windows logo key ✓ Show the Apps view automatically when I go to Start ✓ Search everywhere instead of just my apps when I search from the Apps view ☐ List desktop apps first in the Apps view when it's sorted by category OK Cancel Apply

1. Tap/click Apply to save the new settings then exit.

*on selected models only

Working with Windows® apps

Use your Notebook PC's touch screen panel*, touchpad, or keyboard to launch, customize, and close apps.

Launching apps

Tap an app to launch it.

Position your mouse pointer over the app then left-click or tap once to launch it.

Press twice then use the arrow keys to browse

through the apps. Press to launch an app.

Customizing apps

You can move, resize, unpin, or close apps from the Start screen using the following steps:

Moving apps

Tap and hold the app tile then drag it to a new location.

Double-tap on the app then drag and drop the app to a new location.

*on selected models only

Resizing apps

Tap and hold the app to activate the Customize bar then tap and select an app tile size.

Right-click on the app to activate the Customize bar, then tap/click and select an app tile size.

Unpinning apps

Tap and hold the app to activate the Customize bar, then tap to unpin an app.

Right-click on the app to activate the Customize bar then tap/click . Unpin from Start

*on selected models only

Closing apps

Tap and hold the top side of the running app then drag it down to the bottom of the screen to close it.

1. Move your mouse pointer on the top side of the launched app then wait for the pointer to change to a hand icon.
2. Drag then drop the app to the bottom of the screen to close it.

From the running app's screen, press . alt + 14

*on selected models only

Accessing the Apps screen

Aside from the apps already pinned on your Start screen, you can also open other applications through the Apps screen.

NOTE: Actual apps shown onscreen may vary per model. The following screenshot is for reference only.

Apps My March Adder Reader X Snap - Topi Photo Servers MacSaur TV ACSTR TV 5D ACSTR Music Master Spasticator Streamer Windows Journal Snap and Support1 Alamos Internet Explorer Photos Pulmonator Microsoft Microsoft Media Player iQOLI WebStorage Agipower Reader AutoCAD AutoCAD Calculator Mall Brading List Adder Adder Video Player Center CyberIcon PhotoDirector 2 Math Input Panel Microsoft Excel of Activities Camera Multi-Context SkyDrive Adder SafariPro Adder Managein CyberIcon PowerDirector 0 Newspool Newspool Windows, Smart Server Desktops Microsoft Office Desktops Microsoft Teams Desktops Windows, PowerGrid Resource Mouse Master SkyDrive Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-rayServer (AI) Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adder X-Ray Filter Storage Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools Adde rteres Software & Tools

Launching the Apps screen

Launch the Apps screen using your Notebook PC's touch screen panel*, touchpad, or keyboard.

Swipe up on the Start screen.

On the Start screen, click the Burton.

From the Start screen, Press then press.

*on selected models only

Pinning more apps on the Start screen

You can pin more apps on the Start screen using your touch screen panel* or touchpad.

1. Launch the All Apps screen.
2. Tap and hold an app you want to pin on the Start screen to activate the Customize bar.

3. (optional) Once the Customize bar is enabled, you may tap more apps to pin on the Start screen.

4. Tap to pin the selected apps on the Start screen. *

1. Launch the All Apps screen

2. Right-click on the apps that you want to add on the Start screen.

3. Tap/click on the icon to pin the selected apps on the Start screen.

*on selected models only

Charms bar

The Charms bar is a toolbar that can be triggered on the right side of your screen. It consists of several tools that allow you to share applications and provide quick access for customizing the settings of your Notebook PC.

NEW YORK, UNITED STATES BING WEATHER 81°F 12:00 Monday July 15 TUE 16 WED 17 THU 18 FR 19 SAT 20 94°/79° Partly Cloudy +20% 95°/78° Partly Cloudy +20% 95°/80° Partly Cloudy +20% 91°/75° Light Rain +30% Last updated Wednesday, July 17, 2017 03:00 AM

Charms bar

Launching the Charms bar

NOTE: When called out, the Charms bar initially appears as a set of white icons. The image above shows how the Charms bar looks like once activated.

Use your Notebook PC's touch screen panel*, touchpad, or keyboard to launch the Charms bar.

Swipe from the right edge of the screen to launch the charms bar.

Move your mouse pointer on the upper or lower right corner of the screen.

Press

*on selected models only

Inside the Charms bar

Search

This charm allows you to look for files, applications, or programs in your Notebook PC.

Share

This charm allows you to share applications via social networking sites or email.

Start

This charm reverts the display back to the Start screen. From the Start screen, you can also use this to revert back to a recently opened app.

Devices

This charm allows you to access and share files with the devices attached to your Notebook PC such as an external display or printer.

Settings

This charm allows you to access the PC settings of your Notebook PC.

Snap feature

The Snap feature displays two apps side-by-side, allowing you to work or switch between apps.

IMPORTANT! Ensure that your Notebook PC's screen resolution is set to 1366 x 768 pixels or higher before using the Snap feature.

BING TRAVEL Las Vegas, Nevada AUG to Favorites

BING FOOD & DRINK Something Sweet: Texas Ruby Red Grapefruit Cake

Snap bar

Using Snap

Use your Notebook PC's touch screen panel*, touchpad, or keyboard to activate and use Snap.

1. Launch the app you wish to snap.
2. Tap and hold the app's topmost part then drag it to the left or right side of the screen until the snap bar appears.
3. Launch another app.

1. Launch the app you wish to snap.
2. Hover the mouse point on the top side of your screen.
3. Once the pointer changes to a hand icon, drag then drop the app to the left or right side of the display panel.
4. Launch another app.

1. Launch the app you wish to snap.
2. Press and the left or right arrow key to snap the app to the left or right pane.
3. Launch another app. This app is automatically placed in the empty pane.

*on selected models only

Other keyboard shortcuts

Using the keyboard, you can also use the following shortcuts to help you launch applications and navigate Windows® 8.1.

Switches between the Start screen and the last running app

Launches the desktop

Launches the This PC window on Desktop mode

Opens the File option from the Search charm

Opens the Share charm

Opens the Settings charm

Opens the Devices charm

Activates the Lock screen

Minimizes all currently active windows

Launches the Project pane

Opens the Everywhere option from the Search charm

Opens the Run window

Opens Ease of Access Center

Opens the Settings option under the Search charm

Opens the context menu of the Start button

Launches the magnifier icon and zooms in your screen

Zooms out your screen

Opens the Narrator Settings

Connecting to wireless networks

Wi-Fi

Access emails, surf the Internet, and share applications via social networking sites using your Notebook PC's Wi-Fi connection.

IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Wi-Fi connection of your Notebook PC.

Enabling Wi-Fi

Activate Wi-Fi in your Notebook PC using the following steps on your touch screen panel or touchpad.

1. Launch the Charms bar.

2. Tap/click

and tap/clic

1. Select an access point from the list of available Wi-Fi connections.

2. Tap/click Connect to start the network connection.

NOTE: You may be prompted to enter a security key to activate the Wi-Fi connection.

1. If you want to enable sharing between your Notebook PC and other wireless-enabled systems, tap/click Yes. Tap/click No if you do not want to enable the sharing function.

Bluetooth

Use Bluetooth to facilitate wireless data transfers with other Bluetooth-enabled devices.

IMPORTANT! The Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Bluetooth connection of your Notebook PC.

Pairing with other Bluetooth-enabled devices

You need to pair your Notebook PC with other Bluetooth-enabled devices to enable data transfers. To do this, use your touchpad as follows:

1. Launch the Charms bar.

2. Tap/click

then tap/click Change PC Settings.

1. Under PC Settings, select Devices then tap/click Add a Device to search for Bluetooth-enabled devices.

2. Select a device from the list. Compare the passcode on your Notebook PC with the passcode sent to your chosen device. If they are the same, tap/click Yes to successfully pair your Notebook PC with the device.

NOTE: For some bluetooth-enabled devices, you may be prompted to key in the passcode of your Notebook PC.

Airplane mode

The Airplane mode disables wireless communication, allowing you to use your Notebook PC safely while in-flight.

Turning Airplane mode on

or

1. Launch the Charms bar.

2. Tap/click

and tap/clic

1. Move the slider to the right to turn the Airplane mode on.

Press

Turning Airplane mode off

1. Launch the Charms bar.

2. Tap/click

and tap/clic

1. Move the slider to the left to turn the Airplane mode off.

or

Press

NOTE: Contact your airline provider to learn about related inflight services that can be used and restrictions that must be followed when using your Notebook PC in-flight.

*on selected models only

Connecting to wired networks

You can also connect to wired networks, such as local area networks and broadband Internet connection, using your Notebook PC's LAN port.

NOTE: Contact your Internet Service Provider (ISP) for details or your network administrator for assistance in setting up your Internet connection.

To configure your settings, refer to the following procedures.

IMPORTANT! Ensure that a network cable is connected between your Notebook PC's LAN port and a local area network before performing the following actions.

Configuring a dynamic IP/PPPoE network connection

1. Launch Desktop.
2. From the Windows ^® taskbar, right-click the network

icon then tap/click Open Network and Sharing Center.

1. In the Network and Sharing Center window, tap/ click Change adapter settings.
2. Right-click on your LAN then select Properties.

3. Tap/click Internet Protocol Version 4(TCP/IPv4) then tap/click Properties.

4. Tap/click Obtain an IP address automatically then tap/click OK.

NOTE: Proceed to the next steps if you are using PPPoE connection.

1. Return to the Network and Sharing Center window then tap/click Set up a new connection or network.
2. Select Connect to the Internet then tap/click Next.
3. Tap/click Broadband (PPPoE).
4. Type your User name, Password, and Connection name then tap/click Connect.
5. Tap/click Close to finish the configuration.
6. Tap/click 📄 on the taskbar then tap/click the connection you just created.
7. Type your user name and password then tap/click Connect to start connecting to the Internet.

Configuring a static IP network connection

1. Repeat steps 1 to 5 under Configuring a dynamic IP/PPPoE network connection.
   2 Tap/click Use the following IP address.
2. Type the IP address, Subnet mask and Default gateway from your service provider.
3. If needed, you can also type the preferred DNS server address and alternate DNS server address then tap/click OK.

Turning your Notebook PC off

You can turn off your Notebook PC by doing either of the following procedures:

or

- Tap/click

tap/click

the Charms bar then

ut down to do a normal

shutdown.

• From the log-in screen, tap/click

down.

• You can also shut down your Notebook PC Duet using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Shut Down from the drop-down list then select OK.
• If your Notebook PC Duet is unresponsive, press and hold the power button for at least four (4) seconds until your Notebook PC Duet turns off.

*on selected models only

Putting your Notebook PC to sleep

To put your Notebook PC on Sleep mode, press the power button once.

You can also put your Notebook PC to sleep mode using Desktop mode. To do this, launch the desktop then press alt + f4 to launch the Shut Down window. Select Sleep from the drop-down list then select OK.

Windows® 8.1 lock screen

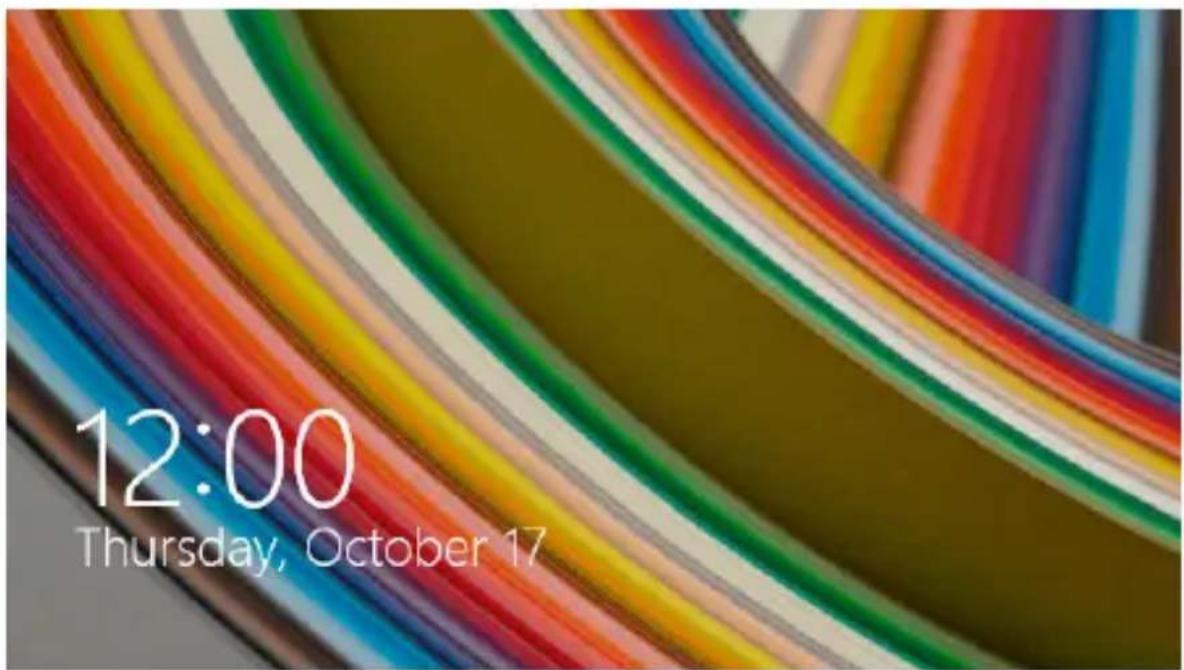

The Windows® 8.1 lock screen appears when you wake your Notebook PC from sleep or hibernate mode. It also appears when you lock or unlock Windows® 8.1.

12:00 Thursday, October 17

The lock screen can be customized to regulate access to your operating system. You can change its background display and access some of your apps while your Notebook PC is still locked.

To proceed from the lock screen

* or

1. Tap/click on the touchpad or press any key on your Notebook PC's keyboard.

2. (optional) If your account is password-protected, you need to key in the password to continue to the Start screen.

*on selected models only

Customizing your lock screen

You can customize your lock screen to show your preferred photo, a photo slideshow, app updates, and quickly access your Notebook PC's camera. To change the settings of your lock screen, you may refer to the following information:

Selecting a photo

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Under the Lock screen preview, click Browse to select the photo you would like to use as a background on your lock screen.

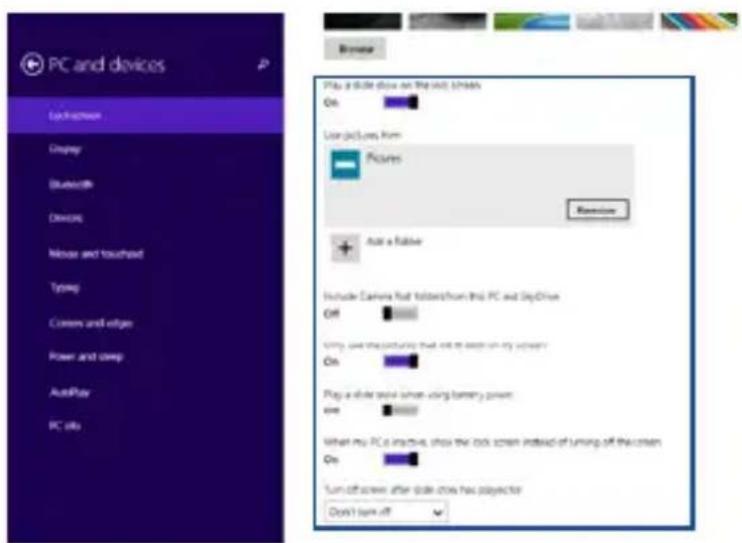

Playing a slideshow

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Under the Lock screen preview, move the Play a slide show on the lock screen slide bar to On.

4. Scroll down to customize the following options for your lock screen's slideshow:

PC and devices Lockdown Display Bluetooth Divisions Mouse and touchpad Typing Camers and edge Power and chip AutoPlay PC play Browse Play a slide show on the exit. Clicks On Use pictures from: Pictures Add a fabble Include Camera font thickness from this PC and SkyDrive Off Only use the graphics that are to reach on my screen? On Play a slide show when using battery power size When my PC is inactive, show the lock screen instead of turning off the screen On Turn-off screen after slide shows has projector Don't turn off

Adding app updates

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Scroll down until you see the Lock screen apps option.

4. Use the following options to add the apps whose updates you would like to see from your lock screen:

PC and devices Lockscrew Display Bluetooth Devices Noise and touchpad Typing Camera and edge Power and drop Anti-Pole PC Help Play a slide show when using battery power Off Where my PC is active, Show the lock screen instead of menu off the screen Off Turn-off screen after slide show has projector Close turn-off Lock screen apps Choose apps to run in the background and show quick status and notifications, even when your screen is locked Choose an app to dispose detail status + Choose an app to show alarm Camera Take down in the lock screen to use the buttons. Off

Activating your Notebook PC camera from the lock screen

From the lock screen, you can swipe down to activate and use your Notebook PC's camera. Refer to the following steps on how to enable this feature:

1. Launch the Charms bar > Settings.

2. Select Change PC Settings > Lock screen.

3. Scroll down until you see the Camera option.

4. Move the slide bar to On.

Chapter 4:

Power-On Self-Test (POST)

The Power-On Self-Test (POST)

The Power-On Self-Test (POST) is a series of software-controlled diagnostic tests that run when you turn on or restart your Notebook PC. The software that controls the POST is installed as a permanent part of the Notebook PC's architecture.

Using POST to access BIOS and Troubleshoot

During POST, you can access the BIOS settings or run troubleshooting options using the function keys of your Notebook PC. You may refer to the following information for more details.

BIOS

The Basic Input and Output System (BIOS) stores system hardware settings that are needed for system startup in the Notebook PC.

The default BIOS settings apply to most conditions of your Notebook PC. Do not change the default BIOS settings except in the following circumstances:

• An error message appears onscreen during system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or updates.

WARNING: Using inappropriate BIOS settings may result to system instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

Accessing BIOS

Restart your Notebook PC then press during POST.

BIOS Settings

NOTE: The BIOS screens in this section are for reference only. The actual screens may differ by model and territory.

Boot

This menu allows you to set your boot option priorities. You may refer to the following procedures when setting your boot priority.

1. On the Boot screen, select Boot Option #1.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Boot Security Save & Exit
Boot Configuration Fast Boot [Enabled] Launch CSM [Disabled]	Sets the system boot order
Driver Option Priorities Boot Option Priorities Boot Option #1 [Windows Boot Manager]	→← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit
Add New Boot Option Delete Boot Option

Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

2. Press

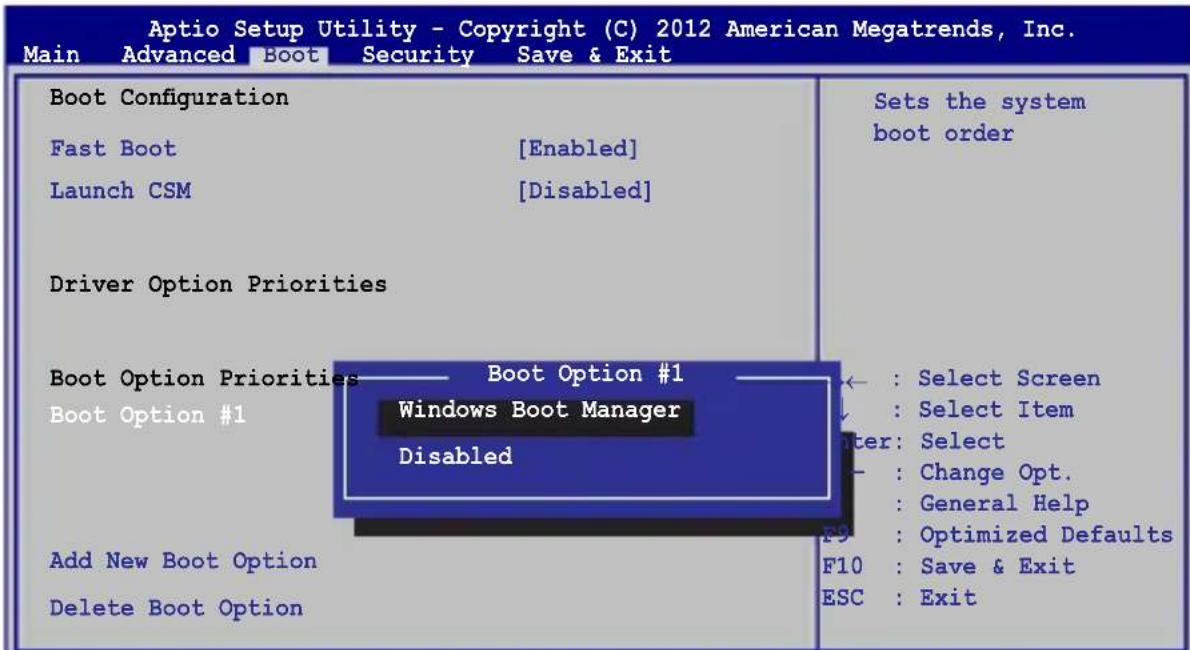

and select a device as the Boot Option #1.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit Boot Configuration Fast Boot [Enabled] Launch CSM [Disabled] Driver Option Priorities Boot Option Priorities Boot Option #1 : Select Screen Boot Option #1 Windows Boot Manager : Select Item Disabled Add New Boot Option F9 : Change Opt. Delete Boot Option F10 : Save & Exit ESC : Exit

Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

Security

This menu allows you to set up the administrator and user password of your Notebook PC. It also allows you to control the access to your Notebook PC's hard disk drive, input/output (I/O) interface, and USB interface.

NOTE:

• If you install a User Password, you will be prompted to input this before entering your Notebook PC's operating system.
• If you install an Administrator Password, you will be prompted to input this before entering BIOS.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit

Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the user's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup, the User will have Administrator rights. Administrator Password Status NOT INSTALLED User Password Status NOT INSTALLED Administrator Password User Password HDD Password Status : NOT INSTALLED Set Master Password Set User Password I/O Interface Security System Mode state User Secure Boot state Enabled Secure Boot Control [Enabled] Key Management

Set Administrator Password. The password length must be in the following range: Minimum length 3 Maximum length 20 →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F9: Optimized Defaults F10: Save & Exit ESC: Exit

Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

To set the password:

1. On the Security screen, select Administrator Password or User Password.
2. Type in a password then press . enter
3. Re-type to confirm the password then press . enter

To clear the password:

1. On the Security screen, select Administrator Password or User Password.
2. Type in the current password then press .
3. Leave the Create New Password field blank then press
4. Select Yes in the confirmation box then press . enter

I/O Interface Security

In the Security menu, you can access I/O Interface Security to lock or unlock some interface functions of your Notebook PC.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Security I/O Interface Security LAN Network Interface [UnLock] Wireless Network Interface [UnLock] HD AUDIO Interface [UnLock] USB Interface Security LAN Network Interface Lock UnLock If Locked, LAN controller will be disabled. ← : Select Screen ↑ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

To lock an interface:

1. On the Security screen, select I/O Interface Security.
2. Select an interface you would like to lock then press

1. Select Lock.

USB Interface Security

Through the I/O Interface Security menu, you can also access USB Interface Security to lock or unlock ports and devices.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Security USB Interface Security USB Interface [UnLock] External Ports [UnLock] CMOS Camera [UnLock] Card Reader [UnLock] USB Interface Lock UnLock If Locked, all USB device will be disabled ← : Select Screen ✓ : Select Item Enter: Select /- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

To lock the USB interface:

1. On the Security screen, select I/O Interface Security > USB Interface Security.
2. Select an interface that you would like to lock then select Lock.

NOTE: Setting the USB Interface to Lock also locks and hides the External Ports and other devices included under USB Interface Security.

Set Master Password

In the Security menu, you can use Set Master Password to set up a password-enabled access to your hard disk drive.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit
Password Description If ONLY the Administrator's password is set,then this only limits access to Setup and is only asked for when entering Setup. If ONLY the user's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup, the User will have Administrator rights. Administrator Password Status NOT INSTALLED User Password Status NOT INSTALLED Administrator Password User Password HDD Password Status : NOT INSTALLED Set Master Password Set User Password I/O Interface Security	Set HDD Master Password. ***Advisable to Power Cycle System after Setting Hard Disk Passwords*** →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

To set the HDD password:

1. On the Security screen, select Set Master Password.

2. Type in a password then press .

1. Re-type to confirm the password then press .

1. Select Set User Password then repeat the previous steps to set up the user password.

Save & Exit

To keep your configuration settings, select Save Changes and Exit before exiting the BIOS.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.Main Advanced Boot Security Save & Exit
Save Changes and ExitDiscard Changes and ExitSave OptionsSave ChangesDiscard ChangesRestore DefaultsBoot OverrideWindows Boot ManagerLaunch EFI Shell from filesystem device	Exit system setupafter saving thechanges.→← : Select Screen↑↓ : Select ItemEnter: Select+/- : Change Opt.F1 : General HelpF9 : Optimized DefaultsF10 : Save & ExitESC : Exit

Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

To update the BIOS:

1. Verify the Notebook PC's exact model then download the latest BIOS file for your model from the ASUS website.
2. Save a copy of the downloaded BIOS file to a flash disk drive.
3. Connect your flash disk drive to your Notebook PC.

4. Restart your Notebook PC then press during POST.

5. From the BIOS menu, Select Advanced > Start Easy Flash, then

press

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main Advanced Boot Security Save & Exit
Start Easy Flash Internal Pointing Device [Enabled] Wake on Lid Open [Enabled] Power Off Energy Saving [Enabled]
SATA Configuration Graphics Configuration Intel (R) Anti-Theft Technology Corporation USB Configuration Network Stack	Press Enter to run the utility to select and update BIOS. →← : Select Screen ↑↓ : Select Item Enter: Select +/- : Change Opt. F1 : General Help F9 : Optimized Defaults F10 : Save & Exit ESC : Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.

1. Locate your downloaded BIOS file in the flash disk drive then

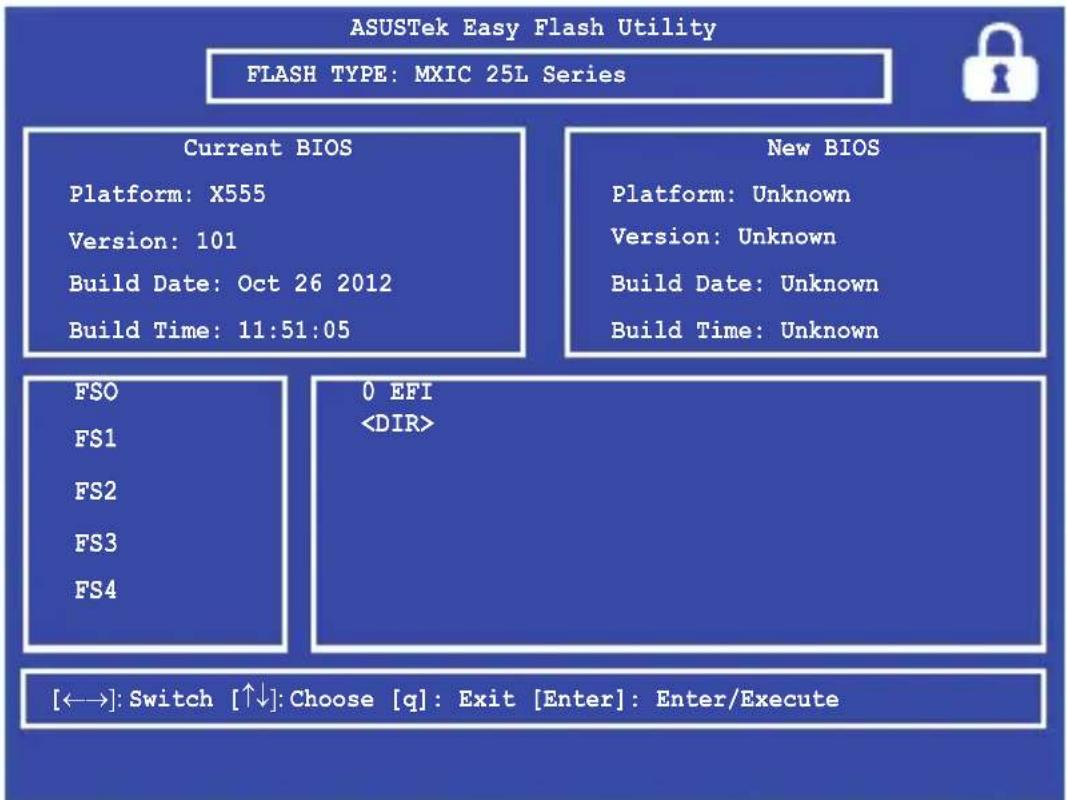

ASUSTek Easy Flash Utility FLASH TYPE: MXIC 25L Series Current BIOS Platform: X555 Version: 101 Build Date: Oct 26 2012 Build Time: 11:51:05 New BIOS Platform: Unknown Version: Unknown Build Date: Unknown Build Time: Unknown FSO FS1 FS2 FS3 FS4 0 EFI [←→]: Switch [↑↓]: Choose [q]: Exit [Enter]: Enter/Execute

1. After the BIOS update process, select Exit >Restore Defaults to restore the system to its default settings.

Troubleshoot

By pressing during POST, you can access Windows® 8.1

troubleshoot options which includes the following:

• Refresh your PC
• Reset your PC
• Advanced options

Refresh your PC

Use Refresh your PC if you want to refresh your system without losing your current files and applications.

To access this during POST:

1. Restart your Notebook PC then press during POST.
2. Wait for Windows ^® to load the Choose an option screen then tap/click Troubleshoot.
3. Tap/click Refresh your PC.
4. In the Refresh your PC screen, read the bullet points to learn more about using this option then tap/click Next.
5. Tap/click the account you would like to refresh.
6. Type your account password then tap/click Continue.
7. Tap/click Refresh.

IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before refreshing your system.

Reset your PC

IMPORTANT! Back up all your data before performing this option.

Use Reset your PC to restore your Notebook PC to its default settings. To access this during POST:

1. Restart your Notebook PC then press during POST.
2. Wait for Windows ^® to load the Choose an option screen then tap/click Troubleshoot.
3. Tap/click Reset your PC.
4. In the Reset your PC screen, read the bullet points to learn more about using this option then tap/click Next.
5. Tap/click your preferred reset option: Just remove my files or Fully clean the drive.
6. Tap/click Reset.

IMPORTANT! Ensure that your Notebook PC is plugged in to a power source before resetting your system.

Advanced options

Use Advanced options to perform additional troubleshooting options in your Notebook PC.

To access this during POST:

1. Restart your Notebook PC then press during POST.

1. Wait for Windows® to load the Choose an option screen then tap/click Troubleshoot.

2. Tap/click Advanced options.

3. In the Advanced options screen, select the troubleshooting option you wish to perform.

4. Follow the succeeding steps to complete the process.

Using System Image Recovery

Under Advanced options, you can use System Image Recovery to recover your system using your Notebook PC's original image file.

To access this during POST:

1. Restart your Notebook PC then press during POST.

1. Wait for Windows ^® to load the Choose an option screen then tap/click Troubleshoot.

2. Tap/click Advanced options.

3. In the Advanced options screen, select System Image Recovery.

4. Choose an account you would like to recover using a system image file.

5. Type your account password then tap/click Continue.

6. Select Use the latest available system image (recommended), then tap/click Next. You can also choose Select a system image if your system image is in an external device or DVD.

7. Follow the succeeding steps to complete the system image recovery procedure.

NOTE: We strongly recommend that you regularly backup your system to prevent data loss in case your Notebook PC stops working.

Chapter 5:

Upgrading your Notebook PC

Installing a Random-access Memory module

Upgrade the memory capacity of your Notebook PC by installing a RAM (random-access memory module) in the memory module compartment. The following steps show you how to install a RAM module into your Notebook PC:

WARNING! Disconnect all the connected peripherals, any telephone or telecommunication lines and power connector (such as external power supply, battery pack, etc.) before removing the compartment cover.

IMPORTANT! Visit an authorized service center or retailer for information on RAM module upgrades for your Notebook PC. Purchase RAM modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.

NOTE: The appearance of your Notebook PC's bottom side and RAM module may vary per model but the RAM module installation remains the same.

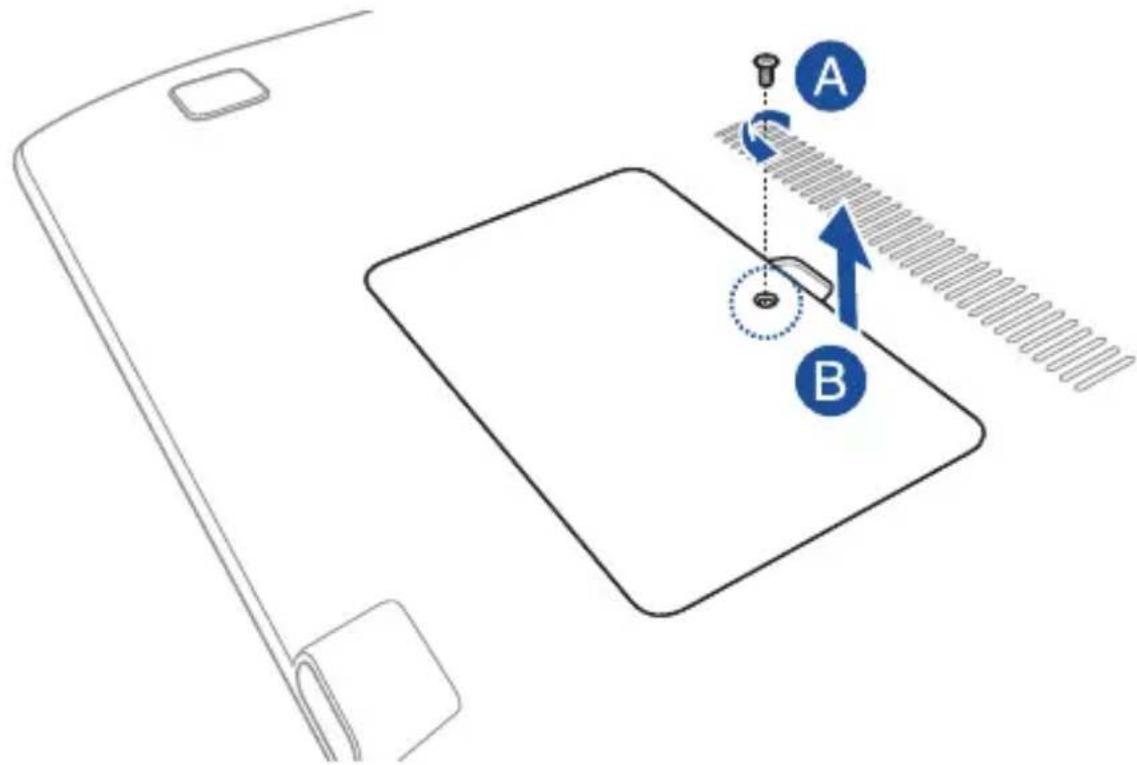

A. Loosen the screw of the Notebook PC's compartment cover.

B. Pull out the compartment cover and remove it completely from your Notebook PC.

A B

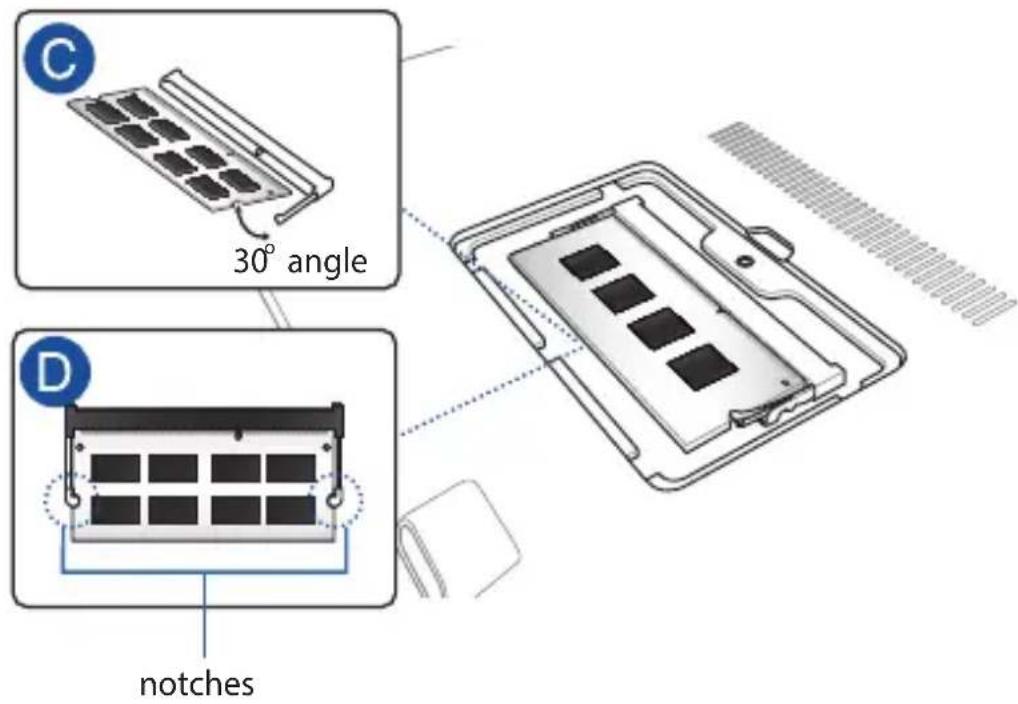

C. Align and insert the RAM module into the RAM module slot.
D. Push down the RAM module until it clicks in place

C 30° angle D notches

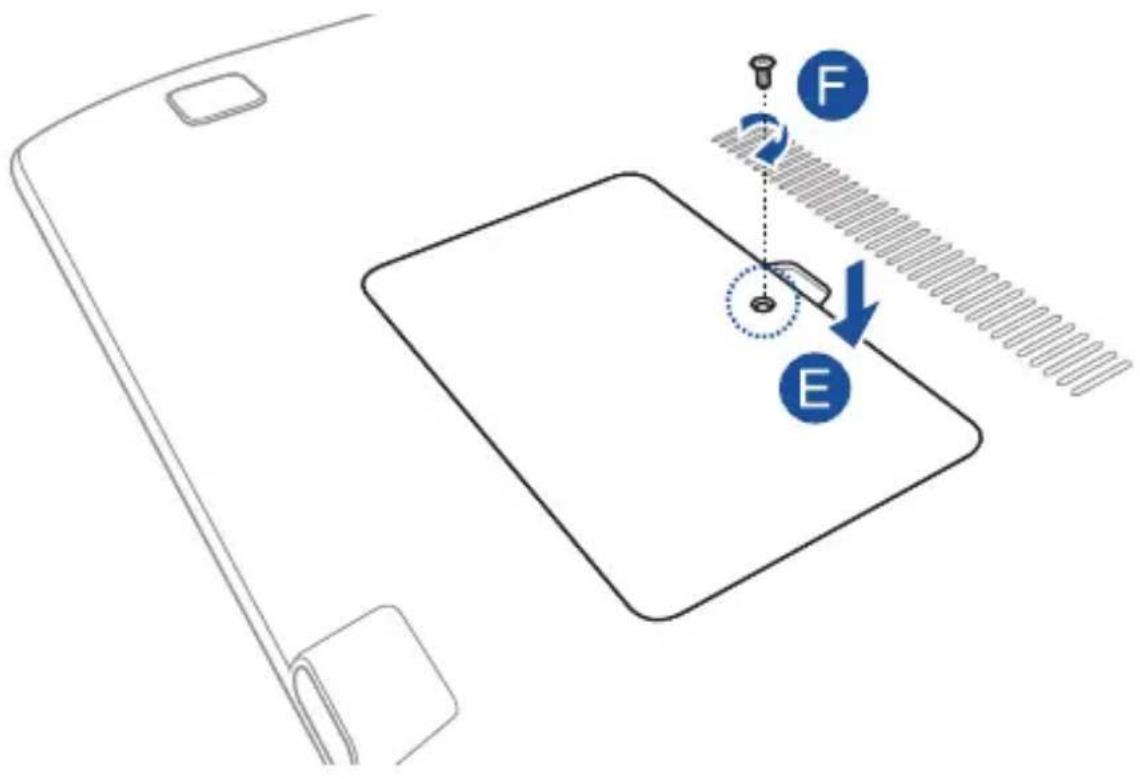

E. Align then push down the compartment cover back into place.

F. Reattach and tighten the screw that you removed earlier.

Diagram showing a device with labeled parts F and E, indicating a mechanical or electrical component assembly.

Appendices

DVD-ROM Drive Information (on selected models)

The DVD-ROM drive allows you to view and create your own CDs and DVDs. You can purchase an optional DVD viewer software to view DVD titles.

Regional Playback Information

Playback of DVD movie titles involves decoding MPEG2 video, digital AC3 audio and decryption of CSS protected content. CSS (sometimes called copy guard) is the name given to the content protection scheme adopted by the motion picture industry to satisfy a need to protect against unlawful content duplication.

Although the design rules imposed on CSS licensors are many, one rule that is most relevant is playback restrictions on regionalized content. In order to facilitate geographically staggered movie releases, DVD video titles are released for specific geographic regions as defined in “Region Definitions” below. Copyright laws require that all DVD movies be limited to a particular region (usually coded to the region at which it is sold). While DVD movie content may be released for multiple regions, CSS design rules require that any system capable of playing CSS encrypted content must only be capable of playing one region.

IMPORTANT! The region setting may be changed up to five times using the viewer software, then it can only play DVD movies for the last region setting. Changing the region code after that will require factory resetting which is not covered by warranty. If resetting is desired, shipping and resetting costs will be at the expense of the user.

Region Definitions

Region 1

Canada, US, US Territories

Region 2

Czech, Egypt, Finland, France, Germany, Gulf States, Hungary, Iceland, Iran, Iraq, Ireland, Italy, Japan, Netherlands, Norway, Poland, Portugal, Saudi Arabia, Scotland, South Africa, Spain, Sweden, Switzerland, Syria, Turkey, UK, Greece, Former Yugoslav Republics, Slovakia

Region 3

Burma, Indonesia, South Korea, Malaysia, Philippines, Singapore, Taiwan, Thailand, Vietnam

Region 4

Australia, Caribbean (Except US Territories), Central America, New Zealand, Pacific Islands, South America

Region 5

CIS, India, Pakistan, Rest of Africa, Russia, North Korea

Region 6

China

Blu-ray ROM Drive Information (on selected models)

The Blu-ray ROM Drive allows you to view high definition (HD) videos and other disc file formats such as DVDs and CDs.

Region Definitions

Region A

North, Central and South American countries, and their territories; Taiwan, Hong Kong, Macao, Japan, Korea (South and North), South East Asian countries and their territories.

Region B

European, African, and South West Asian countries and their territories; Australia and New Zealand.

Region C

Central, South Asian, Eastern European countries and their territories; China and Mongolia.

NOTE: Refer to Blu-ray Disc website at www.blu-raydisc.com/en/Technical/FAQs/Blu-rayDiscforVideo.aspx for more details.

Internal Modem Compliancy

The Notebook PC with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems you should contact your equipment supplier in the first instance.

Overview

On 4th August 1998 the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).

CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the analogue public switched telephone networks of terminal equipment (excluding terminal equipment supporting the voice telephony justified case service) in which network addressing, if provided, is by means of dual tone multi-frequency signalling.

Network Compatibility Declaration

Statement to be made by the manufacturer to the Notified Body and the vendor: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties."

Statement to be made by the manufacturer to the user: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where network compatibility is dependent on physical and software switch settings. It will also advise the user to contact the vendor if it is desired to use the equipment on another network."

Up to now the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The results are Europe's first modems which do not require regulatory approvals in each individual European country.

Non-Voice Equipment

Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines, auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.

This table shows the countries currently under the CTR21 standard.

Country Applied More Testing

Austria ^1	Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark ^1	Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein	Yes No
Luxemburg	Yes	No
The Netherlands ^1	Yes Yes
Norway	Yes No
Poland No Not Applicable
Portugal No	Not Applicable
Spain	No	Not Applicable
Sweden	Yes No
Switzerland	Yes No
United Kingdom	Yes No

This information was copied from CETECOM and is supplied without liability. For updates to this table, you may visit http://www.cetecom.de/technologies/ctr_21.html

1 National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).

In The Netherlands additional testing is required for series connection and caller ID facilities.

Federal Communications Commission Interference Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

FCC Radio Frequency (RF) Exposure Caution Statement

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. "The manufacture declares that this device is limited to Channels 1 through 11 in the 2.4GHz frequency by specified firmware controlled in the USA."

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Declaration of Conformity (R&TTE directive 1999/5/EC)

The following items were completed and are considered relevant and sufficient:

• Essential requirements as in [Article 3]
• Protection requirements for health and safety as in [Article 3.1a]
• Testing for electric safety according to [EN 60950]
• Protection requirements for electromagnetic compatibility in [Article 3.1b]
- Testing for electromagnetic compatibility in [EN 301 489-1] & [EN 301 489-17]
• Effective use of the radio spectrum as in [Article 3.2]
• Radio test suites according to [EN 300 328-2]

CE Marking

CE

CE marking for devices without wireless LAN/Bluetooth

The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC "Electromagnetic compatibility" and 2006/95/EC "Low voltage directive".

CE!

CE marking for devices with wireless LAN/ Bluetooth

This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March, 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity.

IC Radiation Exposure Statement for Canada

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
- This device must accept any interference, including interference that may cause undesired operation of the device.

To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

This device complies with Industry Canada licence-exempt RSS standard(s).

CAN ICES-3(B)/NMB-3(B)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

France Restricted Wireless Frequency Bands

Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors are:

• 10mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz)
• 100mW for frequencies between 2446.5 MHz and 2483.5 MHz

NOTE: Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz.

There are few possibilities for outdoor use: on private property or on the private property of public persons, use is subject to a preliminary authorization procedure by the Ministry of Defense, with maximum authorized power of 100mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted.

In the departments listed below, for the entire 2.4 GHz band:

• Maximum authorized power indoors is 100mW
• Maximum authorized power outdoors is 10mW

Departments in which the use of the 2400–2483.5 MHz band is permitted with an EIRP of less than 100mW indoors and less than 10mW outdoors:

01 Ain 02 Aisne 03 Allier
05 Hautes Alpes 08 Ardennes 09 Ariège
11 Aude 12 Aveyron 16 Charente
24 Dordogne 25 Doubs 26 Drôme
32 Gers 36 Indre 37 Indre et Loire
41 Loir et Cher 45 Loiret 50 Manche
55 Meuse 58 Nièvre 59 Nord
60 Oise 61 Orne 63 Puy du Dôme

64 Pyrénées Atlantique 66 Pyrénées Orientales 67 Bas Rhin

68 Haut Rhin 70 Haute Saône 71 Saône et Loire

75 Paris 82 Tarn et Garonne 84 Vaucluse

88 Vosges 89 Yonne 90 Territoire de Belfort

94 Val de Marne

This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France. Please check with ART for the latest information (www.arcep.fr)

NOTE: Your WLAN Card transmits less than 100mW, but more than 10mW.

UL Safety Notices

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the Notebook PC modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the Notebook PC near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the Notebook PC during an electrical storm. There may be a remote risk of electric shock from lightning.
  • DO NOT use the Notebook PC in the vicinity of a gas leak.

Required for UL 1642 covering primary (nonrechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• Do not dispose the Notebook PC battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• Do not use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ^2 or H05VV-F, 2G, 0.75mm ^2 .

TV Notices

Note to CATV System Installer—Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance.

REACH

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. (English)

Optical Drive Safety Information

Laser Safety Information

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

WARNING! To prevent exposure to the optical drive's laser, do not attempt to disassemble or repair the optical drive by yourself. For your safety, contact a professional technician for assistance.

Service warning label

WARNING! INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

CDRH Regulations

The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.

WARNING! Use of controls or adjustments or performance of procedures other than those specified herein or in the laser product installation guide may result in hazardous radiation exposure.

Coating Notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

CTR 21 Approval (for Notebook PC with built-in Modem)

Danish

The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Finnish

ENERGY STAR complied product

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity. To wake your computer, click the mouse or press any key on the keyboard. Please visit http://www.energy.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.

European Union Eco-label

This Notebook PC has been awarded the EU Flower label, which means that this product has the following characteristics:

1. Decreased energy consumption during use and stand-by modes.
2. Limited use of toxic heavy metals.
3. Limited use of substances harmful to the environment and health.
4. Reduction of the use of natural resources by encouraging recycling.
5. Designed for easy upgrades and longer lifetime through providing compatible spare parts such as batteries, power supplies, the keyboard, the memory, and if available the CD drive or DVD drive.
6. Reduced solid waste through takeback policy.

For more information on the EU Flower label, please visit the European Union Ecolabel website at http://www.ecolabel.eu.

Global Environmental Regulation Compliance and Declaration

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/english/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

Japan JIS-C-0950 Material Declarations

EU REACH SVHC

Korea RoHS

Swiss Energy Laws

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Rechargeable Battery Recycling Service in North America

RECYCLE RRRC Li-ion 7.800.822.8831

For US and Canada customers, you can call 1-800-822-8837 (toll-free) for recycling information of your ASUS products' rechargeable batteries.

Regional notice for Singapore

Complies with

IDA Standards

DB103778

This ASUS product complies with IDA Standards.

Regional notice for India

This product complies with the "India E-waste (Management and Handling)Rule 2011" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule-II of the Rule.

Notices for removeable batteries

• Risk of explosion if battery is replaced by an incorrect type.
  • The battery and its component must be recycled or disposed of properly.

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LI TE Rd., PEITOU, TAIPEI 112, TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name : Notebook PC
Model name : X555L, A555L, F555L, K555L, R556L

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2016+A0:2011	EN 55024:2016
EN 61000-3-2:2006+A2:2009	EN 61000-3-3:2008
EN 55013:2001+A1:2003-A2:2006	EN 55020:2007-A11:2011

1999/5/EC-R&TTE Directive

EN 300 328 V1.7.1(2006-10)	EN 301 =48-1 V1.9.2(2011-05)
EN 300 440-1 V1.6.1(2010-08)	EN 301 =489-3 V1.4.1(2002-08)
EN 300 440-2 V1.4.1(2010-08)	EN 301 =489-4 V1.4.1(2009-05)
EN 301 511 V9.0.2(2003-03)	EN 301 =489-7 V1.3.1(2005-11)
EN 301 908-1 V5.2.1(2011-05)	EN 301 =489-9 V1.4.1(2007-11)
EN 301 908-2 V5.2.1(2011-07)	EN 301 =489-17 V2.2.1(2012-09)
EN 301 893 V1.6.1(2011.11)	EN 301 =489-24 V1.5.1(2010-09)
EN 302 544-2 V1.1.1(2009-01)	EN 302 =326-2 V1.2.2(2007-06)
EN 302 623 V1.1.1(2009-01)	EN 302 =326-3 V1.3.1(2007-09)
EN 50362:2001	EN 301 =357-2 V1.4.1(2008-11)
EN 62479:2010	EN 302 =291-1 V1.1.1(2005-07)
EN 50385:2002	EN 302 =291-2 V1.1.1(2005-07)
EN 62311:2008

2006/95/EC-LVD Directive

EN 60950-1 / A12:2011

EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

☐ Regulation (EC) No. 1275/2008	☐ Regulation (EC) No. 278/2009
☐ Regulation (EC) No. 642/2009	☐ Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive
CE marking

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

Declaration Date: 12/05/2014

Year to begin affixing CE marking: 2014

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address:	4F, No. 150, LTE RE., PETCO, TAIPEI 112, TIANAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	PARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus:

Product name : Notebook PC
Model name : X555L, A555L, F555L, K555L, R556L

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022.2010+AC:2011	EN 55024.2010
EN 61000-3-2:2006+A2:2009	EN 61000-3-3:2008
EN 55013.2001+A1:2003+A2:2006	EN 55020.2007+A11:2011

1999/5/EC-R&TTE Directive

EN 301 328 V1.7 (2006-10)EN 300 440-1 V1.6.1 (2010-08)EN 300 440-2 V1.4.1 (2010-08)EN 301 511 V9.0.2 (2003-03)EN 301 908-1 V5.2.1 (2011-05)EN 301 908-2 V5.2.1 (2011-07)EN 301 893 V1.8.1 (2011-11)EN 302 544-2 V1.1.1 (2009-01)EN 302 623 V1.1.1 (2009-01)EN 50360:2001EN 62479:2010EN 50385:2002EN 62311:2008

EN 301 489-1 V1.9.2 (2011-09)EN 301 489-3 V1.4.1 (2002-08)EN 301 489-4 V1.4.1 (2009-05)EN 301 489-7 V1.3.1 (2005-11)EN 301 489-9 V1.4.1 (2007-11)EN 301 489-17 V2.2.1 (2012-09)EN 301 489-24 V1.5.1 (2010-09)EN 302 326-2 V1.2.2 (2007-06)EN 302 326-3 V1.3.1 (2007-09)EN 301 357-2 V1.4.1 (2008-11)EN 302 291-1 V1.1.1 (2005-07)EN 302 291-2 V1.1.1 (2005-07)

2006/95/EC-LVD Directive

EN 60950-1 / A12/2011	EN 60055:2002 / A12/2011
2009/125/EC-ErP Directive
Regulation (EC) No. 1275/2008	Regulation (EC) No. 278/2009
Regulation (EC) No. 642/2009	Regulation (EC) No. 617/2013

2011/65/EU-RoHS Directive
CE marking

(EC conformity marking)

Position: CEO

Name: Jerry Shen

Signature :

Declaration Date: 12/05/2014

Year to begin affixing CE marking: 2014
