Product Type	Marine Speaker System (Dual 2-Way Mini Box Speaker System)
Model	PLMRWB652LEB
Woofer Size	2 x 6.5" Long Excursion
Tweeter Size	1.0" Titanium Dome
Cabinet Material	Heavy Duty ABS Construction
Max Power Output	2 x 200 Watts
Impedance	4 Ohms
Sensitivity	90 dB
Frequency Response	60 Hz - 20 kHz
Magnet Weight	10 oz
Dimensions (H x W x D)	283 x 480 x 240 mm
Mounting Bracket	360° rotation, includes M5x65/M5x80 screws
Remote Control	Yes, with CR2025 battery (3V)
Remote Functions	Power, Dynamic Mode, Static Color, Brightness, Demo Mode
LED Modes	Dynamic (multiple patterns), Static (color selection)
Color Options	Multiple static colors, dynamic color cycling
Brightness Adjustment	Yes, via remote (in static mode)
Speaker Connection	Quick Connect Speaker Terminals
Recommended Use	Marine or outdoor environments (weather-resistant)
Included Accessories	Remote control, mounting bracket, mounting screws

Frequently Asked Questions - PLMRWB652LEB Pyle

How do I install the Pyle PLMRWB652LEB marine speakers?

Mount the speakers using the included bracket with 360° rotation. Choose M5x65 or M5x80 screws as needed. Secure the bracket base, then attach the speaker and cover. Ensure proper alignment before tightening.

How do I replace the remote control battery?

Remove the plastic insulator from the battery compartment. Use a 3V CR2025 lithium battery. Slide the compartment open, replace the battery, and close securely. Do not use other battery types.

How do I change the LED color mode?

Use the remote control. Press the Dynamic Mode button to cycle through dynamic modes. Press Static Color to select a fixed color. Use Brightness to adjust intensity. The Demo button loops through 9 dynamic modes.

Can I use these speakers indoors?

Yes, they work indoors, but they are designed for marine/outdoor use with heavy-duty ABS construction. Ensure proper ventilation and avoid exposure to extreme moisture.

What is the maximum power handling?

Each speaker handles up to 200 watts RMS (400 watts peak per pair). Use an amplifier with matching impedance (4 ohms) for optimal performance.

Are the speakers waterproof?

They are weather-resistant due to ABS construction, but not fully submersible. Avoid direct water jets or prolonged exposure to rain. The LED components are sealed but still require care.

How do I connect the speakers to my stereo?

Use the quick-connect terminals. Strip wire ends, insert into terminal, and tighten. Match positive (+) and negative (-) polarity. Connect to a compatible amplifier or receiver.

What is the frequency response of these speakers?

The frequency response is 60 Hz to 20 kHz, providing clear highs from the titanium dome tweeter and decent bass from the 6.5" woofers.

Can I use the remote without line of sight?

The remote signal can pass through most obstacles, but avoid installation near large metal surfaces as it may block the signal.

Does the speaker require external power for LEDs?

The LEDs are powered by the audio signal or a separate power source? The manual does not specify. Typically, these speakers are passive and LEDs may require a 12V DC connection. Check your amplifier or consult Pyle support for exact wiring.

USER MANUAL PLMRWB652LEB Pyle

INSTALLATION INSTRUCTIONS FOR

PLMRWB652LEW/PLMRWB652LES/PLMRWB652LEB PLMRWB852LEW/PLMRWB852LES/PLMRWB852LEB

Product Technical Parameters

MARINE SPEAKER MODEL	PLMRWB652LEW/PLMRWB652LES/PLMRWB652LEB
- Dual 2-Way Mini Box Speaker System	2x6.5"
- Long Excursion Woofer
- 1.0"Titanium Dome Tweeter
- Heavy Duty ABS Construction
- Quick Connect Speaker Terminals
- Max Power 2x200 Watts
- Magnet 10 Oz
- Frequency Response	60Hz-20KHz
- Impedance	4 Ohms
- Sensitivity	90 dB
- Dimensions(mm)	283x480x240 mm (HxWxD)

MARINE SPEAKER MODEL	PLMRWB852LEW/PLMRWB852LES/PLMRWB852LEB
- Dual 2-Way Mini Box Speaker System	2x8"
- Long Excursion Woofer
- 1.0"Titanium Dome Tweeter
- Heavy Duty ABS Construction
- Quick Connect Speaker Terminals
- Max Power 2x300 Watts
- Magnet 20 Oz
- Frequency Response	40Hz-20KHz
- Impedance	4 Ohms
- Sensitivity	91 dB
- Dimensions(mm)	340x577x290 mm (HxWxD)

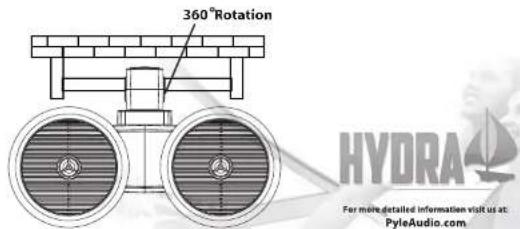

PART 1.

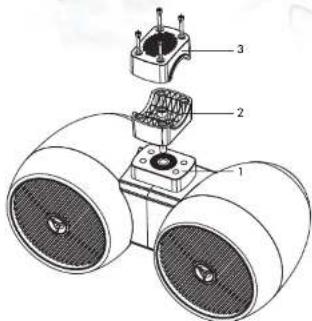

1. The base of the bracket.
2. The connecting base of the bracket, 360^ ratation, connect to picture1.
3. The cover of the bracket, is fixed by 4 mounting screws after picture 2 rotates to an angle.

Remark: two types of screws for choice: M5x65/M5x80

PART 2.

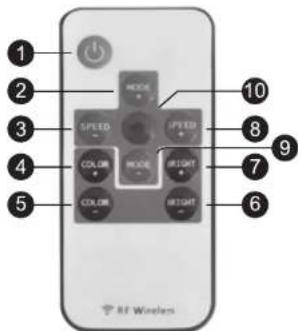

REMOTE CONTROL FEATURES

1. Turn On / Standby: Press this key to turn on LEDs or switch to standby mode.
   2 / 9. Dynamic Mode button: Switch from dynamic mode to color mode or switch between dynamic modes.
   3 / 8. Dynamic Mode Speed button: Use these buttons to adjust dynamic mode speed. If the unit is in static mode, pressing these buttons will switch unit to dynamic mode.
   4 / 5. Static Color Adjust button: Use this button to swithc between static colors. Pressing these keys while in dynamic mode will switch the unit to static mode.
   6 / 7. Brightness Adjust button: Pressing these buttons will adjust brightness while in static mode. If these buttons are pressed while unit is in dynamic mode, it will switch to static mode.
2. Demo Mode button: this button will switch the unit into demo mode. While in demo mode, unit will loop through 9 of the dynamic modes with each repeating 3 times.

• Please remember to remove plastic insulator from remote unit battery compartment.
• This remote uses a 3 volt CR2025 type battery. When replacing be sure to use only the same type of battery
• The remote signal can pass though most obstacles.
• Do not install unit in areas surrounded by metal as the remote signal will not reach the unit.

For more detailed information visit us at:
PyleAudio.com

1600-63rd Street

Brooklyn,NY 11204 USA
