Product Type	Angle Grinder
Brand	Makita
Model	GA7011C
Disc Diameter	7 inches (180 mm)
Power Input	15.0 AMP
No Load Speed	11,000 RPM
Arbor Size	5/8 inches (M14)
Switch Type	AC/DC, paddle switch with lock-on
Dimensions (Overall Length)	18.75 inches (476 mm)
Net Weight	10.1 lbs (4.6 kg)
Power Source	Corded, 120V AC
Key Features	Soft start, electronic current limiter, SJS technology, anti-restart protection
Maintenance	Regularly clean air vents, check carbon brushes, grease gears
Cleaning	Wipe with dry cloth; do not use solvents
Safety Features	Lock-off button, protective guard, anti-restart function
Spare Parts Availability	Carbon brushes, switch, armature, field coil, gear set available
Repairability	Modular design; user-replaceable brushes and switch
General Information	Angle grinder for heavy-duty cutting, grinding, and surface work

Frequently Asked Questions - GA7011C MAKITA

What size disc does the Makita GA7011C use?

The Makita GA7011C uses a 7-inch (180 mm) disc with a 5/8-inch (M14) arbor.

What is the no-load speed of the GA7011C?

The no-load speed is 11,000 RPM.

Does the GA7011C have a soft start feature?

Yes, it features a soft start for smoother startups.

How do I replace the carbon brushes on this grinder?

First, unplug the grinder. Then unscrew the brush cap, remove the old brush, and insert a new one (identical type). Reassemble and run the tool for a few minutes to seat the brushes.

What is SJS technology?

SJS stands for Super Joint System, a mechanical clutch that prevents kickback by disengaging the motor when the wheel binds.

Can I use the GA7011C for cutting metal?

Yes, with appropriate cutting discs rated for metal. Always use the correct guard and follow safety precautions.

How do I clean the grinder after use?

Wipe the exterior with a dry cloth. Clean the air vents with compressed air to remove dust. Do not use water or solvents.

What safety features does the grinder have?

It includes a lock-off button, a protective adjustable guard, an anti-restart function to prevent accidental startups after power loss, and electronic current limiter.

Where can I purchase spare parts for the GA7011C?

Spare parts are available through Makita authorized service centers, online retailers, or directly from Makita’s website. Common parts include carbon brushes, switch, and armature.

What is the weight of the GA7011C?

The net weight is approximately 10.1 lbs (4.6 kg).

USER MANUAL GA7011C MAKITA

• Soft-Start Technology Delivers Smooth Start-ups
• All Metal Gear Housing for Added Protection
• Protective Zig-Zag Varnish Seals Motor from Contaminants and Reduces Heat
• Powerful 15 AMP Motor and 6,000 RPM for Continuous Use
• "Tool-less" Wheel Guard Adjustment for One-Handed Operation
- Ideal for Welders, Fabricators, Pipe Fitters, Installers, Automotive and Many Other Industrial Applications

Model GA7011C

RELIABILITY

PERFORMANCE

DURABILITY

SPEED

CONTINUOUS OPERATION.

7" ELECTRONIC ANGLE GRINDER

GA7011C

FEATURES & BENEFITS

15 AMP motor design for high output power in a more compact tool (only 7.5 lbs.)
■ Soft-start feature for smooth start-ups
■ Externally accessible brushes for greater serviceability and longer motor life
Rotatable gear housing rotates 90° for cutting applications
Electronic speed control maintains constant speed under load
"Tool-less" wheel guard adjustment for easy clamping
- Great for welders, fabricators, masons, maintenance/repair and more

STANDARD EQUIPMENT

7" Grinding wheel (741413-3)
Wheel guard (163446-2)
Lock nut (193465-4)
Lock nut wrench (782412-6)
Side handle (152490-4)
Inner flange (224378-9)

SPECIFICATIONS

Grinding wheel 7"
Wire cup brush 6"
Sanding disc 7"
No load speed 6,000 RPM
AMPS (120V) 15.0
Spindle thread	5/8" - 11 UNC
Overall length	17-7/8"
Net weight	7.5 lbs.
Shipping weight	11.9 lbs.
Master carton qty.	4
UPC code	088381-05568-0

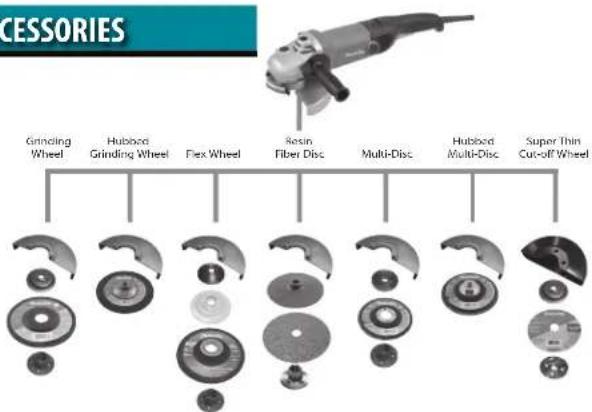

OPTIONAL ACCESSORIES

Makita offers a wide variety of ANGLE GRINDER accessories. For a complete listing, please refer to the Makita General Catalog or visit our website at makitatools.com, or call 1-800-4MAKITA.

All specifications subject to change without prior notice. All models and accessories subject to stock on hand. NTF-0912-1 MA-1531-12

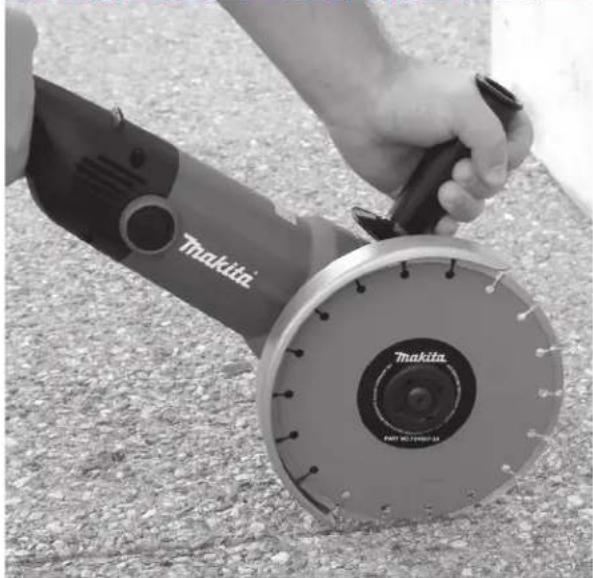

Close-up of a hand using a Makiti angle grinder on gravel, no visible text or symbols on the device itself.

Close-up of a black and silver electric grinder with a circular base and handle (no visible text or symbols)

Makita U.S.A., 14930 Northam St., La Mirada, CA 90638 "The Makita Teal color is the registered trade dress of Makita Corporation."
