Product Type	Karaoke System
Brand	Pyle
Model	PKRK10
Dimensions (W x D x H)	12.6 x 8.7 x 6.3 inches
Weight	10.6 lbs
Power Supply	AC 120V / 60Hz or DC battery operation (6 x D cells)
Speaker Output	2 x 5W stereo speakers
Microphone Inputs	2 x 1/4" mic jacks
Audio Source Inputs	Bluetooth, USB, SD card, AUX 3.5mm
Bluetooth Version	4.2 with 30ft range
FM Tuner	Built-in digital FM radio
LED Lighting Effects	Multi-color party lights
Microphone Included	2 wired microphones
Voice Control	Echo and voice effects
Playback Modes	MP3, WMA, WAV
Display	LED display with karaoke lyrics indicator
Remote Control	Yes, included
Material	ABS plastic with metal grille
Cleaning Instructions	Wipe with dry cloth; do not use liquid cleaners
Safety	Overheat protection; keep away from water
Replaceable Parts	Microphones, power cord, remote control available
Warranty	1 year limited warranty

Frequently Asked Questions - PKRK10 Pyle

How do I connect my phone via Bluetooth?

Turn on the system and press the Bluetooth button on the remote or panel. Enable Bluetooth on your phone, select 'Pyle PKRK10' from the list, and confirm pairing.

Can I use the system with batteries?

Yes, the PKRK10 can run on 6 x D size batteries (not included) for portable use. Switch the power source to DC mode.

How do I play music from a USB drive?

Insert a USB drive with MP3 files into the USB port. The system will automatically detect and play music. Use the Mode button to select USB mode if needed.

Why is there no sound from the microphones?

Ensure microphones are firmly plugged into the MIC 1 or MIC 2 jacks. Adjust the MIC VOLUME knob and verify that the system is not muted. Also check that the echo effect is not set to zero.

Can I connect the system to a TV?

Yes, use the AUX OUT jack with a 3.5mm audio cable to connect to your TV's audio input. Alternatively, use Bluetooth if your TV supports it.

How do I record my singing?

This model does not have a built-in recording function. You can connect the AUX OUT to an external recording device to capture audio.

What does the 'Echo' control do?

The Echo control adds a reverb effect to your voice, making it sound fuller. Turn the knob clockwise to increase echo, counterclockwise to decrease.

How to switch between FM radio and other sources?

Press the Mode button repeatedly to cycle through Bluetooth, USB, SD card, AUX, and FM radio modes. In FM mode, press Play/Pause to auto-scan stations.

Why does the LED display show 'NO USB'?

The system does not detect a USB drive. Ensure the drive is formatted as FAT32 and contains supported audio files (MP3, WMA, WAV). Try a different USB drive if the issue persists.

How to clean the system?

Unplug the unit and wipe the exterior with a soft, dry cloth. Do not use any liquid cleaners or abrasive materials. Avoid getting moisture near the speakers or ports.

USER MANUAL PKRK10 Pyle

718.535.1800 718.236.2400(fax) 1600 63rd Street, Brooklyn NY 11204

PYLE®

PKRK10 OPPERATING INSTRUCTIONS

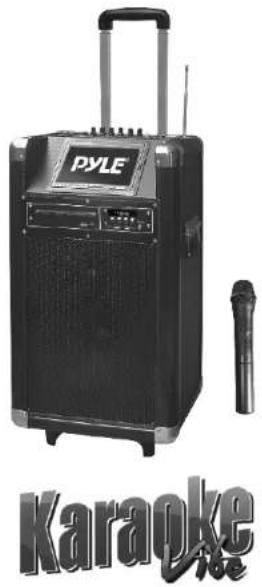

400 Watt Bluetooth Karaoke Vibe Portable PA Speaker w/10"Woofer, 7"TFT Screen, DVD Player and VHF Wireless Microphone

PYLE Karaoke Vice

User's manual

Panel design

1 2 3 4 5 6 7 PINK2 CN OP PKRK10 PRO AUDIO PA SYSTEM 电源 ADDW OUTPUT DO ICV INPUT DO ICV PCO/DLP PYLE 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 1 2 3 4 5 6 7 2 0 1 2 3 4 5 6 7 2 0 1 2 3 4 5 6 7 2 0 1 2 3 4 5 6 7 2 0 1 2 3 4 5 6 7 2 0 1 2 3 4 5 6 7 2 0 1 2 3 4 5.5 2.000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 PROAUDIO PA SYSTEM OUTRIP PAVES VOLUO C SAMS TCCCC VOLUME POWER INPUT DO ICV AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/NC

1. Power ON/OFF switch
2. Guitar Volume controller
   3.Mic volume
3. Echo for microphones
4. Bass controller for main channel
   6.Treble controller for main channel
5. Master volume controller
   8.Mic Priority ON/OFF
   9.DC 12V Input
   10.Low battery indicator lights
6. Charging indicator lights
7. Power ON/MP3 Working indicator lights

13.Guitar Input slot
14.MIC input slot
15.Input selectors
16. Next song selector
17.Previous song selector
18. Play for Mp3 or other audio sources
19.Repeat function for USB/SD
20.Mp3 player
21.Aux-In
22. Video output
23. Audio Input
24. Audio Output

DVD Panel design

7 6 5 4 1200 2 3

1.USB slot
2.Game Slot
3.Power ON/OFF
4.Next
5.Previous
6.Play/Pause
7.Open/Close

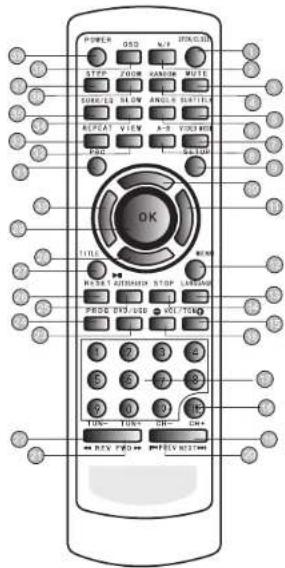

DVD Remote contol

1.Open/Close for DVD

1. PAL/NTSC/AUTO switch

3.Mute for speakers

4.Radom play

1. Subtitle selector

2. Angle: choose different angles for visual

7.Vidoe Mode selector

8.A-B: Repeat from A to B

1. Set up: set up for many functions

10.11.28.30. Four directions controllers

1. Menu for DVD player

2. Language: Choose to different operation language

14.STOP:stop the disc playing

1. Volume +: increase the Volume

16.VOLUME:-decrease the volume level

17.1-10.10+: Numbers for choose discs or songs

18.Time:select the time you want to play

1. Next for song or other playing

2. Previous for song or other playing

3. Forward

4. Backward for discs

23.DVD:USB switch

1. Programme: make programmer for your

playing

1. Play/Pause controllers

2. Reset: reset for all playing back to Menu

3. Title: press this will playing from title

4. Confirm: confirm for your operation

31.PBC: open all menu for discs

1. View

2. Repeat: repeat for disc or songs

34.Slow: will slow down your playing

35.Eq. choose different sound effect

56.ZOOM: enlarge what you playing

37.S T.E.P: step playing the present videos of

pictures

1. OSD: operation situation display

2. Power: power in or standby your DVD player

7"display screen

POWER OFF START FROM AMOUNT WRITE ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OCC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/OOC ON/10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

RUT/RUT/Mainure MENU MEBRL MENUS POWER. UCR/L Turn over, or15:4/3/mside

User's manual

User's manual

Instructions

Turning ON/OFF

The PA speaker can be powered when connected to main power or using the internal 12V battery.

1. Connect the power cable to the top of the unit.
2. Connect the other end of power cable to main power.
3. Turn on the switch for the main power.
4. The unit will automatically power on when connected to main power.

Notes: If you wish to use the internal battery power of the unit, just simply turn on the Battery switch located on the top of unit to ON. Charging

Before using the PA speaker for the first time, charge the unit at least 8 hours.

1. Connect the power cable to the top of the panel.
2. Turn off the battery switch on the top of the panel.
3. Recharge indicator light will be on when unit is charging. Notes: Notes: The internal battery will charge while the unit is being operated and the power switch is on. It is better to charge the unit while the power switch is off.

Instructions

Using the Wireless Microphone

The PA speaker comes with wireless microphones to get you started straight out of the box.

1. Tune on the unit.
2. Unscrew the bottom of the microphone to access the battery enclosure. Insert 2XAA batteries into the microphone. Take note the battery polarity when inserting the batteries.
3. Replace the bottom microphone cover.
4. The wireless microphone will flash once and automatically pair with the PA speaker, it is ready to use. If it does not flash, check that you have inserted the batteries correctly or replace old batteries.
5. Adjust the volume of the microphone by turning the MIC VOL knob located on top control panel

Notes: Please do not operate the microphone directly in front of the PA speaker, please set the MIC VOL/ECHO at a lower level before turning on the wireless microphone. Operating the microphone incorrectly will cause a loud squealing noise. Please turn off the power switch when the wireless microphone is not in use. This will save the battery.

Instructions:

Using the Wired Microphone

You can connect the wired microphone to this unit using the MIC INPUT located on the top of control panel.

1. Turn off the unit.
2. Connect your wired microphone to the MIC INPUT located on top of the control panel.
3. Adjust the microphone volume by tuning the MIC VOL/ECHO knobs located on top control panel.
   NOTES: You can use the wired microphone and wireless microphone at the same time.

Connecting a Guitar

You can connect your Guitar to unit using the 1/4" GUITAR INPUT plug.

1. Turn on the unit.
2. Connect your guitar cable to GUITAR INPUT port on top control panel.
3. Adjust the volume by turning the GUITAR VOL on top control panel.

Instructions

USB/SD Card Playback

You can play music from USB stick or SD Card using the USB/SD slot on the PA speaker.

1. Turn on the unit.

User's manual

User's manual

1. Insert your USB or SD card into the slot.
2. Once inserted the USB or SD card unit will automatically play.
3. You can use the PRE/NEXT/PLAY/PAUSE to control and play music. NOTES: The speaker system can play the following audio file formats: MP3, MP4, WMA. The USB/SD Card no more than 32GB. Operation may be slower when searching large memory files. It will need several seconds to respond when your USB/SD Card full of contents.

BLUETOOTH playback

You can connect your Bluetooth phone or other device to the PA speaker.

1. Turn on the unit.
2. Press the INPUT button which is located on top control panel, next to the USB/SD slot.
3. The Bluetooth is on when you hear two "tone" indicator sound.
4. Use your Bluetooth phone or other device to search for the PA speaker. It will displayed as PKRK10.
5. Connect your device by selecting PKRK10, it will require you to enter a four digit code, the code is 0000.
6. Enter the code and connect with unit.
7. Play music on your phone or device, sound will come from the speaker through the BLUETOOTH wireless connection.
8. You can use the VOLUME/BASS/TREBLE to adjust the sound level for BLUETOOTH, also you can adjust the Bluetooth music sound through your own phone or other device.

NOTES: If there is no sound through the PA speaker during Bluetooth, Check the volume controller both on the unit and on your phone or other device.

Using the Radio

1. Turn on the unit.

2. Press INPUT once, to select FM Radio.

3. Press PRE/NEXT to select your desired radio station. Ensure that you have the extended the antenna located on the rear of the speaker. It will ensure the best possible radio quality and signal strength.

4. When you first use the radio, press NEXT button twice, it will auto search and store the radio stations with the strongest signal.

Instructions

Use of the External Battery Option

To use the PA speaker longer than the internal battery life, you can connect the PA speaker to a external 12V Battery Source.

1. Find the INPUT DC 12V on the top control panel.

2. Use the correct cable connect the INPUT DC 12V.

NOTES: The PA speaker will consume the internal battery first, when it is low, the LOW BATTERY indicator light located on the control panel will turn on, you can use the external 12V battery to power on the unit. The external 12V battery will also charge the internal battery while in use.
