Product Type	Steam Iron
Brand	Morphy Richards
Model	ComfiGrip 301016
Soleplate Type	Tri-zone Soleplate with Turbo Boost, Constant Steam, and Pressing Plate
Power Rating	2200W (approx)
Voltage	220-240V ~ 50/60Hz
Cord Length	2m (approx)
Water Tank Capacity	300 ml (approx)
Weight	1.2 kg (approx)
Dimensions	280 x 120 x 150 mm (approx)
Steam Functions	Dry ironing, steam ironing, vertical steam, steam boost, water spray
Steam Control	Adjustable steam switch with Eco setting
Temperature Control	Adjustable dial with temperature indicator light
Auto Shut-off	Yes, after 1 min horizontal or 8 min vertical
No Drip System	Yes (prevents water leakage when cold)
Anti-scale System	Life long anti-scale system (reduces scale deposits)
Safety Features	Auto shut-off, overheat protection, hot surface warning
Maintenance	Clean soleplate with damp cloth; do not use descaling agents
Warranty	1 year standard, extendable to 3 years with registration (UK/Ireland)
Accessories Included	Filling beaker (certain models)

Frequently Asked Questions - ComfiGrip 301016 MORPHY RICHARDS

How do I fill the water tank?

Unplug the iron. Set the steam switch to 'O'. Open the filling cap and pour water into the tank. Do not overfill. For hard water areas, use a 50% mix of tap water and distilled water.

Can I use the iron for dry ironing?

Yes. Set the steam switch to 'O' and adjust the temperature dial as needed. The iron can be used without water for dry ironing.

What is the auto shut-off feature?

The iron automatically turns off if left stationary in horizontal position for 1 minute or vertical position for 8 minutes. The auto shut-off indicator flashes and a beep sounds. Shake the iron to reactivate.

How do I use the steam boost?

Press the steam boost button (3) for an extra burst of steam to remove stubborn creases. Ensure the temperature dial is within the steam range. Do not press more than three times in succession for optimal steam quality.

Can I use vertical steam?

Yes. Hold the iron 1-2 cm away from hanging clothes or curtains and press the steam boost button. This helps remove creases without ironing the fabric directly.

How do I clean the soleplate?

Allow the iron to cool. Wipe the soleplate with a damp cloth and mild detergent. Do not use scouring powders, descaling products, or vinegar. For melted synthetics, set iron to MAX and pass over clean cotton to remove residue.

What type of water should I use?

In hard water areas, mix 50% tap water with 50% distilled or demineralised water. Never use battery fluid, starch, sugar, or perfume additives.

Why does the iron make a clicking sound?

The no drip system may emit a loud click during heating or cooling. This is normal and indicates the system is functioning correctly.

How do I store the iron after use?

Unplug and empty the water tank. Set the steam switch to 'O'. Allow to cool, then store on its heel with the cord loosely wrapped around the heel.

What is the warranty period?

The iron comes with a 1-year guarantee. Register online at www.morphyrichards.co.uk within 28 days to extend to 3 years (UK and Ireland only).

USER MANUAL ComfiGrip 301016 MORPHY RICHARDS

Features of your iron

Dry ironing

Your iron can be used for dry ironing. Set the steam switch (2) to 'O' and set the temperature dial (8) as desired (see page 3).

You won't need water in the tank unless using the water spray or steam boost features.

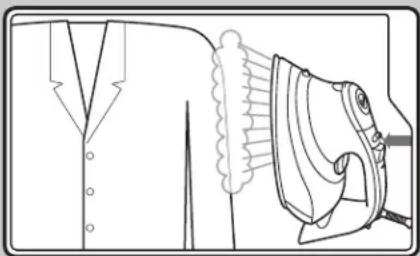

Vertical steam

Vertical steam is useful for removing creases from hanging clothes, curtains, etc. Hold the iron between 1cm and 2cm away from the item and press the steam boost button (3).

Line drawing of a pair of clothes with a steam iron, showing the side profile and side view (no text or symbols)

No drip system (certain models only)

This prevents water escaping from the soleplate (7) when the iron is too cold.

During use, the no drip system may emit a loud click, particularly during heat-up or whilst cooling down. This is perfectly normal and indicates that the system is functioning correctly.

Models without No drip system

Do not store the product with water in the tank as water may leak from the soleplate (7) if you forget to turn the steam switch (2) to '0'.

Remember to only turn the steam switch (2) to steam when the control dial is set to a temperature within the steam range.

Remember: the lower the temperature setting, the lower the steam setting.

Life long anti-scale system (certain models only)

This system reduces scale deposits and helps prolong the life of the iron.

Auto shut-off (certain models only)

The iron will automatically shut down if stationary in the horizontal position for 1 minute, or the vertical position for 8 minutes.

Line drawing of a steam iron with label pointing to the handle (no text or symbols on the iron itself)

The auto shut-off indicator (5) will flash and an intermittent beep will be audible.

Gently shake the iron to reactivate. The temperature indicator light (9) will come on. Wait for the iron to heat-up and continue ironing.

Emptying and storingMaintena

To clean a coated soleplate

Do not use scouring powder or solution as this could cause damage to the coating.

In the unlikely event of any man-made fibre fusing to the soleplate, set the iron at the MAX position and pass it over a clean piece of cotton which will draw the deposit off the surface.

IMPORTANT: Do not descale the soleplate with descaling products, proprietary cleaning agents or vinegar when flushing out the soleplate.

To clean the exterior

Allow the iron to cool and wipe over with a damp cloth and mild detergent, then wipe with a dry cloth.

When you have finished ironing, unplug and empty all water from your iron and set the steam switch at the 'O' position. When cool, store the iron on its heel with the cord wrapped loosely around the heel.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a steam iron with attached cord (no text or symbols)

RN40868MUK Rev4 03/13

Registering your 3 year guarantee

Your standard one year guarantee is extended for an additional 2 years when you register the product within 28 days of purchase with Morphy Richards. If you do not register the product with Morphy Richards within 28 days, your product is guaranteed for 1 year. To validate your 3 year guarantee register with us online at www.morphyrichards.co.uk

Or call our customer registration line

UK 0844 871 0962

IRE 1800 409 119

N.B. Each qualifying product needs to be registered with Morphy Richards individually.

Please note that the 3 year guarantee is only available in the UK and Ireland. Please refer to the one year guarantee for more information.

Your 1 year guarantee

It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.

Please quote the following information if the product develops a fault. These numbers can be found on the base of the product.

Model no.

Serial no.

All Morphy Richards products are individually tested before leaving the factory. In the unlikely event of any appliance proving to be faulty within 28 days of purchase, it should be returned to the place of purchase for it to be replaced.

If the fault develops after 28 days and within 12 months of original purchase, you should contact the Helpline number quoting Model number and Serial number on the product, or write to Morphy Richards at the address shown.

You may be asked to return a copy of proof of purchase.

Subject to the exclusions set out below (see Exclusions), the faulty appliance will then be repaired or replaced as appropriate and dispatched usually within 7 working days of receipt.

If, for any reason, this item is replaced or repaired during the 1 year guarantee period, the guarantee on the new item will be calculated from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 1 year guarantee, the appliance must have been used according to the instructions supplied. For example, water should be emptied after each use.

Exclusions

Morphy Richards shall not be liable to replace or repair the goods under the terms of the guarantee where:

1 The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
2 The appliance has been used on a voltage supply other than that stamped on the products.
3 Repairs have been attempted by persons other than our service staff (or authorised dealer).
4 The appliance has been used for hire purposes or non domestic use.
5 The appliance is second hand.
6 Morphy Richards reserves the right not to carry out any type of servicing under the guarantee at its discretion
7 Plastic filters for all Morphy Richards kettles and coffee makers are not covered by the guarantee.
8 Batteries and damage from leakage are not covered by the guarantee.
- This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer. Morphy Richards products are intended for household use only. See usage limitations within the location safety instructions.

Disclaimer

Morphy Richards has a policy of continuous improvement in product quality and design. The company, therefore reserves the right to change the specification of its models at any time.

For electrical products sold within the European Community. At the end of the electrical products useful life, it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country

IF YOU ARE HAVING A PROBLEM

WITH ONE OF OUR PRODUCTS,

CALL OUR HELPLINE:

UK: 0844 871 0960

EIRE: 1800 409 119

SPARES: 0844 873 0726

morphy richards

The After Sales Division

Morphy Richards Ltd

Mexborough,

South Yorkshire,

England, S64 8AJ

www.morphyrichards.com

CE

RN40868MUK Rev4

morphy richards®

smart ideas for your home

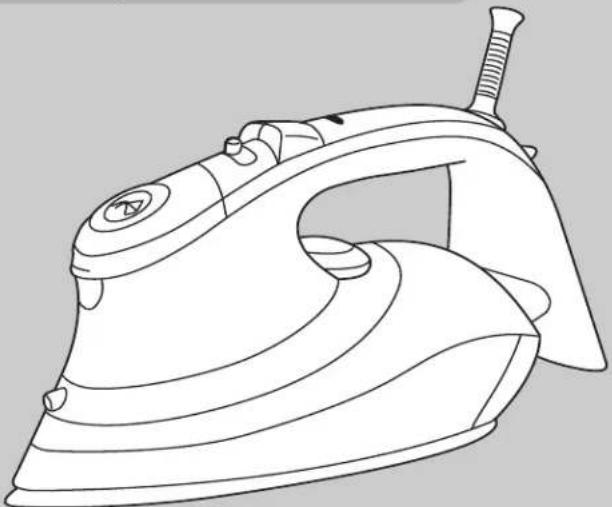

COMFIGRIP

Steam Iron

Please read and keep these instructions for future use

Line drawing of a steam iron with a screw and handle (no text or symbols)

Contact us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from. Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker.

UK Helpline: 0844 871 0960

IRE Helpline: 1800 409 119

Spares: 0844 873 0726

CAUTION! HOT SURFACE

Treating scalds

• Run cold water over the affected area immediately.
• Do not stop to remove clothing.
• Seek medical advice quickly.

PLEASE BE AWARE OF HOT SURFACES

HANDLE WITH CARE

For competitions, product hints and tips and more join us at

www.morphyrichards.co.uk/blog

www.facebook.com/morphyrichardsuk

@loveyourmorphy

www.morphyrichards.com

* Register online for your 3 year guarantee. See back of this instruction book for details. (UK and Ireland customers only)

Important safety instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the iron and its cord out of reach of children less than 8 years of age at all times.
• The iron must not be left unattended while it is connected to the supply mains.
• The plug must be removed from the socket before being filled with water.
• The iron must be used and rested on a stable surface.
• When placing the iron on its heel, ensure that the surface on which the heel is placed is stable.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or it is leaking.
• The filling aperture must not be opened during use.

- WARNING: Burns can occur from touching hot metal, hot water or steam.

- WARNING: To avoid electric shock, do not immerse appliance in water / liquid.

Electrical requirements and mains cable

- Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating current).

- Do not let the mains lead come into contact with the hot soleplate of the iron.

- Do not operate with a damaged supply cord or grommet, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Should the fuse in the mains plug require changing, a 13 amp BS1362 fuse must be fitted.

- WARNING: This appliance must be earthed. PLEASE READ ALLINSTRUCTIONS AND KEEP FOR REFERENCE

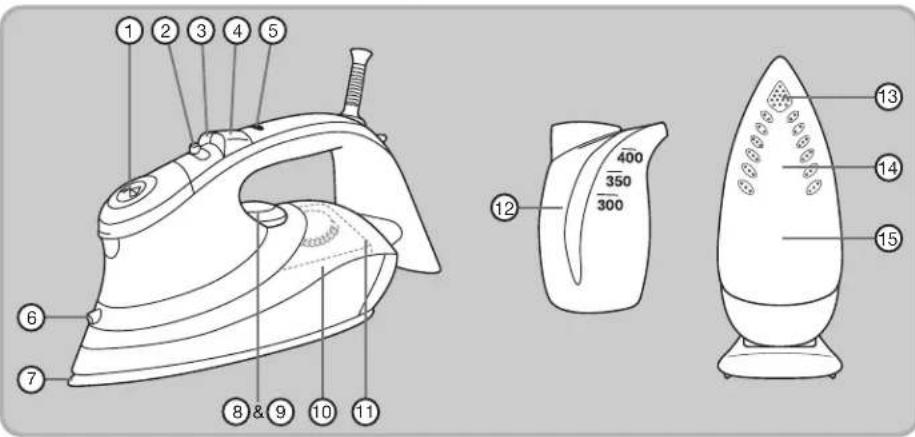

Steam iron overview

(1) Filling hole with cap
(2) Steam switch
(3) Steam boost button
(4) Water spray button
(5) Auto shut-off indicator (certain models only)
(6) Spray nozzle
(7) Soleplate

(8) Temperature dial
(9) Temperature indicator light
(10) Water tank
(11) Life long anti-scale (certain models only)
(12) Filling beaker (certain models only)

Tri-zone Soleplate

(13) Turbo Boost with stubborn crease boost
(14) Constant Steam to relax fibres for easy crease removal
(15) Pressing Plate for the ultimate finish

Temperature guide

Heat setting markings on the adjustable control dial of all Morphy Richards irons match those of the International Textile Care Labelling Code

Symbol		(120°C Max) Cool (160°C Max) Warm (210°C Max) Hot MAX setting
Control dial positions	Do not iron	● ●● ●●●
Fabric Nylon, Acetates,		synthetic fabrics	Wool, Polyester mixtures	Cotton, Linen Rayon, Rayon mixtures
Ironing Iron on wrong side,		if moisture required, use damp cloth (not Acetate)		Fabrics requiring this setting usually require steam pressing.
With water in tank		Dry and spray		Steam/spray/ shot of steam
Without water in tank		Dry ironing

Before use

Remove any protective sticker from the soleplate (7).

Using the iron for steam ironing

Line drawing of a hand using a steam iron to press down a piece of material (no text or symbols)

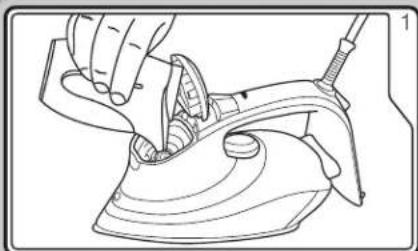

Make sure the iron is not plugged in. Set the steam switch (2) to 'O'. Fill the water tank (10).

IN HARD WATER AREAS, WE RECOMMEND A MIX OF 50% TAP WATER AND 50% DISTILLED OR DEMINERALISED WATER.

Never use battery topping up fluid or water containing any substances like starch, sugar, fragrant additives or defrosted water from a refrigerator.

Plug in the iron and switch on.

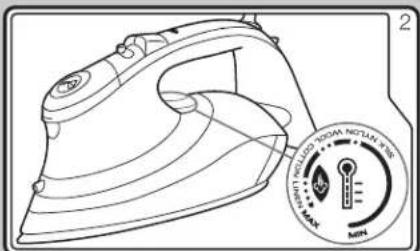

Set the temperature dial (8) to the temperature required (see 'Temperature Guide' on page 3). Begin with cool fabrics and work up to higher settings. An iron heats up quicker than it cools down so you will save time and energy.

Your iron is fitted with a temperature indicator light (9) which will switch on and off whilst you are ironing.

Diagram of a garment sleeve pattern with internal compartments and decorative elements (no text or symbols)

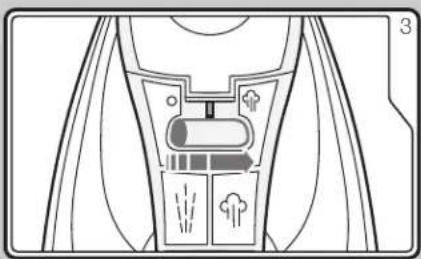

Vary the steam output using the steam switch (2). For optimum performance and energy savings, set to Eco steam setting, using the green line.

Only use the steam facility on heavy fabrics (midway between 2 and 3-dot, to MAX).

Line drawing of a steam iron with labeled parts (no text or symbols on the diagram itself)

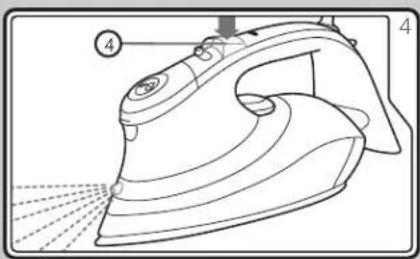

For stubborn creases, use the water spray button (4). You may need to press this a few times to prime the pump.

Line drawing of a steam iron with raindrops and dust spraying (no text or symbols)

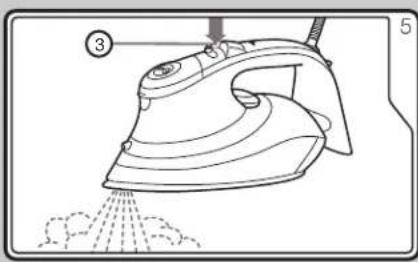

Steam boost

Press (3) for an extra steam boost for stubborn creases / heavy fabrics.

NOTE: If you need to use the steam boost whilst dry ironing, check the temperature dial (8) is set within the steam range.

NOTE: For optimum steam quality, do not operate the shot more than three times in succession.
