USER MANUAL 42ZV635DB TOSHIBA

ZV*** Digital Series

Simple line icon of an open book with a lowercase 'i' inside, no text or symbols present.

Contents

SETTING UP

Safety precautions – Some do's and don't for you to be aware of 4

Installation and important information 5

The remote control - an at-a-glance guide 6

Connecting external equipment – a guide to connecting external equipment to the back of the television 7

REGZA-LINK connections 8

Connecting an HDMI or DVI device to the HDMI input 9

Connecting a computer – connecting a computer to the HDMI terminal on the back of the television 10

Acceptable signals through HDMI terminals 11

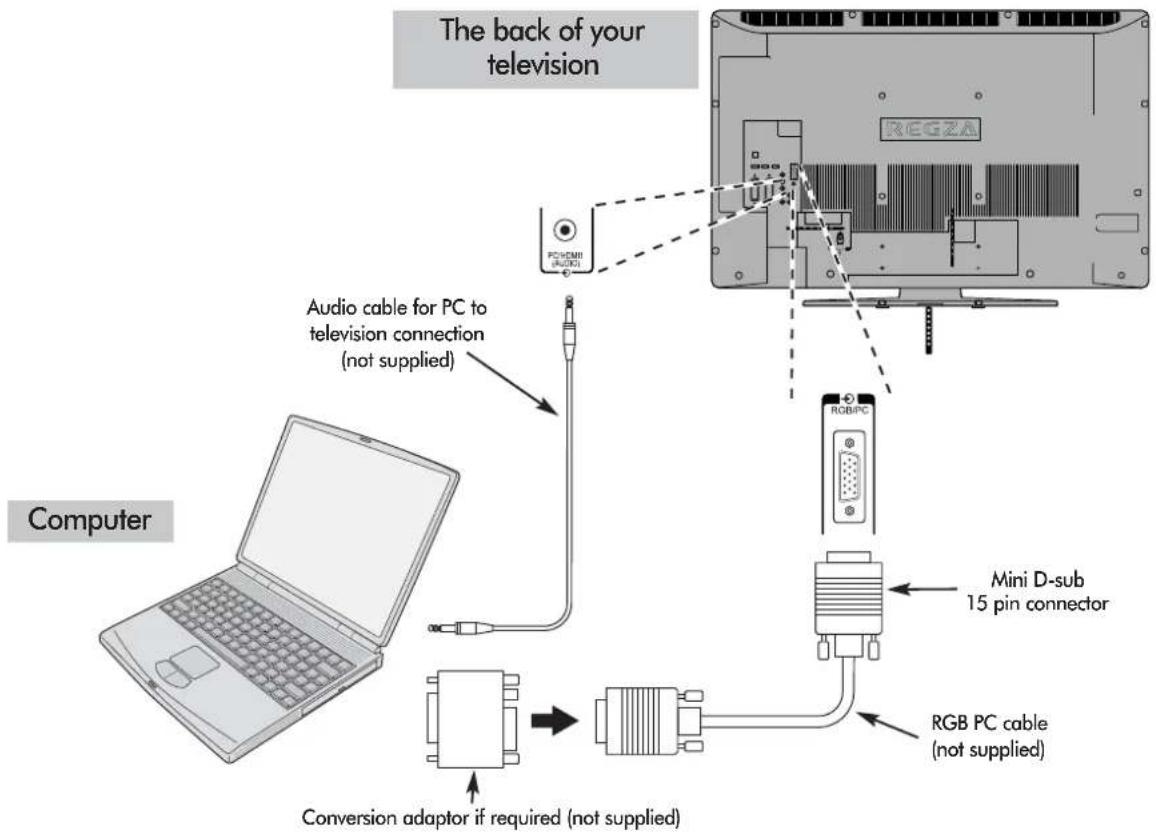

Connecting a computer – connecting a computer to the RGB/PC terminal on the back of the television 12

Acceptable PC signals through the PC terminal 13

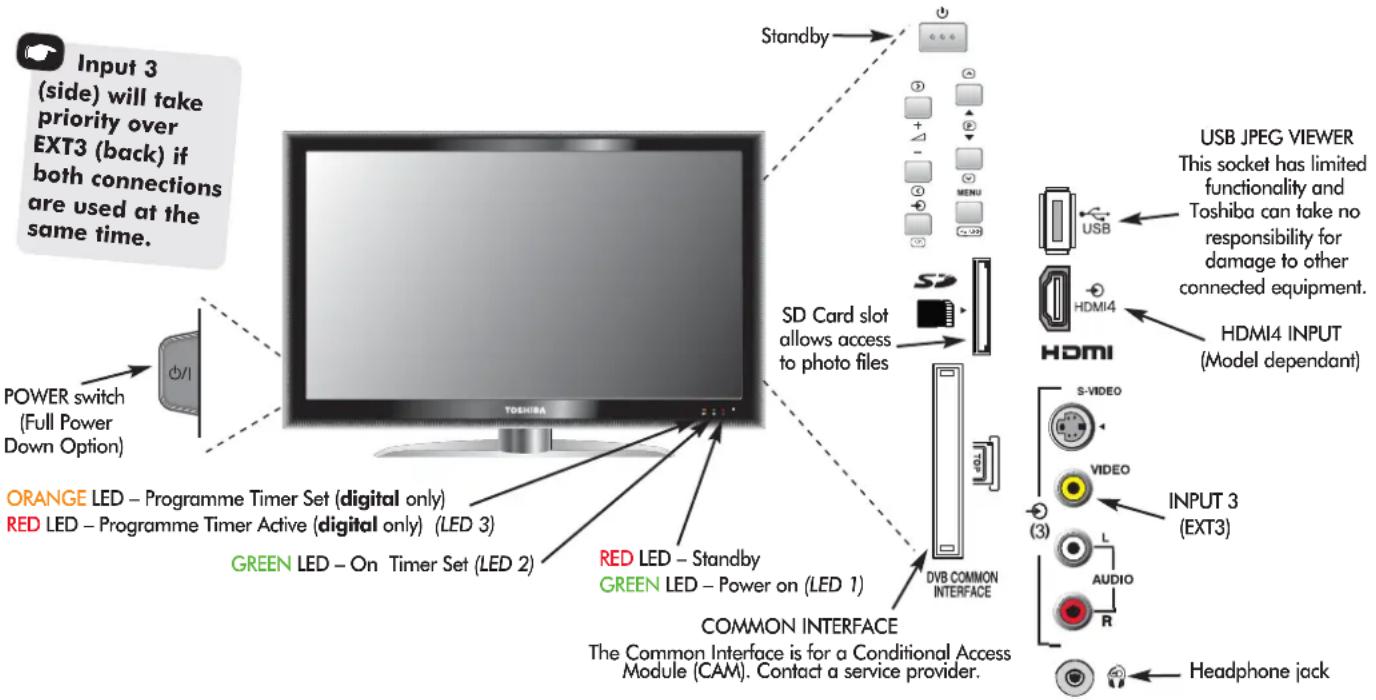

Using the controls – switching on the television, standby, using the remote control, using the controls on the television, headphone socket 14

TUNING THE TELEVISION

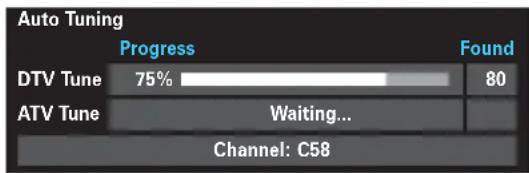

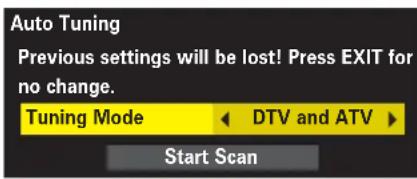

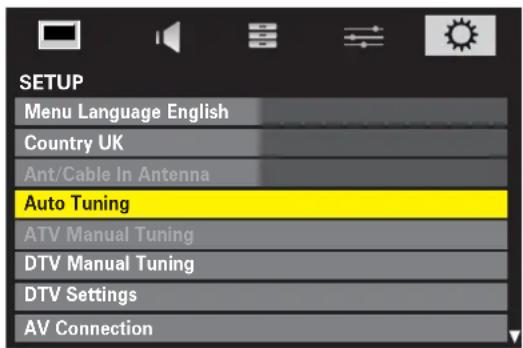

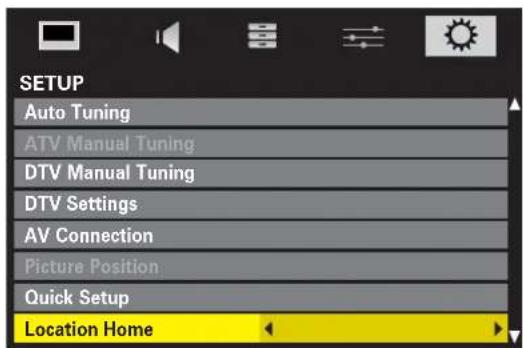

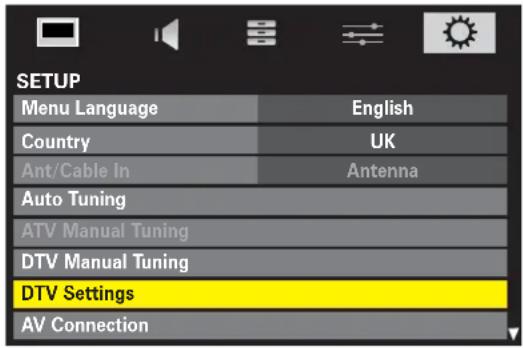

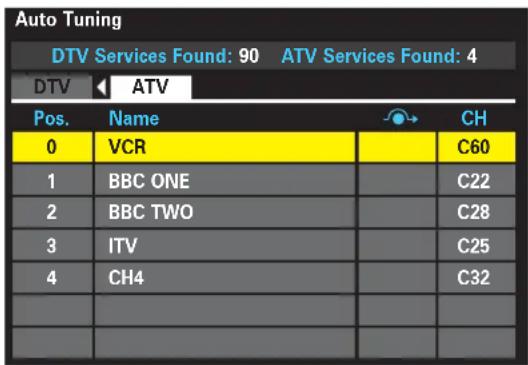

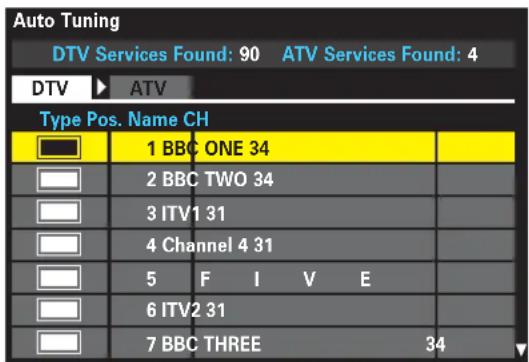

Tuning the television for the first time 15

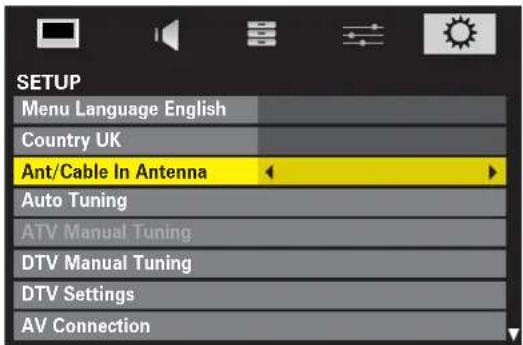

Setting antenna or cable 16

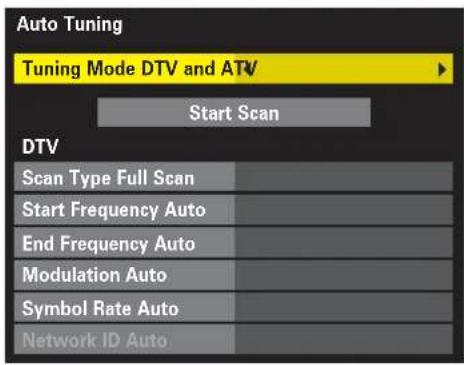

DTV auto tuning, manual tuning, manual tuning for DVB-C 17

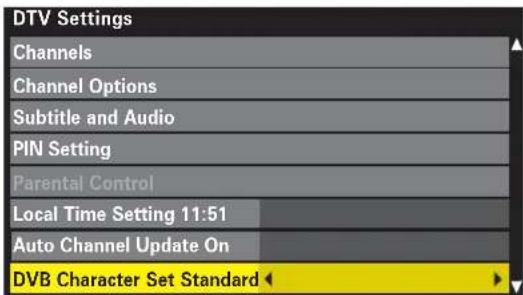

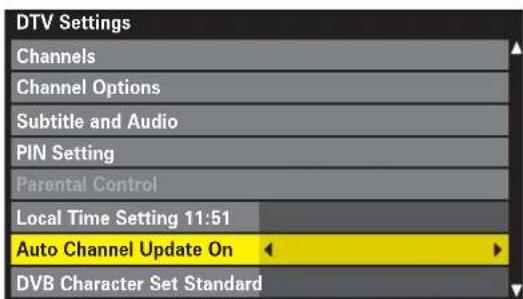

DTV location, auto channel update, DVB character set, Analogue switch off 18

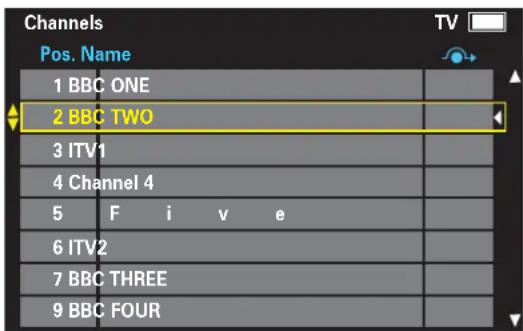

DTV sorting channels, skipping channels 19

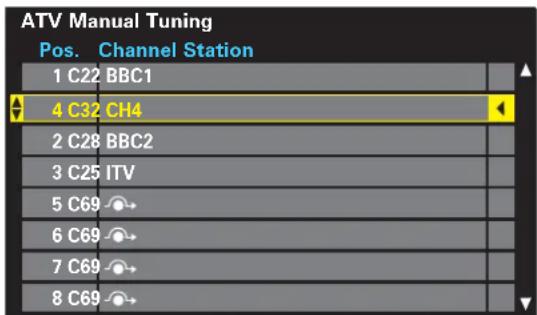

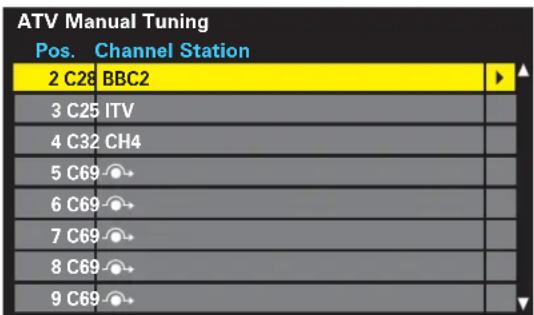

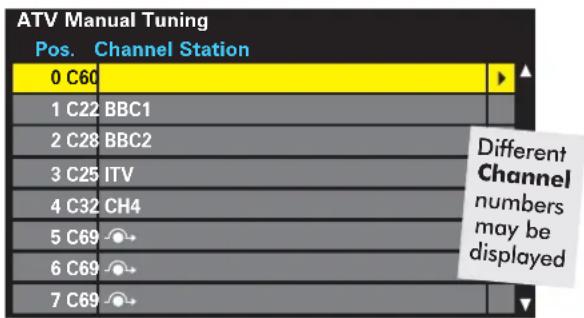

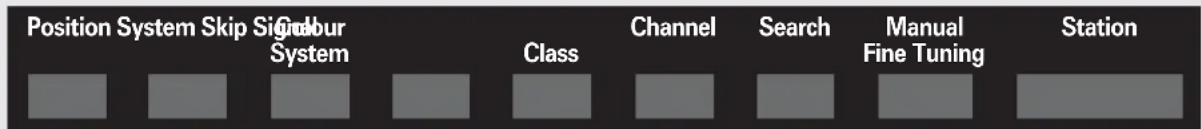

ATV manual tuning, broadcast system 20

ATV skipping channels, sorting channel positions 21

CONTROLS AND FEATURES

General controls – selecting programme positions 22

Stereo and bilingual transmissions – stereo/mono or dual language broadcasts 22

Time display (ATV only) 22

Sound controls – volume, sound mute 22

Quick menu 22

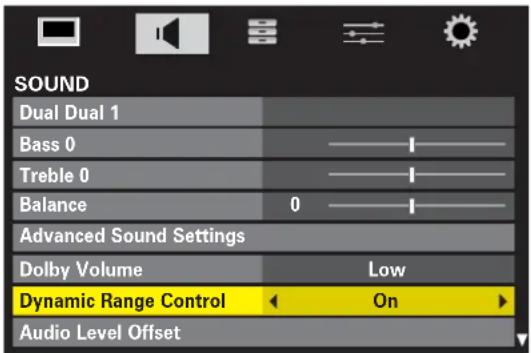

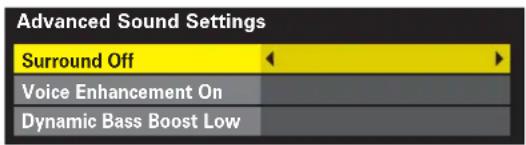

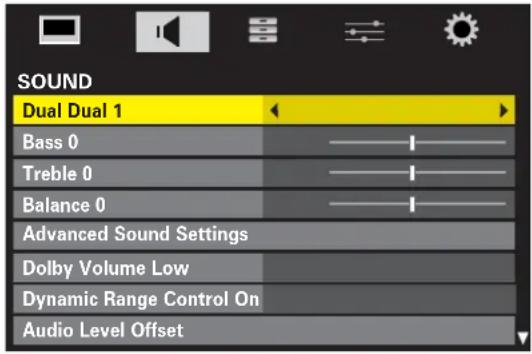

Sound settings – dual, bass, treble and balance, advanced sound settings (surround, voice enhancement, dynamic bass boost, external woofer), Dolby Volume ^® 23

Sound settings – dynamic range control (DTV only), audio level offset, headphone settings, audio description 24

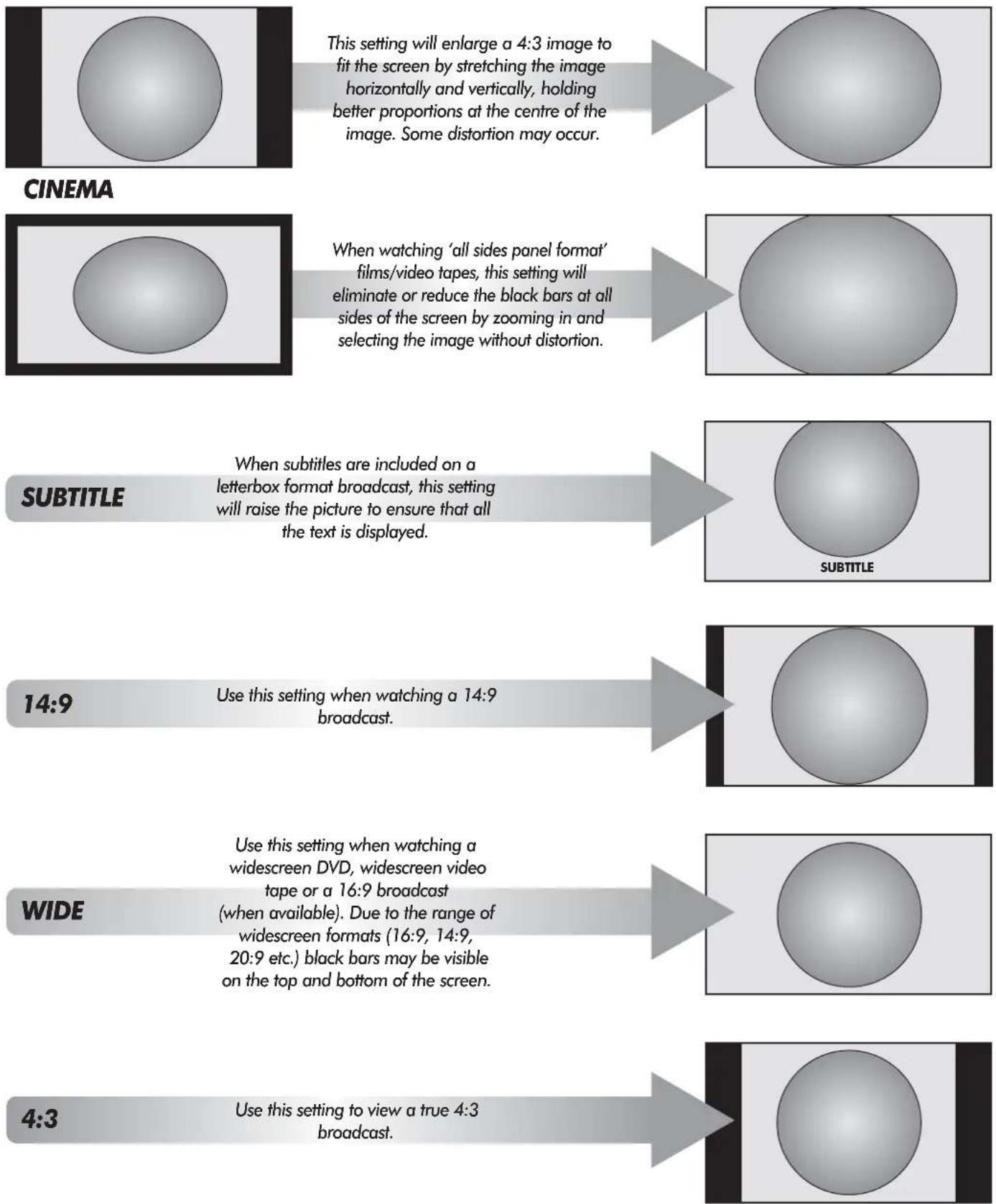

Widescreen viewing 25

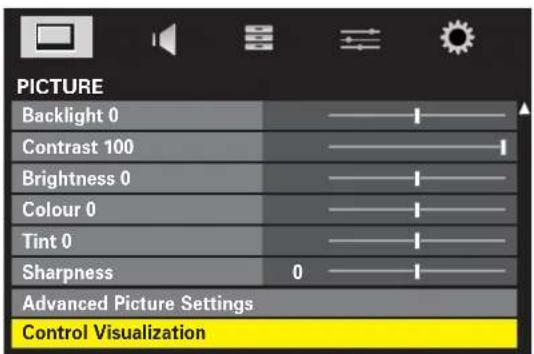

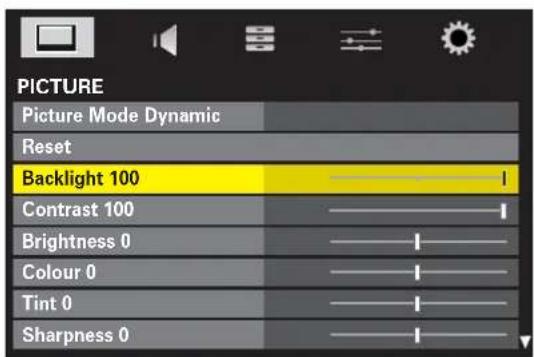

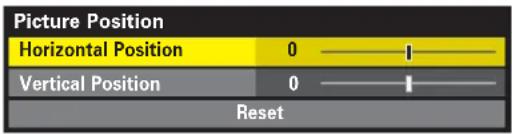

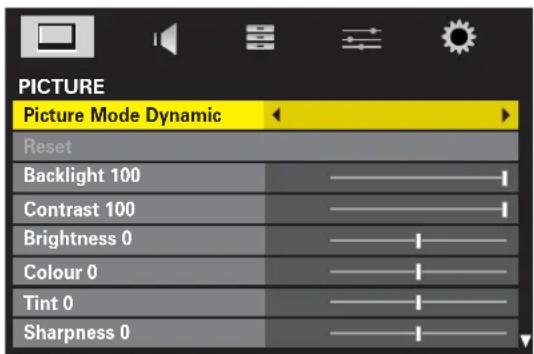

Picture controls – picture position (ATV only), picture mode, picture preferences (contrast, brightness, colour, tint, sharpness) 27

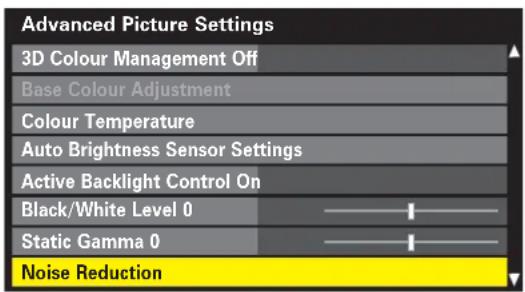

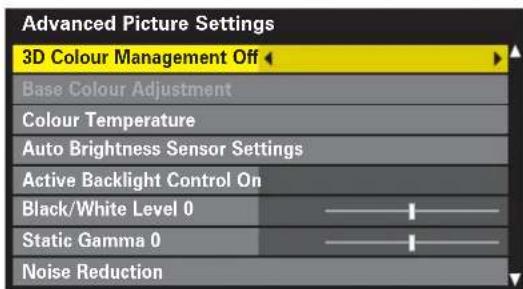

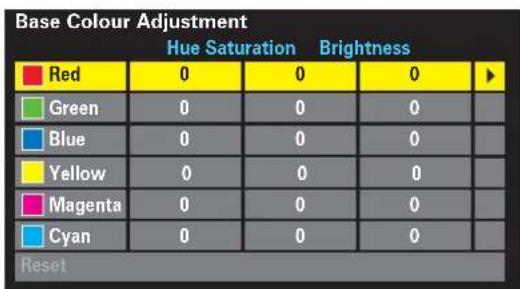

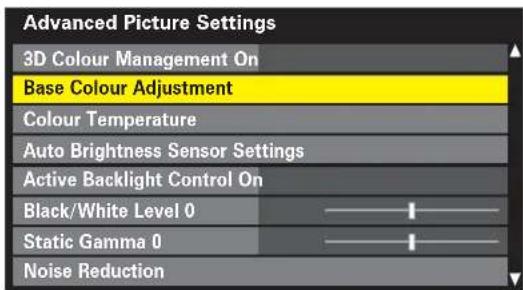

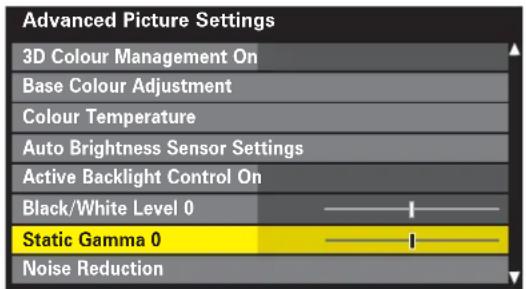

Picture controls – reset, backlight, 3D colour management, base colour adjustment 28

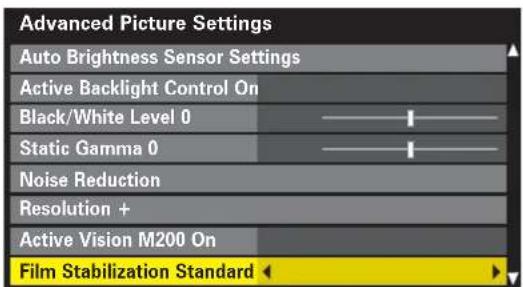

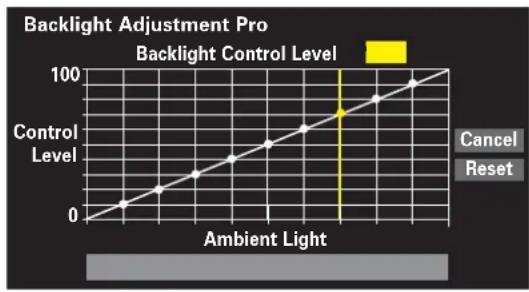

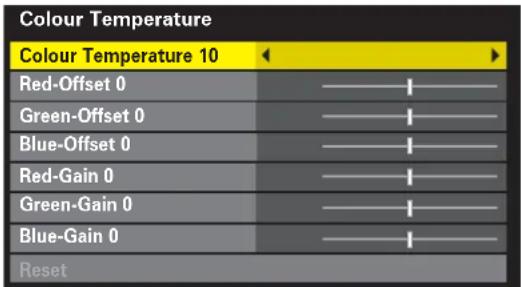

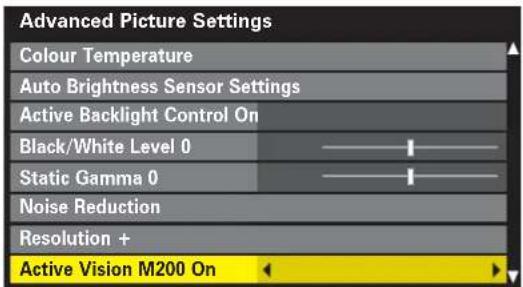

Picture controls – colour temperature, auto brightness sensor settings, active backlight control, black/white level 29

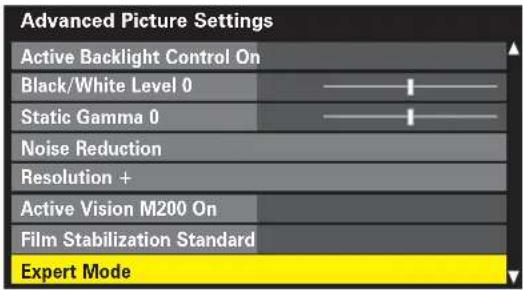

Picture controls – static gamma, MPEG noise reduction (MPEG NR), digital noise reduction (DNR), Resolution + 30

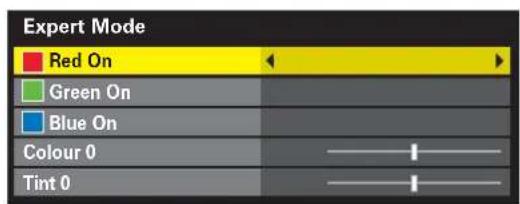

Picture controls – Active Vision M200, film stabilization, expert mode, reset 31

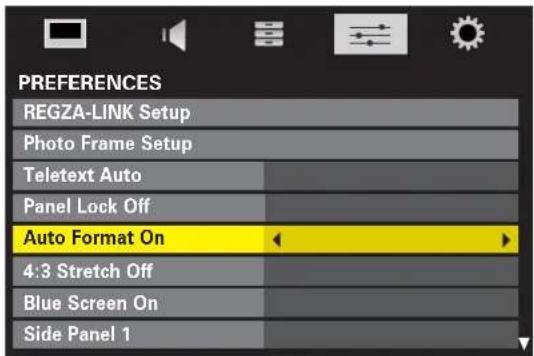

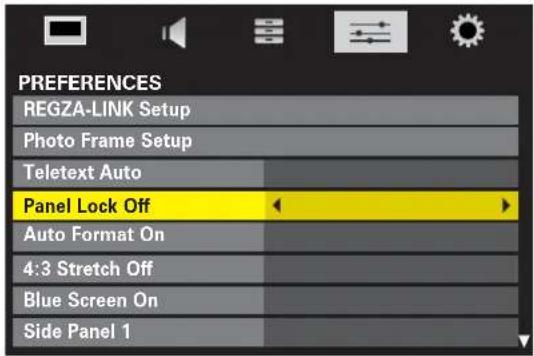

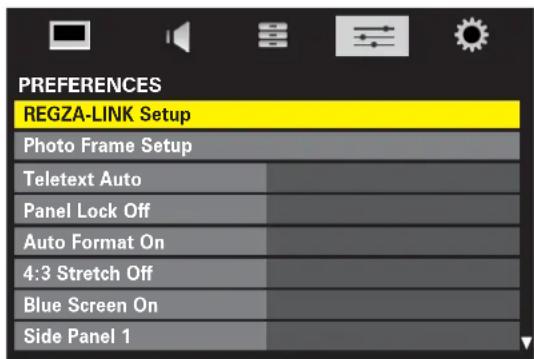

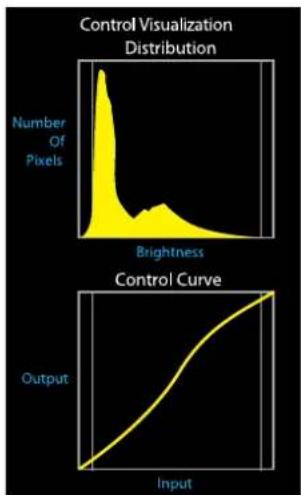

Picture controls – control visualization, panel lock (disabling the buttons on the television), automatic format (widescreen) 32

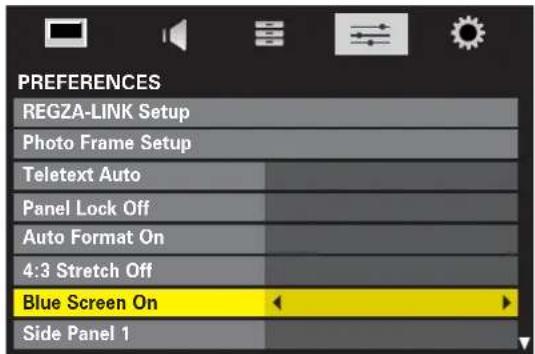

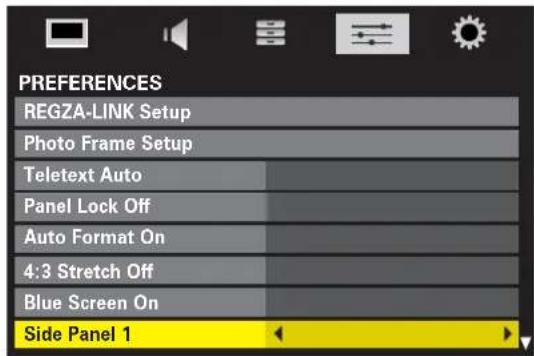

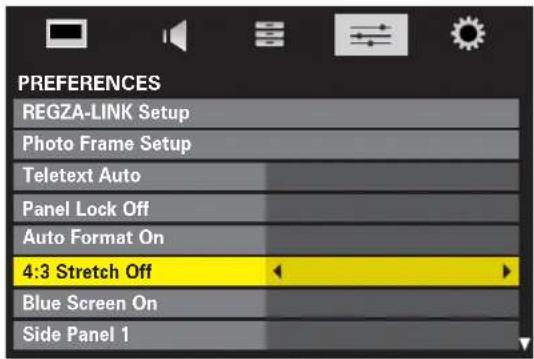

Picture controls - 4:3 stretch, blue screen, side panel adjustment, Toshiba illumination, picture still 33

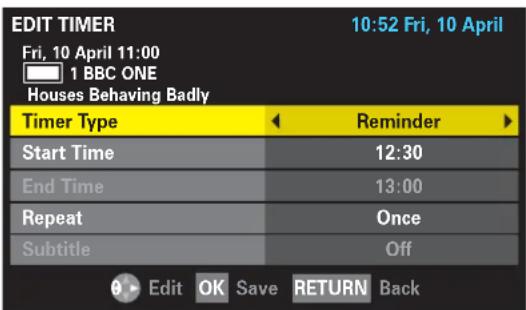

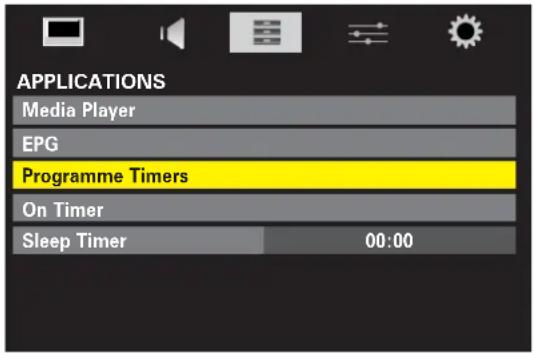

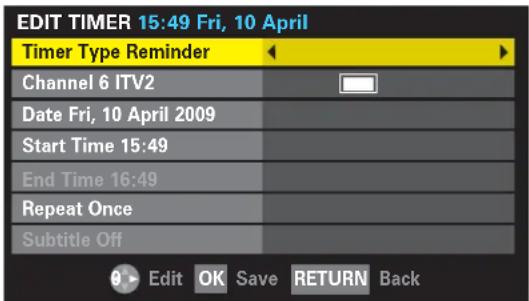

DTV programme timer 34

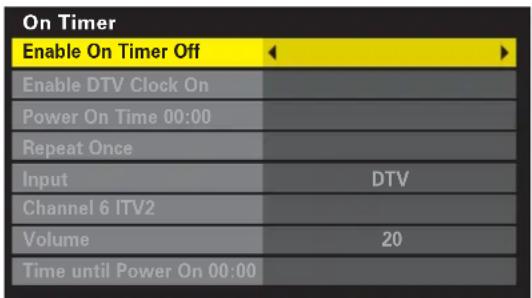

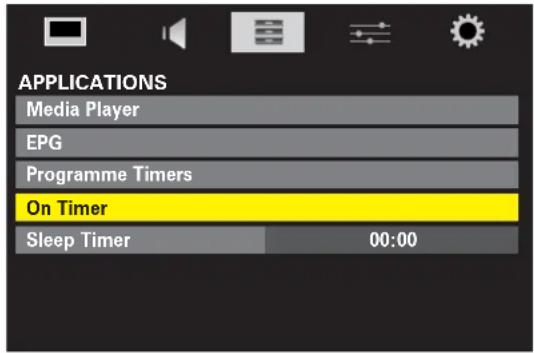

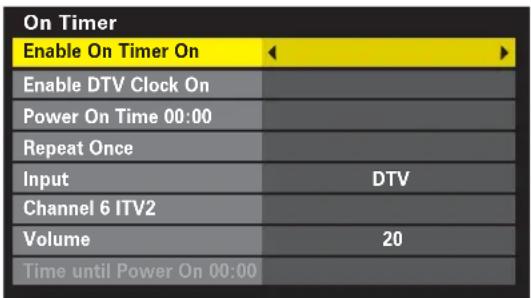

Timers – on timer (setting the television to turn on) 34

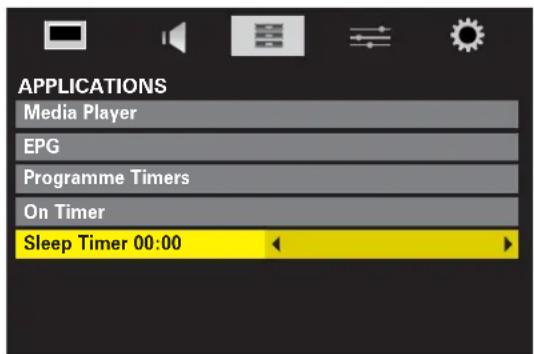

Timers – cancelling the on timer, sleep timer (setting the television to turn off) 35

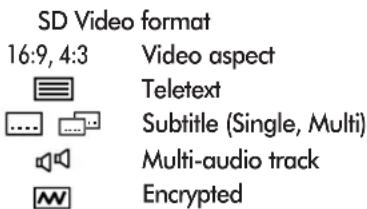

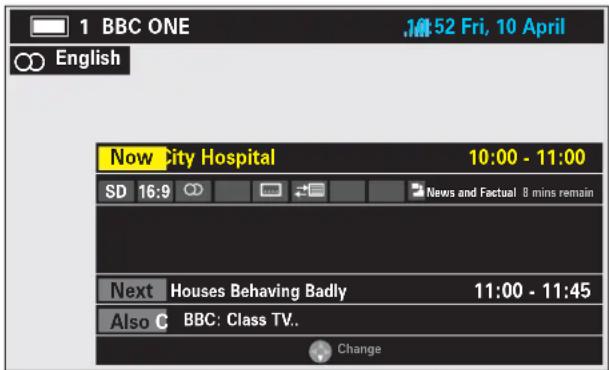

DTV on-screen information 36

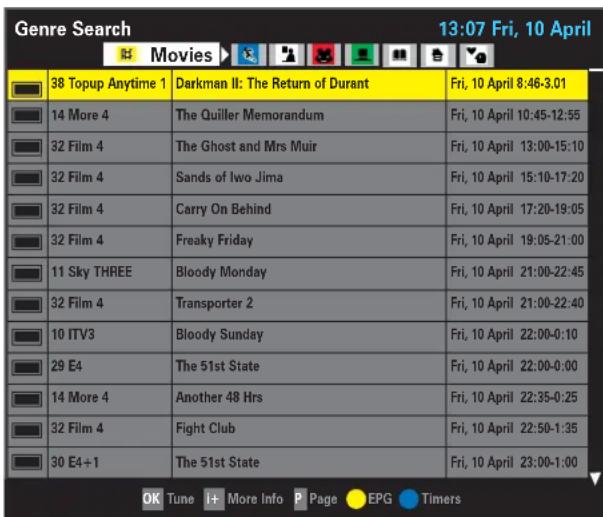

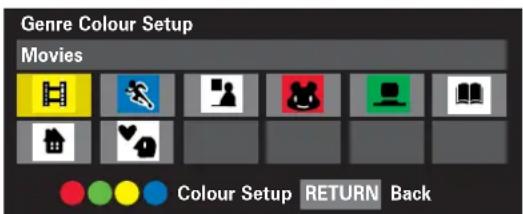

DTV programme guide 37

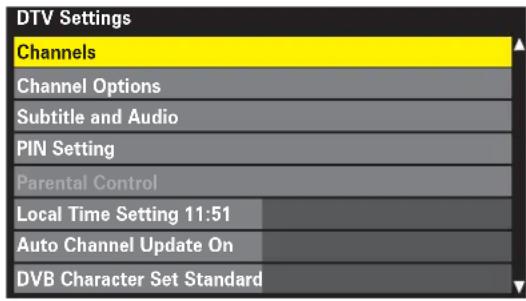

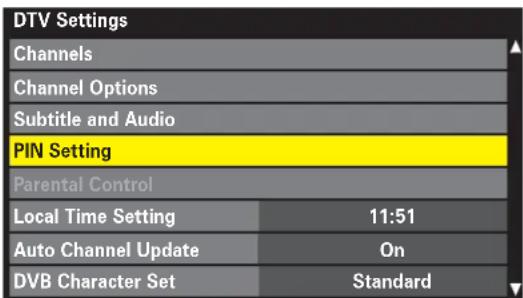

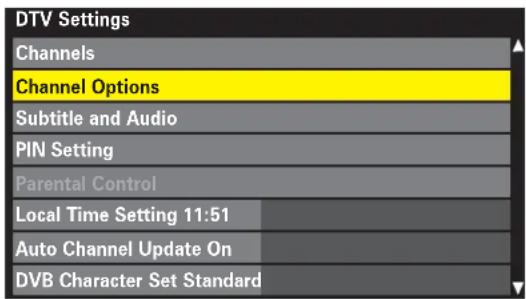

DTV Settings – setting the PIN code, parental control, locking channels 38

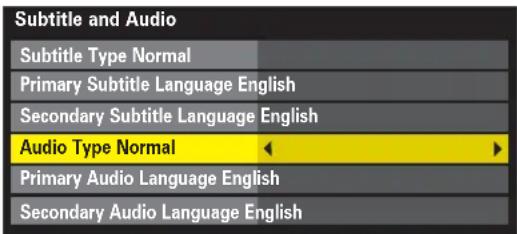

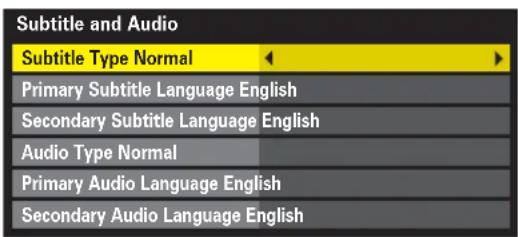

DTV Settings – subtitles, audio languages, common interface 39

Contents (continued)

Software Upgrade – auto upgrade, searching for new software, software licences, system information, reset TV 40

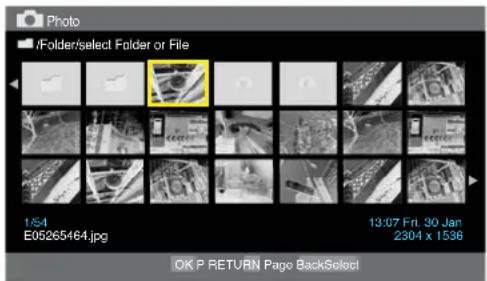

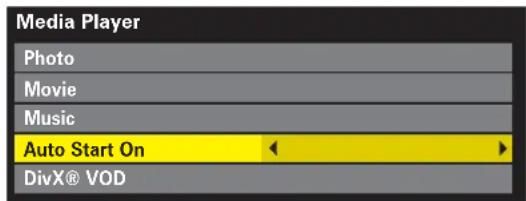

Media player – auto start, opening media player automatically, opening media player from the menu 41

Media player – multiview, single view, slideshow, interval time and repeat 42

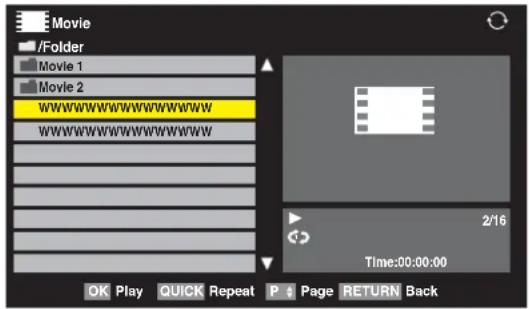

Media player – playing movies, picture size and repeat, DivX® VOD 43

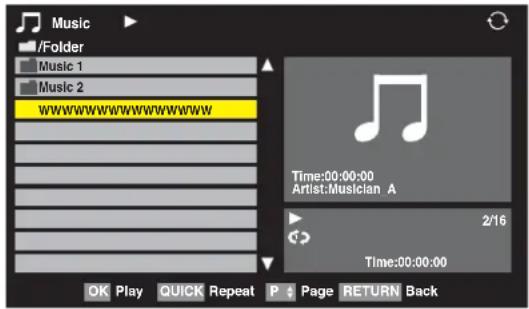

Media player – playing music, repeat mode 44

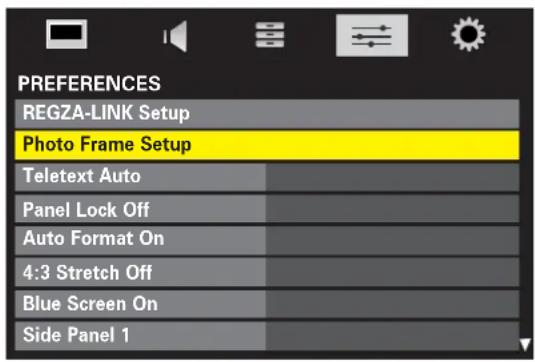

Media player – setting up the photo frame feature 45

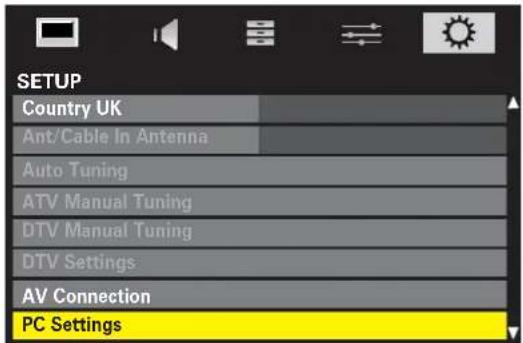

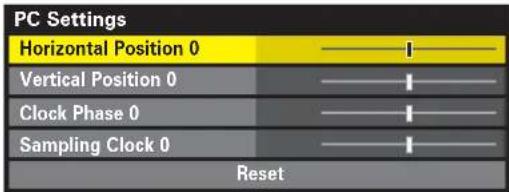

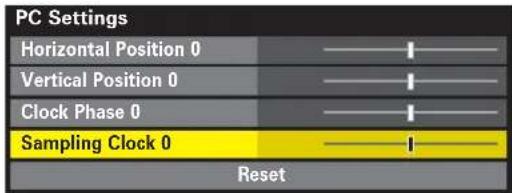

PC settings for RGB/PC connections – picture position, clock phase, sampling clock, reset 46

REGZA-LINK controls – general information, input source selection 47

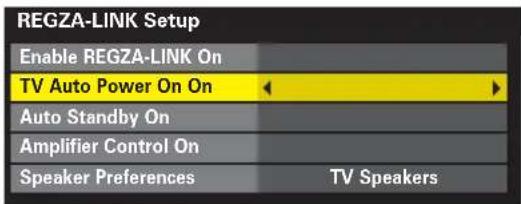

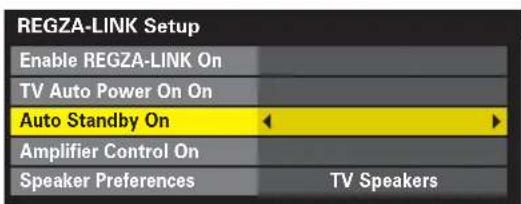

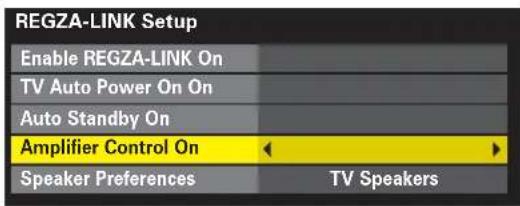

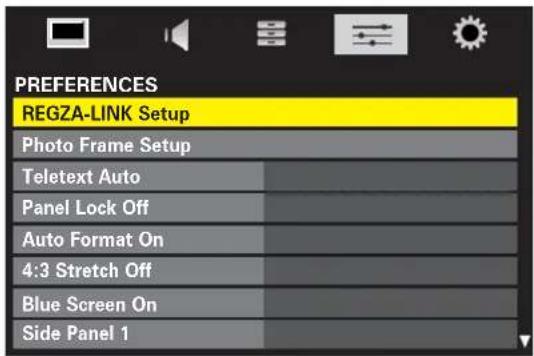

REGZA-LINK menus – enable REGZA-LINK 48

REGZA-LINK menus – TV auto power, auto standby, amplifier control, speaker preference 49

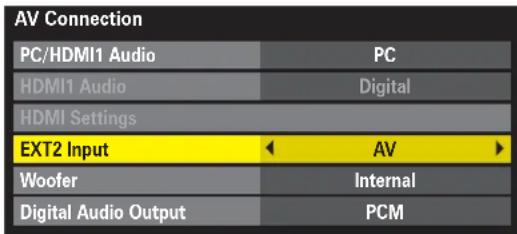

Input selection and AV connections – input selection, external input skip, input signal selection, PC audio 50

Input selection and AV connections – HDMI1 Audio, HDMI settings (lip sync, INSTAPORT™, RGB range), digital output 51

TEXT SERVICES

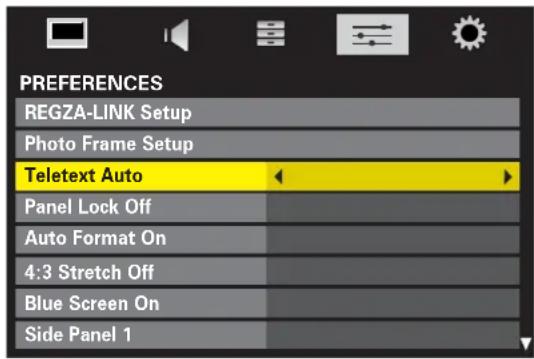

ATV text services – selecting modes, general information, Auto and LIST modes 52

ATV text services – control buttons 53

DTV interactive services – general information 53

PROBLEM SOLVING

Questions and Answers – answers to some common queries including manual fine tuning, colour system 54

INFORMATION

Disposal 58

Specifications and Accessories – technical information about the television, supplied accessories 59

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. In the UK, the fuse fitted in the plug is approved by ASTA or BSI to BS1362. It should only be replaced by a correctly rated and approved type and the fuse cover must be refitted.

IF IN DOUBT PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturers' approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, make sure your family know how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL – NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

NEVER guess or take chances with electrical equipment of any kind – it is better to be safe than sorry.

Installation and important information

Where to install

Locate the television away from direct sunlight and strong lights, soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to maintain stability and prevent it falling over, secure the TV to the level surface using the strap located under the table top stand, or to a wall using a sturdy tie to the clip on the back of the table top stand.

The LCD display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

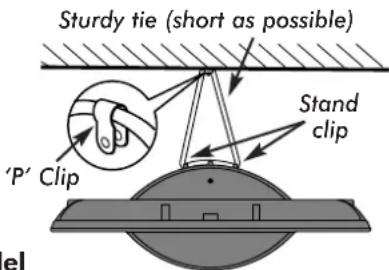

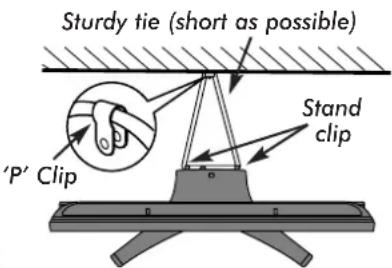

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and that small items cannot be inserted into slots or openings in the case.

Side View

Stand style is dependant on the model

Top View

Cleaning the screen and cabinet...

Turn off the power, clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Please take note

The digital reception function of this television is only effective in the countries listed in Country in the SETUP menu. Depending on the country/area some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on screen menus, etc. are left on the television screen for any length of time they could become conspicuous, it is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines, this is not a defect of the LCD TV and is not covered under the manufacturers warranty. Regular use of other size modes (eg. Superlive) and varying the "side panel" brightness (if available on the model) will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damage caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

NOTE: A Toshiba wall bracket or stand, where available, must be used to maintain the product's BEAB approval.

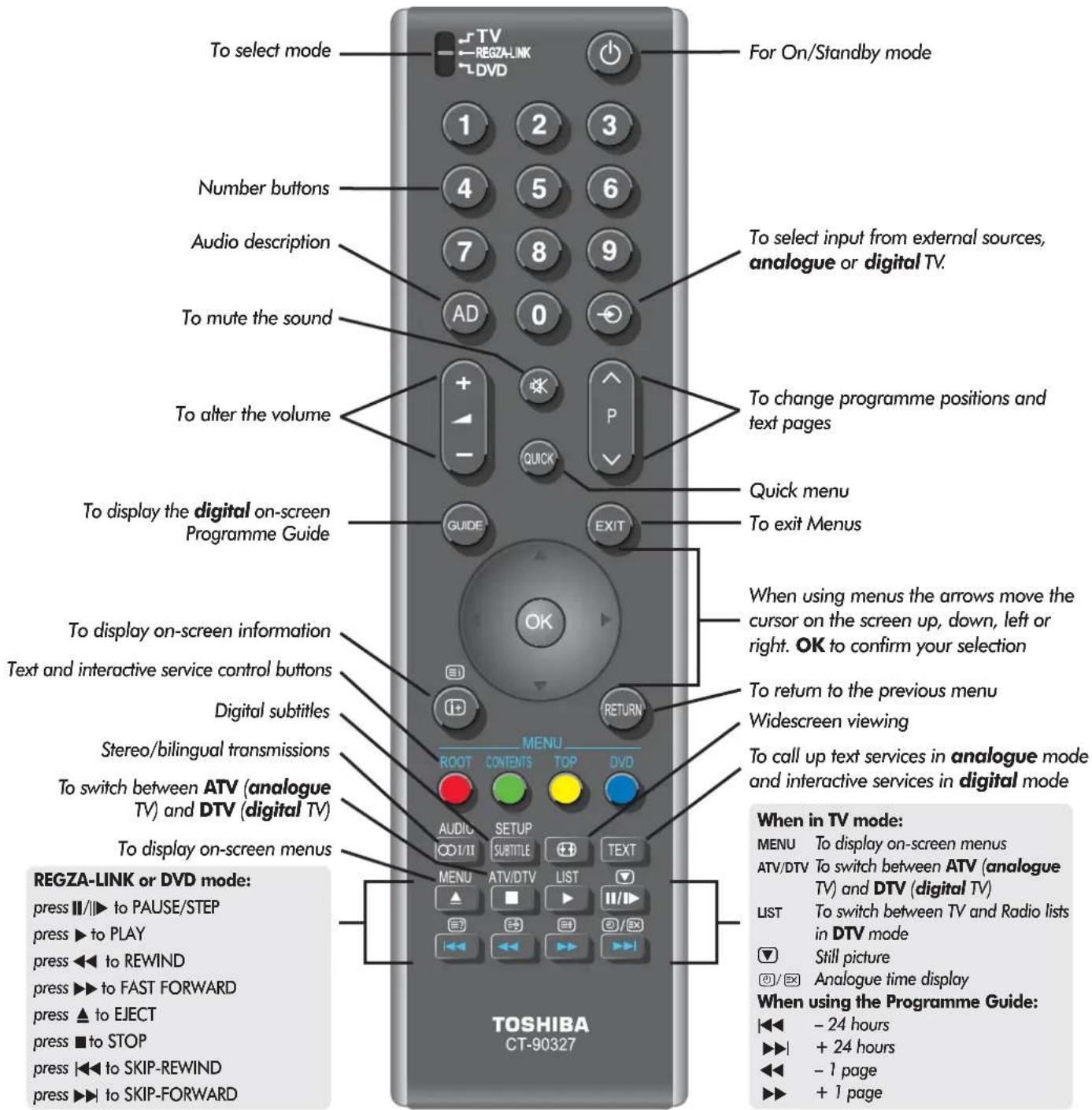

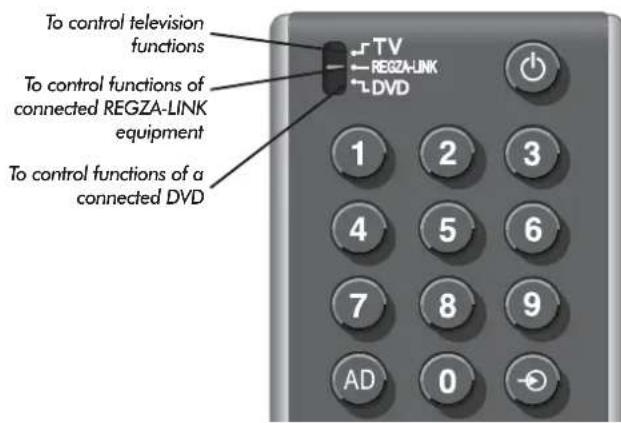

The remote control

Simple at-a-glance reference of your remote control.

Inserting batteries and effective range of the remote

White electronic device with cylindrical battery and top panel (no visible text or symbols)

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the right way round. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove discharged batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with the disposal instructions in this manual. Warning: batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced the batteries may need replacing.

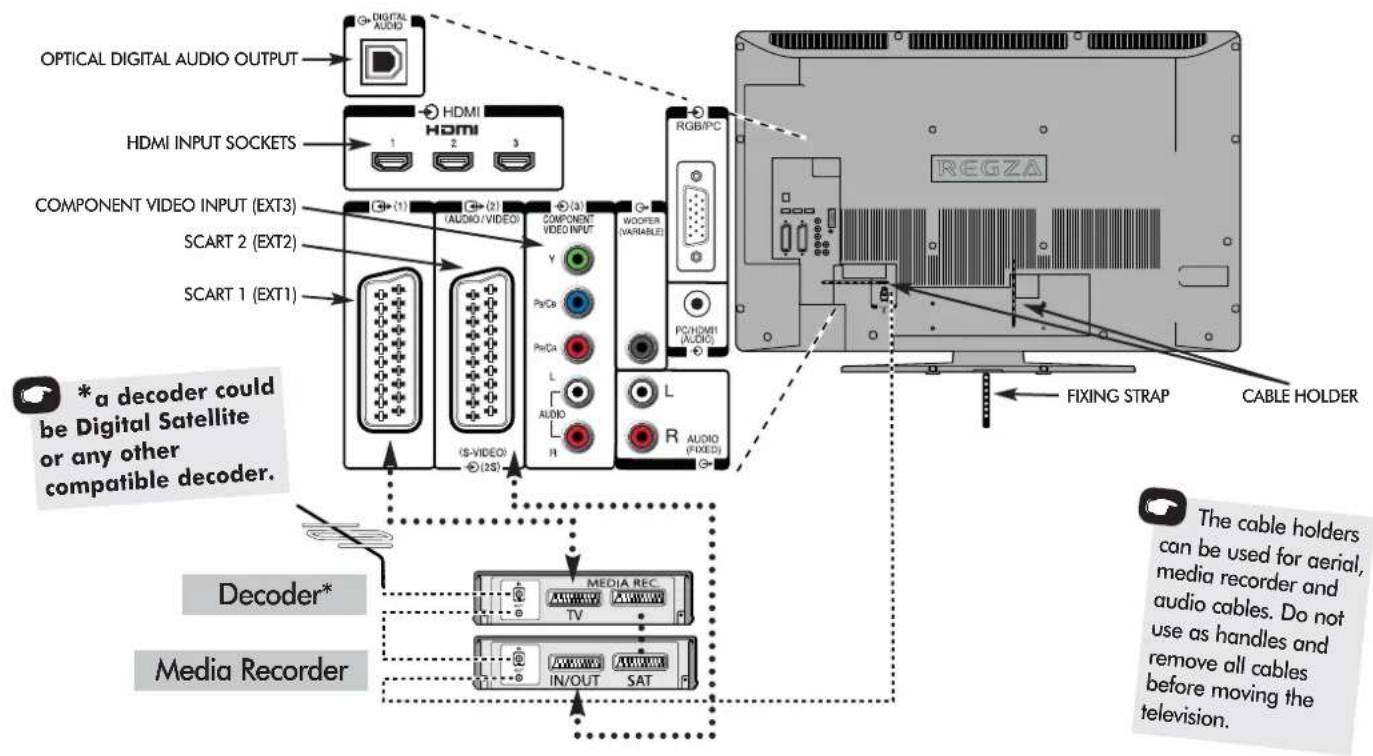

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder* and/or a media recorder it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

SCART leads:

Connect the video recorder IN/OUT socket to the television. Connect the decoder TV socket to the television. Connect the media recorder SAT socket to the decoder MEDIA REC. socket.

Before running Auto tuning put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

The Digital Audio Output socket enables the connection of a suitable surround sound system. NOTE: this output is always active.

HDMI (High-Definition Multimedia Interface) is for use with a DVD, decoder or electrical equipment with digital audio and video output. It is designed for best performance with 1080i and 1080p high-definition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.

PLEASE NOTE: Although this television is able to connect to HDMI equipment it is possible that some equipment may not operate correctly.

A wide variety of external equipment can be connected to the back of the television, therefore the relevant owners manuals for all additional equipment must be referred to.

We recommend SCART 1 for a decoder and SCART 2 for a media recorder.

If connecting S-VIDEO equipment, set the INPUT for EXT2. See page 50.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ⬤ to select between TV, EXT1, EXT2, EXT3C, HDMI1, HDMI2, HDMI3, HDMI4 (Model dependant) or PC.

When the external input mode is selected whilst viewing DTV mode the SCART socket will not output video/audio signals. The SCART output will also be muted in EPG mode.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

Manufactured under licence from Audyssey Laboratories U.S. and foreign patents pending.

Audyssey EQ is a registered trademark of Audyssey Laboratories.

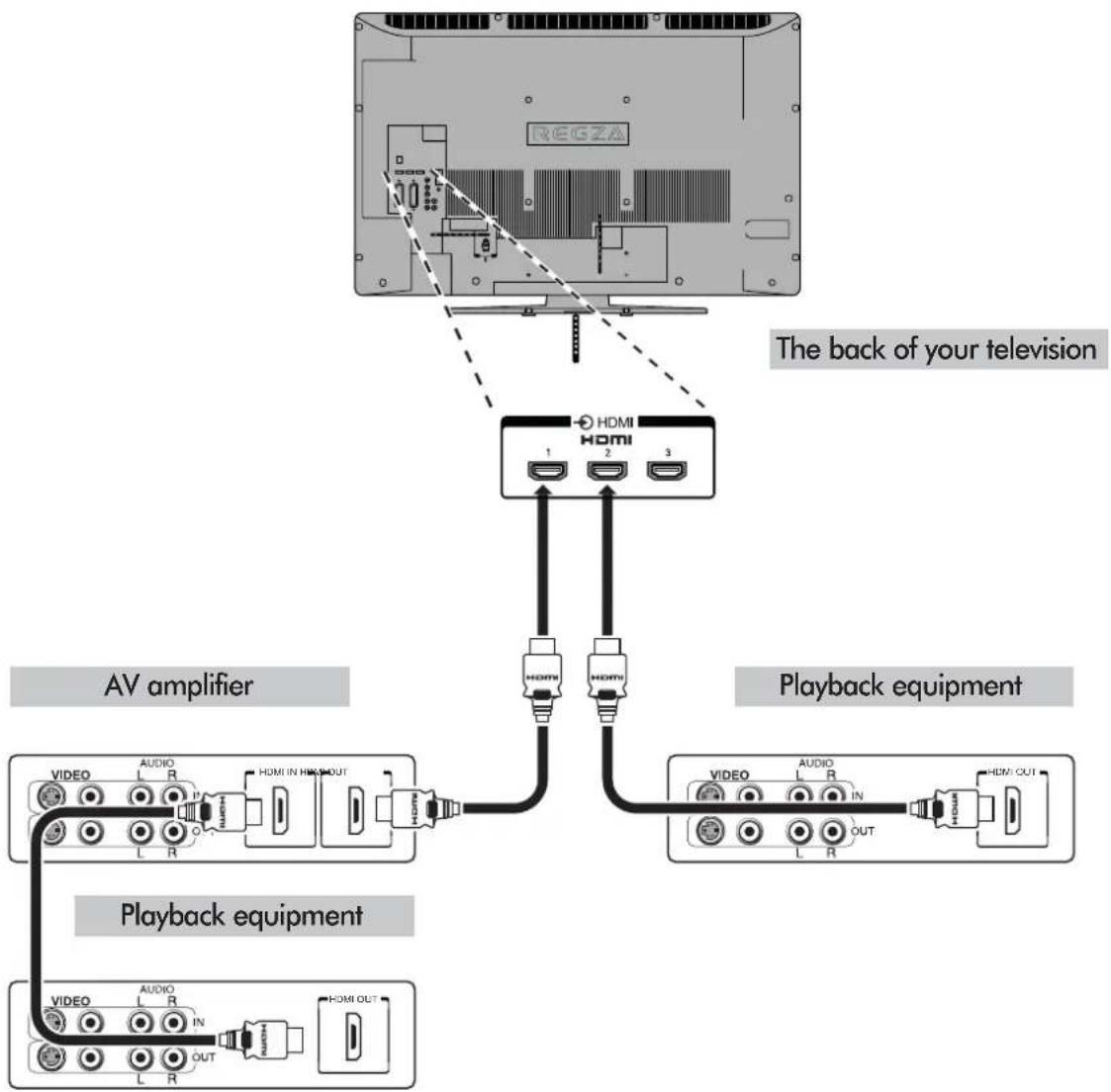

REGZA-LINK connections

The basic functions of connected audio/video equipment can be controlled using the televisions remote control if a REGZA-LINK compatible device is connected.

NOTE: It is recommended that for correct operation all audio/video devices are connected using HDMI cables branded with the HDMI logo (HDMI). If several devices are connected, the REGZA-LINK feature may not operate properly.
After connecting the equipment use the REGZA-LINK menus to setup the desired options. The connected equipment must also be set. For details see the operation manual for each connected device.
NOTE: The REGZA-LINK feature uses CEC Technology as regulated by the HDMI standard. This feature is limited to models incorporating Toshiba's REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

Connecting an HDMI or DVI device to the HDMI input

The HDMI input on the television receives digital audio and uncompressed digital video from an HDMI source device, or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable signal formats, see page 11.

NOTE: Some early HDMI equipment may not work properly with the latest HDMI TV, due to the adoption of a new standard. Please unplug the HDMI cable first and then try setting the options in HDMI Settings to Off. See page 51.

Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

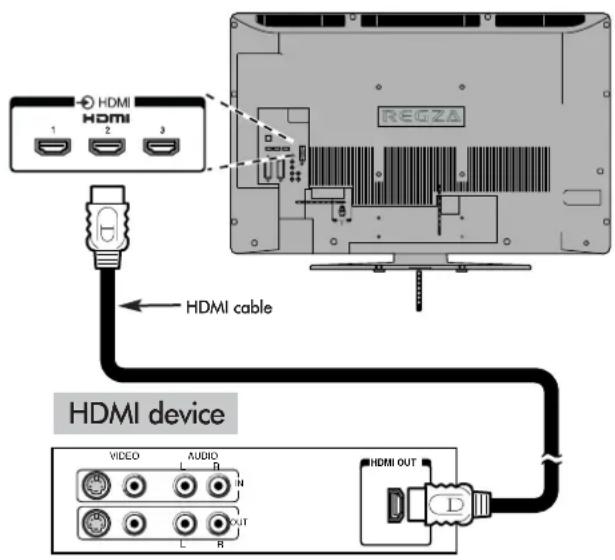

Connecting an HDMI Device

Connect an HDMI cable (type A connector) to the HDMI terminal. For proper operation, it is recommended that an HDMI cable with the HDMI Logo ( HDMI ) is used.

If the HDMI connection is capable of 1080p and/or the television is capable of refresh rates greater than 60Hz, a Category 2 cable will be required. Conventional HDMI/DVI cable may not work properly with this mode.

HDMI cable transfers both video and audio. Separate analogue audio cables are not required. See "HDMI1 Audio" on page 51.

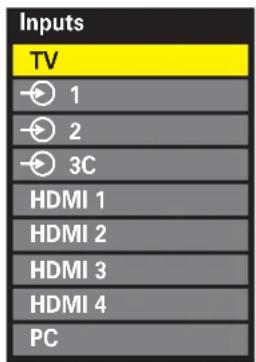

To view the HDMI device video, press the ⬤ to select HDMI1, HDMI2, HDMI3 or HDMI4 (Model dependant) mode.

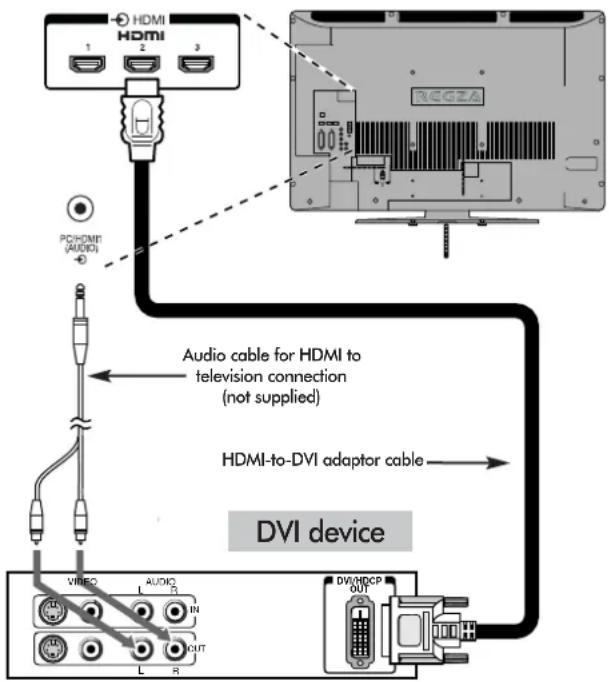

Connecting a DVI Device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI1 terminal and audio cables to the HDMI1 (AUDIO) socket. The recommended HDMI-to-DVI adaptor cable length is 6.6 ft (2m).

An HDMI-to-DVI adaptor cable transfers video only. Separate analogue audio cables are required. See "HDMI1 Audio" on page 51.

NOTE: To ensure that the HDMI or DVI device is reset properly, it is recommended that these procedures are followed:

When switching on electronic components, switch on the television first and then the HDMI or DVI device. To switch off, first switch off the HDMI or DVI device and then the television.

[1] EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwidth digital content protection, which is being standardised for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the television. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.

Connecting a computer via HDMI

With the HDMI connection, you can watch your computer's display on the television and hear the sound from the televisions speakers.

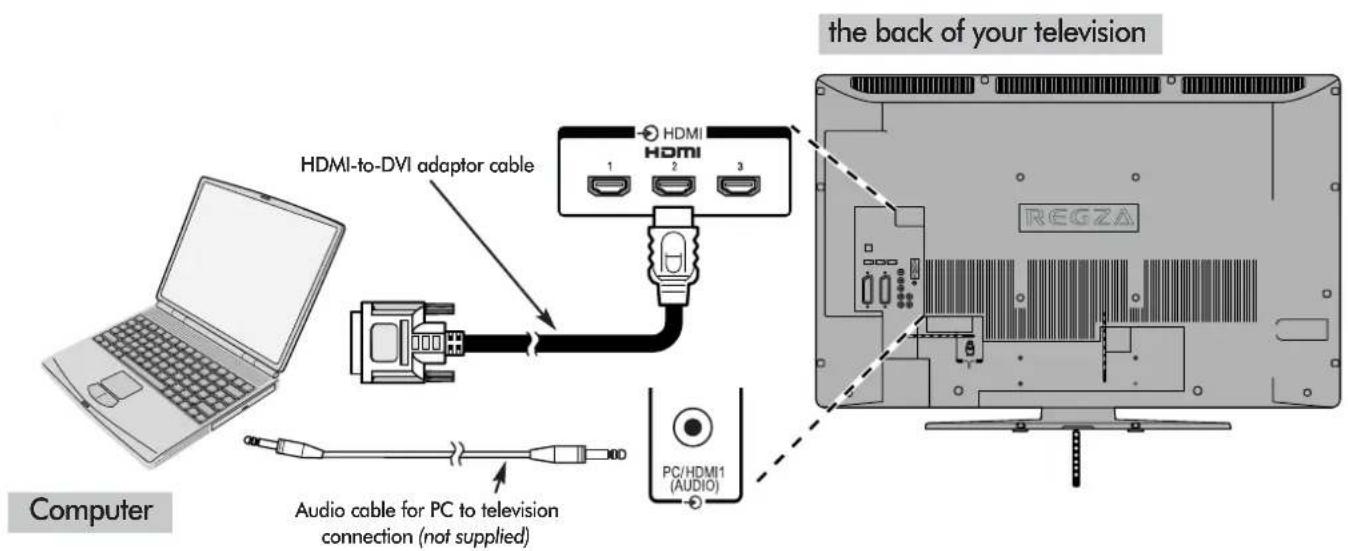

Connecting a PC to the HDMI Terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to DVI adaptor cable and an analogue audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue audio cable is not necessary. See page 9.

PLEASE NOTE:

It is possible that some PCs when connected may not display correctly. Some PC models cannot be connected to this television.

A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

Acceptable signals through HDMI terminals

The HDMI inputs on this television only accept VGA, SVGA, XGA, WXGA and SXGA signal formats which are compliant with VESA as shown in the table below.

The input signals for some PCs and HDMI or DVI devices are different from the resolution and frequencies listed and this may cause the following; incorrect display, false format detection, picture position failure, blur or judder. These problems may be resolved by setting the monitor output format on the PC, HDMI or DVI device to conform to any of the signals listed in the table.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard
480i 72	0 X 480i 59.940	60.000Hz 15.734/15	750kHz 27.000/27	027MHz
576i 72	0 X 576i 50.000	Hz 15.625kHz 27.000	MHz
480p 72	0 X 480p 59.940	60.000Hz 31.469/3	1.500kHz 27.000/27	027MHz
576p 72	0 X 576p 50.000	Hz 31.250kHz 27.000	MHz
1080i	1920 X 1080i	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz
1080i	1920 X 1080i	50.000Hz	28.125kHz	74.250MHz
720p	1280 X 720p	59.940/60.000Hz	44.955/45.000kHz	74.176/74.250MHz
720p	1280 X 720p	50.000Hz	37.500kHz	74.250MHz
1080p	1920 X 1080p	59.940/60.000Hz	67.433/67.500kHz	148.352/148.500MHz
1080p	1920 X 1080p	50.000Hz	56.250kHz	148.500MHz
1080p	1920 X 1080p	24.000Hz	27.000kHz	74.250MHz
VGA	640 X 480	59.940/60.000Hz 3	1.469/31.500kHz 25	175/25.200MHz	●
		72.809Hz 37.8	61kHz 31.500MHz		●
		75.000Hz 37.5	00kHz 31.500MHz		●
SVGA	800 X 600	56.250Hz 35.1	56kHz 36.000MHz		●
		60.317Hz 37.8	79kHz 40.000MHz		●
		72.188Hz 48.0	77kHz 50.000MHz		●
		75.000Hz 46.8	75kHz 49.500MHz		●
XGA	1024 X 768	60.004Hz 48.3	63kHz 65.000MHz		●
		70.069Hz 56.4	76kHz 75.000MHz		●
		75.029Hz 60.0	23kHz 78.750MHz		●
WXGA	1280 X 768	59.995Hz 47.3	96kHz 68.250MHz		●
		59.870Hz 47.7	76kHz 79.500MHz		●
		74.893Hz 60.2	89kHz 102	250MHz	●
	1360 X 768 60	0.015Hz 47.712kHz 8	5.500MHz		●
SXGA	1280 X 1024	60.020Hz 63.9	81kHz 108	000MHz	●
		75.025Hz 79.9	76kHz 135	000MHz	●

Connecting a computer via RGB/PC

Before connecting any external equipment, turn off all main power switches. If there is no switch remove the mains plug from the wall socket.

Connect the PC cable from the computer to the PC terminal on the back of the television, then the audio cable to the PC/HDMI1 Audio socket on the back of the television. Select PC from the PC/HDMI1 Audio options in the AV connection menu located in the SET UP menu.

Press the ➕ to select PC mode.

IMPORTANT NOTE: Some PCs when connected they may not display correctly.

PLEASE NOTE:

Some PC models cannot be connected to this television.

An adaptor is not needed for computers with a DOS/V compatible mini D-sub 15 pin terminal.

A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

When PC input mode is selected some of the television's features will be unavailable e.g. Manual setting in the SET UP menu, Colour, Tint, DNR and Black/White Level in the PICTURE menu.

Pin assignment for RGB/PC terminal

Signal information for Mini D-sub 15 pin connector
Pin No.	Signal name Pin No.	Signal	name
1 R 9	NC
2 G 10	Ground
3 B 11	NC
4	NC(not connected)	12 NC
5	NC	13	H-sync
6	Ground	14	V-sync
7	Ground	15 NC
8	Ground

Acceptable PC signals through the PC terminal

The PC input on this television only accepts signal formats which are compliant with VESA-DMT as shown in the table below.

Some PCs input signals are different from the resolution and frequencies listed and this may cause the following; incorrect display, false format detection, picture position failure, blur or judder. These problems may be resolved by setting the monitor output format on the PC to conform to any of the signals listed in the table.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard (DMT)
VGA 640 X 480	59.940Hz 31.46	9kHz 25.175MHz		●
	72.809Hz 37.86	1kHz 31.500MHz		●
	75.000Hz 37.50	0kHz 31.500MHz		●
SVGA 800 X 600	56.250Hz 35.15	6kHz 36.000MHz		●
	60.317Hz 37.87	9kHz 40.000MHz		●
	72.188Hz 48.07	7kHz 50.000MHz		●
	75.000Hz 46.87	5kHz 49.500MHz		●
XGA 1024 X 768	60.004Hz 48.36	3kHz 65.000MHz		●
	70.069Hz 56.47	6kHz 75.000MHz		●
	75.029Hz 60.02	3kHz 78.750MHz		●
WXGA	1280 X 768	59.995Hz 47.39	6kHz 68.250MHz		●
		59.870Hz 47.77	6kHz 79.500MHz		●
		74.893Hz 60.28	9kHz 102.250MHz		●
	1360 X 768	60.015Hz 47.712kHz 8	5.500MHz		●
SXGA 1280 X 1024	60.020Hz 63.98	1kHz 108.000MHz		●
	75.025Hz 79.97	6kHz 135.000MHz		●

Using the Controls

Whilst all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

Switching On

If the RED LED is unlit check that the mains plug is connected to the power supply and press the ⏻/| POWER button on the left side of the television. If the picture does not appear press ⏻ on the remote control, it may take a few moments, the GREEN LED will be lit.

To put the television into Standby press ⏻ on the remote control. To view the television press ⏻ again. The picture may take a few seconds to appear.

NOTE: When the television is put into standby it will automatically search for updates if Auto Channel Update has been activated.

When the ⏻/| POWER switch is turned off, the digital channel position you previously viewed may not be memorised in the television memory.

Using the Remote Control

Press the MENU button on the remote control to see the menus.

The menu appears as a list of five topics. As each symbol is selected by pressing ◀ or ▶ on the navigation ring on the remote control, its respective options will appear below.

IMPORTANT: At the bottom of the screen will be a bar displaying a selection of control functions, i.e. Select, Watch, Back, Watch TV.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes, however, where some items are not available in a mode they will appear greyed out.

To use the options press the ▲ and ▼ button on the remote control to move up and down through them and OK, ◀ ord ▶ to select the required choice. Follow the on screen instructions. The functions of each menu are described in detail throughout the manual.

Using the Controls

To alter the volume press — ∆ +.

To alter the programme position press ▼P ▲△

Press MENU and ⟨,⟩, √ or ∧ to control the sound and picture options. Press MENU to finish.

When connecting sound equipment to EXT3, connect the audio output of the equipment to the phono sockets on the television.

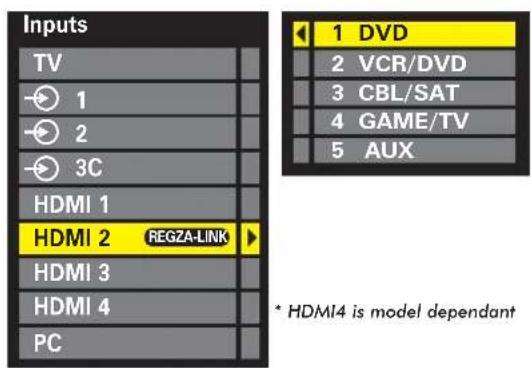

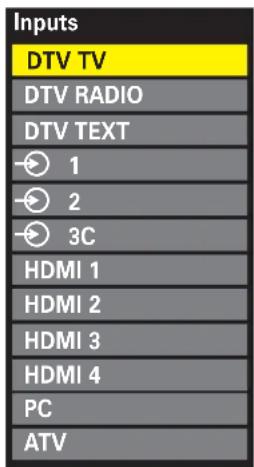

To select the external input, press ⬤ and select the required input source. See page 50.

Please always refer to the owner's manual of the equipment to be connected for full details.

NOTE: Interactive video games that involve shooting a 'gun' type of joystick at an on-screen target may not work with this television.

Tuning the television for the first time

Before switching on the television put your decoder and media recorder to Standby if they are connected and ensure the aerial is connected. To set up the television use the buttons on the remote control as detailed on page 6.

1 Press the ⏻ button, the Quick Setup screen will appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.

Quick Setup
Menu Language	English
Country	UK
Primary Subtitle Language	English
Secondary Subtitle Language	English
Primary Audio Language	English
Secondary Audio Language	English

2 Using ▼ highlight Menu Language, then ◀ or ▶ to select.
3 Press ▼ to highlight Country and ◀ or ▶ to select. The television will now tune the stations for your country. Press OK.
4 The Location screen will appear, press ◀ or ▶ to select between Home or Store (for normal home use select Home) then press OK.

If Home is selected the AutoView option will be activated, automatically adjusting the picture setting to the current viewing conditions. In most cases the television will then operate with lower energy consumption.

5 If the Ant/Cable In screen appears, press ◀ or ▶ to select between Antenna or Cable then press OK.
6 The Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV. Using ◀ or ▶ select DTV and ATV then press ▼ to highlight Start Scan.
7 Press OK again to start Auto Tuning. The television will start to search for all available DTV and ATV stations. The progress bar will indicate progress.

You must allow the television to complete the search.

When the search is complete the television will automatically select position one.

The Auto Tuning screen will display the total number of services found.

8 Press ◀ or ▶ to view the DTV (digital channels) or ATV (analogue channels) lists.

9 Use ▼ or ▲ to move through the list to select a channel then press EXIT to view.

In ATV mode some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

NOTE: The time will be set automatically by transmission but can be advanced or decreased using Local Time Setting in the DTV Settings screen.

PLEASE NOTE

The Reset TV menu can also be accessed at any time from the SETUP menu.

Setting Antenna or Cable

Ant/Cable In (if available)

If this feature is available the television can be configured to either Antenna or Cable. If the setting is changed the Auto Tuning screen will automatically appear (if a Pin Code has been set this will have to be entered in order to change the setting). All current programmes and settings will be lost.

1 Press MENU and use ◀ or ▶ to select SETUP. Use ▼ to highlight Ant/Cable In.

2 Press ◀ or ▶ to select Antenna or Cable.

A screen will appear warning that the televisions features will be changed.

The Auto Tuning screen will appear. When Cable has been selected the Auto Tuning screen will show setting options.

With the exception of Scan Type and Modulation, all of the settings have two options:

Auto – values are pre-set by the television's operating system.

Input – allows a single value to be entered in place of the pre-set value. If no channel is currently tuned and Input is chosen a system default value will be displayed. If a channel is currently tuned and Input is chosen the value of the channel will be displayed.

Scan Type

There are two options, Full Scan and Quick Scan. Quick Scan is a simplified version of Full Scan and takes less time to complete.

Start Frequency

This sets the frequency from which the scan will start.

End Frequency

This sets the frequency at which the scan will stop.

The valid entry range for frequency items is 113.000-858.000 for C-Book/Other and 114.000-858.000 for Nordig-C. If numbers outside of this range are entered the values will automatically set to the minimum or maximum valid values.

Modulation

There are five QAM modulation settings to choose from.

Symbol Rate

This is the Baud rate (KS/s) of the scan.

The valid entry range for Symbol Rate is 4000-7200. If a number outside of this range is entered the value will automatically set to the minimum or maximum valid value.

Network ID

This is the Network ID to be used for the scan. This item is greyed out when the Scan Type is set to Full Scan.

The valid entry range for Network ID is 1-65535. If a number outside of this range is entered the value will automatically set to the minimum or maximum valid value.

3 When the options have been set use ▼ or ▲ to highlight Tuning Mode, then press ◀ or ▶ to select between DTV and ATV, DTV or ATV.

4 Press ▼ to highlight Start Scan, then press OK.

DTV auto tuning, manual tuning, manual tuning for DVB-C

NOTE: As new services are broadcast it will be necessary to re-tune the television in order to view them.

Auto Tuning

Auto tuning will completely re-tune the television and can be used to up date the channel list.

It is recommended that DTV Auto tuning is run periodically to ensure that new services are added.

All current programmes and settings, i.e. locked programmes, will be lost.

1 Press MENU and use ◀ or ▶ to select SETUP. If available use ▼ to highlight Ant/Cable In and then ◀ or ▶ to select Antenna or Cable.

2 Use ▼ to highlight Auto Tuning. Press OK.

A screen will appear warning that previous digital channels and settings will be deleted.

3 Use ◀ or ▶ to select DTV then press ▼ to select Start Scan, press OK to start Auto tuning.

The television will start to search for all available DTV stations.

You must allow the television to complete the search.

When the search is complete the Auto Tuning screen will display the services found.

4 Use ▼ or ▲ to move through the list to select a channel then press OK to view.

Manual Tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select DTV Manual Tuning from the SETUP menu and press OK.

2 Enter the multiplex number using the number buttons or use ◀ or ▶ to adjust the number and then press ▼ to select Start Scan, press OK. The television will automatically search for that multiplex.

When the multiplex is found any channels not currently on the channel list will be added and the channel information at the top of the screen will be updated.

3 Repeat as necessary. Press EXIT to finish.

Manual Tuning for DVB-C

When Ant/Cable In is set to Cable, DTV Manual Tuning will display the following information:

Frequency - a specific frequency can be input for scanning.

Modulation - select from five QAM modulation options.

Symbol Rate - A specific baud rate (KS/s) can be input for manual scanning.

DTV location, auto channel update, DVB character set, Analogue switch off

Location

There are two options available Home and Store. Store is for use when a television is being used for display, i.e. in shops etc. Home is recommended for normal home use.

1 Press MENU and use ◀ or ▶ to select SETUP.

2 Use ▼ to highlight Location.

3 Use ◀ or ▶ to select Home or Store.

When Home is selected the AutoView option will be activated, automatically adjusting the picture setting to the current viewing conditions. In most cases the television will then operate with lower energy consumption.

Auto Channel Update

If Auto Channel Update is set to On when the television is in standby mode Digital Tuning will automatically execute and new channels will be stored.

1 Press MENU and use ◀ or ▶ to select SETUP.

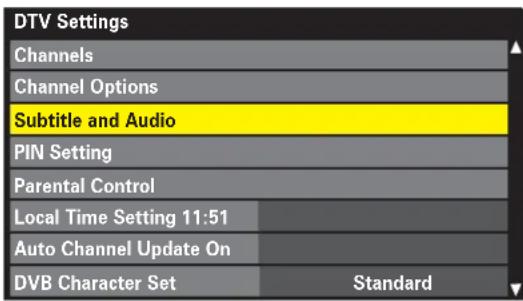

2 Use ▼ to highlight DTV Settings and press OK.

3 Press ▼ to select Auto Channel Update and use ◀ or ▶ to select On.

DVB Character Set

The character set to be used for DVB-C or DVT-B channels can be set manually (Standard - Table 0 or Western - Table 5).

In the SETUP menu press ▼ to highlight DTV Settings and press OK.

2 Press ▼ to select DVB Character Set and use ◀ or ▶ to select between Standard or West.

Analogue Switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This 'switch-off' will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

DTV sorting channels, skipping channels

NOTE: When the television is switched off the mode being viewed at the time will automatically be selected when the television is switched back on.

Sorting Channels

The channel order may be changed to suit personal preference.

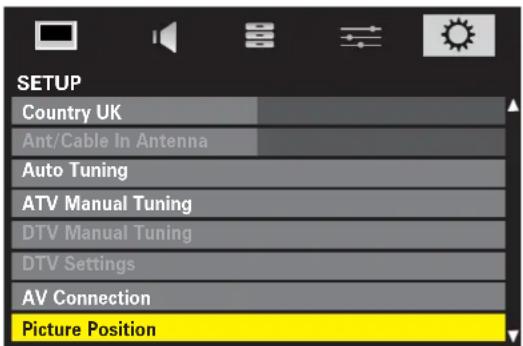

1 Press MENU and select the SETUP menu.
2 Use ▼ to move down through the list and highlight DTV Settings. Press OK.

3 Use ▼ to select Channels then press OK.
4 With the list of channels now showing use ▼ or ▲ to highlight the station to be moved and press OK.

5 Use ▼ or ▲ to move through the list to the preferred position, the other channels will move to make room.

Press OK to store the move. repeat as necessary then press EXIT.

Skipping Channels

This feature allows the setting of channels that will be skipped when using P∨ and P∧. However, skipped channels can still be accessed by direct number entry.

1 Press MENU and select the SETUP menu.
2 Use ▼ to move down through the list and highlight DTV Settings. Press OK.

3 Use ▼ to select Channel Options then press OK.
4 Use ▼ to select the channel to be skipped. Press ▶ repeatedly to select 🔍. Press OK, a tick will appear in the box to show that the channel has now been 'skipped'.

Repeat step 4 as necessary then press EXIT.

The selected channels will no longer be available when using P∧ and P∨ on the remote control.

ATV manual tuning

The television can be tuned-in manually using ATV Manual Tuning. For example: if the television cannot be connected to a media recorder/decoder with a SCART lead or to tune-in a station on another System.

Use ◀ and ▶ to move across the screen and select any of these ATV Manual Tuning options, then ▲ and ▼ to adjust the settings.

Position: The number to be pressed on the remote control.

System: Specific to certain areas.

Colour System: Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

Skip: → means nothing has been stored or the facility to skip the channel is ON. See page 21.

Signal Class: C for standard terrestrial channels, S for cable channels

Channel: The channel number on which a station is being broadcast.

Search: Search up and down for a signal.

Manual Fine Tuning: Only used if interference/weak signal is experienced. See page 54.

Station: Station identification. Use the ▲ or ▼ and ◀ or ▶ buttons to enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder and press PLAY, then manually tune.

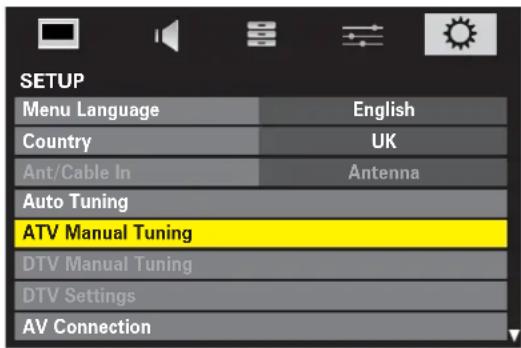

1 Select ATV using ATV/DTV. Press MENU and use ◀ or ▶ to select the SET UP menu, with ▼ highlight ATV Manual Tuning, press OK to select.

2 Use ▲ or ▼ to highlight the position required e.g. we suggest Pos. 0 for a media recorder.

3 Press OK to select. If the position is skipped, Skip must be removed before storing.

4 Press ▶ to select System and use ▲ or ▼ to change if required.
5 Then press ▶ to select Search.
6 Press ▲ or ▼ to begin the search. The search symbol will flash.

7 Each signal will show on the television, if it is not your media recorder, press ▲ or ▼ again to restart the search.
8 When your media recorder signal is found, press ▶ to move along to Station. With ▲, ▼, ◀ and ▶ put in the required characters, e.g. VCR.

ATV manual tuning (continued), skipping channels, sorting channel positions

9 Press OK to store.
10 Repeat for each programme position you want to tune or, press MENU to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.
12 To name external equipment, e.g. DVD on EXT2, press ➕ to select ➕2, then select Manual Settings from the SET UP menu.
13 Press ▶ to select Label then using ▲, ▼, ◀ and ▶ put in the required characters. Press OK.

PLEASE NOTE

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Programme number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to store.

Skipping Channels

To prevent certain programmes from being viewed, the channel position can be skipped. The remote control must be removed as the channels will still be available using the number buttons. Programmes can then be watched as normal using the controls on the television, but the television will not show the skipped channel position.

1 Select ATV Manual Tuning from the SET UP menu.

2 Use ▲ or ▼ to highlight the channel position to be skipped and press OK to select.
3 Press ▶ to select Skip.
4 Use ▲ or ▼ to turn Skip on. Press OK.

- on the screen indicates a skipped channel position.

5 Press MENU and repeat from Step 2 or press EXIT.

Each channel position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped channel positions cannot be selected by P ∧ and P ∨ or by the controls on the television, but can still be accessed by the number buttons on the remote control.

Sorting Channel Positions

Channels may be moved and stored on the position of your choice.

1 Select ATV Manual Tuning.
2 With the list of channels showing use ▼ or ▲ to highlight the channel to be moved and press ▶.

3 Use ▼ or ▲ to move through the list to your preferred position. As you do so the other channels will move to make room.
4 Press ◀ to store your move. Repeat as necessary, then press EXIT.

General controls, stereo/bilingual transmissions, time display (ATV only), sound controls, quick menu

Selecting Programme Positions

To select a programme position use the numbered buttons on the remote control.

Programme positions can also be selected using P∧ and P ∨.

To display on-screen information i.e. programme position, channels, stereo/mono signal, signal strength, date and time, press iPress again to cancel. The information shown will vary depending on whether the television is in DTV or ATV mode.

Press ATV/DTV at any time to select between DTV TV, DTV RADIO, DTV TEXT and ATV modes.

Stereo and Bilingual Transmissions

If stereo or dual language broadcasts are transmitted the word Stereo or Dual will appear on the screen each time programme positions are changed, disappearing after a few seconds. If the broadcast is not in stereo the word Mono will appear.

For ATV programmes

Stereo... Press OD I/II to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted the word Dual will display. Choose the required programme number and if the word Dual appears press ∞I/II to select Dual 1, Dual 2 or Mono.

For DTV programmes

For stereo or dual mono broadcasts, press ⚪ I/II and use ◀ or ▶ to select settings.

The settings are as follows:

∞ Stereo

Press ▶ for Stereo → Left → Right

●O Dual Mono Press

▶ for Dual 1 → Dual 2 → Dual

Mono

Multichannel

Time Display (ATV only)

The time display facility allows the current (text service) time to be seen on the television screen.

Press ☐/☒ whilst watching a normal television broadcast to see a time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not always be available.

Sound Controls

Volume

Press or to adjust the volume.

Sound Mute

Press ✗ once to turn the sound off and again to cancel.

Quick Menu

The Quick Menu gives fast access to various features, i.e. Picture Mode, Picture Size, Sleep Timer, Media Player etc.

The availability of the various features is dependant on the current mode and input source.

To access the Quick Menu, press QUICK then use ▼, ▲, ◀ and ▶ to select the features and to select options.

Sound settings – dual, bass, treble and balance, advanced sound settings, Dolby Volume®

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Select the SOUND menu.
2 Use ▼ to highlight Dual then press ◀ or ▶ to choose between Dual 1 or Dual 2.

Bass, Treble and Balance

The Bass, Treble and Balance can be individually set to personal preference.

1 Press MENU and ◀ or ▶ to select SOUND.
2 Press ▼ or ▲ to highlight Bass, Treble or Balance and ◀ or ▶ to change the setting.

Advanced Sound Settings

The Surround, Voice Enhancement and Dynamic Bass Boost/Ext. Woofer features in the Advanced Sound Settings help to create an intense pseudo surround sound experience, making the television's audio sound richer and fuller.

1 In the SOUND menu select Advanced Sound Settings then press OK.

2 Use ▼ to highlight Surround then press ◀ or ▶ to select Off, Spatial or Cinema.
3 Use ▼ to highlight Voice Enhancement then press ◀ or ▶ to select On or Off.
4 Use ▼ to highlight Dynamic Bass Boost then press ◀ or ▶ to select Low, High or Off.

NOTE: If an active Super Woofer is connected to the Woofer Out connection on the back of the television, select AV connection in the SET UP menu, press ▼ to highlight Woofer and using ◀ or ▶ select External. (See 'Input Selection and AV Connections' section). The Dynamic Bass Boost settings are then replaced by Ext. Woofer settings.

Dolby Volume®

The Dolby Volume feature gives a high quality sound and keeps the volume coming from the TV speakers consistent when changing programmes, channels and input sources.

In the SOUND menu use ▼ to highlight Dolby Volume.
2 Press ◀ or ▶ to select Low, High or Off.

NOTE: The Dolby Volume setting influences the Dynamic Range Control and Digital Audio Output settings.

If Dynamic Range Control is set to On this feature will be unavailable.

Manufactured under licence from Audyssey Laboratories U.S. and foreign patents pending. Audyssey EQ is a registered trademark of Audyssey Laboratories.

Audyssey EQ is based on the award-winning Audyssey MultiEQ technology. It is the first-ever room equalisation solution that can achieve optimum sound for a large listening area and it is featured in many high end home theatre products. Audyssey EQ is used in the TV tuning process to calculate an equalization solution that corrects time and frequency response problems in TV systems. This results in clear, rich sound with more intelligible dialogue.

Sound settings (continued) – dynamic range control (DTV only), audio level offset, headphone settings, audio description

Dynamic Range Control (DTV only)

Dynamic Range Control allows control of audio compression for some digital television programmes (except MPEG-1 and MPEG-2).

In the SOUND menu press ▼ to select Dynamic Range Control.

2 Press ◀ or ▶ to select On or Off.

NOTE: If Dolby Volume is set to Low or High this feature will be unavailable.

Audio Level Offset

This features allows the audio level offsets for ATV, DTV and external equipment to be set separately in order to stop the sudden changes in volume when switching between sources.

In the SOUND menu press ▼ to select Audio Level Offset then press OK.

2 The selection available is dependant on which source is currently being viewed. Use ◀ or ▶ to adjust the level.

Headphone Settings

This feature controls the volume through the headphones. If Speaker Link is set to On the television volume controls the headphones and the speakers. If Speaker Link is set to Off the headphones work independently and the volume is controlled by the Headphone Level only.

In the SOUND menu. Press ▼ to highlight Headphone Settings then press OK.
2 Use ▼ to highlight Speaker Link then ◀ or ▶ to select Off.

3 Use ▼ to highlight Headphone Level then press ◀ or ▶ to adjust the volume.

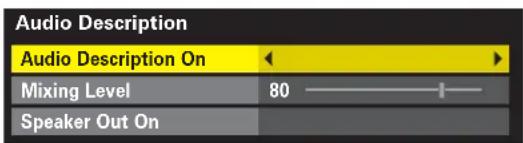

Audio Description

This feature provides a detailed narrative sound track for the visually impaired, provided it is being broadcast. The function is available through the speakers or headphones and is activated by pressing the AD button (AD will appear in the channel banner if it is available). The volume is altered by using the Mixing Level.

1 Select Audio Description from the SOUND menu and press OK.
2 Use ▼ to highlight Audio Description then press ◀ or ▶ to select On.

3 Use ▼ to highlight Mixing Level then press ◀ or ▶ to adjust the volume.
4 Use ▼ to highlight Speaker Out then press ◀ or ▶, select On for sound from both the headphones and speakers, select Off for sound from headphones only. (See 'Headphone Settings' to adjust the headphone sound).

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats, Wide, Super Live, Cinema, 4:3, Subtitle and 14:9.

SUPER LIVE

This setting will enlarge a 4:3 image to fit the screen by stretching the image horizontally and vertically, holding better proportions at the centre of the image. Some distortion may occur.

When watching 'all sides panel format' films/video tapes, this setting will eliminate or reduce the black bars at all sides of the screen by zooming in and selecting the image without distortion.

When subtitles are included on a letterbox format broadcast, this setting will raise the picture to ensure that all the text is displayed.

Use this setting when watching a 14:9 broadcast.

Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible on the top and bottom of the screen.

Use this setting to view a true 4:3 broadcast.

Widescreen viewing (continued)

NATIVE

This setting will show the picture without over scan, i.e. WYSIWYG.

Plain gray circular shape with no text, numbers, or symbols

AV FORMAT

Press QUICK to reveal the Quick Menu, press ▼ to highlight Picture Size, then ◀ or ▶ to view the list of available widescreen formats. Use ▼ or ▲ to highlight the required format and OK to select.

Picture Size

Wide

4:3

Super Live

Cinema

Subtitle

14:9

Native

PC WIDE

This setting will show the picture without over scan and side panel.

This option is only available when watching a PC signal source via HDMI or PC terminal.

Simple gray oval shape with a vertical line on the left side (no text or symbols)

PC NORMAL

This setting will show the picture without over scan, i.e. WYSIWYG.

This option is only available when watching a PC signal source via HDMI or PC terminal.

Simple grayscale sphere with gradient shading, no text or symbols present

DOT BY DOT

"Dot by Dot" is a non-scaling display. Depending on the input signal format this setting will display the picture with side panels and/or bars at the top and bottom (i.e VGA input source)

Simple 3D-rendered gray sphere centered on a white square, with a small arrow pointing to the left (no text or symbols)

PC FORMAT

Press QUICK to reveal the Quick Menu, press ▼ to highlight Picture Size, then ◀ or ▶ to view the list of available PC formats. Use ▼ or ▲ to highlight the required format and OK to select.

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: features not available will be greyed out.

Picture Position (ATV only)

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

1 In the SETUP menu press ▼ until Picture Position is highlighted.

2 Press OK to view the options available for the picture format that has been selected.
3 Press ▲ or ▼ to select an option, then ◀ or ▶ to adjust the settings.

The options alter depending on the widescreen format chosen (see the Quick Menu section) and when viewing connected equipment.

In Cinema:

To return to the original factory settings select Reset in the Picture Position menu and press OK.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Movie and Store are preset options and effect many features/settings within the television. Store is only available when Location is set to Store.

Game option is available in external input mode (other than aerial input). Suitable widescreen formats will be selected.

PC option is available in RGB/PC input mode or HDMI input mode.

1 In the PICTURE menu press ▼ to select Picture Mode.

2 Press ◀ or ▶ to select an option.

NOTE: AutoView mode automatically adjusts picture settings according to the ambient light conditions and input signal, some features will not be available in this option.

The picture mode selected will only affect the source being viewed, different modes can be selected for each source.

Picture Preferences

Picture modes can be customised by selecting a mode and adjusting the settings/features.

In the PICTURE menu use ▼ to select Contrast, Brightness, Colour, Tint and Sharpness.
2 Use ◀ or ▶ to adjust the settings.

Picture controls (continued)

Reset

Reset returns all customised picture settings (except Picture Mode) back to factory settings. This feature will not be available until picture settings have been changed.

1 In the Picture menu press ▼ to select Reset. Press OK.

2 A confirmation screen will appear. Press ◀ or ▶ to select Yes or No. Press OK.

Backlight

Adjusting the Backlight can improve the clarity of the screen when viewing.

1 In the PICTURE menu press ▼ to select Backlight.

2 Press ◀ or ▶ to adjust.

3D Colour Management

When 3D Colour Management is selected it allows the 'Base colour adjustment' feature to become available.

1 In the Picture menu press ▼ to highlight Advanced Picture Settings, press OK.

2 In the Advanced Picture Settings menu press ▼ to select 3D Colour Management then use ◀ or ▶ to select On.

Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

In the Advanced Picture Settings menu press ▼ to select Base Colour Adjustment, then press OK.

2 Press ▲ or ▼ to highlight an option.

3 Press ▶ to select.

4 Press ▶ to select Hue, Saturation and Brightness, then press ▲ or ▼ to adjust the settings.

To return to the original factory settings select Reset and press OK.

Picture controls (continued)

Colour Temperature

Colour Temperature increases the 'warmth' or 'coolness' of a picture by increasing the red or blue tint.

1 In the Advanced Picture Settings menu press ▼ to highlight Colour Temperature, press OK.

2 Use ◀ or ▶ to select a setting from 0 to 10.

3 Press ▼ or ▲ to select an option, then ◀ or ▶ to adjust the setting.

NOTE: If Picture Mode is set to AutoView the colour options will not be selectable.

Auto Brightness Sensor Settings

When the Auto Brightness Sensor Settings feature is activated it automatically adjusts the backlighting levels to suit the ambient light conditions.

In the Advanced Picture Settings menu press ▼ to highlight Auto Brightness Sensor Settings then press OK.

2 Press ◀ or ▶ to select On.

3 Press ▼ to select Backlight Adjustment Pro then press OK.

The Backlight Adjustment Pro screen will appear. Press OK again to view the adjustment window.

4 Press OK then ◀ or ▶ to select a point and ▼ or ▲ to adjust the level.

5 Press OK to store the adjustment.

6 To cancel the adjustment when selecting a point, press ▶ to select Cancel and press OK.

7 Select Reset then OK to return the adjustments to the factory settings.

Active Backlight Control

When Active Backlight Control is activated it will automatically optimise the backlighting levels for dark scenes.

1 In the Advanced Picture Settings menu press ▼ to highlight Active Backlight Control.

2 Press ◀ or ▶ to select On or Off.

Black/White Level

Black/White Level increases the strength of dark areas of the picture which improves the definition.

1 In the Advanced Picture Settings menu press ▼ to highlight Black/White Level.

2 Press ◀ or ▶ to adjust the level.

NOTE: The effect depends on the broadcast and is most noticeable on dark colours.

Picture controls (continued)

Static Gamma

The Static Gamma feature allows the adjustment of levels of black in the picture.

In the Advanced Picture Settings menu press ▼ to highlight Static Gamma.

2 Press ◀ or ▶ to select adjust the level.

MPEG NR – Noise Reduction

When watching a DVD the compression may cause some words or picture elements to become distorted or pixelated. Using the MPEG NR feature reduces this effect by smoothing out the edges.

1 In the Advanced Picture Settings menu press ▼ to highlight Noise Reduction then press OK.

2 Press ▼ to select MPEG NR.

3 Press ◀ or ▶ to select between Low, Middle, High or Off.

DNR – Digital Noise Reduction

DNR enables you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Noise Reduction menu.

2 Use ◀ or ▶ to select between Auto, Off, Low, Middle or High. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Resolution +

This features modifies SD quality pictures to near HD quality levels, the levels can be selected for personal preference.

1 In the Advanced Picture Settings menu press ▼ to select Resolution + then press OK.

2 Press ▼ to select Resolution + and using ◀ or ▶ select On.

3 Press ▼ to select Level and using ◀ or ▶ adjust the level.

NOTE: Depending on the content, this may not work correctly.

Depending on the equipment connected to the television (i.e. equipment with specific enhancer functions), noise may appear on the image.

Picture controls (continued)

Active Vision M200

The Active Vision M200 feature can reduce picture blur and/or judder without altering image brightness or adding flicker.

1 In the Advanced Picture Settings menu press ▼ to highlight Active Vision M200.

2 Press ◀ or ▶ to select On or Off.

Film Stabilization

The Film Stabilization feature allows the adjustment of motion smoothness.

1 In the Advanced Picture Settings menu press ▼ to highlight Film Stabilization.

2 Press ◀ or ▶ to select between Standard, Off or Smooth.

NOTE: If Picture Mode is set to AutoView this feature will also have Auto mode.

Expert Mode

Expert Mode allows the Red, Green and Blue colours to be switched on and off and individually adjusted.

1 In the Advanced Picture Settings menu press ▼ to select Expert Mode then press OK.

2 Press ▼ or ▲ to select a colour and then ◀ or ▶ to select On. Set the other colours to Off.

3 Press ▼ to select Colour or Tint then ◀ or ▶ to adjust.

NOTE: If Picture Mode is set to AutoView this feature will not be selectable.

Reset

Using Reset will return Advanced Picture Settings back to the factory settings.

In the Advanced Picture Settings menu press ▼ to select Reset.

2 A confirmation screen will appear. Press ◀ or ▶ to select Yes or No. Press OK.

Picture controls (continued)

Control Visualization

This feature displays the brightness histogram and control curve of each scene.

1 In the PICTURE menu press ▼ to select Control Visualization then press OK.

The histogram display will appear to the left of the picture being viewed.

2 Press EXIT to finish.

Panel Lock

Panel lock disables the buttons on the television. All buttons on the remote control can still be used.

In the PREFERENCES menu press ▼ to select Panel Lock and choose On or Off using ◀ or ▶.

When Panel lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed the television will switch off and can only be brought out of standby by using the remote control.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto Format is On, it will automatically be displayed in Widescreen format, irrespective of the television's previous setting.

1 In the PREFERENCES menu press ▼ to select Auto Format.

2 Press ◀ or ▶ to select On or Off.

Picture controls (continued)

4:3 Stretch

When 4:3 Stretch is activated the size switching system changes 4:3 programmes into a full screen picture.

1 In the PREFERENCES menu press ▼ to highlight 4:3 stretch.

2 Press ◀ or ▶ to select On or Off.

Blue Screen

When Blue Screen is selected the screen will turn blue and the sound will be muted when no signal is received.

1 In the PREFERENCES menu press ▼ to highlight Blue Screen.

2 Press ◀ or ▶ to select On or Off.

Side Panel Adjustment

The Side Panel feature lightens or darkens the band each side of the screen when in 4:3 or 14:9 format. This helps prevent image retention of the band and can also make viewing in bright or dark conditions more comfortable.

1 In the PREFERENCES menu press ▼ until Side Panel is highlighted.

2 Press ◀ or ▶ to adjust.

TOSHIBA Illumination (Model dependant)

This allows the illumination of the TOSHIBA logo, situated on the front of the television, to be switched On or Off.

1 In the PREFERENCES menu press ▼ to select TOSHIBA Illumination.

2 Use ◀ or ▶ to select On or Off.

Picture Still

This feature is used to hold a still image on the screen.

1 Press ▼ to hold an image on the screen, press ▼ again to cancel.

The timers

Programme Timers (DTV only)

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

1 Press MENU and ◀ or ▶ to select the APPLICATIONS menu.

2 Press ▼ to select Programme Timers, then press OK to select.
3 Press ▼ to select the first programme to be timed, then press OK. The EDIT TIMER menu will now appear on screen.
4 Press ▲ and ▼ to go through the list adding the details of the programme to be timed by using the number buttons as well as ◀ and ▶ to make selections.

5 When all the details have been entered press OK to save the timer.

The Orange/Red programme timer indicator on the front of the television will be lit indicating that the Programme Timers have been set.

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled.

If the television is turned off using the ⏻/POWER button any programmes set in the timers will be cancelled.

It is possible to set the timers to record, the media recorder will need to be AV link compatible.

Setting the On Timer

The On Timer sets the television to turn on automatically to a selected channel at a certain time of day or after a certain length of time.

1 In the APPLICATIONS menu, press ▼ to select On Timer then press OK.

2 Press ▼ to highlight Enable On Timer, then ◀ or ▶ to select On.
3 Press ▼ to highlight Enable DTV Clock, then ◀ or ▶ to select On.

4 Press ▲ and ▼ to go through the list adding details to the on timer by using the number buttons as well as ◀ and ▶ to make selections.

The timers (continued)

5 Press OK to save the timer. The Green timer indicator on the front of the television will indicate that the timer has been set.

NOTE: When an external input is selected in the Input option the Channel option will no longer be available.

The Repeat option is only available when Enable DTV Clock is set to On.

The Time until Power On option is only available when Enable DTV Clock is set to Off.

Cancelling the On Timer

1 To cancel the On Timer menu, use ▼ to select Enable On Timer.

2 Use ◀ or ▶ to select Off.

Setting the Sleep Timer

The Sleep Timer turns the television off after a certain time.

1 In the APPLICATIONS menu, press ▼ to select Sleep Timer.

2 Using the number buttons set the required time. For example, to switch the television off in one and a half hours enter 01:30, or press ◀or ▶ to increase/decrease in steps of 10 minutes.

3 Press EXIT to finish.

4 To cancel the Sleep timer, enter zero in the option.

DTV on-screen information

When viewing in digital mode, the on-screen information gives access to programme details for all available channels.

Information

1 Select information by pressing + , the information screen will appear giving details of the channel and programme currently being viewed.

2 To see details of the next programme scheduled for the channel, press ▼ to select Next.
3 Press ▼ to select Also. Details of programmes that have started on other channels will be shown. Use ◀ or ▶ to change the display contents.
4 To set a reminder for the following programme, select Next then press OK. The EDIT TIMER screen will appear.

5 The details of the programme will have been added to the screen. Press OK to save. The timer icon will appear on the information screen.
6 To record the programme use ◀ or ▶ to change the Timer Type to Record. This will allow more options to be available. Press ▼ and ◀ or ▶ to select options. Press OK to save.

NOTE: In order for the recording operation to work the media recorder must be AV link compatible.

On-screen Information Icons

Icons will appear on the Information screen giving details about the programmes being broadcast. Details of these icons are listed below:

Service info

Audio Info

Audio/Subtitle info

Hard of Hearing

Event Info

Timer Info

Timer status

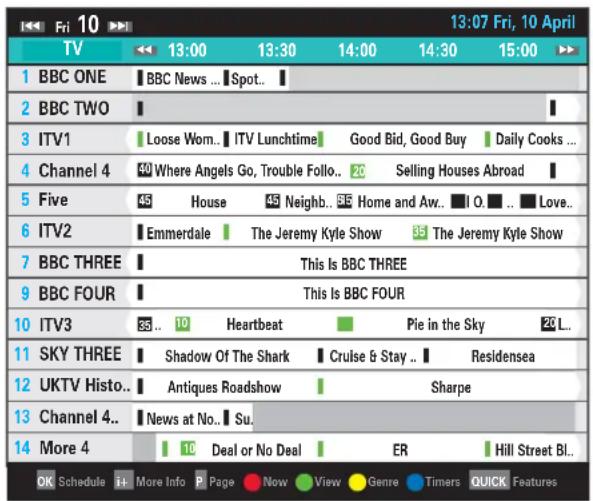

DTV programme guide

When viewing in digital mode, the programme guide gives access to programme details for all available channels.

Guide

1 Select the on-screen guide by pressing GUIDE, the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

NOTE: The channels are displayed in groups of service type (i.e. TV, Radio, Text). Press the ATV/DTV button to change service types.

2 Press ◀ or ▶ for information on other features scheduled for the channel selected.
3 For details of other programmes currently available, press ▼ or ▲ to scroll up and down the channel list. As channels are selected details of the programme currently being broadcast will appear. Press ◀or ▶ to view information on future features.
4 Press P √ to move on a page and P ∧ to return to the previous page.
5 Press I▶▶ to move forward 24 hours and ◀◀l to go back. Pressing ▶▶ or ◀◀ will move forwards or backwards a page.
6 For information on a highlighted programme press [i+]. To set the timer press the BLUE button to bring up the Programme Timer menu, then OK to set.

NOTE: Recording can be set from the guide. The media recorder must be set to the same time as the television. Refer to the the owner's manual for the recording equipment.

Topic Selection and Search

From the Guide set topics by colour and display programmes according to their topic.

1 In the Guide screen press QUICK. Press ▼ to select Genre Colour then press OK.

2 Use ◀, ▶, ▼ and ▲ select a topic, then press a colour button button to assign that colour to the chosen topic. Four colours are available to set.
3 Press RETURN to return to the guide screen, the guide will automatically assign the colours to the chosen topics. Press the YELLOW button.

4 Use ◀ or ▶ to select a topic. A list of available programmes and details will appear for that topic. Use ▼ or ▲ to highlight a particular programme.
5 For information on a highlighted programme press i+.
6 To view a current programme press OK.
7 Press the BLUE button to bring up the Programme Timer menu to set a reminder or record a future programme.

DTV Settings – setting the PIN code, parental control, locking channels

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked. These can then only be accessed with a security code PIN when in digital mode.

Setting the PIN

1 Press MENU and ▶ to select the SETUP menu.
2 Press ▼ to select DTV Settings then press OK.

3 Use ▼ to select PIN Setting then press OK.

4 Using the number buttons enter a four digit number, when these have been entered they will need to be confirmed by entering them again.

The PIN number has now been set.

If the PIN number has been set a prompt will appear requiring the PIN number to be entered before television settings (i.e. Auto Tuning, Reset TV etc.) can be altered.

Parental Control

The Parental Control feature allows the blocking of programmes according to their rating levels. It will only be available when a PIN number has been set.

1 From the DTV Settings menu press ▼ to select Parental Control and press OK.

2 Use ◀ or ▶ to choose between None and an age rating (4 to 18).

To activate the Parental Controls switch the television off then on again.

To view a blocked programme the PIN number will now have to be entered.

Locking Channels

Locking channels stops the viewing of digital channels. The PIN must be set before programmes can be locked.

1 From the DTV Settings menu press ▼ to select Channel Options and press OK.

2 Use ▼ or ▲ to highlight channels, then press ▶ to select the 'lock' option.
3 Press OK to select, a tick will appear in the box.
4 Press EXIT.

The PIN must now be entered before the locked channels can be accessed.

DTV settings – subtitles, audio languages, common interface

Subtitles

When in digital mode this feature will show subtitles on the bottom of the screen in the selected language provided they are being broadcast.

1 From the SETUP menu press ▼ to select DTV Settings. Press OK.
2 Press ▲ or ▼ to highlight Subtitle and Audio, then press OK.

3 Press ▼ to select Subtitle Type and use ◀ or ▶ to select Normal or Hard of Hearing.

4 Press ▼ to select Primary Subtitle Language or Secondary Subtitle Language and use ◀ and ▶ to select an option.
5 Press the SUBTITLE button to select on or off, or choose if more than one of the selected languages are available.

Audio Languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided they are currently being broadcast.

In the Subtitle and Audio menu press ▼ to select Audio Type and use ◀ or ▶ to select Normal or Hard of Hearing.

2 Press ▼ to select Primary Audio Language or Secondary Audio Language and use ◀ and ▶ to select an option.

NOTE: If more than one soundtrack is available, use ODI/II to select between them.

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information contact a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM is loaded.
2 In the DTV Settings menu press ▼ or ▲ to select Common Interface and press OK.
3 Details of the CAM should now be available.

Software upgrade, licences, system information, reset TV

Auto Upgrade

If Auto Upgrade is set to On the software will automatically upgrade as each version becomes available, provided the television is on or in standby.

In the SETUP menu press ▲ or ▼ to select Software Upgrade and press OK.
2 Press ▲ or ▼ to select Auto Upgrade.

3 Use ◀ or ▶ to select On or Off.

Searching for New Software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the Software Upgrade menu press ▼ to select Search for New Software. Press OK.

The television will automatically start searching for a software upgrade, the progress bar will move along the line.

SEARCHING FOR NEW SOFTWARE

Searching for a new software upgrade for this TV.

Searching

If an upgrade is found the television will automatically start downloading, if not a screen will appear stating that an upgrade is unavailable.

Software Licences

The licences for the software used in this television are available for viewing on screen.

1 In the SETUP menu press ▲ or ▼ to select Software Licences and press OK.

A screen will appear displaying all the licensing information required for the televisions software.

System Information

This feature can be used to check the version of software currently installed. In DTV mode it includes additional diagnostic information such as signal strength, signal quality, frequency etc.

1 From the SETUP menu press ▲ or ▼ to select System Information.
2 Press OK to display the System Information.

Reset TV

Selecting Reset TV will delete all television settings/features, including stored channels, returning the television to the original factory set up.

In the SETUP menu press ▼ until Reset TV is highlighted.
2 Press OK to select. A screen will appear warning that all previous settings will be lost, press ◀ or ▶ to select Yes or No, then press OK to continue.

The television will switch off then back on again and the Quick Setup screen will appear. Press OK to continue (see 'Quick Setup' section).

Media player – opening Media Player

The Media Player allows the viewing of photos (JPEG files), movies (DivX files) and music (MP3 files) stored in a USB storage device or SD memory card (photos only).

Photo Viewer specifications

Data type: JPEG Exif Version 2.2

File Format: DCF Version 1.1

Maximum photo size: 9MB

Maximum number of files: 2000/Folder

Maximum photo resolution: 16384 x 16384 Pixels

Movie Viewer specifications

File Format: DivX®

Maximum video resolution: 720 x 480 (30 fps)

Maximum number of files: 500/Folder

Music Player specifications

File Format: MP3

Sampling frequency: 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz

Bit rate: from 8 to 320kbps

Maximum number of files: 500/Folder

PLEASE NOTE

Insert the USB device or SD card gently into the television and do not remove while viewing Media Player.

Ensure the USB device is connected directly into the television, do not use a USB hub.

Some devices may not be compatible with the television.

Any required permission must be obtained from copyright owners to use copyright material. Toshiba cannot and does not grant such permission.

Auto Start

If Auto Start is enabled Media Player will automatically display the opening screen prompt when a USB device or SD card is connected. If Auto Start is set to Off Media Player can only be opened from the menu.

1 Press MENU and ◀ or ▶ to select APPLICATIONS.

2 Press ▼ to select Media Player then press OK.

3 In Media Player press ▼ or ▲ to select Auto Start.

4 Use ◀ or ▶ to select On or Off.

Opening Media Player automatically

1 Connect a USB flash drive to the USB Port or an SD memory card into the SD slot on the side of the television. A screen prompt will appear asking to open the Media Player.

USB device was connected to TV. Do you want to open Media Player?

No

Yes

2 Press ◀ or ▶ to select Yes, the Media Player will open.

NOTE: The screen prompt will remain on screen for approximately 6 seconds. If the USB device is inserted and removed frequently the prompt may not appear.

Opening Media Player from the menu

1 From the APPLICATIONS menu select Media Player then press OK.

2 Press ▼ or ▲ to highlight Photo, Movie or Music then press OK, the Media Player will open.

NOTE: The Media Player will open even if there are no images on the USB flash drive.

On-screen menus will not display while the Media Player is being used.

Media player (continued) – multiview, single view, slideshow, interval and repeat

Using Multi View

This view mode allows all the images within a selected folder to be viewed simultaneously, using thumbnail views in a grid. The initial highlighted position will be the top left image within the grid.

1 Open Media Player. Press ▲, ▼, ◀ and ▶ to select a folder then press OK. All the images in the folder will appear in the Multi View grid.

2 Press ▲, ▼, ◀ and ▶ to move through the images. If there are too many images for the screen, pressing ◀ on the top left image will show the previous page moving the highlight to the bottom right image. Alternatively, pressing ▶ on the bottom right image will show the next page moving the highlight to the top left image.

If there is more than one page of images within the folder pressing P ∧ and P ∨ will move through the pages.

3 Press RETURN to leave the current folder. Press EXIT to return to the last viewed source.

Using Single View

This view mode displays all the images in a selected folder individually by scrolling through them manually.

In the Multi View grid use ▲, ▼, ◀ and ▶ to highlight an image. Press OK, the selected image will appear on the screen.

2 Press ▶ to move to the next image or ◀ to move back to the previous image.

3 Press ▲ to rotate the image 90° clockwise or ▼ to rotate 90° counterclockwise.

4 To display file information i.e. image number, image title, shot date and time, file size etc., press ⓘ+. The information will remain on screen for approximately 6 seconds or can be removed by pressing ⓘ+ again.

5 Press EXIT to close Media Player.

Using Slideshow

This view mode displays all the images in a selected folder as a slideshow, scrolling through them automatically.

1 In Single View press OK. Slideshow will now display all the images in the selected folder.

2 As with Single View pressing ◀ and ▶ will display previous and next images. The images can also be rotated and their information displayed.

3 Press EXIT to return to the last viewed source.

Interval Time and Repeat Settings

This feature sets the interval time and repeat when in Single View and Slideshow modes.

1 While in Single View or Slideshow mode press QUICK to open the the Quick Menu.

2 Press ▲ or ▼ to select Interval Time then use ◀ or ▶ to adjust the setting.

3 Press ▼ to select Repeat then ◀ or ▶ to select On or Off.

Media player (continued) – playing movies, repeat mode, DivX® VOD

Playing Movies (USB devices only)

The Movie feature plays DivX® movie clips stored on a USB storage device.

1 In Media Player press ▼ or ▲ to select Movie then press OK.
2 Press ▼ or ▲ to select a file or folder. If there are more folders than will fit onto the screen use P ∧ or P √ to move onto the next or previous page.

3 When a folder is selected press OK to view files in the folder. Press RETURN to move back.
4 When the required files has been selected press OK or ▶ to start playback.
5 Press ■ to stop playback.

NOTE: When playback is stopped Media Player memorises the point at which it is stopped and when ▶ is pressed playback resumes from that point. To start playback from the beginning of the files press ■ twice.

If playback is finished before ■ is pressed the next file will automatically start to play from the beginning. Depending on the size of the file it may take a few minutes for playback to begin.

6 To pause playback at any point press ||/||►. To resume play press ►.
7 Press ◀◀ or ▶▶ to fast reverse or fast forward during playback. Each time ◀◀ or ▶▶ is pressed the playback speed will change.
8 To locate a specific point press ◀◀ or ▶▶ repeatedly until the point is accessed.

NOTE: If a file is not compatible with Media Player it will automatically be skipped.

9 To display file information i.e. content number, movie title, progress time, etc., press ⓘ+. The information will remain on screen for approximately 6 seconds or can be removed by pressing ⓘ+ again.
10 To view subtitles press SUBTITLE repeatedly to select the required subtitle language.
11 Press AUDIO repeatedly to select the required audio language.
12 Press EXIT to close Media Player.

Picture Size and Repeat

1 While the movie is showing, press QUICK to open the the Quick Menu.

2 Press ▲ or ▼ to highlight Picture size then use ◀ or ▶ to select Super Live, Cinema, Subtitle or Wide.
3 Press ▼ to highlight Repeat then ◀ or ▶ to select Off, All or 1.
4 Press RETURN.

DivX® VOD

To register the television to a DivX® account.

In Media Player press ▼ or ▲ to select DivX® VOD then press OK.
2 A screen will appear displaying DivX® VOD information and the eight character registration code. For details on registration go to the DivX website at http://vod.divx.com/.
3 Copy the activation file to a USB device and play it in the TV.

Media player (continued) – playing music, repeat mode

Playing Music (USB devices only)

The Music feature plays MP3 files stored on a USB storage device.

In Media Player press ▼ or ▲ to select Music then press OK.
2 Press ▼ or ▲ to select a file or folder. If there are more folders than will fit onto the screen use P ∧ or P √ to move onto the next or previous page.

3 When a folder is selected press OK to view files in the folder. Press RETURN to move back.
4 When the required files has been selected press OK or ▶ to start playback.
5 Press ■ to stop playback.

NOTE: When playback is stopped Media Player memorises the point at which it is stopped and when ▶ is pressed playback resumes from that point. To start playback from the beginning of the files press ■ twice.

If playback is finished before ■ is pressed the next file will automatically start to play from the beginning. Depending on the size of the file it may take a few minutes for playback to begin.

6 To pause playback at any point press ||/||►. To resume play press ►.
7 Press ◀◀ or ▶▶ to fast reverse or fast forward during playback. Each time ◀◀ or ▶▶ is pressed the playback speed will change.
8 To locate a specific point press ◀◀ or ▶▶ repeatedly until the point is accessed.

NOTE: If a file is not compatible with Media Player it will automatically be skipped.

9 To view subtitles press SUBTITLE repeatedly to select the required subtitle language.
10 Press AUDIO repeatedly to select the required audio language.
11 Press EXIT to close Media Player.

Repeat Mode

1 Press QUICK to open the the Quick Menu.

2 Use ◀ or ▶ to select Off, All or 1.
3 Press RETURN.

Media player (continued) – setting up the photo frame feature

Photo Frame Setup

This feature allows a photograph to be displayed on the screen of the television using the set as a photo frame.

1 Insert a USB device or an SD card into the side of the television. In the PREFERENCES menu press ▼ until Photo Frame Setup is highlighted then press OK. The preview screen will appear.

2 With Photo Select highlighted press OK.

3 Use ▼, ▲, ◀ and ▶ to located the required photo, then press OK to select.

4 Press down to highlight Photo Edit, then OK to select.

Rotate

Delete

5 If the photo requires rotating, use ▼ to select Rotate then press OK. Each time OK is pressed the photo will rotate 90°.

6 To delete the photo, use ▼ to highlight Delete then press OK. A screen prompt will appear, use ◀ or ▶ to select Yes. To choose another photo press RETURN then select as in Step 2 and 3.

7 Press ▼ to highlight Settings then press OK.

For a clock to appear on screen with the photo, with Clock highlighted use ◀ or ▶ to select Digital, Analogue, Digital and Analogue or Off.

9 Press ▼ to highlight Position and ◀ or ▶ to choose Left or Right. The clock will then move to whichever position has been chosen.

10 Press ▼ to highlight Auto Power Off. Using ◀ or ▶ to select between 00:30, 01:00, 02:00, 04:00, 06:00, 12:00 or Off.

Setting this option will put the television into standby after the chosen time period.

11 Press RETURN.

12 Use ▲ to highlight Photo Select then ◀ or ▶ to highlight Start. Press OK.

The photo will now enlarge on the television screen with the clock, if set, in the required position. It will remain on screen for the chosen time period.

13 Pressing EXIT will take the television back to normal viewing.

NOTE: The clock display will appear only when the digital broadcast is received.

The Photo and Settings items are moved by 4 dots every 5 minutes to prohibit screen burn-in.

The pre-installed photo file is stored in the television's flash memory before shipment.

14 Photo Frame can also be opened from the Quick Menu. Press QUICK to open the Quick Menu.

15 Press ▲ or ▼ to select Photo Frame then press OK.

PC settings for RGB/PC connections – picture position, clock phase, sampling clock, reset

Connect the PC (as shown in the 'Connecting a PC via RGB/PC' section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

1 Press ⬤ to select PC, then select PC Setting from the SET UP menu.

2 Press OK. Press ▲ and ▼ to select an option, then ◀ or ▶ to adjust the settings.

Clock Phase

The Clock phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the SET UP menu press ▼ until PC Setting is highlighted.

2 Press OK to select, then ▼ to highlight Clock phase.

3 Use ◀ or ▶ to adjust until the picture clears.

Sampling ClockPicture Position

Adjusting the Sampling clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the SET UP menu press ▼ until PC Setting is highlighted.

2 Press OK to select, then ▼ to highlight Sampling clock.

3 Use ◀ or ▶ to adjust until the picture clears.

NOTE: The screen may be momentarily disrupted when adjusting PC settings. The default settings and adjustment ranges may vary depending on the input signal format.

Reset

To return to the original factory settings.

1 In the SET UP menu press ▼ until PC Setting is highlighted.

2 Press OK to select, then ▼ to highlight Reset.

3 Press OK.

NOTE: The screen will be disrupted momentarily when the PC settings are adjusted, this is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

PLEASE NOTE

When a PC is connected using HDMI none of these functions will be available.

REGZA-LINK controls

This feature uses CEC (Consumer Electronics Control) technology and allows the control of Toshiba REGZA-LINK compatible equipment from the television remote control. Note: not all Toshiba products currently support REGZA-LINK.

REGZA-LINK Equipment Control

REGZA-LINK mode on the televisions remote control allows the control of connected REGZA-LINK equipment being watched.

To control the REGZA-LINK input source first select the equipment with REGZA-LINK input source selection, then switch the mode on the remote control to REGZA-LINK and press any buttons.

The available functions depend on the equipment connected. Not all the remote control keys may be available. Please refer to the operation manual for each piece of equipment connected.

The television features that can be controlled by the connected equipment are: Standby, Volume, Channel, Sound mute, Display information, Number buttons and Previous programme.

REGZA-LINK Input Source Selection

When any equipment using CEC technology is connected the REGZA-LINK icon will show in the input source list allowing selection of individual devices.

1

Press ⬤ and a list will appear on screen showing modes and all stored external equipment.

2

Press ▼ to highlight the input source showing the REGZA-LINK logo.

3

Press ▶ and a second selection screen will appear showing all connected REGZA-LINK equipment.

4

Use ▲ or ▼ to highlight an input source, then press OK to select.

NOTE: When the television is switched on it will take a few minutes for the REGZA-LINK logo to appear in the list, when an HDMI cable is removed it will take a few minutes for the logo to disappear.

NOTE: If the HDMI cable from connected equipment is changed or HDMI equipment settings are changed Enable REGZA-LINK in the REGZA-LINK setup menu may need to be reset to On.

When the REGZA-LINK input source is selected some REGZA-LINK equipment may automatically switch on.

The following features are dependent on the connected equipment. For operating information refer to the operation manual for all connected equipment.

REGZA-LINK controls (continued), REGZA-LINK menus

By activating the Enable REGZA-LINK feature in the REGZA-LINK setup menu individual REGZA-LINK features can then be activated.

REGZA-LINK One Touch Play

When connected equipment is switched on REGZA-LINK will automatically detect the television through the input selection. If the television is in standby it will be switched on automatically. This feature is selected in the REGZA-LINK setup menu.

NOTE: Even if the equipment is showing a menu the television may automatically show the input source.

NOTE: This feature is dependent on the connected equipment and television setting.

REGZA-LINK System Standby

This feature automatically switches connected equipment into standby when the television goes into standby and conversely for the television to switch into standby when connected equipment goes into standby. It is selected in the REGZA-LINK setup menu.

NOTE: This feature is dependent on the connected equipment and television setting.

REGZA-LINK System Audio Control

Using the Speaker Preference feature allows the televisions remote control to adjust the volume or mute the sound of the speakers connected to the television via an AV amplifier.

Ensure that the connected AV amplifier and REGZA-LINK equipment are selected in the input source selection and that the Speaker Preference is set to Amplifier in the REGZA-LINK setup menu.

NOTE: When the AV Amplifier is switched on, its input source changed or the volume adjusted, the sound will be output from the AV Amplifier's speakers even if TV Speakers has been selected. Turn the television off then on again to output the sound from the TV's speakers.

The full function may not work and is dependent on the Amplifier being used.

REGZA-LINK PC link

This feature automatically adjusts the suitable widescreen formats and picture preferences when connected to a REGZA-LINK PC.

NOTE: This feature is dependent on the connected equipment.

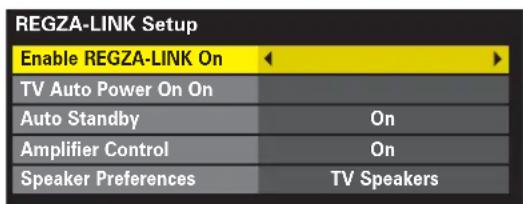

Enable REGZA-LINK

When Enable REGZA-LINK is set to On it allows the other functions to be enabled.

In the PREFERENCES menu press ▼ to select REGZA-LINK Setup then press OK.

2 Press ▼ to highlight Enable REGZA-LINK, then ◀ or ▶ to select On or Off.

REGZA-LINK menus

TV Auto Power

The TV Auto Power setting allows the television to be automatically switched on or off if a REGZA-LINK device is turned on or off.

1 In the PREFERENCES menu press ▼ to select REGZA-LINK Setup then press OK.

2 Press ▼ to highlight TV Auto Power On.

2 Press ◀ or ▶ to select On or Off.

Auto Standby

When the Auto Standby is enabled the television when switched off will automatically switch off all connected REGZA-LINK equipment.

1 In the REGZA-LINK Setup menu press ▼ to highlight Auto Standby.

2 Press ◀ or ▶ to select On or Off.

Amplifier Control

When Amplifier Control is enabled REGZA-LINK allows some of the amplifier features to be controlled with the television remote control.

1 In the REGZA-LINK Setup menu press ▼ to highlight Amplifier Control.

2 Press ◀ or ▶ to select On or Off.

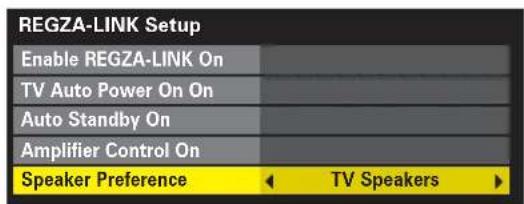

Speaker Preference

This feature allows the audio output preference to be set to the TV speakers or AV amplifier speakers. The AV Amplifier option lets the televisions remote control adjust or mute the volume of the audio.

1 In the REGZA-LINK Setup menu press ▼ to highlight Speaker Preference.

2 Press ◀ or ▶ to select TV Speakers or Amplifier.

Input selection and AV connections

Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 7 for a clear view of the back connection recommendations.

Most media recorders and decoder send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively press the external source selection button ⬤ until the picture from connected equipment is shown.

This button must be used to view equipment connected using the COMPONENT VIDEO INPUT (EXT3C).

An S in the display e.g. 2S (EXT 2S), indicates the input is set for an S-Video signal.

Input Selection

1 At any time by pressing ⬤ a list will appear on screen showing modes and all stored external equipment. Use ▼ or ▲ to highlight and OK to select.

Pressing → on the remote control

Pressing ➕ on the TV side panel

* HDMI4 is model dependant

HDMI displays equipment connected to HDMI on the back and side of the television.

PC displays a computer connected to RGB/PC on the back of the television.

External input skip

This feature makes input selection more convenient.

1 Press → to select the external input to be skipped (i.e. → 1, → 2 or → 3C).

1 In the SETUP menu press ▼ to highlight Manual Settings, then press OK.

2 Use▶ to select Skip then ▼ or ▲ to select On.

Press EXIT. The skipped input will now be greyed out on the Input list and will be skipped over when ⬤ is pressed to go through the list.

INPUT Signal Selection

This specifies the type of signal going into SCART 2 (EXT2) on the back of the television. Please refer to the manufacturers instructions for the connected equipment.

In the SETUP menu press ▼ until AV connection is highlighted, then press OK.

2 With ◀ or ▶ select either AV or S-VIDEO as the required input for EXT2.

If the colour is missing try the alternative setting.

PC Audio

To receive sound from a connected PC, plug the audio cable into the back of the television (see 'Connecting a computer' section), then use the PC/HDMI1 Audio setting.

In the AV connection menu press ▼ to highlight PC/HDMI1 Audio.

2 Use to ◀ or ▶ select the PC option.

NOTE: Selecting the PC option will force HDMI into digital audio.

Input selection and AV connections (continued)

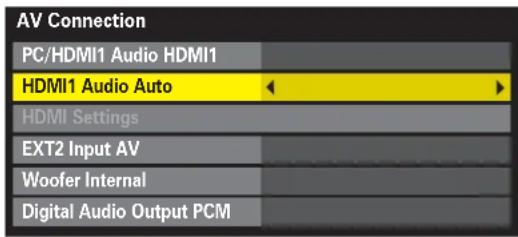

HDMI1 Audio

If the connected HDMI source does not support digital audio, plug the audio cable into PC/HDMI1 (Audio) on the back of the television (as shown in the 'Connecting an HDMI or DVI device to the HDMI input' section), then use the HDMI1 Audio setting.

1 In the AV connection menu press ▼ to highlight PC/HDMI1 Audio and using ▶ select HDMI1.

2 Press ▼ to highlight HDMI1 Audio and using ◀ or ▶ select Auto, Digital or Analogue.

If the sound is missing select an alternative setting.

NOTE: HDMI1 supports digital and analogue sound, HDMI2, HDMI3 and HDMI4 (Model dependant) are digital sound only.

Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI Settings

The options in this features are only available when an HDMI input is selected (i.e. HDMI1, 2, 3 or 4). Some early HDMI equipment may not work properly with the HDMI television, setting the options in HDMI Settings to Off should help.

1 In the AV connection menu press ▼ to highlight HDMI settings then press OK.

2 Use ▲ or ▼ to select an option then ◀ or ▶ to select.

Lip Sync

Activates an audio/video display timing adjustment that allows HDMI devices to automatically synchronise accurately.

If the HDMI source does not support these features the television may not work properly when they are activated.

INSTAPORT™

Reduces the log of switching times when switching HDMI sources.

RGB Range

Adjusts RGB full range signal automatically. When Limit is selected the RGB signal's output range is 16 to 235. When Full is selected the RGB signal's output range is 0 to 255.

NOTE: If the HDMI connection is capable of 1080p and/or the television is capable of refresh rates greater than 50Hz or supports Deep Colour, a Category 2 cable will be required. Conventional HDMI/DVI cables may not work properly with this mode.

Digital Output (optical)

When connecting a surround sound amplifier to the digital audio optical output (Sony/Philips Digital Interface Format [S/PDIF]) on the back of the television, the following options can be selected.

PCM: this mode outputs PCM format to the digital audio output socket.

Auto: this mode outputs audio format (eg. Dolby Digital) or PCM to the digital audio output socket providing it is being broadcast.

Dolby Digital → Dolby Digital

Dolby Digital Plus → Dolby Digital

MPEG → PCM

HE-AAC → Dolby Digital

1 In the AV connection menu press ▼ to highlight Digital Audio Output.

2 Use ◀ or ▶ to select PCM or Auto.

NOTE: Dolby Volume will only be available when Digital Audio Output is set to PCM.

EIA/CEA-861-D compliance covers the transmission of uncompressed digital video with high-bandwith digital content protection, which is being standardized for reception of high-definition video signals. Because this is an evolving technology, it is possible that some devices may not operate properly with the TV.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC. INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.

ATV text services – selecting modes, general information, Auto and LIST modes

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. LIST will store your four favourite pages.

Selecting Modes

The text character set will be automatically chosen by the language setting in the SETUP menu.

1 Select Teletext from the PREFERENCES menu.

2 With ◀ or ▶ choose Auto or LIST then press EXIT.

Text Information

The TEXT button:

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P ↗ to advance to the next page and P √ to go back to the previous page.

Subtitles are available on page 888.

Sub-pages

If there are sub-pages they will automatically load into memory without changing the page on screen. A bar with numbers will appear on the bottom of the screen.

If a text page with sub-pages is selected, the sub-pages are displayed in sequence automatically, pressing ◀ or ▶ will move through the sub-pages manually and cancel the automatic sequence.

The sub-page being viewed will be highlighted, as the television loads any additional sub-pages the page numbers will appear in the bar indicating that they have loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating Pages Using Auto

If Fastext is available four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating Pages Using LIST

The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages press the relevant coloured buttons.

To change these stored pages press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to store. Whenever OK is pressed all four page numbers showing at the bottom will be stored and the previous ones will be lost.

If OK is not pressed the selection will be forgotten when text is cancelled.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be stored.

ATV text services – control buttons DTV interactive services

Below is a guide to the functions of the remote control text buttons.

To display the index/initial page:

Press ☐ to access the index/initial page. The one displayed is dependant on the broadcaster.

TEXT

To display a page of text:

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Programmes cannot be changed until this has been done.

To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☐? button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press and will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☐ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

To select a page whilst viewing a normal picture:

Enter the page number then press Ⓗ/EX, a normal picture will be displayed. The television will indicate when the page is present by displaying the page number at the top of the screen. Press Ⓗ/EX to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). Press 📋/EX. The news flashes will be displayed as and when they are broadcast. Press 📋/EX again to cancel the display.

The news flash page must be cancelled before changing programmes.

Remember to cancel text before changing channels – press the XT button twice.

DTV Interactive Services

The digital interactive services are the up-to-date way of viewing service information, using computer-style formats, incorporating pictures and interactive views.

They offer high quality on-screen images with multi-colour photographic still images, advanced text and graphics and are user-friendly. These services are free to anyone with a digital television, however, they are not available for all digital stations and are dependant on the broadcaster.

Ensure that digital mode has been selected. Press TEXT, it may take a few moments to load.

To navigate the pages and use the pull-down menus, use the coloured buttons and ▲, ▼, ◀ and ▶ as directed.

Press TEXT again at any time to cancel.

Questions and Answers

Below are the answers to some of the most common queries.

For more information go to www.toshiba.co.uk

Why is there no sound or picture?

A If the RED LED is unlit check that the mains plug is connected to the power supply and press the ⏻/I POWER button on the left side of the television. Then press ⏻ on the remote control, it may take a few moments, the GREEN LED will be lit.

Why doesn't the remote control work?

A Check the batteries aren't discharged completely or inserted incorrectly.

Why don't the controls on the front of the television work?

A Check that Panel lock is not On.

Why is DTV unavailable?

Another mode is selected. Press ➕ to select DTV.

Why is there a message permanently on the screen?

A Remove it by pressing .i+

Why is there a picture but no sound?

A Check all lead connections. Check the volume has not been turned down or that sound mute has not been selected.

Why doesn't the media being played show on screen?

A Make sure the media player is connected to the television as shown on page 7, then select the correct input by pressing ➕.

Why is the media picture in black and white?

A Check the correct input has been chosen, S-VIDEO or AV. See AV connections page 50.

Why did the picture stop while recording via scart?

A Check whether the ▼button was pressed while recording was in progress.

What else can cause a poor analogue picture?

A Interference or a weak signal. Try a different television station. Manual Fine Tuning may help.

1 Select the ATV Manual Tuning menu. Highlight the station and press OK, then press ▶ to select Manual Fine Tuning.

2 Using ▲ or ▼ adjust to get the best picture and sound. Press OK and then EXIT.

There is a picture, but why is there little or no colour?

A When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto. to automatically display the best colour system. To check that you have the best colour:

1 With the external source playing, select Manual Settings from the SETUP menu.

2 With ▲ or ▼ choose between Auto, PAL, SECAM, NTSC 4. 43 or 3. 58.

Q Why is there no sound or picture when in HDMI mode?

A Make sure that the cables used have the HDMI logo on them (HDMI). Some early HDMI equipment may not work properly with the latest HDMI television products, due to new standard adoption. Try setting Lip Sync, INSTAPORT™ and RGB Range to Off.

Questions and Answers (continued)

Why are the colours wrong when an NTSC source is played?

Connect the source via a SCART lead and play. Select Manual Settings from the SETUP menu.

1

Set the Colour to Auto and exit.

2

Go to the Picture settings menu and adjust the tint.

Why can popping noises be heard or blocks appear on the screen?

A

This is usually due to poor signal reception. Check the aerial/antenna connections and that the aerial not moved direction. An aerial/antenna upgrade may be required in order to receive all available services.

Why is there a square shaped picture on the widescreen television?

A

Some television programmes are transmitted in 4:3, in particular older programmes. Turning Autoformat will stop the television showing native picture sizes.

Why can television channels be seen in the dark background areas when playing DVDs?

A

This is usually due to poor connection leads (scart/HDMI) being used. Check all connections.

Why are there vertical stripes on the screen in PC mode?

A

The Sampling clock may need adjustment. Select PC Setting from the SET UP menu, highlight pling clock and adjust until the lines clear.

Why are there horizontal stripes and/or blurred images on the screen in PC mode?

A

The Clock phase may need adjustment. Select PC Setting from the SET UP menu, highlight Clock use and adjust until the picture clears.

Why is there a good media picture but no sound?

A

Check all lead connections.

Why is there no sound when the PC is connected?

A

Check all leads and connections.

A Note: No sound is output from a DVI connection (if using a DVI to HDMI lead). The audio input connection must also be used.

Why is the soundtrack in English when a different audio language has been selected?

A

The programme is currently being broadcast with an English soundtrack only.

Why is there incorrect or no sound when in DTV mode?

A

Press OII/II to check if another audio track has been selected.

Why when digital subtitles have been selected are they not showing on screen?

A

Subtitles are not currently being transmitted by the broadcaster.

Why is Digital Audio output for?

A

This is a superior connection for connecting to an audio sound system and allows transmission of i-channel sound.

Why is the digital channel locked?

A

The channel has been locked in Channel Options (see 'Digital Settings' section).

Why are some of the digital subscription channels unavailable?

A

Your subscription needs upgrading. Contact your service provider.

Questions and Answers (continued)

Why do other people receive a different number of digital channels?

A Different areas can receive different numbers of channels depending on the localo transmissions. These can be checked on internet sites such as www.ukfree.tv

When tuning channels why are the channel numbers not in sequential order?

A In the UK DTV channel numbers are allocated by the broadcasters.

Why is there no digital text service?

A The digital channel being viewed is not broadcasting digital text. Try another digital channel.

Why are there problems with analogue text?

A Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Why are the four coloured text numbers visible but no text?

A Text has been selected whilst viewing an external source i.e. DVD or VCR. No text will appear on screen or a box may appear stating no information is available. Select a broadcasting channel and press TEXT to access.

Why can't teletext by accessed when using a media recorder?

A Teletext is only available when viewing a broadcasting channel.

What is DVB-T?

A Digital Video Broadcast via an aerial/antenna.

What is DVB-C?

A Digital Video Broadcast via a cable connection (if available).

How are radio channels selected?

A Press ATV/DTV on the remote control and select DTV RADIO. Alternatively select from the GUIDE.

What does AD mean?

Audio Description is a detailed narrative sound track, which is only available if being broadcast with the programme being watched.

What is a CI slot?

A The Common Interface slot is for pay per view services via a conditional access module. Contact your local service provider for further details.

Is the television HD?

A Yes, all Toshiba Regza LCD televisions are HD ready. A suitable HD decoder or similar is required to supply the television with an HD signal.

How can external speakers be connected?

A This is not an available option.

How can the signal be output via HDMI sockets?

A No HDMI connections are available from the television. An appropriate decoder or similar is required.

Why are the phono inputs different colours?

A Phono inputs are shown in different colours in order to identify the type of connection, i.e. red/white is usually left/right sound connections. Ensure colours are matched with the external equipment outputs.

Questions and Answers (continued)

Why are the LEDs on the front of the television flashing?

Check the table below.

LED indication			Condition Solution
LED-3	LED-2	LED-1
Orange(Solid)	Green(Solid)	Green(Solid)	Power ONOn Timer is setProgramme Timeris set	—
Red(Solid)	Green(Solid)	Green(Solid)	Power ONOn Timer is setProgramme Timeris working	—
OFF	Green(Solid)	Green(Solid)	Power ONOn Timer is setProgramme Timeris NOT set	—
Orange(Solid)	OFF	Green(Solid)	Power ONOn Timer is NOT setProgramme Timeris set	—
Red(Solid)	OFF	Green(Solid)	Power ONOn Timer is NOT setProgramme Timeris working	—
OFF	OFF	Green(Solid)	Power ONOn Timer is NOT setProgramme Timeris NOT set	—
Orange(Solid)	Green(Solid)	Red(Solid)	Power OFF (Standby)On Timer is setProgramme Timeris set	—
Red(Solid)	Green(Solid)	Red(Solid)	Power ON (Standby)On Timer is setProgramme Timeris working	—
OFF	Green(Solid)	Red(Solid)	Power OFF(Standby)On Timer is setProgramme Timer isNOT set	—
Orange(Solid)	OFF	Red(Solid)	Power OFF (Standby)On Timer is NOT setProgramme Timer isset	—
Red(Solid)	OFF	Red(Solid)	Power ON (Standby)On Timer is NOT setProgramme Timeris working	—
OFF	OFF	Red(Solid)	Power OFF(Standby)On Timer is NOT setProgramme Timer isNOT set	—
OFF	OFF	RedBlinks	Power protectdetection	Turn OFF the TVand unplug thepower cord. Plugthe power cord inagain and turnON the TV

How can a camera/camcorder be connected?

These can be plugged into the connections on the side of television.

Why doesn't REGZA-LINK work?

If settings on connected REGZA-LINK equipment are changed the equipment may fail to work correctly television. Removing the HDMI cable then replacing my help. If not turn off the television, remove the other cable from the wall socket, then plug the television in and switch on.

Will other manufacturers AV equipment work with REGZA-LINK (SKY, Home Cinema etc)?

Most AV equipment with CEC link should function correctly, however only Toshiba products are assured work.

Why is there a red light on the back of the television and is it dangerous?

This is the optical Digital Audio output. Avoid contact with the eyes for any extended period of time.

What can be done if the PIN number has been forgotten?

Use the Master PIN code of 1276, then change to a number of your choice. Ensure that no-one else can the Master PIN by removing the Owner's Manual.

Where is the Serial number/model name located?

The serial number is located centrally at the rear of the television. It is also printed on the carton box lied.

Why does the television get hot?

As with any device using lamps or similar, the television will output a certain amount of heat.

Questions and Answers (continued)

Where can replacement parts be purchased?

Contact your local dealer or the Toshiba helpline number.

What is the best way to clean the screen and bezel?

Use a lint free cleaning cloth, similar to the one provided. Use a non solvent cleaning product.

Are floor stands available?

Yes, these can be purchased from shops or directly from Toshiba Information Systems (UK) Ltd.

Can the television be hung on the wall?

Yes, using an appropriate Vesa wall bracket. These are readily available from shops and the internet.

IN NEED OF HELP

For television operation queries, please ring the helpline...

DISPOSAL...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

EU

Specifications and accessories

DVB-T Broadcast systems/channels

UK UHF 21-68

France VHF 05-10 (VHF 01-05)

UHF 21-69

Germany VHF 05-12

UHF 21-69

Austria VHF 05-12

UHF 21-69

Switzerland VHF 05-12

UHF 21-69

Italy VHF 05-12 (D,E,F,G,H,H1,H2)

UHF 21-69

Spain UHF 21-69

External connections

EXT1

Input

21-pin SCART

RGB, A/V

EXT2

Input/Output

21-pin SCART

A/V, S-video

Selectable output

(Scart output best suited for analogue channels)

EXT3

Input

Phono jacks

RGB Range supported)

HDMI4

Input (Side)

HDMI (Audio LIP SYNC, INSTAPORT™,

(Model dependant)

RGB Range supported)

PC

Input

Mini D-sub 15-pin

Analog RGB signal

PC/HDMI1 Audio

3.5mm mini jack

Audio

Digital Audio Output (S/PDIF) Optical

USB Port

USB Class: Mass Storage

File System: FAT 12/16/32

SD Card Slot

Supported media:

SD Memory Card 8MB-2GB

SDHC Memory Card 4GB-32GB

Remember.

For television

operation queries,

please ring the

helpline..

0844 856 0730

UK ONLY

VX1A00138300

Stereo	Nicam
	2 carrier system

Visible Screen Size 42 ZV 107cm

(approx.)	47 ZV	119cm
	55 ZV	140cm

Display 16:9

Sound output (at 10% distortion) Main 10W + 10W

Power consumption(approx.)	42 ZV	184W
	47 ZV	210W
	55 ZV	285W

Standby (approx.)	42 ZV	0.6W
	47 ZV	0.6W
	55 ZV	0.6W

Dimensions(approx.)	42 ZV 73cm (H) 106cm (W) 33cm (D)
	47 ZV 80cm (H) 118cm (W) 33cm (D)
	55 ZV 91cm (H) 137cm (W) 40cm (D)(Height dimension includes foot stand)

Weight (approx.) 42 ZV 23kg

47 ZV	26.5kg
55 ZV	37kg

Headphone socket 3.5mm stereo

Accessories Remote control

2 batteries(AAA, IEC R03 1.5V)Cleaning ClothP Clip

DivX® is a registered trademark of DivX, Inc., and is used under licaense.

SD Logo is a trademark

DVB is a registered trademark of the DVB Project

© Toshiba Information Systems (UK) Limited

All rights reserved. Reproduction in whole or part without written

permission is strictly prohibited.

Origination by Zushi Digital, Bristol, UK.

Toshiba Information Systems (UK) Limited

Consumer Products Division,

Toshiba Court, Weybridge Business Park,

Addlestone Road, Weybridge,

Surrey, KT15 2UL, England

Specification is subject to change without notice.
