RM3220 - Blender Concept - Free user manual and instructions

Product Type	Blender
Model	RM3220
Brand	Concept
Power Consumption	700 W
Capacity	1.5 L
Speed Settings	2 speeds + pulse
Blade Material	Stainless steel
Jug Material	Glass
Dimensions (W x D x H)	16 x 16 x 38 cm
Net Weight	2.1 kg
Cord Length	1.0 m
Voltage	220-240 V, 50/60 Hz
Functions	Blending, mixing, pureeing, crushing ice
Safety Features	Locking lid, overload protection, non-slip feet
Cleaning	Removable blades, easy-clean jug, hand wash recommended
Dishwasher Safe Parts	Jug and lid (top rack only)
Spare Parts Availability	Replacement jug and blade assembly sold separately
Reparability	User-replaceable blades; motor service by professional
Warranty	2 years
Package Contents	Blender unit, glass jug, lid, user manual

Frequently Asked Questions - RM3220 Concept

How do I clean the blender after use?

Fill the jug halfway with warm water and a drop of dish soap. Run the blender on pulse for 30 seconds, then rinse thoroughly. Do not immerse the motor base in water.

Can I crush ice with this blender?

Yes, the Concept RM3220 can crush ice. Use the pulse function and add ice cubes gradually.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C to avoid pressure build-up. Allow liquids to cool before blending.

How do I replace the blender blades?

Remove the jug from the base, unscrew the blade assembly from the bottom of the jug. Install the new blade assembly and tighten securely. Ensure the sealing ring is in place.

The blender won't start. What should I check?

Ensure the jug is properly seated on the base and the lid is locked. Check the power cord and outlet. If it still doesn't work, the overload protection may have tripped; unplug for 10 minutes and retry.

Can I blend nuts or seeds?

Yes, but use the pulse function and add liquid to help the blending process. Avoid overworking the motor.

Is the glass jug dishwasher safe?

Yes, the glass jug and lid are dishwasher safe on the top rack. The blade assembly should be hand washed.

What does the pulse function do?

The pulse function runs the blender at high speed for short bursts, giving you control over chopping and mixing. Press and hold the pulse button as needed.

How do I prevent leaks from the lid?

Ensure the lid is aligned correctly and pressed down firmly until it clicks. The sealing ring must be clean and undamaged.

Where can I buy spare parts?

Spare parts such as the jug and blade assembly can be ordered from the Concept website or authorized service centers. Use the model number RM3220 for compatibility.

USER MANUAL RM3220 Concept

Line drawing of a portable oil lamp with a bulb and plug, no text or symbols present

RM 3220

CZ \$K PL HU UK

Labeled diagram of a portable blender with numbered parts including lid, bulb, and speaker

NÁVOD NA OBSLUHU

Upozornění:

Illustration of a spray bottle with a faucet and droplet falling, crossed by diagonal lines (no text or symbols)

CZ

concept

Labeled diagram of a coffee maker with numbered parts for identification

NÁVOD NA OBSLUHU

Upozornenie:

Illustration of a spray bottle with a faucet and droplet falling, crossed by diagonal lines (no text or symbols)

SK

concept

Illustration of a spray bottle with a faucet and droplet falling, crossed by diagonal lines (no text or symbols)

PL

concept

Labeled diagram of a coffee maker with numbered parts for identification

HASZNÁLATI UTASÍTÁS

Figyelmeztetés:

Illustration of a showerhead emitting water from a faucet, crossed by diagonal lines (no text or symbols)

HU

concept

Before starting to use the appliance, please read carefully all instructions.

• The motor must never come into touch with water or any other liquid. Never immerse the device into water or any other liquid!
• For the same reason, do not operate the device close to wash basin, do not operate it with humid hands and do not place it on wet ground.
• If the appliance gets wet, disconnect it from power supply immediately, before touching it.
  • Do not use the appliance outdoor.
  • Never leave the appliance connected to power socket unattended.
• When you are not using the device, always disconnect it from the power supply socket
• Keep out of the reach of children.
• If not being used, while attaching or dismounting accessories, disconnect the device from power supply socket.
  • While disconnecting from power socket outlet, pull the plug, not the power cord.
  • Never remove the cutter lid if the device is switched on.
• If you switch the device off, the cutting blades keep rotating for a short while. Before touching them, wait unit they stop completely.
• Blades are very sharp. Handle the blade insert very carefully and keep it out of the reach of children.
  • The appliance is designed to process a usual quantity of foods in a household.
  • Use the appliance only for purposes corresponding to the intended use.
• Do not use the appliance if visibly damaged or if it was dropped previously.
  • Do not carry out any modifications to the device.
  • Power cord can be repaired or replaced only by qualified persons.
  • The appliance is intended solely for household use.
  • No other accessories than those supplied along with the appliance may be used.
• Before replacing the accessories, their attaching or dismounting, the appliance must be switched off and disconnected from power socket.
• Before cleaning or maintenance, always disconnect the device from power supply socket.

UK

concept

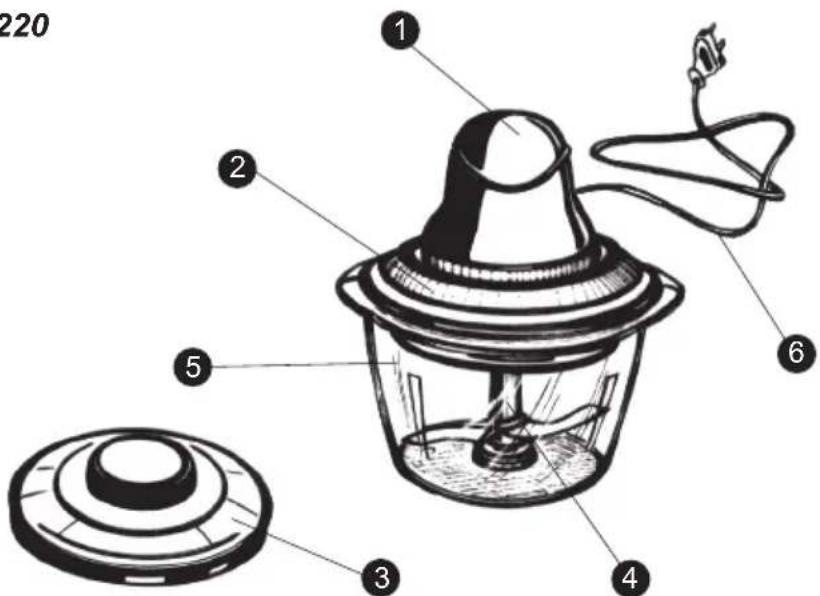

PRODUCT DESCRIPTION - RM 3220

1 Motor
2 Cutting lid
3 Food container lid
4 Blades insert
5 Container
6 Power cord

220 1 2 5 3 4 6

INSTRUCTIONS FOR USE

Warning:

Before first use, remove all parts from the device package, wash the container and mount the lids and blades. Be careful: blades are sharp!

1. Remove the motor ① and lid ② from the container and place them onto a firm, dry and clean working surface.
2. Make sure the blade insert ④ is correctly attached to the circle in the centre of the container ⑤.
3. Fill the container with the relevant foods. Prior to doing so, such foods must be cut in smaller pieces. When filling the container, do not exceed the level indicated by the MAX sign.
4. Attach the lid 2 (device cannot be switched on if lid is attached incorrectly).
5. Put the motor 1 onto the device and connect the device's power cord to power socket.
6. Push the motor downwards (fig. 1). Once released, the motor will stop. Wait until the blades stop rotating completely.
7. Before removing the motor 1 always disconnect the device from power supply plug.
8. Before emptying the container ⑤ first remove the blade insert ④.

START

Fig. 1

Note:

Wet or soft foods are crushed better if you switch the motor on and off repeatedly.

The mixer operates extremely quickly and some types of food are crushed within a second. The mixer is designed for short intervals of use (maximally 1 minute). If your need to work with the mixer for a longer time, switch it off after one minute of operation and let it cool down for 15 minutes.

Advices and recommendations:

• The device has a safety contact preventing the device from switching on if the lid is not attached correctly.
• The mixer is not intended for crushing hard ingredients, such as coffee beans, ice or frozen foods.
  • Before putting foods into mixer, always attach the blade insert first.
• If the blade insert does not rotate or if it rotates hardly, unplug the power cord from power socket.
• Check if there is any obstacle inside the container and remove it if it is the case.
• Check if the blade insert is attached correctly and can rotate freely.
• If the blade insert does not reach its full rotation speed within several seconds, unplug the device from power socket and before resuming to work, remove some of the foods from the container.
• If any humid foods remain attached to the container walls, scrape them away using spoon or similar object back to the centre of the container.
  • Never use your fingers to do so!
• To achieve even crushing of foods, fill in pieces of the same size and do not overfill the container above the MAX sign.
• If you wish to fine-crush the ingredients to a mash, they must be boiled previously.
  • Do not overfill the container.
• Do not switch the device on if the container is empty.

CLEANING AND MAINTENANCE

• The device has a safety contact preventing the device from switching on if the lid is not attached correctly.
• First disconnect the appliance from power supply network!
  • The motor must never be immersed into water or any other liquid.
• Clean the motor cover gently with a humid cloth.
  • For cleaning, you can use a small quantity of cleaning agent.
  • Never use abrasive cleaning agents or sponge with rough surface

Illustration of a spray canister with water droplets and a falling faucet, crossed by diagonal lines (no text or symbols)

UK

concept

The container, crushing lid and the food container lid can be washed in warm water with a small amount of cleaning agent.

Before re-mounting the device, leave the particular parts dry well. Residual water might cause occurrences of mould.

As a result of processing harder foods with high abrasion, the container may become pale after a certain time. This is normal and has no impact on the device's functionality.

Cleaning the blade insert: Be careful - blades are sharp!

To preclude possible injuries, use clear water while washing the device. Like that, you can always see the blade.

SERVICING:

More extensive maintenance or repairs must be carried out by a professional repair shop.

ENVIRONMENTAL PROTECTION

• Prefer recycling of cover materials and old appliances.
  • The product's packing box can be disposed in waste paper recycling.
• Dispose of plastic polyethylene (PE) bags in raw-material salvage for recycling.

Device recycling at the end of its service life:

• Plastic materials marked as such, as well as other materials, can be recycled at the end of the appliance's service life.
• For possibilities of disposal please enquire relevant local authorities.
