DGX-220 - Digital piano YAMAHA - Free user manual and instructions

Product Type	Portable Digital Piano
Brand	YAMAHA
Model	DGX-220
Number of Keys	76 piano-style keys
Polyphony	32 notes
Tones	129 built-in voices
Accompaniment Styles	120 styles
Effects	Reverb, chorus
Display	Backlit LCD
Speakers	2 x 6W built-in
Power Supply	12V AC adapter (included) or 6 AA batteries
Dimensions (W x D x H)	1300 x 352 x 130 mm
Weight	Approx. 10.5 kg
Connectivity	Headphone jack, sustain pedal, MIDI IN/OUT
Learning Functions	Built-in lesson, metronome
Recording	2 tracks
Maintenance and Cleaning	Clean with a soft dry cloth. Avoid abrasive products.
Safety	Do not use near water, unplug during storms
Spare Parts and Repairability	Contact an authorized YAMAHA center. Batteries not included.

Frequently Asked Questions - DGX-220 YAMAHA

What type of AC adapter should I use for the Yamaha DGX-220?

Use the included AC adapter (Yamaha PA-3C or equivalent, 12V DC, 1A). Center positive polarity is required.

How many keys does the Yamaha DGX-220 have?

The DGX-220 is equipped with 76 keys of weighted piano action, offering a feel close to an acoustic piano.

How do I connect the piano to a computer?

The DGX-220 has MIDI IN/OUT ports. Use a MIDI-USB cable (not included) for connection to a computer.

Can I use headphones with the DGX-220?

Yes, plug a standard headphone (6.35 mm jack) into the headphone jack on the front. This cuts the built-in speakers.

How do I clean my Yamaha DGX-220?

Clean with a soft, dry cloth. Do not use chemical products, solvents, or damp cloths to avoid damaging the keys and electronics.

Does the DGX-220 have a display?

Yes, it has a backlit LCD screen displaying settings, voice names, and lesson information.

What batteries should I use for battery operation?

Use 6 AA alkaline batteries (LR6). Do not mix new and used batteries. Remove batteries if the device is not used for a long time.

How many built-in voices does the DGX-220 offer?

It offers 129 built-in voices, including piano, strings, organ, etc., with the ability to combine two voices via Dual Layer.

Is a pedal included in the box?

No, the sustain pedal is not supplied. You can purchase one separately (6.35 mm jack connection).

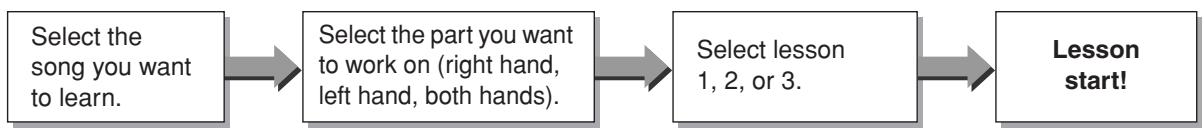

How do I use the built-in lesson function?

Press the [Lesson] button to access three modes: Listen, Timing, Waiting. Select a hand and follow the on-screen instructions.

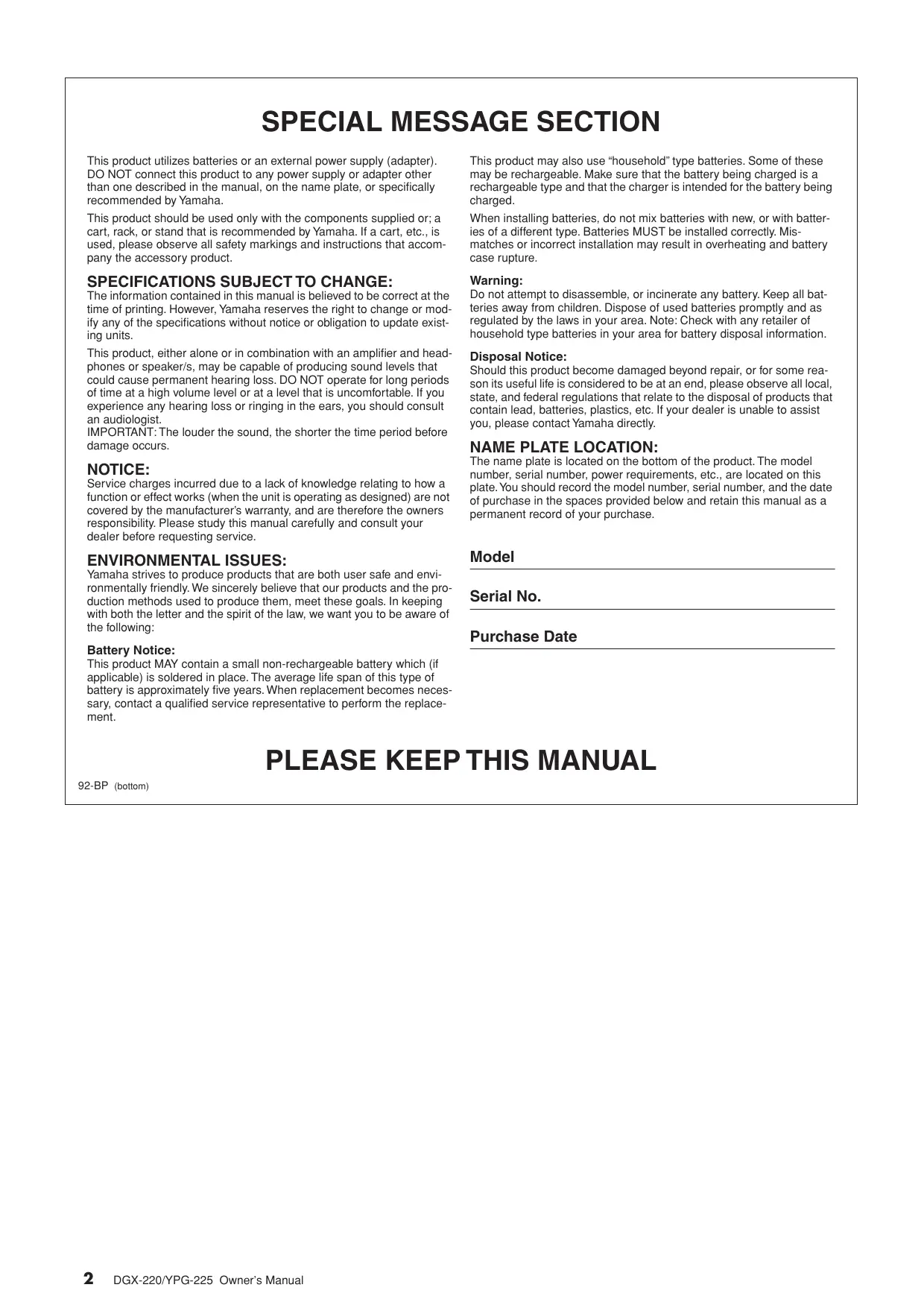

USER MANUAL DGX-220 YAMAHA

This product utilizes batteries or an external power supply (adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha.

This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer's warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

This product may also use "household" type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged.

When installing batteries, do not mix batteries with new, or with batteries of a different type. Batteries MUST be installed correctly. Mismatches or incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model

Serial No.

Purchase Date

PLEASE KEEP THIS MANUAL

92-BP (bottom)

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

1. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
2. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does

not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

• This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

OBSERVERA!

COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address: 6600 Orangethorpe Ave., Buena Park, Calif.

90620

Telephone:[phone]

Type of Equipment : Electronic Keyboard

Model Name: DGX-220/YPG-225

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

(FCC DoC)

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

• Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

Power supply/AC power adaptor

• Only use the voltage specified as correct for the instrument. The required voltage is printed on the name plate of the instrument.
• Use the specified adaptor (PA-5D or an equivalent recommended by Yamaha) only. Using the wrong adaptor can result in damage to the instrument or overheating.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
• Do not place the AC adaptor cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

Do not open

• Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

Water warning

• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.
• Never insert or remove an electric plug with wet hands.

Fire warning

• Do not put burning items, such as candles, on the unit.
  A burning item may fall over and cause a fire.

If you notice any abnormality

• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the adaptor plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

Power supply/AC power adaptor

• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord.
• Unplug the AC power adaptor when not using the instrument, or during electrical storms.
• Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

Battery

• Always make sure all batteries are inserted in conformity with the +/- polarity markings. Failure to do so might result in overheating, fire, or battery fluid leakage.
• Always replace all batteries at the same time. Do not use new batteries together with old ones. Also, do not mix battery types, such as alkaline batteries with manganese batteries, or batteries from different makers, or different types of batteries from the same maker, since this can cause overheating, fire, or battery fluid leakage.

• Do not dispose of batteries in fire.

• Do not attempt to recharge batteries that are not intended to be charged.

• When the batteries run out, or if the instrument is not to be used for a long time, remove the batteries from the instrument to prevent possible leakage of the battery fluid.
• Keep batteries away from children.
• If the batteries do leak, avoid contact with the leaked fluid. If the battery fluid should come in contact with your eyes, mouth, or skin, wash immediately with water and consult a doctor. Battery fluid is corrosive and may possibly cause loss of sight or chemical burns.

Location

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components.
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generate noise.

• Do not place the instrument in an unstable position where it might accidentally fall over.

• Before moving the instrument, remove all connected adaptor and other cables.

• When setting up the instrument, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect the plug from the outlet.
• Use only the stand specified for the instrument. When attaching the stand or rack, use the provided screws only. Failure to do so could cause damage to the internal components or result in the instrument falling over.

Connections

• Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Maintenance

• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinkers, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Handling caution

• Do not insert a finger or hand in any gaps on the instrument.
• Never insert or drop paper, metallic, or other objects into the gaps on the panel or keyboard. If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualified Yamaha service personnel.
• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.
• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.
• Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Saving data

Saving and backing up your data

The panel settings and some other types of data is lost when you turn off the power to the instrument. Save the data to the Registration Memory (page 73.)

Saved data may be lost due to malfunction or incorrect operation.

Save important data to an external device such as a computer. (page 84.)

Backing up the external media

• To protect against data loss through media damage, we recommend that you save your important data onto two external media.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

When using a power adaptor, even when the power switch is in the "STANDBY" position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long time, make sure you unplug the AC power adaptor from the wall AC outlet.

Make sure to discard used batteries according to local regulations.

The ilustrations and LCD screens as shown in this owner's manual are for instructional purposes only, and may be different from the ones on your instrument.

Trademarks

• Windows is the registered trademark of Microsoft® Corporation.
  The company names and product names in this Owner's Manual are the trademarks or registered trademarks of their respective companies.

Copyright Notice

The following is the title, credits and copyright notices for the song pre-installed in this electronic keyboard:

Mona Lisa

from the Paramount Picture CAPTAIN CAREY, U.S.A.

Words and Music by Jay Livingston and Ray Evans

Copyright © 1949 (Renewed 1976) by Famous Music Corporation

International Copyright Secured All Rights Reserved

Composition Title : Against All Odds

Composer's Name : Collins 0007403

Copyright Owner's Name : EMI MUSIC PUBLISHING LTD /

HIT & RUN MUSIC LTD

Can't Help Falling In Love

from the Paramount Picture BLUE HAWAII

Words and Music by George David Weiss,

Copyright © 1961 by Gladys Music, Inc.

Copyright Renewed and Assigned to Gladys Music

All Rights Administered by Cherry Lane Music Publishing Company, Inc. and Chrysalis Music

International Copyright Secured All Rights Reserved

All Rights Reserved, Unauthorized copying, public performance and broadcasting are strictly prohibited.

This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others' copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

This device is capable of using various types/Formats of music data by optimizing them to the proper format music data for use with the device in advance. As a result, this device may not play them back precisely as their producers or composers originally intended.

Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal use.

Panel Logos

GENERAL

GM System Level 1

"GM System Level 1" is an addition to the MIDI standard which ensures that any GM-compatible music data can be accurately played by any GM-compatible tone generator, regardless of manufacturer. The GM mark is affixed to all software and hardware products that support GM System Level.

XGlite

As its name implies, "XGlite" is a simplified version of Yamaha's high-quality XG tone generation format. Naturally, you can play back any XG song data using an XGlite tone generator. However, keep in mind that some songs may play back differently compared to the original data, due to the reduced set of control parameters and effects.

USB

USB is an abbreviation for Universal Serial Bus. It is a serial interface for connecting a computer with peripheral Devices. It allows "hot swapping" (connecting peripheral devices while the power to the computer is on).

STYLEFILE

The Style File Format is Yamaha's original style file format which uses a unique conversion system to provide high-quality automatic accompaniment based on a wide range of chord types.

Congratulations and thank you for purchasing the Yamaha DGX-220/YPG-225 Portable Grand!

Please read this owner's manual carefully before using the instrument in order to take full advantage of its various features.

Make sure to keep this manual in a safe and handy place even after you finish reading, and refer to it often when you need to better understand an operation or function.

Accessories

The DGX-220/YPG-225 package includes the following items. Please check that you have them all.

• Owner's Manual

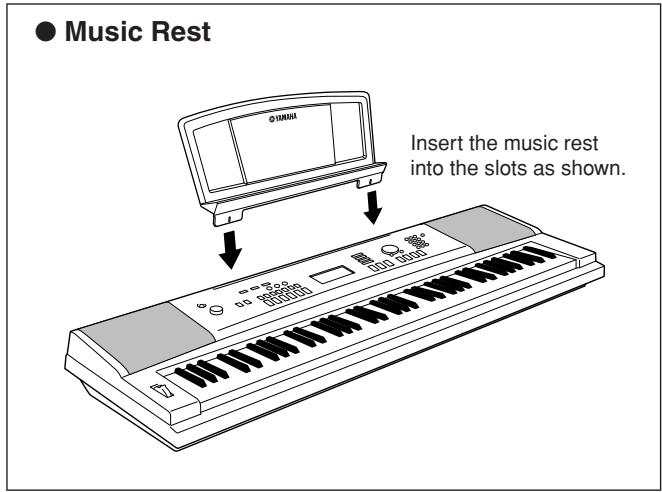

  Music rest

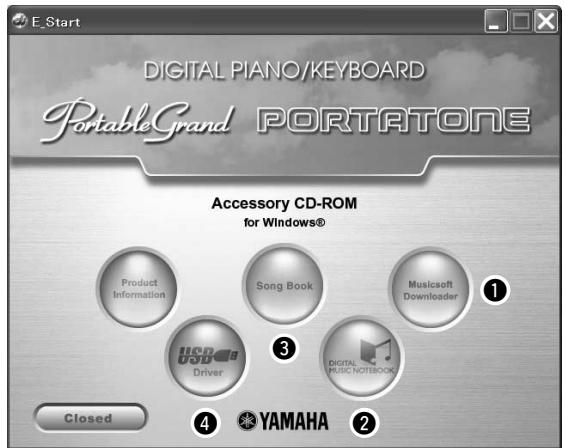

• Accessory CD-ROM

Play a Variety of Instrument Voices

Page 14

The instrument voice that sounds when you play the keyboard can be changed to violin, flute, harp, or any of an extensive range of voices. You can change the mood of a song written for piano, for example, by using violin to play it instead. Experience a whole new world of musical variety.

■ Play Along with Styles ▶ Page 19

Want to play with full accompaniment? Try the auto-accompaniment Styles. The accompaniment styles provide the equivalent of a full backing band covering a wide variety of styles from waltzes to 8-beat to euro-trance ... and much more. Select a style that matches the music you want to play, or experiment with new styles to expand your musical horizons.

■ Performance assistant technology

Page 29

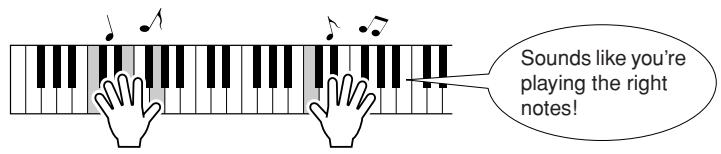

Play along with a song on the instrument's keyboard and produce a perfect performance every time ... even if you play wrong notes! All you have to do is play on the keyboard—alternately on the left- and right-hand ranges of the keyboard, for example—and you'll sound like a pro as long as you play in time with the music.

■ Learning Music is Fun ▶ Page 36

This instrument includes a range of songs covering a variety of genres that are enjoyable to listen to, or to play along with. You can start practicing with just one hand, and you can even practice at your own tempo, one note at a time as slowly as you like, until you are able to play at full speed. Song playback will automatically follow your tempo. You can also use songs you have downloaded from the Internet for lessons, so your musical resources are essentially unlimited! The instrument will even evaluate and grade your performance for you!

Exce1Ien

Contents

Copyright Notice 6
Panel Logos 6
Accessories. 7
Special Features of the DGX-220/YPG-225 8

Setting Up 10

Power Requirements 10
Connecting Headphones (PHONES/OUTPUT Jack) 11
Connecting a Footswitch (SUSTAIN Jack) 11

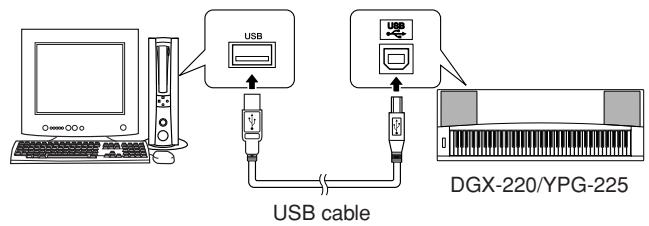

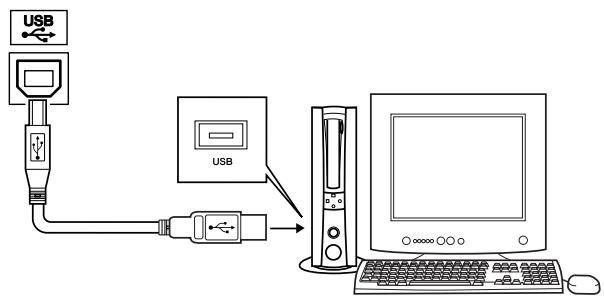

Connecting to a Computer (USB Terminal) 11
Turning the Power On. 11

Panel Controls and Terminals 12

Front Panel 12
Rear Panel. 13

Quick Guide

Try Playing a Variety of Instrument Voices 14

Select and Play a Voice--MAIN 14
Play Two Voices Simultaneously—DUAL 15
Play Different Voices with the Left and Right Hands

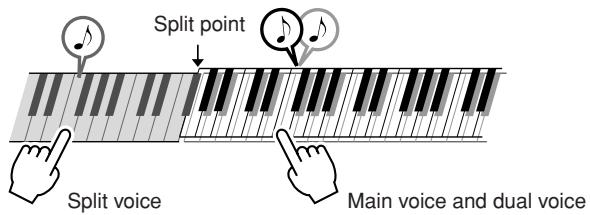

—SPLIT 16
Play the Grand Piano Voice. 17

Fun Sounds 18

Drum Kits 18
Sound Effects. 18

Playing Styles 19

Select a Style Rhythm 19
Play Along with a Style 20
Playing Auto-accompany Chords 24

Using Songs 25

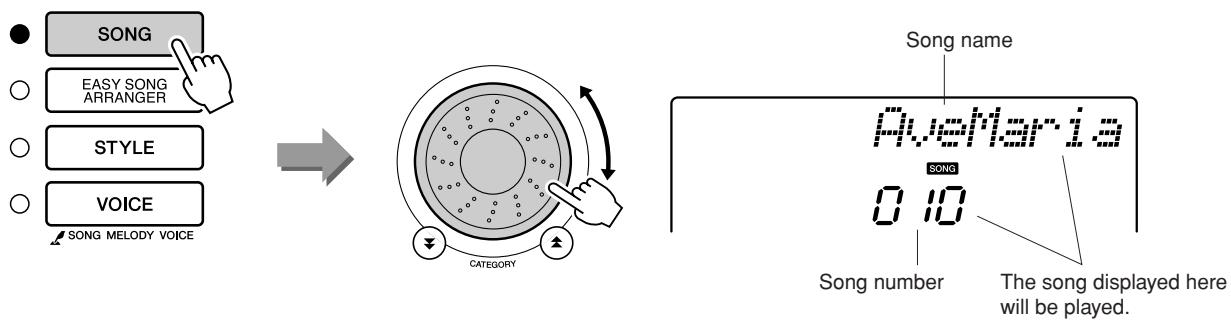

Select and Listen to a Song 25
Song Fast Forward, Fast Reverse, and Pause 26
Types of Songs 28

The Easy Way to Play Piano 29

CHORD Type—Play with Both Hands 30
CHD/FREE Type—Applying the Chord Type to the Left Hand Only 32

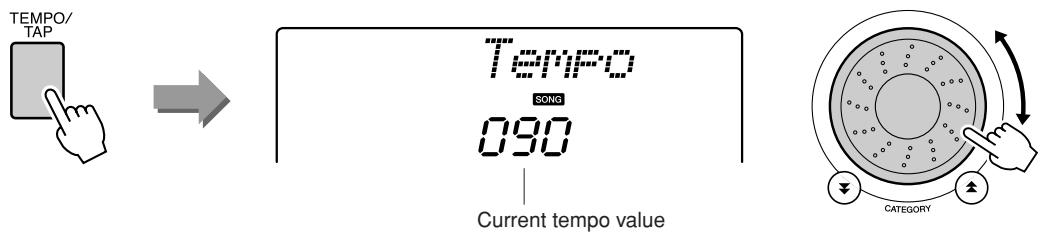

Change the Song Tempo 35

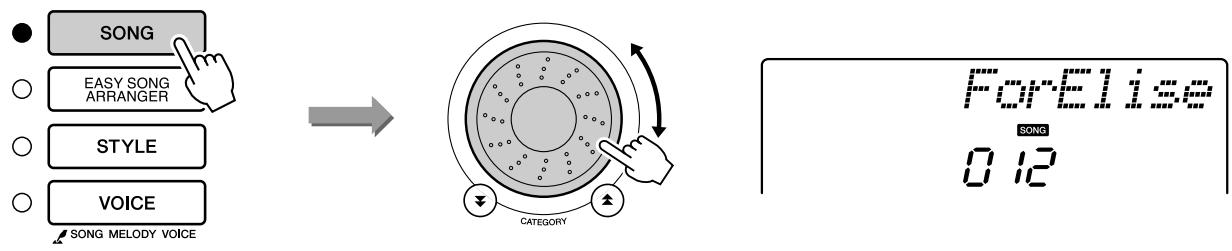

Select a Song For a Lesson 36

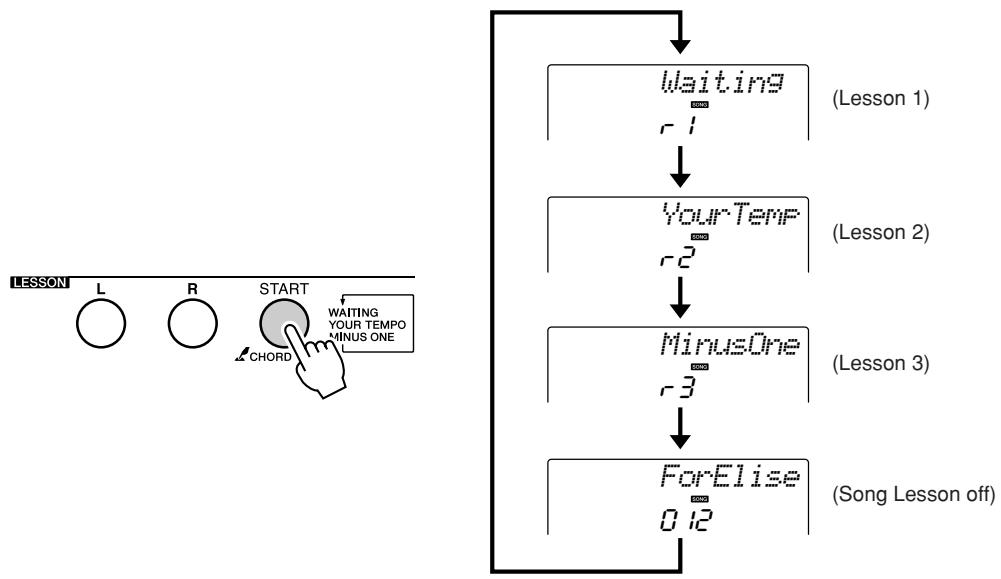

Lesson 1—Waiting. 36
Lesson 2—Your Tempo 39
Lesson 3-Minus One 40
Practice Makes Perfect--Repeat and Learn. 41

Play Using the Music Database 42

Change a Song's Style 43

Listen to the DEMO Song for Easy Song Arranger 43
Using the Easy Song Arranger 43

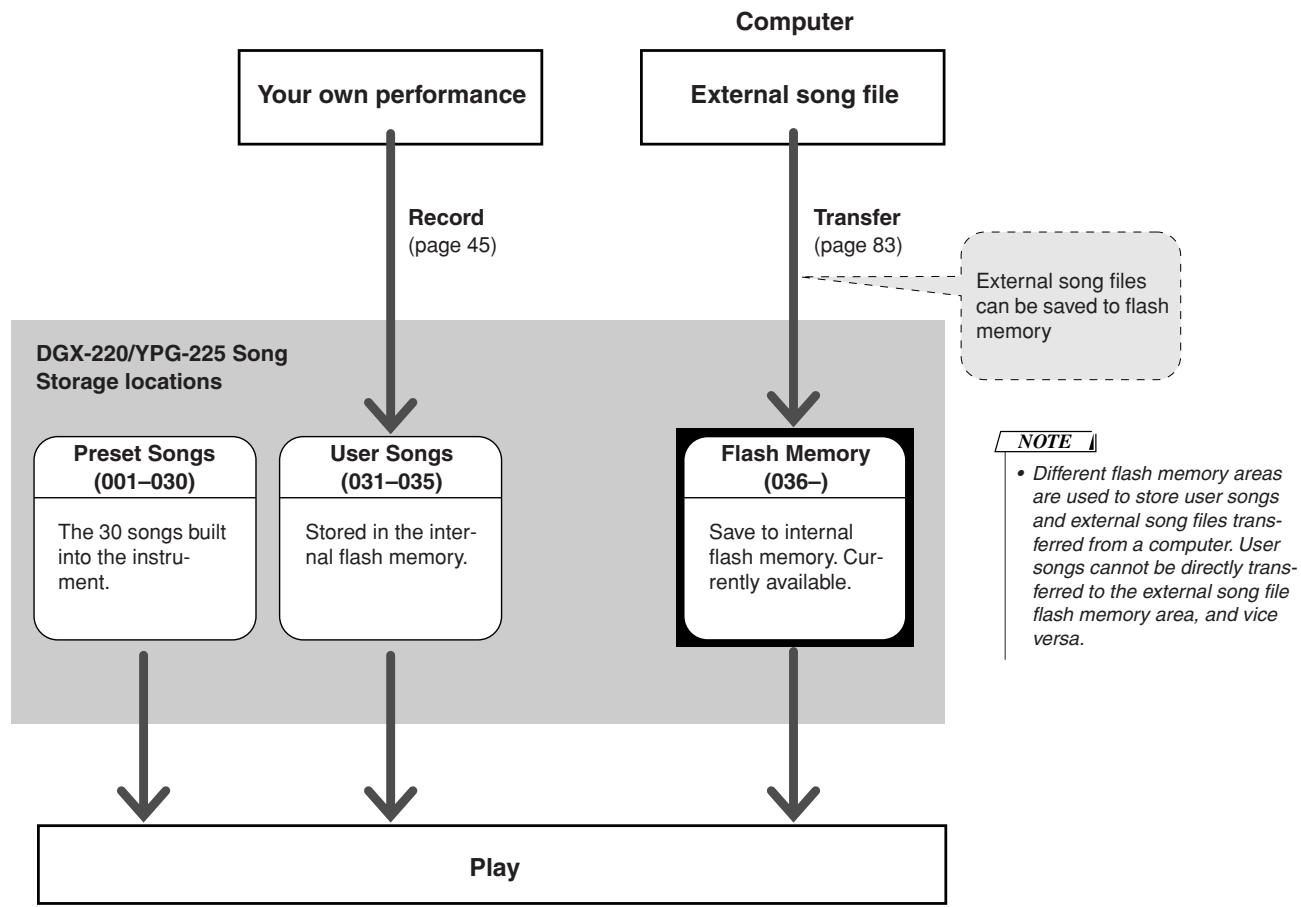

Record Your Own Performance 45

Track Configuration 45
Recording Procedure 45

Song Clear-Deleting User Songs 48
Track Clear—Deleting a Specified Track from a User Song 48

Backup and Initialization 49

Backup 49
Initialization 49

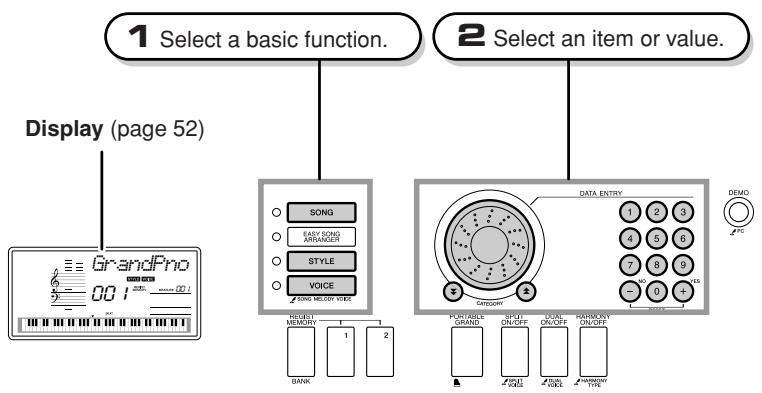

Basic Operation and Displays 50

Basic Operation 50

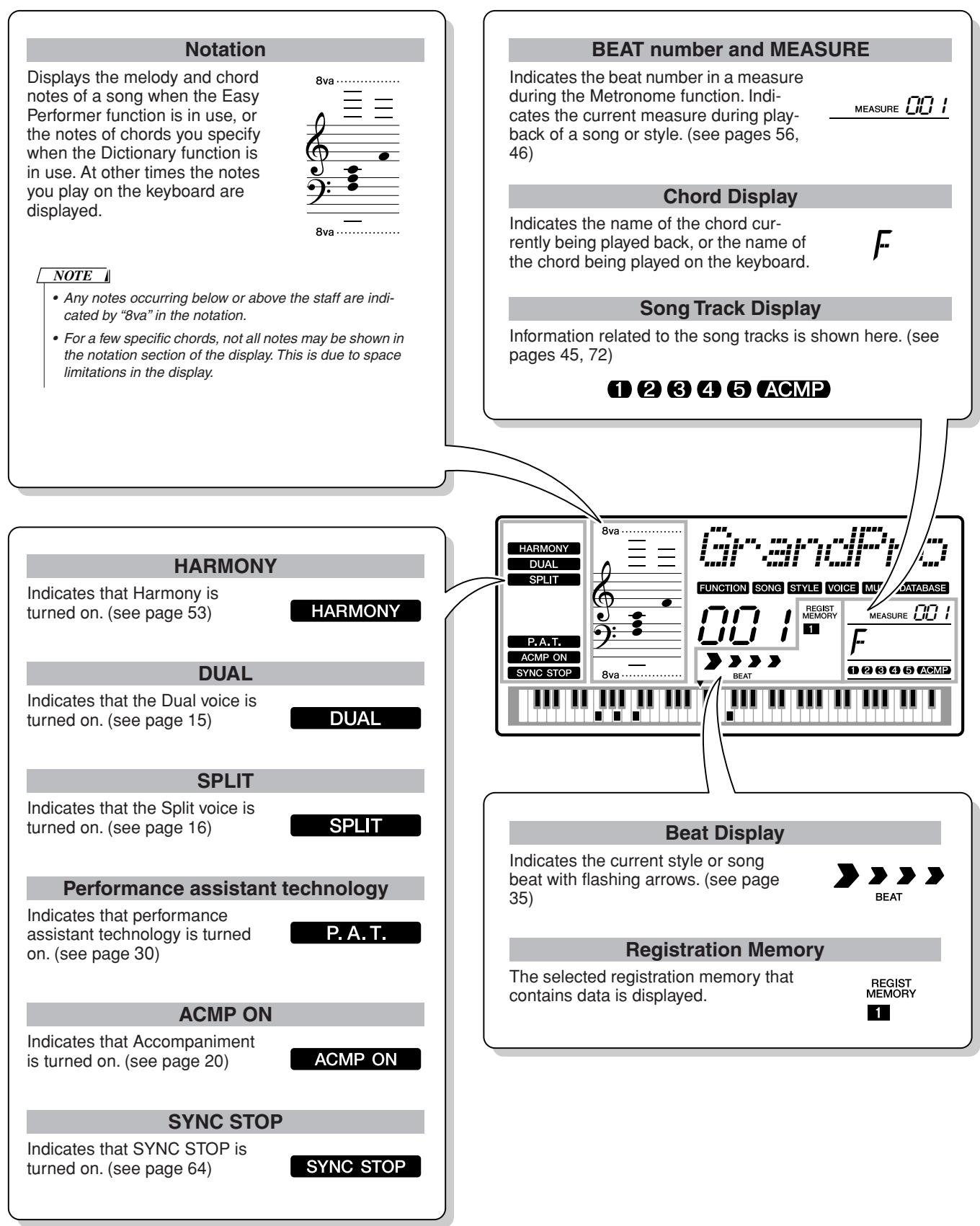

Display Items 52

Reference

Adding Effects 53

Harmony. 53
Adding Reverb 54
Adding Chorus 55

Handy Performance Features 56

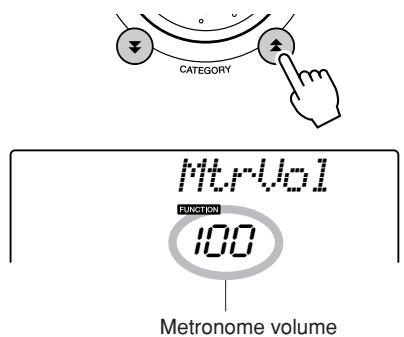

The Metronome 56
Tap Start 58
Touch Response Sensitivity 58
Panel Sustain. 59
Pitch Bend. 59
Pitch Controls. 60
One Touch Setting 61
Adjusting the Harmony Volume. 62
Select an EQ Setting for the Best Sound 62

Style (Auto-accompaniment) Functions 63

Pattern Variation (Sections) 63
Adjusting the Style Volume 65
Setting the Split Point 65
Play a Style with Chords but No Rhythm (Stop Accompaniment) 66
Playing Styles Using the Entire Keyboard 66
Loading Style Files 67
Chord Basics 68
Looking Up Chords Using the Chord Dictionary 70

Song Settings 71

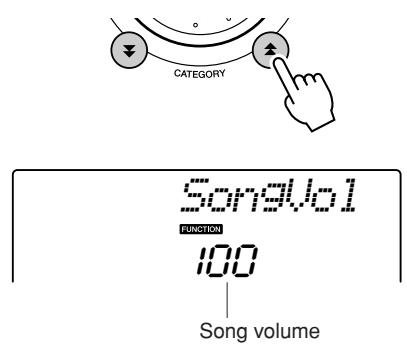

Song Volume. 71
A-B Repeat. 71
Muting Independent Song Parts. 72
Change the Melody Voice 72

Memorize Your Favorite Panel Settings 73

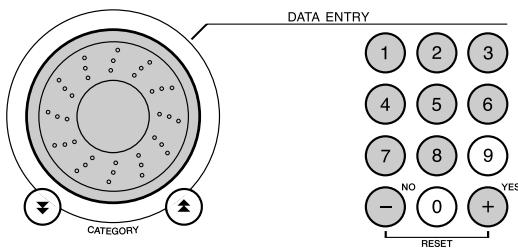

Saving to the Registration Memory 73
Recalling a Registration Memory 74

The Functions 75

Selecting and Setting Functions. 75

Connecting to a Computer 78

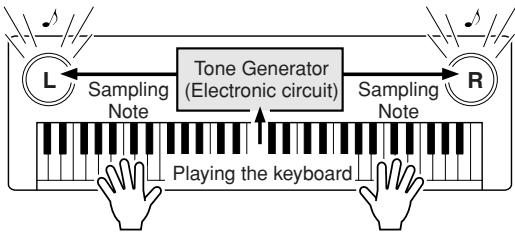

What Is MIDI? 78
Connecting a Personal Computer 79
Transferring Performance Data to and from a Computer....80
Remote Control of MIDI Devices. 81
Initial Send 82
Transferring Data between the Computer and Instrument...82

Accessory CD-ROM Installation Guide 85

Important Notices about the CD-ROM 85
CD-ROM Contents. 86
System Requirements. 87
Software Installation 87

Appendix

Troubleshooting 92
Scores 94
Voice List 100
Drum Kit List. 104
Style List 106
Music Database List. 107
Songs Provided On the Supplied CD-ROM 108
Effect Type List 109
MIDI Implementation Chart. 110
MIDI Data Format. 112
Specifications 113
Index 114

Be sure to do the following operations BEFORE turning on the power.

Power Requirements

Although the instrument will run either from an optional AC adaptor or batteries, Yamaha recommends use of an AC adaptor whenever possible. An AC adaptor is more environmentally friendly than batteries and does not deplete resources.

Using an AC Power Adaptor

1 Make sure that the [STANDBY/ON] switch of the instrument is set to STANDBY.

WARNING

• Use ONLY a Yamaha PA-5D AC Power Adaptor (or other adaptor specifically recommended by Yamaha) to power your instrument from the AC mains. The use of other adaptors may result in irreparable damage to both the adaptor and the instrument.
  Connect the AC adaptor (PA-5D or other adaptor specifically recommended by Yamaha) to the power supply jack.
  Plug the AC adaptor into an AC outlet.

CAUTION

• Unplug the AC Power Adaptor when not using the instrument, or during electrical storms.

Using Batteries

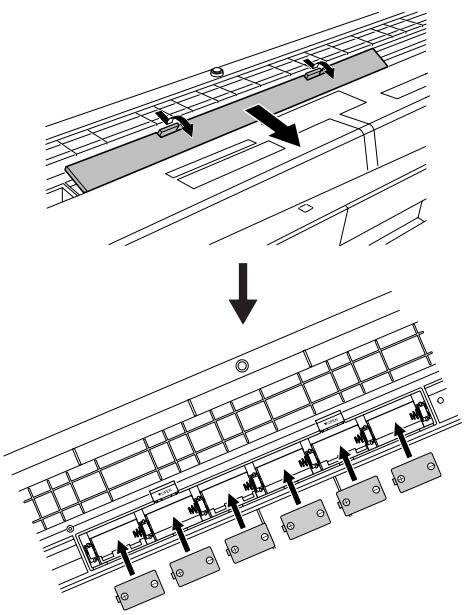

Open the battery compartment cover located on the instrument's bottom panel.
Insert the six new batteries, being careful to follow the polarity markings on the inside of the compartment.
Replace the compartment cover, making sure that it locks firmly in place.

NOTE

• Connecting the AC power adaptor automatically supplies power from the adaptor and overrides battery power, even when batteries are installed.

For battery operation the instrument requires six 1.5V "D" size, R20P (LR20) or equivalent batteries. (Alkaline batteries are recommended.) When battery power becomes too low for proper operation, make sure to replace all batteries, following the precautions listed below.

If necessary, also make sure to save all important User data (see page 49), since custom panel settings are lost when the batteries are removed.

CAUTION

• Use only manganese or alkaline batteries for this instrument. Other types of batteries (including rechargeable batteries) may exhibit a sudden drop in power when the batteries are low, possibly resulting in a loss of flash memory data.
• Be sure to install the batteries in the same direction, maintaining the correct polarity (as shown). Incorrect battery installation may result in heat, fire and/or leaking of corrosive chemicals.
• When the batteries run down, replace them with a complete set of six new batteries. NEVER mix old and new batteries. Do not use different kinds of batteries (e.g. alkaline and manganese) at the same time.
• If the instrument will not be used for an extended period of time, remove the batteries to prevent possible fluid leakage.
• Please use the power adaptor when transferring data to flash memory. Batteries (including rechargeable types) can be drained rapidly by this type of operation. If the batteries do become drained during a data transfer, both the data being transferred and the data currently in the transfer destination will be lost.

Make all necessary connections below BEFORE turning the power on.

Connecting Headphones (PHONES/OUTPUT Jack)

The DGX-220/YPG-225 speakers are automatically shut off when a plug is inserted into this jack.

The PHONES/OUTPUT jack also functions as an external output. You can connect the PHONES/OUTPUT jack to a keyboard amplifier, stereo system, mixer, tape recorder, or other line-level audio device to send the instrument's output signal to that device.

WARNING

• Avoid listening with the headphones at high volume for long periods of time; doing so may not only result in ear fatigue, it may be damaging to your hearing.

CAUTION

• To prevent damage to the speakers, set the volume of the external devices at the minimum setting before connecting them. Failure to observe these cautions may result in electric shock or equipment damage. Also, be sure to set the volumes of all devices at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Connecting a Footswitch (SUSTAIN Jack)

The sustain function lets you produce a natural sustain as you play by pressing a footswitch. Plug the Yamaha FC4 or FC5 footswitch into this jack and use it to switch sustain on and off.

NOTE

• Make sure that the footswitch plug is properly connected to the SUS-TAIN jack before turning on the power.
• Do not press the footswitch while turning the power on. Doing this changes the recognized polarity of the footswitch, resulting in reversed footswitch operation.

Connecting to a Computer (USB Terminal)

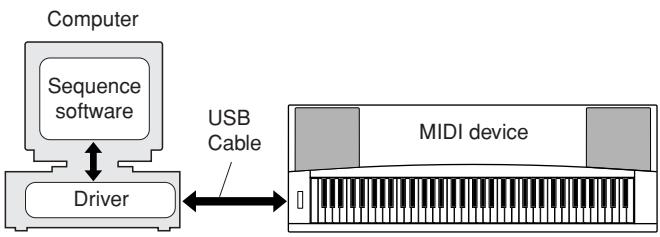

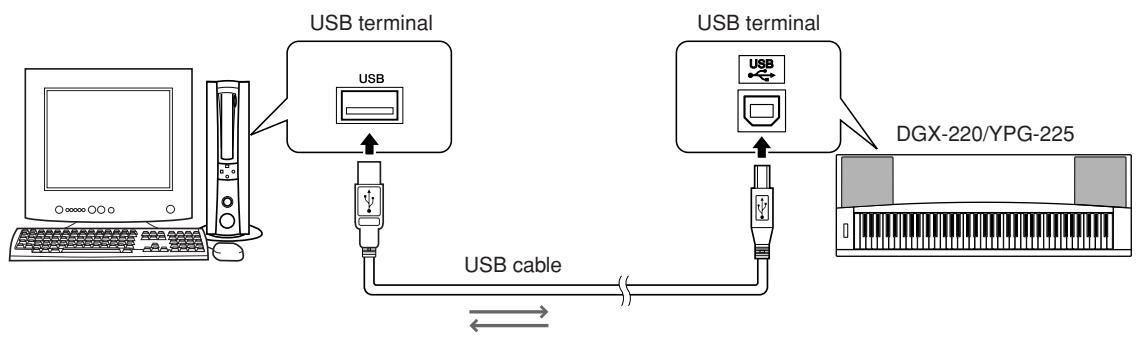

Connect the instrument's USB terminal to the USB terminal of a computer, and you can transfer performance data and song files between the two (page 79). To use the USB data-transfer features you'll need to do the following:

• First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the instrument to the computer. After making the connections, turn on the power of the instrument.
  Install the USB MIDI driver on your computer.

Installation of the USB MIDI driver is described on page 87.

NOTE

• Make sure to purchase a quality USB cable at a musical instrument store, computer store or electrical appliance store.

Turning the Power On

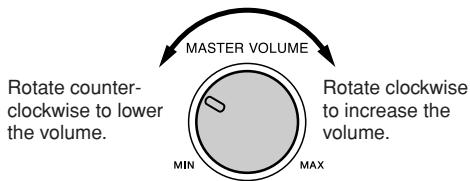

Turn down the volume by turning the [MASTER VOLUME] control to the left and press the [STANDBY/ON] switch to turn on the power. Press the [STANDBY/ON] switch again to turn the power OFF.

Backup data in the flash memory is loaded to the instrument when the power is turned on. If no backup data exists on flash memory, all instrument settings are restored to the initial factory defaults when the power is turned on.

CAUTION

• Even when the switch is in the "STANDBY" position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long time, make sure you unplug the AC power adaptor from the wall AC outlet, and/or remove the batteries from the instrument.

CAUTION

• Never attempt to turn the power off when a "WRITING!" message is shown in the display. Doing so can damage the flash memory and result in data loss.

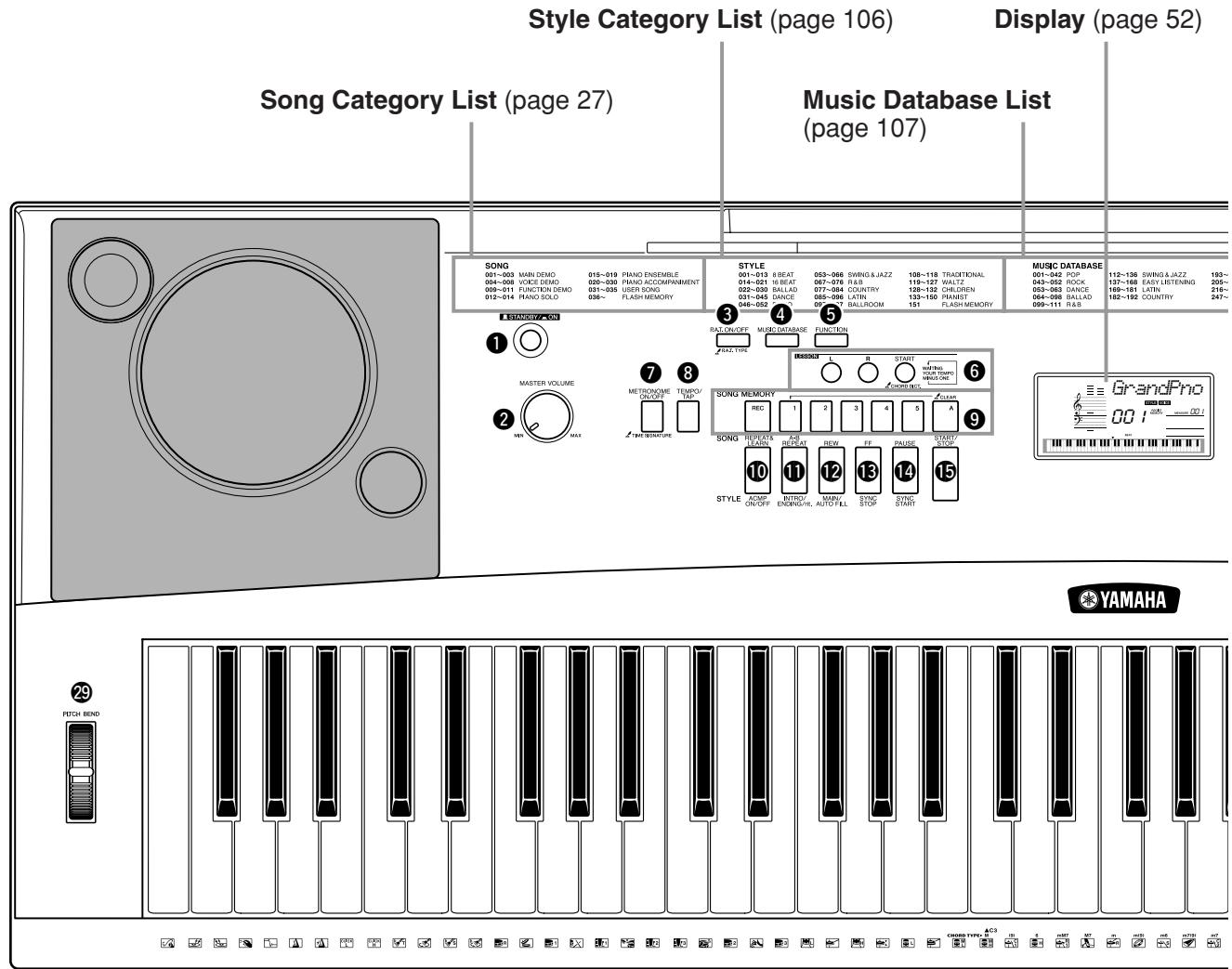

Front Panel

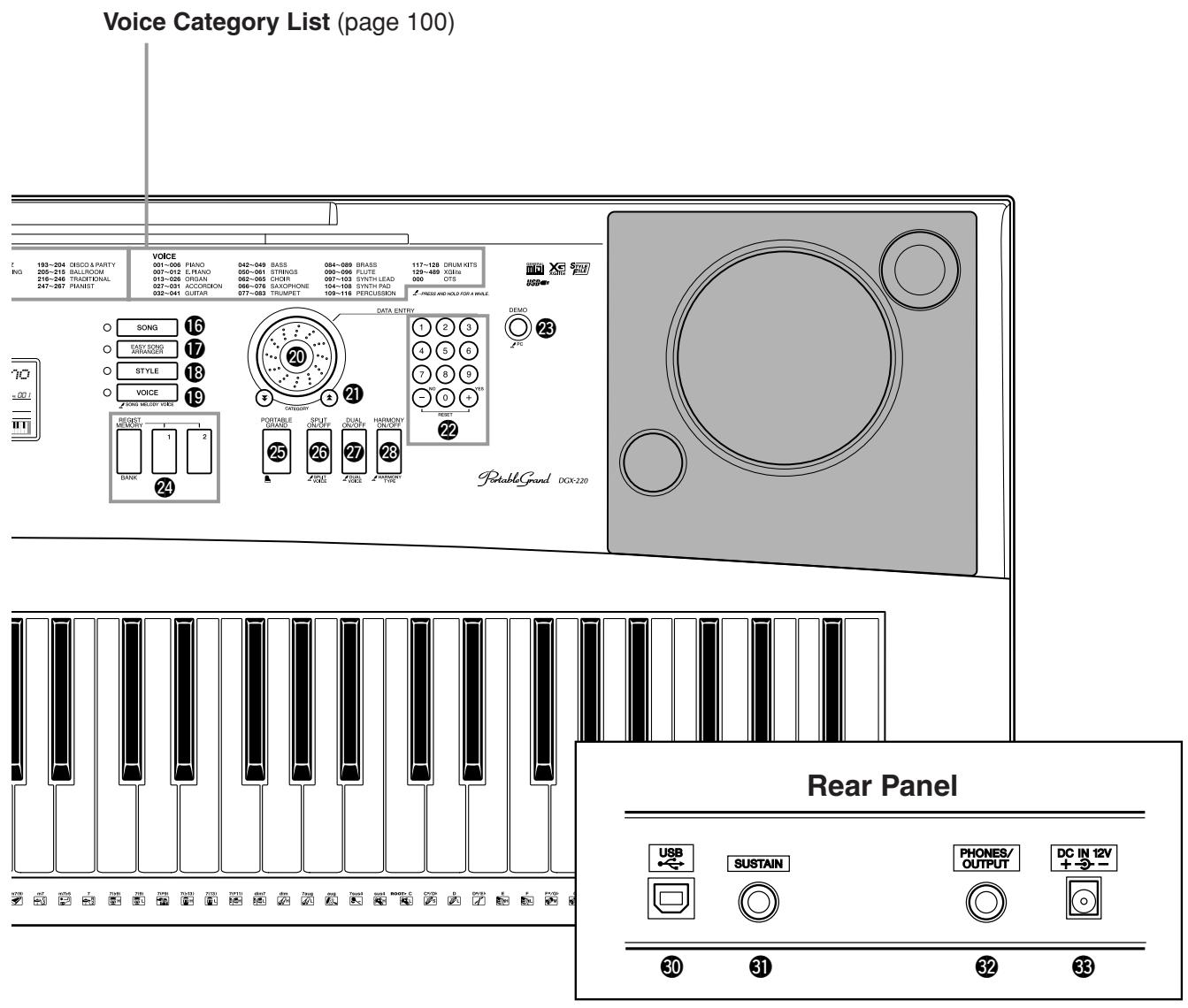

Front Panel

[STANDBY/ON] switch page 11
[MASTER VOLUME] control.... pages 11, 50

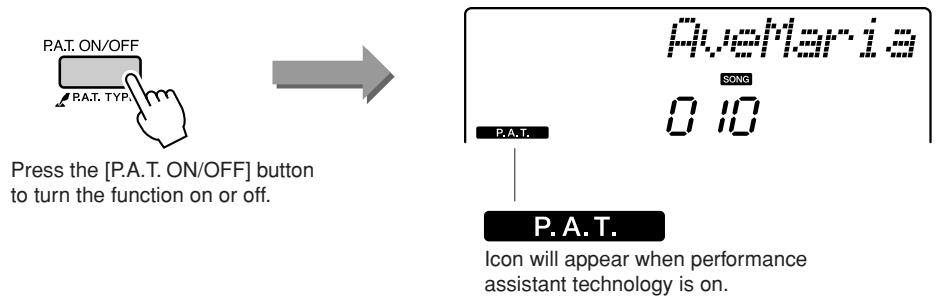

[P.A.T. ON/OFF] button.. page 30
4 [MUSIC DATABASE] button...... page 42
[FUNCTION] button page 75
LESSON [L], [R], [START] buttons. page 37
[METRONOME ON/OFF] button .... page 56
[TEMPO/TAP] button.. page 35
SONG MEMORY [REC], [1]–[5], [A] buttons.... page 45
10 [REPEAT & LEARN]/[ACMP ON/OFF] button..... pages 41, 20
[1] [A-B REPEAT]/[INTRO/ENDING/rit.] button .... pages 71, 64

[REW]/ [MAIN/AUTO FILL] button.....pages 26, 64
[FF]/ [SYNC STOP] button.....pages 26, 64
[PAUSE]/ [SYNC START] button.....pages 26, 63
[START/STOP] button ..... pages 19, 26, 51
[SONG] button. page 25
[EASY SONG ARRANGER] button.. page 43
18 [STYLE] button.. page 19
19 [VOICE] button page 14
20 Dial . pages 51, 75
2) CATEGORY [▲] and [▼]
buttons............pages 51, 75

Number buttons [0]-[9], [+] and [-] buttons pages 51, 75
23 [DEMO] button.. page 26
24 REGIST MEMORY [MEMORY/BANK], [1], [2] buttons page 73
[PORTABLE GRAND] button......page 17
[PLIT ON/OFF] button.. page 16
[DOUBLE ON/OFF] button . page 15
[HARMONY ON/OFF] button . page 53
29 PITCH BEND wheel . page 59

Rear Panel

30 USB terminal . pages 11, 79
SUSTAIN jack.. page 11
PHONE/S/OUTPUT jack.. page 11
DC IN 12V jack.. page 10

In addition to piano, organ, and other "standard" keyboard instruments, this instrument has a large range of voices that includes guitar, bass, strings, sax, trumpet, drums and percussion, sound effects ... a wide variety of musical sounds.

Select and Play a Voice—MAIN

This procedure selects the main voice you will play on the keyboard.

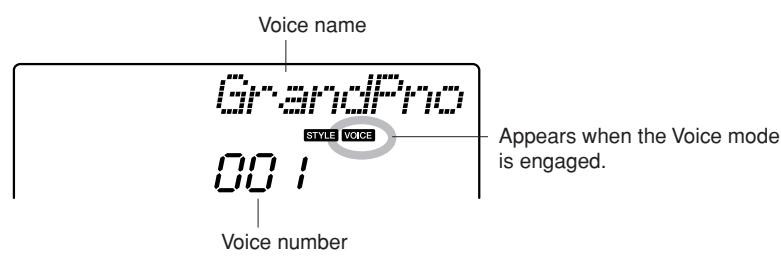

1 Press the [VOICE] button. The voice number and name wi

2 Select the voice you want to play.

While watching the displayed voice name rotate the dial. The available voices will be selected and displayed in sequence. The voice selected here becomes the main voice.

For this example select the "092 Flute" voice.

NOTE

• You can also select the voice using the CATEGORY [▲] and
  [▼] buttons after pressing the [VOICE] button. (page 51)

3 Play the keyboard.

Try selecting and playing a variety of voices.

Play Two Voices Simultaneously—DUAL

You can select a second voice which will play in addition to the main voice when you play the keyboard. The second voice is known as the "dual" voice.

Press the [DUAL ON/OFF] button. The [DUAL ON/OFF] button turns the du

When turned on the dual voice icon will appear in the display. The currently selected dual voice will sound in addition to the main voice when you play the keyboard.

NOTE

• The dual voice feature cannot be used during a song lesson (page 36).

DUAL
Dual voice icon

2 Press and hold the [DUAL ON/OFF] button for longer than a second.

"D.VOIDe" appears in the display for a few seconds, then the currently selected dual voice will be displayed.

NOTE

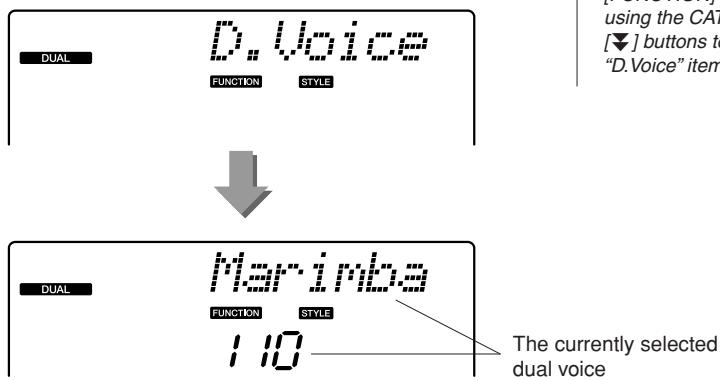

• You can also select the Dual Voice display by pressing the [FUNCTION] button and then using the CATEGORY [▲] and [▼] buttons to select the "D.Voice" item.

Hold for longer than a second

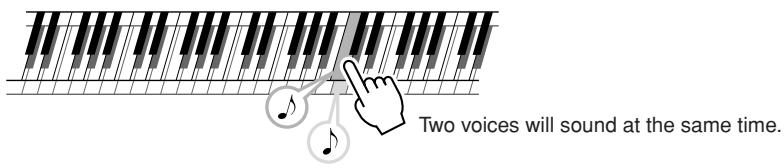

3 Select the desired dual voice. Watch the displayed dual voice and r

Watch the displayed dual voice and rotate the dial until the voice you want to use is selected. The voice selected here becomes the dual voice. For this example try selecting the "109 Vibraphone" voice.

Play the keyboard.

Try selecting and playing a range of dual voices.

Play Different Voices with the Left and Right Hands—SPLIT

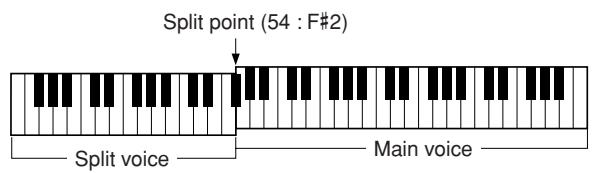

In the split mode you can play different voices to the left and right of the keyboard "split point". The main and dual voices can be played to the right of the split point, while the voice played to the left of the split point is known as the "split voice". The split point setting can be changed as required (page 65).

1 Press the [SPLIT ON/OFF] button. The [SPLIT ON/OFF] button turns the sp

When turned on the split voice icon will appear in the display. The currently selected split voice will sound to the left of the keyboard split point.

NOTE

• The split voice feature cannot be used during a song lesson (page 36).

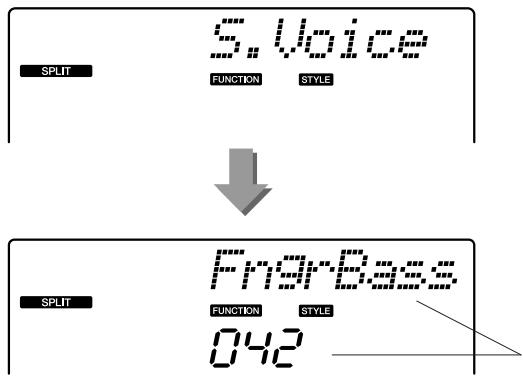

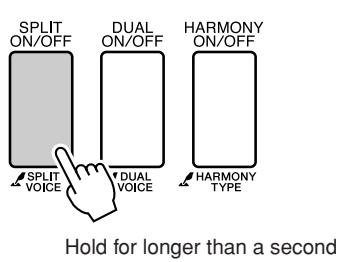

2 Press and hold the [SPLIT ON/OFF] button for longer than a second.

"S.VOIDe" appears in the display for a few seconds, then the currently selected split voice will be displayed.

NOTE

• You can also select the Split Voice display by pressing the [FUNCTION] button and then using the CATEGORY [▲] and [▼] buttons to select the "S. Voice" item.

The currently selected SPLIT voice

3 Select the desired split voice. Watch the displayed split voice and r

Watch the displayed split voice and rotate the dial until the voice you want to use is selected. The voice selected here becomes the split voice which will play to the left of the keyboard split point. For this example try selecting the "033 Folk Guitar" voice.

Play the keyboard.

Try selecting and playing a range of split voices.

Play the Grand Piano Voice

When you just want to play piano, all you have to do is press one convenient button.

Press the [PORTABLE GRAND] button.

The "001 Grand Piano" voice will be selected.

NOTE

• When you press the [PORTABLE GRAND] button all settings other than touch sensitivity are turned off. The dual and split voices will also be turned off, so only the Grand Piano voice will play over the entire keyboard.

Fun Sounds

This instrument includes a range of drum kits and unique sound effects you can use for entertainment. Laughter, babbling brooks, jet fly-bys, eerie effects, and much more. These sounds can be a great way to enhance the mood at parties.

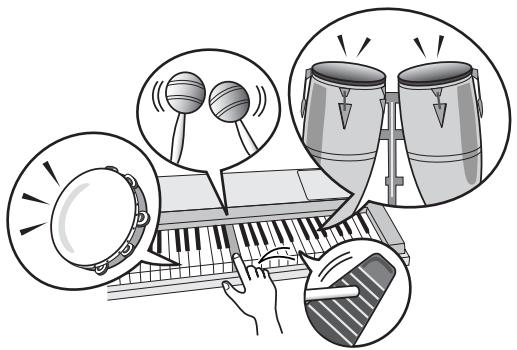

Drum Kits

Drum kits are collections of drum and percussion instruments. When you select a violin or other normal instrument main voice, for example, all keys produce the sound of the same violin, only at different pitches. If you select a drum kit as the main voice, however, each key produces the sound of a different drum or percussion instrument.

Drum Kit Selection Procedure (refer to steps 1 and 2 on page 14)

1 Press the [VOICE] button.
Use the dial to select "117 Std.Kit1".
3 Try out each key and enjoy the drum and percussion sounds!

Try out each key and enjoy the drum and percussion sounds! Don't forget the black keys! You'll hear a triangle, maracas, bongos, drums ... a comprehensive variety of drum and percussion sounds. For details on the instruments included in the drum kit voices (voice numbers 117 to 128), see the "Drum Kit List" on page 104.

Sound Effects

The sound effects are included in the drum kit voice group (voice numbers 127 and 128). When either of these voices are selected you will be able to play a range of sound effects on the keyboard.

Sound Effect Selection Procedure (refer to steps 1 and 2 on page 14)

1 Press the [VOICE] button.
Use the dial to select "128 SFX Kit2".
3 Try out each key and enjoy the sound effects!

As you try out the various keys you'll hear the sound of a submarine, a telephone bell, a creaking door, laughter, and many other useful effects. "127 SFX Kit1" includes lightning, running water, dogs barking, and others. Some keys do not have assigned sound effects, and will therefore produce no sound. For details on the instruments included in the SFX kit voices, see "SFX Kit 1" and "SFX Kit 2" in the "Drum Kit List" on page 104.

This instrument has an auto accompaniment feature that produces accompaniment (rhythm + bass + chords) in the style you choose to match chords you play with your left hand. You can select from 150 different styles covering a range of musical genres and time signatures (see page 106 for a complete list of the available styles). In this section we'll learn how to use the auto accompaniment features.

Select a Style Rhythm

Most styles include a rhythm part. You can select from a wide variety of rhythmic types—rock, blues, Euro trance, and many, many more. Let's begin by listening to just the basic rhythm. The rhythm part is played using percussion instruments only.

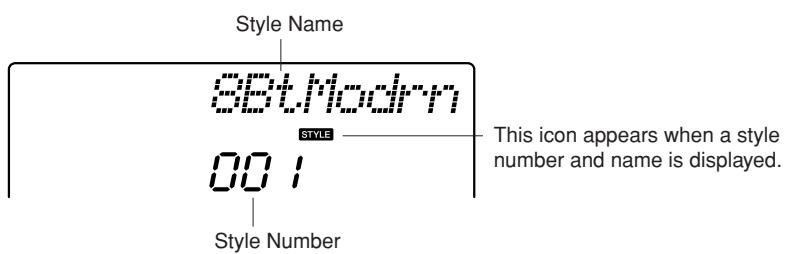

Press the [STYLE] button. The style number and name will

2 Select a style. Use the dial to set

Use the dial to select the style you want to use.

A list of all the available styles is provided on page 106.

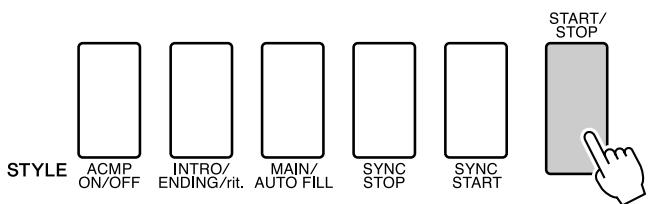

3 Press the [START/STOP] button. The style rhythm will start playing.

Press the [START/STOP] button a second time when you want to stop playback.

NOTE

• Style numbers 121, 133-150 have no rhythm part and therefore no rhythm will play if you use them for the above example. For these styles first turn auto accompaniment on as described on page 20, press the [START/STOP] button, and the accompaniment bass and chord parts will begin playing when you play a key to the left of the keyboard split point.

Play Along with a Style

You learned how to select a style rhythm on the preceding page.

Here we'll see how to add bass and chord accompaniment to the basic rhythm to produce a full, rich accompaniment that you can play along with.

1 Press the [STYLE] button and select the desired style.
2 Turn automatic accompaniment on.

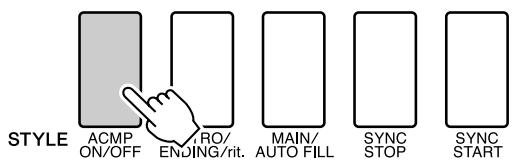

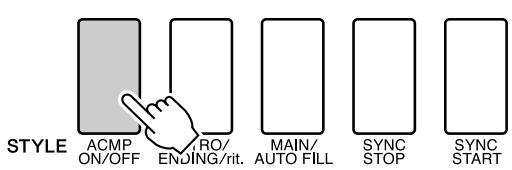

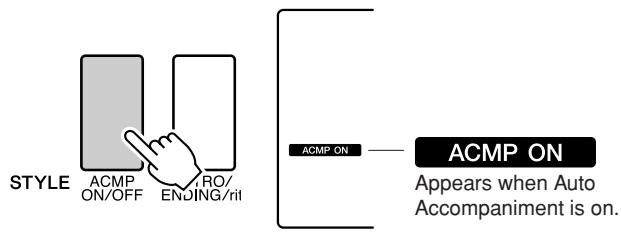

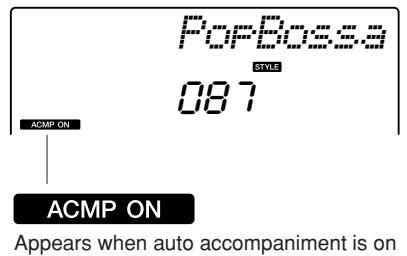

Press the [ACMP ON/OFF] button.

Pressing this button a second time will turn automatic accompaniment off.

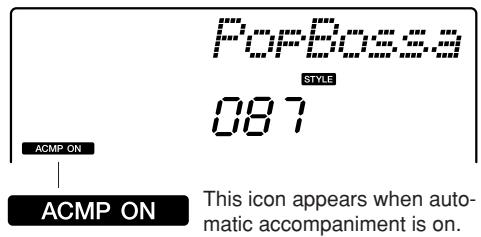

• When automatic accompaniment is on …

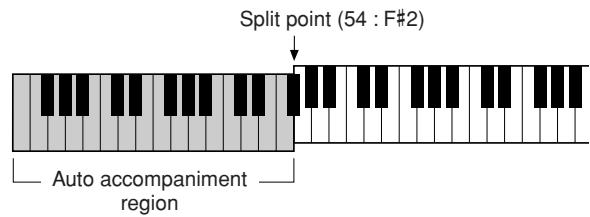

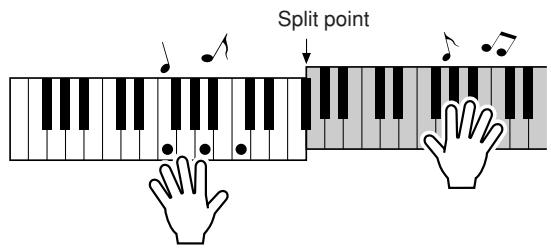

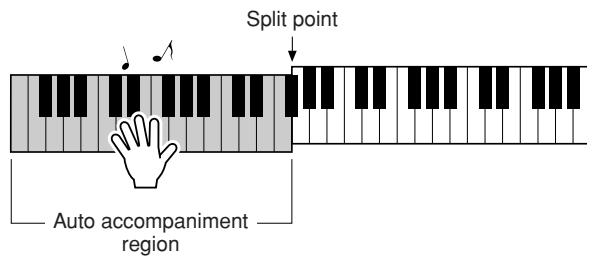

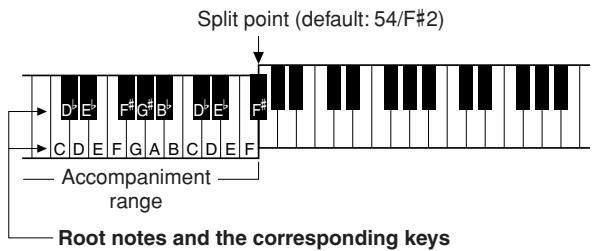

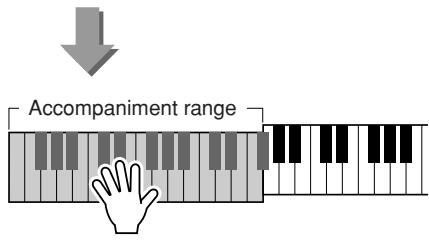

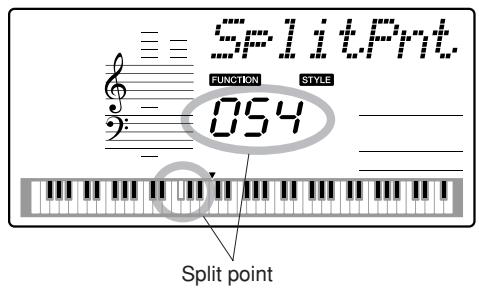

The area of the keyboard to the left of the split point (54 : F#2) becomes the "auto accompaniment region" and is used only for specifying the accompaniment chords.

NOTE

• The keyboard split point can be changed as required: refer to page 65.

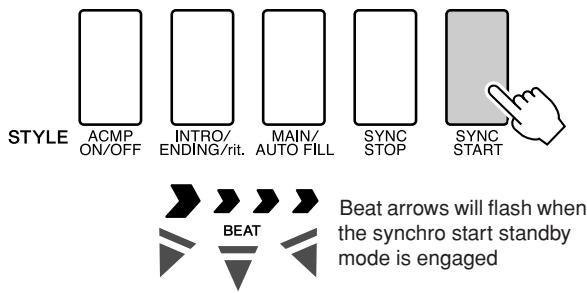

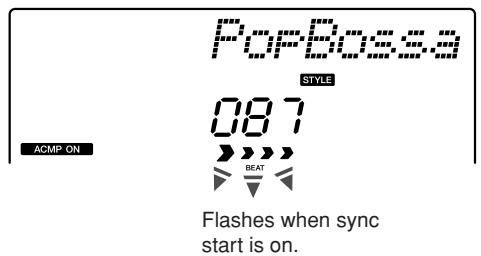

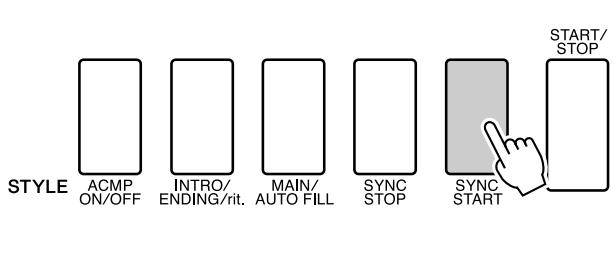

3 Turn sync start on. Press the [SYNC STAR

When sync start is on, the bass and chord accompaniment included in a style will start playing as soon as you play a note to left of the keyboard split point. Press the button a second time to turn the sync start function off.

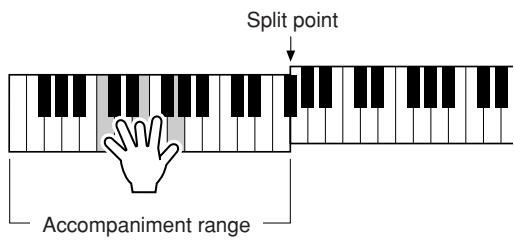

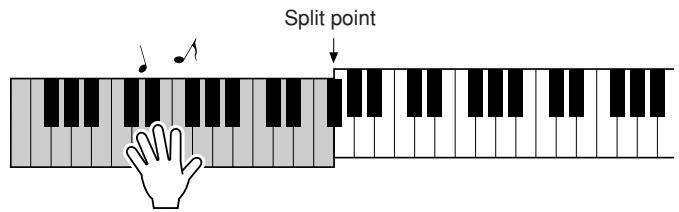

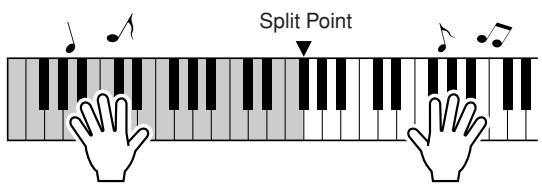

4 Play a left-hand chord to start the style. You can still "play" chords even if you don't act

You can still "play" chords even if you don't actually know any chords. This instrument will recognize even a single note as a chord. Try playing from one to three notes at the same time to the left of the split point. The accompaniment will change according to the left-hand notes you play.

Try this!

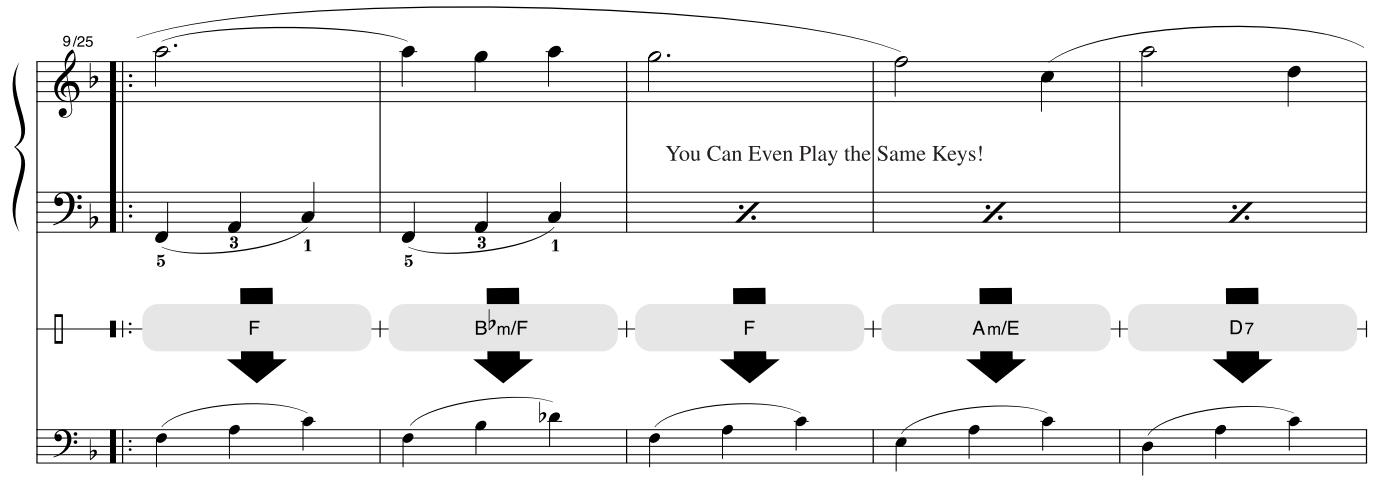

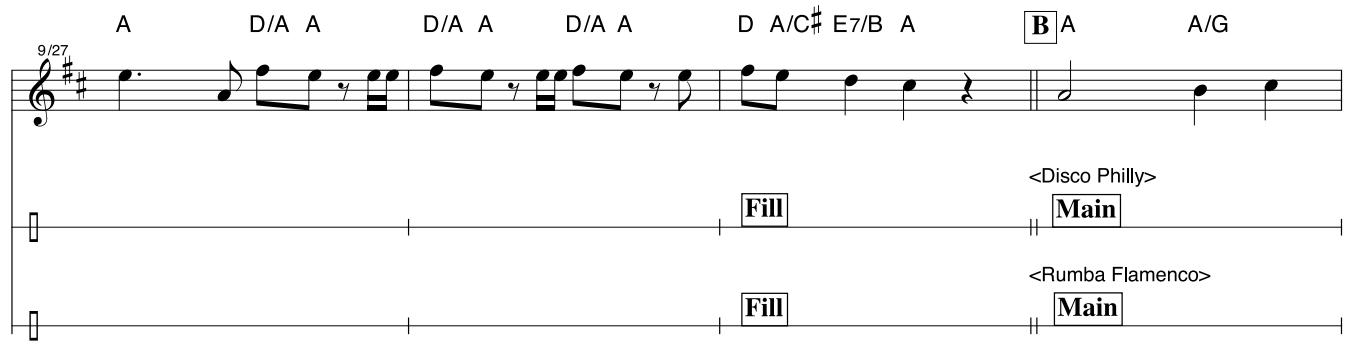

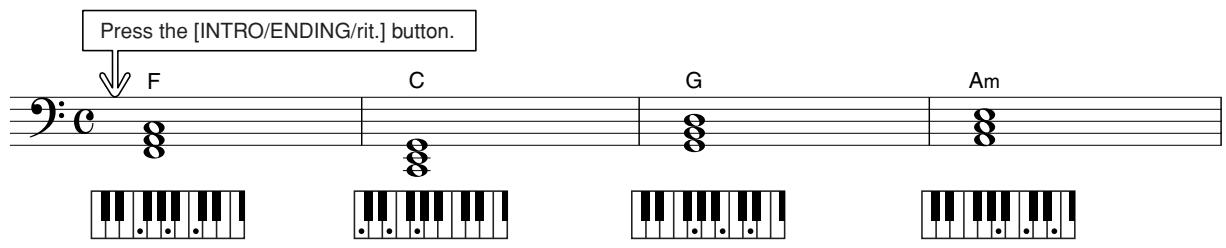

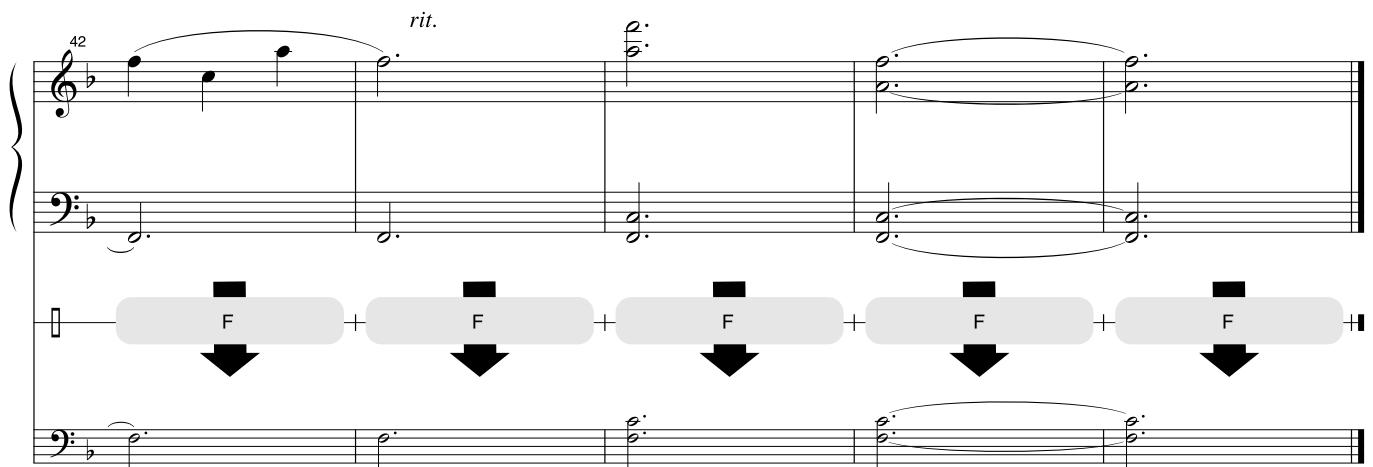

Scores for some chord progressions are provided on page 22. These examples should help you get a feel for what types of chord progressions sound good with the styles.

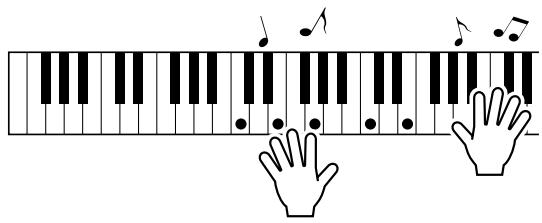

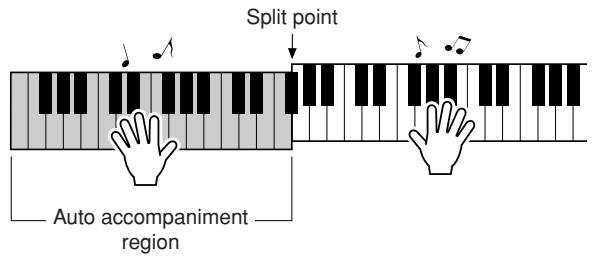

5 Play a variety of left-hand chords while playing a melody with your right hand.

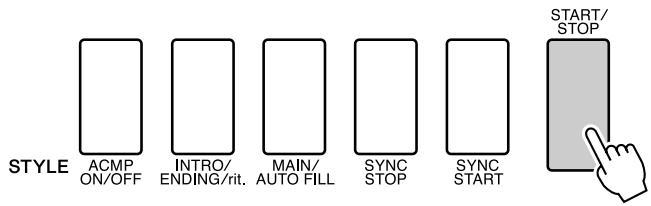

6 Press the [START/STOP] button to stop style playback when you're done.

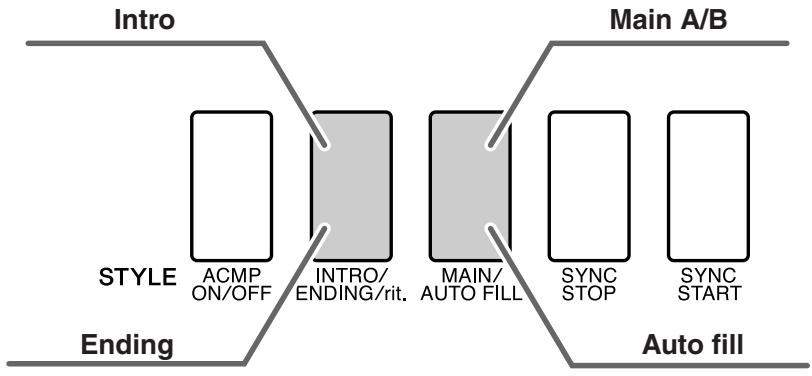

You can switch style "sections" to add variety to the accompaniment. Refer to "Pattern Variation (Sections)" on page 63.

Styles Are More Fun When You Understand Chords

Chords, created by playing multiple notes at the same time, are the basis for harmonic accompaniment. In this section we'll take a look at sequences of different chords played one after another, or "chord sequences". Since each chord has its own unique "color"—even if it's different fingerings of the same chord—the chords you choose to use in your chord progressions have a huge influence on the overall feel of the music you play.

On page 20 you learned how to play colorful accompaniments using styles. Chord progressions are vital to creating interesting accompaniments, and with a little chord know-how you should be able to take your accompaniments to a new level.

On these pages we'll introduce three easy-to-use chord progressions. Be sure to try them out with the instrument's accompaniment styles. The style will respond to the chord progression you play, effectively creating a complete song.

■Playing the Chord Progressions

Play the scores with the left hand.

Before playing the scores follow steps 1 through 3 of "Play Along with a Style" on page 20.

• The scores provided here are not standard song scores, but rather simplified scores that indicate which notes to play to produce the chord progressions.

Play to the left of the split point.

Recommended Style

031 Euro Trance

—Dance music with simple chords—

This is a simple-but-effective chord progression. When you play through to the end of the score, start again from the beginning. When you're ready to stop playing press the [INTRO/ENDING/rit.] button and the auto accompaniment function will create a perfect ending.

Recommended Style

138 Piano Boogie

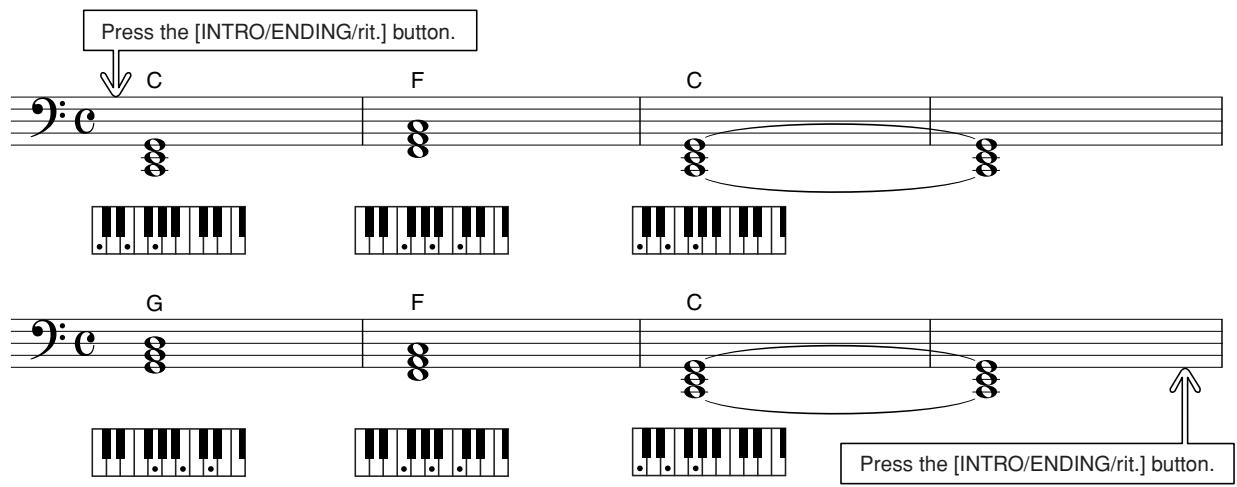

—3-chord boogie-woogie—

This progression provides varied harmonic backing with just three chords. When you get a feel for the progression in the score, try changing the order of the chords!

Recommended Style

086 Bossa Nova

—Bossa nova with jazz-style chords—

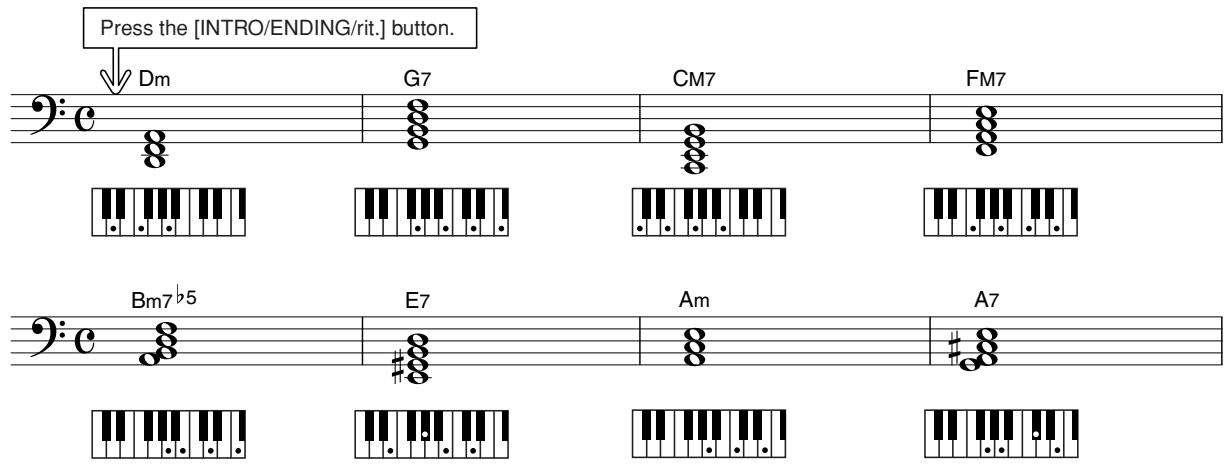

This progression includes jazzy "two-five" (II-V) changes. Try playing it through several times. When you're ready to stop playing press the [INTRO/ENDING/rit.] button.

Playing Auto-accompanyment Chords

There are two ways of playing auto-accompanyment chords:

• Easy Chords
  Standard Chords

The instrument will automatically recognize the different chord types. This function is called Multi Fingering.

Press the [ACMP ON/OFF] button to turn auto-accompaniment on (page 20). The keyboard to the left of the split point (default: 54/F#2) becomes the "accompaniment range". Play the accompaniment chords in this area of the keyboard.

Easy Chords

This method lets you easily play chords in the accompaniment range of the keyboard using only one, two, or three fingers.

To play a major chord

Press the root note of the chord.

• To play a minor chord

  Press the root note together with the nearest black key to the left of it.

To play a seventh chord

Press the root note together with the nearest white key to the left of it.

To play a minor seventh chord

Press the root note together with the nearest white and black keys to the left of it (three keys altogether).

Standard Chords

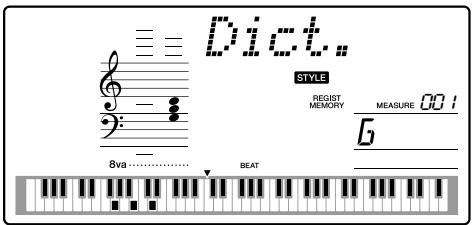

This method lets you produce accompaniment by playing chords using normal fingerings in the accompaniment range of the keyboard.

- How to play Standard Chords [Example for "C" chords]

* Notes enclosed in parentheses ( ) are optional; the chords will be recognized without them.

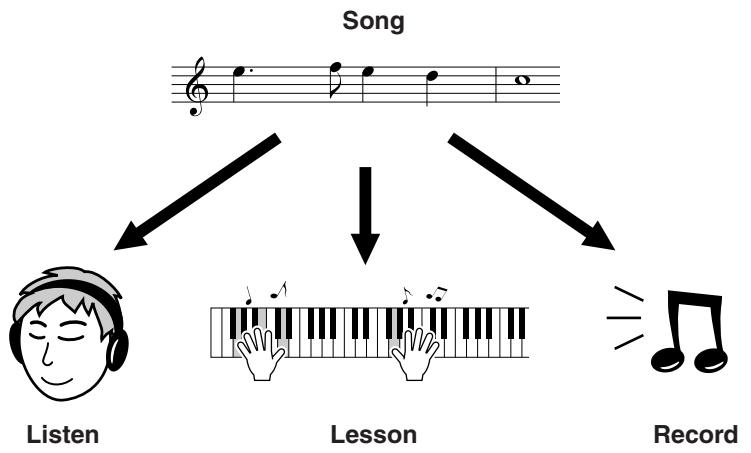

With this instrument the term "song" refers the data that makes up a piece of music. You can simply enjoy listening to the 30 internal songs, or use them with just about any of the many functions provided—the performance assistant technology feature, lessons, and more. The songs are organized by category.

In this section we'll learn how to select and play songs, and briefly describe the 30 songs provided.

Select and Listen to a Song

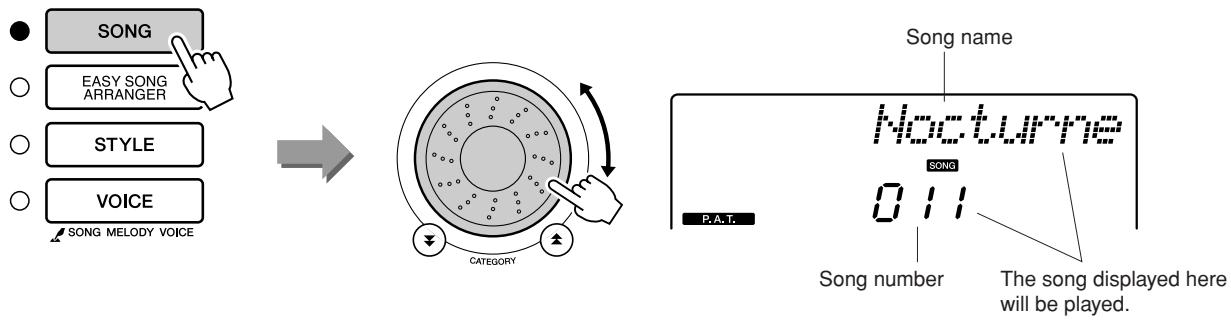

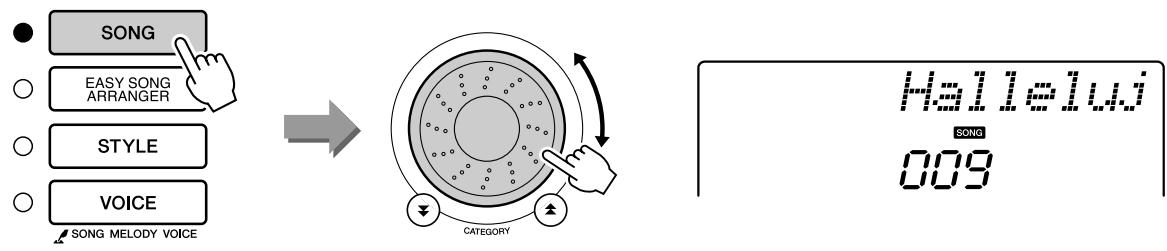

Press the [SONG] button. The song number and name will

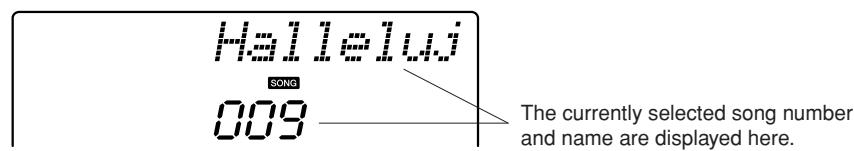

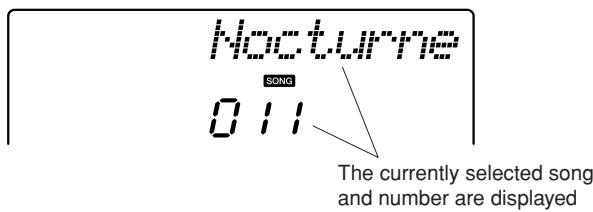

The song number and name will be displayed. You can use the dial to select a different song.

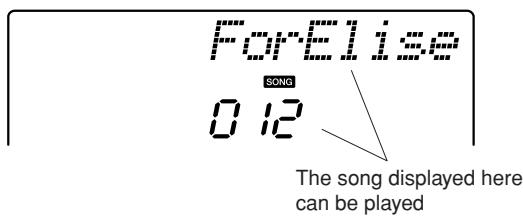

2 Select a song. Select a song after

Select a song after referring to the preset song category list on page 27. Use the dial to select the song you want to listen to.

NOTE

• You can also play songs you have recorded yourself (User Songs) or songs that have been transferred to the instrument from a computer in the same way that you play the internal songs.

001–030	Built in Songs (see next page)
031–035	User Songs (Songs you record yourself).

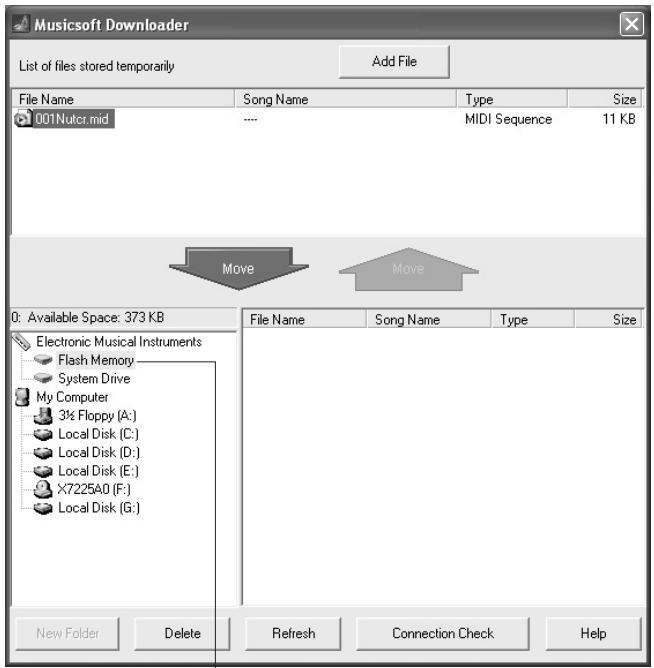

036–	Songs transferred from a computer (pages 82–84)

3 Listen to the song. Press the ISTART/STO

Press the [START/STOP] button to begin playback of the selected song. You can stop playback at any time by pressing the [START/STOP] button again.

Using the [DEMO] button

Press the [DEMO] button to play Songs 001-008 in sequence. Playback will repeat when the end of the sequence is reached, starting again from the first Song (001).

You can select a song by using the [-] and [+] buttons after pressing the [DEMO] button.

You can stop playback at any time by pressing the [DEMO] button.

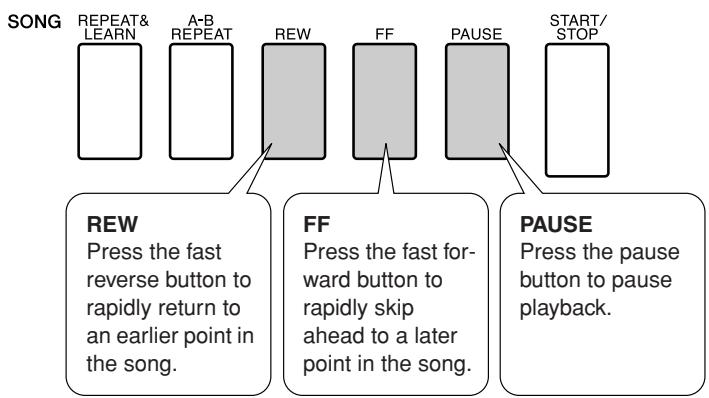

Song Fast Forward, Fast Reverse, and Pause

These are just like the transport controls on a cassette deck or CD player, letting you fast forward [FF], rewind [REW] and pause [PAUSE] playback of the song.

NOTE

• When an A-B repeat range is specified the fast reverse and forward function will only work within that range.

Song List

These 30 songs include songs that effectively demonstrate the instrument's easy song arranger feature, songs that are ideally suited for use with the performance assistant technology feature, and more. The "Suggested Uses" column provides some ideas as to how the songs can most effectively used.

Category	No.	Name	Suggested Uses
Main Demo	1 CHORD	Magnetic	The songs in this category have been created to give you an idea of the advanced capabilities of this instrument. They're great for listening, or for use with the performance assistant technology feature.
	2 CHORD	Jessica
	3 CHORD	Winter Serenade
Voice Demo	4 CHORD	Grand Piano Demo	These songs features some of the instrument's many useful voices. They make maximum use of the characteristics of each voice, and might serve as inspiration for your own compositions.
	5 CHORD	Sweet! TenorSax Demo
	6 CHORD	Cool! RotorOrgan Demo
	7 CHORD	Cool Galaxy Electric Piano Demo
	8 CHORD	ModernHarp & Sweet Soprano Demo
Funciton Demo	9 CHORD	Hallelujah Chorus	Use these songs to experience some of the instrument's advanced features: song number 9 for the easy song arranger, and songs 10 and 11 for the performance assistant technology feature.
	10 CHORD	Ave Maria
	11 CHORD	Nocturne op.9-2
Piano Solo	12	For Elise	These piano solo pieces are ideally suited for use as lesson songs.
	13	Maple Leaf Rag
	14	Jeanie with the Light Brown Hair
Piano Ensemble	15 CHORD	Amazing Grace	A selection of piano ensemble songs that are also well suited for use as lesson songs.
	16 CHORD	Mona Lisa(Jay Livingston and Ray Evans)
	17	Piano Concerto No.21 2nd mov.
	18 CHORD	Scarborough Fair
	19 CHORD	Old Folks at Home
Piano Accompaniment	20 CHORD	Ac Ballad(Agast All Odds: Collins 0007403)	When you need to practice backing(accompaniment) patterns, these are the songs to do it with. This is ability you'll need if you're invited to play with a band. These songs allow you to practice backing parts one hand at a time, which can be the easiest way to master this important skill.
	21 CHORD	Ep Ballad
	22 CHORD	Boogie Woogie
	23 CHORD	Rock Piano
	24 CHORD	Salsa
	25 CHORD	Country Piano
	26 CHORD	Gospel R&B
	27 CHORD	Medium Swing
	28 CHORD	Jazz Waltz
	29 CHORD	Medium Bossa
	30 CHORD	Slow Rock(Can't Help Falling In Love: George David Weiss, Hugo Peretti and Luigi Creatore)

CHORD : Includes chord data.
The scores for the internal songs—except for songs 1–11, and song 16, 20 and 30 which is copyrighted, are provided in the Song Book on the CD-ROM. The scores for songs 9–11 are provided in this manual.
Some of the classic and/or traditional songs have been edited for length or for ease in learning, and may not be exactly the same as the original.

Types of Songs

The following three types of songs can be used by the DGX-220/YPG-225.

• Preset Songs (the 30 songs built into the instrument)........Song numbers 001-030.

• User Songs (recordings of your own performances) .....................Song numbers 031-035.
  External song files (song data transferred from a computer*) ...Song numbers 036-.

• The Accessory CD-ROM includes a selection of 70 MIDI songs. See page 83 for instructions on how to transfer the songs to the instrument.

The chart below shows the basic DGX-220/YPG-225 processes flow for using the preset songs, user songs, and external song files—from storage to playback.

This instrument includes a performance assistant technology feature that lets you play along with a song and sound like a great pianist (even though you might be making lots of mistakes)! In fact, you can play any notes and still sound good! So even if you can't play piano and can't read a note of music, you can have some musical fun.

Performance assistant technology offers two selectable types. Select the type that produces the best results for you.

• Chord. No matter where or what you play, the result will be musical, well-balanced sound. This type offers the greatest freedom, allowing you to play anything with both your left and right hands.

- Chord/Free (CHD/FREE)

If you can play simple right-hand melodies but have trouble with left-hand chords, this is the type for you. The Chord type applies to only the left-hand section of the keyboard, allowing you to easily play chords to support the melody you are playing with your right hand.

Refer to page 34 for more information on using performance assistant technology to help you play.

CHORD Type—Play with Both Hands

1 Press the [P.A.T. ON/OFF] button. This turns on the performance assistant to

The P.A.T. icon will appear when the performance assistant technology feature is on.

2 Select the CHORD type.

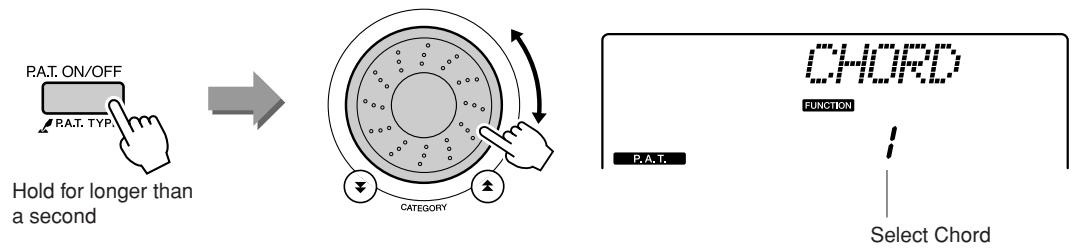

Press and hold the [P.A.T. ON/OFF] button for longer than a second. "PAT Type" appears in the display for a few seconds, then the currently selected performance assistant technology type will be displayed. Select the Chord type by using the dial.

3 Select a song. Press the [SONG]

Press the [SONG] button, and the Song Select display appears. Select a song by using the dial. For this example try selecting the "010 Ave Maria".

• What is a Song? You know the normal meaning of this word, but in this instrument the term "Song" refers to the data that makes up a complete song. The performance assistant technology features uses the chord and melody data, and should always be used with a song (page 25).

4 Press the [START/STOP] button.

SONG

Song playback will begin.

The basic pattern will play repeatedly. Listen to the basic pattern for four measures while getting a feel for the basic pattern, then begin playing yourself from the fifth measure.

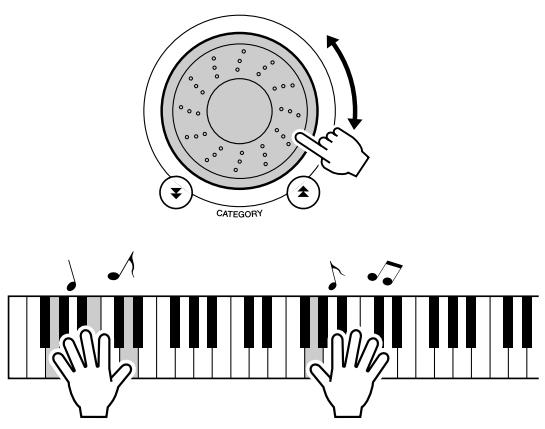

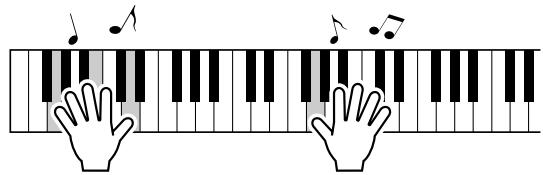

5 Play on the keyboard.

Before

After

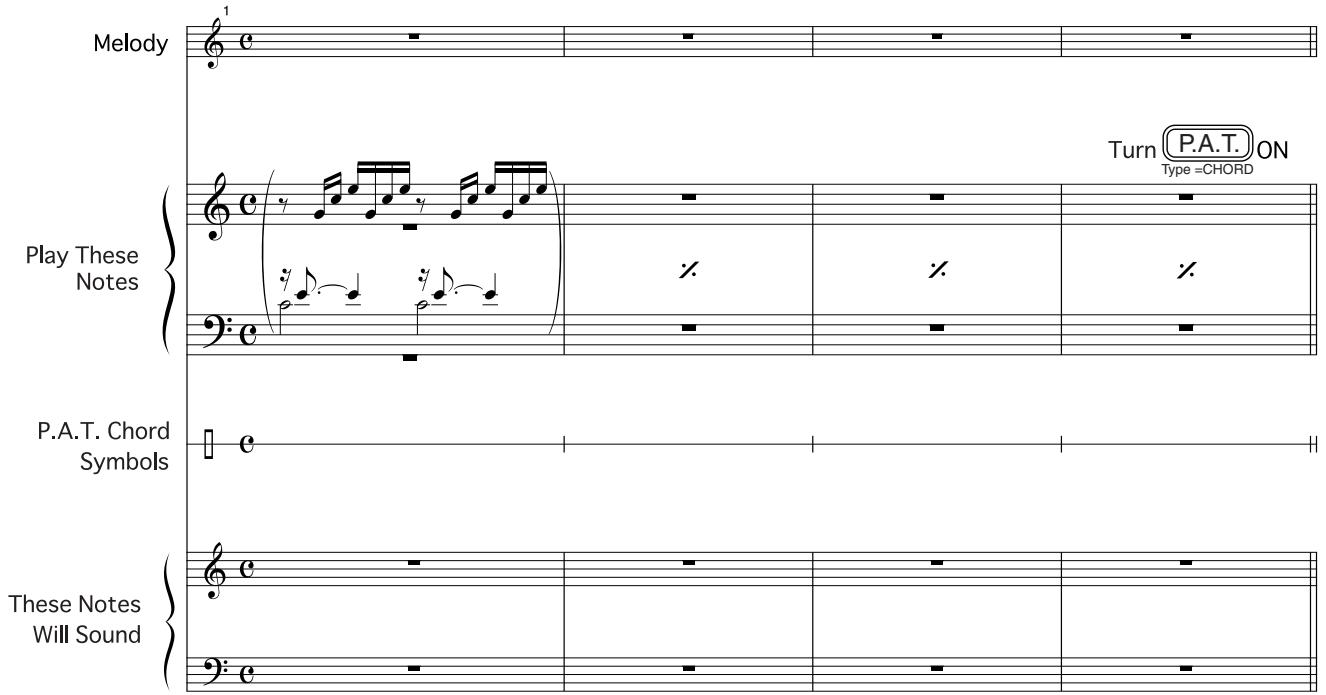

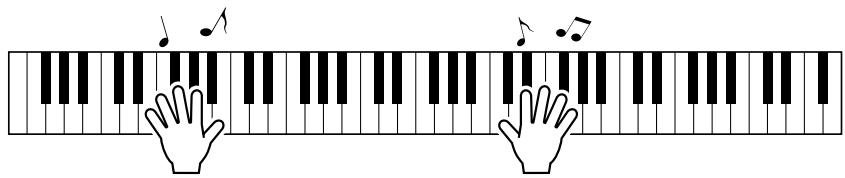

Try playing the score on the left with both hands. You can even play the same keys over and over: C, E, G, C, E, G, C, E. You'll notice that at measure five the notes will come out according to the score on the right. Keep playing, and performance assistant technology Chord type will continue to "correct" the notes that you play.

This is the performance assistant technology Chord type.

You can stop song playback at any time by pressing the [START/STOP] button.

6 Press the [P.A.T. ON/OFF] button to turn the performance assistant technology feature off.

NOTE

The score for Ave Maria is provided on page 96.

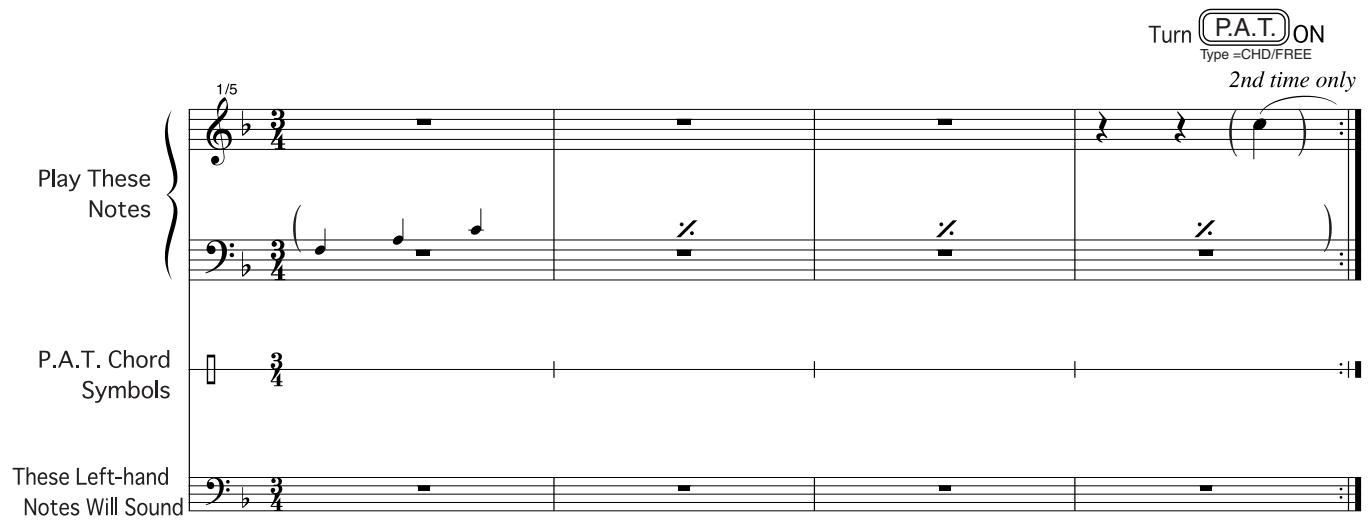

CHD/FREE Type—Applying the Chord Type to the Left Hand Only

1 Press the [P.A.T. ON/OFF] button. This turns on the performance assistant to

The P.A.T. icon will appear when the performance assistant technology feature is on.

2 Select the CHD/FREE type.

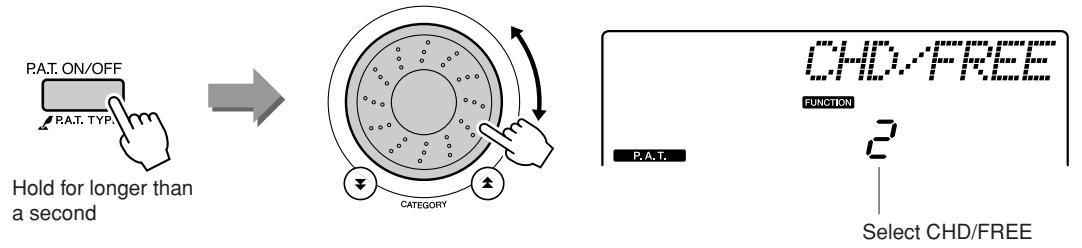

Press and hold the [P.A.T. ON/OFF] button for longer than a second. "PAT Type" appears in the display for a few seconds, then the currently selected performance assistant technology type will be displayed. Select the CHD/FREE type by using the dial.

3 Select a song. Press the [SONG]

Press the [SONG] button, and the Song Select display appears. Select a song by using the dial. For this example try selecting the "011 Nocturne".

4 Press the [START/STOP] button.

SONG

Song playback will begin.

5 Play on the keyboard. Play to the right of the split

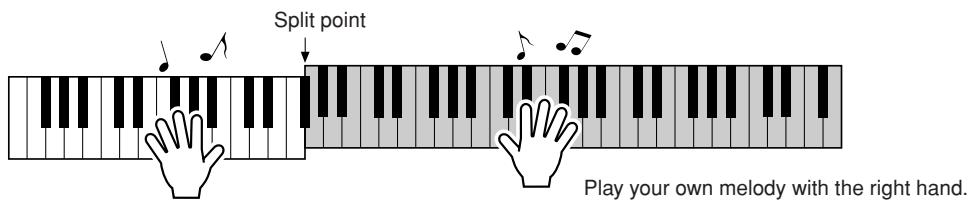

Play to the right of the split point with your right hand, and to the left of the split point with your left hand.

With this type notes played on the left-hand side of the split point will actually sound an octave higher.

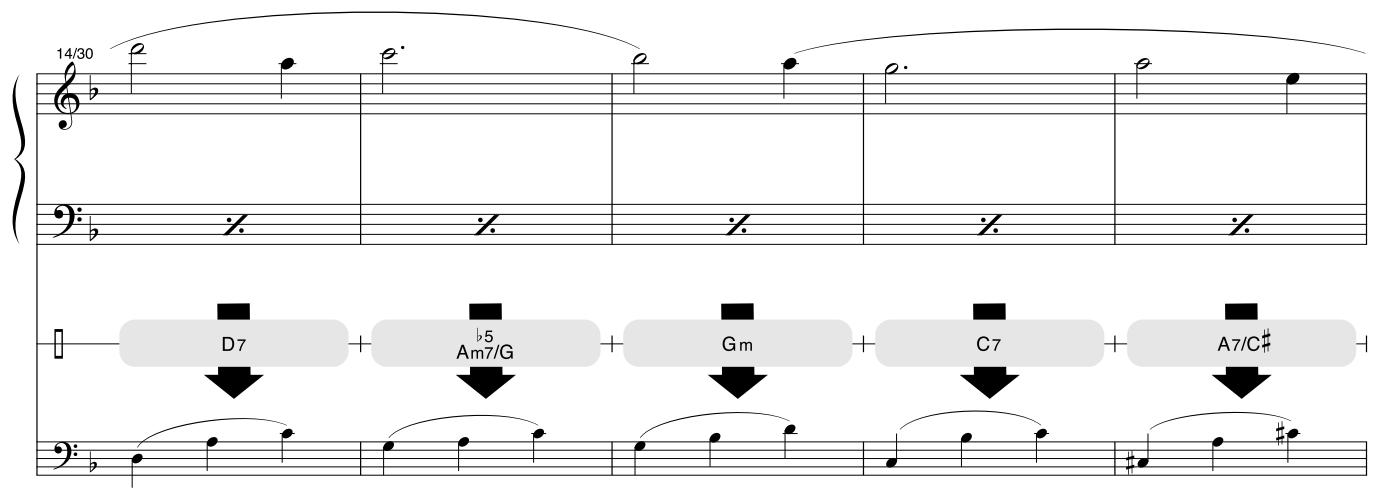

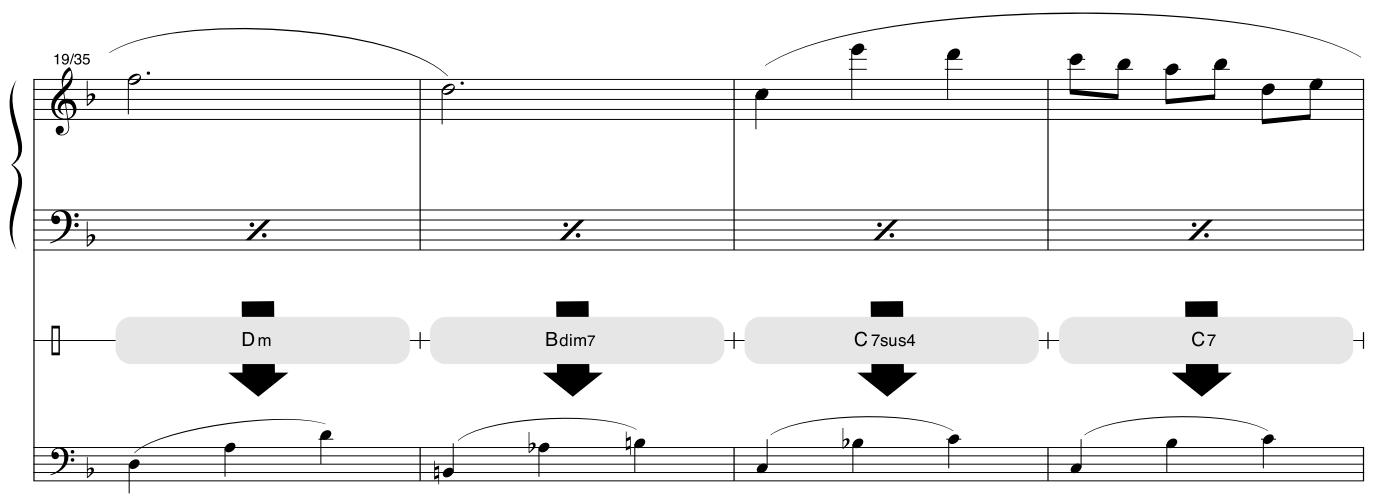

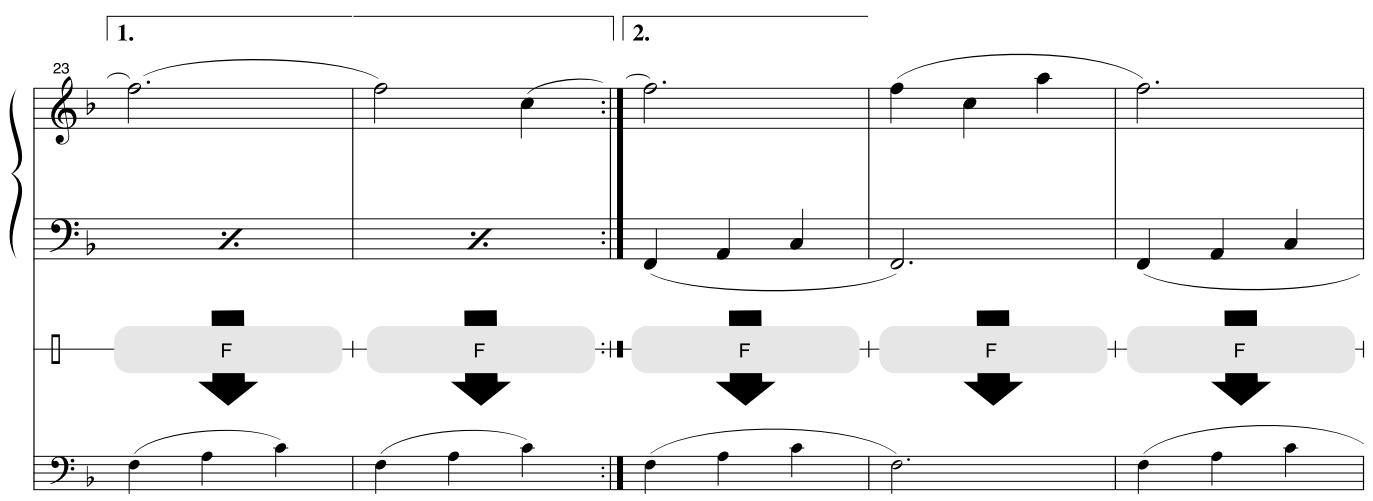

Play the Nocturne melody with your right hand. Continually play an F-A-C arpeggio shown in the illustration with your left hand. Although you're repeatedly playing the same notes with your left hand, the actual notes produced will change to match the music.

This is the performance assistant technology CHD/FREE type.

You can stop song playback at any time by pressing the [START/STOP] button.

6 Press the [P.A.T. ON/OFF] button to turn the performance assistant technology feature off.

NOTE

The score for Nocturne is provided on page 98.

Use the Performance Assistant to Play Like a Pro!

Here are a few hints for using the Chord type.

If you select Chord/Free, the left-hand section of the keyboard becomes the Chord type section, so use these hints on the lefthand section of the keyboard.

To begin, try to feel the rhythm of the song. Then, with your hands spread as shown in the illustration, simply play the keyboard alternately with your left and right hands (any notes will do).

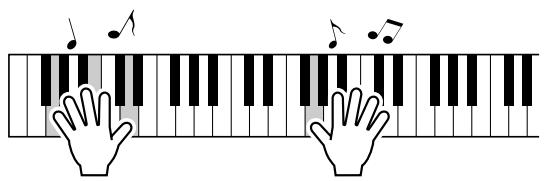

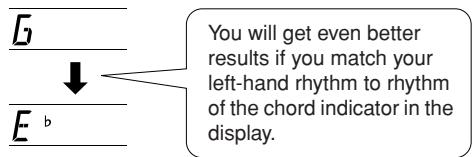

How does it sound? You'll get acceptable results no matter where you play thanks to the performance assistant technology Chord type!

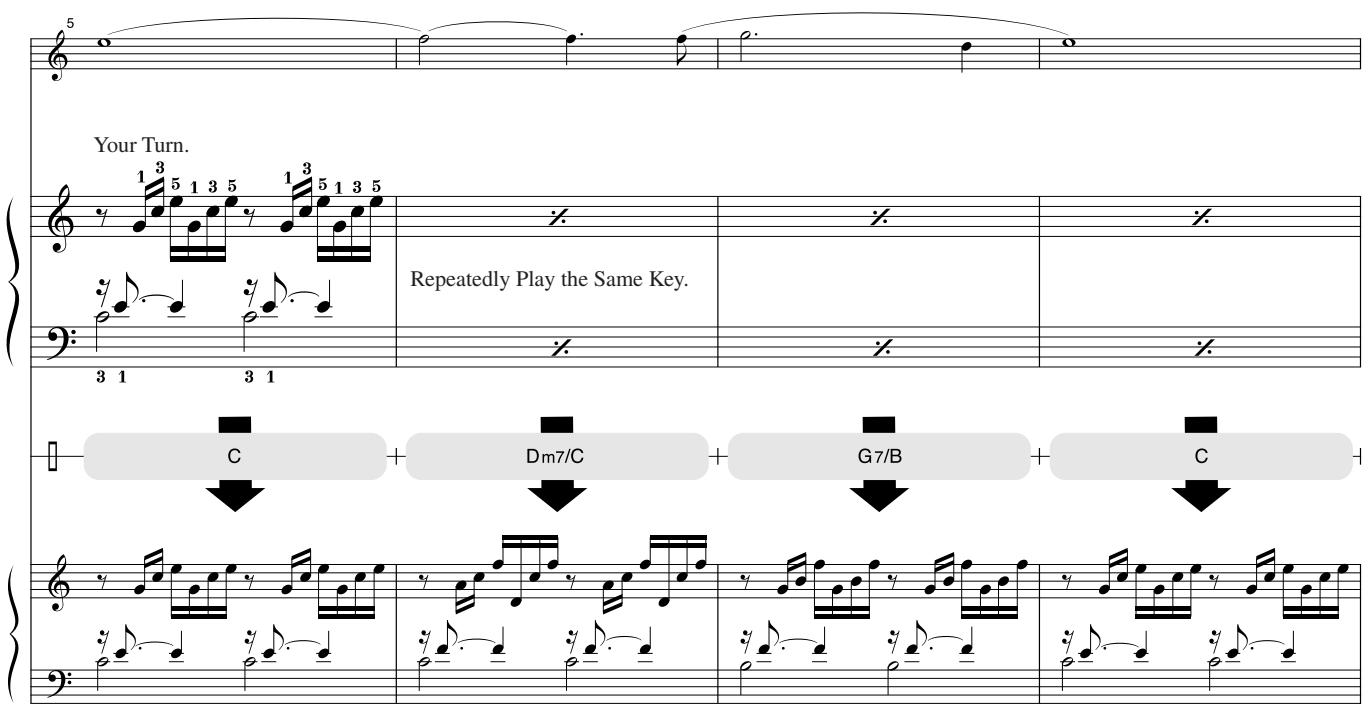

Next try the three playing methods illustrated below. Different ways of playing produce different results.

• Play with the left and right hands at the same timing—type 1.

Play 3 notes at once with your right hand.

• Play with the left and right hands at the same timing—type 2.

Play 1 note at a time with your right hand (for example: index finger middle finger ring finger).

• Play alternately with the left and right hands—type 3.

Play 3 notes at once with your right hand.

Once you get a feel for it, try playing chords with your left hand and a melody with your right ... or any other combination.

To use the performance assistant technology feature it is necessary to play a song that includes chord data, or a style with auto accompaniment on.

If a song includes the required data, the chords are shown on the right side of the display (page 52).

Change the Song Tempo

When using the performance assistant technology or in other situations in which the tempo of the song is too fast or too slow for you, you can change the tempo as required. Press the [TEMPO/TAP] button. The tempo display will appear and you can use the dial, the [+] and [-] buttons, or the [0] to [9] number buttons to set to tempo to anywhere from 011 and 280 quarter-note beats per minute.

You can return to the original tempo by simultaneously pressing the [+] and [-] buttons.

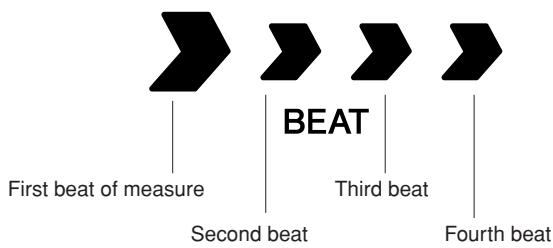

- About the Beat Display

The arrow marks in the beat display flash in time with the rhythm of the song or style.

Yamaha Education Suite

You can select song you like and use it for a left-hand, right-hand, or both-hands lesson. You can also use songs (only SMF format 0) downloaded from the Internet and saved to flash memory. (pages 82-84) During the lesson you can play as slowly as you like, and you can even play wrong notes. Song playback will slow down to a speed you can handle. It's never too late to start learning!

Lesson Flow:

Select a song from the Piano Solo, Piano Ensemble category!

The practice methods:

• Lesson 1 ........ Learn to play the correct notes.
• Lesson 2. Learn to play the correct notes with the correct timing.
• Lesson 3............ Learn to play the correct notes at the correct timing along with the song.

Lesson 1—Waiting

In this lesson, try playing the correct notes. Play the note shown in the display. The song will wait until you play the right note.

1 Select a song for your lesson. Press the [SONG] button, and rotate to

Press the [SONG] button, and rotate the dial to select the song you want to use for your lesson. As listed on page 28 there are a variety of song types. For this example try selecting the "012 ForElise".

2 Select the part you want to practice.

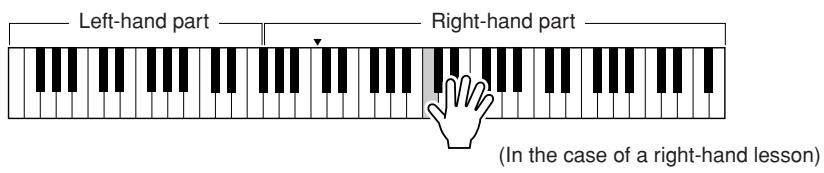

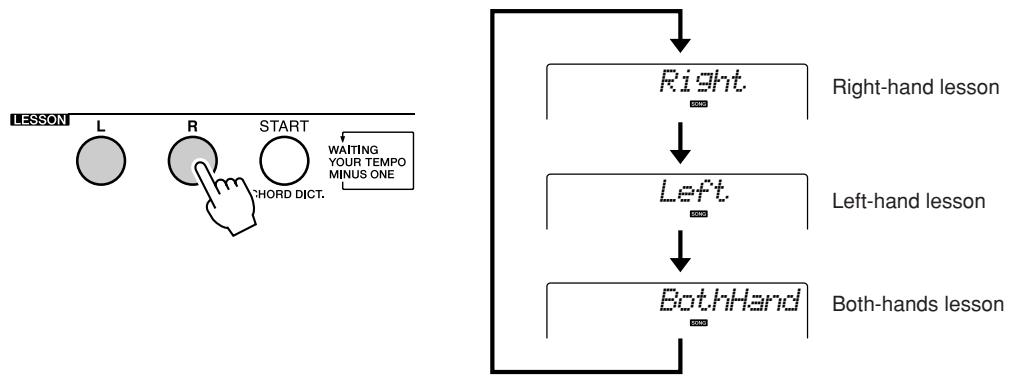

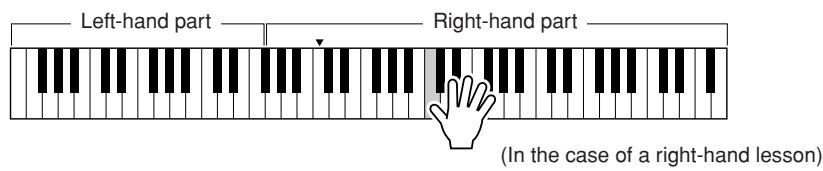

Press the [R] button for a right-hand lesson, [L] button for a left-hand lesson, or press both the [R] and [L] buttons simultaneously for a both-hands lesson.

The currently selected part is shown in the display.

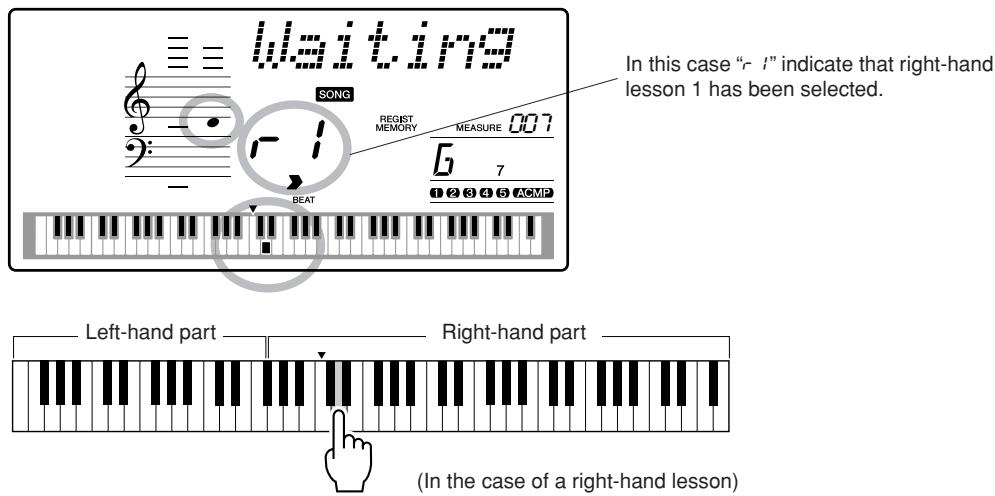

3 Start Lesson 1. Press the LESSON

Press the LESSON [START] button to select Lesson 1. Each time the LESSON [START] button is pressed the lesson modes are selected in sequence: Lesson 1 Lesson 2 Lesson 3 Off Lesson 1 .... The currently selected mode is shown in the display.

Song playback will begin automatically when you select Lesson 1.

Start the lesson!

Play the note shown in the display. When you play the correct note, the next note you need play is shown. The song will wait until you play the correct note.

4 Stop the Lesson mode. You can stop the Lesson mode.

You can stop the Lesson mode at any time by pressing the [START/STOP] button.

Once you've mastered Lesson 1, move on to Lesson 2.

■See How You've Done

Excellent

Very Good

Good

OK

When the lesson song has played all the way through your performance will be evaluated in 4 levels: OK, Good, Very Good, or Excellent. "Excellent!" is the highest evaluation.

After the evaluation display has appeared, the lesson will start again from the beginning.

NOTE

• The evaluation feature can be turned off via the FUNCTION Grade item (page 77).

Lesson 2—Your Tempo

Learn to play the correct notes with the correct timing. Song playback tempo will vary to match the speed you are playing at. The song will slow down when you play wrong notes, so you can learn at your own pace.

1 Select the song and part you want to practice (steps 1 and 2 on pages 36, 37).
2 Start Lesson 2. Each time the LFS

Each time the LESSON [START] button is pressed the lesson modes are selected in sequence: Lesson 1 Lesson 2 Lesson 3 Off Lesson 1 ...

In this case "r2" indicate that right-hand lesson 2 has been selected.

Song playback will begin automatically when Lesson 2 is selected.

Start the lesson!

Play the note shown in the display. Try to play the notes at the correct timing. As you learn to play the right notes at the right timing the tempo will increase until eventually you'll be playing at the song's original tempo.

3 Stop the Lesson mode. You can stop the Lesson mode

You can stop the Lesson mode at any time by pressing the [START/STOP] button.

Once you've mastered Lesson 2, move on to Lesson 3.

Lesson 3—Minus One

Here's where you can perfect your technique.
The song will play at the normal tempo, minus the part you have chosen to play. Play along while listening to the song.
1 Select the song and part you want to practice (steps 1 and 2 on pages 36, 37).
2 Start Lesson 3. Each time the LFS

Each time the LESSON [START] button is pressed the lesson modes are selected in sequence: Lesson 1 Lesson 2 Lesson 3 Off Lesson 1 ...

In this case "r 3" indicate that right-hand lesson 3 has been selected.

Song playback will begin automatically when Lesson 3 is selected.

Start the lesson!

Play the note shown in the display.

3 Stop the Lesson mode. You can stop the Lesson mo

You can stop the Lesson mode at any time by pressing the [START/STOP] button.

Practice Makes Perfect—Repeat and Learn

Use this feature when you want to start again just ahead of a section on which you made a mistake, or to repeatedly practice a section you find difficult.

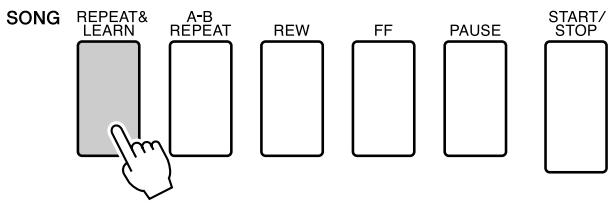

Press the [REPEAT & LEARN] button during a lesson.

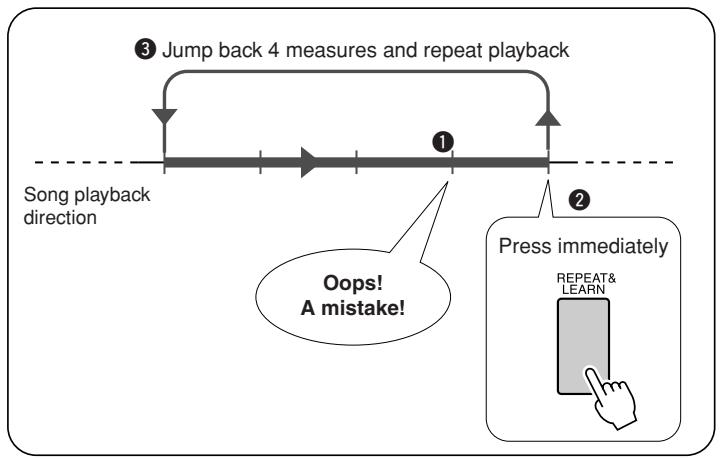

The song location will move back four measures from the point at which you pressed the button, and playback will begin after a one-measure count-in. Playback will continue up to the point at which you pressed the [REPEAT & LEARN] button, and then jump back four measures and begin again after a count-in. This process will repeat, so all you have to do is press the [REPEAT & LEARN] button when you make a mistake in order to repeat practice of that section until you get it right.

NOTE

• You can change the number of measures the Repeat and learn function jumps back by pressing a number button [1]–[9] during repeat playback.

You want to play music in your favorite style, but you're not sure how to select the best voice and style for the type of music you want to play ... simply select the appropriate style from the Music Database. The panel settings will automatically be adjusted for the ideal combination of sounds and style!

Press the [MUSIC DATABASE] button.

A Music Database list will appear in the display.

2 Select a Music Database. Referring to the list on the pane

Referring to the list on the panel or Music Database List on page 107 of the manual, use the dial to select a music database. Select one that matches the image of the song you intend to play. For this example select the "115 DayOfW&R".

3 Play the chords with your left hand and melody with your right.

The jazz style will start playing when you play a left-hand chord to the left of the split point (page 16). Refer to page 24 for information about playing chords.

Press the [START/STOP] button to stop playback.

In addition to each song's default style, you can select any other style to play the song with the Easy Song Arranger feature. This means that you can play a song that is normally a ballad, for example, as a bossa nova, as a hip-hop tune, etc. You can create totally different arrangements by changing the style with which a song is played.

You can also change the song's melody voice and the keyboard voice for a complete change of image.

Listen to the DEMO Song for Easy Song Arranger

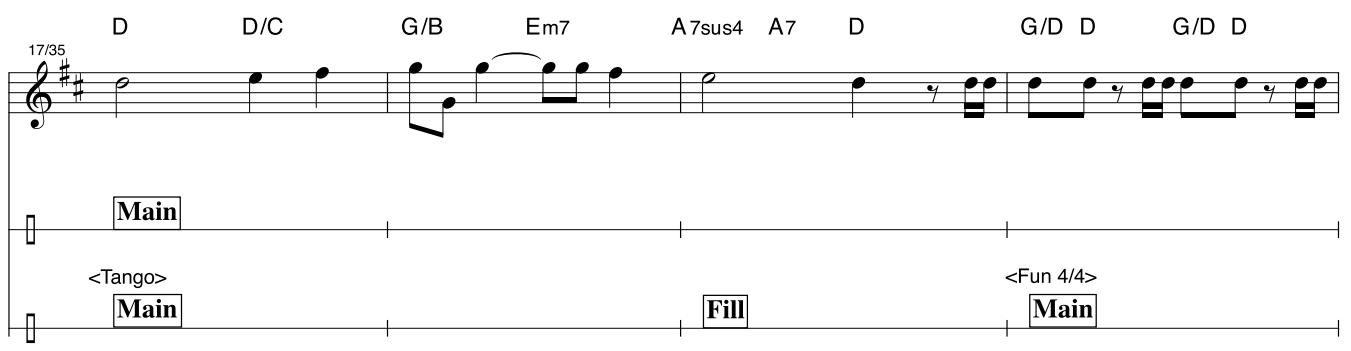

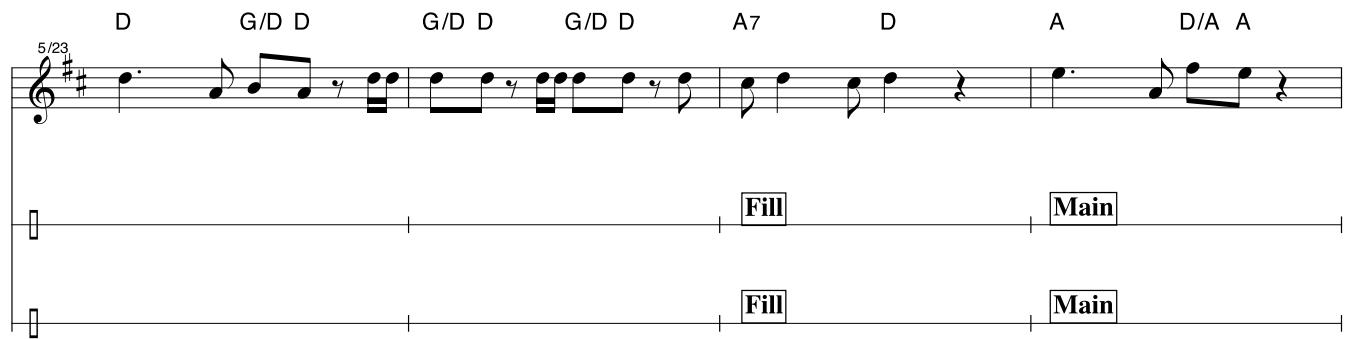

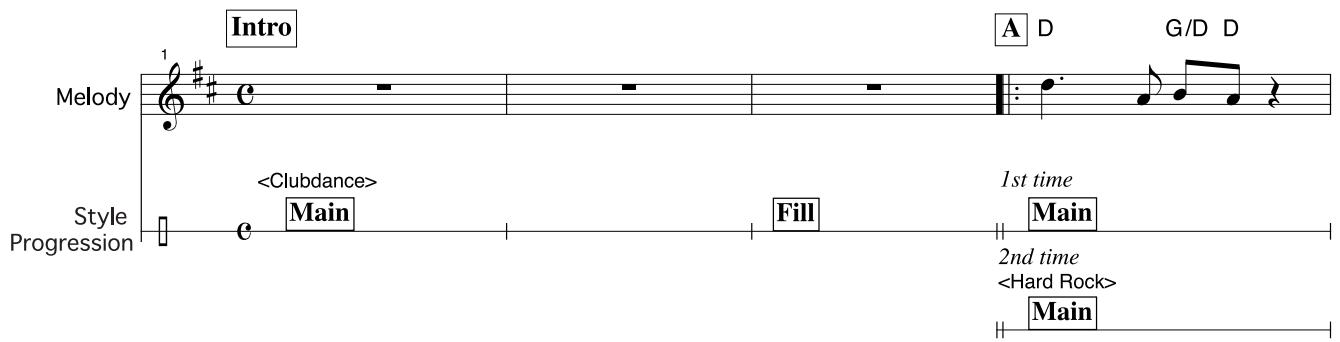

The "Hallelujah Chorus" in the preset songs lets you experience the Easy Song Arranger. Playing it.

Press the [SONG] button, then select a “009 Hallelujah Chorus” by using the dial. Press the [START/STOP] button to play it.

As the song progresses, you will see only the style changes while the song remains the same.

Keep in mind that you can enjoy using Easy Song Arranger with other songs as well—any songs that include chord data.

NOTE

The score for Hallelujah Chorus is provided on page 94.

Using the Easy Song Arranger

Press the [EASY SONG ARRANGER] button.

The song number and name will be displayed. You can use the dial to select a different song.

2 Select a Song. Use the dial to select the song you want to arrange.

3 Listen to the song. Press the START/STO

Press the [START/STOP] button to begin playback of the song. Move on to the next step while the song is playing.

NOTE

• When playing song numbers 010, 011 and 020 to 030 while using the Easy Song Arranger, melody tracks will be automatically muted and no melody will sound. In order to hear the melody tracks you will need to press the SONG MEMORY buttons [3] to [5].

Press the [EASY SONG ARRANGER] button. The style number and name will be displayed. You can

The style number and name will be displayed. You can use the dial to select a different style.

The currently selected style number and name are displayed here.

5 Select a style. Rotate the dial ap

Rotate the dial and listen to how the song sounds with different styles. As you select different styles the song will remain the same while only the styles change. When you have selected a suitable style move on to the next step while the song is still playing (if you have stopped the song, start it again by pressing the [START/STOP] button).

NOTE

• Because the Easy Song Arranger uses song data you can't specify chords by playing in the accompaniment range of the keyboard. The [ACMP ON/OFF] button will not function.

• If the time signature of the song and style are different, the time signature of the song will be used.

Select a voice you want to play as a song melody.

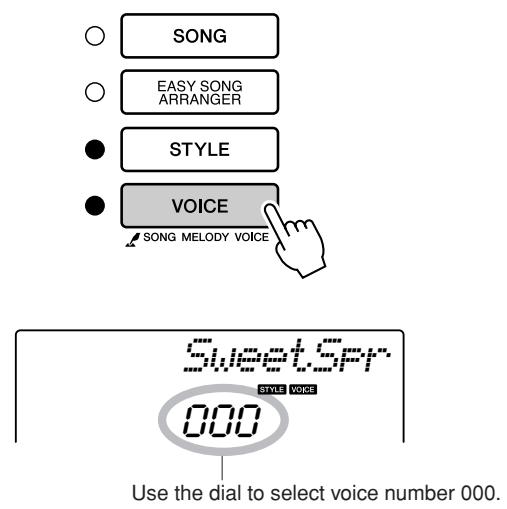

Press the [VOICE] button. The currently selected voice number and name will be displayed. Use the dial to select a different voice.

The currently selected voice number and name are displayed here.

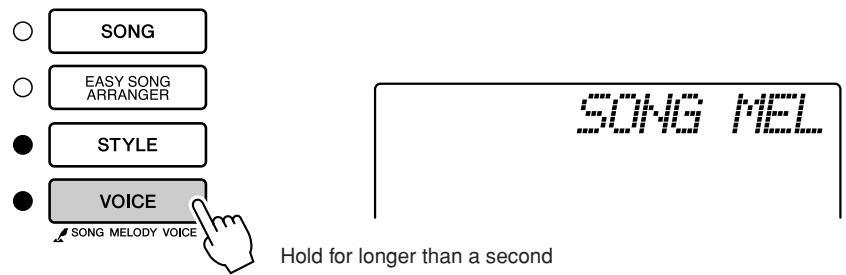

7 Change the song's melody voice. Press and hold the [VOICE] button for lo

Press and hold the [VOICE] button for longer than a second. After SONG MELODY VOICE appears on the display the voice you selected in step 6 becomes the song's melody voice.

You can record up to 5 of your own performances and save them as user songs 031 through 035. The recoreded song can be played back on the instrument.

Recordable Data

You can record to a total of 6 tracks: 5 melody tracks and 1 style (chord) track. Each track can be recorded individually.

• Melody Track [1]–[5]. Record the melody parts.
• Style Track [A] .Records the chord part.

NOTE

• Up to approximately 10,000 notes can be recorded if you record only to the melody tracks. Up to approximately 5,500 chord changes can be recorded if you record only to the style track.

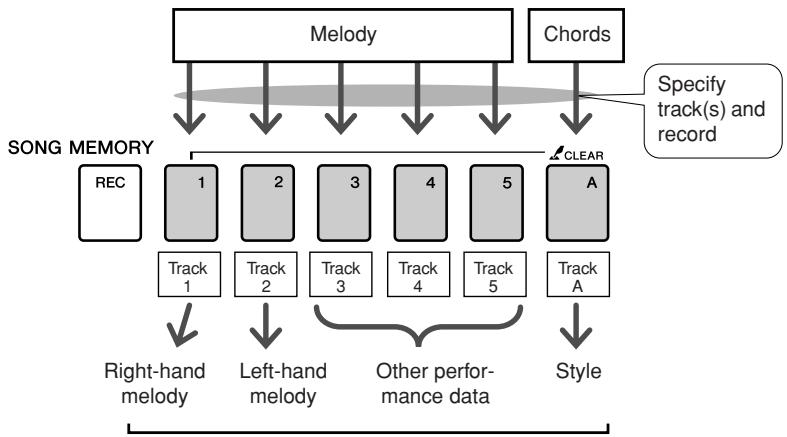

Track Configuration

To record your own performance, first use the SONG MEMORY [1]–[5] and [A] buttons to specify the track(s) you want to record on. The track you record on determines the part that plays back later.

The parts played by each track when a user song is played back.

• Track [1]—Will play back as the right-hand melody part (MELODY R)
• Track [2]—Will play back as the left-hand melody part (MELODY L)
• Tracks [3]-[5]—Will play back as "other" performance data.
• Track [A]—Will play back as the Style (auto-accompaniment) part.

NOTE

• The Difference Between MEODY R and MEODY L ... Songs are a combination of a melody and an auto-accompanyment style. Normally "melody" refers to the right-hand part, but in this instrument "melody" parts are provided for both the right and left hands. MEODY R is the melody part played by the right hand, and MEODY L is the melody part played by the left hand.

Recording Procedure

Press the [SONG] button, then use the dial to select the user song number (031-035) you want to record to.

Rotate the dial to select a song number between 031 and 035.

2 Select the track(s) you want to record to and confirm your selection on the display.

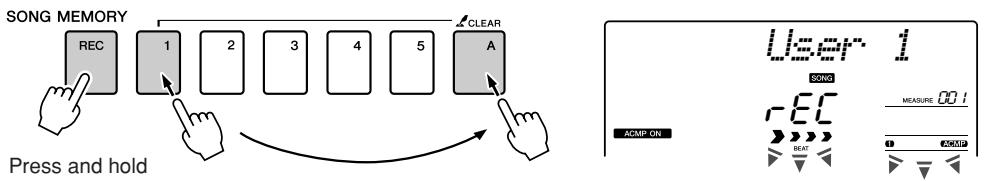

Record a Melody Track and the Accompaniment Track Together

Press the melody track button [1]–[5] you want to record to while holding the [REC] button.

Next, press the [A] button while holding the [REC] button.

The selected tracks will flash in the display.

CAUTION

• If you record to a track that contains previously-recorded data the previous data will be overwritten and lost.

NOTE

• Style accompaniment is automatically turned on when you select the style track [A] for recording.
• Style accompaniment cannot turned on or off while recording is in progress.
• If you use a split voice for recording, notes played to the left of the split point will not be recorded.

Record a Melody track

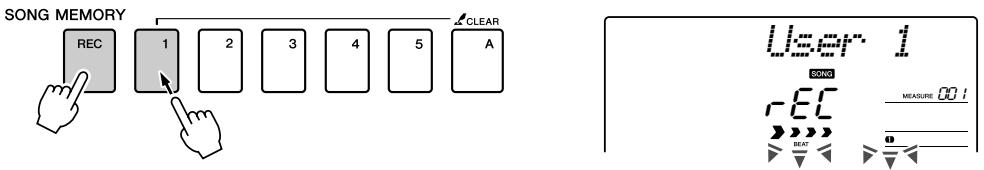

Press the melody track button [1]–[5] you want to record to while holding the [REC] button.

The selected track will flash in the display.

NOTE

• If style accompaniment is on and track [A] has not yet been recorded, the style track [A] will automatically be selected for recording when a melody track is selected. If you only want to record a melody track, be sure to turn the style track [A] off.

To cancel recording to a selected track, press that track button a second time. Style accompaniment cannot be turned on or off while recording is in progress.

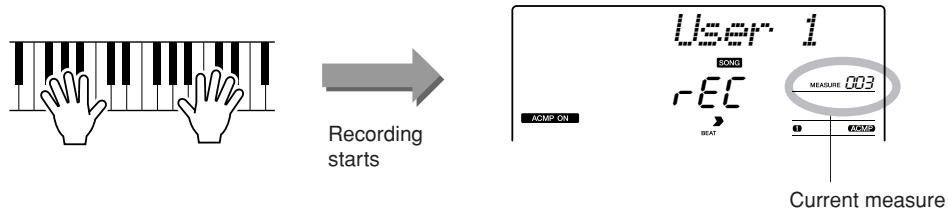

3 Recording will start when you play on the keyboard. You can also start recording by pressing the [START/STOP] butt

The current measure will be shown on the display during recording.

NOTE I

• If the memory becomes full during recording a warning message will appear and recording will stop automatically. Use the song clear or track clear (page 48) function to delete unwanted data and make more room available for recording, then do the recording again.

4 Stop recording by pressing the [START/STOP] or [REC] button.

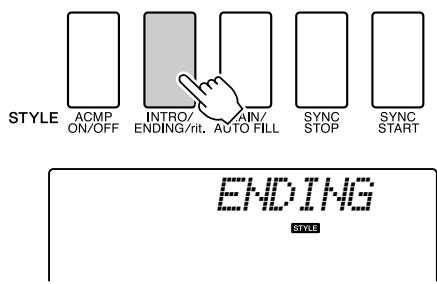

If you press the [INTRO/ENDING/rit.] button while recording the style track an appropriate ending pattern will play and then recording will stop. When recording stops the current measure number will return to 001 and the recorded track numbers in the display will light.

To Record Other Tracks

Repeat steps 2 through 4 to record any of the remaining tracks. By selecting an unrecorded track—SONG MEMORY buttons [1]–[5], [A]—you can record the new track while listening to previously recorded tracks (the playback tracks will appear in the display). You can also mute previously recorded tracks (the muted tracks will not appear in the display) while recording new tracks.

To Re-record a Track

Simple select the track you want to re-record for recording in the normal way.

The new material will overwrite the previous data.

5 When the recording is done ...

To Play Back a User Song

User songs are played back in the same way as regular songs (page 25).

1 Press the [SONG] button.
2 The current song number/name will be displayed—use the dial to select the user song (031-035) you want to play.
3 Press the [START/STOP] button to start playback.

Data Recording Limitations

• The split voice cannot be recorded.
• The following data are recorded at the beginning of the track. Changes made during the song will not be recorded.

reverb type, chorus type, time signature, style number, style volume, tempo (When the style track is recorded)

Song Clear—Deleting User Songs

This function clears an entire user song (all tracks).

Press the [SONG] button, then select the user song (031-035) you want to clear.

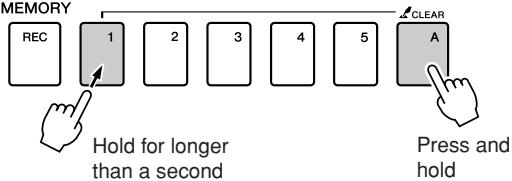

2 Press and hold the SONG MEMORY [1] button for longer than a second while holding the SONG MEMORY [A] button.

A confirmation message will appear on the display.

SONG MEMORY

3 Press the [+] button.

A confirmation message will appear on the display.

You can cancel the clear operation by pressing the [-] button.

Press the [+] button to clear the song.

The clear-in-progress message will appear briefly on the display while the song is being cleared.

NOTE

To execute the Song Clear function press the [+] button. Press [-] to cancel the Song Clear operation.

Track Clear—Deleting a Specified Track from a User Song

This function lets you delete a specified track from a user song.

Press the [SONG] button, then select the user song (031-035) you want to clear.
2 Press and hold the SONG MEMORY track button ([1]–[5], [A]) corresponding to the track you want to clear for longer than a second.

A confirmation message will appear on the display.

SONG MEMORY

3 Press the [+] button. A confirmation message

A confirmation message will appear on the display.

You can cancel the clear operation by pressing the [-] button.

Press the [+] button to clear the track. The clear-in-progress message will appear brie

The clear-in-progress message will appear briefly on the display while the track is being cleared.

NOTE

To execute the Track Clear function press the [+] button. Press [-] to cancel the Track Clear operation.

Backup

The following settings are always backed up, and are maintained even when the power is turned off. If you want to initialize the settings, use the Initialize operation as explained below.

The Backup Parameters

• User Songs
• Style Files
• Registration Memory
• FUNCTION Settings: Tuning, Split Point, Touch Sensitivity, Style Volume, Song Volume, Metronome Volume, Grade, Demo Cancel, Master EQ type

Initialization

This function erases all backup data in the instrument's flash memory and restores the initial default settings. The following initialization procedures are provided.

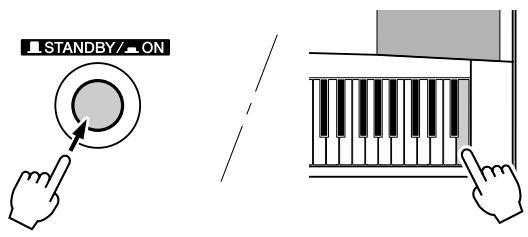

■Backup Clear

To clear data backed up to the internal flash memory—panel user setting, registration memory, user songs, style file 151—turn the power on by pressing the [STANDBY/ON] switch while holding the highest white key on the keyboard. The backed up data will be erased and the default values restored.

■Flash Clear

To clear song data and style files that have been transferred to the internal flash memory from a computer, turn the power on by pressing the [STANDBY/ON] switch while simultaneously holding the highest white key on the keyboard and the three highest black keys.

CAUTION

• When you execute the Flash Clear operation, song data you have purchased will also be cleared. Be sure to save data you want to keep to a computer.

Basic Operation

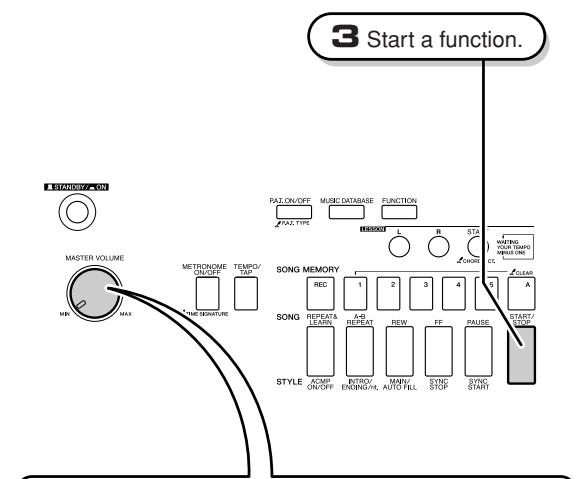

Overall DGX-220/YPG-225 control is based on the following simple operations.

1 Press a button to select a basic function.
2 Use the dial to select an item or value.
3 Start a function.

Volume Adjustment

Adjusts the volume of the sound heard via the instrument's speakers or a pair of headphones plugged into the PHONES jack.

The "Press & Hold" Symbol

The " ” symbol that appears next to some buttons indicates that the button can be pressed and held for longer than a second to call up a related function. This provides convenient direct access to a range of functions.

1 Press a button to select a basic function.

SONG Select a song you want to listen to or a song you want to use for a lesson.
EASY SONG ARRANGER
O STYLE Select an auto-accompanyiment style.
VOICE Select a voice you want to play on the keyboard. SONG MELODY VOICE

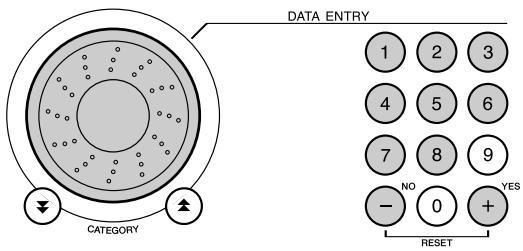

2 Use the dial to select an item or value.

When you select a basic function, the item corresponding to that function will be displayed. You can then use the dial or the number buttons [0]–[9] to select the desired item.

Changing Values.

Dial

Rotate the dial clockwise to increase the value of the selected item, or counterclockwise to decrease its value. Rotate the dial continuously to continuously increase or decrease the value.

Decrease Increase

- [+] and [-] Buttons

Press the [+] button briefly to increment the value by 1, or press the [-] button briefly to decrement the value by 1. Press and hold either button to continuously increment or decrement the value in the corresponding direction.

Press briefly to decrement.
Press briefly to increment.

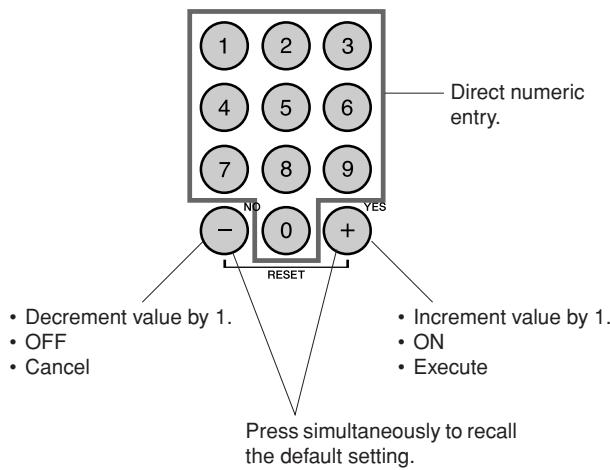

Number Buttons [0]–[9]

The number buttons can be used to directly enter a song number or parameter value.

Hundreds or tens digits that are "0" can be omitted (see below).

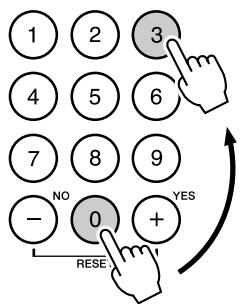

Example: Song number "003" can be entered in three ways.

• [0] [0] [3]
• [0] [3] ("003" will appear on the display after a brief delay)
  [3] ("003" will appear on the display after a brief delay)

Press number buttons [0], [0], [3].

- CATEGORY [▲] and [▼] buttons

When selecting a song, style, or voice, you can use these buttons to jump to the first item in the next or previous category.

The CATEGORY [] and [] buttons are useful for selecting categorized items, as in the example below.

Jump to the first item in the next or previous category.

Example: VOICE SELECT

The first voice in the selected category is selected.

In a display in which a category appears, selection is easy if you first use the CATEGORY [A] and [B] buttons to select the category containing the desired item, then use the dial or [+] and [-] buttons to select the item. This can be particularly handy when you have to select from a large number of voices.

In most procedures described throughout this owner's manual the dial is recommended for selection simply because it is the easiest and most intuitive selection method. Please note however, that most items or values that can be selected using the dial can also be selected using the [+] and [-] buttons.

3 Start a function.

START/ STOP

This is the [START/STOP] button.

Press the [START/STOP] button after pressing the [SONG] or [STYLE] button to start playback of the selected song or style (rhythm).

Display Items

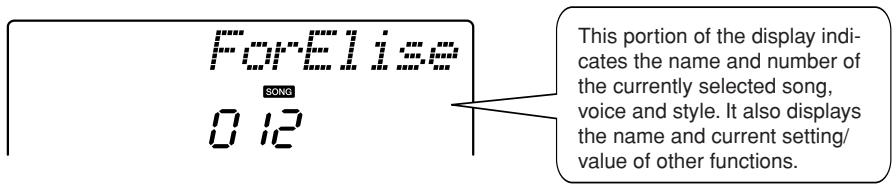

The display shows all of the current basic settings: song, style, voice.

It also includes a range of indicators that show the on/off status of a range of functions.

Harmony

This feature adds harmony notes to the main voice.

Press the [HARMONY ON/OFF] button to turn Harmony feature on.

To turn Harmony off, press the [HARMONY ON/OFF] button again.

When you press the [HARMONY ON/OFF] button to turn this feature on, the appropriate harmony type for the currently selected main voice is automatically selected.

2 Press and hold the [HARMONY ON/ OFF] button for longer than a second so that the Harmony Type item appears.

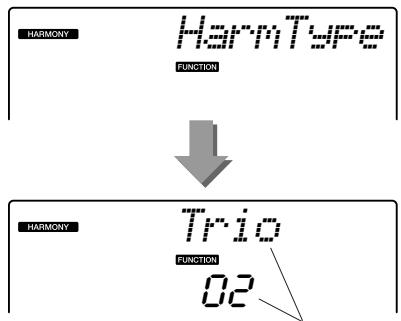

"HarmType" appears in the display for a few seconds, and the currently selected harmony type will be displayed. Use the dial to select a different harmony type.

Hold for longer than a second.

The currently selected harmony type

- How to sound each Harmony Type

Harmony type 01 to 05

Press the right-hand keys while playing chords in the auto accompaniment range of the keyboard when the Auto Accompaniment is on (page 20).

• Harmony type 06 to 12 (Trill)

3 Use the dial to select a harmony type.

Refer to the Effect Type List on page 109 for information about the available harmony types. Try playing the keyboard with the harmony function. The effect and operation of each Harmony Type is different-refer to the below section "How to sound each Harmony Type" as well as the Effect Type List for details.

NOTE

• The harmony notes can be added only to the Main Voice, not to Dual or Split Voices.

• The keys left of the Split Point of the keyboard produce no harmony notes when the auto accompaniment is on (ACMP ON is lit).

• Harmony type 13 to 19 (Tremolo)

• Harmony type 20 to 26 (Echo)

You can adjust the Harmony Volume in the Function Settings (page 62).

Adding Reverb

Reverb lets you play with a rich concert hall type ambience. When you select a style or song the optimum reverb type for the voice used is automatically selected. If you want to select a different reverb type, use the procedure described below.

Press the [FUNCTION] button.

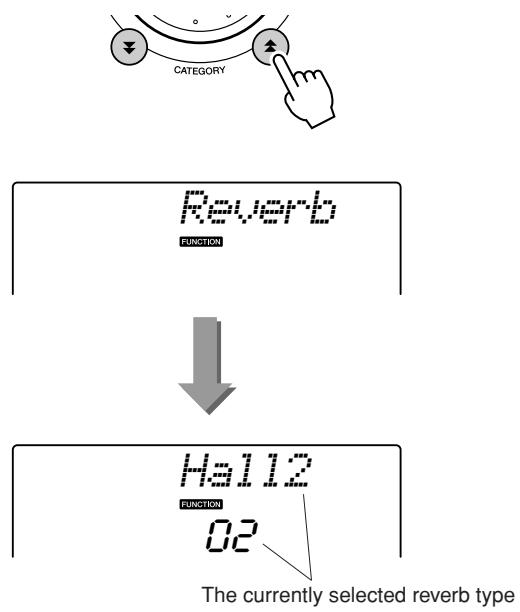

2 Use the CATEGORY [▲] and [▼] buttons to select the Reverb Type item.

"Reverb" appears in the display for a few seconds, and the currently selected reverb type will be displayed.

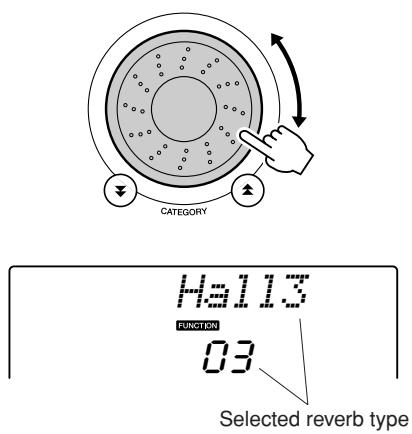

3 Use the dial to select a reverb type.

You can check how the selected reverb type sounds by playing on the keyboard.

Refer to the Effect Type List on page 109 for information about the available reverb types.

Adjusting the Reverb Level

You can individually adjust the amount of reverb that is applied to the main, dual, and split voices. (See page 76).

Adding Chorus

The chorus effect creates a thick sound that is similar to many of the same voices being played in unison. When you select a style or song the optimum chorus type for the voice used is automatically selected. If you want to select a different chorus type, use the procedure described below.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Chorus Type item.

"Chorus" appears in the display for a few seconds, and the currently selected chorus type will be displayed.

The currently selected chorus type

3 Use the dial to select a chorus type.

You can check how the selected chorus type sounds by playing on the keyboard.

Refer to the Effect Type List on page 109 for information about the available chorus types.

Adjusting the Chorus Level

You can individually adjust the amount of chorus that is applied to the main, dual, and split voices. (See page 76).

The Metronome

The instrument includes a metronome with adjustable tempo and time signature.

Use it to set the tempo that is most comfortable for you.

Start the metronome.

Turn the metronome on and start it by pressing the [METRONOME ON/OFF] button.

To stop the metronome, press the [METRO-NOME ON/OFF] button again.

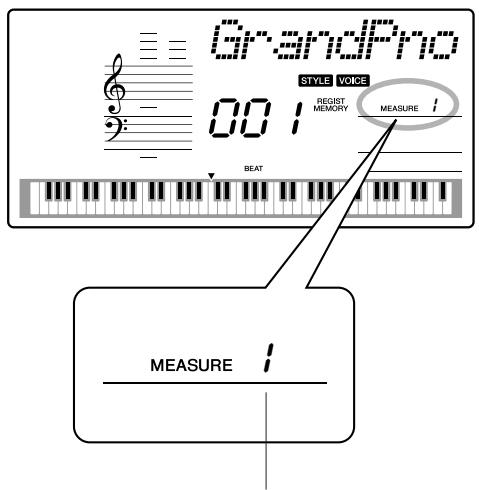

Indicates the beat number in the measure

Adjusting the Metronome Tempo

Press the [TEMPO/TAP] button to call up the tempo setting.

Tempo

090

Current Tempo setting

2 Use the dial to select a tempo from 11 to 280.

Setting the Number of Beats per Measure, and the Length of Each Beat

In this example we'll set up a 5/8 time signature.

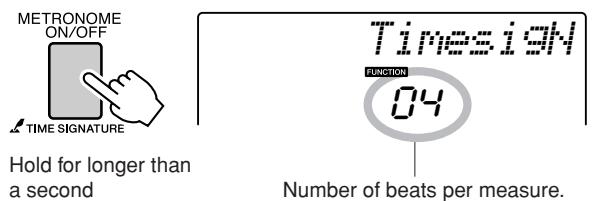

Press and hold the [METRONOME ON/OFF] button for longer than a second to select the number of beats per measure function "TimesigN".

2 Use the dial to select the number of beats per measure.

A chime will sound on the first beat of each measure while the other beats will click. All beats will simply click with no chime at the beginning of each measure if you set this parameter to "00".

The available range is from 0 through 60. Select 5 for this example.

NOTE

• The metronome time signature will synchronize to a style or song that is playing, so these parameters cannot be changed while a style or song is playing.

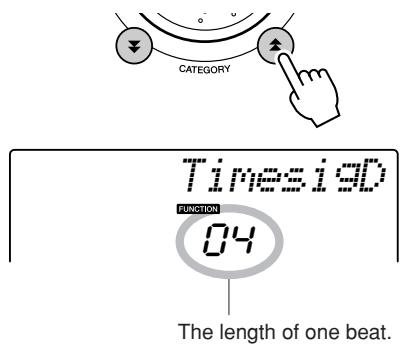

3 Press the CATEGORY [▲] and [▼] buttons as many times as necessary to select the beat length function "TimesigD".

The currently selected beat length will be displayed.

4 Use the dial to select the beat length.

Select the required length for each beat: 2, 4, 8, or 16 (half note, quarter note, eighth note, or 16^th note). Select 8 for this example.

Adjusting the Metronome Volume

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Metronome Volume item.

3 Use the dial to set the metronome volume as required.

Tap Start

You can start the song/style by simply tapping the [TEMPO/TAP] button at the required tempo—4 times for time signatures in 4, and three times for time signatures in 3. You can change the tempo during song playback by pressing the button just twice.

Touch Response Sensitivity

When touch response is on you can adjust the keyboard's sensitivity to dynamics in three steps.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Touch Sensitivity item.

"TouchSns" appears in the display for a few seconds, and the currently selected touch sensitivity will be displayed.

3 Use the dial in response to keyboard dynamics to select a touch sensitivity setting between 1 and 3. Higher values produce greater (easier) volume variation in response to keyboard dynamics—i.e. greater sensitivity.

A setting of "4" results in a fixed touch response, or no level change no matter how hard or how soft you play the keys.

NOTE

• The initial default touch sensitivity setting is "2".

Panel Sustain

This function adds sustain to the keyboard voices. Use it when you want to add sustain to the voices at all times, regardless of footswitch operation. The sustain function does not affect split voice.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Sustain item.

The current setting is displayed.

3 You can then use the [+] and [-] buttons to turn panel sustain on or off.

• The sustain of some voices may not be markedly affected when the panel sustain function is turned on.

NOTE

Pitch Bend

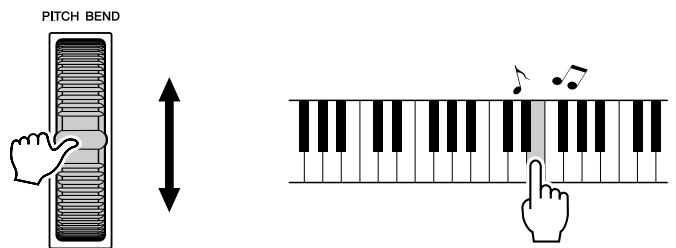

The pitch bend wheel can be used to add smooth pitch variations to notes you play on the keyboard. Roll the wheel upward to raise the pitch, or downward to lower the pitch. If you use this feature with a voice such as the "040 Overdriven" guitar voice, you can produce remarkably realistic string-bending effects. You can change the amount of pitch bend produced by the wheel, as described on page 76.

Pitch Controls

Large Pitch Changes (Transpose)

The overall pitch of the instrument can by shifted up or down by a maximum of 1 octave in semitone increments.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Transpose item.

3 Use the dial to set the transpose value between -12 and +12 as required.

NOTE

• The pitch of Drum Kits voices cannot be changed.

Small Pitch Changes (Tuning)

The overall tuning of the instrument can by shifted up or down by a maximum of 100 cents in 1-cent increments (100 cents = 1 semitone).

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Tuning item.

3 Use the dial to set the tuning value between -100 and +100 as required.

NOTE

• The pitch of Drum Kits voices cannot be changed.

One Touch Setting

Sometimes selecting the ideal voice to play with a song or style can be confusing. The One Touch Setting feature automatically selects a well-balanced voice for you when you select a style or song. Simply select voice number "000" to activate this feature.

1 Select voice number "000" (steps 1 to 2 on page 14).

2 Select and play back any song (steps 1 to 3 on page 25).
3 Play the keyboard and remember the sound of the voice.

If you have stopped playback at some point during this procedure press the [START/STOP] button to start playback again.

4 Use the dial to change songs, then play the keyboard and listen to the voice.

You should hear a different keyboard voice than you played in step 3. Press the [VOICE] button after changing songs to see the name of the voice being used.

Adjusting the Harmony Volume

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Harmony Volume item.

3 Use the dial to set the harmony volume between 000 and 127.

Select an EQ Setting for the Best Sound

Five different master equalizer (EQ) settings are provided to give you the best possible sound when listening through different reproduction systems—the instrument's internal speakers, headphones, or an external speaker system.

Press the [FUNCTION] button.

The currently selected function will appear in the display.

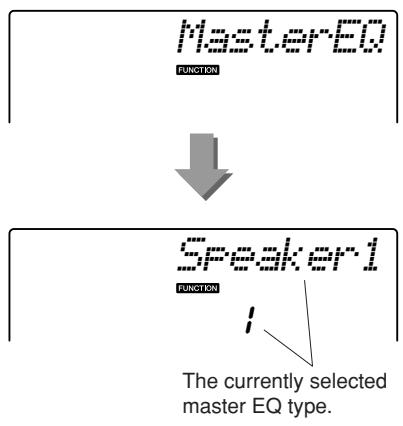

2 Press the CATEGORY [A] and [Y] buttons as many times as necessary to select the master EQ type function "MasterEQ".

"MasterEQ" will be shown in the display for a few seconds, then the currently selected EQ type will appear.

3 Use the dial to select the desired Master EQ setting.

Five settings are available: 1-5. Settings 1 and 2 are best for listening via the instrument's built-in speakers, setting 3 is for headphones, and settings 4 and 5 are ideal for listening via external speakers.

Basic operation of the Style (auto-accompanyment) feature is described on page 19 of the Quick Guide.

Here are some other ways you can play the styles, the style volume adjustment procedure, how you can play chords using the styles, and more.

Pattern Variation (Sections)

The DGX-220/YPG-225 features a wide variety of style "sections" that allow you to vary the arrangement of the accompaniment to match the song you are playing.

INTRO section

This is used for the beginning of the Song. When the intro finishes playing, accompaniment shifts to the main section. The length of the intro (in measures) differs depending on the selected Style.

MAIN section

This is used for playing the main part of the Song. It plays a main accompaniment pattern, and repeats indefinitely until another section's button is pressed. There are two variations on the basic pattern (A and B), and the Style playback sound changes harmonically based on the chords you play with your left hand.

- Fill-in section

This is automatically added before changing to section A or B.

ENDING section

This is used for the ending of the Song. When the ending is finished, the auto accompaniment stops automatically. The length of the ending (in measures) differs depending on the selected Style.

Press the [STYLE] button and then select a style.

2 Press the [ACMP ON/OFF] button to turn auto accompaniment on.

3 Press the [SYNC START] button to turn synchro start on.

Synchro Start

When the synchro start standby mode is engaged, style playback will begin as soon as you play a chord in the accompaniment range of the keyboard. You can disengage the synchro-start standby mode by pressing the [SYNC START] button again.

4 Press the [MAIN/AUTO FILL] button.

The name of the selected section—MAIN A or MAIN B—will be displayed.

Press the [INTRO/ENDING/rit.] button.

You're now ready to play the intro.

As soon as you play a chord with your left hand, the Intro of the selected Style starts.

For this example, play a C major chord (as shown below). For information on how to enter chords, see "Playing Auto-accompaniment Chords" on page 24.

7 Press the [MAIN/AUTO FILL] button.

When the fill-in is finished, it leads smoothly into the selected main section A/B.

Press the [INTRO/ENDING/rit.] button.

This switches to the ending section. When the ending is finished, the auto accompaniment stops automatically. You can have the ending gradually slow down (ritardando) by pressing the [INTRO/ENDING/rit.] button again while the ending is playing back.

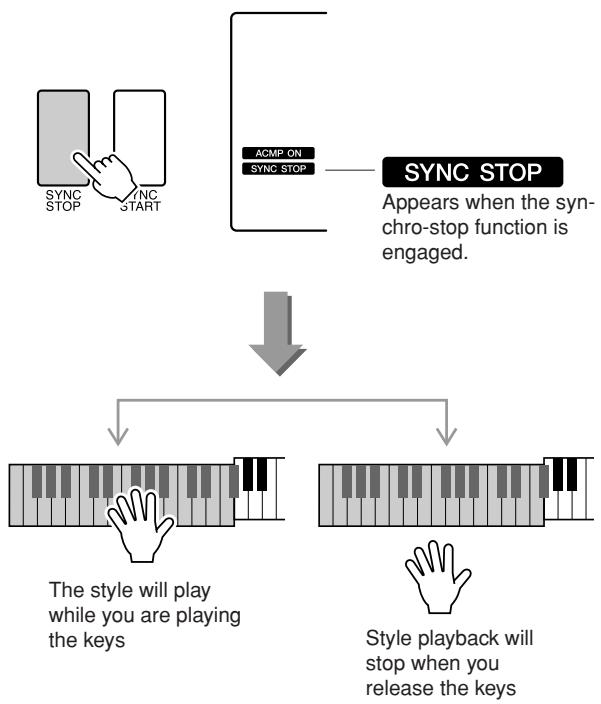

Synchro Stop

When this function is selected the accompaniment style will only play while you are playing chords in the accompaniment range of the keyboard. Style playback will stop when you release the keys. To turn the function on, press the [SYNC STOP] button.

Adjusting the Style Volume

Press the [STYLE] button to engage the style function.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Style Volume item.

Styleval

INT1ON

100

3 Use the dial to set the style volume between 000 and 127.

Setting the Split Point

The initial default split point is key number 54 (the F#2 key), but you can change it to another key using the procedure described below.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Split point item.

3 Use the dial to set the split point to any key from 000 (C-2) through 127 (G8).

NOTE

• When you change the split point the auto-accompaniment split point also changes.
• The split point cannot be changed during a song lesson.
• The split voice sounds when the split-point key is played.

Play a Style with Chords but No Rhythm (Stop Accompaniment)

When auto accompaniment is on (the ACPI ON icon is showing) and Synchro Start is off, you can play chords in the left-hand accompaniment range of the keyboard while the style is stopped and still hear the accompaniment chords. This is "Stop Accompaniment", and any of the chord fingerings recognized by the instrument can be used (page 24).

Press the [STYLE] button to engage the style function, then press the [ACMP ON/OFF] button.

Playing Styles Using the Entire Keyboard

In "Play Along with a Style" on page 20 we described a method of playing styles in which chords were detected only to the left of the keyboard split point. By making the settings described below, however, chord detection for style accompaniment occurs over the entire range of the keyboard, allowing for even more dynamic style performance. In this mode only chords played in the normal way (page 24) can be detected.

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the function "Chord Fingering".

"ChdFing" will be shown in the display for a few seconds, then the currently selected Chord Fingering type will appear.

3 Use the dial to select 2 "FullKbd".

Loading Style Files

This instrument features 150 internal styles, but other styles, such as those provided on the CD-ROM and others that can be obtained from the internet (only styles with the“.sty” suffix), can be loaded into style number 151 and used in the same way as the internal styles.

In order to use the style file load function, the file must already have been transferred from the computer to the instrument. The procedure for transferring files from a computer to the instrument is described on page 82 ("Transferring Data between the Computer and Instrument").

The procedure described below loads a style file that has already been transferred from a computer to the instrument into style number 151.

Press the [FUNCTION] button.

The currently selected function will appear in the display.

2 Press the CATEGORY [▲] and [▼] buttons as many times as necessary to select the style file load function "Sff Load".

After about 2 seconds the name of a loadable style file will appear in the display.

If multiple loadable style files have been transferred to the instrument, you can use the dial or the [+] and [-] buttons to select the other files in sequence.

3 Execute the load operation.

With the name of the style file you want to load shown in the display, press the number [0] button.

4 A confirmation message for the load operation will appear. Press the [+ / YES] button to actually load the file.

Chord Basics

Two or more notes played together constitute a "chord".

The most basic chord type is the "triad" consisting of three notes: the root, third, and fifth degrees of the corresponding scale. A C major triad, for example, is made up of the notes C (the root), E (the third note of the C major scale), and G (the fifth note of the C major scale).

In the C major triad shown above, the lowest note is the "root" of the chord (this is the chord's "root position" ... using other chord notes for

the lowest note results in "inversions"). The root is the central sound of the chord, which supports and anchors the other chord notes.

The distance (interval) between adjacent notes of a triad in root position is either a major or minor third.

Major third-four half steps (semitones)

Minor third-three half steps (semitones)

The lowest interval in our root-position triad (between the root and the third) determines whether the triad is a major or minor chord, and we can shift the highest note up or down by a semitone to produce two additional chords, as shown below.

The basic characteristics of the chord sound remain intact even if we change the order of the notes to create different inversions. Successive chords in a chord progression can be smoothly connected, for example, by choosing the appropriate inversions (or chord "voicings").

Reading Chord Names

Chord names tell you just about everything you need to know about a chord (other than the inversion/voicing). The chord name tells you what the root of the chord is, whether it is a major, minor, or diminished chord, whether it requires a major or flatted seventh, what alterations or tensions it uses ... all at a glance.

• Some Chord Types (These are just some of the "Standard" chord types recognized by the DGX-220/YPG-225.)

■Recognized Standard Chords.

All chords in the chart are "C-root" chords.

Chord Name/[Abbreviation]	Normal Voicing	Chord (C)	Display
Major [M]	1 - 3 - 5	C	C
Add ninth [(9)]	1 - 2 - 3 - 5	C(9)	C(9)
Sixth [6]	1 - (3) - 5 - 6	C6	C6
Sixth ninth [6(9)]	1 - 2 - 3 - (5) - 6	C(9)	C6(9)*
Major seventh [M7]	1 - 3 - (5) - 7 or 1 - (3) - 5 - 7	CM7	CM7
Major seventh ninth [M7(9)]	1 - 2 - 3 - (5) - 7	CM7(9)	CM7(9)*
Major seventh add sharp eleventh [M7(#11)]	1 - (2) - 3 - #4 - 5 - 7 or 1 - 2 - 3 - #4 - (5) - 7	CM7(11)	CM7(#11)*
Flatted fifth [(b5)]	1 - 3 - b5	C(b5)	C(b5)*
Major seventh flatted fifth [M7b5]	1 - 3 - b5 - 7	CM7(5)	CM7b5*
Suspended fourth [sus4]	1 - 4 - 5	Csus4	Csus4
Augmented [aug]	1 - 3 - #5	Caug	Caug
Major seventh augmented [M7aug]	1 - (3) - #5 - 7	CM7aug	CM7aug*
Minor [m]	1 - b3 - 5	Cm	Cm
Minor add ninth [m(9)]	1 - 2 - b3 - 5	C(9)	Cm(9)
Minor sixth [m6]	1 - b3 - 5 - 6	Cm6	Cm6
Minor seventh [m7]	1 - b3 - (5) - b7	Cm7	Cm7
Minor seventh ninth [m7(9)]	1 - 2 - b3 - (5) - b7	C(9)	Cm7(9)
Minor seventh add eleventh [m7(11)]	1 - (2) - b3 - 4 - 5 - (b7)	C(11)	Cm7(11)*
Minor major seventh [mM7]	1 - b3 - (5) - 7	CmM7	CmM7
Minor major seventh ninth [mM7(9)]	1 - 2 - b3 - (5) - 7	C(9)	CmM7(9)*
Minor seventh flatted fifth [m7b5]	1 - b3 - b5 - b7	C(10)	CmM7b5
Minor major seventh flatted fifth [mM7b5]	1 - b3 - b5 - 7	C(10)	CmM7b5*
Diminished [dim]	1 - b3 - b5	Cdim	Cdim
Diminished seventh [dim7]	1 - b3 - b5 - 6	Cdim7	Cdim7
Seventh [7]	1 - 3 - (5) - b7 or 1 - (3) - 5 - b7	C7	C7
Seventh flatted ninth [7(b9)]	1 - b2 - 3 - (5) - b7	C(9)	C7(b9)
Seventh add flatted thirteenth [7(b13)]	1 - 3 - 5 - b6 - b7	C(10)	C7(b13)
Seventh ninth [7(9)]	1 - 2 - 3 - (5) - b7	C(9)	C7(9)
Seventh add sharp eleventh [7(#11)]	1 - (2) - 3 - #4 - 5 - b7 or 1 - 2 - 3 - #4 - (5) - b7	C(11)	C7(#11)
Seventh add thirteenth [7(13)]	1 - 3 - (5) - 6 - b7	C(12)	C7(13)
Seventh sharp ninth [7(#9)]	1 - #2 - 3 - (5) - b7	C(9)	C7(#9)
Seventh flatted fifth [7b5]	1 - 3 - b5 - b7	C(10)	C7b5*
Seventh augmented [7aug]	1 - 3 - #5 - b7	C(11)	C7aug
Seventh suspended fourth [7sus4]	1 - 4 - (5) - b7	C(12)	C7sus4
One plus two plus five [1+2+5]	1 - 2 - 5	C(12)	C(12)*

• These chords are not shown in the Dictionary function.

NOTE

Notes in parentheses can be omitted.
- Playing two same root keys in the adjacent octaves produces accompaniment based only on the root.
- A perfect fifth (1 + 5) produces accompaniment based only on the root and fifth which can be used with both major and minor chords.
- The chord fingerings listed are all in "root" position, but other inversions can be used—with the following exceptions: m7 , m7 5 , 6, m6, sus4, aug, dim7, 7 5, 6(9), 1+2+5.

NOTE

• Inversion of the 7sus4 and m7(11) chords are not recognized if the notes shown in parentheses are omitted.
• The auto accompaniment will sometimes not change when related chords are played in sequence (e.g. some minor chords followed by the minor seventh).
• Two-note fingerings will produce a chord based on the previously played chord.

Looking Up Chords Using the Chord Dictionary

The Dictionary function is essentially a built-in "chord book" that shows you the individual notes of chords. It is ideal when you know the name of a certain chord and want to quickly learn how to play it.

Press and hold the LESSON [START] button for longer than a second.

Hold for longer than a second

2 As an example, we'll learn how to play a GM7 (G major seventh) chord. Press the "G" key in the section of the keyboard labeled "ROOT". (The note doesn't sound.) The root note you set is shown in the display.

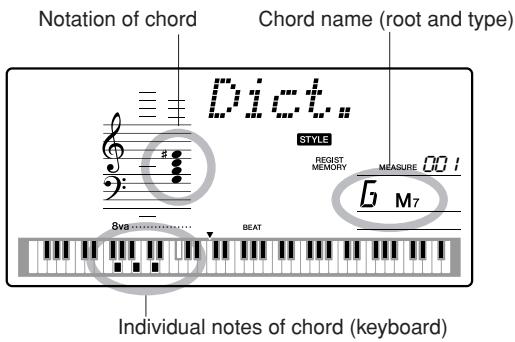

3 Press the "M7" (major seventh) key in the section of the keyboard labeled "CHORD TYPE". (The note doesn't sound.) The notes you should play for the specified chord (root note and chord type) are shown in the display, both as notation and in the keyboard diagram.

To call up possible inversions of the chord, press the [+]/[-] buttons.

NOTE

• About major chords: Simple major chords are usually indicated only by the root note. For example, "C" refers to C major. However, when specifying major chords here, make sure to select "M" (major) after pressing the root note.

4 Try playing a chord in the auto accompaniment section of the keyboard, checking the indications in the display. When you've played the chord properly, a bell sound signals your success and the chord name in the display flash.

Song Volume

Press the [FUNCTION] button.

2 Use the CATEGORY [▲] and [▼] buttons to select the Song Volume item.

3 Use the dial to set the song volume between 000 and 127.

NOTE -Song volume can be adjusted while a song is selected.

A-B Repeat

You can specify a section of a song—"A" is the start point and "B" is the end point—for repeat playback.

Play the song (page 25) and press the [A-B REPEAT] button at the beginning of the section you want to repeat (the “A” point).

SONG
REPEAT& LEARN

2 Press the [A-B REPEAT] button a second time at the end of the section you want to repeat (the “B” point).

SONG
REPEAT& LEADN

A-B

55

PALICE

START/ STOP

3 The specified A-B section of the song will now play repeatedly.

You can stop repeat playback at any time by pressing the [A-B REPEAT] button.

NOTE

• The repeat start and end points can be specified in one-measure increments.
• The current measure number is shown in the display during playback.
• If you want to set the start point "A" at the very beginning of the song press the [A-B REPEAT] button before starting playback of the song.

Muting Independent Song Parts

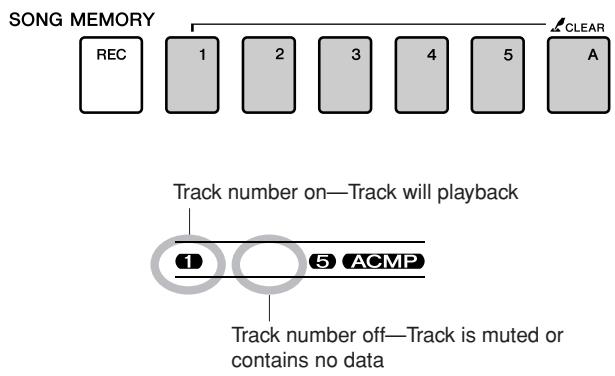

Each "track" of a song plays a different part of the song—melody, percussion, accompaniment, etc. You can mute individual tracks and play the muted part on the keyboard yourself, or simply mute tracks other than the ones you want to listen to. Use the SONG MEMORY [1]–[5] and [A] buttons to mute or un-mute the corresponding tracks. The track number in the display disappears when that track is muted. Refer to page 45 for information about the song track configuration.

Change the Melody Voice

You can change a song's melody voice to any other voice you prefer.

NOTE

• You cannot change the melody voice of a user song.

1 Select the song and play it.
2 Rotate the dial to select the voice you want to listen to after pressing the [VOICE] button.

3 Press the [VOICE] button for longer than a second.

"SONG MELODY VOICE" appears in the display for a few seconds, indicating that the voice selected in step #2 has replaced the song's original melody voice.

Hold for longer than a second

SONG MEL

This instrument has a Registration Memory feature that lets you save your favorite settings for easy recall whenever they're needed. Up to 16 complete setups can be saved (8 banks of two setups each).

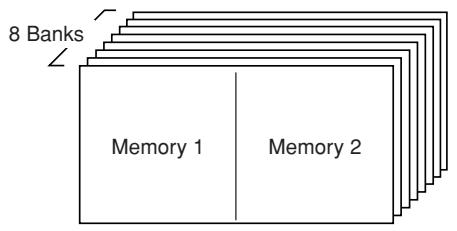

Up to 16 presets (eight banks of two each) can be memorized.

Saving to the Registration Memory

1 Set the panel controls as required—select a voice, accompaniment style, etc.

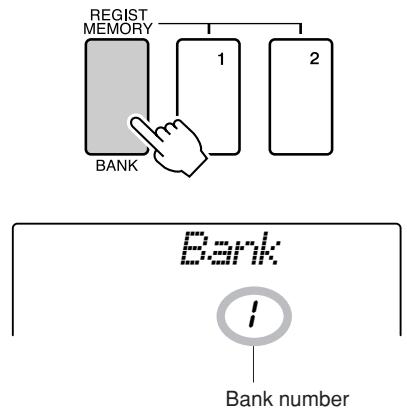

2 Press the [MEMORY/BANK] button. A bank number will appear in the display when you release the button.

3 Use the dial or the [1]–[8] number buttons to select a bank number from 1 to 8.

NOTE

• Data cannot be saved to the registration memory during song playback.

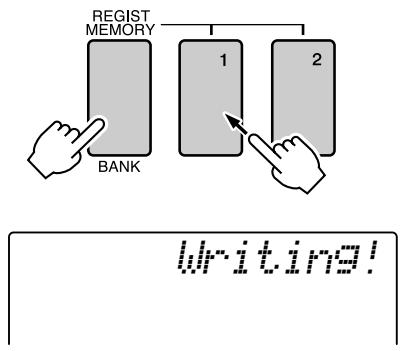

4 Press the REGIST MEMORY [1] or [2] button while holding the [MEMORY/ BANK] button to store the current panel settings to the specified registration memory.

NOTE

• If you select a Registration Memory number that already contains data, the previous data is deleted and overwritten by the new data.

CAUTION

• Do not turn off the power while saving settings to the registration memory, otherwise the data may be damaged or lost.

Recalling a Registration Memory

Press the [MEMORY/BANK] button. A bank number will appear in the display when you release the button.

2 Use the dial or the [1]-[8] number buttons to select bank you want to recall.

3 Press the REGIST MEMORY button, [1] or [2], containing the settings you want to recall. The recalled REGIST MEMORY number appears in the display for a few seconds. The panel controls will be instantly set accordingly.

REGIST 1

REGIST MEMORY

• Settings That Can be Saved to the Registration Memory
• Style settings*

Style number, Auto Accompaniment ON/OFF, Split Point, Style settings (Main A/B), Style Volume, Tempo, Chord Fingering

Voice settings

Main Voice setting (Voice number, Volume, Octave, Pan, Reverb Level, Chorus Level), Dual Voice settings (Dual ON/OFF, Voice number, Volume, Octave, Pan, Reverb Level, Chorus Level), Split Voice settings (Split ON/OFF, Voice number, Volume, Octave, Pan, Reverb Level, Chorus Level)

• Effect settings

Reverb Type, Chorus Type, Panel Sustain ON/OFF,

• Harmony settings

Harmony ON/OFF, Harmony Type, Harmony Volume

• Other settings

Transpose, Pitch Bend Range

• Style settings are not available for Registration Memory when using the Song features.

The “Functions” provide access to a range of detailed instrument parameters for tuning, setting the split point, and adjusting the voices and effects. Take a look at the function list starting on the opposite page. There are 47 function parameters in all.

When you locate a function you want to set up, simply select the function's display name (shown to the right of the function name in the list) and adjust as required.

Selecting and Setting Functions

1 Find the function you want to set in the list that begins on page 76.
2 Press the [FUNCTION] button.

3 Select a function.

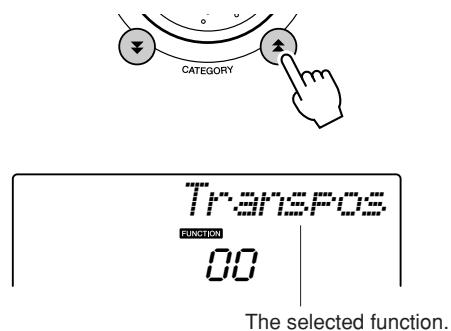

Press the CATEGORY [A] and [▼] buttons as many times as necessary until the function's display name appears in the display.

4 Use the dial, the [+] and [-] buttons, or the [0]-[9] number buttons to set the selected function as required.

The [+] and [-] buttons are used to make ON/OFF type settings: [+] = ON , [-] = OFF . In some cases the [+] button will initiate execution of the selected function, and the [-] will cancel the selection.

Function settings are stored in memory as soon as they are changed. To restore all initial factor default settings perform the "Backup Clear" procedure described in the "Initialization" section on page 49.

• Function Setting List

Setting	Item title	Range/Settings	Description
Style Volume	StyleVol	000-127	Determines the volume of the Style.
Song Volume	SongVol	000-127	Determines the volume of the Song.
Transpose	Transpos	-12-12	Determines the pitch of the instrument by semitone increments.
Tuning	Tuning	-100-100	Sets the pitch of the instrument's sound in 1-cent increments.
Pitch Bend Range	PBRange	01-12	Sets the pitch bend range in semitone increments.
Split Point	SplitPnt	000-127(C-2-G8)	Determines the highest key for the Split voice and sets the Split "point"-in other words, the key that separates the Split (lower) and Main (upper) voices. The Split Point setting and Accompaniment Split Point setting are automatically set to the same value.
Touch Sensitivity	TouchSns	1(Soft),2(Medium),3(Hard),4(Off)	Determines the sensitivity of the feature.
Fingering Chord	ChdFing	Multi(1),FullKbd(2)	Sets the chord detection mode. In the Multi Finger mode both standard chords and easy chords played to the left of the split point are detected. In the Full Keyboard mode standard chords played anywhere on the keyboard will be detected, and the notes played will be sound as well.
Main Voice Volume	M.Volume	000-127	Determines the volume of the Main voice.
Main Voice Octave	M.Octave	-2+2	Determines the octave range for the Main voice.
Main Voice Pan	M.Pan	000 (left)-64 (center)-127 (right)	Determines the pan position of the Main voice in the stereo image. The value "0" results in the sound being panned full left; the value "127" results in the sound being panned full right.
Main Voice Reverb Level	M.Reverb	000-127	Determines how much of the Main voice's signal is sent to the Reverb effect.
Main Voice Chorus Level	M.Chorus	000-127	Determines how much of the Main voice's signal is sent to the Chorus effect.
Dual Voice	D.Voice	001-489	Selects the Dual voice.
Dual Voice Volume	D.Volume	000-127	Determines the volume of the Dual voice.
Dual Voice Octave	D.Octave	-2+2	Determines the octave range for the Dual voice.
Dual Voice Pan	D.Pan	000 (left)-64 (center)-127 (right)	Determines the pan position of the Dual voice in the stereo image. The value "0" results in the sound being panned full left; the value "127" results in the sound being panned full right.
Dual Voice Reverb Level	D.Reverb	000-127	Determines how much of the Dual voice's signal is sent to the Reverb effect.
Dual Voice Chorus Level	D.Chorus	000-127	Determines how much of the Dual voice's signal is sent to the Chorus effect.
Split Voice	S.Voice	001-489	Selects the Split voice.
Split Voice Volume	S.Volume	000-127	Determines the volume of the Split voice.
Split Voice Octave	S.Octave	-2+2	Determines the octave range for the Split voice.
Split Voice Pan	S.Pan	000 (left)-64 (center)-127 (right)	Determines the pan position of the Split voice in the stereo image. The value "0" results in the sound being panned full left; the value "127" results in the sound being panned full right.
Split Voice Reverb Level	S.Reverb	000-127	Determines how much of the Split voice's signal is sent to the Reverb effect.
Split Voice Chorus Level	S.Chorus	000-127	Determines how much of the Split voice's signal is sent to the Chorus effect.
Reverb Type	Reverb	01-10	Determines the Reverb type, including off (10). (See the list on page 109)
Chorus Type	Chorus	01-05	Determines the Chorus type, including off (05). (See the list on page 109)
Panel Sustain	Sustain	ON/OFF	Determines whether or not panel sustain is always applied to the MAIN/DUAL voices. Panel sustain is applied continuously when ON, or not applied when OFF. (page 59)
Master EQ Type	MasterEQ	Speaker1,Speaker2,Headphone,Line Out1,Line Out2	Sets the equalizer applied to the speaker output for optimum sound in different listening situations.
Harmony Type	HarmType	01-26	Determines the Harmony type. (See the list on page 109)
Harmony Volume	HarmVol	000-127	Determines the volume of the Harmony effect.
Performance assistant technology Type	PAT Type	CHORD(1),CHD/FREE(2):	Determines the performance assistant technology type.
Style File Load	Sff Load	001-nnn	Loads a Style file.
PC mode	PC mode	PC1/PC2/OFF	Optimizes the MIDI settings when you connect to a computer (page 81).
Local On/Off	Local	ON/OFF	Determines whether the instrument's keyboard controls the internal tone generator (ON) or not (OFF). (page 80)
External Clock	ExtClock	ON/OFF	Determines whether the instrument synchronizes to the internal clock (OFF) or an external clock (ON). (page 80)
Keyboard Out	KbdOut	ON/OFF	Determines whether keyboard performance data of the instrument is transmitted (ON) or not (OFF).
Style Out	StyleOut	ON/OFF	Determines whether Style data is transmitted (ON) via USB or not (OFF) during Style playback.
Song Out	SongOut	ON/OFF	Determines whether Song data is transmitted (ON) via USB or not (OFF) during Song playback.
Initial Send	InitSend	YES/NO	Lets you send the data of the panel settings to a computer. Press [+] to send, or press [-] to cancel.
Time Signature Numerator	Timesign	00-60	Determines the time signature of the Metronome.
Time Signature Denominator	TimesignD	Half note,Quarter note,Eighth note,Sixteenth note	Sets the length of each metronome beat.
Metronome Volume	MtrVol	000-127	Determines the volume of the Metronome.
Lesson Track (R)	R-Part	GuideTrack1-16	Determines the guide track number for your right hand lesson. The setting is only effective for songs in SMF format 0 transferred from a computer.
Lesson Track (L)	L-Part	GuideTrack1-16	Determines the guide track number for your left hand lesson. The setting is only effective for songs in SMF format 0 transferred from a computer.
Grade	Grade	ON/OFF	Determines whether the Grade function is on or off.
Demo Cancel	D-Cancel	ON/OFF	Determines whether Demo cancel is enabled or not. When this is set to ON, the Demo Song will not play, even if the [DEMO] button is pressed.

• All these settings can be conveniently reset to their initial default values by pressing the [+] and [-] buttons simultaneously. (The exception to this is Initial Send, which is an operation, not a setting.)

Nearly all of the electronic musical instruments made today—particularly synthesizers, sequencers and computer music related devices—use MIDI. MIDI is a worldwide standard that allows these devices to send and receive performance and setting data. Naturally, this instrument lets you save or send your keyboard performance as MIDI data, as well as the songs, styles and panel settings.

The potential MIDI holds for your live performances and music creation/production is enormous—simply by connecting this instrument to a computer and transmitting MIDI data. In this section, you'll learn the basics of MIDI and the specific MIDI functions provided by this instrument.

What Is MIDI?

No doubt you have heard the terms "acoustic instrument" and "digital instrument". In the world today, these are the two main categories of instruments. Let's consider a grand piano and a classical guitar as representative acoustic instruments. They are easy to understand. With the piano, you strike a key, and a hammer inside hits some strings and plays a note. With the guitar, you directly pluck a string and the note sounds. But how does a digital instrument go about playing a note?

Acoustic guitar note production

Pluck a string and the body resonates the sound.

Digital instrument note production

Based on playing information from the keyboard, a sampling note stored in the tone generator is played through the speakers.

As shown in the illustration above, in an electronic instrument the sampling note (previously recorded note) stored in the tone generator section (electronic circuit) is played based on information received from the keyboard. So then what is the information from the keyboard that becomes the basis for note production?

For example, let's say you play a "C" quarter note using the grand piano sound on the instrument. Unlike an acoustic instrument that puts out a resonated note, the electronic instrument puts out information from the keyboard such as "with what voice", "with which key", "about how strong", "when was it pressed", and "when was it released". Then each piece of information is changed into a number value and sent to the tone generator. Using these numbers as a basis, the tone generator plays the stored sampling note.

Example of Keyboard Information

Voice number (with what voice)	1 (grand piano)
Note number (with which key)	60 (C3)
Note on (when was it pressed) and note off (when was it released)	Timing expressed numerically (quarter note)
Velocity (about how strong)	120 (strong)

Your keyboard performance and all panel operations of this instrument are processed as MIDI data. The songs, auto accompaniment (styles), and User songs are also made up of MIDI data. MIDI is an acronym that stands for Musical Instrument Digital Interface and it allows different musical instruments and devices to instantly communicate with each other, via digital data. The MIDI standard is used all over the world and was designed to transmit performance data between electronic musical instruments (or computers). Thanks to MIDI, you can control one instrument from another and transmit performance data between the devices-taking your creative and performance potential to even higher levels.

MIDI messages can be divided into two groups: Channel messages and System messages.

- Channel Messages

This instrument is capable of handling 16 MIDI channels simultaneously—meaning it can play up to sixteen different instruments at the same time. Channel messages transmit information such as Note ON/OFF, Program Change, for each of the 16 channels.

Message Name	Instrument Operation/Panel Setting
Note ON/OFF	Performance data of the keyboard (contains note number and velocity data)
Program Change	Instrument selection (including bank select MSB/LSB, if necessary)
Control Change	Instrument settings (volume, pan, etc.)

- System Messages

This is data that is used in common by the entire MIDI system. System messages include messages like Exclusive Messages that transmit data unique to each instrument manufacturer and Realtime Messages that control the MIDI device.

Message Name	Instrument Operation/Panel Setting
Exclusive Message	Reverb/chorus settings, etc.
Realtime Messages	Start/stop operation

Connecting a Personal Computer

The following functions become available when this instrument is connected to a computer.

• Performance data can be transferred between the instrument and the computer (page 80).
• Files can be transferred between the instrument and the computer (page 82).

The connection procedure is as follows:

Install the USB-MIDI driver on your computer.

The USB-MIDI driver is included on the CD-ROM. Installation of the USB MIDI driver is described on page 85.

2 Connect the USB terminal of the computer to the USB terminal on the instrument using a standard USB cable (USB cable sold separately).

The supplied CD-ROM also includes a Musicsoft Downloader application that allows you to transfer song files from your computer to the instrument's flash memory. For instructions about how to install Musicsoft Downloader and how to transfer song files, see page 83.

USB Precautions

Please observe the following precautions when connecting the instrument to a computer via a USB cable.

Failure to do so can cause the instrument and/or the computer to hang up (freeze), possibly causing corruption or loss of data.

If the instrument or computer does hang up, turn the power to both devices off and then on again, and restart the computer.

CAUTION

• Wake the computer from a sleep/suspended/standby mode before connecting the USB cable.
• Connect the USB cable to the instrument and computer before turning power to the instrument on.

• Check the following points before turning the instrument's power on or off, and before plugging or unplugging the USB cable.

• Quit all applications.

• Make sure that no data transfer is in progress (data is transferred whenever you play on the keyboard or play a song).

• Allow at least 6 seconds between turning the instrument's power on and off, and between plugging and unplugging the USB cable.

• Directly connect the instrument to the computer using a single USB cable. Do not use a USB hub.

NOTE

• The Musicsoft Downloader application may not be able to access the instrument in the following cases:
• During style playback.
• During song playback.

Transferring Performance Data to and from a Computer

By connecting the instrument to a computer, the instrument's performance data can be used on the computer, and performance data from the computer can be played on the instrument.

• When the instrument is connected with computer, it transmits/receives performance data.

■MIDI settings

These settings pertain to performance data transmission and reception.

Item	Range/Settings	Description
Local	ON/OFF	Local control determines whether or not notes played on the instrument are sounded by its internal tone generator system: the internal tone generator is active when local control is on, and inactive when local control is off.
External Clock	ON/OFF	These settings determine whether the instrument is synchronized to its own internal clock (OFF), or to a clock signal from an external device (ON).
Keyboard Out	ON/OFF	These settings determine whether keyboard performance data of the instrument is transmitted (ON) or not (OFF).
Style Out	ON/OFF	These settings determine whether Style data is transmitted (ON) or not (OFF) during Style playback.
Song Out	ON/OFF	These settings determine whether Song data is transmitted (ON) or not (OFF) during Song playback.

CAUTION

• If you can't get any sound out of the instrument, this may be the most likely cause.

CAUTION

• If External Clock is ON and no clock signal is being received from an external device, the song, style, and metronome functions will not start.

Press the [FUNCTION] button.

2 Use the CATEGORY [A] and [Y] buttons to select the item you want to change its value.

3 Use the dial to select ON or OFF.

PC Mode

A number of MIDI settings need to be made when you want to transfer performance data between the computer and the instrument. The PC Mode item can conveniently make multiple settings for you in one operation. Three settings are available: PC1, PC2, and OFF.

This setting is not necessary when transferring song or backup files between the computer and the instrument.

• Set the PC mode to PC2 when using Digital Music Notebook.

	PC1	PC2*	OFF
Local	OFF	OFF	ON
External Clock	ON	OFF	OFF
Song Out	OFF	OFF	OFF
Style Out	OFF	OFF	OFF
Keyboard Out	OFF	ON	ON

Press and hold the [DEMO] button for longer than a second so that the PC Mode item appears.

2 Use the dial to select PC1, PC2, or OFF.

NOTE

• When the PC2 setting is selected the instrument's style, song, demo, song recording, and lesson features cannot be used.

NOTE

• You can also access the PC Mode item by first pressing the [FUNCTION] button and then using the CATEGORY [▲] and [▼] buttons to locate it (page 75).

Remote Control of MIDI Devices

You can also use this instrument as a remote control device for the Digital Music Notebook application on your computer (via the USB connection)—controlling playback, stop and transport functions from the panel.

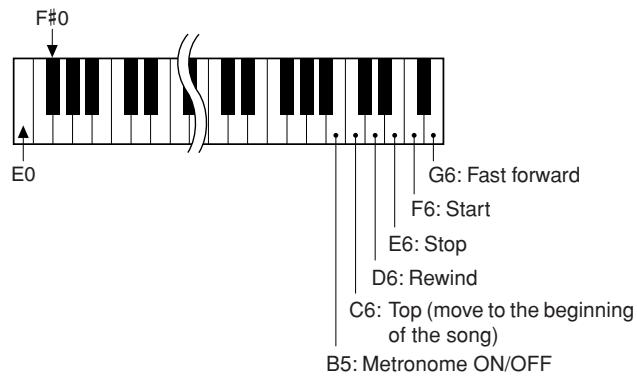

Remote control keys.

To use the remote control functions, simultaneously hold down the lowest two keys on the keyboard (E0 and F#0) and press the appropriate key (shown below).

NOTE Remote control of MIDI devices will function independently of the PC2 mode.

Initial Send

This function lets you send the panel setup data to a computer. Before you record performance data to a sequencer application running on your computer, it is a good idea to first send and record the panel setup data before the actual performance data.

Press the [FUNCTION] button.

2 Use the CATEGORY [A] and [Y] buttons to select the Initial Send item.

3 Press [+/YES] to send, or press [-/NO] to cancel.

Transferring Data between the Computer and Instrument

MIDI songs residing on a computer, as well as the 70 MIDI songs and 5 Style files provided on the CD-ROM, can be transferred to the instrument. Backup files can also be transferred from the instrument to the computer and back. Songs and styles transferred to the instrument can be used with the instrument's lesson and other functions. In order to transfer songs between your computer and the instrument you will need to install the Musicsoft Downloader application and the USB-MIDI Driver included on the Accessory CD-ROM on your computer. Refer to the Accessory CD-ROM Installation Guide on page 85 for installation details.

- Data that can be transferred from a computer to this instrument.

• Song Capacity (max.): Flash memory 99 songs (Song 036-)
• Data Capacity: Flash memory 373 kb
• Data Format: SMF format 0, style file (extension:.sty), Backup File (06PG76.BUP)

- What is SMF (Standard MIDI File)?

The SMF (Standard MIDI File) format is one of the most common and widely compatible sequence formats used for storing sequence data. There are two variations: Format 0 and Format 1. A large number of MIDI devices are compatible with SMF Format 0, and most commercially available MIDI sequence data is provided in SMF Format 0.

■With the Musicsoft Downloader You Can

• Transfer MIDI songs you have downloaded from the Internet or created on your computer from the computer to the instrument's flash memory.

refer to the procedure described on page 83.

The procedure for transferring songs included on the Accessory CD-ROM from your computer to the instrument is given as an example.

• Backup files can be transferred from the instrument to a computer and back.

refer to the procedure described on page 84.

Use the Musicsoft Downloader application with Internet Explorer 5.5 or higher.

■Use Musicsoft Downloader To Transfer Songs From the Accessory CD-ROM To the Instrument's flash memory.

NOTE

If a song or style is being played, stop playback before proceeding.

Install the Musicsoft Downloader and USB MIDI driver to your computer, then connect the computer and the instrument (page 87).
2 Insert the included CD-ROM into the CD-ROM drive.

A start window will appear automatically.

3 Double-click the Musicsoft Downloader shortcut icon that is created on the desktop.

This will launch the Musicsoft Downloader application and the main window will appear.

NOTE

• The instrument cannot be operated while the Musicsoft Downloader is running.

4 Click the "Add File" button and the Add File window will appear.

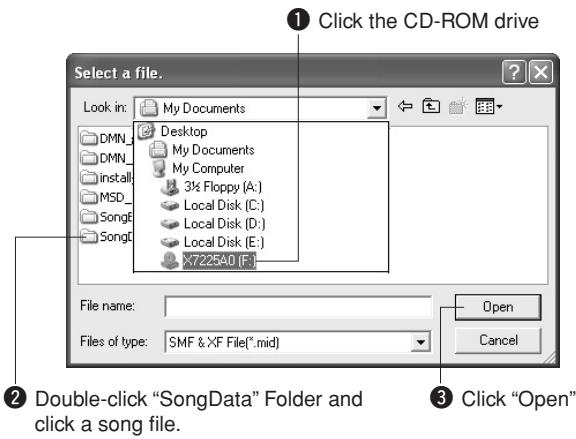

5 Click the button to the right of "Look in" and select the CD-ROM drive from the dropdown menu that appears. Double-click the "SongData" Folder on the window. Select the file you want to transfer to the instrument, and click "Open".

6 A copy of the selected MIDI song file will appear in the "List of files stored temporarily" at the top of the window.

The memory medium will also be displayed at the bottom of the window to specify the destination for the transfer. Click the "Electronic Musical Instruments", and then "Flash memory".

1 Click the "Electronic Musical Instruments", and then "Flash Memory"

7 After selecting the file in the "List of files stored temporarily", click the downward [Move] button and a confirmation message will appear. Click [OK] and the song will be transferred from the "List of files stored temporarily" to the instrument's memory.

8 Close the window to end the Musicsoft Downloader.

NOTE

• End the Musicsoft Downloader to playback the song transferred from your computer.

9 To playback a song stored in flash memory, press the [SONG] button. Use the dial to select the song you want to play, then press the [START/STOP] button to start playback.

Style files (files with the“.STY” extension) can be transferred to Flash memory using the same procedure as described above. Style files transferred to the Flash Memory can be loaded into style number 151 and then played (page 67).

CAUTION

• Do not unplug the USB cable during a data transfer. Not only will the data not be transferred and saved, but operation of the memory media may become unstable and its contents may disappear completely when the power is turned on or off.

CAUTION

• Store data can be lost due to equipment malfunction or improper operation. For safety we recommend that you keep a copy of all important data stored on your computer.
• We recommend that you use a power adaptor rather than batteries when transferring data. The data can be corrupted if the batteries fail during the transfer.

To Use transferred Songs For Lessons...

In order to use songs (only SMF format 0) transferred from a computer for lessons it is necessary to specify which channels are to be played back as the right-hand and left-hand parts.

1 Press the [SONG] button and select the song (036-) residing in flash memory for which you want to set the guide track.
2 Press the [FUNCTION] button.
3 Use the CATEGORY [▲] and [▼] buttons to select the R-Part or L-Part item.
4 Use the dial to select the channel you want to play back as the specified right- or left-hand part.

We recommend that you select channel 1 for the right-hand part and channel 2 for the left-hand part.

■Transfer a backup file from the instrument to a computer...

You can use the Musicsoft Downloader to transfer "Backup Files" (page 49) including the five User Songs stored on the instrument, to a computer. If you click "Electronic Musical Instruments" in the Musicsoft Downloader display, and then "System Drive", a file named "06PG76.BUP" will appear in the lower right corner of the Musicsoft Downloader display. This is the backup file. For details about how to transmit backup file using the Musicsoft Downloader application, refer to the Online help in the application.

NOTE

• Preset Song data cannot be transmitted from the instrument.

CAUTION

• The backup data, including the five User Songs is transmitted/ received as a single file. As a result, all backup data will be overwritten every time you transmit or receive. Keep this in mind when transferring data.

CAUTION

• Do not rename the backup file on the computer. If you do so, it will not be recognized when transferred to the instrument.

SPECIALNOTICES

This CD-ROM is copy-protected. Yamaha makes no representations or warranties with regard to any problems while attempting to copy the CD-ROM or software and cannot be held responsible for the results of attempts to copy the data.

• The software and this owner's manual are the exclusive copyrights of Yamaha Corporation.
• Use of the software and this manual is governed by the license agreement which the purchaser fully agrees to upon breaking the seal of the software packaging. (Please read carefully the Software Licensing Agreement at the end of this manual before installing the application.)
• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.
• This disk is a CD-ROM. Do not attempt to play the disk on an audio CD player. Doing so may result in irreparable damage to your audio CD player.
• Future upgrades of application and system software and any changes in specifications and functions will be announced separately.
• The screen displays as illustrated in this owner's manual are for instructional purposes, and may appear somewhat different from the screens which appear on your computer.

Important Notices about the CD-ROM

Data Types

This CD-ROM includes application software. Please refer to page 87 for software installation instructions.

CAUTION

• Do not attempt to play this CD-ROM on an audio CD player. The result high-volume noise can potentially cause hearing damage or damage your CD player and speakers.

- Operating System (OS)

The applications in this CD-ROM are provided in versions for Windows operating systems.

CD-ROM Contents

Folder Name		Application / Data Name	Contents
1	MSD_	Musicsoft Downloader	This application can be used to download MIDI song data from the Internet and transfer it from the computer to the instrument's memory.
2	DMNFLASHDemo	Flash Demo	Digital Music Notebook is an educational content that lets you enjoy music while learning. Full motion demo software which introduces all features of the Digital Music Notebook.
	DMN_DemoSong	Demo Song	You can experience Digital Music Notebook functions with the demo song. You need to download and install Digital Music Notebook on your computer prior to using the demo song.
3	SongBook	Song Book	Includes score data for the 30 internal songs provided on the instrument as well as 70 MIDI songs provided on the CD-ROM. The exceptions are songs 1-11, 16, 20 and song 30 which is copyrighted. The scores for songs 9-11 are provided in this manual beginning on page 94.
4		USB-MIDI Driver (Windows 98/Me)	This driver software is necessary to connect MIDI devices to your computer via USB.
	USBdrv2k	USB-MIDI Driver (Windows 2000/XP)
	SongData	MIDI 70 songs	These songs can be transferred to the instrument and played or used with the instrument's functions.
	StyleData	5 style files	These styles can be transferred to the instrument and played or used with the instrument's functions.

In order to view PDF scores, you will need to install Adobe Reader in your computer. You can download the Adobe Reader. Please check the following URL: http://www.adobe.com/

Using the CD-ROM

Please read the Software License Agreement on page 91 before opening the CD-ROM package.

1 Check the system requirements to make sure that the software will run on your computer.
2 Insert the included CD-ROM into the CD-ROM drive.

The start window should appear automatically.

3 Install the USB MIDI driver to the computer.

Refer to "Installing the USB-MIDI Driver" on page 87 for installation and setup instructions.

4 Connect the instrument to the computer.

The connection procedure is described on page 79.

5 Install the software.

Musicsoft Downloader:

See page 89.

6 Launch the software.

For further software operation refer to the online help supplied with the software.

Refer to the "Troubleshooting" on page 90 when you have trouble with installing the driver.

System Requirements

Application/Data	OS	CPU	Memory	Hard Disk	Display
Musicsoft Downloader	Windows 98SE/Me/2000/XP Home Edition/XP Professional	233 MHz or higher; Intel®Pentium®/Celeron®processor family	64 MB or more(256 MB or moreis recommended)	at least 128 MB offree space (at least512 MB of freespace isrecommended)	800 x 600HighColor(16-bit)
USB Driver for Windows98/Me	Windows 98/Me	166 MHz or higher; Intel®Pentium®/Celeron®processor family	32 MB or more(64 MB or more isrecommended)	at least 2 MB of freespace	—
USB Driver for Windows2000/XP	Windows 2000/XP HomeEdition/XP Professional
Digital Music Notebook	Windows® XPProfessional Edition,SP1a moreWindows® XP HomeEdition, SP1a moreWindows 2000Professional, SP4 more	400MHz or higher; Intel®Pentium®/Celeron®Processor family (1GHzor more is recommended)	128 MB or more(256 MB or moreis recommended)	at least 50 MB offree space	1024 x 768HighColor(16-bit)
Digital Music Notebook(Requirements forplaying content withvideo included.)		1GHz or higher; Intel®Pentium®/Celeron®Processor family (1.4GHzor more is recommended)	256 MB or more

Software Installation

- Uninstall (Removing the Software)

Installed software can be removed from your computer as follows:

From the Windows Start menu select Start Settings Control panel Add or Remove

Applications Install and Uninstall. Select the item you want to remove and click [Add or

Remove]. Follow the on-screen instructions to remove the selected software.

NOTE

• The actual names of the menu items and buttons will depend on the OS version you are using.

■Installing the USB-MIDI Driver...

In order to be able to communicate with and use MIDI devices connected to your computer, the appropriate driver software must be properly installed on your computer.

The USB-MIDI driver allows sequence software and similar applications on your computer to transmit and receive MIDI data to and from MIDI devices via a USB cable.

• Windows 98/Me installation page 88.
• Windows 2000 installation page 88.
• Windows XP installation page 89.

Check the drive name of the CD-ROM drive you will be using (D:, E:, Q: etc.) The drive name is displayed beside the CD-ROM icon in your "My Computer" folder. The root directory of the CD-ROM drive will be D:\, E:\, or Q:\, respectively.

Installing the driver on Windows 98/Me

1 Start the computer.
2 Insert the supplied CD-ROM into the CD-ROM drive. A start window will appear automatically.
3 First, make sure the POWER switch on the instrument is set to OFF, then use a USB cable to connect the USB terminal of the computer to the USB connector of the instrument. When the instrument is turned on, the computer automatically displays the "Add New Hardware Wizard. Otherwise, refer to "Troubleshooting" in the "Accessory CD-ROM Installation Guide" section of the Owner's Manual.

For Windows Me users, check the radio button to the left of "Automatic search for a better driver (Recommended)" and click [Next]. The system automatically starts searching and installing the driver. Proceed to Step 8. If the system does not detect the driver, select "Specify the location of the driver (Advanced)" and specify the CD-ROM drive's root directory to install the driver and click [Next]. Execute the installation by following the onscreen instructions and proceed to Step 8.

NOTE

• If you are using Windows Me, skip Step 4-7.

4 Click [Next].

The window enables you to select the search method.

5 Check the radio button to the left of "Search for the best driver for your device. (Recommended)". Click [Next].

The window enables you to select a location in which to install the driver.

6 Check the "Specify a location" box, click "Browse...", then specify the root directory of the CD-ROM drive and continue the installation. The CD-ROM drive letter may vary depending on your computer's configuration.

7 When the system detects the driver on the CD-ROM and is ready for installation, it is shown as a message on the screen. Make sure that the "YAMAHA USB MIDI Driver" is listed, and click [Next]. The system starts the installation.

8 When installation is complete, a message indicating so appears. Click [Finish].

The driver has been installed.

NOTE

• Some computers may take about ten seconds to show this screen after the installation is complete.

Installing the driver on Windows 2000

1 Start the computer and use the "Administrator" account to log into Windows 2000.
2 Select [My Computer] [Control Panel] [System] [Hardware] [Driver Sign-ing] [File Signature Verification], and check the radio button to the left of "Ignore—Install all files, regardless of file signature" and click [OK].
3 Insert the supplied CD-ROM into the CD-ROM drive. A start window will appear automatically.
4 First, make sure the POWER switch on the MIDI device is set to OFF, then use a USB cable to connect the MIDI device to the computer. After making the connections, turn on the power of the MIDI device. The system automatically launches the Found New Hardware Wizard.

Otherwise, refer to "Troubleshooting" in the "Accessory CD-ROM Installation Guide" section of the Owner's Manual. Click [Next]. (Some computers may take a while to display the Wizard window.)

5 Select the radio button for "Search for a suitable driver for my device [recommended]", then click [Next].

NOTE

• If the Wizard panel informs you that "The software you are about to install does not contain a Microsoft digital signature", click [Yes].

6 Check the "CD-ROM drives" check box, deselect all other check boxes, then click [Next].

NOTE

• If the system prompts you to insert the Windows CD-ROM during detection of the drivers, point to the "USBdrv2k_ folder (e.g., D:\USBdrv2k_) and continue the installation.

7 Deselect the "Install one of the other drivers", then click [Next].

8 When the installation is complete, the Wizard displays "Completing the Found New Hardware Wizard".

Click [Finish]. (Some computers may take a while to display the Wizard window.)

9 Restart the computer.

The USB-MIDI driver installation is complete.

Installing the driver on Windows XP

1 Start the computer and use the "Administrator" account to log into Windows.
2 Select [Start] [Control Panel]. If the control panel appears as "Pick a category", click "Switch to Classic View" in the upper left of the window. All control panels and icons will be displayed.
3 Go to [System] [Hardware] [Driver Signing Options] and check the radio button to the left of "Ignore" and click [OK].
4 Click the [OK] button to close System Properties, and then click "X" in the upper right of the window to close the Control Panel.
5 Insert the supplied CD-ROM into the CD-ROM drive. A start window will appear automatically.
6 First, make sure the POWER switch on the MIDI device is set to OFF, then use a USB cable to connect the MIDI device to the computer. After making the connections, turn on the power of the MIDI device. The system launches the Found New Hardware Wizard automatically. Otherwise, refer to "Troubleshooting" in the "Accessory CD-ROM Installation Guide" section of the Owner's Manual. If the system displays "Found New Hardware" in the lower right corner, wait until Wizard windows is displayed. (Some computers may take a while to display the window.)

If the Wizard window prompts you to specify whether or not to connect to Windows Update, select the radio button for "No, not this time", then click [Next].

7 Select the radio button for "Install the software automatically (recommended)", then click [Next].

NOTE 1

• If during the installation the system displays "...has not passed Windows Logo testing to verify its compatibility with Windows XP", click [Continue Anyway].

8 When the installation is complete, the Wizard displays "Completing the Found New Hardware Wizard".

Click [Finish]. (Some computers may take a while to display the Wizard window.)

9 Restart the computer.

If the system displays "Found New Hardware" in the lower right corner, wait until the Wizard window is displayed. (Some computers may take a while to display the Wizard window.)

The USB-MIDI driver installation is complete.

■Installing the Musicsoft Downloader and Digital Music Notebook Applications.

IMPORTANT

• You will need to log in with administrator (root) privileges in order to install Musicsoft Downloader on a computer running Windows 2000 or XP.
• You will need to log in with administrator (root) privileges in order to install Digital Music Notebook on a computer running Windows 2000 or XP.

IMPORTANT

• When installing the Digital Music Notebook, make sure that Internet Explorer 6.0 (with SP1) or higher is installed to your computer.

IMPORTANT

• Credit card settlement is required to purchase Digital Music Notebook content. Credit card processing may not be possible for some areas, so please check with your local authorities to make sure that your credit card can be used.
  Insert the Accessory CD-ROM into your computer's CD-ROM drive. The start window will appear automatically showing software applications.

NOTE

• If the start window does not appear automatically, double click your "My Computer" folder to open it. Right-click the CD-ROM icon and select "Open" from the pop-up menu. Double click "Start.exe" and proceed to step 2, below.

2 Click [Musicsoft Downloader] or [Digital Music Notebook].
3 Click the [install] button for Musicsoft downloader, or [Digital Music Notebook Download] button for Digital Music Notebook, and follow the on-screen instructions to install the software.

For Digital Music Notebook operating instructions see the help menu: launch the Digital Music Notebook application and click "Help".

For Musicsoft Downloader operating instructions see the Help menu: launch the Musicsoft Downloader application and click "Help".

• You can obtain the latest version of the Musicsoft Downloader at the following Internet URL.

http://music.yamaha.com/download/

IMPORTANT

• Only Musicsoft Downloader can be used to transfer files between this instrument and a computer. No other file transfer application can be used.

Troubleshooting

The driver cannot be installed.

• Is the USB cable connected correctly?

Check the USB cable connection. Disconnect the USB cable, then connect it again.

• Is the USB function enabled on your computer?

When you connect the instrument to the computer for the first time, if the "Add New Hardware Wizard" does not appear, the USB function on the computer may be disabled. Perform the following steps.

1 Select [Control Panel] [System] [Device Manager] (for Windows 98/Me), or select [Control Panel]* [System] [Hardware] [Device Manager] (for Windows 2000/XP).

• Classic View only in Windows XP.

2 Make sure that no “!” or “x” marks appear at “Universal serial bus controller” or “USB Root Hub”. If you see an “!” or “x” mark, the USB controller is disabled.

• Is any unknown device registered?

If driver installation fails, the instrument will be marked as an "Unknown device", and you will not be able to install the driver. Delete the "Unknown device" by following the steps below.

1 Select [Control Panel] [System] [Device Manager] (for Windows 98/Me), or select [Control Panel] [System] [Hardware] [Device Manager] (for Windows 2000/XP).
Classic View only in Windows XP.
2 Look for "Other devices" in the menu "View devices by type".
3 If you find "Other devices", double-click it to extend the tree to look for "Unknown device". If one appears, select it and click the [Remove] button.
4 Remove the USB cable from the instrument, and make the connection again.
5 Install the driver again.

• Windows 98/Me users...... see page 88
• Windows 2000 users...... see page 88
• Windows XP users...... see page 89

When controlling the instrument from your computer via USB, the instrument does not operate correctly or no sound is heard.

• Did you install the driver? (page 87)
• Is the USB cable connected correctly?
• Are the volume settings of the instrument, playback device, and application program set to the appropriate levels?
• Have you selected an appropriate port in the sequence software?
• Are you using the latest USB MIDI driver? The latest driver can be downloaded from the following web site.

http://music.yamaha.com/download/

Playback response is delayed.

• Does your computer satisfy the system requirements?
• Is any other application or device driver running?

Cannot suspend or resume the computer correctly.

• Do not suspend the computer while the MIDI application is running.

If you are using Windows 2000, you may not be able to suspend/resume normally, depending on the particular environment (USB Host

Controller, etc.). Even so, simply disconnecting and connecting the USB cable will allow you to use the instrument functions again.

How can I delete or re-install the driver?

[Windows Me/98]

1 When the instrument is recognized correctly, double-click "System" in the Control Panel to open the System window.
2 Double-click the "Device Manager" tab, select "YAMAHA USB MIDI Driver" and delete it.
3 Use the MS-DOS prompt or Explorer to delete the following three files.

NOTE

• To delete these files using Explorer, select "Folder Options" from the Tool (View) menu, and select "Show all files" (and folders).

• [WINDOWS\INF\OTHER\1039.INF]

• |WINDOWS|SYSTEM\Xgusb.drv
• |WINDOWS|SYSTEM|Ymidusb.sys

4 Disconnect the USB cable.
5 Restart the computer.
6 Re-install the driver.

ATTENTION SOFTWARE LICENSE AGREEMENT

PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("AGREEMENT") CAREFULLY BEFORE USING THIS SOFTWARE. YOU ARE ONLY PERMITTED TO USE THIS SOFTWARE PURSUANT TO THE TERMS AND CONDITIONS OF THIS AGREEMENT. THIS AGREEMENT IS BETWEEN YOU (AS AN INDIVIDUAL OR LEGAL ENTITY) AND YAMAHA CORPORATION ("YAMAHA").

BY BREAKING THE SEAL OF THIS PACKAGE YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE WITH THE TERMS, DO NOT INSTALL, COPY, OR OTHERWISE USE THIS SOFTWARE.

1. GRANT OF LICENSE AND COPYRIGHT

Yamaha hereby grants you the right to use one copy of the software program(s) and data ("SOFTWARE") accompanying this Agreement. The term SOFTWARE shall encompass any updates to the accompanying software and data. The SOFTWARE is owned by Yamaha and/or Yamaha's licensor(s), and is protected by relevant copyright laws and all applicable treaty provisions. While you are entitled to claim ownership of the data created with the use of SOFTWARE, the SOFTWARE will continue to be protected under relevant copyrights.

• You may use the SOFTWARE on a single computer.
• You may make one copy of the SOFTWARE in machine-readable form for backup purposes only, if the SOFTWARE is on media where such backup copy is permitted. On the backup copy, you must reproduce Yamaha's copyright notice and any other proprietary legends that were on the original copy of the SOFTWARE.
• You may permanently transfer to a third party all your rights in the SOFTWARE, provided that you do not retain any copies and the recipient reads and agrees to the terms of this Agreement.

2. RESTRICTIONS

• You may not engage in reverse engineering, disassembly, decompilation or otherwise deriving a source code form of the SOFTWARE by any method whatsoever.
• You may not reproduce, modify, change, rent, lease, or distribute the SOFTWARE in whole or in part, or create derivative works of the SOFTWARE.
• You may not electronically transmit the SOFTWARE from one computer to another or share the SOFTWARE in a network with other computers.
• You may not use the SOFTWARE to distribute illegal data or data that violates public policy.
• You may not initiate services based on the use of the SOFTWARE without permission by Yamaha Corporation

Copyrighted data, including but not limited to MIDI data for songs, obtained by means of the SOFTWARE, are subject to the following restrictions which you must observe.
- Data received by means of the SOFTWARE may not be used for any commercial purposes without permission of the copyright owner.
- Data received by means of the SOFTWARE may not be duplicated, transferred, or distributed, or played back or performed for listeners in public without permission of the copyright owner.
- The encryption of data received by means of the SOFTWARE may not be removed nor may the electronic watermark be modified without permission of the copyright owner.

3. TERMINATION

This Agreement becomes effective on the day that you receive the SOFTWARE and remains effective until terminated. If any copyright law or provisions of this Agreement is violated, the Agreement shall terminate automatically and immediately without notice from Yamaha. Upon such termination, you must immediately destroy the licensed SOFTWARE, any accompanying written documents and all copies thereof.

4. LIMITED WARRANTY ON MEDIA

As to SOFTWARE sold on tangible media, Yamaha warrants that the tangible media on which the SOFTWARE is recorded will be free from defects in materials and workmanship under normal use for a period of fourteen (14) days from the date of receipt, as evidenced by a copy of the receipt. Yamaha's entire liability and your exclusive remedy will be replacement of the defective media if it is returned to Yamaha or an authorized Yamaha dealer within fourteen days with a copy of the receipt. Yamaha is not responsible for replacing media damaged by accident, abuse or misapplication. TO THE FULLEST EXTENT PERMITTED BY LAW, YAMAMA EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTYES ON THE TANGIBLE MEDIA, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

5. DISCLAIMER OF WARRANTY ON SOFTWARE

You expressly acknowledge and agree that use of the SOFTWARE is at your sole risk. The SOFTWARE and related documentation are provided "AS IS" and without warranty of any kind. NOTWITHSTANDING ANY OTHER PROVISION OF THIS AGREEMENT, YAMAHA EXPRESSLY DISCLAIMS ALL WARRANTYES AS TO THE SOFTWARE, EXPRESS, AND IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SPECIFICALLY, BUT WITHOUT LIMITING THE FOREIGNING, YAMAHA DOES NOT WARRANTY THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS, THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR-FREE, OR THAT DEFECTS IN THE SOFTWARE WILL BE CORRECTED.

6. LIMITATION OF LIABILITY

YAMAHA'S ENTIRE OBLIGATION HEREUNDER SHALL BE TO PERMIT USE OF THE SOFTWARE UNDER THE TERMS HEREOF. IN NO EVENT SHALL YAMAHA BE LIABLE TO YOU OR ANY OTHER PERSON FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION, ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EXPENSES, LOST PROFITS, LOST DATA OR OTHER DAMAGES ASING OUT OF THE USE, MISUSE OR INABILITY TO USE THE SOFTWARE, EVEN IF YAMAHA OR AN AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. In no event shall Yamaha's total liability to you for all damages, losses and causes of action (whether in contract, tort or otherwise) exceed the amount paid for the SOFTWARE.

7. THIRD PARTY SOFTWARE

Third party software and data ("THIRD PARTY SOFTWARE") may be attached to the SOFTWARE. If, in the written materials or the electronic data accompanying the Software, Yamaha identifies any software and data as THIRD PARTY SOFTWARE, you acknowledge and agree that you must abide by the provisions of any Agreement provided with the THIRD PARTY SOFTWARE and that the party providing the THIRD PARTY SOFTWARE is responsible for any warranty or liability related to or arising from the THIRD PARTY SOFTWARE. Yamaha is not responsible in any way for the THIRD PARTY SOFTWARE or your use thereof.

• Yamaha provides no express warranties as to the THIRD PARTY SOFTWARE. IN ADDITION, YAMAHA EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTYES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, as to the THIRD PARTY SOFTWARE.
• Yamaha shall not provide you with any service or maintenance as to the THIRD PARTY SOFTWARE.
• Yamaha is not liable to you or any other person for any damages, including, without limitation, any direct, indirect, incidental or consequential damages, expenses, lost profits, lost data or other damages arising out of the use, misuse or inability to use the THIRD PARTY SOFTWARE.

8. GENERAL

This Agreement shall be interpreted according to and governed by Japanese law without reference to principles of conflict of laws. Any dispute or procedure shall be heard before the Tokyo District Court in Japan. If for any reason a court of competent jurisdiction finds any portion of this Agreement to be unenforceable, the remainder of this Agreement shall continue in full force and effect.

9. COMPLETE AGREEMENT

This Agreement constitutes the entire agreement between the parties with respect to use of the SOFTWARE and any accompanying written materials and supersedes all prior or contemporaneous understandings or agreements, written or oral, regarding the subject matter of this Agreement. No amendment or revision of this Agreement will be binding unless in writing and signed by a fully authorized representative of Yamaha.

Problem	Possible Cause and Solution
When the instrument is turned on or off, a popping sound is temporarily produced.	This is normal and indicates that the instrument is receiving electrical power.
When using a mobile phone, noise is produced.	Using a mobile phone in close proximity to the instrument may produce interference. To prevent this, turn off the mobile phone or use it further away from the instrument.
There is no sound even when the keyboard is played or when a song or style is being played back.	Check that nothing is connected to the PHONES/OUTPUT jack on the rear panel. When a set of headphones is plugged into this jack, no sound is output.
	Check the Local Control on/off. (See page 80.)
Playing keys in the right hand area of the keyboard does not produce any sound.	When using the Dictionary function (page 70), the keys in the right hand area are used only for entering the chord root and type.
The volume is too soft. • The sound quality is poor. • The rhythm stops unexpectedly or will not play. • The recorded data of the song, etc. does not play correctly. • The LCD display suddenly goes dark, and all panel settings are reset.	The batteries are low or dead. Replace all six batteries with completely new ones, or use the optional AC adaptor.
The style or song does not play back when the [START/STOP] button is pressed.	Is External Clock set to ON? Make sure External Clock is set to OFF; refer to “External Clock” on page 80.
The style does not sound properly.	Make sure that the Style Volume (page 76) is set to an appropriate level.
	Is the split point set at an appropriate key for the cords you are playing? Set the split point at an appropriate key (page 65). Is the “ACMP ON” indicator showing in the display? If it is not showing press the [ACMP ON/OFF] button so that it does show.
No rhythm accompaniment plays when the [START/STOP] button is pressed after selecting style number 121 or a style between 133–150 (Pianist).	This is not a malfunction. Style number 121 and style numbers 133–150 (Pianist) have no rhythm parts, so no rhythm will play. The other parts will begin playing when you play a chord in the accompaniment range of the keyboard if style playback is turned on.
Not all of the voices seem to sound, or the sound seems to be cut off.	The instrument is polyphonic up to a maximum of 32 notes. If the Dual voice or Split voice is being used and a style or song is playing back at the same time, some notes/sounds may be omitted (or “stolen”) from the accompaniment or song.
The footswitch (for sustain) seems to produce the opposite effect. For example, pressing the footswitch cuts off the sound and releasing it sustains the sounds.	The polarity of the footswitch is reversed. Make sure that the footswitch plug is properly connected to the SUSTAIN jack before turning on the power.
The sound of the voice changes from note to note.	This is normal. The AWM tone generation method uses multiple recordings (samples) of an instrument across the range of the keyboard; thus, the actual sound of the voice may be slightly different from note to note.
The wrong notes sound when the keyboard is played.	Perhaps the performance assistant technology is turned on. Press the [PERFORMANCE ASSISTANT] button to turn it off.
The ACPI ON indicator does not appear when the [ACMP ON/OFF] button is pressed.	Is the [STYLE] button lit? Always press the [STYLE] button first when you are going to use any style-related function.
There is no harmony sound.	The harmony effects (01–26) behave differently according to their type. Types 01–05 function when style playback is on, chords are played in the accompani-ment range of the keyboard, and a melody is played in the right-hand range. Types 06–26 will function whether style playback is on or off. For types 06 = 12 you need to play two notes at the same time.

Memo

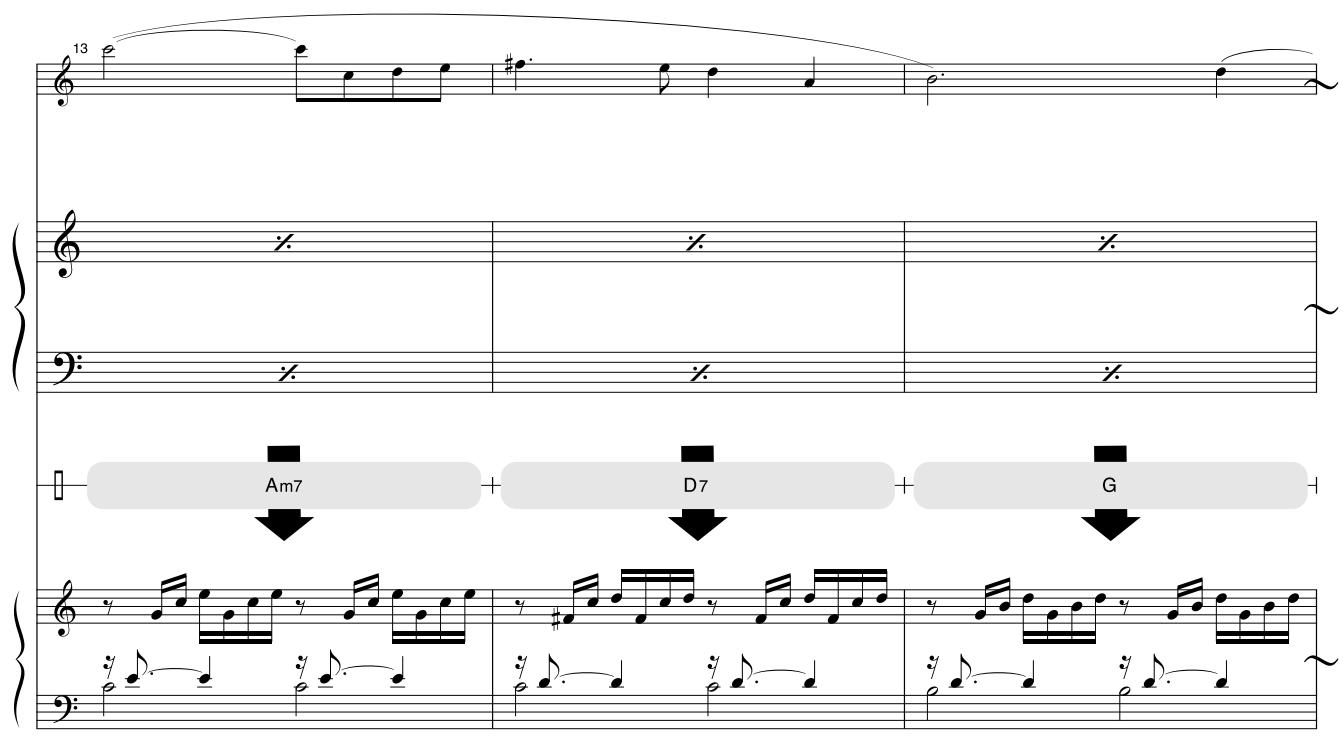

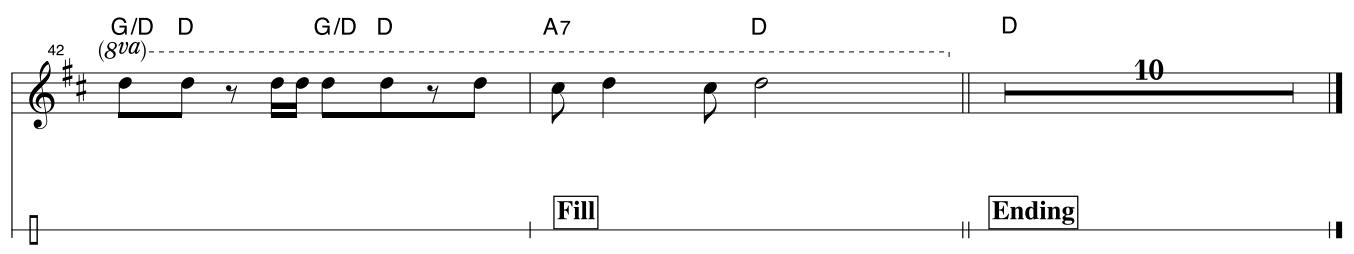

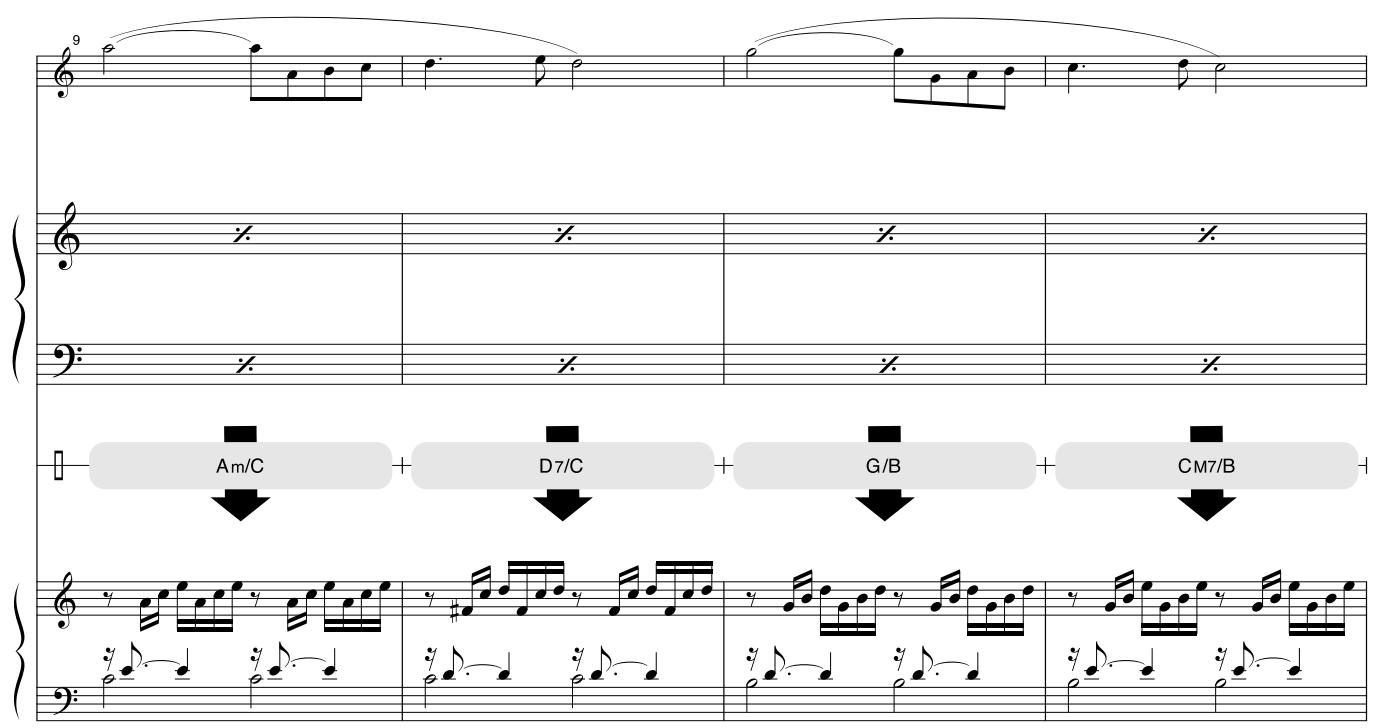

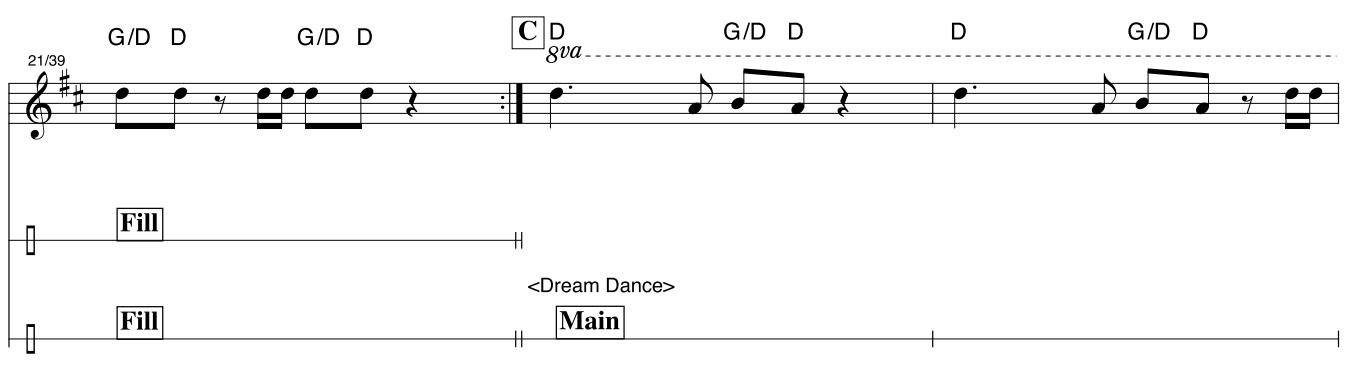

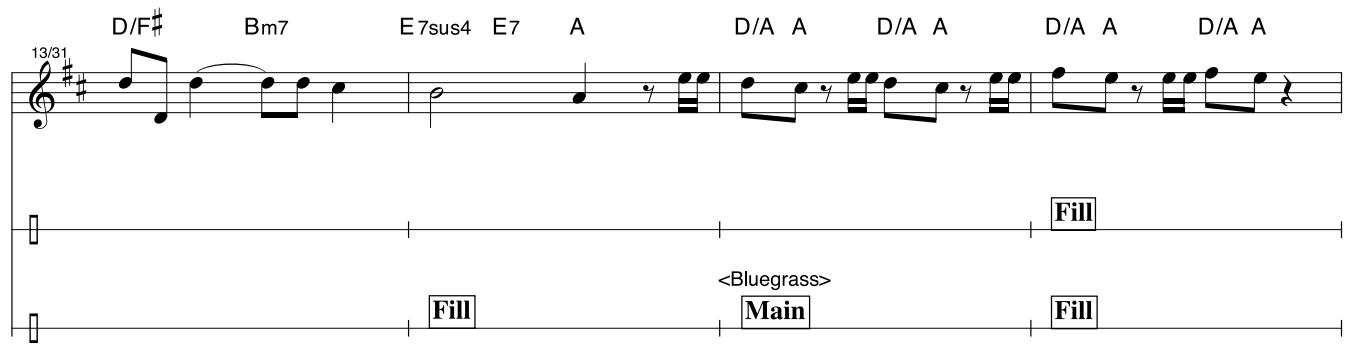

This demo is an example of how the Easy Song Arranger can be used to change styles throughout a piece.

Song No. 9

(Function Demo for Easy Song Arranger)

Hallelujah Chorus

This score is provided with the intent that the pitch will be corrected by the performance assistant technology feature. If you play the "Play These Notes" part using the performance assistant technology feature, the part will be corrected and played so that it matches the backing part.

Song No. 10

=61

(Function Demo for performance assistant technology)

Ave Maria

This score is provided with the intent that the pitch will be corrected by the performance assistant technology feature. If you play the "Play These Notes" part using the performance assistant technology feature, the part will be corrected and played so that it matches the backing part.

Song No. 11

(Function Demo for performance assistant technology)

Nocturne op.9-2

Maximum Polyphony

The instrument has 32-note maximum polyphony. This means that it can play a maximum of up to 32 notes at once, regardless of what functions are used. Auto accompaniment uses a number of the available notes, so when auto accompaniment is used the total number of available notes for playing on the keyboard is correspondingly reduced. The same applies to the Split Voice and Song functions. If the maximum polyphony is exceeded, earlier played notes will be cut off and the most recent notes have priority (last note priority).

NOTE

• The Voice List includes MIDI program change numbers for each voice. Use these program change numbers when playing the instrument via MIDI from an external device.
• Program Numbers 001 to 128 directly relate to MIDI Program Change Numbers 000 to 127. That is, Program Numbers and Program Change Numbers differ by a value of 1. Remember to take this into consideration.
• Some voices may sound continuously or have a long decay after the notes have been released while the sustain pedal (footswitch) is held.

Panel Voice List

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
PIANO
001	000	112	001	Grand Piano
002	000	112	002	Bright Piano
003	000	112	007	Harpsichord
004	000	112	004	Honky-tonk Piano
005	000	112	003	MIDI Grand Piano
006	000	113	003	CP 80
E.PIANO
007	000	114	005	Cool! Galaxy Electric Piano
008	000	113	006	Hyper Tines
009	000	112	005	Funky Electric Piano
010	000	112	006	DX Modern Electric Piano
011	000	114	006	Venus Electric Piano
012	000	112	008	Clavi
ORGAN
013	000	118	019	Cool! Organ
014	000	117	019	Cool! Rotor Organ
015	000	112	017	Jazz Organ 1
016	000	113	017	Jazz Organ 2
017	000	112	019	Rock Organ
018	000	114	019	Purple Organ
019	000	112	018	Click Organ
020	000	116	017	Bright Organ
021	000	127	019	Theater Organ
022	000	121	020	16'+2' Organ
023	000	120	020	16'+4' Organ
024	000	113	020	Chapel Organ
025	000	112	020	Church Organ
026	000	112	021	Reed Organ
ACCORDION
027	000	112	022	Musette Accordion
028	000	113	022	Traditional Accordion
029	000	113	024	Bandoneon
030	000	113	023	Modern Harp
031	000	112	023	Harmonica
GUITAR
032	000	112	025	Classical Guitar
033	000	112	026	Folk Guitar
034	000	112	027	Jazz Guitar
035	000	117	028	60's Clean Guitar
036	000	113	026	12Strings Guitar
037	000	112	028	Clean Guitar
038	000	113	027	Octave Guitar
039	000	112	029	Muted Guitar
040	000	112	030	Overdriven Guitar
041	000	112	031	Distortion Guitar
BASS
042	000	112	034	Finger Bass
043	000	112	033	Acoustic Bass
044	000	112	035	Pick Bass
045	000	112	036	Fretless Bass
046	000	112	037	Slap Bass
047	000	112	039	Synth Bass
048	000	113	039	Hi-Q Bass
049	000	113	040	Dance Bass

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
STRINGS
050	000	112	049	String Ensemble
051	000	112	050	Chamber Strings
052	000	113	050	Slow Strings
053	000	112	045	Tremolo Strings
054	000	112	051	Synth Strings
055	000	112	046	Pizzicato Strings
056	000	112	041	Violin
057	000	112	043	Cello
058	000	112	044	Contrabass
059	000	112	047	Harp
060	000	112	106	Banjo
061	000	112	056	Orchestra Hit
CHOIR
062	000	112	053	Choir
063	000	113	053	Vocal Ensemble
064	000	112	055	Air Choir
065	000	112	054	Vox Humana
SAXOPHONE
066	000	117	067	Sweet! Tenor Sax
067	000	113	065	Sweet! Soprano Sax
068	000	112	067	Tenor Sax
069	000	112	066	Alto Sax
070	000	112	065	Soprano Sax
071	000	112	068	Baritone Sax
072	000	114	067	Breathy Tenor Sax
073	000	112	072	Clarinet
074	000	112	069	Oboe
075	000	112	070	English Horn
076	000	112	071	Bassoon
TRUMPET
077	000	115	057	Sweet! Trumpet
078	000	112	057	Trumpet
079	000	112	058	Trombone
080	000	113	058	Trombone Section
081	000	112	060	Muted Trumpet
082	000	112	061	French Horn
083	000	112	059	Tuba
BRASS
084	000	112	062	Brass Section
085	000	113	062	Big Band Brass
086	000	113	063	80's Brass
087	000	119	062	Mellow Horns
088	000	114	063	Techno Brass
089	000	112	063	Synth Brass
FLUTE
090	000	114	074	Sweet! Flute
091	000	113	076	Sweet! Pan Flute
092	000	112	074	Flute
093	000	112	073	Piccolo
094	000	112	076	Pan Flute
095	000	112	075	Recorder
096	000	112	080	Ocarina
SYNTH LEAD
097	000	112	081	Square Lead
098	000	112	082	Sawtooth Lead
099	000	115	082	Analogon
100	000	119	082	Cargo
101	000	112	099	Star Dust
102	000	112	086	Voice Lead
103	000	112	101	Brightness
SYNTH PAD
104	000	112	092	Xenon Pad
105	000	112	095	Equinox
106	000	112	089	Fantasia
107	000	113	090	Dark Moon
108	000	113	101	Bell Pad
PERCUSSION
109	000	112	012	Vibraphone
110	000	112	013	Marimba
111	000	112	014	Xylophone
112	000	112	115	Steel Drums
113	000	112	009	Celesta
114	000	112	011	Music Box
115	000	112	015	Tubular Bells
116	000	112	048	Timpani
DRUM KITS
117	127	000	001	Standard Kit 1
118	127	000	002	Standard Kit 2
119	127	000	009	Room Kit
120	127	000	017	Rock Kit
121	127	000	025	Electronic Kit
122	127	000	026	Analog Kit
123	127	000	113	Dance Kit
124	127	000	033	Jazz Kit
125	127	000	041	Brush Kit
126	127	000	049	Symphony Kit
127	126	000	001	SFX Kit 1
128	126	000	002	SFX Kit 2

XGlite Voice/XGlite Optional Voice* List

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
PIANO
129	000	000	001	Grand Piano
130	000	001	001	Grand Piano KSP
131	000	040	001	Piano Strings
132	000	041	001	Dream
133	000	000	002	Bright Piano
134	000	001	002	Bright Piano KSP
135	000	000	003	Electric Grand Piano
136	000	001	003	Electric Grand Piano KSP
137	000	032	003	Detuned CP80
138	000	000	004	Honky-tonk Piano
139	000	001	004	Honky-tonk Piano KSP
140	000	000	005	Electric Piano 1
141	000	001	005	Electric Piano 1 KSP
142	000	032	005	Chorus Electric Piano 1
143	000	000	006	Electric Piano 2
144	000	001	006	Electric Piano 2 KSP
*145	000	032	006	Chorus Electric Piano 2
146	000	041	006	DX + Analog Electric Piano
147	000	000	007	Harpsichord
148	000	001	007	Harpsichord KSP
149	000	035	007	Harpsichord 2
150	000	000	008	Clavi
151	000	001	008	Clavi KSP
CHROMATIC
152	000	000	009	Celesta
153	000	000	010	Glockenspiel
154	000	000	011	Music Box
155	000	064	011	Orgel

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
156	000	000	012	Vibraphone
157	000	001	012	Vibraphone KSP
158	000	000	013	Marimba
159	000	001	013	Marimba KSP
160	000	064	013	Sine Marimba
161	000	097	013	Balimba
162	000	098	013	Log Drums
163	000	000	014	Xylophone
164	000	000	015	Tubular Bells
165	000	096	015	Church Bells
166	000	097	015	Carillon
167	000	000	016	Dulcimer
168	000	035	016	Dulcimer 2
169	000	096	016	Cimbalom
170	000	097	016	Santur
ORGAN
171	000	000	017	Drawbar Organ
172	000	032	017	Detuned Drawbar Organ
173	000	033	017	60's Drawbar Organ 1
174	000	034	017	60's Drawbar Organ 2
175	000	035	017	70's Drawbar Organ 1
176	000	037	017	60's Drawbar Organ 3
177	000	040	017	16+2'2/3
178	000	064	017	Organ Bass
179	000	065	017	70's Drawbar Organ 2
180	000	066	017	Cheezy Organ
181	000	067	017	Drawbar Organ 2
182	000	000	018	Percussive Organ
183	000	024	018	70's Percussive Organ
184	000	032	018	Detuned Percussive Organ
185	000	033	018	Light Organ
186	000	037	018	Percussive Organ 2
187	000	000	019	Rock Organ
188	000	064	019	Rotary Organ
189	000	065	019	Slow Rotary
190	000	066	019	Fast Rotary
191	000	000	020	Church Organ
192	000	032	020	Church Organ 3
193	000	035	020	Church Organ 2
194	000	040	020	Notre Dame
195	000	064	020	Organ Flute
196	000	065	020	Tremolo Organ Flute
197	000	000	021	Reed Organ
198	000	040	021	Puff Organ
199	000	000	022	Accordion
200	000	000	023	Harmonica
201	000	032	023	Harmonica 2
202	000	000	024	Tango Accordion
203	000	064	024	Tango Accordion 2
GUITAR
204	000	000	025	Nylon Guitar
205	000	043	025	Velocity Guitar Harmonics
206	000	096	025	Ukulele
207	000	000	026	Steel Guitar
208	000	035	026	12-string Guitar
209	000	040	026	Nylon & Steel Guitar
210	000	041	026	Steel Guitar with Body Sound
211	000	096	026	Mandolin
212	000	000	027	Jazz Guitar
213	000	032	027	Jazz Amp
214	000	000	028	Clean Guitar
215	000	032	028	Chorus Guitar
216	000	000	029	Muted Guitar
217	000	040	029	Funk Guitar
218	000	041	029	Muted Steel Guitar
219	000	045	029	Jazz Man
220	000	000	030	Overdriven Guitar
221	000	043	030	Guitar Pinch
222	000	000	031	Distortion Guitar
223	000	040	031	Feedback Guitar
224	000	041	031	Feedback Guitar 2
BASS
225	000	000	032	Guitar Harmonics
226	000	065	032	Guitar Feedback
227	000	066	032	Guitar Harmonics 2
BASS
228	000	000	033	Acoustic Bass
229	000	040	033	Jazz Rhythm
230	000	045	033	Velocity Crossfade Upright Bass
231	000	000	034	Finger Bass
232	000	018	034	Finger Dark
233	000	040	034	Bass & Distorted Electric Guitar
234	000	043	034	Finger Slap Bass
235	000	045	034	Finger Bass 2
236	000	065	034	Modulated Bass
237	000	000	035	Pick Bass
238	000	028	035	Muted Pick Bass
239	000	000	036	Fretless Bass
240	000	032	036	Fretless Bass 2
241	000	033	036	Fretless Bass 3
242	000	034	036	Fretless Bass 4
243	000	000	037	Slap Bass 1
244	000	032	037	Punch Thumb Bass
245	000	000	038	Slap Bass 2
246	000	043	038	Velocity Switch Slap
247	000	000	039	Synth Bass 1
248	000	040	039	Techno Synth Bass
249	000	000	040	Synth Bass 2
250	000	006	040	Mellow Synth Bass
251	000	012	040	Sequenced Bass
252	000	018	040	Click Synth Bass
253	000	019	040	Synth Bass 2 Dark
*254	000	040	040	Modular Synth Bass
255	000	041	040	DX Bass
STRINGS
256	000	000	041	Violin
257	000	008	041	Slow Violin
258	000	000	042	Viola
259	000	000	043	Cello
260	000	000	044	Contrabass
261	000	000	045	Tremolo Strings
262	000	008	045	Slow Tremolo Strings
263	000	040	045	Suspense Strings
264	000	000	046	Pizzicato Strings
265	000	000	047	Orchestral Harp
266	000	040	047	Yang Chin
267	000	000	048	Timpani
ENSEMBLE
268	000	000	049	Strings 1
269	000	003	049	Stereo Strings
270	000	008	049	Slow Strings
271	000	035	049	60's Strings
272	000	040	049	Orchestra
273	000	041	049	Orchestra 2
274	000	042	049	Tremolo Orchestra
275	000	045	049	Velocity Strings
276	000	000	050	Strings 2
277	000	003	050	Stereo Slow Strings
278	000	008	050	Legato Strings
279	000	040	050	Warm Strings
280	000	041	050	Kingdom
281	000	000	051	Synth Strings 1
282	000	000	052	Synth Strings 2
283	000	000	053	Choir Aafs
284	000	003	053	Stereo Choir
285	000	032	053	Mellow Choir
286	000	040	053	Choir Strings
287	000	000	054	Voice Oohs
288	000	000	055	Synth Voice
289	000	040	055	Synth Voice 2
290	000	041	055	Choral
291	000	064	055	Analog Voice
292	000	000	056	Orchestra Hit
293	000	035	056	Orchestra Hit 2

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
294	000	064	056	Impact
BRASS
295	000	000	057	Trumpet
296	000	032	057	Warm Trumpet
297	000	000	058	Trombone
298	000	018	058	Trombone 2
299	000	000	059	Tuba
300	000	000	060	Muted Trumpet
301	000	000	061	French Horn
302	000	006	061	French Horn Solo
303	000	032	061	French Horn 2
304	000	037	061	Horn Orchestra
305	000	000	062	Brass Section
306	000	035	062	Trumpet & Trombone Section
307	000	000	063	Synth Brass 1
308	000	020	063	Resonant Synth Brass
309	000	000	064	Synth Brass 2
310	000	018	064	Soft Brass
311	000	041	064	Choir Brass
REED
312	000	000	065	Soprano Sax
313	000	000	066	Alto Sax
314	000	040	066	Sax Section
315	000	000	067	Tenor Sax
316	000	040	067	Breathy Tenor Sax
317	000	000	068	Baritone Sax
318	000	000	069	Oboe
319	000	000	070	English Horn
320	000	000	071	Bassoon
321	000	000	072	Clarinet
PIPE
322	000	000	073	Piccolo
323	000	000	074	Flute
324	000	000	075	Recorder
325	000	000	076	Pan Flute
326	000	000	077	Blown Bottle
327	000	000	078	Shakuhachi
328	000	000	079	Whistle
329	000	000	080	Ocarina
SYNTH LEAD
330	000	000	081	Square Lead
331	000	006	081	Square Lead 2
332	000	008	081	LM Square
333	000	018	081	Hollow
334	000	019	081	Shroud
335	000	064	081	Mellow
336	000	065	081	Solo Sine
337	000	066	081	Sine Lead
338	000	000	082	Sawtooth Lead
339	000	006	082	Sawtooth Lead 2
340	000	008	082	Thick Sawtooth
341	000	018	082	Dynamic Sawtooth
342	000	019	082	Digital Sawtooth
343	000	020	082	Big Lead
344	000	096	082	Sequenced Analog
345	000	000	083	Calliope Lead
346	000	065	083	Pure Lead
347	000	000	084	Chiff Lead
348	000	000	085	Charang Lead
349	000	064	085	Distorted Lead
350	000	000	086	Voice Lead
351	000	000	087	Fifths Lead
352	000	035	087	Big Five
353	000	000	088	Bass & Lead
354	000	016	088	Big & Low
355	000	064	088	Fat & Perky
356	000	065	088	Soft Whirl
SYNTH PAD
357	000	000	089	New Age Pad
358	000	064	089	Fantasy
359	000	000	090	Warm Pad
360	000	000	091	Poly Synth Pad
361	000	000	092	Choir Pad
362	000	066	092	Itopia
363	000	000	093	Bowed Pad
364	000	000	094	Metallic Pad
365	000	000	095	Halo Pad
366	000	000	096	Sweep Pad
SYNTH EFFECTS
367	000	000	097	Rain
368	000	065	097	African Wind
369	000	066	097	Carib
370	000	000	098	Sound Track
371	000	027	098	Prologue
372	000	000	099	Crystal
373	000	012	099	Synth Drum Comp
374	000	014	099	Popcorn
375	000	018	099	Tiny Bells
376	000	035	099	Round Glockenspiel
377	000	040	099	Glockenspiel Chimes
378	000	041	099	Clear Bells
379	000	042	099	Chorus Bells
380	000	065	099	Soft Crystal
381	000	070	099	Air Bells
382	000	071	099	Bell Harp
383	000	072	099	Gamelimba
384	000	000	100	Atmosphere
385	000	018	100	Warm Atmosphere
386	000	019	100	Hollow Release
387	000	040	100	Nylon Electric Piano
388	000	064	100	Nylon Harp
389	000	065	100	Harp Vox
390	000	066	100	Atmosphere Pad
391	000	000	101	Brightness
392	000	000	102	Goblins
393	000	064	102	Goblins Synth
394	000	065	102	Creeper
395	000	067	102	Ritual
396	000	068	102	To Heaven
397	000	070	102	Night
398	000	071	102	Glisten
399	000	096	102	Bell Choir
400	000	000	103	Echoes
401	000	000	104	Sci-Fi
WORLD
402	000	000	105	Sitar
403	000	032	105	Detuned Sitar
404	000	035	105	Sitar 2
405	000	097	105	Tamboura
406	000	000	106	Banjo
407	000	028	106	Muted Banjo
408	000	096	106	Rabab
409	000	097	106	Gopichant
410	000	098	106	Oud
411	000	000	107	Shamisen
412	000	000	108	Koto
413	000	096	108	Taisho-kin
414	000	097	108	Kanoon
415	000	000	109	Kalimba
416	000	000	110	Bagpipe
417	000	000	111	Fiddle
418	000	000	112	Shanai
PERCUSSIVE
419	000	000	113	Tinkle Bell
420	000	096	113	Bonang
421	000	097	113	Altair
422	000	098	113	Gamelan Gongs
423	000	099	113	Stereo Gamelan Gongs
424	000	100	113	Rama Cymbal
425	000	000	114	Agogo
426	000	000	115	Steel Drums
427	000	097	115	Glass Percussion

Voice No.	Bank Select		MIDI Program Change# (1-128)	Voice Name
	MSB (0-127)	LSB (0-127)
428	000	098	115	Thai Bells
429	000	000	116	Woodblock
430	000	096	116	Castanets
431	000	000	117	Taiko Drum
432	000	096	117	Gran Cassa
433	000	000	118	Melodic Tom
434	000	064	118	Melodic Tom 2
435	000	065	118	Real Tom
436	000	066	118	Rock Tom
437	000	000	119	Synth Drum
438	000	064	119	Analog Tom
439	000	065	119	Electronic Percussion
440	000	000	120	Reverse Cymbal
SOUND EFFECTS
441	000	000	121	Fret Noise
442	000	000	122	Breath Noise
443	000	000	123	Seashore
444	000	000	124	Bird Tweet
445	000	000	125	Telephone Ring
446	000	000	126	Helicopter
447	000	000	127	Applause
448	000	000	128	Gunshot
449	064	000	001	Cutting Noise
450	064	000	002	Cutting Noise 2
451	064	000	004	String Slap
452	064	000	017	Flute Key Click
453	064	000	033	Shower
454	064	000	034	Thunder
455	064	000	035	Wind
456	064	000	036	Stream
457	064	000	037	Bubble
458	064	000	038	Feed
459	064	000	049	Dog
460	064	000	050	Horse
461	064	000	051	Bird Tweet 2
462	064	000	056	Maou
463	064	000	065	Phone Call
464	064	000	066	Door Squeak
465	064	000	067	Door Slam
466	064	000	068	Scratch Cut
467	064	000	069	Scratch Split
468	064	000	070	Wind Chime
469	064	000	071	Telephone Ring 2
470	064	000	081	Car Engine Ignition
471	064	000	082	Car Tires Squeal
472	064	000	083	Car Passing
473	064	000	084	Car Crash
474	064	000	085	Siren
475	064	000	086	Train
476	064	000	087	Jet Plane
477	064	000	088	Starship
478	064	000	089	Burst
479	064	000	090	Roller Coaster
480	064	000	091	Submarine
481	064	000	097	Laugh
482	064	000	098	Scream
483	064	000	099	Punch
484	064	000	100	Heartbeat
485	064	000	101	Footsteps
486	064	000	113	Machine Gun
487	064	000	114	Laser Gun
488	064	000	115	Explosion
489	064	000	116	Firework

The voice number with an asterisk (*) is XGlite optional voice.

• " _ " indicates that the drum sound is the same as "Standard Kit 1".
  Each percussion voice uses one note.
• The MIDI Note # and Note are actually one octave lower than keyboard Note # and Note. For example, in "117: Standard Kit 1", the "Seq Click H" (Note# 36/Note C1) corresponds to (Note# 24/Note C0).
  Key Off: Keys marked "O" stop sounding the instant they are released.
• Voices with the same Alternate Note Number (*1 ... 4) cannot be played simultaneously. (They are designed to be played alternately with each other.)

E6

F6

G6

H6

I6

J6

K6

L6

M6

N6

O6

P6

Q6

R6

S6

T6

U6

V6

A0

A1

G0

G1

G2

G3

E1

F1

F2

F3

F4

F5

F6

G7

A2

A2

A2

B2

B2

B2

C3

C3

C4

D3

D4

E3

E4

E5

F4

F5

G4

G5

H4

I4

J4

MERS (0-127)/LSI (0-127)/PC (1-129)
117
118																																																																127/120/120																																																																																																																																																																				127/120/120
119

F0

F#0

G0

G#0

A0

A#0

B0

B#0

C1

C#1

D1

D#1

E1

F1

F#1

F#2

F#3

F3

F#4

F#5

F#6

G1

G#1

A1

A#1

B1

B#1

C1

C#1

D1

D#1

E2

E2

B2

B#2

C2

C#2

C#2

C#2

C#2

C#2

C#2

G2

G#2

A2

A#2

B2

B#2

C2

C#2

D2

D#2

E2

E2

B2

B#2

C2

C#2

C#2

C#2

C#2

C#2

C#2

G3

G#3

A3

A#3

B3

B#3

C3

C#3

D3

D#3

E3

E3

B3

B#3

C3

C#3

C#3

C#3

C#3

C#3

C#3

G4

G#4

A4

A#4

B4

B#4

C4

C#4

D4

D#4

E4

E4

B4

B#4

C4

C#4

C#4

C#4

C#4

C#4

C#4

G5

G5

A5

A#5

B5

B#5

C5

C#5

D5

D#5

E5

E5

B5

B#5

C5

C#5

D5

D#5

E5

E5

E5

NBS (0-127)/PC 1-128)

127

124

125

73

74

4

62

D

3

Conj. H

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

Conj. A

Conj. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

Con J. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJI. A

ConJI. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJO. A

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. N

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. m

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. a

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. 1

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. I

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. B

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ.

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. R

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. r

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. l

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. L

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. t

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. s

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. d

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. D

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. b

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. c

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. C

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. G

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. g

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. f

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. F

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. E

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. S

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. T

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. P

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. p

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. k

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. K

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. h

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

ConJ. A

ConJ. M

CONJ. 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000110000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000021111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

Style No.	Style Name
8BEAT
001	8BeatModern
002	Cool8Beat
003	60'sGuitarPop
004	8BeatAdria
005	60's8Beat
006	BubblegumPop
007	BritPopSwing
008	8Beat
009	OffBeat
010	60'sRock
011	HardRock
012	RockShuffle
013	8BeatRock
16BEAT
014	16Beat
015	PopShuffle1
016	PopShuffle2
017	GuitarPop
018	16BeatUptempo
019	KoolShuffle
020	JazzRock
021	HipHopLight
BALLAD
022	PianoBallad
023	LoveSong
024	6/8ModernEP
025	6/8SlowRock
026	6/8OrchBallad
027	OrganBallad
028	PopBallad
029	16BeatBallad1
030	16BeatBallad2
DANCE
031	EuroTrance
032	Ibiza
033	DreamDance
034	HouseMusik
035	SwingHouse
036	TechnoPolis
037	Clubdance
038	ClubLatin
039	Garage1
040	Garage2
041	TechnoParty
042	UKPop
043	HipHopGroove
044	HipShuffle
045	HipHopPop
DISCO
046	70'sDisco1
047	70'sDisco2
048	LatinDisco
049	DiscoPhilly
050	SaturdayNight
051	DiscoChocolate
052	DiscoHands

Style No.	Style Name
SWING&JAZZ
053	BigBandFast
054	BigBandMedium
055	BigBandBallad
056	BigBandShuffle
057	JazzClub
058	Swing1
059	Swing2
060	OrchestraSwing
061	Five/Four
062	JazzBallad
063	Dixieland
064	Ragtime
065	AfroCuban
066	Charleston
R&B
067	Soul
068	DetroitPop1
069	60'sRock&Roll
070	6/8Soul
071	CrocoTwist
072	Rock&Roll
073	DetroitPop2
074	BoogieWoogie
075	ComboBoogie
076	6/8Blues
COUNTRY
077	Country8Beat
078	CountryPop
079	CountrySwing
080	CountryBallad
081	Country2/4
082	CowboyBoogie
083	CountryShuffle
084	Bluegrass
LATIN
085	BrazilianSamba
086	BossaNova
087	PopBossa
088	Tijuana
089	DiscoLatin
090	Mambo
091	Salsa
092	Beguine
093	GuitarRumba
094	RumbaFlamenco
095	Rumbalsland
096	Reggae
BALLROOM
097	VienneseWaltz
098	EnglishWaltz
099	Slowfox
100	Foxtrot
101	Quickstep
102	Tango
103	Pasodoble
104	Samba

Style No.	Style Name
105	ChaChaCha
106	Rumba
107	Jive
TRADITIONAL
108	USMarch
109	6/8March
110	GermanMarch
111	PolkaPop
112	OberPolka
113	Tarantella
114	Showtune
115	ChristmasSwing
116	ChristmasWaltz
117	ScottishReel
118	Hawaiian
WALTZ
119	ItalianWaltz
120	MariachiWaltz
121	GuitarSerenade
122	SwingWaltz
123	JazzWaltz1
124	JazzWaltz2
125	CountryWaltz
126	OberWaltzer
127	Musette
CHILDREN
128	Learning2/4
129	Learning4/4
130	Learning6/8
131	Fun 3/4
132	Fun 4/4
PIANIST
133	Stride
134	PianoBlues1
135	PianoBlues2
136	PianoRag
137	PianoRock&Roll
138	PianoBoogie
139	PianoJazzWaltz
140	PianoJazzBld
141	Arpeggio
142	Musical
143	Habanera
144	SlowRock
145	8Bt PianoBallad
146	PianoMarch
147	6/8 PianoMarch
148	PianoWaltz
149	PianoBeguine
150	PianoSwing

MDB No.	Song Name
POP
001	AlvFever
002	CoinLane
003	Croco Rk
004	DayPdisse
005	DwnTown
006	EasySday
007	GoMyWay
008	HowDeep!
009	HurryLuv
010	I breath
011	I'IBther
012	I'm Torn
013	Imagine
014	ISurvive
015	JustCall
016	JustWay
017	LeadPack
018	LoveFeel
019	LoveMeT
020	LveMeDo
021	Mi Shell
022	My Baby
023	NikitTrp
024	NoMatter
025	ProudGtr
026	RainOnMe
027	SailingSx
028	SeeAgain
029	Sept.Pop
030	SultanSw
031	SweetLrd
032	ThnkMsic
033	TitanicH
034	UNeedLv
035	UptnGirl
036	WantToBe
037	WatchGrl
038	WhatALoo
039	WhitePle
040	Woman
041	YellowSub
042	Yesterday
ROCK
043	DavAgain
044	JumpRock
045	OyComCha
046	PickUpPc
047	RdRiverR
048	SatsfyGt
049	Sheriff
050	SmokeWtr
051	TwistAgn
052	VenusPop
DANCE
053	2 of Us
054	B Leave
055	Back St
056	Crockett
057	DsrtRose
058	FunkyTwn
059	Kids
060	KillSoft
061	Nine PM
062	SingBack
063	StrandD
BALLAD
064	AdelineB
065	ArgenCry
066	BeautyBdy

MDB No.	Song Name
067	BI Bayou
068	CatMemry
069	CavaSolo
070	E Weiss
071	ElizSere
072	ElvGhett
073	Feeling
074	Fly Away
075	Fnl Date
076	GreenSlv
077	GtCncert
078	HrdToSay
079	LonlyPan
080	MBoxDnce
081	Mn Rivr
082	My Song
083	NorwWood
084	OnMyMnd
085	OverRbow
086	Red Lady
087	ReleSeMe
088	SavingLv
089	Shore CI
090	SierraMd
091	SilverMn
092	SmokyEye
093	SndOfSil
094	SumerPlc
095	TblWater
096	WhereLov
097	WhisprSx
098	WomanLov
R & B
099	AmazingG
100	BoogiePf
101	Clock Rk
102	CU later
103	GreenDor
104	HappyDay
105	JohnnyB
106	MercySax
107	RisingSn
108	S Preems
109	SuperStv
110	TeddyBer
111	Yeh Orgn
SWING & JAZZ
112	Alex Rag
113	Blue Set
114	ChooChoo
115	DayOfW&R
116	HighMoon
117	InMood
118	MisJones
119	MistySax
120	MoonLit
121	New York
122	PanthrSw
123	PetiteCI
124	RedRoses
125	SaintMch
126	SatinDII
127	SF Heart
128	ShearJz
129	SplnkyBr
130	SunnySde
131	TstHoney
132	Tunisia
133	TwoFoot5
134	USPatrol

MDB No.	Song Name
135	WhatsNew
136	Wild Cat
EASY LISTENING
137	BlackFst
138	ByeBlues
139	CaliBlue
140	CiaoCpri
141	Close2U
142	DAmorStr
143	DolanesM
144	ElCondor
145	Enttain
146	Frippers
147	LoveLove
148	LuckySax
149	LuvStory
150	MyPrince
151	OSoleMio
152	PuppetStr
153	Raindrop
154	RedMouln
155	R'ticGtr
156	Schiwago
157	ShadowGt
158	SingRain
159	SmallWid
160	SpkSoft
161	SpanishEy
162	StrangeN
163	TieRibbn
164	TimeGoes
165	WhiteXmas
166	WishStar
167	WonderN
168	WondrWid
LATIN
169	BambaLa
170	BeHappy!
171	CopaLola
172	DayNight
173	Ipanema
174	JamboMbo
175	MarinaAc
176	MuchoTrp
177	SmoothLt
178	SunOfLif
179	Sunshine
180	Tico Org
181	TribWave
COUNTRY
182	ABitMore
183	BlownWnd
184	Bonanza
185	BoxerFlt
186	CntryRds
187	GreenGrs
188	Jambala
189	LondonSt
190	LooseEL
191	TopWorld
192	YlwRose
DISCO & PARTY
193	AlhHwaii
194	Babylon
195	Barbados
196	DnceBird
197	FestaMex
198	HandsPty
199	LuvTheme
200	ModrnTlk

MDB No.	Song Name
201	NxtAlice
202	PalomaFl
203	Tijuana
204	Why MCA?
BALLROOM
205	BrazilBr
206	CherryTp
207	DanubeWv
208	MantoStr
209	SandmnFx
210	SpainTwn
211	SundyNvr
212	TangoAc
213	Tea4Two
214	TulipWtz
215	YesSirQk
TRADITIONAL
216	AlpenTri
217	AnchorAw
218	Balalaik
219	BlkSheep
220	CampRace
221	Ceilidh
222	Cielito
223	CielPari
224	CI Polka
225	Comrades
226	DAmorCl
227	FrogSong
228	Funiculi
229	GrndClok
230	HappyPlk
231	Herzlin
232	HornPipe
233	JacknJil
234	JinglBel
235	Kufstein
236	MexiHat
237	MickMrch
238	RkABaby
239	RIBarrel
240	Showbiz
241	SnowWtz
242	StarMrch
243	WashPost
244	WdCuttrs
245	XmasWalz
246	YankDood
PIANIST
247	CatMemry
248	DoReMi
249	Entrtain
250	Extra
251	Favorite
252	FineRmce
253	Foggy
254	I Woman
255	JBGood
256	NitTrain
257	Obaladi
258	OldHouse
259	PubPiano
260	RinSpain
261	Sera
262	ShookUp
263	Swonder
264	TedPicnc
265	Twirler
266	WayWere
267	YesterPf

File Name	Song Name	Composer
001Nutcr.mid	Danse des Mirlitons from "The Nutcracker"	P.I. Tchaikovsky
002Orphe.mid	"Orphée aux Enfers" Ouverture	J. Offenbach
003Slavo.mid	Slavonic Dances op.72-2	A. Dvořák
004Prima.mid	La Primavera (from Le Quattro Stagioni)	A. Vivaldi
005Edit.mid	Méditation (Thaïs)	J. Massenet
006Guill.mid	Guillaume Tell	G. Rossini
007Fruhl.mid	Frühlingslied	F. Mendelssohn
008Ungar.mid	Ungarische Tänze Nr.5	J. Brahms
009Fruhl.mid	Fruhlingsstimmten	J. Strauss II
010Dolly.mid	Dolly's Dreaming and Awakening	T.Oesten
011Cande.mid	La Candeur	J.F.Burgmüller
012Arabe.mid	Arabesque	J.F.Burgmüller
013Pasto.mid	Pastorale	J.F.Burgmüller
014Petit.mid	Petite Réunion	J.F.Burgmüller
015Innoc.mid	Innocence	J.F.Burgmüller
016Progr.mid	Progrès	J.F.Burgmüller
017Taren.mid	Tarentelle	J.F.Burgmüller
018Cheva.mid	La Chevaleresque	J.F.Burgmüller
019Etude.mid	Etude op.10-3 "Chanson de l'adieu"	F.Chopin
020Marci.mid	Marcia alla Turca	L.v. Beethoven
021Turki.mid	Turkish March	W.A. Mozart
022Valse.mid	Valse op.64-1 "Petit Chien"	F.Chopin
023Menue.mid	Menuett	L. Boccherini
024Momen.mid	Moments Musicaux op.94-3	F. Schubert
025Enter.mid	The Entertainer	S. Joplin
026Prelu.mid	Prelude (Wohltemperierte Klavier 1-1)	J.S. Bach
027Violl.mid	La Viollette	L.Streabbog
028Angel.mid	Angels Serenade	Traditional
029Saraf.mid	Krasnyj Sarafan	Traditional
030Ameri.mid	America the Beautiful	S.A. Ward
031Brown.mid	Little Brown Jug	Traditional
032Lomon.mid	Loch Lomond	Traditional
033Bonni.mid	My Bonnie	Traditional
034Londo.mid	Londonderry Air	Traditional
035Banjo.mid	Ring de Banjo	S.C. Foster
036Vogle.mid	Wenn ich ein Vöglein wär ?	Traditional
037Lorel.mid	Die Lorelei	F. Silcher
038Funic.mid	Funiculi Funicula	L. Denza
039Turke.mid	Turkey in the Straw	Traditional
040Campt.mid	Camptown Races	S.C. Foster
041Jingl.mid	Jingle Bells	J.S. Pierpont
042Muss.mid	Muss i dann	F. Silcher
043Liebe.mid	Liebesträume Nr.3	F. Liszt
044Jesu.mid	Jesu, Joy Of Man's Desiring	J.S. Bach
045Joy.mid	Ode to Joy	L.v. Beethoven
046Pearl.mid	Pearl Fisher	G. Bizet
047Gavot.mid	Gavotte	F.J. Gossec
048Seren.mid	Serenade/Haydn	F.J. Haydn
049Menue.mid	Menuett BWV. Anh.114	J.S. Bach
050Canon.mid	Canon in D	J. Pachelbel
051Vogel.mid	Der Vogelfanger Bin Ich Ja "Die Xauberflote"	W.A Mozart
052Piano.mid	Piano Sonata No.14 op.27-2 "Mondschein"	L.v. Beethoven
053Surpr.mid	The "Surprise" Symphony No.94	F.J. Haydn
054WildR.mid	To a Wild Rose	E.A. MacDowell
055Chans.mid	Chanson du Toreador	G. Bizet
056Babbii.mid	O Mio Babbino Caro	G. Puccini
057RowRo.mid	Row Row Row Your Boat (DUET)	Traditional
058Smoky.mid	On Top of Old Smoky (DUET)	Traditional
059WeWis.mid	We Wish You A Merry Christmas (DUET)	Traditional
060Imai.mid	Im Mai (DUET)	Traditional
061Chris.mid	O Christmas Tree (DUET)	Traditional
062MaryH.mid	Mary Had a Little Lamb (DUET)	Traditional
063TenLi.mid	Ten Little Indians (DUET)	Septimus Winner
064PopGo.mid	Pop Goes The Weasel (DUET)	Traditional
065Twink.mid	Twinkle Twinkle Little Star (DUET)	Traditional
066Close.mid	Close Your Hands, Open Your Hands (DUET)	J.J. Rousseau
067Cucko.mid	The Cuckoo (DUET)	Traditional
068Augus.mid	O du lieber Augustin (DUET)	Traditional
069Londo.mid	London Bridge (DUET)	Traditional
070Three.mid	Three Blind Mice (DUET)	Traditional

The easy song arranger can only be used with songs that include chord data.

Harmony Types

No.	Harmony Type	Description
01	Duet	Harmony types 01–05 are pitch-based and add one-, two- or three-note harmonies to the single-note melody played in the right hand. These types sound when chords are played in the auto accompaniment range of the keyboard. These Harmony types will also work when playing songs that contain chord data.
02	Trio
03	Block
04	Country
05	Octave
06	Trill 1/4 note	3	Types 6–26 are rhythm-based effects and add embellishments or delayed repeats in time with the auto accompaniment. These types sound whether the auto accompani-ment is on or not; however, the actual speed of the effect depends on the Tempo set-ting (page 35). The individual note values in each type let you synchronize the effect precisely to the rhythm. Triplet settings are also available: 1/6 = quarter-note triplets, 1/12 = eighth-note triplets, 1/24 = sixteenth-note triplets. • The Trill effect Types (06–12) create two-note trills (alternating notes) when two notes are held. • The Tremolo effect Types (13–19) repeat all held notes (up to four). • The Echo effect Types (20–26) create delayed repeats of each note played.
07	Trill 1/6 note
08	Trill 1/8 note	3
09	Trill 1/12 note	3
10	Trill 1/16 note	3
11	Trill 1/24 note	3
12	Trill 1/32 note	3
13	Tremolo 1/4 note	3
14	Tremolo 1/6 note	3
15	Tremolo 1/8 note	3
16	Tremolo 1/12 note	3
17	Tremolo 1/16 note	3
18	Tremolo 1/24 note	3
19	Tremolo 1/32 note	3
20	Echo 1/4 note	3
21	Echo 1/6 note	3
22	Echo 1/8 note	3
23	Echo 1/12 note	3
24	Echo 1/16 note	3
25	Echo 1/24 note	3
26	Echo 1/32 note	3

• Reverb Types

No.	Reverb Type	Description
01–03	Hall 1–3	Concert hall reverb.
04–05	Room 1–2	Small room reverb.
06–07	Stage 1–2	Reverb for solo instruments.
08–09	Plate 1–2	Simulated steel plate reverb.
10	Off	No effect.

Chorus Types

No.	Chorus Type	Description
01–02	Chorus 1–2	Conventional chorus program with rich, warm chorusing.
03–04	Flanger 1–2	Pronounced three-phase modulation with a slight metallic sound.
05	Off	No effect.

YAMAHA [Portable Grand] Date:17-NOV-2005 Model DGX-220/YPG-225 MIDI Implementation Chart Version:1.0

Function...		Transmitted	Recognized	Remarks
Basic Channel	Default Changed	1 - 16x	1 - 16x
Mode	Default Messages Altered	3x**********	3x
		**********	x
Note Number : True voice		0 - 127**********	0 - 1270 - 127
Velocity	Note ON Note OFF	o 9nH,v=1-127x 9nH,v=0	o 9nH,v=1-127x
After Touch	Key's Ch's	x x	x x
Pitch Bend		o 0-24 semi	o 0-24 semi
Control Change	0,321,11,846,387,10647172737491,9396-97100-101	○× *1○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

Prog Change : True #	○ 0 - 127 **********	○ 0 - 127
System Exclusive	○	○
: Song Pos. Common : Song Sel. : Tune	x x x	x x x
System : Clock Real Time: Commands	○ ○	○ ○
Aux :All Sound OFF :Reset All Cntrls :Local ON/OFF :All Notes OFF Mes- :Active Sense sages:Reset	x x x x ○ x	○(120,126,127) ○(121) ○(122) ○(123-125) ○ x

*1 Refer to #2 on page 112.
Mode 1 : OMNI ON , POLY ® Mode 2 : OMNI ON ,MONO
Mode 3 : OMNI OFF, POLY Mode 4 : OMNI OFF, MONO

NOTE:

1 By default (factory settings) the instrument ordinarily functions as a 16-channel multi-timbral tone generator, and incoming data does not affect the panel voices or panel settings. However, the MIDI messages listed below do affect the panel voices, auto accompaniment, and songs.

MIDI Master Tuning
- System exclusive messages for changing the Reverb Type and Chorus Type.

2 Messages for these control change numbers cannot be transmitted from the instrument itself. However, they may be transmitted when playing the accompaniment, song or using the Harmony effect.

3 Exclusive

F0H, 7EH, 7FH, 09H, 01H, F7H

• This message automatically restores all default settings for the instrument, with the exception of MIDI Master Tuning.

F0H, 7FH, 7FH, 04H, 01H, II, mm, F7H

• This message allows the volume of all channels to be changed simultaneously (Universal System Exclusive).
• The values of "mm" is used for MIDI Master Volume. (Values for "Il" are ignored.)

F0H, 43H, 1nH, 27H, 30H, 00H, 00H, mm, II, cc, F7H

• This message simultaneously changes the tuning value of all channels.
• The values of "mm" and "ill" are used for MIDI Master Tuning.
• The default value of "mm" and "ill" are 08H and 00H, respectively. Any values can be used for "n" and "cc".

• mm : Reverb Type MSB
• II:Reverb Type LSB

Refer to the Effect Map (page 112) for details.

• mm : Chorus Type MSB
• II:Chorus Type LSB

Refer to the Effect Map (page 112) for details.

4 When the accompaniment is started, an FAH message is transmitted. When accompaniment is stopped, an FCH message is transmitted. When the clock is set to External, both FAH (accompaniment start) and FCH (accompaniment stop) are recognized.

5 Local ON/OFF

Bn, 7A, 7F

Bn, 7A, 00

Value for "n" is ignored.

Effect map

• When a Type LSB value is received that corresponds to no effect type, a value corresponding to the effect type (coming the closest to the specified value) is automatically set.
• The numbers in parentheses in front of the Effect Type names correspond to the number indicated in the display.

REVERB

TYPEMSB	TYPE LSB
	00	01	02	08	16	17	18	19	20
000	No Effect
001	(01)Hall1				(02)Hall2	(03)Hall3
002	Room					(04)Room1		(05)Room2
003	Stage				(06)Stage1	(07)Stage2
004	Plate				(08)Plate1	(09)Plate2
005...127	No Effect

CHORUS

TYPE MSB	TYPE LSB
	00	01	02	08	16	17	18	19	20
000...063	No Effect
064	Thru
065	Chorus		(02)Chorus2
066	Celeste					(01)Chorus1
067	Flanger			(03)Flanger1		(04)Flanger2
068...127	No Effect

Keyboards

• 76 box type keys (E0-G6), with Touch Response.

Display

• LCD display (backlit)

Setup

STANDBY/ON
- MASTER VOLUME: MIN-MAX

Panel Controls

• SONG, VOICE, STYLE, EASY SONG ARRANGER, P.A.T. ON/OFF, LESSON L, LESSON R, LESSON START, METRONOME ON/OFF, PORTABLE GRAND, DEMO, FUNCTION, MUSIC DATABASE, HARMONY ON/OFF, DUAL ON/OFF, SPLIT ON/OFF, TEMPO/TAP, [0]–[9], [+], [-], CATEGORY, Dial, REPEAT & LEARN (ACMP ON/OFF), A-B REPEAT (INTRO/ENDING/rit.), PAUSE (SYNC START), START/STOP, REW (MAIN/AUTO FILL), FF (SYNC STOP), REGIST MEMORY ([MEMORY/BANK], [1], [2]), SONG MEMORY (REC, [1]–[5], [A])

Realtime Control

• Pitch Bend Wheel

Voice

116 panel voices + 12 drum/SFX kits + 361 XGlite voices
- Polyphony: 32
DUAL
SPLIT

Style

• 150 Preset Styles + 1 User Style File
• Style Control: ACMP ON/OFF, SYNC STOP, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
• Fingering: Multi Finger, Full Keyboard
• Style Volume

Music Database

267

Education Feature

• Dictionary
• Lesson 1-3, Repeat & Learn

Registration Memory

• 8 banks x 2 types

Function

• VOLUME: Style Volume, Song Volume
• OVERALL: Tuning, Transpose, Split Point, Touch Sensitivity, Pitch Bend Range, Chord Fingering
• MAIN VOICE: Volume, Octave, Pan, Reverb Level, Chorus Level
  DUAL VOICE: Voice, Volume, Octave, Pan, Reverb Level, Chorus Level
• SPLIT VOICE: Voice, Volume, Octave, Pan, Reverb Level, Chorus Level
• EFFECT: Reverb Type, Chorus Type, Master EQ Type, Sustain
  HARMONY: Harmony Type, Harmony Volume
• Performance assistant technology: Performance assistant technology Type
• SFF Load: Style File Load
  PC: PC Mode
• MIDI: Local On/Off, External Clock, Initial Send, Keyboard Out, Style Out, Song Out
• METRONOME: Time Signature Numerator, Time Signature Denominator, Metronome Volume
• LESSON: Lesson Track (R), Lesson Track (L), Grade
• UTILITY: Demo Cancel

Effects

• Reverb: 9 types
• Chorus: 4 types
  Harmony: 26 types

Song

• 30 Preset Songs + 5 User Songs + Accessory CD-ROM Songs (70)
  Song Clear, Track Clear
  Song Volume
• Song Control: REPEAT & LEARN, A-B REPEAT, PAUSE, REW, FF, START/STOP

Performance assistant technology

• Chord, Chord/Free

Recording

Song

User Song: 5 Songs

Recording Tracks: 1, 2, 3, 4, 5, STYLE

MIDI

• Local On/Off - Initial Send - External Clock
• Keyboard Out - Style Out - Song Out

Auxiliary jacks

• PHONES/OUTPUT, DC IN 12V, USB, SUSTAIN

Amplifier

• 6W + 6W

Speakers

• 12cm x 2 + 3cm x 2

Power Consumption

20W

Power Supply

Adaptor: Yamaha PA-5D AC power adaptor
- Batteries: Six "D" size, R20P (LR20) or equivalent batteries

Dimensions (W x D x H)

• 1,178 x 412 x 137 mm (46-3/8" x 16-1/4" x 5-3/8")

Weight

• 8.3kg (18 lbs. 5 oz.) (not including batteries)

Supplied Accessories

Music Rest
- Accessory CD-ROM
- Owner's Manual

Optional Accessories

• AC Power Adaptor: PA-5D
  Footswitch: FC4/FC5
• Keyboard Stand: LW-16
• Headphones: HPE-150

Panel controls and terminals

+/- 13,51

A 50
0-9 13,51

A-B REPEAT 12,71

ACMP ON/OFF 12,20

CATEGORY [▲] and [▼] 12, 51

DC IN 12V 10,13

DEMO 13,26

Dial 12,51

DUAL ON/OFF 13, 15

EASY SONG ARRANGER 12,43

FF 12,26

FUNCTION 12,75

HARMONY ON/OFF 13,53

INTRO/ENDING/rit. 12,63

LESSON L/R 12,37

LESSON START 12,37

MAIN/AUTO FILL 12,63

MASTER VOLUME 12,50

MEMORY/BANK, 1, 2 13, 73

METRONOME ON/OFF 12,56

MUSIC DATABASE 12,42

P.A.T. ON/OFF 12, 29

PAUSE 12,26

PHONES/OUTPUT 11, 13

PITCH BEND wheel 13,59

PORTABLE GRAND 13, 17

REC, 1-5, A 12, 45

REGIST. MEMORY 13, 73

REPEAT & LEARN 12,41

REW 12, 26

SONG 12,25

SONG MEMORY 12,45

SPLIT ON/OFF 13,16

STANDBY/ON 11-12

START/STOP 12,51

STYLE 12, 19

SYNC START 12,63

SYNC STOP 12,64

TEMPO/TAP 12,35

USB TO HOST 13,79

VOICE 12,14

Alphabetical order

A

A-B Repeat 71

Accessories 7

ACMP 20

Auto Accompaniment Range 20

Auto-Accompaniment 20

B

Backup 49

C

CD-ROM 85

Channel Message 79

Chord 22-24,68-69

Chord Dictionary 70

Chord Fingering 66

CHORDROOT 70

CHORD TYPE 70

Chorus 55

Chorus Type 109

Computer 79

D

Default Setting 75

Delete (Song Track) 48

Delete (User Song) 48

Demo 26

Demo Cancel 77

Display 52

Drum Kit 18

Drum Kit List 104

Dual Voice 15

Dual Voice Chorus Level 76

Dual Voice Octave 76

Dual Voice Pan 76

Dual Voice Reverb Level 76

Dual Voice Volume 76

E

Easy Chords 24

Easy Song Arranger 43

Effect Map 112

Effect Type List 109

External Clock 80

External Song 28

F

Flash Memory 28

Foot Switch 11

Function 75-77

G

Grade 38

H

Harmony 53

Harmony Type 53, 109

Harmony Volume 77

Headphones 11

1

Initial Send 77,82

Initialization 49

K

Keyboard Out 80

L

Lesson 36

Load SFF 67

Local 80

L-Part 84

M

Main Voice 14

Main Voice Chorus Level 76

Main Voice Octave 76

Main Voice Pan 76

Main Voice Reverb Level 76

Main Voice Volume 76

Master EQ Type 62

Measure 52

Melody Voice 44, 72

Metronome 56

MIDI 78

MIDI Data Format 112

MIDI Implementation Chart 110

Music Database 42

Music Database List 107

Music Rest 7

Mute 72

N notation 52

0 One Touch Setting 61

P Panel Sustain 59

PC Mode 81

Performance assistant technology 29

Pitch Bend Range 76

Power Adaptor 10

Preset Song 25, 27-28

R Recording 45

Registration Memory 73

Remote control 81

Repeat 41

Reverb 54

Reverb Type 109

R-Part 84

Save (Panel Setting) 73

Score 94-99

SMF (Standard MIDI File) 82

Software Licensing Agreement 91

Song 25

Song Clear 48

Song List 27

Song Memory 45

Song Out 80

Song Volume 71

Specifications 113

Split Point 16, 65

Split Voice 16

Split Voice Chorus Level 76

Split Voice Octave 76

Split Voice Pan 76

Split Voice Reverb Level 76

Split Voice Volume 76

Standard Chords 24

Style 19-23,63

Style File 67

StyleList 106

Style Out 80

Style Volume 65

Sustain (Footswitch) 11

Synchro Start 20,63

Synchro Stop 64

System Message 79

T Tempo 35

Time Signature (Denominator, Numerator) 56

Touch Response 58

Touch Sensitivity 58

Track 45-48

Track Clear 48

Transfer 82-84

Transpose 60

Troubleshooting (Installation) 90

Troubleshooting (instrument) 92

Tuning 60

USB 79

USB MIDI Driver 88-89

User Song 45

V Voice 14

Voice List 100

X XGlite 6

Limited Warranty

90 DAYS LABOR

1 YEAR PARTS

Yamaha Corporation of America, hereafter referred to as Yamaha, warrants to the original consumer of a product included in the categories listed below, that the product will be free of defects in materials and/or workmanship for the periods indicated. This warranty is applicable to all models included in the following series of products:

DGX, YPG SERIES OF Portable Grand ELECTRONIC KEYBOARD

If during the first 90 days that immediately follows the purchase date, your new Yamaha product covered by this warranty is found to have a defect in material and/or workmanship, Yamaha and/or its authorized representative will repair such defect without charge for parts or labor.

If parts should be required after this 90 day period but within the one year period that immediately follows the purchase date, Yamaha will, subject to the terms of this warranty, supply these parts without charge. However, charges for labor, and/or any miscellaneous expenses incurred are the consumers responsibility. Yamaha reserves the right to utilize reconditioned parts in repairing these products and/or to use reconditioned units as warranty replacements.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH YAMAHA MAKES IN CONNECTION WITH THESE PRODUCTS. ANY IMPLIED WARRANTY APPLICABLE TO THE PRODUCT, INCLUDING THE WARRANTY OF MERCHANT ABILITIES LIMITED TO THE DURATION OF THE EXPRESS WARRANTY. YAMAHA EXCUSES AND SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow limitations that relate to implied warranties and/or the exclusion of incidental or consequential damages. Therefore, these limitations and exclusions may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

CONSUMERS RESPONSIBILITIES

If warranty service should be required, it is necessary that the consumer assume certain responsibilities:

1. Contact the Customer Service Department of the retailer selling the product, or any retail outlet authorized by Yamaha to sell the product for assistance. You may also contact Yamaha directly at the address provided below.
2. Deliver the unit to be serviced under warranty to: the retailer selling the product, an authorized service center, or to Yamaha with an explanation of the problem. Please be prepared to provide proof purchase date (sales receipt, credit card copy, etc.) when requesting service and/or parts under warranty.
3. Shipping and/or insurance costs are the consumers responsibility. Units shipped for service should be packed securely.
   Repaired units will be returned PREPAID if warranty service is required within the first 90 days.

IMPORTANT: Do NOT ship anything to ANY location without prior authorization. A Return Authorization (RA) will be issued that has a tracking number assigned that will expedite the servicing of your unit and provide a tracking system if needed.

1. Your owners manual contains important safety and operating instructions. It is your responsibility to be aware of the contents of this manual and to follow all safety precautions.

EXCLUSIONS

This warranty does not apply to units whose trade name, trademark, and/or ID numbers have been altered, defaced, exchanged removed, or to failures and/or damages that may occur as a result of:

1. Neglect, abuse, abnormal strain, modification or exposure to extremes in temperature or humidity.
2. Improper repair or maintenance by any person who is not a service representative of a retail outlet authorized by Yamaha to sell the product, an authorized service center, or an authorized service representative of Yamaha.
3. This warranty is applicable only to units sold by retailers authorized by Yamaha to sell these products in the U.S.A., the District of Columbia, and Puerto Rico. This warranty is not applicable in other possessions or territories of the U.S.A. or in any other country.

Please record the model and serial number of the product you have purchased in the spaces provided below.

Model

Serial #

Sales Slip #

Purchased from (Retailer)

Date_

YAMAHA CORPORATION OF AMERICA

Electronic Service Division

6600 Orangethorpe Avenue

Buena Park, CA 90620

KEEP THIS DOCUMENT FOR YOUR RECORDS. DO NOT MAIL!

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1, Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A.

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. de C.V.

Calz.Javier Rojo Gomez #1149

Col. Guadalupe del Moral

C.P.09300, Mexico,D.F.,Mexico

Tel: [phone]

BRAZIL

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanizacion Marbella,

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: [phone]

IRELAND

Danfay Ltd.

61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin

Tel: [phone]

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

Branch Austria, CEE Department

Schleiergasse 20, A-1100 Wien, Austria

Tel: [phone]

POLAND

Yamaha Music Central Europe GmbH

147 Skiathou Street, 112-55 Athens, Greece

Tel: [phone]

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1

Box 30053

S-400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

YS Copenhagen Liaison Office

Generatorvej 6A

DK-2730 Herlev, Denmark

Tel: [phone]

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: [phone]

NORWAY

N-1345 Østerås, Norway

Tel: [phone]

ICELAND

Skifan HF

Skeifan 17 P.O. Box 8120

IS-128 Reykjavik, Iceland

Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LB21-128 Jebel Ali Freezone

P.O.Box 17328, Dubai, U.A.E.

Tel: [phone]

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),

Jingan, Shanghai, China

Tel: [phone]

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)

PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot

SubROTO Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,

Youngdungpo-ku, Seoul, Korea

Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

PHILIPPINES

Yupangco Music Corporation

339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,

Makati, Metro Manila, Philippines

Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

03-11 A-Z Building

140 Paya Lebor Road, Singapore 409015

Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.

Taiwan 104, R.O.C.

Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

891/1 Siam Motors Building, 15-16 floor

Rama 1 road, Wangmai, Pathumwan

Bangkok 10330, Thailand

Tel: [phone]

OTHER ASIAN COUNTRIES

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,

Victoria 3006, Australia

Tel: [phone]

NEW ZEALAND

Music Houses of N.Z. Ltd.

146/148 Captain Springs Road, Te Papapa,

Auckland, New Zealand

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

YAMAHA

Yamaha Home Keyboards Home Page (English Only)
http://music.yamaha.com/homekeyboard

Yamaha Manual Library http://www.yamaha.co.jp/manual/
