Product Type	Self-Cleaning Gas Range
Model	FGS395BL0 (also FGS395B, FGS385B)
Brand	Roper
Width	30 inches (estimated)
Height	47 inches (estimated)
Depth	27 inches (estimated)
Weight	Approximately 150 lbs (estimated)
Electrical Supply	120 V, 60 Hz, AC only, 15 A circuit
Gas Supply	Natural gas or LP (convertible)
Surface Burners	4 burners with electric ignitors; HI, MED, LOW settings
Oven Functions	Baking, roasting, broiling, self-cleaning
Clock/Timer	MEALTIMER™ programmable clock with delayed start/stop; Minute Timer up to 1 hour
Oven Capacity	Standard, accommodates large roasts and multiple racks
Self-Cleaning Cycle	2-4 hour cycle with lock lever; high heat burns away soil
Oven Rack Positions	4 rack guides; extra roasting rack position on oven bottom
Broiler	Broil burner at top; broiler pan and grid included; preheat 5 minutes
Storage Drawer	Removable drawer for storage
Anti-Tip Device	Floor-mounted brackets; must be engaged for safety
Cleaning	Surface burners removable; lift-up cooktop; oven self-cleans; avoid harsh cleaners
Oven Light	40 W appliance bulb; replaceable
Spare Parts	FSP® replacement parts available; light bulb, burner parts, etc.
Warranty	Full one-year warranty from purchase date; parts and labor
Manual Availability	Free PDF download at notice-facile.com

Frequently Asked Questions - FGS395BL0 Roper

How do I light the surface burners during a power failure?

Hold a lit match near the burner, then push in and turn the control knob to LITE. The burner will light manually. After lighting, adjust the setting as needed.

What should I do if the oven won't operate?

Check that the Oven Selector is set to BAKE or BROIL, the Oven Temperature Control is turned to a temperature, and the MEALTIMER™ clock is set correctly. Also ensure a delayed start time hasn't been set.

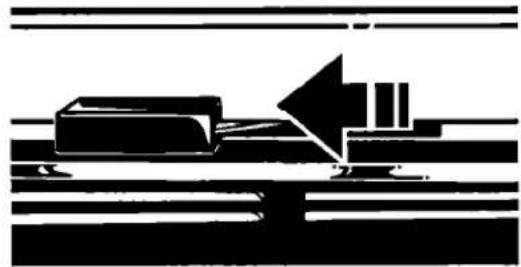

How do I use the self-cleaning cycle?

Remove oven racks and hand-clean areas that don't get hot enough. Set the Oven Selector to CLEAN, turn the temperature control to CLEAN, and set the Stop Time 2-4 hours depending on soil. Move the Lock Lever to the right. After the cycle, wait for the oven to cool and unlock.

Why is my burner flame uneven or yellow?

Uneven flames may be due to clogged burner ports. Clean them with a straight pin. Do not enlarge or distort the ports. If yellow flames persist, the air/gas mixture may need adjustment by a qualified technician.

How do I set the clock and minute timer?

To set the clock, push in the Minute Timer Knob and turn clockwise to the correct time. Let it pop out. For the timer, turn the knob counterclockwise without pushing in, then back to the desired minutes. The timer will buzz when time is up.

Can I use aluminum foil in the oven?

Do not line the oven bottom, area around surface burners, or any other part with aluminum foil. Use foil only as recommended in the manual, such as for covering food. Foil in the self-cleaning cycle can burn or melt.

How do I adjust the oven temperature?

Pull off the Oven Temperature Control Knob and flip it over. Loosen the locking screws. Move the tooth one notch clockwise to lower temperature by about 20°F (11°C), or counterclockwise to raise. Tighten screws and replace knob.

What should I do if I smell gas?

Do not try to light any appliance. Do not touch electrical switches or use phones in the building. Immediately call your gas supplier from a neighbor's phone. If you cannot reach them, call the fire department.

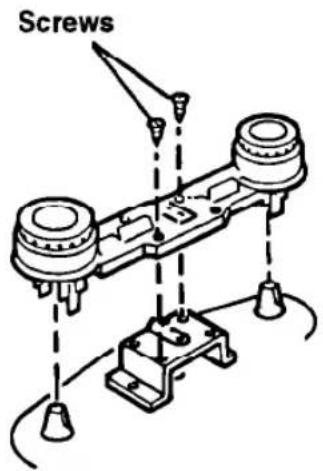

How do I clean the surface burners?

Lift the cooktop after removing grates. Remove screws holding burners and lift them off. Wash with warm soapy water; soak in vinegar/water solution for cooked-on food. Clean ports with a straight pin. Dry thoroughly in a warm oven before replacing.

What is the anti-tip bracket and how do I check it?

The anti-tip bracket is a safety device that prevents the range from tipping. To check, remove the storage drawer and ensure the rear leveling legs are positioned under the brackets. Alternatively, grasp the rear of the range and try to tilt it forward—it should not move.

USER MANUAL FGS395BL0 Roper

SELF-CLEANING GAS RANGES

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.

MODELS FGS395B

FGS385B

7/94

A Note To You

Thank you for buying a Roper® appliance.

Your Roper® range gives you all the functionality of name brand appliances at a value price. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of each symbol.

WARNING

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

CAUTION

This symbol will help you avoid actions which could cause product damage (scratches, dents, etc.) and damage to your personal property.

Symbolic illustration of a person falling off a large block, enclosed in a circle (no text or symbols)

Symbolic illustration of a person falling off a heavy block inside a circle (no text or symbols)

WARNING

• ALL RANGES CAN TIP.
  • INJURY TO PERSONS COULD RESULT.
  • INSTALL ANTI-TIP DEVICES PACKED WITH RANGE.
  • SEE INSTALLATION INSTRUCTIONS.

For more information, see the "The anti-tip brackets" on page 19.

Our toll-free number, 1-800-44-ROPER (1-800-447-6737), is available 24 hours a day.

If you ever have a question concerning your appliance's operation, or if you need service, first see "If You Need Assistance Or Service" on page 28. If you need further help, feel free to call us. When calling, you will need to know your appliance's complete model number and serial number. You can find this information on the model and serial number plate (see diagram on page 6). For your convenience, we have included a handy place below for you to record these numbers, the purchase date from the sales slip and your dealer's name and telephone number. Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date ____

Dealer Name ____

Dealer Phone

Important Safety Instructions

READ AND SAVE THESE INSTRUCTIONS

Gas ranges have been thoroughly tested for safe and efficient operation. However, as with any appliance, there are specific installation and safety precautions which must be followed to ensure safe and satisfactory operation.

WARNING	To reduce the risk of fire, electrical shock, injury to persons, or damage when using the range, follow basic precautions, including the following:
WARNING: If the information in this manual is not followed exactly, a fire or explosion could result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:Do not try to light any appliance.Do not touch any electrical switch; do not use any phone In your building.Immediately call your gas supplier from a neighbor's phone.Follow the gas supplier's instructions.If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
GeneralInstall or locate the range only in accordance with the provided Installation Instructions. The range must be installed by a qualified installer. The range must be properly connected to the proper gas supply and checked for leaks. The range must also be properly connected to electrical supply and grounded.Gas fuels and their use in appliances can cause minor exposures to benzene, formaldehyde, carbon monoxide and soot, primarily from incomplete combustion. Significant exposure to these substances could cause cancer or reproductive harm. Properly adjusted burners with a blue, rather than a yellow, flame will minimize incomplete combustion. Venting with a hood or an open window will further minimize exposure.	Do not store things children might want above the range. Children could be burned or injured while climbing on it.Do not leave children alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. They could be burned or injured.Do not operate the range if it is damaged or not working properly.Do not use the range for warming or heating the room. Persons could be burned or injured, or a fire could start.Do not attempt to light the oven burner during a power failure. Personal injury could result. Reset oven controls to the off position in the event of a power failure.

- Use the range only for its intended use as described in this manual.

Symbolic illustration of a hand holding a tool, emitting steam or heat (no text or labels)

- Do not touch surface burners, areas near surface burners or interior surfaces of oven. Areas near surface burners and interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface burners, areas near surface burners or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the range, such as the oven vent opening, the surface near the vent opening, the cooktop, and the oven door, could also become hot enough to cause burns.

• Do not wear loose or hanging garments when using the range. They could ignite if they touch an open flame and you could be burned.
• Use only dry potholders. Moist or damp potholders on hot surfaces could result in burns from steam. Do not let potholder touch an open flame. Do not use a towel or bulky cloth for a potholder. It could catch on fire.
• Keep range vents unobstructed.
• Do not heat unopened containers. They could explode. The hot contents could cause burns and container particles could cause injury.

• Do not store flammable materials on or near the range. The fumes could create an explosion and/or fire hazard.

• Do not use the oven for storage.

• Do not use aluminum foil to line area around surface burners, oven bottom, or any other part of the range. Use aluminum foil only as recommended in this manual.
• Never use a match or other flame to look for a gas leak. Explosion and injury could result.
• Know where your main gas shutoff valve is located.

When using the cooktop

• Make sure the utensils you use are large enough to contain food and avoid boilovers and spillovers. Heavy splattering or spillovers left on a range can ignite and burn you. Pan size is especially important in deep fat frying.
- Check to be sure glass cooking utensils are safe for use on the range. Only certain types of glass, glass-ceramic, ceramic, earthenware or other glazed utensils are suitable for cooktops without breaking due to the sudden change in temperature.
- Never leave surface burners unattended at high heat settings. A boilover could result and cause smoking and greasy spillovers that could ignite.

• Turn pan handles inward, but not over other surface burners. This will help reduce the chance of burns, igniting of flammable materials, and spills due to bumping of the pan.
• Do not use decorative covers or trivets over the surface burners.

When using the oven

• Always position the oven rack(s) in desired location while oven is cool.
- Use care when opening oven door. Let hot air or steam escape before removing or replacing food.

Grease

- Grease is flammable. Do not allow grease to collect around cooktop or in vents. Wipe spillovers immediately.

Silhouette of a frying pan with flames and a lid, no text or symbols present

- Do not use water on grease fires. Never pick up a flaming pan. Smother flaming pan by covering with a well-fitted lid, cookie sheet or flat tray. Flaming grease outside of pan can be extinguished with baking soda or, if available, a multipurpose dry chemical or foam-type extinguisher.

Care and cleaning

- Small amounts of formaldehyde and carbon monoxide are given off in the Self-Cleaning cycle from fiberglass insulation and food decomposition. Significant exposure to these substances could cause cancer or reproductive harm. Exposure can be minimized by venting with a hood or open window and wiping out excess food spills prior to self-cleaning.

Symbolic illustration of a crossed-out document with a diagonal line, no text or symbols present

• Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven.
• Before self-cleaning the oven, remove broiler pan, broiler grid, oven racks and other utensils. Do not use your oven to clean miscellaneous parts unless you are instructed to do so in this Use and Care Guide.

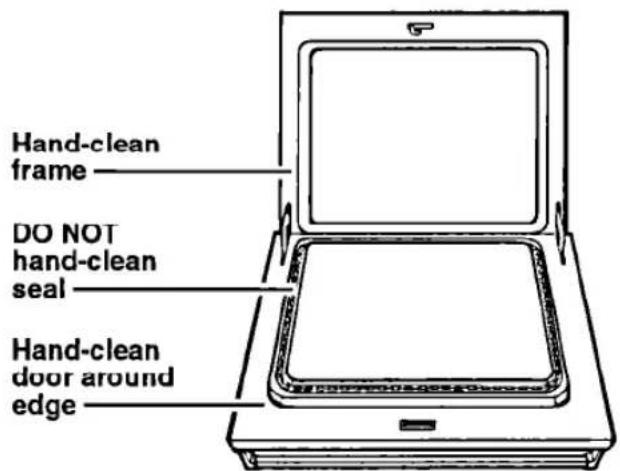

• Do not clean door heat seal. It is essential for a good seal. Care should be taken not to rub, damage or move the seal. Clean only parts recommended in this Use and Care Guide.
• Do not repair or replace any part of the range unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• Any additions, changes or conversions required in order for this appliance to satisfactorily meet the application needs must be made by a Roper Distributor or Qualified Agency.
• Disconnect the electrical supply and the gas supply at the shutoff valve near the range before servicing the range.

- READ AND SAVE THESE INSTRUCTIONS -

Parts And Features

This section contains captioned illustrations of your range. Use them to become familiar with the location and appearance of all parts and features.

Control panels

Using Your Range

In This Section

Page

Using the surface burners .....7

Positioning racks and pans....9

For best air circulation ....10

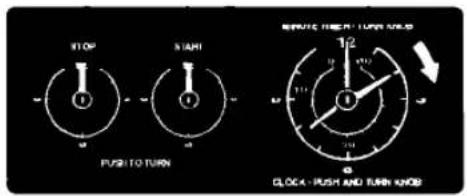

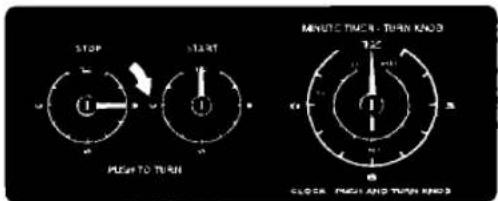

Setting the clock 11

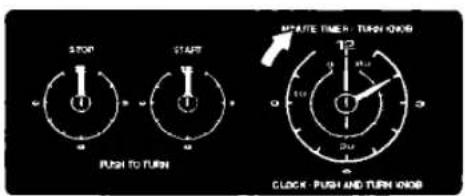

Using the Minute Timer....11

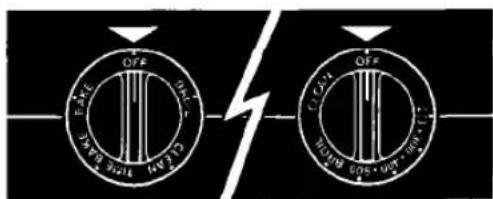

Baking/roasting 12

Adjusting the oven temperature control ....13

Page

Broiling 13

Broiling tips....14

Energy saving tips....15

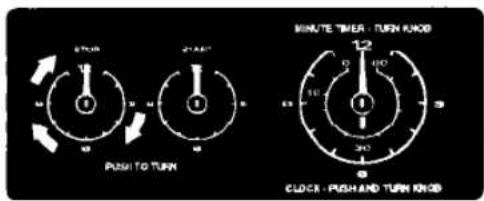

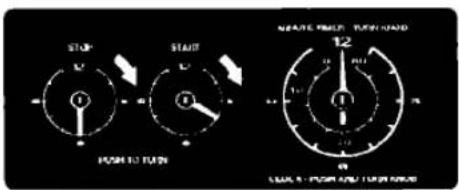

Using the MEALTIMER™ clock ..... 16

The oven vent 18

The storage drawer ....18

The anti-tip brackets 19

To obtain the best cooking results possible, you must operate your range properly. This section gives you important information for efficient and safe use of your range.

Using the surface burners

Your range is equipped with electric ignitors. Electric ignitors automatically light the burners each time they are used.

Push in control knob and turn counterclockwise to the LITE position. The clicking sound is the ignitor sparking. Visually check that burner has lit.

To stop the clicking sound after the burner lights, turn the control knob to the desired setting. The control knob has stops for HI, MED and LOW. However, you can set the control knob anywhere between HI and OFF.

Push in and turn counterclockwise

Surface burner markers

The solid dot in the surface burner marker shows which surface burner is turned on by that knob.

Burner heat settings

Use correct burner heat settings (see next page). If the heat setting is too high, it can:

• Char bacon and cause curling.
• Make eggs tough and crisp at the edges.
• Toughen liver, fish and seafood.
- Scorch delicate sauces and custards.
- Cause a boilover.

Until you get used to the settings, use the following as a guide. For best results, start cooking at the high setting; then turn the control knob down to continue cooking.

SETTING	RECOMMENDED USE
LITE	To light the burner. After the burner lights, turn control back to a desired setting to stop the clicking of the ignitor.
HI	To start foods cooking.To bring liquids to a boil.
MED	To hold a rapid boil.To fry chicken or pancakes.For gravy, pudding and icing.To cook large amounts of vegetables.
LOW	To keep food warm until ready to serve.

NOTE: Do not cook with the control in the LITE position.

In case of a prolonged power failure

Surface burners can be manually lighted. Hold a lit match near a burner and turn the control knob to the LITE position. After the burner lights, turn the control knob to the desired setting.

WARNING

Burn, Fire and Explosion Hazard

• Burner flame should not extend beyond the edge of the cooking utensil. The flame could burn you and cause poor cooking results.
• Be sure all control knobs are turned to OFF when you are not cooking. Someone could be burned or a fire could start if a burner is accidentally left ON.
• If the flame should go out while cooking, or if there is a strong gas odor, turn the burners OFF. Wait five minutes for the gas odor to disappear before relighting burner. If gas odor is still present, see safety note on page 3. Failure to follow these precautions could result in explosion or fire.

Product Damage Hazard

Do not leave an empty utensil, or one which has boiled dry, on a hot surface burner.

The utensil could overheat and could damage the utensil or cooking product.

Cookware tips

No one brand of cookware is best for all people. Knowing something about pan materials and construction will help you select the correct cookware for your needs.

• NOTE: For best results and greater fuel efficiency, use only flat-bottomed cookware in good condition.
• The pan should have straight sides and a tight-fitting lid.
• Choose medium to heavy gauge (thickness) pans that are fairly lightweight.

• The pan material (metal or glass) affects how fast heat transfers from the surface burner through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

• Handles should be made of a sturdy, heat-resistant material and be securely attached to the pan.

• Pans should be easy to clean. Check to be sure there are no crevices, rough edges or areas where food might collect.
• Be sure pans do not tip, whether they are full or empty.
• Use cookware only as it was intended to be used. Follow pan instructions. This is very important for glass cookware because some should be used only in the oven. Other pans are marked as flameware and may be used on the surface burners.

Home canning information

The large diameter of most water-bath or pressure canners combined with high heat settings for long periods of time can cause damage to the cooktop.

To protect your range:

• For best results, use a canner which can be centered over the surface burner.
• Do not place canner on two surface burners at the same time. Too much heat will build up and will damage the cooktop.
• Start with hot water. This reduces the time the control is set on high. Reduce heat setting to lowest position needed to keep water boiling.
• Refer to your canner manual for specific instructions.

Positioning racks and pans

For baking/roasting with one rack, place the rack so the top of the food will be centered in the oven.

Rack placement for specific foods:

FOOD	RACK POSITION
Frozen pies, large roasts, turkeys	1st or 2nd rack guide from bottom
Angel and bundt cakes, most quick breads, yeast breads, casse-roles, meats	2nd rack guide from bottom
Cookies, biscuits, muffins, cakes, nonfrozen pies	2nd or 3rd rack guide from bottom

When baking on two racks, arrange racks on first and third rack guides from bottom.

NOTE: For recommended rack placement when broiling, see "Broiling rack position chart" on page 15.

WARNING

Personal Injury Hazard

• Always position oven rack(s) in desired location before turning oven on. Be sure the rack(s) is level.
- If rack(s) must be moved while oven is hot, use potholders or oven mitts to protect hands.
- Do not place items on the open oven door.
- Be careful when installing and removing large food items from extra roasting rack position. Food will be close to hot surfaces, including oven bottom and sides.

Failure to follow the above precautions could result in personal injury.

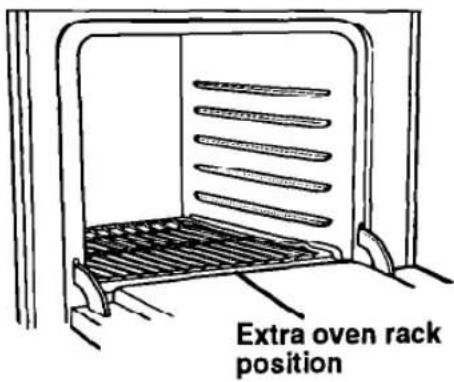

Extra oven rack position (roasting rack)

When roasting food too large to be placed in oven with rack in lowest position, place rack on bottom of oven.

For proper roasting, follow these guidelines:

• The rack must be level.
- Use adequate amount of liquid (meat juices or water) so food does not get overdone.
- Do not try to pull rack out over door. Rack will be at the same level as door when door is opened.

For best air circulation

Hot air must circulate around the pans in the oven for even heat to reach all parts of the oven. This results in better baking.

• Place the pans so that one is not directly over the other.
• For best results, allow 1^1/2-2 inches (4-5 cm) of space around each pan and between pans and oven walls. There must be a minimum space of 1 inch (2.5 cm).
• Use only one cookie sheet in the oven at one time.

Use the following as a guide to determine where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

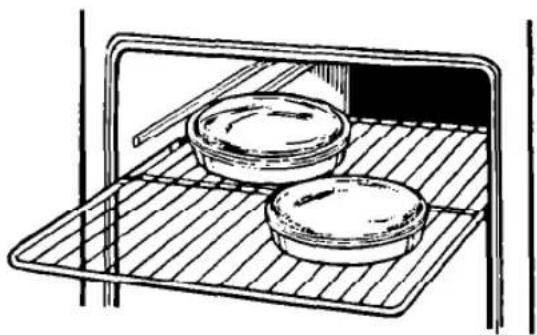

Three or four pans

Place in opposite corners on each oven rack. Stagger pans so no pan is directly over another.

Line drawing of two containers on a tray inside an oven (no text or symbols)

Setting the clock

Push in and turn the Minute Timer Knob to set the clock.

1. Push in Minute Timer Knob and turn clockwise until clock shows the correct time of day.

2. Let the Minute Timer Knob pop out. Turn clockwise until Minute Timer hand points to OFF. The clock setting will change if you push in the knob when turning.

Using the Minute Timer

The Minute Timer does not start or stop the oven. It works like a kitchen timer. Set it in minutes up to an hour. You will hear a buzzer when the set time is up.

NOTE: Do not push in the knob when setting the Minute Timer or when stopping the buzzer. Pushing in and turning the Minute Timer Knob changes the clock setting.

1. Without pushing it in, turn the Minute Timer Knob counterclockwise until the timer hand passes the setting you want.

2. Without pushing it in, turn the knob back to the setting you want. When the time is up, a buzzer will sound. To stop the buzzer, turn the Minute Timer hand to OFF.

Baking/roasting

NOTE: Do not attempt to light the oven burner during a power failure. See "Important Safety Instructions" on page 3 for more information.

1. Position the rack(s) properly before turning on the oven. To change rack position, lift rack at front and pull out. For further information, see "Positioning racks and pans" on page 9.
2. Set the Oven Selector to BAKE.
3. Push in and turn the Oven Temperature Control counterclockwise to the baking/roasting temperature you want. The oven burner will automatically light in 50-60 seconds.

4. When baking, preheat the oven for 10 minutes. Put food in the oven. NOTES:

5. Do not preheat when roasting or cooking items such as casseroles.

6. Do not place food directly on the oven bottom.
7. During baking/roasting, the oven burner will turn on and off to maintain the temperature setting.
8. When baking/roasting is done, turn both the Oven Selector and the Oven Temperature Control clockwise to OFF.

Simple line drawing of a cooking pot on a surface (no text or symbols)

Adjusting the oven temperature control

Oven temperature controls will gradually shift after years of use. So, even though your new oven is properly adjusted to provide accurate temperatures, it may cook faster or slower than your old oven.

If, after using the oven for a period of time, you are not satisfied with the temperature settings, you can adjust them by following these steps:

1. Make sure the Oven Temperature Control Knob is turned to the off position. Pull knob straight off and flip it over.
2. Loosen the locking screws inside the control knob. Note the position of the notches.
3. To lower the temperature, hold knob handle firmly and move the tooth a notch clockwise. Each notch equals about 20°F (11°C).
4. To raise the temperature, hold knob handle firmly and move the tooth a notch counterclockwise. Each notch equals about 20°F (11°C).
5. Tighten the locking screws and replace the control knob.

Hand holding a circular object with a small inset arrow pointing to it (no text or symbols)

Broiling

1. Position the rack properly before turning on the oven. Position the oven rack so that the surface of the food is at least 3 inches (7 cm) away from the broil burner. See "Broiling rack position chart" on page 15.
2. Preheat the broiler for 5 minutes before using.
3. Put the broiler pan and food on the rack.

4. Completely close the oven door to ensure proper broiling temperatures.

5. Set the Oven Selector to BROIL. Push in and turn the Oven Temperature Control counterclockwise to BROIL. The broiler will automatically light in 50-60 seconds.

6. When broiling is done, turn both the Oven Selector and the Oven Temperature Control clockwise to OFF.

Broiling tips

• Use the broiler pan and grid for broiling. They are designed to drain excess liquid and grease away from the cooking surface to help prevent spatter, smoke or fire.
• If you broil small quantities, you may want to use a small broiler pan. They are available in the housewares section of many department stores.
• For best broiling results, preheat at BROIL for 5 minutes. Do not preheat with broiler pan in place.
• Broiling rack position determines how the burner cooks your food. The lower the position, the more broiler grid area covered. See "Broiling rack position chart" on page 15 for more information.
  • To sear meat, place broiler pan at one of the higher rack positions so that meat is very near the flame.
• Small steaks may be broiled in the higher rack positions.
  • To cook large steaks and other thick cuts of meat well done, move them to a lower rack position after searing.

• After broiling, remove the broiler pan from the oven when you remove the food. Drippings will bake on the pan if you leave it in the heated oven.

WARNING

Fire Hazard

• Place meat the correct distance from the burner. Meat placed too close to the burner could spatter, smoke, burn or catch fire during broiling.
• To ensure adequate grease drainage, do not use cookie sheets or similar pans for broiling. Also, covering the broiler grid with foil is not recommended. Poor drainage of grease could result in fire.

Broiling rack position chart

RACK POSITION FROM BOTTOM	FOOD
4	Rare steaks and fish
3	Medium and well-done steaks and hamburgers;well-done foods such as chicken, lobster, ham slices and pork chops

Energy saving tips

Although the energy used for cooking is usually a very small percentage of the total energy used in the home, cooking energy can be used efficiently. Here are some tips to help you save energy when using your cooking product:

• Use pans with flat bottoms, straight sides and tight-fitting lids.
  • Cook with a minimum of liquid or fat to help shorten cooking time.
• Preheat pans only when recommended and for the shortest time possible.
• Start food on higher heat settings, then set surface burner control on low to finish cooking.

• Use the more efficient surface burners instead of the oven when possible.

• Turn on the surface burner only after placing filled pan on the burner grate.

• "Oven peeking" may cause heat loss, longer cooking times and unsatisfactory baking results. Rely on your timer to keep track of the time.
• Bake cakes, pies or cookies when oven is warm. Best time to bake is right after a meal has been cooked in oven.
• Preheat the oven no longer than necessary.
• Plan your meals for the most efficient use of the range. When using the oven to cook one food, try to cook the rest of the meal in it also.
• Do not preheat when roasting or cooking items such as casseroles.

Using the MEALTIMER™ clock

The MEALTIMER clock is designed to turn the oven on and off at times you set, even when you are not around.

Delayed time baking/roasting is ideal for foods which do not require a preheated oven, such as meats and casseroles. Do not use the delayed time cycle for cakes, cookies, etc. – undercooking will result.

Before using the MEALTIMER clock, make sure the clock is set to the correct time of day. (See "Setting the clock" on page 11.)

To delay start and stop automatically:

1. Position the oven rack(s) properly and place the food in the oven.
2. Push in and turn the Start Time Knob clockwise to the time you want baking/ roasting to start.
3. Push in and turn the Stop Time Knob clockwise to the time you want the oven to shut off.

NOTE: There must be at least a half-hour difference between the start and stop times.

1. Set the Oven Selector to TIME BAKE.

2. Push in and turn the Oven Temperature Control counterclockwise to the baking/roasting temperature you want. The oven will now start and stop automatically. The Oven Indicator Light will come on when the start time is reached.

3. After baking/roasting is done or to cancel the setting at any time, turn both the Oven Selector and Oven Temperature Control clockwise to OFF.

To start baking/roasting now and stop automatically:

1. Position the oven rack(s) properly and place the food in the oven.
2. Push In and turn the Stop Time Knob clockwise to the time you want the oven to shut off. Make sure the Start Time Knob is not pushed in.
3. Set the Oven Selector to TIME BAKE.
4. Push in and turn the Oven Temperature Control counterclockwise to the baking/roasting temperature you want.
5. After baking/roasting is done or to cancel the setting at any time, turn both the Oven Selector and the Oven Temperature Control clockwise to OFF.

WARNING

To avoid sickness and food waste when using the MEALTIMER™ clock:

• Do not let most UNFROZEN food stand for more than two hours before cooking starts.
• Do not allow food to remain in oven for more than two hours after the end of cooking cycle.

NOTE: Do not use foods that will spoil while waiting for cooking to start. Such foods are: dishes with milk or eggs, cream soups, and cooked meats or fish. Also, foods containing baking powder or yeast will not rise properly when cooked using delay start.

The oven vent

Hot air and moisture escape from the oven through a vent located in lower part of backguard. The vent is needed for air circulation. Do not block the vent. Poor baking/roasting will result.

NOTE: Never store plastics, paper or other items that could melt or burn near the oven vent, or any of the surface burners.

WARNING

Burn Hazard

When the oven is ON, pans and pan handles left near the oven vent could become hot enough to burn the user and to melt plastics. Use potholders to move pans.

The storage drawer

You can remove the storage drawer to make it easier to clean under the range and to check for installation of the anti-tip floor bracket. Use care when handling the drawer.

Removing the storage drawer:

1. Empty drawer before removing. Pull drawer straight out to the first stop. Lift front and pull out to the second stop.

2. Lift back slightly and slide drawer all the way out.

Replacing the storage drawer:

1. Fit ends of drawer slide rails into the drawer guides on both sides of opening.

2. Lift drawer front and push in until metal stops on drawer slide rails clear white stops on drawer guides. Lift drawer front again to clear second stop and slide drawer closed.

Line drawing of a hand opening a wooden drawer into a cabinet (no text or symbols)

The anti-tip brackets

The range will not tip during normal use. However, tipping can occur if you apply too much force or weight to the open door without the anti-tip brackets properly secured.

Two circular icons showing a person falling off a slope with no text or symbols

WARNING

Personal Injury Hazard

• To reduce risk of range tipping over, secure range with properly installed anti-tip brackets supplied with range.
• If range is moved for cleaning or service, check that anti-tip devices are engaged before using range.

Failure to follow the above precautions could result in personal injury.

To verify the anti-tlp brackets are engaged:

- Grasp rear of range and carefully try to tilt forward. If anti-tip brackets are attached to floor with screws and rear leveling legs are positioned under brackets (one for each rear leveling leg), range should not tilt forward.

OR

• Remove the storage drawer. (See page 18.)
• Make sure the rear leveling legs are positioned under brackets.
  • See Installation Instructions for further details.

Simple line drawing of a mechanical clamp or bracket with a bolt and base (no text or symbols)

Using The Self-Cleaning Cycle

In This Section

Page

Page

How the cycle works ....20

Setting the controls 21

Before you start 20

Special tips....22

The Self-Cleaning cycle saves you from the toil and mess that often come with hand-cleaning the oven interior. Like with the other functions of your range, you operate the Self-Cleaning cycle with the easy-to-use controls. Please review the instructions in this section to keep your oven spotless.

How the cycle works

The Self-Cleaning cycle uses very high heat to burn away soil and grease. During the cycle, the oven gets much hotter than it does for normal baking or broiling. This high heat breaks up the soil or grease and burns it away.

We recommend a 3-hour Self-Cleaning cycle. However, you can adjust the cycle time to the amount of soil in your oven. You can set the cycle anywhere between 2 and 4 hours. (See "Setting the controls" on page 21.)

The graph at the right is representative of a normal, 3-hour Self-Cleaning cycle. Note that the heating stops when the 3-hour setting is up, but it takes longer for the oven to cool enough to unlock.

Before you start

Before you start the Self-Cleaning cycle, make sure you:

- Hand-clean the areas shown. They do not get hot enough during the cleaning cycle for soil to burn away. Use hot water and detergent or a soapy steel-wool pad for cleaning.

NOTE: DO NOT clean, move or bend the seal. Poor cleaning, baking and roasting may result.

• Remove any pots and pans being stored in the oven.
  NOTE: You can clean the broiler pan and grid in the oven if you have first removed most of the soil by hand-cleaning or in a dishwasher. If most of the soil is not removed, too much smoking will occur.
• Wipe out any loose soil or grease. This will help reduce smoke during the Self-Cleaning cycle.
• Remove the oven racks from the oven if you want them to remain shiny. You can clean the oven racks in the Self-Cleaning cycle, but they will become harder to slide. (See page 26.) If you clean racks in the Self-Cleaning cycle, place them on the 2nd and 4th rack guides. (Guides are counted from bottom to top.)
• Heat and odors are normal during the Self-Cleaning cycle. Keep the kitchen well ventilated by opening a window or by turning on a vent hood or other kitchen vent during the cycle.

WARNING

Personal Injury and Product Damage Hazard

• Do not touch the oven during the Self-Cleaning cycle. It could burn you.
• Do not use commercial oven cleaners in your oven. Cleaners could produce hazardous fumes or damage the porcelain finish.
• Do not leave any foil in oven during the Self-Cleaning cycle. Foil could burn or melt and damage the oven surface.

NOTES:

• Do not force the Lock Lever. You could bend or break it. The lever is designed to stay locked until the oven is cool enough to safely open. Wait until it moves freely.
• Do not block the vent during the Self-Cleaning cycle. Air must move freely for best cleaning results.
• Do not leave plastic utensils near the vent. They may melt.

Setting the controls

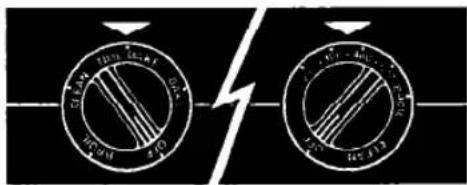

1. Set the Oven Selector to CLEAN. Push in and turn the Oven Temperature Control counterclockwise to CLEAN.
2. Make sure the clock, Start and Stop Times all have the correct time of day.

3. Push in and turn the Stop Time Knob clockwise 2 to 4 hours.

4. Use 2 hours for light soil.

5. Use 3 hours or more for moderate soil.
6. Use 4 hours for heavy soil.

NOTE: Make sure the Start Time Knob is not pushed in.

Two circular mechanical components with internal blades and a lightning bolt symbol (no text or labels)

1. Move the Lock Lever to the right—the Clean position. The Clean Indicator Light will come on.
2. After the Self-Cleaning cycle is started, the Lock Indicator Light comes on when the oven temperature goes above normal baking/roasting temperatures. The door cannot be opened and the Lock Lever must not be moved when the Lock Indicator Light is on.
3. After the Self-Cleaning cycle is completed and the oven reaches normal baking/roasting temperatures, the Lock Indicator Light will go off. Move the Lock Lever back to the left. DO NOT FORCE IT. Wait until it moves easily. Turn the Oven Selector and Oven Temperature Control clockwise to OFF. The Clean Indicator Light will go off.
4. After the oven is cool, wipe off any residue or ash with a damp cloth. If needed, touch up spots with a soapy steel-wool pad.

To stop the Self-Cleaning cycle at any time:

1. Push in and turn the Stop Time Knob clockwise until it points to the correct time of day.
2. Turn the Oven Selector and Oven Temperature Control to OFF. When the Lock Indicator Light goes off, move the Lock Lever back to the left. DO NOT FORCE IT. Wait until it moves easily.

Abstract black-and-white graphic with a large arrow pointing right, a block labeled 'CLEW' at the bottom, and horizontal striped background (no readable text or symbols)

Abstract black-and-white graphic with horizontal stripes and a central arrow, no text or symbols present.

Special tips

• Keep the kitchen well ventilated during the Self-Cleaning cycle to help get rid of heat, odors and smoke.
  • After the oven is cool, wipe up any residue or ash with a damp cloth or sponge. If any spots remain, clean with a mild abrasive cleanser or cleaning sponge.
• Clean the oven before it gets heavily soiled. Cleaning a very soiled oven takes longer and results in more smoke than usual.

- If the Self-Cleaning cycle does not get the oven as clean as you expected, the cycle may not have been set long enough or you may not have prepared the oven properly. Set the Self-Cleaning cycle longer the next time and hand-clean areas noted on page 20.

Caring For Your Range

In This Section

Page

Surface burner grates ....23

Lift-up cooktop 24

Surface burners 24

Page

Cleaning chart....25

The oven light 27

Your range is designed for easy care. You can do most cleaning with items found around your home. Cleaning your range whenever spills or soiling occurs will help to keep it looking and operating like new.

WARNING

Burn, Electrical Shock, Fire and Explosion Hazard

• Make sure all controls are OFF and the range is cool before cleaning.
• Do not use oven cleaners, bleach or rust removers.
• Do not obstruct the flow of combustion and ventilation air.
• Keep appliance area clear and free of combustible materials, gasoline and other flammable vapors and liquids.

Failure to follow these guidelines could result in burns, electrical shock, fire or explosion.

Surface burner grates

1. Make sure all surface burners are off and the surrounding parts are cool.
2. Lift off the surface burner grates.
3. Wash the grates with warm, soapy water or in a dishwasher. Use a nonabrasive, plastic scrubbing pad for cooked-on foods. Rinse and dry well.
4. Replace burner grates.

Illustration of hands using a tool to tie a metal object (no text or symbols present)

Lift-up cooktop

1. Remove surface burner grates.
2. Lift front of cooktop at both front corners until the support rods lock into place.

WARNING

Personal Injury Hazard

Be sure both support rods are fully extended and in the locked position. Failure to do so could result in personal injury from the cooktop accidentally falling.

Product Damage Hazard

Do not drop the cooktop. Damage could result to the porcelain and the cooktop frame.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

1. Wipe with warm, soapy water. Use a soapy steel-wool pad on heavily soiled areas.
2. To lower the cooktop, lift cooktop from both sides while pressing the support rods back to unlock them. Lower the cooktop into place. Replace surface burner grates.

Surface burners

1. Lift up the cooktop, following the instructions above.
2. Before cleaning, remove screws that hold each of the burners in place. The screws prevent the burners from moving during shipment. Remove the shipping screws with a Phillips screwdriver and lift the burners up and out. This separates the burners from the mounting bracket under each burner pair.
3. Wipe off surface burners with warm, soapy water and a sponge after each use. To remove cooked-on food, soak the burners in a vinegar and water solution for 20-30 minutes. Scrub with a plastic scrubbing pad.
4. If ports are clogged, clean with a straight pin. DO NOT enlarge or distort the ports. DO NOT use a toothpick to clean the ports.

1. Before putting the burners back, dry them thoroughly by setting them in a warm oven for 30 minutes.
2. Replace burners, making sure they are properly seated and level. Replace screws.
3. Occasionally check the burner flames for proper size and shape as shown. A good flame is blue in color. If flames lift off ports, are yellow, or are noisy when turned off, you may need to clean the burners (see page 24), or call a qualified technician for adjustment.

Typical surface burner flame at highest setting

Cleaning chart

Use the following table to help you clean your range.

PART	WHAT TO USE	HOW TO CLEAN
Control knobs	Sponge and warm,soapy water	Turn knobs to OFF and pull straight away from control panel.Wash, rinse and dry thoroughly. Do not soak.Do not use steel wool or abrasive cleansers. They may damage the finish of the knobs.Replace knobs. Make sure all knobs point to OFF.
Control panels	Sponge and warm,soapy waterORPaper towel and spray glass cleaner	Wash, rinse and dry thoroughly.Do not use steel wool or abrasive cleansers. They may damage the finish.Do not spray cleaner directly on panel.Apply cleaner to paper towel.
Exterior surfaces(other than control panels)	Sponge and warm,soapy water	Wash, rinse and dry thoroughly.Use nonabrasive, plastic scrubbing pad on heavily soiled areas.Do not use abrasive or harsh cleansers. They may damage the finish.NOTE: Do not allow foods containing acids (such as vinegar, tomato or lemon juice) to remain on surface. Acids may remove the glossy finish. Also wipe up milk or egg spills when cooktop is cool.

continued on next page

PART	WHAT TO USE	HOW TO CLEAN
Surface burner grates	Warm, soapy water and a nonabrasive, plastic scrubbing pad OR Dishwasher	· In dishwasher, wash with other cooking utensils. · Dry completely. · Do not use abrasive or harsh cleans- ers.
Surface burners	Sponge and warm, soapy water Warm, soapy water and a nonabrasive, plastic scrubbing pad OR Vinegar and water solution	· Lift up the cooktop. (See page 24.) · Wipe off spills immediately after burner has cooled. For cooked-on food: · Remove burner from manifold with Phillips screwdriver. · Wash with warm, soapy water and a plastic scrubbing pad or soak in vinegar and water solution. · Rinse and dry well. · If ports are clogged, clean with a straight pin. Do not enlarge or distort ports. Do not use a wooden toothpick. · Do not clean surface burner in dish- washer.
Broiler pan and grid (clean after each use)	Steel-wool pad and warm, soapy water	· Wash, rinse and dry thoroughly.
Oven racks	Steel-wool pad and warm, soapy water OR The Self-Cleaning cycle	· Wash, rinse and dry thoroughly. OR · Leave in oven during Self-Cleaning cycle. NOTE: Racks will permanently discolor and become harder to slide if left in oven during Self-Cleaning cycle. Apply a small amount of vegetable oil to the side rungs to aid sliding.
Oven door glass	Paper towel and spray glass cleaner OR Warm, soapy water and a nonabrasive, plastic scrubbing pad	· Make sure oven is cool. · Follow directions provided with the cleaner. · Wash, rinse and dry thoroughly.
Oven cavity	Self-Cleaning cycle	· See "Using The Self-Cleaning Cycle" on pages 20-22.

The oven light

Model FGS385B: The oven light will come on when you open the oven door.

Model FGS395B: To turn on the light, press the Oven Light Switch on the top left corner of the backguard.

WARNING

Electrical Shock and Personal Injury Hazard

• Make sure oven and light bulb are cool and power to the range has been turned off before replacing the light bulb. Failure to do so could result in electrical shock or burns.
• The bulb cover must be in place when using the oven. The cover protects the bulb from breaking, and from high oven temperatures. Because bulb cover is made of glass, be careful not to drop it. Broken glass could cause injury.

To replace the oven light:

1. Unplug appliance or disconnect at the main power supply.
2. Remove the glass bulb cover in the back of the oven by pushing the wire holder to the side and pulling out bulb cover.

3. Remove the light bulb from its socket. Replace the bulb with a 40-watt appliance bulb.

4. Replace the bulb cover and snap the wire holder into place. Plug in appliance or reconnect at the main power supply.

NOTE: The oven light should not be used during the Self-Cleaning cycle. Use during the Self-Cleaning cycle will shorten the life of the bulb.

Line drawing of a hand holding a circular device with a smiling face (no text or symbols)

Simple line drawing of a planet with rings and orbiting electrons (no text or symbols)

If You Need Assistance Or Service

This section is designed to help you save the cost of a service call. Part 1 of this section outlines possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service. When calling our toll-free telephone number for help or calling for service, please provide a detailed description of the problem, your appliance's complete model and serial numbers and the purchase date. (See page 2.) This information will help us respond properly to your request.

1. Before calling for assistance ...

Performance problems often result from little things you can find and fix without tools of any kind. Please check the chart below for problems you can fix. It could save you the cost of a service call.

PROBLEM	POSSIBLE CAUSE	SOLUTION
Nothing will operate	The power cord is not plugged into a live circuit with proper voltage.Range is not properly connected to gas supply.A household fuse has blown or a circuit breaker has tripped.Controls are not set correctly.The flow of combustion and/or ventilation air to the range is blocked.	Plug the power cord into a live circuit with proper voltage. (See Installation Instructions.)Contact an authorized Roper service technician to reconnect range to gas supply. (See Installation Instructions.)Replace household fuse or reset circuit breaker.Reset controls, if needed.Remove blockage to airflow to and around range.
The oven will not operate	The Oven Selector is not turned to BAKE or BROIL.A delayed start time has been set.The Oven Temperature Control is not turned to a temperature setting.The MEALTIMERTM clock is not set correctly.The Stop or Start Time Knobs for the MEALTIMER clock are not set at the correct time of day.	Turn the Oven Selector to the desired setting.Wait for the start time to be reached.Push in and turn the Oven Temperature Control to a temperature setting.Set the MEALTIMER clock correctly. (See “Using the MEALTIMER clock” on page 16.)If a delay start or stop is not desired, the Stop and Start Time Knobs must be turned to the correct time of day. Turn knobs till they pop out.
Burner fails to light	The power cord is not plugged into a live circuit with proper voltage.A household fuse has blown or a circuit breaker has tripped.Burner ports are clogged.	Plug the power cord into a live circuit with proper voltage. (See Installation Instructions.)Replace household fuse or reset circuit breaker. In case of prolonged power failure, manually light burners (see page 8).Clean with a straight pin (see pages 24 and 26).
Burner flames are uneven	Burner ports are clogged.	Clean with a straight pin (see pages 24 and 26). If this fails, call an authorized Roper service technician for service.
Burner flames lift off ports, are yellow, or are noisy when turned off	Air/gas mixture is incorrect.	Contact an authorized Roper service technician to check air/gas mixture.
Burner makes popping noise when on	Burner is wet from washing.	Let dry.
Control knob(s) will not turn	You are not pushing in before turning.	Push control knob(s) in before turning to a setting.
Self-Cleaning cycle will not operate	The Oven Selector and Oven Temperature Control are not set to CLEAN.The range clock does not show the correct time of day.The Lock Lever is not in the CLEAN position-all the way to the right.The Start Time Dial does not show the correct time of day or the knob is not all the way out.The Stop Time Dial is not set ahead to the time you want the self-cleaning cycle to stop.	Set both the Oven Selector and Oven Temperature Control to CLEAN.Reset clock to show the correct time of day. (See page 11.)Move Lock Lever all the way to the right.Reset the Start Time Knob to show the correct time of day. Pull knob out all the way.See Step 3 in "Setting the controls" on page 21 for proper setting instructions.

continued on next page

PROBLEM	POSSIBLE CAUSE	SOLUTION
Cooking results are not what you expected	The range is not level.The oven temperature seems too low or too high.The oven was not preheated as the recipe calls for.The recipe has never been tested or is not from a reliable source.The pans are not the type or size recommended in the recipe.There is not proper air circulation around pan when baking.Flame size does not fit the cooking utensil being used.When broiling, you have not completely closed the oven door.	Level range. (See Installation Instructions.)Adjust the oven temperature control. (See “Adjusting the oven temperature control” on page 13.)Preheat oven if called for in recipe.Use only tested recipes from a reliable source.Refer to a reliable cookbook for recommended pan type and size.Allow 112 to 2 inches (4-5 cm) on all sides of the pans for air circulation.There must be a minimum space of 1 inch (2.5 cm).Adjust flame size to fit cooking utensil.Completely close oven door.

2. If you need assistance ...

Call our toll-free telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-44-ROPER

(1-800-447-6737)

and talk with one of our trained consultants. The consultant can instruct you in how to obtain satisfactory operation from your appliance or, if service is necessary, recommend a qualified service company in your area.

For further information, write to:

Mr. William Clark

Consumer Assistance Representative

Roper Brand Appliances

2000 North M-63

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

3. If you need service ...

Contact the dealer from whom you purchased the appliance or the authorized servicer in your area. For help finding an authorized servicer in your area, call our toll-free telephone number in Step 2.

4. If you need FSP® replacement parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Roper® appliance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Roper appliance.

To locate FSP replacement parts in your area, refer to Step 3 above or call our toll-free telephone number in Step 2.

5. If you are not satisfied with how the problem was solved ...

• Contact the Major Appliance Consumer Action Panel (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance industry.
• Contact MACAP only when the dealer, authorized servicer and Roper Brand Appliance warrantor have failed to resolve your problem.

Major Appliance Consumer Action Panel 20 North Wacker Drive Chicago, IL 60606

• MACAP will in turn inform us of your action.

ROPER®

Gas Range Warranty

LENGTH OF WARRANTY	WE WILL PAY FOR
FULL ONE-YEAR WARRANTY (from date of purchase)	FSP® replacement parts and repair labor to correct defects in materials or workmanship. Service must be provided by an authorized Roper service company.
WE WILL NOT PAY FOR
A. Service calls to:1. Correct the installation of your range.2. Instruct you how to use your range.3. Replace house fuses or correct house wiring or plumbing.4. Replace owner accessible light bulbs.B. Repairs when your range is used in other than normal, single-family household use.C. Pickup and delivery. Your range is designed to be repaired in the home.D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not approved by us.E. Repairs to parts or systems caused by unauthorized modifications made to the appliance.5/93

This Roper appliance is warranted by Whirlpool Corporation. Under no circumstances shall it be liable under this warranty for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of implied warranties, so these limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Roper distributor or military exchange.

If you need service, first see the "If You Need Assistance Or Service" section of this book. After checking "If You Need Assistance Or Service," additional help can be found by calling our toll-free telephone number, 1-800-44-ROPER (1-800-447-6737), from anywhere in the U.S.A.

Printed on recycled paper-10% post-consumer waste 50% recovered materials
