Brand	Swan
Model	SP20160PN (all colors)
Product Type	Hand Blender
Power Consumption	600 Watts
Input Voltage	220-240V
Frequency	50/60Hz
Speed Settings	Variable speed control dial + Turbo (high speed) button
Operation Time	Maximum 1 minute continuous use, then 3 minutes rest
Blender Shaft Material	Stainless steel (likely)
Blade Type	Sharp stainless steel blades
Housing Material	Plastic (retro design)
Cleaning	Removable blender shaft; rinse under tap or swill in soapy water (do not submerge entirely); do not immerse motor unit
Safety Features	Double insulated; automatic shut-off not indicated; must not be used with external timer
Warranty	2 years
Spare Parts Reference	Blender shaft assembly: SP20160-01
Certifications	CE, RoHS, EMC, LVD, Food Contact, Eco Design
Intended Use	Household and similar (kitchen areas, offices, hotels, etc.)

Frequently Asked Questions - SP20160PN SWAN

How do I assemble the blender shaft?

Ensure the unit is unplugged and the switch is OFF. Turn the blender shaft anti-clockwise to attach and clockwise to remove. Align the position guides on the body.

How do I operate the hand blender?

Lower the blender into the food. Press and hold the low speed button to start; adjust speed using the speed control dial (rotate right to left for higher speed). For maximum speed, press and hold the turbo button.

What is the maximum continuous operation time?

The maximum operation time is 1 minute. After that, let the unit rest for 3 minutes to cool down.

Can I blend hot liquids?

The manual does not specify, but generally hand blenders can blend warm liquids. Avoid boiling liquids to prevent splashing. Ensure the blender shaft is properly submerged.

How do I clean the blender?

Disconnect from power. Remove the blender shaft and rinse under running water or swish in soapy water. Do not fully submerge the shaft to protect the blade bearings. Wipe the motor unit with a damp cloth. Handle blades carefully as they are sharp.

Is the blender dishwasher safe?

The manual recommends washing the blender shaft in warm soapy water and rinsing. It does not mention dishwasher safety, so hand washing is advised to preserve the blade bearings.

What should I do if the blender stops working?

First, check that it is properly plugged in and the voltage matches. If it still does not work, do not attempt to repair yourself. Contact an authorised service agent or the helpline at 01733 404703.

Can I use an extension cord?

Extension cords are not recommended. If necessary, use a lead suited to the power consumption (600W) and position it safely to avoid tripping.

What spare parts are available?

The main spare part is the blender shaft assembly, part number SP20160-01. Contact Swan or an authorised dealer for replacement.

How long is the warranty?

The product has a 2-year warranty from the date of original purchase for domestic use. It covers faulty materials or workmanship. Keep your proof of purchase and return to the retailer.

USER MANUAL SP20160PN SWAN

Swan Retro designed for life

designed for life

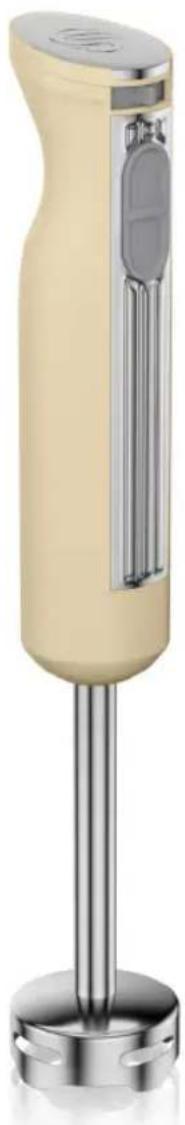

600W Hand Blender

Model: SP20160 (all colours)

Helpline: 01733 404703

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
• Never immerse the unit in water or any other liquid for cleaning purposes.
• Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid

2

Swan

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.

• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Do not touch moving parts with fingers or any utensil during operation!

TECHNICAL DATA

Description: Retro Hand Blender

Model: SP20160 (all colours). Input Voltage: 220-240V

Frequency: 50/60Hz. Power consumption: 600 Watts

Swan

3

HOW TO USE

GETTING TO KNOW YOUR HAND BLENDER

BEFORE USE

Remove all packaging. Wash the blender shaft in warm, soapy water (do not submerge). Rinse and dry thoroughly.

• Before assembling the blender, be sure that the power cord is unplugged and switch is in the OFF position
• Turn the blender shaft clockwise to remove and anti-clockwise to refit - not the position guides on the body of the produt
• Lower the hand-held blender into food. Then press and hold the low speed button to start operating. At the same time you can select desired speed setting by dialing the speed control dial, the speed will get higher gradually when you dial the speed control dial from right to left
  • MAX operation time is 1 minute.

This should be more than enough for most operations. After 1 minute running, the unit should be rested for 3 minutes to cool.

• You also can start operating by pressing and holding the high speed button (turbo button), the appliance will operate at the highest speed all the time. The speed will not change even if you dial the speed control dial.
• To stop the hand-held blender release the low speed button or high speed button
• Warning: Do not put fingers or any utensil near the blades during operation

4

Swan

CLEANING

• Disconnect from mains power supply before cleaning.
• Do not submerge the appliance in water. This may lead to electric shock or fire.
• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.
• THE BLENDER SHAFT CAN BE REMOVED AND RUN UNDER THE TAP OR SWILLED AROUND IN SOAPY WATER. PLEASE DO NOT TOTALLY SUBMERGE THE BLENDER SHAFT IN WATER, AS IT WILL AFFECT THE LUBRICATION USED IN THE BLADE BEARINGS.
  • Always rinse and dry thoroughly before storing with mixer
• QUICK CLEANING. Between processing tasks, hold the blender end in a cup half filled with clean water and trun on for a few seconds
• Please be careful when handling the blades as they are very sharp!

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s):

• 2004/108/EEC The EMC Directive (the Electromagnetic Compatibility Directive).
• 2006/95/EC. The LVD Directive (Low Voltage Directive).
• 2011/65/EU. The RoHS directive (Restriction of Hazardous Substances Directive)
• EC 1935/2004 Food Contact
• 2009/125/EC Eco Design Directive

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
  • It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
  • This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

PARTS ORDERING

When ordering spare parts, use the references below:

SP20160-01 Blender shaft assembly

www.swan-brand.co.uk
