Product Type	Hand Blender
Model	SP20160 (all colours)
Power Consumption	600 Watts
Input Voltage	220-240V
Frequency	50/60Hz
Max Operation Time	1 minute
Rest Time Required	3 minutes
Speed Control	Variable speed dial (right to left increases speed)
Turbo Function	High speed button for maximum power
Blender Shaft	Removable, detachable for cleaning (do not fully submerge)
Blade Material	Stainless steel (inferred, sharp)
Safety Features	Double insulated; no earth wire required
Warranty	2 years (UK and Eire only)
Spare Part	Blender shaft assembly (SP20160-01)
Cleaning	Wipe motor body; rinse shaft under tap; do not submerge or use abrasives
Intended Use	Domestic and similar environments
Compliance	EMC, LVD, RoHS, Food Contact, Eco Design

Frequently Asked Questions - SP20160LN SWAN

How do I assemble the blender shaft?

Turn the blender shaft anti-clockwise to attach it to the motor body. To remove, turn clockwise. Always ensure the device is unplugged and switched off before assembly.

What is the maximum operation time?

The maximum continuous operation time is 1 minute. After that, allow the blender to rest for 3 minutes to cool down before using again.

How do I clean the blender shaft?

Remove the shaft from the motor body. Rinse it under running water or swish it in soapy water. Do not fully submerge the shaft in water, as it may affect the blade bearings. Dry thoroughly before storing.

Can I use the blender for hot liquids?

The manual does not specify hot liquids, but general safety advice recommends letting hot liquids cool before blending. Do not immerse the motor unit in any liquid.

What does the turbo button do?

The turbo button (high speed button) runs the blender at its highest speed continuously. The speed dial will not change the speed when turbo is pressed and held.

How do I adjust the speed?

While pressing and holding the low speed button, rotate the speed control dial from right to left to increase speed gradually. Release the button to stop.

Is the blender dishwasher safe?

No. The motor body must never be immersed. The shaft can be washed by hand only; do not put it in the dishwasher.

What is the warranty period and how to claim?

The product is guaranteed for 2 years from the original purchase date. To claim, return the faulty product to the place of purchase with proof of purchase. The warranty covers domestic use only.

Can I blend ice or frozen fruits?

The manual does not prohibit blending ice or frozen fruits, but ensure the operation time does not exceed 1 minute. Avoid overloading the blender.

What spare parts are available?

The replacement blender shaft assembly is available under part number SP20160-01. Order from the manufacturer or authorized retailers.

USER MANUAL SP20160LN SWAN

Swan Retro designed for life

designed for life

Exterior view of a modern kitchen brush (no text or symbols visible)

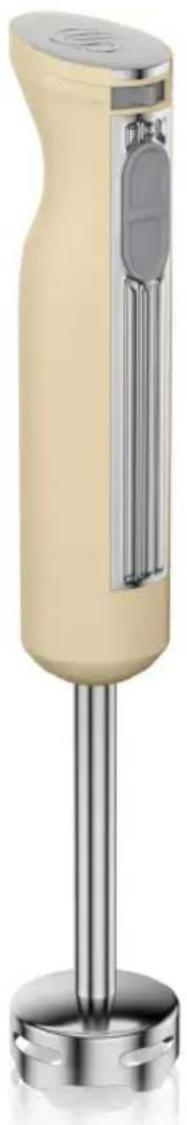

600W Hand Blender

Model: SP20160 (all colours)

Helpline: 01733 404703

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
• Never immerse the unit in water or any other liquid for cleaning purposes.
• Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid

2

Swan

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.

• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Do not touch moving parts with fingers or any utensil during operation!

TECHNICAL DATA

Description: Retro Hand Blender

Model: SP20160 (all colours). Input Voltage: 220-240V

Frequency: 50/60Hz. Power consumption: 600 Watts

Swan

3

HOW TO USE

GETTING TO KNOW YOUR HAND BLENDER

BEFORE USE

Remove all packaging. Wash the blender shaft in warm, soapy water (do not submerge). Rinse and dry thoroughly.

• Before assembling the blender, be sure that the power cord is unplugged and switch is in the OFF position
• Turn the blender shaft clockwise to remove and anti-clockwise to refit - not the position guides on the body of the produt
• Lower the hand-held blender into food. Then press and hold the low speed button to start operating. At the same time you can select desired speed setting by dialing the speed control dial, the speed will get higher gradually when you dial the speed control dial from right to left
  • MAX operation time is 1 minute.

This should be more than enough for most operations. After 1 minute running, the unit should be rested for 3 minutes to cool.

• You also can start operating by pressing and holding the high speed button (turbo button), the appliance will operate at the highest speed all the time. The speed will not change even if you dial the speed control dial.
• To stop the hand-held blender release the low speed button or high speed button
• Warning: Do not put fingers or any utensil near the blades during operation

4

Swan

CLEANING

• Disconnect from mains power supply before cleaning.
• Do not submerge the appliance in water. This may lead to electric shock or fire.
• Do not use a wire brush or other abrasive utensils for cleaning.
• Do not use aggressive or abrasive cleaning agents.
• THE BLENDER SHAFT CAN BE REMOVED AND RUN UNDER THE TAP OR SWILLED AROUND IN SOAPY WATER. PLEASE DO NOT TOTALLY SUBMERGE THE BLENDER SHAFT IN WATER, AS IT WILL AFFECT THE LUBRICATION USED IN THE BLADE BEARINGS.
  • Always rinse and dry thoroughly before storing with mixer
• QUICK CLEANING. Between processing tasks, hold the blender end in a cup half filled with clean water and trun on for a few seconds
• Please be careful when handling the blades as they are very sharp!

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive(s):

• 2004/108/EEC The EMC Directive (the Electromagnetic Compatibility Directive).
• 2006/95/EC. The LVD Directive (Low Voltage Directive).
• 2011/65/EU. The RoHS directive (Restriction of Hazardous Substances Directive)
• EC 1935/2004 Food Contact
• 2009/125/EC Eco Design Directive

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
  • It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
  • This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

PARTS ORDERING

When ordering spare parts, use the references below:

SP20160-01 Blender shaft assembly
