Product Type	Freestanding Refrigerator
Brand	Whirlpool
Model	ARZ 9330
Total Capacity	Approx. 300 L
Refrigerator Capacity	Approx. 220 L
Freezer Capacity	Approx. 80 L
Energy Class	E
Annual Energy Consumption	Approx. 220 kWh
Noise Level	Approx. 40 dB(A)
Dimensions (H x W x D)	Approx. 185 x 60 x 65 cm
Weight	Approx. 65 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Climate Class	N-ST
Number of Shelves	3 glass shelves
Door Shelves	4
Crisper Drawers	1
Freezer Drawers	3
Defrost Type	Automatic (refrigerator), Manual (freezer)
Lighting	LED interior light
Temperature Control	Mechanical thermostat
Reversible Door	Yes
Maintenance	Clean condenser coils annually; defrost freezer when ice buildup exceeds 5 mm
Safety Features	Stabilizing feet, door open alarm (optional)

Frequently Asked Questions - ARZ 9330 WHIRLPOOL

How do I set the temperature on my Whirlpool ARZ 9330 fridge?

Turn the thermostat dial inside the refrigerator compartment. Usually, 1 is warmest and 5 is coldest. A medium setting (3) is recommended for normal use.

Why is my fridge not cooling properly?

Check that the temperature dial is not set to 0 or off. Ensure the door closes properly and the gasket is clean. Also, verify that the condenser coils at the back are free of dust and the fridge is not overloaded.

How often should I defrost the freezer?

Defrost the freezer when the ice layer reaches 3-5 mm thickness. This may be every 6-12 months depending on usage and humidity levels.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the user manual. You will need a screwdriver and possibly a spanner. It is recommended to have two people for the task.

What should I do if the interior light is not working?

The ARZ 9330 uses an LED light that is not user-replaceable. If it fails, contact Whirlpool customer service for assistance.

How do I clean the condenser coils?

Unplug the fridge. Use a vacuum cleaner with a brush attachment or a coil cleaning brush to gently remove dust from the coils at the back. Do this at least once a year.

What is the energy consumption of this fridge?

The annual energy consumption is approximately 220 kWh, corresponding to energy class E under the old EU label.

Why is there water pooling inside the fridge?

The defrost drain may be blocked. Clean the drain hole at the back of the fridge interior with a pipe cleaner or small brush. Also ensure the fridge is level.

Can I store hot food directly in the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge. Hot food raises internal temperature and increases energy consumption.

How do I adjust the leveling feet?

Turn the front leveling feet clockwise to raise the fridge, counterclockwise to lower. Use a spirit level to ensure the fridge is stable and the door closes properly.

USER MANUAL ARZ 9330 WHIRLPOOL

PRECAUTIONSANDGENERALUGGESTIONSPage4

HOWTOUSETHEREFRIGERATORCOMPARTMENTPage5

- Yournewfridge-freezerisdesignedexclusively foruseinthehome.

The * *** freezercompartmentmaybe usedtofreezefreshandcookedfoods,makeice cubesandstorebothdeep-frozenandfrozen products.Thefreezerisdefrostedmanually. Therefrigeratorcompartmentdefrosts automaticallyandisusedtostorefreshfood anddrinks.

Formaximumsatisfactionfromyour appliancecarefullyreadtheseuser instructionswhichcontainadescriptionof yourapplianceandusefulfoodstoragetips.

Keepthisbookletinasafeplaceforfuture consultation.

1. After unpacking, makes sure the appliance is undamaged and that the doord closes correctly. Any damagemust be communicated to your retailer within 24 hours of delivery.
2. Wait at least 2 hours before connecting the appliance to the powersupply.
3. Makesureapplianceinstallationandelectrical connectionsaremadebyaqualifiedtechnicianin compliancewiththemanufacturer'sinstructions andcurrentlocalsafetyregulations.

PROTECTINGTHEENVIRONMENT

1.Packing

The packing box may be fully recycl confirmed by the recyclings symbol.

Followlocaldisposalregulations.

Keeppotentiallyhazardouspackaging(plastic bags, polystyreneetc.) outofthereach of children.

2.Appliance

The appliance is built from reusable materials. If you decide to spread refrigerator, it must be disposed of in compliance with local waste disposals. Before scrapping, cutoff the powercables that the appliance cannot be connected to themains. Dispose of the appliance at an authorised collection centre for refrigerant.

Information

eThis appliance is free of CFC's (refrigerant circuit contains R134a) or free of HFC's (refrigerant circuit contains R600a–Isobutane). Formore details, pleaserefertotherating plate on the appliance.

Simple black-and-white sketch of a tree with three rounded leaves and a curved trunk (no text or symbols)

PRECAUTIONSANDGENERALRECOMMENDATIONS

• Only use the refrigerator compartment to storefreshfoodandthefreezercompartmentto storefrozenfood,freezefreshfoodandmake icecubes.
• Donotcoverorclosetheairvents.
• Donotstoreliquidsinglasscontainersinthe freezercompartmentsincetheymayexplode.
• Donoteaticecubesoricelolliesimmediately aftertakingthemoutofthefreezersincethey maycause"cold"burns.
• Donotallowchildrentoplayorhideinthe refrigeratorortopreventtheriskoftrappingand suffocation.
• Beforecleaningorservicingtheappliance, alwaysunplugitorswitchoffthemains powersupply.
  ●Themainspowercablemaybereplacedonlyby atrainedservicetechnician.

Declarationofconformity

●This appliance is designed to store food products and complies with ECDirective 89/109.

ForapplianceswithIsobutane(R600a)

Therefrigerantlsobutaneisanaturalgasofhigh environmentalcompatibilitybutwhichis inflammable.Therefore,itisessentialtoensurethat theductsoftherefrigerantcircuitdonotget damaged.

Thisrefrigeratorisequippedwitha freezercompartment.

Therefrigeratorcompartmentdefrosts automatically.

Therefrigeratorcanoperateinanambient temperaturerangingfrom+10 °C to +3°8 but functionsbestattemperaturesbetween+16 °C and +32°C.

Switchingontherefrigerator

Insertthepluginthemainsoutlet. Thethermostatsetsthetemperatureinboththe refrigeratorandfreezercompartments.

Settingthetemperature:

1. Forcorrectoperationandoptimumfood storageinbothcompartments. Referto enclosedproductsheetforthermostat settinginstructions.

2. If you wish to chan get the temperatures setting in the compartments, turn the thermostat adjustment knob as required:

3. ForWARMERTEMPERATURESturnthe thermostatknobdowntopositions1 or 2.

4. ForCOLDERTEMPERATUREsturnthe thermostatknobuptopositions5 to 7.

Whenthethermostatissetto andinternallightswitchoff. ● boththeappliance

Note:

Thetemperatureinsidethetwocompartmentsisin partdeterminedbythepositionoftheappliance,theroomtemperatureandfrequencywithwhich thedoorsareopened. Usethethermostattoadjustthetemperaturein relationtothesefactors.

Howtostorefoodintherefrigerator compartment

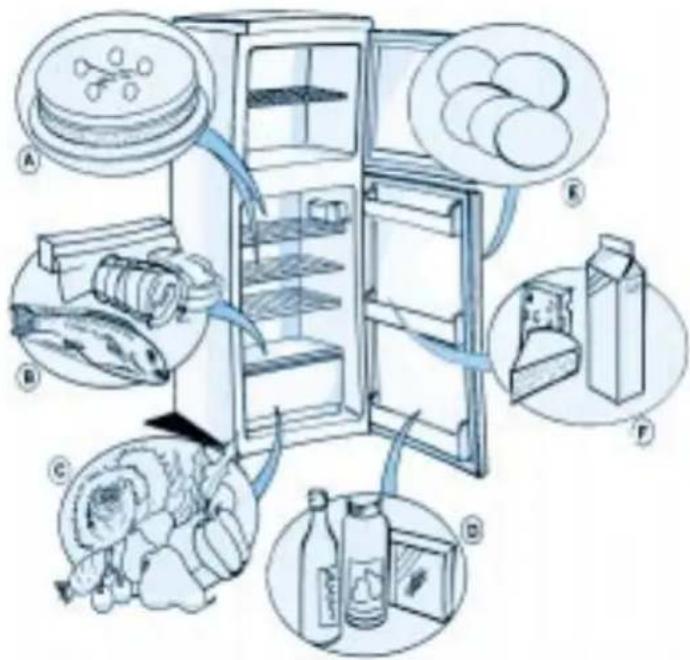

1. Filltherefrigeratorasillustratedintheadjacent figure:

A.Cookedfood

B.Meatandfish

C.Fruitandvegetables

D.Bottles

E.Eggs

F. Butter, cheese etc.

Notes:

• Aircirculatesfreelybetweentheshelvesand backwalloftherefrigeratorinterior.
• Donotstorefoodagainstthebackwalloftherefrigeratorcompartment.
• Donotstorewarmfoodintherefrigerator compartment.
• Storeliquidsinclosedcontainers.
• Thestorageofgreenswithahighwatercontent maycausecondensationtoforminsidethe bottomdrawer.Thisisquitenormalhowever, andinnowayimpairsrefrigeratorperformance.

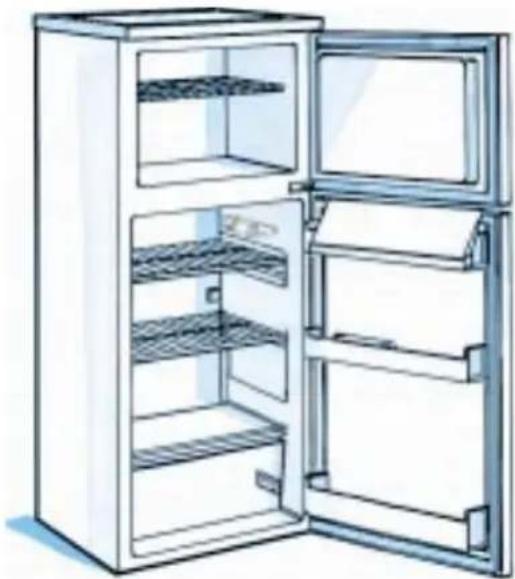

Illustration of a double refrigerator with open doors and internal shelves (no text or symbols)

Diagram illustrating the internal components of a refrigerator with labeled parts including oven, milk carton, and food items.

• Aluminiumfoil, clingfilm, airandwater-tight plasticbags, polythenecontainers with lids or specialfreezer containers.
• Thefreezercompartmentisabletomaintain correctstoragetemperatureseveninthecase ofpowerfailure.Ifthisisthecase,donot openthefreezerdooruntilpowerisrestored.

Important

Refertothead adjacent table for fresh food storagetimes (months).

When you purchase frozen food, make sure:

• Thepackagingisundamaged(frozenfoodin damagedpackagingmayhavedeteriorated). Ifthepackagebulgesorismarkedbyliquid stains,theproducthasnotbeencorrectly storedandmayhavepartiallythawed.
• Whenshopping, leave frozen food purchases until last and transport items in insulated bags.
• Placeitemsinthefreezerassoonasyouget home.
• Iffoodhaspartiallythawed, donotrefreeze. Consumewithin24hours.
• Avoidsubjectingfrozenfoodstotemperature variations. Observethe "Bestbeforedate" on the packaging.
• Alwaysobservethestorageinformationon packages.

Makingicecubes

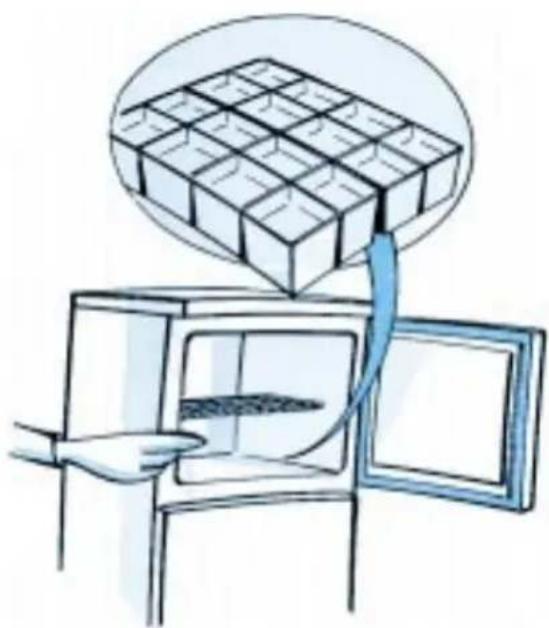

- Filltheicecubetraythreequartersfullwith waterandplaceinthebottomofthefreezer compartment. Iftheicecubetraystickstothebottomofthe compartmentdonotusepointedorsharp instrumentstodetachthem.

Illustration of a fish-shaped object above an open refrigerator with a side shelf (no text or symbols)

2-3
4-6
6-8
10-12

Illustration of a hand inserting a grid into a microwave oven with an arrow indicating the process (no text or symbols)

HOWTODEFROSTANDCLEANTHEFREEZERCOMPARTMENT

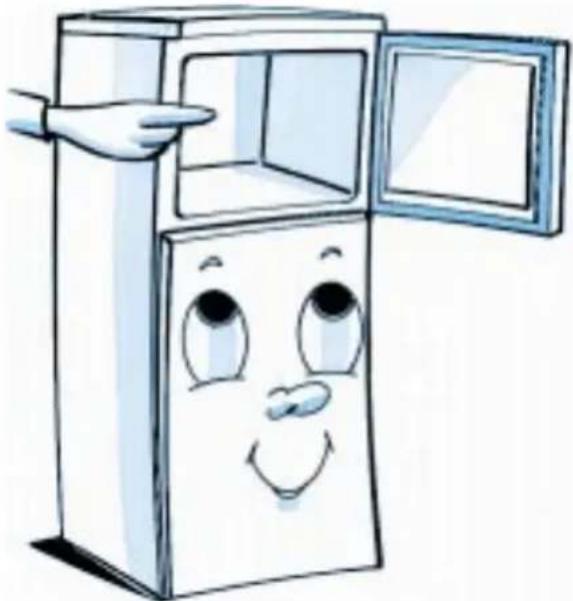

Werecommenddefrostingthefreezer compartmentonceortwiceayearwhen icehasbuiltuptoabout3mmonthe wallsandwhenthefreezercontentsarelow.

1. Open the door, remove the food from the freezer, wrap in paper and pack together in an insulated bag or cool part of the house.

2. Unplugtheappliance.

3.Leavethedooropentoallowtheiceonthe freezerwallstothaw.

1. Removethedefrostwaterfromthebottom ofthefreezercompartment.

2. Cleanwithaspongesoakedinasolutionof lukewarmwaterandneutraldetergent. Donotuseabrasiveproducts.

6.Rinseanddrythoroughly.

●Note: To avoid irreparable damage to the freezer compartment, donotuse pointedor sharp metal instrument to scrape office or heat the compartment artificially.

Cartoon illustration of a smiling open refrigerator with eyes and a mouth, held by a hand (no text or symbols)

HOWTOCLEANTHEREFRIGERATORCOMPARTMENT

Regularlycleantherefrigerator compartment.Therefrigerator compartmentdefrostsautomatically.

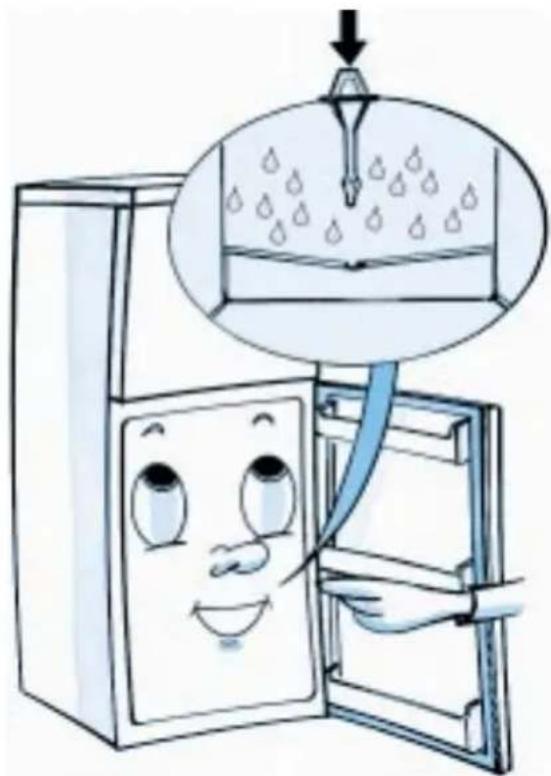

Theformationofwaterdropletsontheback walloftherefrigeratorcompartmentindicates thattheautomaticdefrostingcycleisunderway. Thedefrostwaterischannelledtoarun-offand collectedinacontainerwhereitevaporates. Keeptherun-offchannelcleanusingthespecial toolsupplied.Thisensuresthatdefrostwateris drainedefficiently.

Beforecleaningtheappliance,unplugitfrom themains.

●Cleantherefrigeratorinteriorwithasponge soakedinasolutionoflukewarmwaterand/orneutaldetergent.

●Rinseanddrythoroughlywithasoftcloth. Donotuseabrasiveproducts.

Illustration of a smiling refrigerator with water droplets inside, connected to an open refrigerator via a piping bag (no text or symbols)

CAREANDMAINTENANCE

Built-inappliances

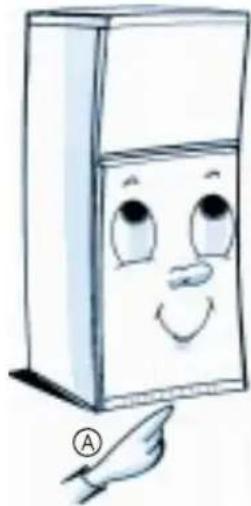

●Regularlycleantheairventsusingavacuum cleanerorbrush(seefigure Ⓐ).
●Cleantheexteriorwithasoftcloth.

Free-standingappliances

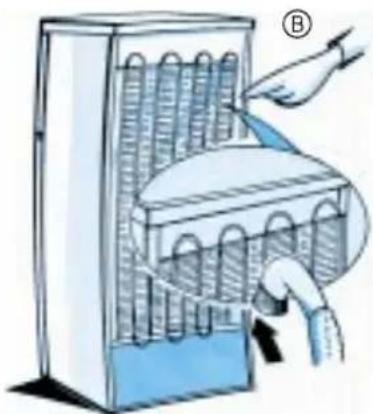

●Regularlycleanthecondenserattherearof theapplianceusingavacuumcleaneror brush(seefigure ⑧).

PROLONGEDDISUSE

1. Emptytherefrigeratorandfreezer compartments.
   2.Unplugfromthemains.
2. Defrostthefreezercompartmentandclean anddrytheinteriorofbothcompartments.
   4.Leavethedoorsopentopreventthe formationofunpleasantodours.

Cartoon illustration of a smiling refrigerator with eyes and nose, pointing at a leaf (no text or symbols)

Illustration of a hand inserting a component into a device with a dome-shaped top (no text or symbols)

TROUBLESHOOTINGGUIDE

1. The appliance does not work

●lsthereapowerfailure?
●Istheplugproperlyinsertedinthesocket?
●Isthetwo-polecircuitbreakerconnected
●Hasthefuseblown?
●Isthepowercabledamaged?
●Isthethermostatsetonposition●?

2. Thetemperatureinsidethe compartmentsisnotcoldenough

●Dothedoorscloseproperly?
●Istheapplianceinstallednearaheatsource?
●Isthethermostatcorrectlyset?
●Isaircirculationinhibited?

3. Therefrigeratorcompartment temperatureistoocold

●Isthethermostatcorrectlyset?

4. Watercollectsinthebottomofthe refrigeratorcompartment

●Isthedefrostwaterrun-offclogged?

5.Theinternallightdoesnotwork

Refertopoint1 and then:
●Unplugtheappliancefromthemains.
●Followtheinstructionsanddrawinginthe enclosedtabletogainaccesstothebulb.
- Checkthebulband,ifnecessary,replace. Donotuseabulbwhichexceeds15W.

Note:

●Theedgeoftherefrigeratordoormay behot. Thisisnotafaultbutisintended topreventtheformation of condensation.
●Gurglingnoisesetc.insidethe refrigeratingcircuitarequitenormal.

AFTERSALESSERVICE

Beforecontactingouraftersalesservice:

1. Trytoremedytheproblem(see "Troubleshootingguide").

2.Restarttheappliancetoseeifthefault repeats. Ifthemalfunctionpersists,switchoffthe applianceandswitchonagainafteranhour.

1. If themalfunctionstill persists, contactour CustomerService, specifying:

●thenatureoftheproblem

●theappliancemodel

●TheServicenumber(thenumberafterthe wordSERVICEontheratingplatelocatedon thesideofthefruitandvegetabledrawer).

-Yourfulladdress

- Yourtelephonenumbercompletewitharea code.

Cartoon character illustration with blue hair and a bandage (no text or symbols)

Note: Dooropeningdirectionchanges effected by your Customer Service are not covered by the term so guarantee.

INSTALLATION

• Donotinstalltheapplianceinthevicinityofa heatsource.
  ●Installtheapplianceinadryandwell ventilatedroom.
  ●Makesurethereissufficientclearanceabove andbelowtherefrigeratortoensurefreeair circulation.
• Cleantheapplianceinterior(see"Howtoclean therefrigeratorcompartment").
  ●Mounttheaccessories.

ELECTRICALCONNECTION

●Electrical connections must be made in accordance with local regulations.
●Voltageandpowerconsumptioninformationis shownontheratingplateonthesideofthe fruitandvegetabledrawer.
●Theappliancemustbeearthedas prescribedbylaw. Themanufacturer declinesallliabilityforinjurytopersons andanimalsordamagetoproperty resultingfromfailuretocomplywiththis requirement.
- If the appliance plug and wall socket are incompatible, the socket must be replaced by a qualified electrician.
- Donotuseextensionleadsormultiple adaptersetc.

FREE-STANDINGAPPLIANCES

(only)

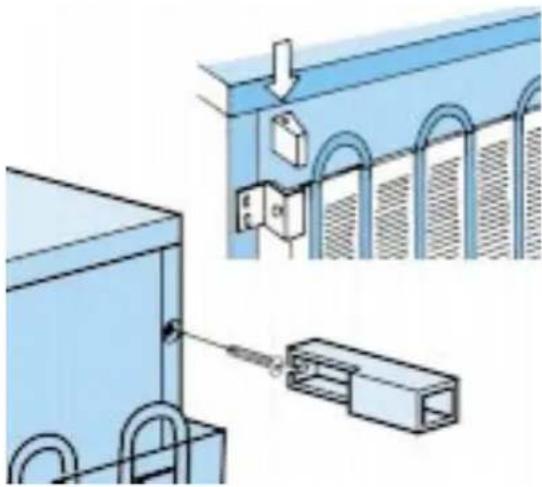

●Mountthespacers(ifprovided)ontheback ofthecondenserbehindtheappliance(see figure).
-Forbestperformance,leaveaclearanceofat least5cmabovetheapplianceandenough space between the appliance and adjacentfurnituretoallowairtocirculate.
●Makesuretheapplianceisperfectlylevel and if necessary, adjust the front

ELECTRICALDISCONNECTION

●Disconnecttheappliancefromthemainsby removingtheplugordisconnectingthetwo-polecircuitbreakerupstreamofthesocket.

Diagram showing a mechanical assembly with a bracket and a close-up of a housing or enclosure (no text or symbols present)
